Aberrant EVI1 splicing contributes to EVI1-rearranged leukemia

Acute myeloid leukemia (AML) with inv(3)(q21q26) or t(3;3)(q21q26) is recognized by the World Health Organization as a unique subtype of AML (henceforth referred to as “inv(3)/t(3;3) AML”),¹ which has a dismal median overall survival (OS) of <1 year after diagnosis.^2-5 This same genomic alteration is also occasionally encountered in patients with myelodysplastic syndromes (MDS), where it is similarly associated with short survival.^4,6 Given the poor outcome of inv(3)/t(3;3) MDS/AML, there have been extensive efforts to dissect the genomic and epigenomic events that give rise to this aggressive disease. Recent efforts have identified that inv(3)/t(3;3) chromosomal rearrangements reposition the GATA2 enhancer from its normal location at 3q21 to drive ectopic expression of the EVI1 proto-oncogene from within MDS1 and EVI1 complex locus (MECOM) at 3q26 (supplemental Figure 1A, available on the Blood Web site). Intergenic splicing of MDS1 and EVI1 normally results in expression of an MDS1-EVI1 transcript from MECOM, but in patients with inv(3)/t(3;3) chromosomal alterations, the full-length MDS1-EVI1 transcript is no longer expressed, and there is monoallelic expression of GATA2.^7,8

EVI1 encodes a transcription factor that is indispensable for hematopoiesis and contains 2 zinc finger (ZF) DNA binding domains, one at the N-terminus and the other at the protein’s C-terminus, which includes 7 and 3 ZFs, respectively. In contrast to our understanding of the pathogenic consequences of inv(3)/t(3;3) chromosomal rearrangements, the role of genomic alterations coexisting with inv(3)/t(3;3) is less well understood. For example, monosomy 7 and mutations in RUNX1, IKZF1, and RAS pathway genes (NRAS, KRAS, PTPN11, and NF1)^5,9-11 are known to occur in inv(3)/t(3;3) AML. However, the specific contribution of additional genomic events to inv(3)/t(3;3) leukemia is not clear.

Here, we identify that mutations in the core RNA splicing factor SF3B1 are the most common coexisting genetic alterations among patients with inv(3)/t(3;3) MDS and AML. Introduction of mutant SF3B1 in mice bearing the humanized inv(3)(q21q26) allele hastened leukemogenesis. Surprisingly, mutant SF3B1 resulted in the generation of a novel isoform of EVI1, which alters its second ZF domain and promotes oncogenicity in vivo. This particular oncogenic EVI1 isoform is an unannotated novel transcript and is expressed in nearly one-third of patients with inv(3)/t(3;3) MDS and AML. These data thereby elucidate a mechanistic basis for the frequent cooccurrence of SF3B1 mutations in inv(3)/t(3;3) leukemias, identify a novel previously unknown oncogenic form of EVI1, and delineate a role for pathologic splicing in inv(3)/t(3;3) AML.

Studies were also approved by the institutional review boards of Memorial Sloan Kettering Cancer Center (MSKCC) and The Medical Ethical Committee of the Erasmus MC and conducted in accordance with the Declaration of Helsinki protocol. Informed consents were obtained from all human subjects. Next-generation sequencing was performed on DNA extracted from bone marrow (BM) mononuclear cells and matched normal from fingernails. Patient samples were sequenced with MSK-IMPACT targeted sequencing panel, with somatic mutations (substitutions and small insertions and deletions), gene-level focal copy number alterations, and structural rearrangements detected with a clinically validated pipeline as previously described.^12,13 All patients with myeloid neoplasms (AML, MDS, chronic myelomonocytic leukemia, and blast-phase chronic myeloid leukemia) and inv(3)/t(3;3) were identified from the electronic medical record and included in this study if next-generation sequencing data were available.

All animals were housed at MSKCC and at Foundation for Biomedical Research and Innovation (FBRI, Japan) using a 12-hour light/12-hour dark cycle and with ambient temperature maintained at 72°F ± 2°F (∼21.5°C ± 1°C) with 30% to 70% humidity. All animal procedures were completed in accordance with the Guidelines for the Care and Use of Laboratory Animals and were approved by the Institutional Animal Care and Use Committees at MSKCC and FBRI. All mouse experiments were performed in accordance with a protocol approved by the MSKCC (11-12-029) and FBRI (18-06) Institutional Animal Care and Use Committee. Mx1-Cre and Sf3b1^K700E mice were obtained from The Jackson Laboratory and were previously generated, respectively.¹⁴ inv(3)(3q21q26) mouse strain (RBRC09508) was provided by RIKEN BRC through the National BioResource Project of the MEXT/AMED, Japan.⁷ All of the primers and polymerase chain reaction (PCR) conditions are listed in supplemental Table 1.

HEK293T and PlatE cells were obtained from American Type Culture Collection (Manassas, VA) and Toshio Kitamura (University of Tokyo) and cultured in Dulbecco’s modified Eagle medium with 10% fetal bovine serum (FBS). K562, MEL270, MOLM-1, Kasumi-3, HNT-34, and 5637 cells were cultured in RPMI 1640 with 10% FBS. Kasumi-4 cells were cultured in RPMI 1640 with 20% FBS and 10 ng/mL granulocyte-macrophage colony-stimulating factor (AF-300-03, PeproTech). YCU-AML1 cells were cultured with OP-9 in Iscove's modified Dulbecco's medium with 10% FBS, 55 µM β-mercaptoethanol (Sigma-Aldrich) and 20 ng/mL granulocyte-macrophage colony-stimulating factor (PeproTech). MUTZ-3 cells were cultured in α minimum essential medium (with ribo- and deoxyribonucleosides)/20% FBS and 20% conditioned medium of cell line 5637. All cell culture media include 100 U/mL penicillin and 100 μg/mL streptomycin (Gibco).

K562 parental and K562-SF3B1^K666N/WT cells were seeded into a 12-well plate with culture medium 48 hours before transfection of minigene constructs (more details are provided in supplemental methods) in the presence of X-tremeGENE HP DNA transfection reagent (Roche) according to the manufacturer’s directions. Forty-eight hours after transfection, cells were collected, and RNA was extracted using RNeasy mini kit (Qiagen). Extracted RNA was treated with DNase I (Ambion) to ensure complete removal of DNA. Minigene-derived and endogenous EVI1 transcripts were analyzed by reverse transcription (RT)-PCR using specific primers (supplemental Table 1).

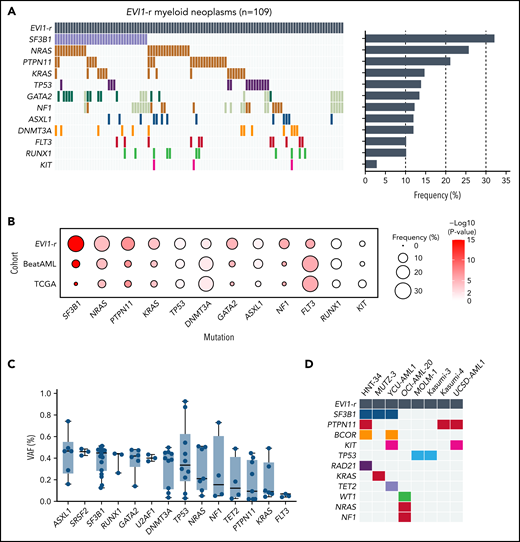

Prior genomic analyses of cohorts of patients with inv(3)/t(3;3) myeloid neoplasm identified a number of genomic rearrangements coexisting with inv(3)/t(3;3) rearrangement.^10,11 To further evaluate the landscape of genomic alterations within inv(3)/t(3;3) myeloid neoplasms, we compiled prior cohorts of genomic analysis of patients with inv(3)/t(3;3) myeloid neoplasm (n = 63 patients from the Dutch-Belgian Cooperative Trial Group for Hematology-Oncology/the German-Austrian AML Study Group, Leucegene, and BeatAML)^10,11,15 with a previously unpublished cohort of 46 patients with inv(3)/t(3;3) myeloid neoplasm (supplemental Table 2). Interestingly, this revealed that the single most commonly mutated gene in patients with inv(3)/t(3;3) myeloid neoplasm was the core RNA splicing factor SF3B1 (Figure 1A), although RAS pathway mutations (NRAS, PTPN11, KRAS, and NF1) as a group in aggregate (present in 63 out of 109 patients [57.8%]) are more frequent than mutations in SF3B1. SF3B1 mutations were present in 32.1% of patients and located at hotspot residues in HEAT repeat domains, such as K700 and K666 (supplemental Figure 1B).^16,17 In contrast to the high frequency of mutations in SF3B1 within EVI1-rearranged myeloid neoplasms, mutations in SRSF2 or U2AF1 were not uniquely enriched among EVI1-rearranged AML combined with overall patients with AML from TCGA/BeatAML cohorts (6.52% vs 8.03% in SRSF2 mutation [P = .6126], 6.52% vs 4.33% [P = .4485] in U2AF1 mutation).^15,18 RNA splicing factor mutations were mutually exclusive in our MSKCC cohort except for 1 patient harboring SF3B1-K666R (variant allele frequencies [VAFs] = 47.1%) and SRSF2-P95H (VAF = 42.4%).

This high frequency of SF3B1 mutations within inv(3)/t(3;3) AML was particularly conspicuous because SF3B1 mutations are most commonly enriched in patients with myeloid leukemia with MDS with ringed sideroblasts (MDS-RS) (65%-81%),^16,17,19-21 whereas they are relatively rare in AML (∼4%).²² Indeed, compared with mutational analyses of AML cohorts without chromosome 3 alterations,^15,18 inv(3)/t(3;3) AML was characterized by a remarkably higher rate of mutations in SF3B1 (P = 1.16 × 10⁻¹⁷), RAS-associated pathway genes, and GATA2. On the other hand, EVI1-rearranged (EVI1-r) AML exhibited lower rates of mutations in FLT3 and DNMT3A, when compared with AML without EVI1-r (Figure 1B). In contrast to RAS-associated pathway mutations, SF3B1 mutations tended to contribute to the founder clones in most patients with SF3B1-mutated EVI1-r myeloid based on the relative VAFs (median VAF of SF3B1 mutations in inv(3)/t(3;3) samples was 0.448) (Figure 1C). Interestingly, across all inv(3)/t(3;3) human AML cell lines (HNT-34, Kasumi-3, Kasumi-4, MOLM-1, MUTZ-3, OCI-AML20, and UCSD-AML1, and YCU-AML1), 3 of 8 of these lines contain a well-described heterozygous SF3B1 hotspot mutation (Figure 1D; supplemental Tables 3 and 4). In fact, these 3 cell lines (HNT-34, MUTZ-3, and YCU-AML1) represent the only known AML cell lines with naturally occurring SF3B1 mutations. Moreover, in the analysis of correlations across all pairwise combinations among 12 frequently mutated drivers, inv(3)/t(3;3) AML exhibited a distinct pattern of positive and negative correlations relative to that in patients with whole MDS/AML (supplemental Figure 1C).²³ For example, SF3B1 is significantly comutated with GATA2 within inv(3)/t(3;3) myeloid neoplasms, whereas this correlation was not detected in wider MDS/AML cohorts.²³ These results highlight a unique enrichment of SF3B1 mutations in inv(3)/t(3;3) AML compared with other AML subtypes. In our MSKCC cohort, we found no significant difference between SF3B1-mutated and wild-type (WT) patients in OS from the time of inv(3)/t(3;3) detection (188 vs 179 days; hazard ratio 0.83 [0.41-1.69]). Moreover, OS from the time of initial disease diagnosis was comparable (520 vs 366 days; hazard ratio 0.63 [0.31-1.27]) (supplemental Figure 1D).

Given the recurrent nature of SF3B1 mutations in inv(3)/t(3;3) AML, we hypothesized that spliceosomal alterations are important in the development of inv(3)/t(3;3) myeloid malignancies. We therefore set out to test this hypothesis by generating a mouse model permitting time- and tissue-specific induction of mutant Sf3b1 in the presence of the human inv(3)(q21q26) allele. This was accomplished by generating Mx1-Cre Sf3b1^K700E/WT inv(3)(q21q26) mice (along with single-mutant and WT control mice; Figure 2A). We used transgenic mice harboring a human bacterial artificial chromosome encompassing the human inv(3)(q21q26) allele⁷ (hereafter referred to as “inv(3) mice”) (supplemental Figure 1A) and crossed these animals to mice with conditional knock-in of mutant Sf3b1 K700E.¹⁴ We thereby generated animals with 4 different genotypes: Mx1-Cre control, Mx1-Cre inv(3), Mx1-Cre Sf3b1^K700E/WT, and Mx1-Cre inv(3) Sf3b1^K700E/WT.

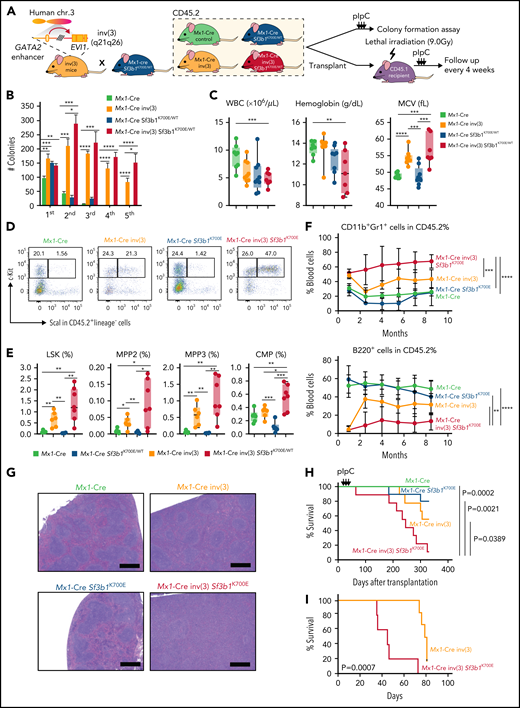

We first evaluated the impact of mutant SF3B1 on the clonogenic capacity of inv(3)(q21q26) hematopoietic cells. We collected whole BM cells 4 weeks after polyinosinic-polycytidylic acid (pIpC) injection and evaluated colony formation in methylcellulose media optimized for each hematopoietic lineage (Figure 2B). Hematopoietic cells from either Mx1-Cre inv(3) or Mx1-Cre inv(3) Sf3b1^K700E/WT mice produced virtually no BFU-E erythroid progenitor or pre-B lymphoid progenitor colonies (supplemental Figure 2A). In contrast, these BM cells enhanced the clonogenic capacity of myeloid progenitors. Although both were replatable into the fifth round, Mx1-Cre inv(3) Sf3b1^K700E/WT produced more colonies in the second and fifth platings than inv(3) mice alone.

We next evaluated the cell-autonomous effects of hematopoietic stem cells from each mouse model by performing BM transplantation assays into lethally irradiated CD45.1 recipient mice (Figure 2A). After confirming successful engraftment, we treated recipient mice with pIpC 4 weeks after transplantation. Interestingly, inv(3) Sf3b1^K700E/WT double-mutant mice exhibited significant leukopenia and macrocytic anemia compared with either mutation alone (Figure 2C; supplemental Figure 2B). However, 6 months after pIpC injection, hematopoietic stem and progenitor cell (HSPC) fractions, including LSK (Lin⁻c-Kit⁺Sca1⁺), multipotent progenitors 2/3 (MPP2/3; CD135⁻CD150⁺CD48⁺LSK and CD135⁻CD150⁻CD48⁺LSK, respectively), and common myeloid progenitors (Lin⁻c-Kit⁺Sca1⁻CD34⁺FcγR⁻) (Figure 2D-E; supplemental Figure 2C), were significantly expanded in the double-mutant model, suggesting ineffective hematopoiesis. In the peripheral blood, myeloid-lineage skewing was observed at the expense of B-cell commitment, which was most significant in inv(3)/Sf3b1 double-mutant mice (Figure 2F). In addition to splenomegaly, histological and morphological analysis of BM and spleen cells in the double-mutant mice revealed hypercellularity, destruction of normal architecture, morphological abnormalities, and frequent immature blasts with slight differentiation toward myeloid lineage (Figure 2G; supplemental Figure 3). As a result, Mx1-Cre inv(3) Sf3b1^K700E/WT mice had hastened death owing to MDS and AML (supplemental Figure 2D-E) even when compared with Mx1-Cre inv(3) (P = .0389) (Figure 2H). Moreover, serial transplantation of double-mutant mouse cells led to more rapidly lethal leukemia vs inv(3) leukemia cells alone (Figure 2I). These results indicate that the SF3B1 mutation enhanced and accelerated inv(3)-associated myeloid malignancies in a genetically accurate murine model.

A series of studies reported significantly lower peripheral blood chimerism derived from Sf3b1^K700E/WT mouse hematopoietic precursors in competitive transplantation,^14,24 suggesting that SF3B1 mutations impair cell-autonomous repopulating when present alone. We therefore evaluated the in vivo self-renewal of Mx1-Cre control, Mx1-Cre inv(3), Mx1-Cre Sf3b1^K700E/WT, and Mx1-Cre inv(3) Sf3b1^K700E/WT models by performing BM competitive transplantation assays. Equal numbers of CD45.2⁺ BM cells from each of these models were mixed with CD45.1⁺ WT BM cells and injected into lethally irradiated CD45.1 recipient mice (supplemental Figure 4A). Five months later, whole BM cells of each group were serially transplanted into new CD45.1⁺ recipient mice to determine the further reconstitution capacity. Interestingly, in stark contrast to the near-complete loss of hematopoiesis in Mx1-Cre Sf3b1^K700E/WT mice, the inv(3) transgene rescued the impaired in vivo clonogenic capacity of Sf3b1-mutated HSPCs, especially in secondary transplant (supplemental Figure 4B). This was associated with rescued chimerism of myeloid-lineage cells in the BM as well as stem and progenitor cells in BM 5 months following primary transplantation. In line with the results of in vitro colony-forming assay, no rescue was observed in B220⁺ cells (supplemental Figure 4C-D).

We next performed RNA-seq analyses of mouse and human leukemias to identify the impact of inv(3) and SF3B1 mutations alone and together on splicing and gene expression. RNA-seq analysis of fluorescence-activated cell sorter–purified lineage-negative c-Kit⁺ cells of the mouse models described above was performed 2 months after pIpC injection, in biological triplicate for each model. Unsupervised hierarchical clustering analysis, using Euclidean distance and Complete linkage method, revealed that transcriptomes of lineage-negative c-Kit⁺ cells from Mx1-Cre inv(3) and Mx1-Cre inv(3) Sf3b1^K700E/WT groups differed substantially from Mx1-Cre control and Mx1-Cre Sf3b1^K700E/WT groups, suggesting potent gene expression effects of the inv(3) transgene (Figure 3A). Similarly, principal component (PC) analysis revealed differences in the transcriptome of Mx1-Cre inv(3) and Mx1-Cre inv(3) Sf3b1^K700E/WT groups vs Mx1-Cre control Mx1-Cre Sf3b1^K700E/WT groups. PC1 accounted for 65% of the variance and defined the presence of the inv(3) transgene (Figure 3B). At the same time, PC2 clearly distinguished Mx1-Cre inv(3) Sf3b1^K700E/WT from Mx1-Cre inv(3), indicating that Sf3b1 mutant exerted additive gene expression effects on inv(3) HSPCs, which is consistent with the collaborative biological outcomes of double-mutant mice described above (Figure 2).

Differential gene expression analysis identified 6659, 2609, and 6796 genes dysregulated compared with control (Student t test, P < .01; fold change >2 or <0.5) in inv(3), Sf3b1^K700E/WT, inv(3) Sf3b1^K700E/WT mice, respectively. Interestingly, a large portion of differentially expressed genes in the inv(3) Sf3b1^K700E/WT group were shared with those of the inv(3) group rather than the Sf3b1^K700E/WT group (65.9%, 4481/6796 genes vs 22.3%, 1514/6796 genes) (Figure 3C). We identified significant enrichment for Gene Ontology (GO) and pathway terms reflecting the development of MDS/AML in inv(3)/Sf3b1 double-mutant mice, including MAP kinase, interferon, tumor necrosis factor-α, and NF-κB signaling as well as interleukin-6 activation (Figure 3D; supplemental Figure 5). Consistent with the results in Figure 3C, the dysregulated pathways and GO terms were mainly attributed to the effect of inv(3), especially in upregulated pathways (Figure 3D; supplemental Figure 5A).

In order to evaluate these findings in patient samples, we analyzed RNA-seq data of unfractionated BM mononuclear cells isolated from 7 SF3B1-mutant/EVI1-r, 5 SF3B1-WT/EVI1-r, 2 SF3B1-mutant, and 7 SF3B1-WT normal karyotype AML patient samples. In line with the mouse RNA-seq results (Figure 3C-D), in the presence of the EVI1-r, the SF3B1 mutation had limited impact on gene expression in terms of dysregulated pathways evaluated by using GO enrichment terms in the algorithm of Enrichr (https://maayanlab.cloud/Enrichr/) (Figure 3E). As such, a large proportion of differentially expressed genes in the SF3B1-mutant/EVI1-r group overlapped with those of the SF3B1-WT/EVI1-r patient samples (Figure 3E).

We next sought to identify aberrant splicing events associated with SF3B1 mutation and EVI1-r. Of note, the number of aberrantly spliced genes was largest in SF3B1-mutant/inv(3) patient samples where the majority of splicing changes could be attributed to the presence of the SF3B1 mutation (Figure 3F). Consistent with previous studies,^25,26 aberrant 3′ splice site (3′ss) usage was the most prevalent mis-splicing event in the SF3B1-mutant/inv(3) group (Figure 3G), although such effects were relatively modest in murine models (supplemental Figure 5B). These transcriptome analyses suggested cooperative effects of the SF3B1 mutation and inv(3) allele on aberrant splicing and gene expression, respectively.

As noted in prior studies,^24,27,28 despite striking similarities in global aberrant splicing patterns induced by SF3B1 mutants across diverse species, there was modest overlap in aberrantly spliced events in mouse vs human cells. Interestingly, however, we identified that human EVI1 itself was recurrently targeted in human SF3B1-mutant/inv(3) patient samples (Figure 4A).

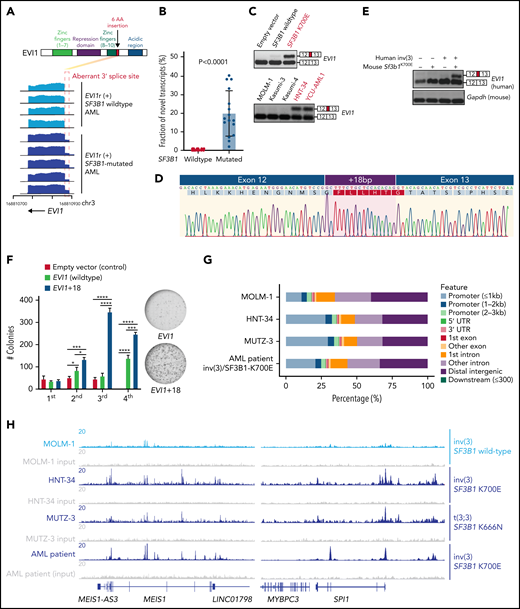

Intriguingly, the SF3B1 mutation was associated with aberrant 3′ss selection at the intron 12-exon 13 junction of EVI1 (NM_001105078.4), which encodes the C-terminal end of the second ZF domain of EVI1. EVI1 contains 10 ZFs that are arranged in 2 separate domains, each of which binds different consensus DNA sequences (Figure 4A).²⁹ This EVI1 mis-splicing event was exclusively observed in SF3B1-mutant myeloid malignancy patient samples and cell lines and present across SF3B1 hotspot mutations (Figure 4B; supplemental Table 5). For example, the inv(3)/t(3;3) AML cell lines HNT-34 and YCU-AML1 harboring SF3B1K700E heavily express this variant EVI1 isoform (Figure 4C).^30,31 Expression of several SF3B1 mutations (K700E, K666N, and G740E), but not WT SF3B1, into K562 cells similarly resulted in the aberrant EVI1 isoform generation (supplemental Figure 6A). Sanger sequencing of this isoform verified that this splice variant results in the introduction of 18 nucleotides inserted between exons 12 and 13 of the EVI1 transcript, at the very 3′ end of intron 12 (Figure 4D). This nucleotide insertion gives rise to an in-frame insertion of 6 amino acids (FLLHTG) (Figure 4D). This exact same +18 EVI splice variant was expressed in Mx1-Cre inv(3) Sf3b1^K700E/WT double-mutant mice, indicating that murine Sf3b1 mutant similarly induces aberrant 3′ss selection of human EVI1 contained within the bacterial artificial chromosome transgene recapitulating the inv(3)(q21q26) allele (Figure 4E; supplemental Figure 6B). Interestingly, a model structure by AlphaFold2,³² which predicts 3-dimensional protein structure from amino acid sequence using a deep learning system, revealed that the EVI1 + 18 splicing event introduces 6 amino acids immediately after the second ZF domain of EVI1 (supplemental Figure 6C). This change in protein sequence may alter DNA recognition by the second ZF domain. Hereafter, the newly discovered EVI1 (MECOM) splice variant will be referred to as “EVI1+18.”

We next sought to understand the biological effects of the aberrant +18 isoform and generated a pMYs-IRES-GFP retrovirus vector to express WT EVI1 (NM_001105078.4, EVI1-145 kDa) or EVI1+18 cDNA. Several studies have demonstrated that ectopic EVI1 expression in hematopoietic stem cells leads to increased colony output and immortalization in methylcellulose media,³³ which was confirmed by our experiments. Interestingly, however, EVI1+18 further enhanced proliferation capacity compared with WT EVI1 in colony formation assay (Figure 4F). We performed RNA-seq analysis of the fourth colonies and validated the dysregulated genes by quantitative RT-PCR. This revealed prominent upregulation of Hes1, Meis1, Bcl11a, and Cd34 in cells expressing the EVI1+18 isoform (supplemental Figure 6D). In addition, we observed a competitive advantage of EVI1+18 expressing HSPCs over WT EVI1-transduced HSPCs (supplemental Figure 6E-F). Consistent with these data, gene set enrichment analysis demonstrated that genes upregulated in leukemic stem cells are enriched in EVI1+18 transduced K562 cells compared with the EVI1 WT-expressing cells (supplemental Figure 6G). These results indicate that SF3B1-mutants generate a previously unknown EVI1 variant with enhanced self-renewal capacity.

To test if EVI1-r/SF3B1-mutated AML cells depend on the aberrant splicing machinery, we evaluated the 50% inhibitory concentration of EVI1-r cells with or without SF3B1 mutation to indisulam, a selective degrader of the RNA splicing factor RBM39.³⁴ Of note, 3-day dose-response experiments revealed that HNT-34 and MUTZ-3, both of which harbor SF3B1^K700E/EVI1r, were sensitive to indisulam compared with SF3B1 WT/EVI1-r cell lines, Kasumi-3 and K562 cells with t(3;8),³⁵ as well as SF3B1 WT/EVI1 WT cell lines (K562) (supplemental Figure 7). These data suggest that spliceosomal disruption may be therapeutically effective against EVI1-rearranged AML with SF3B1 mutations.

Given the altered second ZF domain of EVI1 + 18, we next sought to evaluate the genomic distribution and transcriptional effects of this EVI1 isoform compared with the most common annotated EVI1 isoform produced in inv(3) AML. To identify genome-wide binding preferences of EVI1 vs EVI1 + 18, we performed anti-EVI1 chromatin immunoprecipitation (ChIP)-seq using HNT-34 (SF3B1^K700E/EVI1-r), MUTZ-3 (SF3B1^K666N/EVI1-r), and MOLM-1 (SF3B1 WT/EVI1-r) cells, as well as 1 primary SF3B1^K700E/EVI1-r AML patient sample (Figure 4G). Leukemias with concomitant SF3B1 mutation and EVI1-r, but not the SF3B1 WT/EVI1-r cell line, expressed the EVI1+18 isoform (Figure 4C). Interestingly, we identified 5698 exclusive EVI1+18 peaks in SF3B1 mutant/EVI1-r cell lines but not in MOLM-1 (SF3B1 WT/EVI1-r) cells (supplemental Figure 8A). The majority of such peaks (5206 of 5698 peaks, 91.4%) were also detected in primary SF3B1^K700E/EVI1-r AML cells expressing EVI1+18, and nearly all are located at promoters. Of note, transcription factor enrichment analysis identified PU.1 (SPI1) motifs significantly enriched in EVI1 + 18-specific peaks (supplemental Figure 8B). Finally, we visualized these ChIP-seq results at several genes important for leukemic transformation, such as MEIS1 (Figure 4H; supplemental Figure 8C). Given that expression of Meis1, a crucial regulator of leukemogenesis,³⁶ was remarkably increased in the immortalized colonies with EVI1+18 (compared with those with EVI1 WT; supplemental Figure 6D), we speculate that the link between EVI1+18 and oncogenic transcriptional program contributes to leukemia development. We also performed ChIP-seq using exogenously EVI1- vs EVI1 + 18-expressing 293T cells (supplemental Figure 9A). In such a model, the genomic distributions of EVI1 and EVI1 + 18 were not strikingly different (supplemental Figure 9B-E) except for a limited number of regions, indicating that the transcriptional regulation by the endogenous promoter and cellular contexts may be important.

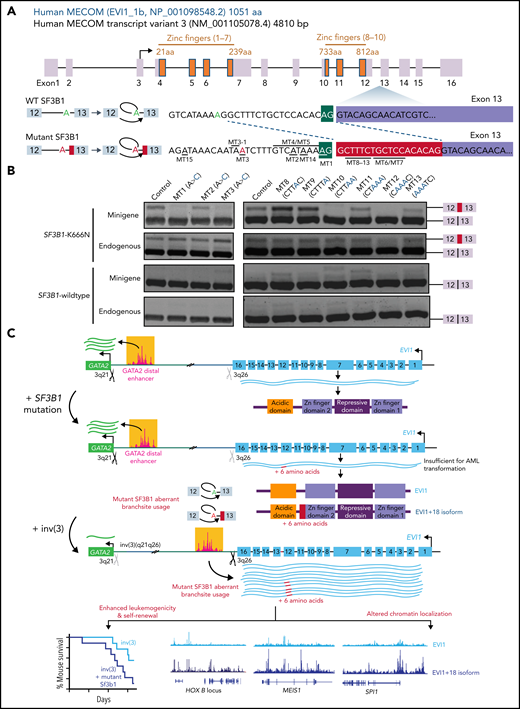

SF3B1, as part of the U2 small nuclear ribonucleoprotein complex, is responsible for recognition of the intronic branchpoint sequence (BPS), which facilitates 3′ss selection.^16,25 To identify cis-acting elements, including BPS, polypyrimidine tract, and exonic splicing enhancers (ESEs), required for EVI1 aberrant splicing by SF3B1 mutants, we generated a minigene construct containing the mis-spliced intron (intron 12) and flanking exons (exons 12 and 13).^37,38 We then mutagenized a variety of sequences within the minigene and transduced WT and mutant minigenes into SF3B1 WT and K666N knock-in K562 cells to identify those cis elements within EVI1 essential for aberrant splicing by mutant SF3B1 (Figure 5A). As expected, mutant SF3B1, but not WT SF3B1, induced the EVI1+18 variant in both the minigene-derived RNA and the endogenous RNA (Figure 5B). Disruption of the cryptic 3′ss eliminated the EVI1+18 isoform (this mutant minigene is noted as “MT1”). We then searched for potential cryptic branchpoints used by mutant SF3B1 by mutagenizing 2 adenines upstream of the cryptic 3′ss (MT2 and MT3 minigenes) and concluded that the adenine located at the −16 position upstream of the cryptic 3′ss was indispensable for EVI1+18 generation. We mapped branch sites by lariat-sequencing RNA derived from K562 cells with endogenous knock-in of the SF3B1 K700E mutation (supplemental Figure 10A). We sequenced 6 single colonies to detect branchpoints within this intron and found that the adenosine nucleotides corresponding to the regions at MT1 (3/6), MT2 (1/6), and MT3 (2/6) are used (supplemental Figure 10B). However, it is hard to exclude the possibility that an adjacent adenosine is never used as the branch site because the branchpoint is occasionally deleted or mutated during PCR. Indeed, we found that mutagenesis of the adenosine nucleotide immediately adjacent to MT3 (MT3-1 in Figure 5A, A>C) erased the +18 isoform (supplemental Figure 10C). We next investigated the role of the polypyrimidine tract in generation of this mutant form of EVI1. Although a polypyrimidine tract is not consistently observed upstream of an aberrant cryptic 3′ss, the forced introduction of a polypyrimidine tract upstream of the cryptic 3′ss or disruption of the canonical 3′ss’s polypyrimidine tract enhanced expression of the EVI1+18 by mutant SF3B1 (supplemental Figure 10D, MT4-7). Considering that altering the branchpoint affected generation of the EVI1+18 isoform more profoundly than altering the polypyrimidine tract, it is likely that SF3B1 mutants are less dependent on polypyrimidine tract sequences in inducing the aberrant 3′ss selection at this region of EVI1. This finding is similar to that seen with mutant SF3B1’s of BRD9 (supplemental Figure 10E).³⁷

Next, we sought to identify ESEs necessary for the production of the aberrant EVI1 transcript by mutant SF3B1. In our prior analyses of BRD9 mis-splicing by mutant SF3B1, we identified a “TTTCT” sequence as a cryptic ESE within BRD9 exclusively used by mutant SF3B1.³⁷ Of note, the EVI1+18 variant also contained a “TTTCT” sequence close downstream of the 3′ss. Mutagenizing either 2 or 3 bases around this same sequence within EVI1 remarkably inhibited the production of EVI1+18 (Figure 5B, MT8-13). These results highlight the dependency of SF3B1 mutant-induced mis-splicing of EVI1 on cryptic BPS selection and a specific ESE. Moreover, we confirmed that AG to AA mutation at the 3′ss completely ablated the normal 3′ss in SF3B1-WT condition and promoted usage of the “AG” located at −18 bp upstream as an aberrant 3′ss as observed in SF3B1 mutated patients (supplemental Figure 10F-G). Finally, because there are annotated single nucleotide polymorphisms (SNPs) (c.2651-23A>G and c.2651-44A>G) near the 3′ss of intron 12 that may affect EVI1 splicing, we evaluated the impact of these SNPs using our EVI1 minigene (MT14 and MT15 in Figure 5A, respectively). This revealed that these SNPs modestly affected the splicing in the minigene reporter assay, suggesting that the SNPs in intron 12 may influence the generation of the EVI1+18 isoform (supplemental Figure 10G).

Although mutations in SF3B1 are heavily enriched in MDS-RS²¹ and there are accumulating data on the impact of SF3B1 mutations and their consequent mis-splicing in the aberrant erythropoiesis of MDS-RS,^14,24,39,40 specific roles for SF3B1 mutations in AML are not well explored. Here, we identify a strikingly high frequency of SF3B1 mutations in adverse myeloid malignancies with inv(3)/t(3;3). Although the pathogenic consequences of how chromosome 3 rearrangements alter the enhancer landscape of GATA2 and MECOM expression have been exquisitely dissected, here we make a novel observation that mutations in SF3B1 induce aberrant splicing of EVI1 itself and give rise to a novel oncogenic isoform of EVI1.

The splicing event within EVI1 reported here is distinct from any prior EVI1 or MECOM isoforms described previously. Although there have been extensive prior studies of global splicing alterations as well as individual mis-splicing events induced by mutations in SF3B1 in a variety of cell and cancer types,^{25,26,37,41-44} the current report is the first to report this novel unannotated splicing alteration within MECOM/EVI1. Most prior studies have focused on the impact of SF3B1 mutations on aberrant intron proximal 3′ss usage resulting in out-of-frame transcripts predicted to result in nonsense-mediated messenger RNA (mRNA) decay.^25,26,37 However, this study as well as several important studies on the impact of SF3B1 mutant mis-splicing on aberrant exon inclusion³⁷ and intron removal^26,44 highlights a diversity of functionally important splicing changes induced by mutant SF3B1.

Although this mis-splicing event in MECOM/EVI1 is present in SF3B1 mutant human cells lacking inv(3)/t(3;3) rearrangements, we believe that detection of EVI1 mis-splicing was facilitated in our studies by the uniquely elevated EVI1 mRNA expression created by the structural alteration of chromosome 3 studied here (Figure 5C). Although it is clear that expression of this EVI1+18 isoform from the endogenous inv(3) allele promoted leukemogenesis in vivo compared with expression of known EVI1 isoforms from the inv(3) allele, the contribution of the EVI1+18 isoform in cells without EVI1 rearrangement remains to be clarified. Although expression of the EVI1+18 isoform was seen in every inv(3)/t(3;3) rearranged patient with an SF3B1 mutation, we witnessed varying levels in the magnitude of expression of this unique EVI1 isoform.

Currently, it is unclear if the variation in the degree of EVI1+18 expression occurred due to differences in allelic frequency of SF3B1 mutations, the exact SF3B1 mutant residue, potential germline SNPs within EVI1 intron 12, and/or technical variability owing to leukemia cell purity. Use of emerging long-read RNA-seq technologies may be helpful in illuminating the exact full-length EVI1 isoforms created in the setting of inv(3)/t(3;3) AML and may even be applied to EVI1 isoform expression at the single-cell level.⁴⁵ It is also possible that structural rearrangements involving the GATA2 distal enhancer with distinct breakpoints could result in varying levels of EVI1 upregulation. This point will be important to study in future efforts focusing on cohorts of patients with EVI1 rearrangements paired with bulk and single-cell genomic data. Moreover, it will be important for future clinical studies involving larger numbers of patients with EVI1 rearrangements to dissect the clinical impact of coexisting SF3B1 mutations and presence of distinct EVI1 isoforms. Finally, given that SF3B1 mutations are often seen in the setting of clonal hematopoiesis,^46,47 it will be interesting to determine the order of acquisition of SF3B1 mutations and chromosome 3 structural rearrangements in future studies.

Combined expression of the SF3B1 mutation with the human inv(3) allele in mice enhanced myeloid lineage skewing, HSPC expansion, and leukemia development, supporting the notion that mutant SF3B1 gives rise to an additional cancer program within inv(3)-inducing leukemia. Evaluation of shared mis-splicing events across human inv(3)/t(3;3) SF3B1-mutant AML and our murine models consistently identified this shared EVI1 mis-splicing event. Importantly, mis-splicing of EVI1 was only seen in mice when the human EVI1 sequence was present in mutant SF3B1 mouse cells (as we believe differences in nucleotide sequence between mouse and human intron 12 precluded mis-splicing of mouse Evi1). Although our data do not eliminate the possibility that additional mutant SF3B1 mis-splicing events can contribute to inv(3)/t(3;3) leukemogenesis, ectopic expression of this EVI1+18 isoform enhanced self-renewal of HSPCs.

Mechanistically, the novel EVI1+18 appears to alter chromatin and/or DNA binding relative to WT EVI1 (Figure 5C). Structural predictions suggest the possibility that the additional 6 amino acids generated by the EVI1+18 splicing event may alter the function of the second ZF domain of EVI1.³² Interestingly, most monoallelic mutations within MECOM in patients with the MECOM-associated syndrome patients occur in the second ZF domain and many occur at this same splice site.⁴⁸ These observations suggest that mutations or mis-spliced forms of this ZF domain occur in multiple EVI1-associated diseases.

It is hoped future biochemical and structural studies of this EVI1 isoform will clarify the biophysical impact of the EVI1+18 on EVI1 function in more detail. For example, it is possible that this mis-splicing event or mutations in this domain of EVI1 may disrupt the secondary structure of the second Zn finger domain and/or interfere with zinc coordination. Overall, given the dismal outcome in patients with inv(3)/t(3;3) MDS and AML, the models developed here will be an important resource for future therapeutic and mechanistic studies, and this subtype of myeloid malignancy is in need of better outcomes.

Although our data suggested that spliceosomal inhibitors exert therapeutic effects on EVI1-r AML with SF3B1 mutations, there is debate on whether leukemia-associated mutations in RNA splicing factors drive disease development and/or maintenance owing to mis-splicing of key mRNAs and/or via impacts on cellular processes distinct from RNA splicing.^38,49 It will therefore be very exciting to use the SF3B1 mutant models here to study the impact of correcting the individual mis-splicing event in EVI1 as well as more global alterations in RNA splicing created by mutant SF3B1 using these models.
