TIGIT immune checkpoint blockade restores CD8⁺ T-cell immunity against multiple myeloma

Multiple myeloma (MM) is a largely incurable hematological cancer characterized by the expansion of malignant plasma cells in the bone marrow (BM) that secrete circulating monoclonal immunoglobulin proteins (M-proteins).¹  Immunotherapies are now being explored in MM and bring hope for a potential cure.²  Inhibitors of immune checkpoints have emerged as a powerful strategy to overcome tumor-induced immunosuppression.³  In particular, monoclonal antibodies (mAbs) blocking programmed cell death protein 1 (PD-1)–programmed cell death ligand 1 interaction have shown significant clinical efficacy in a number of malignancies.⁴  However, as a single agent, the anti–PD-1 mAb nivolumab failed to show efficacy in a cohort of 27 relapsed/refractory patients with MM,⁵  indicating that additional immune checkpoints might restrain immune responses against MM.

T-cell immunoglobulin and ITIM domains (TIGIT) is an inhibitory molecule expressed on lymphocytes that competes with the activating receptor DNAX-accessory molecule 1 (CD226) and the inhibitory receptors CD96 and CD112R for the binding of CD155 and CD112.^6,7  TIGIT recently emerged as an attractive target for cancer immunotherapy^8,9  and anti-TIGIT mAbs are currently being tested in phase 1 clinical trial in patients with advanced or metastatic tumors (www.clinicaltrials.gov; NCT02794571). In this study, we investigated the therapeutic potential of targeting TIGIT in MM.

C57BL/6 wild-type (WT) mice were purchased from the Walter and Eliza Hall Institute for Medical Research. C57BL/6 Tigit^−/− mice¹⁰  were kindly provided by Bristol-Myers Squibb. C57BL/KaLwRijHsd mice were kindly provided by Peter Croucher (Garvan Institute of Medical Research, Darlinghurst, Australia). Mice were bred and maintained at QIMR Berghofer Medical Research Institute and used when 8 to 20 weeks old. All experiments were approved by the QIMR Berghofer Medical Research Institute Animal Ethics Committee.

Experiments with Vk*MYC MM cell lines¹¹  (Vk12653 and Vk12598) and a 5TGM1 MM cell line¹²  were performed as previously described.¹³  For some experiments, mice were treated with blocking anti-TIGIT mAbs (4B1, Bristol-Myers Squibb) and anti–PD-1 mAbs (RMP1-14; Bio X Cell) or depleting anti-CD8β mAbs (53-5.8; Bio X Cell), as indicated.

All patients gave written informed consent and collection was approved by Institut Universitaire du Cancer de Toulous–Oncopole and the Centre Hospitalier Universitaire–Toulouse review boards. Fresh BM aspirates from patients with MM were collected at the time of diagnosis or relapse in the Institut Universitaire du Cancer de Toulous–Toulouse (France) were depleted of malignant plasma cells using anti–CD138-coated magnetic beads (Miltenyi Biotec, France). Fresh BM aspirates from healthy donors were purchased from Lonza.

CD138⁻ BM cells or sorted CD8⁺ T cells (MoFLo Astrios cell sorter, Beckman Coulter) were stimulated with anti-CD3/CD28/CD2 microbeads (T-cell activation/expansion kit, Miltenyi Biotec) or NY-ESO-1_157-165 analog (SLLMWITQA, Peptide 2.0 Inc, 1 μg/mL) with or without anti-TIGIT blocking mAbs (10 μg/mL, MBSA43, eBioscience). Intracellular cytokine staining was performed after 6 hours in the presence of antigen-presenting cell–conjugated anti-CD107a (H4A3, BD Biosciences) and GolgiPlug (BD Biosciences). Cytokine levels were measured in the cell culture supernatants by CBA (BD Biosciences) after 24 hours. Alternatively, cells were stained with Cell Trace Violet (CTV, Thermo Fisher Scientific) before anti-CD3/CD28/CD2 microbead stimulation followed by CTV dilution assessment 5 days later.

Single-cell suspensions were stained according to standard protocols with previously described anti-mouse antibodies,¹³  anti-mouse TIGIT (1G9), or anti-human CD3 (HIT3a), CD8α (SK1), CD45RA (HI100), CD62L (DREG-56), CD69 (FN50), CD107a (H4A3), TIGIT (MBSA43), LAG-3 (3DS223H), PD1 (EH12.1), CTLA-4 (BNI3), Tim-3 (7D3), anti–interferon-γ (IFN-γ [B27]), or anti–tumor necrosis factor-α (TNF-α [MAB11]). MM patient CD8⁺ T cells were stained with phycoerythrin-labeled HLA-A2/NY–ESO-1_157-165 (SLLMWITQA) multimers as described previously.¹⁴  Antibodies were purchased from eBioScience, BioLegend, or BD Biosciences. Data were collected with LSR Fortessa Flow Cytometer (Becton Dickinson) and analyzed with FlowJo (Tree Star).

Statistical analyses were performed with GraphPad Prism software using the indicated test. Data were considered to be statistically significant when P ≤ .05.

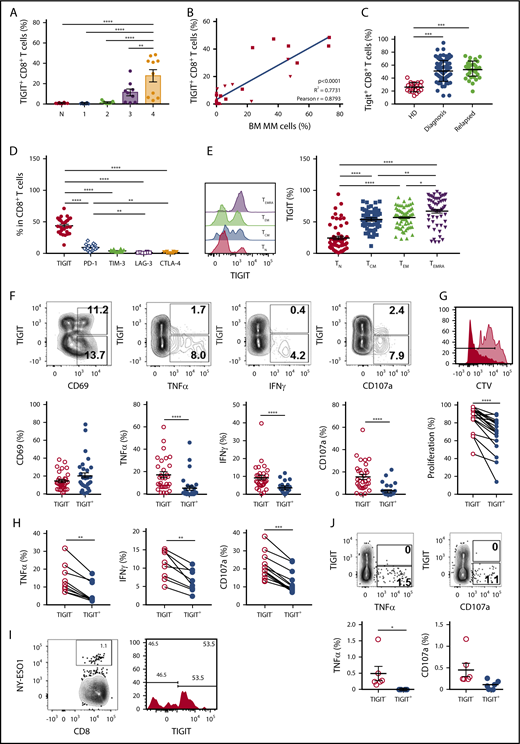

First, we analyzed TIGIT expression on immune cells in C57BL/6 WT mice. Although TIGIT was undetectable on BM CD8⁺ T cells in naïve mice, it was induced following challenge with Vk12653 MM cells and the percentages of TIGIT⁺ CD8⁺ T cells correlated with myeloma burden (Figure 1A-B). We also observed TIGIT expression on 30% to 40% of BM CD4⁺FoxP3⁺ Tregs in both naïve and MM-bearing mice, but TIGIT was undetectable on FoxP3⁻ CD4⁺ effector T and natural killer cells (data not shown). BM CD8⁺ T cells from newly diagnosed or relapsed patients with MM expressed higher levels of TIGIT than healthy donors (Figure 1C). By contrast, natural killer cells and CD4⁺ T cells expressed moderate levels of TIGIT (data not shown). Compared with other inhibitory molecules, TIGIT was more frequently expressed on MM patient CD8⁺ T cells (Figure 1D), suggesting that TIGIT represents a major immune checkpoint in MM. TIGIT was preferentially expressed on memory CD8⁺ T cells (Figure 1E) and was associated with higher PD-1, CD244, and KLRG1 and lower CD226 expression (data not shown). Of note, no correlation was observed between TIGIT and other inhibitory receptors CD96, CD112R, LAG-3, CTLA-4, or Tim-3 or its ligands CD155 and CD112 on human MM cells (data not shown).¹⁵  Altogether our observations suggest a role for TIGIT-CD155/CD112 interactions in MM pathology.

Next, we stimulated CD138⁻ BM cells from patients with MM with anti-CD3/CD28/CD2 microbeads and compared effector functions of TIGIT⁺ and TIGIT⁻ CD8⁺ T cells. Although CD69 expression revealed that both subsets were activated, TIGIT⁺ CD8⁺ T cells produced limited amounts of TNFα and IFNγ (Figure 1F). The terminally differentiated phenotype of TIGIT⁺ T cells in patients with MM and their decreased capacity to produce cytokines were reminiscent of the features of exhausted TIGIT⁺ CD8⁺ T cells previously reported in patients with acute myeloid leukemia¹⁶  However, in contrast with observations in acute myeloid leukemia,¹⁶  MM patient TIGIT⁺ CD8⁺ T cells also exhibited decreased CD107a expression, indicating poor killing capability (Figure 1F) as well as reduced proliferative capacity (Figure 1G). Similar results were obtained when TIGIT⁺ and TIGIT⁻ CD8⁺ T cells were sorted before stimulation, demonstrating that differences were not caused by modulation of TIGIT expression during the assay (Figure 1H). TIGIT⁺ and TIGIT⁻ populations were also present among NY-ESO-1 MM antigen-specific CD8⁺ T cells (Figure 1I), and TIGIT expression was again associated with reduced TNFα production of CD8⁺ T cells upon stimulation with NY-ESO-1 peptide (Figure 1J). Although these results demonstrate that a significant fraction of TIGIT⁺ CD8⁺ T cells within the BM of patients with MM have antimyeloma reactivity, we cannot firmly exclude that TIGIT upregulation on CD8⁺ T cells might be a more general phenomenon and the consequence of chronic exposure to inflammatory mediators frequently associated with myeloma development.^17,18  Still, these results establish that in MM, TIGIT expression defines a subset of exhausted CD8⁺ T cells with severely impaired effector function.

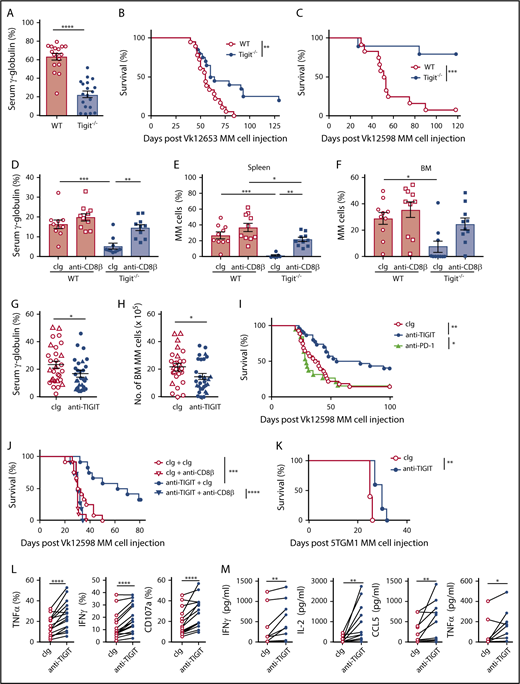

To investigate TIGIT’s role in MM pathogenesis in vivo, WT and Tigit^−/− mice were challenged with Vk12653 MM cells. After 6 weeks, M-protein levels were significantly higher in the sera of WT mice (Figure 2A); this was associated with improved survival of Tigit^−/− mice (Figure 2B). The advantage conferred by host TIGIT deficiency against MM was confirmed with another MM cell line, Vk12598 (Figure 2C). Interestingly, depletion of CD8⁺ T cells strongly increased MM burden in Tigit^−/− mice (Figure 2D-F), demonstrating that CD8⁺ T cells play a crucial role in the protection of Tigit^−/− mice against MM. Finally, we analyzed the therapeutic potential of blocking TIGIT function. Treatment with an anti-TIGIT mAbs significantly reduced tumor burden in an aggressive Vk12653 MM model (Figure 2G-H) and prolonged the survival of VK12598 MM-bearing mice in a CD8⁺ T cell–dependent manner (Figure 2I-J). This effect was significant compared with anti–PD-1 mAb therapy (Figure 2I) and comparable to what we had previously reported when targeting CD137 in the same MM model.¹³  Anti-TIGIT mAbs treatment was also efficient in the preclinical 5TGM1 MM model (Figure 2K) and in the context of stem cell transplantation.¹⁹  Moreover, mAbs blocking TIGIT function significantly improved cytokine production and degranulation of MM patient CD8⁺ T cells (Figure 2L-M).

In conclusion, this study highlights a predominant inhibitory role of TIGIT in anti-MM CD8⁺ T-cell responses. Our data demonstrate for the first time that blocking the TIGIT pathway prolongs survival in preclinical MM models and improves MM patients’ CD8⁺ T-cell functions, thereby providing a strong rationale for the evaluation of anti-TIGIT mAbs to treat MM.
