Histone deacetylase inhibition regulates inflammation and enhances Tregs after allogeneic hematopoietic cell transplantation in humans

Acute graft-versus-host disease (GVHD) remains a major contributor of nonrelapse mortality after allogeneic hematopoietic cell transplant (allo-HCT).¹  Its pathogenesis involves a complex network of interactions among alloreactive T cells, antigen-presenting cells (APCs), proinflammatory cytokines, and effector cells, leading to target organ injury in the host.²  In experimental models of allo-HCT, a histone deacetylase (HDAC) inhibitor (vorinostat) reduced proinflammatory cytokines³  through the induction of indoleamine-2,3-dioxygenase (IDO) in a signal transducer and activator of transcription 3 (STAT-3)-dependent manner^4,5  and increased regulatory T cells (Tregs)⁶  to attenuate GVHD. On the basis of these experimental observations, we recently performed a clinical trial of HDAC inhibition after allo-HCT that demonstrated significantly decreased acute GVHD without an increase in relapse.⁷  However, whether HDAC inhibition had a similar immunologic effect on inflammatory cell and Treg responses in humans is not known.⁸  In the present study, we explored the role of HDAC inhibition on inflammation, conventional T cells (Tconvs), and Tregs in patients from the clinical trial⁷  of vorinostat after allogeneic transplant.

Laboratory studies were conducted in 50 patients who underwent a clinical trial.⁷  Oral vorinostat was administered 10 days before the stem cell infusion and continued until day 100. Study patients were compared with patients who were similarly transplanted and given standard-of-care treatment but did not receive vorinostat (control cohort). Samples were collected under informed consents and institutional review board-approved research protocols.⁷  Research was conducted in accordance with the Declaration of Helsinki. No differences in clinical characteristics were observed between study participants and the control cohort (supplemental Table 1, available on the Blood Web site).

Histones and STAT-3 in peripheral blood mononuclear cells (PBMCs) were assessed by western blot, as previously described,⁷  using antibodies listed in the supplemental Methods.

Cytokine production was determined in plasma and PBMC supernatant samples by ELISA and in CD11c⁺ PBMCs by intracellular staining, as previously described.⁷

Routine absolute lymphocyte counts were performed in the Clinical Hematology Laboratory. To enumerate CD4⁺, CD8⁺, and Treg cells, PBMCs were stained using fluorochrome-conjugated antihuman monoclonal antibodies detailed in the supplemental Methods. To detect recent thymic emigrants (RTEs), PBMCs were identified using anti-human CD4, CD25, CD31, and CD45RA.⁹

Total cellular RNA was isolated from PBMCs, reverse-transcribed, and used for real-time polymerase chain reaction analysis of Foxp3 and IDO, using previously described methods and primer pairs.⁷

CD4⁺CD25⁺ Tregs and CD4⁺CD25⁻ Tconvs were sorted from PBMCs using the Regulatory T Cell Kit (Miltenyi Bioscience, Bergisch Gladbach, Germany). Genomic DNA was isolated and Treg-specific-demethylation region (TSDR) analysis performed as previously described.^9,10  Polymerase chain reaction conditions and specific primers pairs are listed in the supplemental Methods.

Tregs and Tconvs were isolated, as described earlier. Tregs were mixed at ratios of 1:4 and 1:8 with Tconvs and incubated with the presence of anti-CD3/anti-CD28 coated beads (Life Technologies, Grand Island, NY) for 72 hours. ³H-thymidine (1 μCi/well; NEN Life Sciences Products, Zaventem, Belgium) was incorporated by proliferating cells for the last 8 hours of incubation and was measured using a TopCount NXT Microplate Scintillation Counter (Perkin Elmer, Waltham, MA).

Samples from the study and control cohorts were compared using the Mann-Whitney nonparametric test. Comparison of paired samples from the same patient was made using the Wilcoxon matched-pairs signed rank nonparametric test. These statistical analyses were performed using GraphPad Prism 6.0 (GraphPad Software, Inc, La Jolla, CA). A 2-sided P-value of less than .05 indicated statistical significance.

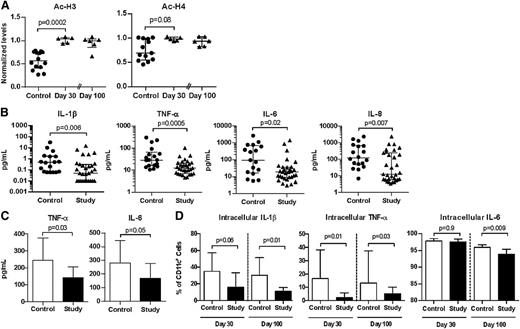

Administration of vorinostat increased H3 and H4 acetylation, confirming HDAC inhibition,^8,11  and these increases had prolonged effects without significant decline 100 days after transplant (Figure 1A; supplemental Figure 1). Because HDAC inhibition mitigated inflammation and reduced GVHD in preclinical models,^1-4,8  we explored the effect of vorinostat on inflammatory cell responses. Similar to preclinical observations, vorinostat-treated patients experienced significant reductions in the plasma levels of proinflammatory cytokines such as IL-1β, TNF-α, IL-6, and IL-8 14 days after transplant (Figure 1B). Interferon γ, IL-17, and IL-2 cytokines were also evaluated at this point. Although IL-17 was significantly reduced, interferon γ and IL-17 were not different between the study and control cohorts (supplemental Figure 2). We measured plasma cytokines 30 days after transplant and found significant reductions in TNF receptor-1 and IL-8 levels (supplemental Figure 3). Although plasma IL-6 levels were reduced in vorinostat-treated patients, statistical significance was not reached. IL-1β was also unchanged at day 30 between the 2 cohorts (supplemental Figure 3). Furthermore, we measured plasma biomarkers of GVHD 14 and 30 days posttransplant,^12,13  such as regenerating islet-derived 3-α, suppressor of tumorigenicity 2, IL-2Rα, hepatocyte growth factor, and Elafin (supplemental Table 2). We did not find a clear correlation with clinical outcomes, which we speculate may have been a result of the conditioning regimen (reduced intensity) and the small number of patients who developed GVHD in our study.⁷

HDAC inhibition also reduced the release of proinflammatory cytokines by PBMCs ex vivo in response to lipopolysaccharide (Figure 1C) and by CD11c⁺ after PMA/ionomycin stimulation of bulk PBMCs (Figure 1D). These observations of reduced proinflammatory cytokines in the presence of HDAC inhibition are also consistent with other studies.^14,15  Importantly, we did not observe significant differences in percentages of CD19⁺, CD14⁺, or CD11c⁺ cells in the PBMCs of study patients compared with controls (supplemental Table 3), nor did the percentage of CD11c⁺ PBMC differ between groups after PMA/ionomycin stimulation (data not shown). In contrast to preclinical findings,³  expression of MHC class II or costimulatory (CD86) molecules by CD11c⁺ PBMC were not changed in patients treated with vorinostat on either day 30 (supplemental Table 3) or 100 days posttransplant (data not shown).

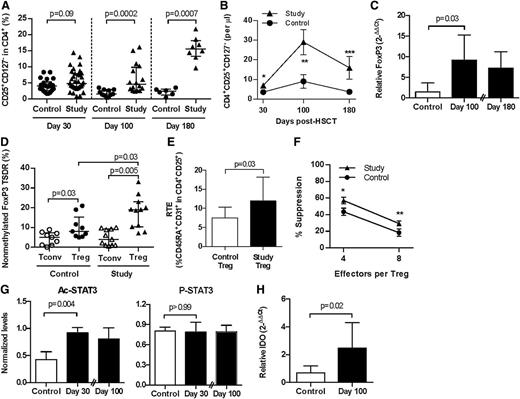

Patients with GVHD have reduced frequencies of Tregs.^16-18  In murine models, Tregs attenuate GVHD,¹⁹  and HDAC inhibition increased Treg numbers and enhanced their suppressive function but did not directly alter non-Treg, that is, Tconv, responses.^3,6,14,20  HDAC inhibition can also enhance suppression by human Tregs²¹  and promote the conversion of human T cells into Tregs in vitro.²²  We therefore explored the effect of HDAC inhibition with vorinostat on both Tregs and Tconv after clinical allogeneic BMT. HDAC inhibition did not significantly alter total lymphocyte or CD4⁺ or CD8⁺ T-cell counts, nor did it alter the proliferative response of Tconv to nonspecific stimuli (supplemental Table 4; supplemental Figure 4). However, patients treated with vorinostat exhibited increased numbers of Tregs (CD4⁺CD25⁺CD127⁻) in the peripheral circulation (Figure 2A-B; supplemental Figure 5). Consistent with this increase, Foxp3 mRNA expression was increased in PBMC 30 days after transplant,⁷  which remained significantly higher 100 days posttransplant (Figure 2C). Foxp3 expression was verified on a per cell basis by flow cytometry, where more than 80% of CD4⁺CD25⁺CD127⁻ cells were Foxp3⁺ (data not shown).

Foxp3 is a critical regulator of Treg development and function²³  and is subject to epigenetic regulation through methylation of cytosine guanine dinucleotide islands within the TSDR.²⁴  Thymus-derived Tregs with stable expression of Foxp3 show TSDR demethylation, whereas recently activated conventional human T cells and Tregs induced in the periphery with transient Foxp3 expression show methylated TSDR.²⁵  HDAC inhibition with vorinostat increased demethylation of the Foxp3 TSDR in CD4⁺CD25⁺ T cells 100 days posttransplant (Figure 2D). Consistent with increased TSDR demethylation, HDAC inhibition also increased the numbers of CD45RA⁺CD31⁺ Treg RTEs (Figure 2E; supplemental Figure 6), whereas Tconv RTEs (CD4⁺CD25⁻CD45RA⁺CD31⁺) were not changed (P = .42; data not shown). Preliminary analysis also demonstrated a trend toward increased TRECs in CD4⁺CD25⁺ Treg (supplemental Figure 7). Thus, although we cannot rule out the possibility that vorinostat also induced Tregs in the periphery, the data suggest that at least a portion of the increased Tregs observed in study patients were natural Tregs derived from the thymus. We next determined the functionality of these Tregs. Tregs isolated from vorinostat-treated patients suppressed effector T-cell proliferation more effectively on a per cell basis (Figure 2F). However, antigen-specific functional studies (eg, recovery of CMV- or EBV-specific T cells) were not performed.

HDAC inhibition in mice increased acetylation of the nonhistone protein STAT-3,⁵  which is critical for the induction of IDO in APCs,⁴  reduction in inflammation, and the regulation of acute GVHD.⁴  Because vorinostat reduced acute GVHD⁷  and mitigated inflammatory cytokines, we next analyzed STAT-3 acetylation and IDO induction in these patients. Concordantly, levels of Ac-STAT-3 protein were significantly increased with HDAC inhibition 30 days posttransplant, and levels remained high at day 100 (Figure 2G). P-STAT-3 levels were unchanged (Figure 2G), consistent with a previous study.²⁶  IDO is an intracellular enzyme that degrades tryptophan, suppresses APC function, and induces T-cell anergy.²⁷  IDO mRNA was also induced with HDAC inhibition on day 30 posttransplant (P < .0001)⁷  and remained high at day 100 (Figure 2H).

Our data in murine models of HCT have shown that vorinostat modulates the production of inflammatory cytokines and induces IDO expression by host APCs to modulate GVHD after allo-HCT.^3-5  Additional murine data by others indicate that HDAC inhibitors promote the generation and function of regulatory T cells.⁶  Ex vivo studies using human cells have confirmed the abilities of HDAC inhibitors to modulate both APCs and Tregs.^20,22  Thus, collective findings suggest that HDAC inhibition can have potent and distinct direct regulatory effects on various immune cell populations. Although the mouse continues to be an important in vivo model for human immunology, we understand that potential limitations of extrapolating data from mice to humans exist.²⁸  It is likely significant that human recipients of allo-HCT receive treatment with vorinostat concomitant with immunosuppressive therapy (tacrolimus and mycophenolate mofetil). It is possible that our inability to find quantitative reproducible differences in HLA and costimulatory molecule expression in human PBMC samples is reflective of direct effects of immunosuppression on APCs. Additional ex vivo analysis will be required to investigate this possibility. Nonetheless, the findings here demonstrate that HDAC inhibition with vorinostat after allo-HCT in humans regulated inflammation and enhanced Tregs. They further suggest that regulation of inflammation and increased Tregs might have been crucial for the ability to reduce clinical GVHD in the first-in-human clinical trial,⁷  and collectively, suggest that HDAC inhibition has immune-regulatory effects in humans. Future studies are needed to further delineate which immune cells are affected by HDAC inhibition after allo-HCT.
