A proto-oncogene BCL6 is up-regulated in the bone marrow microenvironment in multiple myeloma cells

B-cell lymphoma 6 (Bcl-6) is a 95-kDa nuclear protein belonging to the Pox virus zinc finger transcription factor family. It is a proto-oncogene encoding a transcriptional repressor, which regulates germinal center B-cell differentiation. BCL6 is constitutively expressed in a significant fraction of B-cell lymphomas. Importantly, Bcl-6 is deregulated either by chromosomal translocations (3q27) or aberrant somatic hypermutation in a subset (35%-40%) of diffuse large B-cell lymphomas (DLBCLs),^1,2  and its biologic significance has been extensively studied in this setting.³

Bcl-6 function is regulated by acetylation; specifically, histone deacetylase-2 (HDAC2) binds to Bcl-6 and modulates its function.⁴  Conversely, inhibition of HDAC2 induces hyperacetylation of Bcl-6, resulting in loss of its function. Therefore, HDAC inhibitors (especially class I inhibitors) have been used for functional inhibition of Bcl-6.⁵  Most importantly, a small peptide inhibitor of BCL-6 induces cytotoxicity in primary human DLBCL cells both in vitro and in vivo, without affecting normal lymphoid tissue,^6,7  suggesting that Bcl-6 is a promising novel therapeutic target in DLBCLs. However, the biologic significance of Bcl-6 in multiple myeloma (MM) has not yet been elucidated.

Detailed information pertinent to tumor cell lines and primary tumor specimens, growth of long-term bone marrow stromal cells (BMSCs), reagents, immunoblotting, cell growth assays, real-time polymerase chain reaction (RT-PCR), and shRNA infection are included in the supplemental data (available on the Blood Web site; see the Supplemental Materials link at the top of the online article).^8-13  Primary CD138⁺ tumor cells from MM patients were obtained using negative selection, as previously described⁸  after Institutional Review Board–approved informed consent (Dana-Farber Cancer Institute) and in accordance with the Declaration of Helsinki protocol.

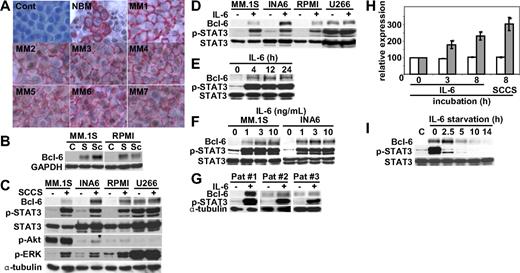

To examine whether patient MM cells in the BM express Bcl-6, we first performed immunohistochemical analysis on BM tissue microarrays from both healthy donors (NBM) and MM patients. Importantly, Bcl-6 was strongly expressed within the nucleus in MM cells of all cases (Figure 1A), suggesting that Bcl-6 might play a role in MM pathogenesis. To examine whether soluble factors modulated Bcl-6 expression in MM cells in the context of the BM microenvironment, MM.1S and RPMI8226 cells were cultured with stromal cell-culture supernatants (SCCSs) or BMSCs for 12 hours. Induction of Bcl-6 was similarly up-regulated by SCCS and BMSC coculture (Figure 2B), suggesting that induction of Bcl-6 by BMSCs was predominantly by soluble factors, and we carried out further experiments using SCCSs. Although MM cell lines express weak or undetectable constitutive Bcl-6 expression, it is markedly up-regulated by SCCSs (Figure 2C). Because the pattern of Bcl-6 induction by SCCSs was similar to phospho-STAT3 and phospho-ERK, we hypothesized that interleukin-6 (IL-6) in SCCSs may be triggering Bcl-6 in MM cells. We therefore cultured MM cell lines with recombinant IL-6 and confirmed that Bcl-6 was markedly up-regulated, as was p-STAT3 (Figure 2D). Interestingly, U266 has high baseline Bcl-6 and p-STAT3 expression, which is associated with constitutive phosphorylation of gp130 (supplemental Figure 1). Dose-dependent (Figure 2E) and time-dependent (Figure 2F) effects of IL-6 on Bcl-6 expression showed maximum induction by 4 hours with 3 and 10 ng/mL IL-6. Importantly, IL-6 also triggered Bcl-6 expression in patient MM cells (Figure 2G). Real-time RT-PCR showed that IL-6, in a time-dependent fashion, significantly increased Bcl-6 mRNA levels in INA6 cells (Figure 2H), indicating that IL-6–induced transcriptional up-regulation of Bcl-6. We also examined the kinetics of Bcl-6 down-regulation after IL-6 withdrawal. As shown in Figure 2I, Bcl-6 expression rapidly decreased to baseline levels at 5 to 10 hours after IL-6 withdrawal.

To define the extent to which IL-6 accounts for SCCS-induced Bcl-6 expression, we next cultured MM cells with SCCSs, in the presence or absence of neutralizing anti–IL-6 antibodies. Neutralizing anti–IL-6 antibodies only partially inhibited SCCS-induced Bcl-6 and p-STAT3 expression (Figure 2A). Because other gp130 family cytokines also trigger phosphorylation of STAT3 and ERK, and BMSCs also secrete oncostatin M (OSM; supplemental Figure 2), we examined whether exogenous OSM also triggered Bcl-6 in MM cell lines. As expected, OSM markedly up-regulated Bcl-6 expression in MM.1S and INA6 cell lines, associated with induction of p-STAT3 (supplemental Figure 3). In contrast, other cytokines, including insulin-like growth factor-1, vascular endothelial growth factor, stromal cell–derived factor-1α, or IL-3, did not induce Bcl-6 expression (data not shown). These results suggest that gp130 family cytokines trigger Bcl-6 expression in MM cells.

Our studies indicated that phosphorylation of both ERK and STAT3 is correlated with Bcl-6 expression (Figure 1C). MEK inhibitor U0126 completely blocked both constitutive and IL-6–induced phospho-ERK; however, it did not inhibit phospho-STAT3 or Bcl-6 expression (supplemental Figure 4A). In contrast, pan-Janus kinase (JAK) inhibitor AG490 markedly down-regulated phospho-STAT3 and Bcl-6 expression (supplemental Figure 4B). We further confirmed the significance of STAT3 down-regulation using STAT3 siRNA: STAT3 siRNA transfectants have lower levels of Bcl-6 than scrambled siRNA transfectants (supplemental Figure 4C). Taken together, these results suggest that IL-6–induced Bcl-6 expression is modulated via JAK/STAT3 pathway.

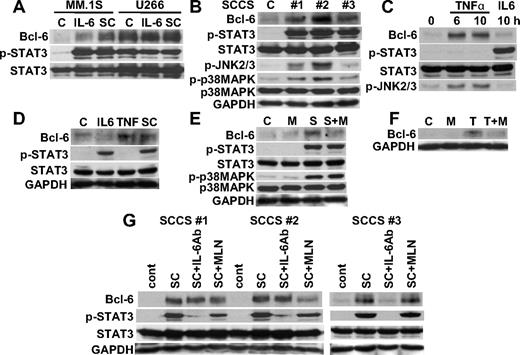

We next examined the impact of IL-6 on Bcl-6 expression in MM cells in the context of the BM microenvironment by culturing 2 IL-6 responsive of MM cell lines (MM.1S, U266) with SCCSs or IL-6. IL-6 was a more potent inducer of p-STAT3 than SCCSs; however, SCCSs more potently induced Bcl-6 than IL-6 in MM.1S (Figure 2A). We further examined 3 distinct SCCSs and observed that induction of Bcl-6 by SCCSs was correlated with phosphorylation of JNK and p38MAPK (Figure 2B). Because we have previously shown that transcription and secretion of IL-6 by BMSCs are regulated by nuclear factor-κB (NF-κB)¹⁴  and tumor necrosis factor-α (TNF-α) is a potent activator of NF-κB, JNK, and p38MAPK, we hypothesized that TNF-α in SCCSs may also trigger Bcl-6 expression. As expected, TNF-α markedly up-regulated Bcl-6 in RPMI8226 cells (Figure 2C). This up-regulation was completely independent of p-STAT3, indicating that IL-6 or other gp130 family cytokines were not induced by the TNF-α–NF-κB axis in this setting. Importantly, both SCCSs and TNF-α also triggered Bcl-6 in patient MM cells even when IL-6 did not (Figure 2D). We have previously shown that IκB kinaseβ inhibitor MLN120B blocks TNF-α–induced NF-κB activation.¹⁵  We next showed that MLN120B completely blocked TNF-α–induced Bcl-6 expression in patient MM cells (Figure 2E) and RPMI8226 cells (Figure 2F), suggesting that TNF-α–induced Bcl-6 expression is mediated via the canonical NF-κB pathway. Because secretion of cytokines from primary BMSCs varies, we further compared the induction of Bcl-6 in RPMI8226 cells by SCCSs from 3 different persons, in the presence or absence of neutralizing anti–IL-6 antibodies or MLN120B (Figure 2F). All SCCSs markedly induced Bcl-6 expression; however, the inhibitory effect of neutralizing anti–IL-6 antibodies or MLN120B on Bcl-6 induction varied (Figure 2G). These results suggest that SCCSs may have different cytokines and that the signaling cascades triggering Bcl-6 may therefore also differ. These results indicate that up-regulation of Bcl-6 by SCCS is not induced by a single cytokine but the total effect of cytokines in the BM milieu.

To determine the biologic significance of Bcl-6, we next knocked down Bcl-6 expression by lentiviral Bcl-6 shRNA. MM.1S cells were cultured with SCCS to induce Bcl-6. Both sh #1 and sh #2 constructs sufficiently down-regulated Bcl-6 expression (supplemental Figure 5A). Importantly, Bcl-6 knockdown infectants had decreased numbers of viable cells compared with noninfected or Sc shRNA infectants (supplemental Figure 5B). Analogous experiments were carried out in U266 cells with high constitutive Bcl-6 expression without SCCSs, and we observed that Bcl-6 shRNA showed cell growth inhibition associated with down-regulation of Bcl-6 (supplemental Figure 6). In this study, our results therefore suggest that Bcl-6 expression is mediated via both JAK/STAT3 and NF-κB pathways in MM cells and that targeting these cascades could both inhibit Bcl-6 expression and inhibit growth of MM cells in the BM microenvironment.

This work was supported by the National Institutes of Health (SPORE IP50 grants CA10070, PO-1 78378, and RO-1 CA 50947), the Multiple Myeloma Research Foundation (T.H., D.C., N.R., C.M.), and the LeBow Family Fund to Cure Myeloma (K.C.A.).

National Institutes of Health

Contribution: T.H. performed experiments and prepared the manuscript; C.M., D.C., and K.C.A. designed experiments and analyzed the data; H.I., G.G., and H.H. performed experiments; N.R. designed experiments; N.C.M. and P.G.R. analyzed the data; and D.R.C. designed and performed the experiments.

Conflict-of-interest disclosure: C.M. has received consultant honoraria from Millennium, Novartis, Bristol-Myers Squibb, Merck, Kosan, and Pharmion, as well as research funding from Amgen, AVEO Pharma, EMD Serono, and Sunesis. K.C.A., N.C.M., and N.R. are consultants and on the advisory boards for Millennium, Celgene, and Novartis. P.G.R. is a consultant and on the advisory boards for Millennium and Celgene. The remaining authors declare no competing financial interests.

Correspondence: Kenneth C. Anderson, Dana-Farber Cancer Institute, 44 Binney St, Boston, MA 02115; e-mail: kenneth_anderson@dfci.harvard.edu.
