An upstream insulator regulates DLK1 imprinting in AML

DLK1 is a transmembrane protein of the epidermal growth factor–like family. Generally, DLK1 functions as a growth factor that maintains proliferating cells in an undifferentiated state.¹  In hematopoiesis, DLK1 is important in supporting the proliferation of early progenitors.² DLK1 overexpression has been found in many cancers, including myelodysplastic syndrome and acute myeloid leukemia (AML).^3-5

The DLK1 gene is located within an imprinted region of chromosome 14q32 and expressed only from the paternal allele in normal cells.⁶  In addition to DLK1, this region contains other paternally expressed genes, including Dio3 and RTL1, and a set of maternally expressed ones, including Meg3, C/D snoRNA, and Mirg.⁷  We previously showed IGF-2 overexpression in some cases of AML was the result of loss of imprinting.⁸  The IGF-2 locus at 11p15 has many similarities with the imprinted DLK1 14q32 locus.^9,10  In this study, we found that DLK1 loss of imprinting is associated with increased DLK1 expression and hypermethylation of a region located approximately 18 kb upstream of DLK1. Furthermore, we found that acquired methylation of this region inhibits CTCF binding to this region, suggesting that this region is an insulator element and is important in regulating DLK1 imprinting.

DLK1 transcript levels were quantified by real-time reverse-transcribed polymerase chain reaction. To determine whether DLK1 expression is monoallelic or biallelic, we studied 3 coding single nucleotide polymorphisms (SNPs; rs#1802710, rs#2295660, and rs#1058009) of 11 normal bone marrows (NBMs), 3 cell lines overexpressing DLK1 (OCI/AML5, K562, and NB4), and 40 AML patient samples with DLK1 overexpression. The Mann-Whitney test was used to compare DLK1 and MEG3 transcript levels. Quantitative methylation was performed using the MassARRAY EpiTYPER.¹¹  Seven cytosine-phosphate-guanosine (CpG)–rich regions were analyzed (Figure 2A): 3 upstream of or within DLK1 (D1, D2, and D3), one corresponding to the putative intergenic differentially methylated region (IG-DMR; named IG), and 3 upstream or within MEG3 (M1, M2, and M3). The methylation values at each CpG dinucleotide were compared using analysis of variance. Further, the methylation data were subjected to unsupervised hierarchical cluster analysis, using MeV 4.1.01 software. Informative SNPs were identified in the D1 region by sequencing and the allelic methylation pattern of the D1 region analyzed, using bisulfite conversion and sequencing of at least 18 individual clones. Chromatin immunoprecipitation (ChIP) assay was used to analyze whether CTCF interacts in vivo with the D1 region in a methylation-dependent manner.

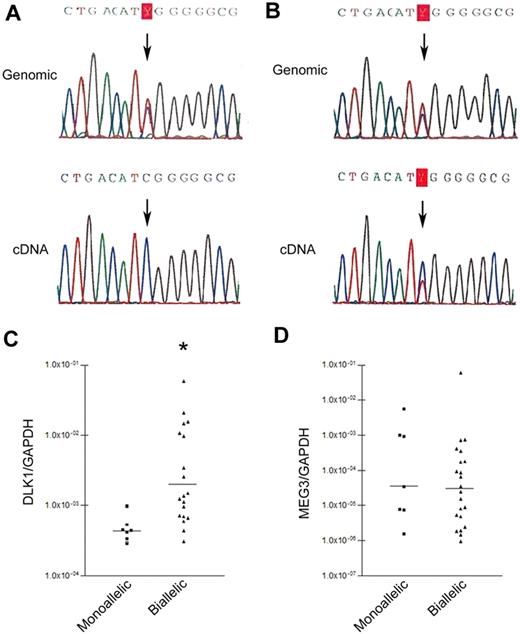

DLK1 overexpression was present in 3 cell lines (OCI/AML5, NB4, and K562) and 80% of patient cases (supplemental Figures 1-2, available on the Blood website; see the Supplemental Materials link at the top of the online article). Heterozygous SNPs (Figure 1A) were found in 6 of 11 NBMs, one cell line (K562), and 29 of 40 patient samples. The NBMs with informative SNPs had monoallelic expression, whereas biallelic expression was found in the K562 cell line and 22 of 29 (76%) patient samples (Figure 1A-B); the level of DLK1/glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was higher in cases with biallelic versus monoallelic expression (median, 0.002046 vs 0.000443, P < .002; Figure 1C).

Previous reports suggested that the expression of Meg3 and Dlk1 is inversely regulated in mice, with the noncoding Meg3 controlling Dlk1 transcription and imprinting.⁷  To determine whether this occurs in AML, we quantified MEG3 and DLK1 RNA levels in 6 NBMs, 29 patient samples (22 with biallelic and 7 with monoallelic DLK1 expression), and K562 cells. NBMs expressed low MEG3/GAPDH (median, 4.7 × 10⁻⁶; range, 4.6 × 10⁻⁵-1.9 × 10⁻⁶). MEG3/GAPDH levels were quite variable in AML patients with biallelic or monoallelic DLK1 expression. There was no significant difference between the 2 groups (median, 0.000035 vs 0.0000305, P = .52; Figure 1C). Further, an inverse correlation was not found between DLK1 and MEG3 levels in AML patients regardless of monoallelic or biallelic DLK1 expression (r = −0.1212; supplemental Figure 3). Finally, K562, characterized by high DLK1 expression, showed high MEG3 expression (MEG3/GAPDH of 0.064). Our data indicate that DLK1 transcription is not controlled by MEG3 in human AML.

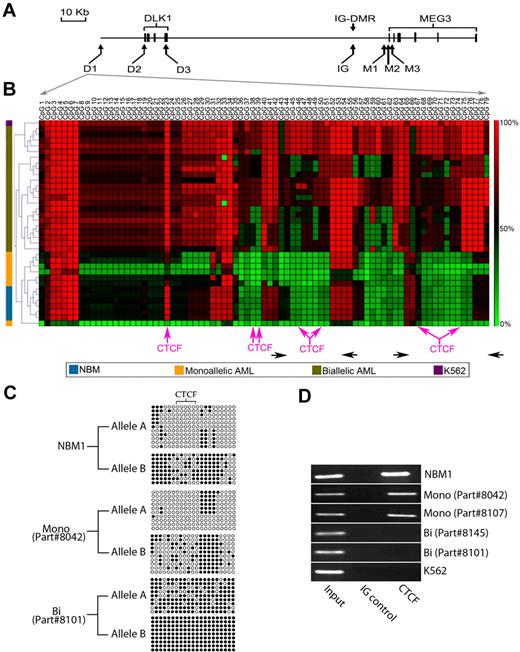

In mice, the DMRs located between Dlk1 and Meg3, particularly the IG-DMR, are important for Dlk1 imprinting; when unmethylated, they bind to the insulator protein CTCF, blocking access of the Dlk1 promoter to downstream enhancers. In contrast, their hypermethylation leads to loss of binding, permitting the interaction between the Dlk1 promoter and downstream enhancers.^7,12,13  To determine whether changes in methylation of the IG-DMR and other CpG islands upstream and downstream of DLK1 were associated with the loss of DLK1 imprinting, we assessed the methylation of 7 CpG-rich regions (Figure 2A). Similar methylation patterns of all areas were observed in all 6 NBMs. In contrast, AML patient samples showed variability of methylation in most areas tested. The greatest difference in methylation between NBM, monoallelic, and biallelic patient samples was evident in region D1, with analysis of variance showing significant difference at all CpG dinucleotides, except dinucleotides 3 to 7, 33, 34, and 57 (P < .001 in most of them). Moreover, in cluster analysis, the D1 region only showed patterns that distinguish between biallelic from monoallelic patients and NBM samples (Figure 2B; supplemental Figures 4-9).

Using informative SNPs within the D1 region (supplemental Figure 10) and bisulfite sequencing, it was possible to determine the methylation pattern of each allele in 3 NBMs, 3 monoallelic AMLs, and 6 biallelic AMLs. The NBMs showed notable difference of the methylation between the 2 alleles (Figure 2C; supplemental Figure 11). A similar pattern was found in AML with monoallelic DLK1 expression (Figure 2C; supplemental Figure 12). Interestingly, the biallelic expression cases showed increased methylation of both alleles (Figure 2C; supplemental Figure 13). These methylation patterns suggest that the D1 area may function as a methylation-sensitive, cis-acting insulator that regulates DLK1 imprinting.

Because many insulator elements use the CTCF protein to achieve their function, we performed a bioinformatic search that revealed numerous potential CTCF-binding sites within the D1 region (Figure 2B; supplemental Figure 14). Of note, the CpG dinucleotides located within most of these binding sites were hypermethylated in patient samples with biallelic DLK1 expression and K562 cells compared with NBMs and monoallelic DLK1 expression AML (Figure 2B). Furthermore, the allele-specific methylation analysis showed that there was complete unmethylation of the CTCF-binding site of the hypomethylated allele in NBM and monoallelic AML cases, whereas at least one CpG was methylated within the CTCF-binding site of the other allele (Figure 2C; supplemental Figures 11-12). In contrast, there was increased methylation of the CTCF-binding site in both alleles of patient samples with biallelic DLK1 expression (Figure 2C; supplemental Figure 13).

To confirm that CTCF interacts in vivo with the D1 region in a methylation-dependent manner, we performed ChIP assays with CTCF antibody for 6 cases (3 with hypometlyation and 3 with hypermethylation of the D1 region). Indeed, CTCF binds to this region in cases with D1 hypomethylation (one NBM and 2 AML patients with monoallelic DLK1 expression; Figure 2D). In contrast, CTCF antibody did not coprecipitate the D1 region from 3 cases with D1 hypermethylation (2 AML patients with biallelic DLK1 expression and K562), suggesting that the insulator protein CTCF plays an important role in the regulation of DLK1 imprinting through methylation-dependent interaction with this region.

In conclusion, based on our observations reported herein, we propose that the CpG-rich area located approximately 18 kb upstream of DLK1 acts as an insulator of DLK1 imprinting. When it is hypomethylated, it binds to CTCF, preventing the interaction between DLK1 promoter and enhancers. In contrast, the hypermethylation of this region results in the loss of this binding, creating a condition more permissive for transcription.
