Chronic graft-versus-host disease (cGVHD) is characterized by a state of profound immunodeficiency in association with alloreactive and autoimmune phenomena. These observations indicate an impairment of immunologic tolerance that could involve both central and peripheral mechanisms. Defective thymic function may contribute to dysregulation of central tolerance, but few studies have addressed peripheral tolerance. Recently a population of CD4+CD25+ T cells (Treg cells) has been characterized, which controls immunologic reactivity in vivo and which on transfer can prevent experimental acute GVHD. We investigated the number and function of peripheral blood CD4+CD25high T cells in patients more than 100 days after allogeneic hematopoietic stem cell transplantation. Patients with cGVHD had markedly elevated numbers of CD4+CD25high T cells as compared to patients without GVHD. CD4+CD25high T cells derived from patients in both groups were of donor origin, lacked markers of recent activation, and expressed intracellular CD152. In contrast to controls, CD4+CD25high T cells derived from patients with cGVHD were characterized by lower surface CD62L expression. In vitro, CD4+CD25high T cells were hyporesponsive to polyclonal stimulation and suppressed the proliferation and cytokine synthesis of CD4+CD25- cells, an effect that was independent of interleukin 10. These results indicate that chronic graft-versus-host injury does not occur as a result of Treg cell deficiency.

Chronic graft-versus-host disease (cGVHD) remains the most frequent complication following allogeneic hematopoietic stem cell transplantation (HSCT), occurring in 30% to 70% of long-term survivors.1  Profound immune dysregulation leads to both immunodeficiency and autoimmunity, suggesting defects in central or peripheral immunologic tolerance.2  Impairment of thymic function observed in patients with cGVHD3  could lead to the release into the periphery of T cells with autoreactive potential.4  Although such perturbations in central tolerance may be important, data relating to experimental autologous GVHD induction5  or to models in which thymic, negative selection is prevented,6  suggest that autoreactive T cells only induce tissue injury when there are additional defects in peripheral tolerance.

Recently a population of naturally occurring regulatory CD4+ T cells (Treg cells) that constitutively express the α chain of the receptor for interleukin 2 (IL-2; CD25) has been characterized that can suppress immune responses both in vitro and in vivo (for reviews, see Maloy and Powrie,7  Shevach,8  and Wood and Sakaguchi9 ). In humans, Treg cells appear to be enriched within the 1% to 2% of peripheral blood CD4+ T cells that are CD25high10 and in vitro, inhibit the function of effector T cells via a mechanism that requires prior T-cell activation, involves cell-to-cell contact, and is independent of cytokine secretion.11-16  In contrast, in vivo studies indicate that cytokines such as IL-10 or transforming growth factor β (TGF-β) may be required for the Treg cell function,7  a discrepancy that may be explained by the capacity of Treg cells to induce CD4+CD25- T cells to develop cytokine-dependent regulatory function.17,18  CD4+CD25+ T cells inhibit proliferation of CD4+CD25- cells in response to alloantigen12,13  and their selective depletion in vivo leads to increased severity of acute GVHD in mice following bone marrow transplantation.19  Consistent with this, cotransfer of large numbers of naturally occurring or ex vivo expanded CD4+CD25+ T cells prevents or ameliorates acute GVHD.20-22  This protective effect is mediated by donor-type Treg cells19,21  and requires IL-10 production.21  These experiments have raised the possibility that transfer of Treg cells could be exploited therapeutically in the prevention of GVHD. However, no studies have examined to what extent, if any, Treg cells modulate chronic graft-versus-host injury.

We have performed a cross-sectional study of patients at least 100 days after allogeneic HSCT to determine the number of CD4+CD25high T cells circulating in peripheral blood. Here we demonstrate that patients with cGVHD had markedly elevated numbers of peripheral blood CD4+CD25high T cells as compared to those without cGVHD. As in controls, CD4+CD25high T cells derived from patients with cGVHD lacked markers of recent activation, expressed intracellular cytotoxic T lymphocyte–associated antigen 4 (CTLA-4/CD152), and displayed regulatory activity in vitro. These results indicate that chronic graft-versus-host injury does not occur as a result of Treg cell deficiency.

Patients

Consecutive adult patients who were at least 100 days following allogeneic HSCT and attending the outpatient unit were recruited for this study. All transplantations were performed at a single center (University Hospital Birmingham, United Kingdom) and were performed for the treatment of a variety of hematologic malignancies (Table 1). Acute and cGVHD was diagnosed and graded in all patients according to standard criteria.23-25  Patients were not included if they had intercurrent illness or infection at the time of the study. The study was performed in accord with research protocols approved by the Institutional Review Board.

Flow cytometry

Antibodies used for flow cytometry were as follows: phycoerythrin (PE)– and fluorescein isothiocyanate (FITC)–conjugated anti-CD4 antibodies (13B8.2; Immunotech, Marseille, France); PE-conjugated anti-CD25 (MA251; BD PharMingen, San Diego, CA); PE-cychrome 5 (PC5)–conjugated anti-CD25 (B1.49.9; Immunotech); FITC-conjugated anti-CD40L (TRAP1; BD PharMingen); PC5-conjugated anti-CD62L (DREG56; Immunotech); PE-conjugated anti-CTLA-4/CD152 (BN13; BD PharMingen); and the appropriate isotype controls. Flow cytometry was performed on a Coulter Epics XL flow cytometer (Beckman Coulter, Hialeah, FL) using System II software (Beckman Coulter).

Isolation and cloning of CD4+CD25high and CD4+CD25- T cells

For functional assays, CD4+CD25high and CD4+CD25- T cells were isolated by flow sorting. Cells were stained by FITC-conjugated anti-CD4 and PE-conjugated or PC5-conjugated anti-CD25 and then purified on a Becton Dickinson FACS Vantage SE flow cytometric cell sorter. Consistent purity of more than 97% was obtained for both CD4+CD25high and CD4+CD25- cell fractions (Figure 1A). Cloning of flow sorted CD4+CD25high cells from patients with cGVHD was performed by limiting dilution as described previously.26  Clones were used for experiments in the resting phase days 10 to 14 after restimulation with irradiated allogeneic feeder cells in the presence of 100 U/mL IL-2 and 5.0 μg/mL phytohemagglutinin (PHA; Sigma, St Louis, MO).

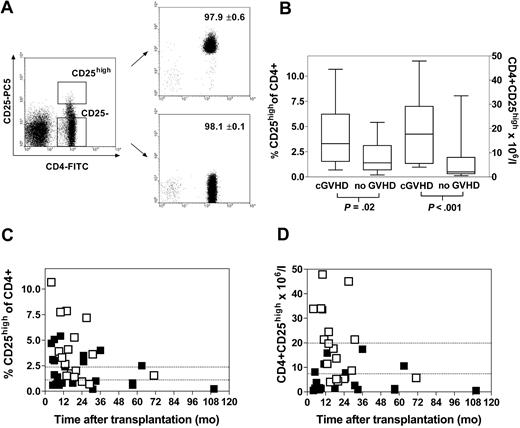

Figure 1.

Enumeration of CD4+25high T cells in patients with and without cGVHD. (A) Unfractionated peripheral blood mononuclear cells (PBMCs) were stained with FITC-conjugated anti-CD4 and PC5-conjugated anti-CD25. Cells were gated on lymphocytes via their forward- and side-scatter properties. The gating strategy is shown for the analysis of CD4+CD25high and CD4+CD25- T cells and for flow sorting the respective fractions. The mean ± SEM purity of both CD4+CD25high and CD4+CD25- sorted fractions are shown (n = 3). Samples were processed in 2 batches to generate enumeration data, with a number of samples run twice to confirm reproducibility. (B) Composite box plots showing percentage of CD4+ lymphocytes that were CD25high (left) and absolute numbers of CD4+CD25high T cells (right). The top, bottom, and line through the middle of the box correspond to the 75th, 25th, and 50th percentiles, respectively. The bars on the bottom and top extend from the bottom 10th percentile and top 90th percentile, respectively. (C) Percentage of CD4+ T cells that were CD25high according to time of sampling in months (mo) after transplantation in patients with (□) and without (▪) cGVHD. (D) Same data set is presented as absolute numbers of CD4+CD25high T cells. Normal ranges, based on a healthy volunteer group (n = 10), are shown in panels C-D by the dotted lines. The normal frequency for CD4+ T cells that were CD25high was 1.2% to 2.5% and the normal absolute number of CD4+CD25high T cells was 7.4 to 20.4 × 106/L.

Figure 1.

Enumeration of CD4+25high T cells in patients with and without cGVHD. (A) Unfractionated peripheral blood mononuclear cells (PBMCs) were stained with FITC-conjugated anti-CD4 and PC5-conjugated anti-CD25. Cells were gated on lymphocytes via their forward- and side-scatter properties. The gating strategy is shown for the analysis of CD4+CD25high and CD4+CD25- T cells and for flow sorting the respective fractions. The mean ± SEM purity of both CD4+CD25high and CD4+CD25- sorted fractions are shown (n = 3). Samples were processed in 2 batches to generate enumeration data, with a number of samples run twice to confirm reproducibility. (B) Composite box plots showing percentage of CD4+ lymphocytes that were CD25high (left) and absolute numbers of CD4+CD25high T cells (right). The top, bottom, and line through the middle of the box correspond to the 75th, 25th, and 50th percentiles, respectively. The bars on the bottom and top extend from the bottom 10th percentile and top 90th percentile, respectively. (C) Percentage of CD4+ T cells that were CD25high according to time of sampling in months (mo) after transplantation in patients with (□) and without (▪) cGVHD. (D) Same data set is presented as absolute numbers of CD4+CD25high T cells. Normal ranges, based on a healthy volunteer group (n = 10), are shown in panels C-D by the dotted lines. The normal frequency for CD4+ T cells that were CD25high was 1.2% to 2.5% and the normal absolute number of CD4+CD25high T cells was 7.4 to 20.4 × 106/L.

Close modal

Proliferation and cytokine assays

Add-back experiments were performed as described previously.27  In some experiments inhibitory antibody to IL-10 (antihuman IL-10 at 10 μg/mL, R&D Systems, Minneapolis, MN) was added to the cocultures. Cytokine production was measured by sandwich cytokine enzyme-lined immunosorbent assay (ELISA) for IL-10 production (Human IL-10 OptEIA ELISA kit; BD PharMingen), TGF-β (R&D Systems), and interferon γ (IFN-γ capture antibody and detection antibody; BD PharMingen).

Chimerism analysis

Sorted CD4+CD25high cells were evaluated for donor-recipient chimerism as described previously.28

Statistical analyses

Clinical characteristics that may influence variations in CD4+CD25high T-cell numbers were compared using Wilcoxon rank sum test for categorical variables and linear regression for continuous measurements. Multiple regression analyses were used to evaluate the multivariate relationships between CD4+CD25high T-cell numbers and the clinical transplantation variables. A stepwise selection procedure was used with a 10% entry and exit criteria. Data were analyzed using statistical software SAS (SAS Institute, Cary, NC).

Patients

A total of 40 adult patients treated by allogeneic HSCT for hematologic malignancy were recruited into the cross-sectional study (Table 1). Of these, 17 patients had cGVHD and 23 patients had no current or previous cGVHD. Of the patients with cGVHD, 13 had extensive and 4 limited disease. At diagnosis of cGVHD, composite prognostic scores based on the presence of thrombocytopenia, progressive-type onset, or extensive skin involvement stratified patients into low risk (score 0, n = 7), intermediate risk (score < 2, n = 7), or high risk (score ≥ 2, n = 3) groups.23  A greater proportion of patients with cGVHD had a history of antecedent acute GVHD and required immunosuppressive treatment at the time of sampling (Table 1).

CD4+CD25high T cells are increased in patients with cGVHD

Using the gating strategy shown in Figure 1A, flow cytometric enumeration of peripheral blood revealed significantly increased numbers of CD4+CD25high T cells in patients with cGVHD compared to patients without this complication, expressed both as a percentage of CD4+ T cells (cGVHD, 3.9% ± 0.7%; no GVHD, 2.0% ± 0.3%: P = .02) or as absolute counts (cGVHD, 19.0 ± 3.4 × 106/L; no GVHD, 5.9 ± 1.6 × 106/L; P < .001; Figure 1B). As shown in Table 2, multiple regression analyses demonstrated cGVHD to be the most significant independent factor influencing CD4+CD25high T-cell numbers expressed as absolute counts (P = .0002) or as a percentage of CD4+ T cells (P = .02). Trends toward a positive correlation between younger recipient age and higher absolute CD4+25high T-cell numbers (P = .09) and between earlier time from transplantation and higher CD4+25high T-cell numbers expressed as a percentage of CD4+ cells (P = .07), were noted. The increase in CD4+CD25high T-cell numbers in patients with cGVHD was matched by an increase in the total number of CD4+CD25+ T cells (incorporating both CD25lo/int and CD25high populations), expressed both as a percentage of CD4+ T cells (cGVHD, 29% ± 2.7%; no GVHD, 16% ± 1.5%; P < .001) and as an absolute CD4+CD25+ count (cGVHD, 165.0 ± 26.0 × 106/L; no GVHD, 43.0 ± 11.2 × 106/L; P < .001). There was, however, no significant difference in the absolute numbers of CD4+CD25- T cells between the groups (cGVHD, 415 ± 66 × 106/L; no GVHD, 284 ± 69 × 106/L; P = .20). Patients with cGVHD had higher numbers of CD4+CD25high T cells expressed as a percentage of CD4+ T cells than an age-matched healthy volunteer group (cGVHD, 3.9% ± 0.7%; healthy controls, 1.8% ± 0.3%; P = .04), but there was no significant difference in terms of absolute numbers (cGVHD, 19.0 ± 3.4 × 106/L; healthy controls, 13.9 ± 2.9 × 106/L; P = .31).

The results of the above cross-sectional study prompted us to evaluate prospectively the kinetics of CD4+CD25high T-cell expansion after transplantation in 9 patients with or without cGVHD. With a median follow-up of 72 weeks after transplantation (range, 37-88 weeks), 4 patients developed cGVHD (all patients evaluated are shown in Figure 2). In each case, onset of cGVHD was associated with a significant increase in CD4+CD25high T-cell numbers followed by a subsequent decline in association with significant responses to treatment with cyclosporine or prednisolone or both. In sharp contrast, 4 patients without significant acute or cGVHD showed no major increases in the number of circulating CD4+CD25high T cells during the study period. In the remaining patient (UPN038), onset of immune thrombocytopenia was preceded by moderate rises in CD4+CD25high T-cell numbers, although at the time of study this did not meet the criteria for cGVHD.

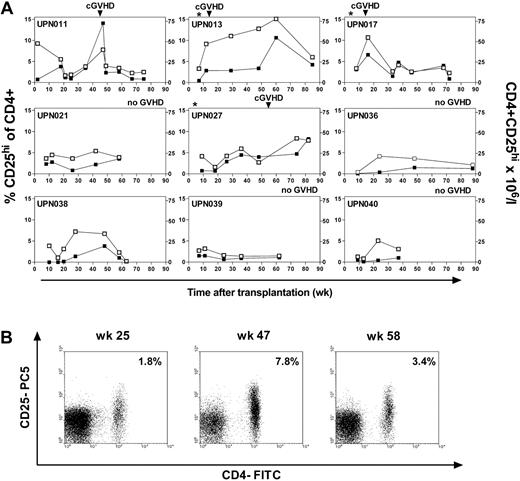

Figure 2.

Prospective enumeration of CD4+25high T cells in patients after transplantation. (A) Nine patients were evaluated prospectively from time of transplantation (shown in weeks). Onset of cGVHD is denoted by the arrowhead and acute GVHD onset by the asterisk. CD4+CD25high T cells were enumerated and expressed as percent of CD4+ lymphocytes (□) or as absolute peripheral blood counts × 106/L (▪). Four patients (UPN011, UPN013, UPN017, UPN027) developed cGVHD during the course of the study. Three patients (UPN021, UPN036, UPN040) did not develop cGVHD, and one patient (UPN038) did not fulfill criteria for cGVHD but developed immune thrombocytopenia at week 44. (B) Dot plots showing CD4+CD25high T-cell frequencies in patient UPN011 prior to the development of cGVHD (left, week 25), at its onset (middle, week 47) and following a subsequent response to treatment with cyclosporine and prednisolone (right, week 58). Percentages indicate CD4+ cells gated as CD25high. Add-back experiments at week 47 confirmed that sorted CD4+CD25high T cells retained their suppressive activity in vitro (not shown).

Figure 2.

Prospective enumeration of CD4+25high T cells in patients after transplantation. (A) Nine patients were evaluated prospectively from time of transplantation (shown in weeks). Onset of cGVHD is denoted by the arrowhead and acute GVHD onset by the asterisk. CD4+CD25high T cells were enumerated and expressed as percent of CD4+ lymphocytes (□) or as absolute peripheral blood counts × 106/L (▪). Four patients (UPN011, UPN013, UPN017, UPN027) developed cGVHD during the course of the study. Three patients (UPN021, UPN036, UPN040) did not develop cGVHD, and one patient (UPN038) did not fulfill criteria for cGVHD but developed immune thrombocytopenia at week 44. (B) Dot plots showing CD4+CD25high T-cell frequencies in patient UPN011 prior to the development of cGVHD (left, week 25), at its onset (middle, week 47) and following a subsequent response to treatment with cyclosporine and prednisolone (right, week 58). Percentages indicate CD4+ cells gated as CD25high. Add-back experiments at week 47 confirmed that sorted CD4+CD25high T cells retained their suppressive activity in vitro (not shown).

Close modal

CD4+CD25high T cells from individuals with cGVHD express less surface CD62L than controls

CD4+CD25high T cells derived from patients with cGVHD had a broadly similar phenotype to equivalent populations in controls and healthy volunteers (Figure 3A-C and data not shown). In particular, we confirmed that cGVHD CD4+CD25high T cells had low forward scatter,29  low expression of CD45RA,10,11,29  but expressed surface CD45RO,10-12,27,29  HLA-DR,10-12,29  and markers of late activation (CD71, CD95).10,29  Furthermore, the CD4+CD25high fraction expressed intracellular CTLA-4 (CD152)10-12,27,29  (Figure 3A), but lacked markers of recent activation (CD40L, CD69; Figure 3B and data not shown). As shown in Figure 3C, we observed a moderate reduction in surface expression of CD62L by CD4+CD25high T cells of patients with cGVHD as compared to patients without GVHD (percent cells positive, cGVHD, 75% ± 4%; no GVHD, 91% ± 1%; P < .01; mean cellular fluorescence [MCF], cGVHD, 109 ± 27; no GVHD, 254 ± 36; P < .01) or healthy volunteers (percent cells positive, 88% ± 2%; P < .05; MCF, 289 ± 61; P = .01). An evaluation of other adhesion molecules and chemokine receptors found no other differences between CD4+CD25high T cells from cGVHD patients and controls, in that they expressed CCR4, CCR7, and cutaneous lymphocyte antigen, but stained negatively for CD103 (data not shown).10,29-31

Figure 3.

Phenotype of CD4+CD25high T cells from patients with cGVHD. (A) Representative histogram plots are shown of flow sorted CD4+CD25high T cells (thick solid line) and CD4+CD25- T cells (thin solid line), which were fixed, permeabilized, and stained with PE-conjugated anti-CTLA-4 or isotype control (thin dotted line) in a patient with (left) or without (right) cGVHD. Mean cell fluorescence is shown as the figure to the top right of each histogram (n = 6 cGVHD; n = 5 no GVHD). (B) CD40L mean cellular fluorescence (± SEM) shown for both CD4+CD25high cells (▪) and CD4+CD25- cells (□) in patients with or without cGVHD and healthy volunteers. (C) CD62L expression of CD4+CD25high T cells expressed as mean cellular fluorescence (± SEM). Significant differences indicated below the histograms (cGVHD n = 10; no GVHD n = 8; healthy volunteers n = 5). (D) Results of add-back experiments in a representative patient with cGVHD (top, n = 8) and a healthy volunteer (bottom, n = 3); 1 × 104 flow-sorted CD4+CD25high (25+) and 1 × 104 CD4+CD25- T cells (25-), alone or in coculture (1:1 ratio of 25+ or 25- cells, total 2 × 104 cells/well, denoted as 25-/- or 25+/-), were stimulated with PHA (2 μg/mL) in the presence of 1 × 104/well irradiated autologous accessory cells (ACs). Proliferations at 72 hours by [H3]-thymidine incorporation are shown in the left panels and IFN-γ production by cytokine ELISA in the right panels. These experiments were also performed with the addition of neutralizing antibody to IL-10 (α-IL10). Similar results were observed in patients without GVHD (n = 6). (E) CD4+CD25- cells were stimulated as above in coculture with different numbers of CD4+CD25high T cells derived from a patient with cGVHD and a control. Percentage inhibition of proliferation at 72 hours is shown. (F) Autologous CD4+ T cells were stimulated with immobilized anti-CD3 monoclonal antibody (1 μg/mL) in the presence or absence of CD4+CD25high T cell clones at a 1:1 ratio and at 72 hours, proliferation was measured as above. Mean proliferations (± SEM) of individual clones derived from one patient are shown. (G) IL-10 was added to PHA-stimulated CD4+ cells in the presence of irradiated autologous ACs and in the presence or absence of neutralizing antibody to IL-10. Percentage inhibition of proliferation at 72 hours is shown.

Figure 3.

Phenotype of CD4+CD25high T cells from patients with cGVHD. (A) Representative histogram plots are shown of flow sorted CD4+CD25high T cells (thick solid line) and CD4+CD25- T cells (thin solid line), which were fixed, permeabilized, and stained with PE-conjugated anti-CTLA-4 or isotype control (thin dotted line) in a patient with (left) or without (right) cGVHD. Mean cell fluorescence is shown as the figure to the top right of each histogram (n = 6 cGVHD; n = 5 no GVHD). (B) CD40L mean cellular fluorescence (± SEM) shown for both CD4+CD25high cells (▪) and CD4+CD25- cells (□) in patients with or without cGVHD and healthy volunteers. (C) CD62L expression of CD4+CD25high T cells expressed as mean cellular fluorescence (± SEM). Significant differences indicated below the histograms (cGVHD n = 10; no GVHD n = 8; healthy volunteers n = 5). (D) Results of add-back experiments in a representative patient with cGVHD (top, n = 8) and a healthy volunteer (bottom, n = 3); 1 × 104 flow-sorted CD4+CD25high (25+) and 1 × 104 CD4+CD25- T cells (25-), alone or in coculture (1:1 ratio of 25+ or 25- cells, total 2 × 104 cells/well, denoted as 25-/- or 25+/-), were stimulated with PHA (2 μg/mL) in the presence of 1 × 104/well irradiated autologous accessory cells (ACs). Proliferations at 72 hours by [H3]-thymidine incorporation are shown in the left panels and IFN-γ production by cytokine ELISA in the right panels. These experiments were also performed with the addition of neutralizing antibody to IL-10 (α-IL10). Similar results were observed in patients without GVHD (n = 6). (E) CD4+CD25- cells were stimulated as above in coculture with different numbers of CD4+CD25high T cells derived from a patient with cGVHD and a control. Percentage inhibition of proliferation at 72 hours is shown. (F) Autologous CD4+ T cells were stimulated with immobilized anti-CD3 monoclonal antibody (1 μg/mL) in the presence or absence of CD4+CD25high T cell clones at a 1:1 ratio and at 72 hours, proliferation was measured as above. Mean proliferations (± SEM) of individual clones derived from one patient are shown. (G) IL-10 was added to PHA-stimulated CD4+ cells in the presence of irradiated autologous ACs and in the presence or absence of neutralizing antibody to IL-10. Percentage inhibition of proliferation at 72 hours is shown.

Close modal

CD4+CD25high T cells from individuals with cGVHD display a regulatory phenotype

Flow-sorted, highly pure (> 97%) CD4+CD25high T-cell fractions from healthy volunteers and patients with or without cGVHD were evaluated to determine their functional regulatory activity in vitro. As shown in Figure 3D, the proliferative and IFN-γ cytokine response of CD4+CD25high T cells to polyclonal stimulation was considerably lower than that of CD4+CD25- T cells in both patients with cGVHD and healthy volunteers. When CD4+CD25high T cells were cocultured with CD4+CD25- cells at a 1:1 ratio, the proliferative responses to polyclonal stimulation were significantly suppressed and the production of IFN-γ completely inhibited (Figure 3D). Cell yields following coculture of CD4+CD25high and CD4+CD25- T cells were reduced by about 10% in comparison to the input cell number. The suppressive activity of CD4+CD25high T cells on CD4+CD25- cells was observed in all cGVHD patients tested and similar results were observed using CD4+CD25high T-cell populations derived from patients without GVHD (data not shown). Titrations indicated that the frequency of suppressor cells within the CD4+CD25high T-cell population was broadly equivalent in cGVHD patients and controls (Figure 3E). In healthy individuals, clonal analysis of the CD4+CD25high T-cell population has shown it to be heterogeneous, with only a subset of clones (∼45%) displaying suppressive activity in vitro.26  We derived multiple CD4+CD25high T-cell clones from a patient with cGVHD using published protocols.26  All clones retained surface CD25 and intracellular CTLA-4 expression (data not shown), 7 of 8 were hyporesponsive to polyclonal stimulation and 6 of 8 induced suppression (> 20% inhibition) of CD4+ T-cell proliferation to immobilized anti-CD3 (Figure 3F). Freshly sorted CD4+CD25high T-cell cells from one of 5 cGVHD patients produced IL-10 in supernatants following ex vivo stimulation with immobilized anti-CD3 plus anti-CD28 (11 pg/mL), but no TGF-β was detectable. In contrast, no cytokines were detected in supernatants of PHA-stimulated cocultured CD4+CD25high and CD4-CD25- cells. To rule out the possibility that inhibitory IL-10 was present in very low amounts or was consumed in the coculture experiments, we performed additional studies using neutralizing antibodies to IL-10. Inhibition of IL-10 activity had no effect on the suppression by CD4+CD25high T cells on the proliferation or IFN-γ production of CD4+CD25- T cells (Figure 3D). We confirmed that exogenous IL-10 was both inhibitory in this assay and that neutralizing antibody could reverse this inhibition (Figure 3G).

CD4+CD25high T cells derived from individuals with cGVHD are of donor origin

Experimental models that use Treg cells to suppress acute GVHD have indicated that donor but not host cells mediate the effect.19,21  To determine the origin of these cells we sorted CD4+CD25+ T cells in 7 patients and performed chimerism studies by fluorescent in situ hybridization or short tandem repeat polymerase chain reaction. In both patients with (n = 4) and without (n = 3) cGVHD, Treg cells were exclusively of donor origin.

We have demonstrated that patients with cGVHD have markedly elevated numbers of peripheral blood CD4+CD25high T cells as compared to patients without cGVHD. This cell population lacked expression of other markers of recent activation but did express intracellular CTLA-4 and displayed suppressive activity in vitro, indicating it to be broadly equivalent to the CD4+CD25+ regulatory T-cell populations that have been studied by other groups.10-12,27,29  A majority of cloned CD4+CD25high T cells derived from an individual with cGVHD retained an anergic/suppressive phenotype in vitro.

We cannot determine from this study whether or not Treg cells have acquired regulatory function during thymic development or if Treg cell function has been acquired by CD4+CD25- T cells after encounter with antigen in the periphery. Patients with cGVHD have impaired thymic function3  and although it remains possible that aberrant thymic selection may be associated with an increased output of thymic Treg cells, this is unlikely in the setting of the reduced T-cell receptor excision circles levels typical of this condition. An alternative explanation is that despite their anergic phenotype in vitro, preexisting Treg cells undergo vigorous proliferation in vivo in the periphery in response to antigen, as has been suggested in recent animal models.32-34  It is also possible that Treg cells may develop de novo within the periphery from mature CD4+CD25- T cells35  and although the specific requirements for this pathway are not known, antigen presentation in absence of costimulation and cytokines such as IL-10 or TGF-β have been proposed as important determinants.35,36  Expansion of preexisting CD4+CD25+ Treg cell populations or their development from CD4+CD25- T cells would be supported by our prospective analyses of individual patients, which revealed a rapid increase in Treg cell number occurring in conjunction with the onset of cGVHD.

Lower CD62L expression was observed on CD4+CD25high T cells from patients with GVHD and, because CD62L is an important determinant of T-cell entry into lymph nodes,37  this might imply a more peripheral distribution of regulatory cells in the cGVHD patient group and may also provide an additional explanation for their elevated numbers in peripheral blood. Regulatory T cells have been shown to persist at the site of the tolerated skin grafts38  and to be concentrated in synovial fluid in patients with active rheumatoid arthritis,39  suggesting that they locate at the site of the effector responses to mediate their effect. The host tissues that are targeted by alloreactive or autoreactive donor lymphocytes in GVHD are clearly widespread and thus a peripheral distribution of Treg cells may be necessary in this setting. Reductions in CD62L expression have been observed in a subset of Treg cells undergoing rapid proliferation in response to target self-antigens32  and it is possible that this also applies to the Treg cell population in cGVHD. Although it is reported that only a subset of Treg cells expressing CD62L can prevent autoimmune disease in vivo,40  with the implication that induction of tolerance occurs within secondary lymphoid tissue, induction and maintenance of immunologic tolerance may occur in different environments.

Active immune responses directed against host tissues are not completely suppressed in vivo in patients with cGVHD. Chronic tissue injury occurs despite the presence of regulatory T cells, although it should be noted that the ability of Treg cells to suppress responses to host antigens was not tested in this study. Although it is possible that such immune reactivity might be even greater in the absence of Treg cell populations, there may be a relative failure of Treg cells to modulate an established chronic inflammatory state that involves a complex interplay between T- and non–T-cell effectors, humoral responses, and changes in target tissue chemokine or cytokine expression. It is also conceivable that as a result of thymic injury, the repertoire of Treg cells is incomplete and lacks particular specificities that would be required for the prevention of tissue injury. Conversely, Treg cells may in fact have a causative role in the development of cGVHD, a possibility that might be suggested by the finding that allogeneic peripheral blood stem cell (PBSC) grafts containing higher numbers of CD4+CD25high T cells are associated with an increased risk of cGVHD41  or that patients with cGVHD show responses to therapy with daclizumab, a humanized monoclonal antibody directed against human IL-2 receptor α chain.42  Treg cell–mediated suppression of individual components of the effector immune response could prevent full resolution of the inflammatory state or alternatively Treg cell induction of cytokines such as TGF-β could exacerbate chronic tissue injury.43

Our findings suggest that adoptive transfer of Treg cells may have limited clinical impact in the setting of cGVHD in which functional Treg cells are already present despite ongoing disease activity. It will be important for future experimental GVHD models to examine the effect of Treg cell in the setting of cGVHD and to include an assessment of the long-term effects of transfer. Nevertheless, Treg cells remain a potentially important target for therapeutic intervention. It may prove possible to increase the functional activity of Treg cells that already exist in vivo and the potential value of increasing the number of Treg cells in the early phase of transplantation remains unexplored in the human population.

Prepublished online as Blood First Edition Paper, November 6, 2003; DOI 10.1182/blood-2003-06-2073.

Supported by the Leukemia Research Fund, United Kingdom.

The publication costs of this article were defrayed in part by page charge payment. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 U.S.C. section 1734.

We would like to thank David Lloyd and Chris Smith for their assistance in flow cytometric sorting and Julie Arrazi for data management. We would also like to thank Matthias Edinger and Megan Sykes for their critical reading of the manuscript.

1
Lee SJ, Klein JP, Barrett AJ, et al. Severity of chronic graft-versus-host disease: association with treatment-related mortality and relapse.
Blood
.
2002
;
100
:
406
-414.
2
Parkman R. Graft-versus-host disease: an alternative hypothesis.
Immunol Today
.
1989
;
10
:
362
-364.
3
Weinberg K, Blazar BR, Wagner JE, et al. Factors affecting thymic function after allogeneic hematopoietic stem cell transplantation.
Blood
.
2001
;
97
:
1458
-1466.
4
Hollander GA, Widmer B, Burakoff SJ. Loss of normal thymic repertoire selection and persistence of autoreactive T cells in graft vs host disease.
J Immunol.
1994
;
152
:
1609
-1617.
5
Hess AD, Thoburn CJ. Immunobiology and immunotherapeutic implications of syngeneic/autologous graft-versus-host disease.
Immunol Rev.
1997
;
157
:
111
-123.
6
Teshima T, Reddy P, Liu C, et al. Impaired thymic negative selection causes autoimmune graft-versus-host disease.
Blood
.
2003
;
102
:
429
-435.
7
Maloy KJ, Powrie F. Regulatory T cells in the control of immune pathology.
Nat Immunol.
2001
;
2
:
816
-822.
8
Shevach EM. Regulatory T cells in autoimmmunity.
Annu Rev Immunol.
2000
;
18
:
423
-449.
9
Wood KJ, Sakaguchi S. Regulatory T cells in transplantation tolerance.
Nat Rev Immunol.
2003
;
3
:
199
-210.
10
Baecher-Allan C, Brown JA, Freeman GJ, Hafler DA. CD4+CD25high regulatory cells in human peripheral blood.
J Immunol.
2001
;
167
:
1245
-1253.
11
Dieckmann D, Plottner H, Berchtold S, Berger T, Schuler G. Ex vivo isolation and characterization of CD4(+)CD25(+) T cells with regulatory properties from human blood.
J Exp Med.
2001
;
193
:
1303
-1310.
12
Jonuleit H, Schmitt E, Stassen M, et al. Identification and functional characterization of human CD4(+)CD25(+) T cells with regulatory properties isolated from peripheral blood.
J Exp Med.
2001
;
193
:
1285
-1294.
13
Levings MK, Sangregorio R, Roncarolo MG. Human cd25(+)cd4(+) t regulatory cells suppress naive and memory T cell proliferation and can be expanded in vitro without loss of function.
J Exp Med.
2001
;
193
:
1295
-1302.
14
Read S, Malmstrom V, Powrie F. Cytotoxic T lymphocyte-associated antigen 4 plays an essential role in the function of CD25(+)CD4(+) regulatory cells that control intestinal inflammation.
J Exp Med.
2000
;
192
:
295
-302.
15
Suri-Payer E, Amar AZ, Thornton AM, Shevach EM. CD4+CD25+ T cells inhibit both the induction and effector function of autoreactive T cells and represent a unique lineage of immunoregulatory cells.
J Immunol.
1998
;
160
:
1212
-1218.
16
Taams LS, Vukmanovic-Stejic M, Smith J, et al. Antigen-specific T cell suppression by human CD4+CD25+ regulatory T cells.
Eur J Immunol.
2002
;
32
:
1621
-1630.
17
Dieckmann D, Bruett CH, Ploettner H, Lutz MB, Schuler G. Human CD4(+)CD25(+) regulatory, contact-dependent T cells induce interleukin 10-producing, contact-independent type 1-like regulatory T cells [corrected].
J Exp Med.
2002
;
196
:
247
-253.
18
Jonuleit H, Schmitt E, Kakirman H, et al. Infectious tolerance: human CD25(+) regulatory T cells convey suppressor activity to conventional CD4(+) T helper cells.
J Exp Med.
2002
;
196
:
255
-260.
19
Johnson BD, Konkol MC, Truitt RL. CD25+ immunoregulatory T-cells of donor origin suppress alloreactivity after BMT.
Biol Blood Marrow Transplant.
2002
;
8
:
525
-535.
20
Cohen JL, Trenado A, Vasey D, Klatzmann D, Salomon BL. CD4(+)CD25(+) immunoregulatory T Cells: new therapeutics for graft-versus-host disease.
J Exp Med.
2002
;
196
:
401
-406.
21
Hoffmann P, Ermann J, Edinger M, Fathman CG, Strober S. Donor-type CD4(+)CD25(+) regulatory T cells suppress lethal acute graft-versus-host disease after allogeneic bone marrow transplantation.
J Exp Med.
2002
;
196
:
389
-399.
22
Taylor PA, Lees CJ, Blazar BR. The infusion of ex vivo activated and expanded CD4(+)CD25(+) immune regulatory cells inhibits graft-versus-host disease lethality.
Blood
.
2002
;
99
:
3493
-3499.
23
Akpek G, Zahurak ML, Piantadosi S, et al. Development of a prognostic model for grading chronic graft-versus-host disease.
Blood
.
2001
;
97
:
1219
-1226.
24
Atkinson K, Horowitz MM, Gale RP, et al. Consensus among bone marrow transplanters for diagnosis, grading and treatment of chronic graft-versus-host disease. Committee of the International Bone Marrow Transplant Registry.
Bone Marrow Transplant.
1989
;
4
:
247
-254.
25
Przepiorka D, Weisdorf D, Martin P, et al. 1994 Consensus Conference on Acute GVHD Grading.
Bone Marrow Transplant.
1995
;
15
:
825
-828.
26
Levings MK, Sangregorio R, Sartirana C, et al. Human CD25+CD4+ T suppressor cell clones produce transforming growth factor beta, but not interleukin 10, and are distinct from type 1 T regulatory cells.
J Exp Med.
2002
;
196
:
1335
-1346.
27
Ng WF, Duggan PJ, Ponchel F, et al. Human CD4(+)CD25(+) cells: a naturally occurring population of regulatory T cells.
Blood
.
2001
;
98
:
2736
-2744.
28
Clark FJ, Freeman L, Dzionek A, et al. Origin and subset distribution of peripheral blood dendritic cells in patients with chronic graft-versus-host disease.
Transplantation
.
2003
;
75
:
221
-225.
29
Wing K, Ekmark A, Karlsson H, Rudin A, Suri-Payer E. Characterization of human CD25+CD4+ T cells in thymus, cord and adult blood.
Immunology
.
2002
;
106
:
190
-199.
30
Iellem A, Colantonio L, D'Ambrosio D. Skin-versus gut-skewed homing receptor expression and intrinsic CCR4 expression on human peripheral blood CD4+CD25+ suppressor cells.
Eur J Immunol.
2003
;
33
:
1488
-1496.
31
Iellem A, Mariani M, Lang R, et al. Unique chemotactic response profile and specific expression of chemokine receptors CCR4 and CCR8 by CD4(+)CD25(+) regulatory T cells.
J Exp Med.
2001
;
194
:
847
-853.
32
Fisson S, Darrasse-Jeze G, Litvinova E, et al. Continuous activation of autoreactive CD4+CD25+ regulatory T cells in the steady state.
J Exp Med.
2003
;
198
:
737
-746.
33
Klein L, Khazaie K, von Boehmer H. In vivo dynamics of antigen-specific regulatory T cells not predicted from behavior in vitro.
Proc Natl Acad Sci U S A.
2003
;
100
:
8886
-8891.
34
Walker LS, Chodos A, Eggena M, Dooms H, Abbas AK. Antigen-dependent proliferation of CD4+ CD25+ regulatory T cells in vivo.
J Exp Med.
2003
;
198
:
249
-258.
35
Apostolou I, Sarukhan A, Klein L, von Boehmer H. Origin of regulatory T cells with known specificity for antigen.
Nat Immunol.
2002
;
3
:
756
-763.
36
Bluestone JA, Abbas AK. Natural versus adaptive regulatory T cells.
Nat Rev Immunol.
2003
;
3
:
253
-257.
37
Rosen SD. Endothelial ligands for L-selectin: from lymphocyte recirculation to allograft rejection.
Am J Pathol.
1999
;
155
:
1013
-1020.
38
Graca L, Cobbold SP, Waldmann H. Identification of regulatory T cells in tolerated allografts.
J Exp Med.
2002
;
195
:
1641
-1646.
39
Cao D, Malmstrom V, Baecher-Allan C, et al. Isolation and functional characterization of regulatory CD25brightCD4+ T cells from the target organ of patients with rheumatoid arthritis.
Eur J Immunol.
2003
;
33
:
215
-223.
40
Szanya V, Ermann J, Taylor C, Holness C, Fathman CG. The subpopulation of CD4+CD25+ splenocytes that delays adoptive transfer of diabetes expresses L-selectin and high levels of CCR7.
J Immunol.
2002
;
169
:
2461
-2465.
41
Stanzani M, Martins SL, Saliba RM, et al. CD25 expression of donor CD4+ or CD8+ T cells is associated with an increased risk of graft-versus-host disease following HLA-identical stem cell transplantation in humans.
Blood
.
2004
;
103
:
1140
-1146.
42
Willenbacher W, Basara N, Blau IW, Fauser AA, Kiehl MG. Treatment of steroid refractory acute and chronic graft-versus-host disease with daclizumab.
Br J Haematol.
2001
;
112
:
820
-823.
43
Liem LM, Fibbe WE, van Houwelingen HC, Goulmy E. Serum transforming growth factor-beta1 levels in bone marrow transplant recipients correlate with blood cell counts and chronic graft-versus-host disease.
Transplantation
.
1999
;
67
:
59
-65.
