Loss of RKIP is a frequent event in myeloid sarcoma and promotes leukemic tissue infiltration

TO THE EDITOR:

Myeloid sarcoma (MS) is a subtype of acute myeloid leukemia (AML), in which leukemic cells invade extramedullary tissues and form solid tumors.^1-3  MS may manifest as an isolated event or with concomitant involvement of leukemic bone marrow (BM), the latter affecting up to 20% to 30% of all AML cases.^2,4-8  Clinical data about the prognostic relevance of MS are still conflicting, mainly because of variable clearing of extramedullary leukemic blasts by conventional chemotherapy.^2,7,9  Hence, knowledge of the pathogenetic mechanisms, which endow leukemic blasts with an invasive potential and thereby cause the formation of MS, will help to improve therapeutic regimens for MS patients. RAF kinase inhibitor protein (RKIP) is a negative regulator of RAS-MAPK/ERK signaling.^10-12  A somatic loss of RKIP has recently been described as a frequent event in AML. It has been shown to be associated with monocytic AML phenotypes and proven to be of functional relevance for leukemogenesis.^13-15  It is interesting to note that RKIP loss has also been observed in a variety of solid cancers and has been described as a bona fide metastasis suppressor in these entities.^10,16,17  Because of the similarities between metastasis formation and tissue infiltration of AML cells in the development of MS, we now aimed to identify the role of RKIP in the pathogenesis of this AML subtype.

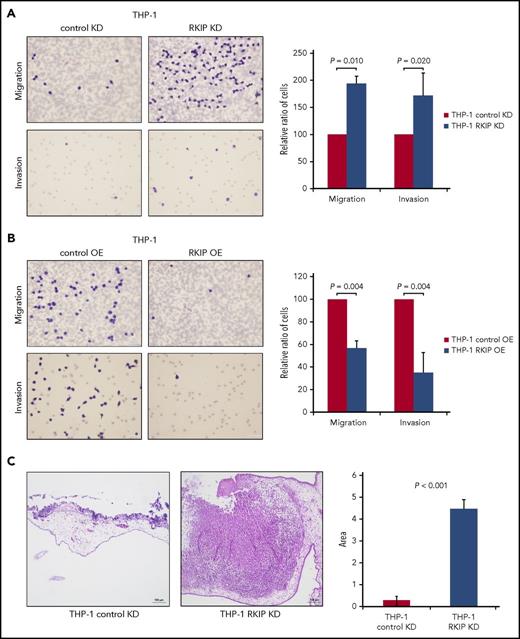

Initially, we studied the functional role of RKIP in leukemic tissue infiltration in vitro by assessing the migration and invasion potential of THP-1 AML cells with stable RKIP knockdown (THP-1 RKIP KD) and overexpression (THP-1 RKIP OE), respectively (supplemental Methods; supplemental Figure 1A-B, available on the Blood Web site).^15,18  In these experiments, RKIP KD significantly increased both migration and invasion of THP-1 cells (P = .010 and P = .020, respectively; Figure 1A), whereas RKIP OE caused the opposite effects (P = .004 and P = .004, respectively; Figure 1B). The same phenomenon was observed in U937, an additional AML cell line (supplemental Methods; supplemental Figure 2 and 3). To further corroborate these findings in vivo, we performed a chorioallantoic membrane (CAM) assay (supplemental Methods). In this assay, we evaluated the potential of THP-1 cells with and without RKIP KD to invade the CAM of chicken embryos and, consequently, to form solid tumor masses. In agreement with our in vitro data, this was the case in all RKIP KD experiments, whereas only occasional and sparse infiltrations of single THP-1 cells were observed in control transfected cells (P < .001; Figure 1C). Taken together, these data demonstrate that RKIP is indeed involved in the tissue infiltration of leukemic blasts and, consequently, in the formation of MS.

Next, we aimed to shed more light on the mechanisms by which RKIP loss promotes MS development. Unexpectedly, although RKIP is an inhibitor of RAS-MAPK/ERK signaling, inhibition of MEK with U0126 failed to rescue the effects of RKIP KD (P = .889; supplemental Methods; supplemental Figure 4), indicating that MS formation in AML with RKIP loss is mediated via other RAS-MAPK/ERK–independent effectors. To identify potential candidate genes, we performed messenger RNA (mRNA) microarrays (supplemental Methods) in THP-1 cells with and without RKIP KD. It is interesting to note that KD of RKIP thereby induced a distinct gene expression profile, which included the prominent deregulation of networks involved in degradation of connective tissues and migration as well as in the interaction, binding, and engulfment of hematopoietic cells (supplemental Figure 5; supplemental Table 1).

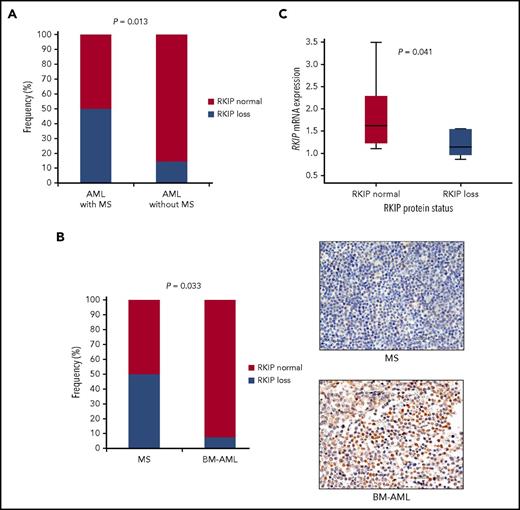

Having proven that decreased expression of RKIP indeed plays a role in tissue infiltration of leukemic blasts, we then aimed to clarify the clinical relevance of this finding (supplemental Methods; supplemental Figure 6). Therefore, we initially screened the medical records of 103 patients with AML, whose BM specimens have previously been characterized in respect to RKIP expression,¹⁵  for clinical evidence of MS as previously described^7,19  (“cohort I”). This retrospective clinical evaluation was possible in 58 patients, with MS being present in 16 (28%). In agreement with our functional data, specimens with RKIP loss were significantly enriched in AML cases with concomitant occurrence of MS (8/16 [50%] vs 6/42 [14%]; P = .013; Figure 2A; supplemental Table 2). We then tried to additionally corroborate our findings in an independent cohort, where the presence of MS was confirmed by biopsy (“cohort II”; supplemental Table 3 and 4). Therefore, we studied RKIP protein expression by immunohistochemistry in a series of formalin-fixed, paraffin-embedded patient specimens of MS (n = 14) and corresponding leukemic BM samples (n = 6). In brief, we classified RKIP expression as either “RKIP normal” or “RKIP loss” by implementing a previously described scoring system that incorporates both the amount and intensity of positively stained cells.²⁰  Loss of RKIP was observed in 7 of 14 cases (50%) with no differences in RKIP expression between MS and corresponding leukemic BM specimens, as well as between AML/MS diagnostic and relapse material (supplemental Figure 7). It is important to realize that RKIP loss was detected in only 1 of 14 BM specimens from AML patients without any evidence of MS (7%; P = .033; Figure 2B; supplemental Figure 8), which further supports the association between RKIP loss and MS. These data also suggest that RKIP expression could serve as a potential AML biomarker, which can easily be detected in leukemic BM and which aids in identifying cases with additional extramedullary manifestations. As a limitation of our study, it has to be noted that the small sample size of the cohort analyzed did not enable us to test whether MS, and particularly its RKIP expression status, might be of prognostic relevance for AML. Therefore, analysis of larger, preferably prospective clinical cohorts in future studies will be necessary.

To gain more insight into the molecular landscape of MS patients with RKIP loss, we performed next-generation sequencing of 39 leukemia-associated genes in all formalin-fixed, paraffin-embedded MS specimens with sufficient DNA quality for this analysis (n = 11; supplemental Figure 9) as previously described.²¹  Mutations in RAS signaling were enriched in samples with RKIP loss, with 5 of 6 cases (83%) carrying 1 or more of these substitutions, whereas only 2 of 5 cases (40%) with normal RKIP expression were affected. Unfortunately, statistical analysis was precluded by the small sample size. However, because a functional synergism in leukemogenesis between mutant RAS and RKIP loss has been shown previously,¹⁵  these data might suggest a potential relevance of this interaction for MS formation as well. It is interesting to note that in accordance with this hypothesis, mutations in NPM1 and DNMT3A were almost exclusively detected in cases with normal RKIP expression. Both aberrations are frequently detected in MS and have been shown to promote RAS-independent MS formation in vitro and in vivo.^2,21-25  Finally, when examining the mechanisms that cause RKIP loss in MS, we observed that quantitative polymerase chain reaction analyses delineated that samples harboring RKIP loss at the protein level also showed decreased levels of RKIP mRNA (P = .041; Figure 2C). This finding is in agreement with previous data of our own group, where we did show that RKIP loss in myeloid malignancies is caused by miR-23a–induced downregulation of its mRNA.^13,15,18

In conclusion, we show that loss of the metastasis-suppressor RKIP is a frequent event in MS and that decreased expression of RKIP in leukemic BM of AML patients might serve as a biomarker for the occurrence of additional extramedullary manifestations. Finally, we demonstrate that RKIP is functionally involved in tissue infiltration of leukemic cells and in the development of MS, which makes it an attractive target for future MS-directed therapies.
