Serum free light chains, not urine specimens, should be used to evaluate response in light-chain multiple myeloma

Measurement of immunoglobulin free light chains (FLCs) in patient serum became a practical option with the commercial availability of polyclonal, nephelometric assays in 2001.¹  Serum assays offer many advantages over the traditional, electrophoretic, urine FLC assays^2-4  and have been used widely as an aid for the diagnosis and management of myeloma patients. The International Myeloma Working Group (IMWG) guidelines currently recommend the use of serum FLC (sFLC) assays in diagnostic screening panels and as a “biomarker of malignancy” (involved-to-uninvolved sFLC ratio ≥100) defining the presence of multiple myeloma (MM) in the absence of other indications.⁵

However, for response assessment throughout the course of treatment, the IMWG only recommend sFLC measurement for patients in whom other markers are below concentrations considered to be reliably measurable, that is, ≤10 g/L serum monoclonal protein and ≤200 mg per 24 hours urine monoclonal protein.⁶  In the same guidelines, response is defined as “measurable” with sFLC assays if the “involved” FLC (ie, the FLC class produced by the tumor) is at a serum concentration of ≥100 mg/L. The recommendation for patients with light-chain MM (LCMM) and measurable FLC in both serum and urine is, therefore, the preferential use of urine measurements for routine response assessment.

Urinary FLC measurement is known to have a number of drawbacks, including the practical difficulties of obtaining accurate 24-hour urine collections from patients who may be elderly and frail.^7,8  Additionally, the interpretation and measurement of protein bands on electrophoresis gels can be subjective and inaccurate at low concentrations.^9,10  Most important, however, is the efficient reabsorption and catabolism of FLC in the proximal tubules of the kidney^11-13  such that measurable FLC in the urine represents overflow proteinuria and can be influenced by renal status as much as tumor production of FLC. A direct consequence of the renal metabolism of FLC is that sFLC assays are routinely more sensitive than renal assays for the identification of abnormal FLC production and this has been reported in many comparison studies.^14-18  For the same reason, serial FLC measurements in serum and urine exhibit poor correlation; in a study of 399 MM patients, Dispenzieri and colleagues reported that the correlation between the 2 assay systems was insufficient to consider the tests interchangeable.¹⁹  It is, undoubtedly, this latter consideration that has led to the continued prioritization of urine assays for monitoring in the IMWG guidelines. Taking a different viewpoint, the current British Committee for Standards in Haematology (BCSH) guidelines comment that there is a “clear rationale” for using sFLC assays to assess response in LCMM patients, irrespective of the extent of light-chain excretion in the urine.²⁰

In the present study, a large cohort of LCMM patients, treated in an Intergroupe Francophone du Myélome (IFM) MM trial, had both urine FLC and sFLC measurements recorded. Response assessments, based on the different methodologies were contrasted and compared with clinical outcomes. We propose that the data presented here, in conjunction with that from previously published studies, is sufficient to support a recommendation for monitoring and assessing LCMM patients’ response using sFLC in preference to urinary measurements.

Between November 2010 and December 2012, 700 newly diagnosed MM patients, under the age of 66 years, were enrolled into the IFM 2009 trial (clinicaltrials.gov identifier NCT01191060). Patients were randomized to either arm A, which included 8 treatment cycles of lenalidomide, bortezomib, and dexamethasone (RVD), or arm B, which included 3 cycles of RVD followed by high-dose melphalan (with autologous stem cell rescue) and 2 further RVD consolidation cycles. All patients received 1 year of lenalidomide maintenance therapy. Exclusion criteria were the presence serum creatinine >25 mg/L or a creatinine clearance of <60 mL per minute. Of the 700 patients in the therapeutic trial, 113 patients with LCMM were included in the present study (patients with an intact immunoglobulin detected only by serum immunofixation were excluded).

Urine protein electrophoresis (UPEP) and urine immunofixation electrophoresis (uIFE; Sebia) were performed prospectively throughout the trial, using standard laboratory procedures on neat samples. sFLC concentrations were measured using κ sFLC and λ sFLC Freelite assays (The Binding Site Group Ltd) on a BN II nephelometer (Siemens). Reference ranges for κ sFLC were 3.3 to 19.4 mg/L; for λ sFLC, 5.7 to 26.3 mg/L; and for the κ:λ sFLC ratio, 0.26 to 1.65 (referred to hereafter as sFLC ratio for ease of reading). Involved (monoclonal) FLC (iFLC) refers to the concentration of the tumor-derived light chain. Urines at the end of cycle 1 were assessed locally across participating IFM centers. All other measurements were done at our central laboratory in University Hospital Nantes (Nantes, France).

The definitions of measurable disease were assigned according to IMWG criteria.⁶  Comparison of the response assessment according to urine electrophoresis vs sFLC measurement was achieved by (1) comparing the number of patients who had become negative by UPEP with those whose iFLC concentrations had fallen within the normal range and (2) comparing the number of patients who had become negative by uIFE with those whose sFLC ratio was within the normal range. These assessments approximate to the IMWG criteria of very-good-partial response and complete response (CR)/stringent CR, respectively. The IMWG criteria for CR could not strictly be applied as that would have required bone marrow plus plasmacytoma screening; these data have not been recorded at cycles 1 and 3 for all patients included in the analyses. The comparisons were made between responses evaluated after the first cycle of RVD treatment and at the end of induction therapy (3 cycles of RVD).

Minimal residual disease (MRD) negativity was determined by flow cytometry using a 7-color antibody panel with a 10⁻⁴ sensitivity as previously reported, after the patients had received consolidation therapy.

Median follow-up was calculated using the reverse Kaplan-Meier method and median time to progression and death was calculated using Kaplan-Meier estimates. Agreement between UPEP and FLC test results after 1 cycle and after 3 cycles of treatment were looked at separately. It is important to note that, where UPEP was not tested at the visit after 1 or 3 cycles of treatment but test results shortly before and after (±21 days) are the same (either both positive or negative), it was assumed that the missing value for UPEP was the same and therefore “imputed” the test result at the time point of interest. For comparative studies, only patients with matched urine and sFLC test results were included for each analysis. Differences in progression-free survival (PFS) and overall survival (OS) between patient groups were analyzed using Kaplan-Meier survival curves with the log-rank test used to indicate significance. Investigating the association of variables with PFS and OS was carried out with a Cox proportional hazard model. Significant differences between categorical variables were calculated with the χ² test. Statistical analyses were performed using SPSS v23 (IBM). Survival graphs were generated using GraphPad/Prism 5 software.

The study was approved by the local ethics committee and conducted in agreement with the Declaration of Helsinki and Good Clinical Practice Guidelines. Written informed consent from participating patients was required.

Median follow-up duration was 3.4 years (95% confidence interval [CI], 3.3-3.7 years). Median time to progression was 4.2 years (95% CI, 3.5-4.9 years). Median time to death could not be calculated as the survival probability remained above 80% at the end of follow-up.

UPEP and FLC testing occurred at a median time of 31 days from baseline (range, 21-46 days) following 1 cycle of treatment and at a median of 84 days (range, 66-137 days) following 3 cycles of treatment.

The baseline characteristics for the 113 LCMM patients who were in this study are presented in Table 1, including a comparison of the UPEP and iFLC results. There were more patients with abnormal serum iFLC (median, 1890 [111-27 400] mg/L) than positive UPEP (median, 1350 [10-11 400] mg per 24 hours; 10 patients had a positive UPEP result with bands that were not quantifiable), and more patients with measurable sFLC concentrations for monitoring (ie, iFLC ≥100 mg/L) than measurable urine Bence Jones protein (≥200 mg per 24 hours).

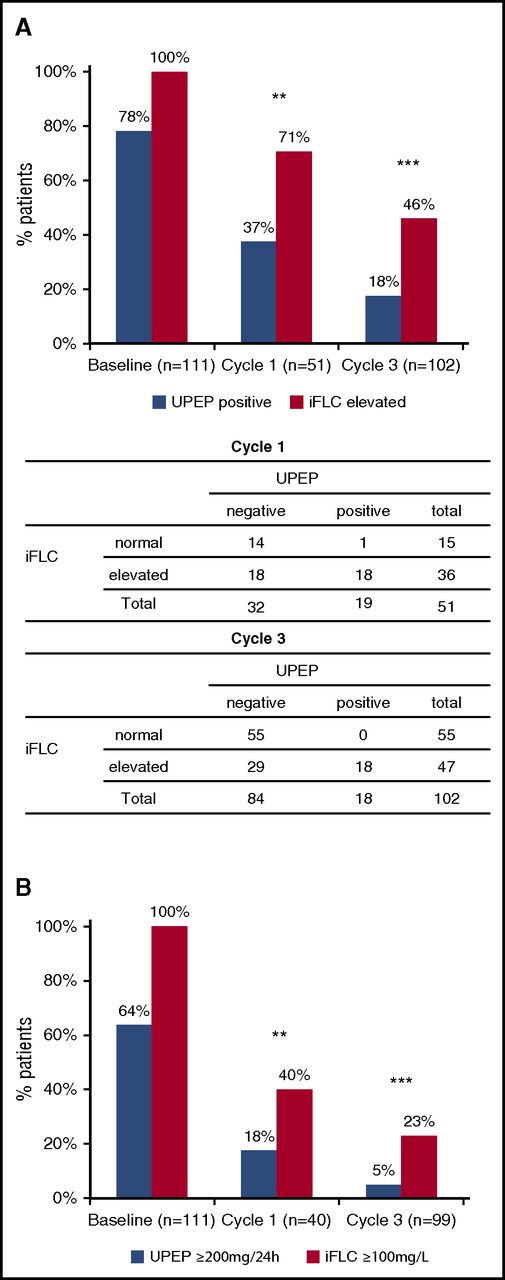

Figure 1 shows the percentage and number of patients with matched serum and urine data who were positive by UPEP or iFLC (Figure 1A) or “measurable” (according to IMWG definitions) by the same assays (Figure 1B), at baseline and after 1 and 3 cycles of treatment. It was notable that 100% (111 of 111) of the patients were abnormal by iFLC at baseline, whereas only 78% (87 of 111) were positive by UPEP, and that 100% had measurable disease by iFLC compared with 64% (71 of 111) for UPEP. These percentages fell, for both assays, after 1 and 3 cycles of treatment but the serum assay was the more sensitive at each time point. Patients’ percentage reductions between cycles by either method were statistically significant (P ≤ .009 for all comparisons). At all 3 time points, more patients were excluded from the analysis due to missing urine analysis than missing serum analysis, that is, at baseline, 2 missing urine vs 0 missing serum; cycle 1, 60 vs 7; and cycle 3, 11 vs 1.

There were 18 and 29 patients abnormal by iFLC but negative by UPEP after 1 and 3 cycles, respectively. Only 1 patient was recorded as being positive by UPEP but having a normal iFLC concentration (after 1 cycle of treatment); however, the UPEP for this patient was recorded as <200 mg per 24 hours and total urine protein at 110 mg per 24 hours, casting some doubt about whether there was sufficient monoclonal FLC for a true positive UPEP result. It was also noted that in 58 patients with measurable disease at baseline by urine measurements (≥200 mg per 24 hours) and matched data after 3 cycles of treatment, 53 of 58 patients (91%) had become nonmeasurable by urine at the end of the 3 cycles; by contrast, 39 of 58 patients (67%) had become nonmeasurable by serum, that is, in 14 patients with nonmeasurable urine levels at the end of induction, the sFLC concentrations were still deemed as measurable. All 5 of 58 patients with measurable urine levels at cycle 3 also had sFLC levels >100 mg/L.

In addition, the percentage of patients with positive UPEP was smaller than with elevated iFLC at all of the time points analyzed during induction therapy. Specifically, the percentage of positive patients at baseline, cycle 1, and cycle 3 was 78, 37, and 18 for urinalysis but 100, 71, and 46 for iFLC elevation, respectively.

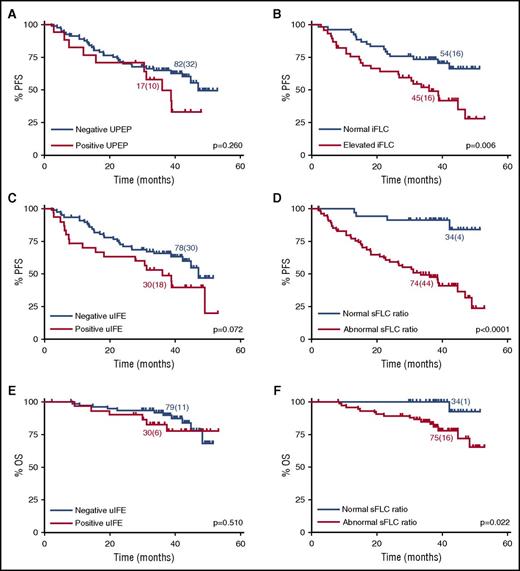

Figure 2A-D contains Kaplan-Meier graphs of PFS for patients grouped according to their UPEP and iFLC assessments (Figure 2A-B) and their uIFE and sFLC ratio results (Figure 2C-D). The assessments were made after 3 cycles of treatment. With both comparisons, the curve separation was better for the serum measures and the difference between the populations reached significance (log-rank analysis), whereas it did not for the urine assessments. Similar results were obtained for prediction of OS except that, in this instance, only the sFLC ratio results reached statistical significance (Figure 2E-F).

Cox regression univariate analysis of the same data produced greater hazard ratios and statistical significance for the serum results, whereas the urine results did not associate with outcome in any case (Table 2). Furthermore, calculation of the Akaike information criterion indicated that the sFLC models had a better fit, whereas calculation of the C statistic indicated better discrimination by the serum-based prognosis.

The discriminatory power of UPEP and iFLC measurements was further contrasted by the analyses illustrated in Figure 3A-B. After 3 cycles of treatment, the 82 patients who were negative by UPEP could be separated into 2 groups based upon normal/elevated iFLC concentrations, and those with elevated iFLC had significantly shorter PFS (Figure 3A). There were no patients with normal iFLC and positive UPEP; however, for the 45 patients with elevated iFLC, separation according to positive/negative UPEP was not prognostic of PFS (Figure 3B). Figure 3C-D contrasts the predictive power of the uIFE and sFLC ratio recorded after 3 treatment cycles. Of the patients negative by uIFE, separation according to normal vs abnormal sFLC ratio was predictive of PFS (P < .0001) and also of OS (P = .016). At this time point, there were no patients with normal sFLC ratio and a positive uIFE.

In addition, we evaluated the prognostic value of FLC measurements late during monitoring. Cox regression and Kaplan-Meier analyses demonstrated that both elevated iFLC levels (log-rank test: P = .003) and an abnormal sFLC ratio (P = .004) at the end of consolidation therapy (∼8 months into the trial protocol) maintained their prognostic value and associated with shorter PFS (Table 2; Figure 4).

We assessed the value of achieving uIFE negativity or a normal sFLC ratio during induction therapy for the prediction of MRD negativity at the end of consolidation treatment. In patients with matched data for serum, urine, and MRD assessment, normalization of sFLC ratio after both 1 and 3 treatment cycles had 100% positive predictive value (PPV), that is, all patients whose sFLC ratios normalized during induction went on to achieve MRD negativity postconsolidation (Table 3); by contrast, patients becoming uIFE-negative at cycles 1 and 3 had PPVs of 81% and 78%, respectively.

The comparison of UPEP and iFLC results at the time of diagnosis (baseline) showed that iFLC was a more sensitive measure of disease, with 100% of patients positive and “measurable” compared with 78% positive and 64% measurable by UPEP. This pattern of results was repeated with the assessments after 1 and 3 cycles of treatment and was also in accord with all other published studies of patients with confirmed diagnoses of LCMM.^14,21  UPEP and iFLC were chosen as the measures for comparison as they are the methods approved for monitoring LCMM by the IMWG⁶  and are quantitative, in contrast to the more sensitive but nonquantitative uIFE or the more sensitive sFLC ratio which may become variable if the noninvolved light chain is highly suppressed.¹⁹  Nevertheless, achieving a normal sFLC has been shown to be a clinically relevant measure of treatment efficacy.^22,23

The number of missing observations was much higher for the urine assays, particularly after cycle 1, with 60 missing, although urine compliance improved at subsequent collection times throughout the protocol. The limited numbers did reduce the statistical certainty achieved in any analyses (resulting in broad CIs) and also serve to illustrate the practical difficulties encountered collecting urine samples even when patients were participating in a trial.^24,25

Another notable feature of the results was the 14 patients whose urine Bence Jones protein concentrations fell at the end of induction below the concentration regarded as measurable (≥200 mg per 24 hours) by IMWG guidelines,⁶  while maintaining measurable levels of sFLC. For these patients, adherence to the current guidelines for monitoring would dictate that they were initially monitored using urine electrophoresis but then transferred to serum monitoring. Although trends in FLC concentrations are generally consistent between sFLC and urine FLC assessments (ie, both assessments show falling, or rising, concentrations), the absolute concentration in urine shows little correlation with that in serum,¹⁹  so changing the method of monitoring is less than ideal and creates a potential source of confusion. Obviously, these difficulties could be avoided if the patients were assessed by their sFLC throughout their treatment.

With regard to the urine FLC and sFLC response assessments after 1 and 3 cycles of treatment, the urine measurements clearly indicated a generally greater degree of response, with more patients becoming negative or nonmeasurable by urine analysis. The most obvious and simple interpretation of these results is that the urine assays underestimated the amount of FLC production and overestimated the response to treatment because of the reabsorption and metabolism of FLC in the kidneys. The assumption that sFLC concentrations may provide a more true reflection of the disease process is supported by the fact that they were more predictive of PFS and OS. Bradwell et al reported in an early MM trial¹⁴  in the United Kingdom that the percentage of LCMM patients achieving CR was 32% according to urine assessments and only 10% by sFLC, but the latter percentage was in much better accord with the 11% of intact immunoglobulin multiple myeloma (IIMM) patients (treated under the same protocol) judged to reach CR by electrophoretic serum assays. Likewise, in an interim analysis of the current IFM trial, Corre et al reported that the proportion of patients with normal iFLC levels at the end of induction was comparable between LCMM (52%) and IIMM (58%) patients, and closer to the 21% of IIMM patients whose serum protein electrophoresis was negative at the same time point; by contrast, UPEP was negative in 79% of LCMM patients at the end of induction, highlighting overestimation of the response by urine compared with serum measurements.²⁶

Kaplan-Meier survival analyses showed that patients with an abnormal (elevated) iFLC had a significantly shorter PFS than patients with normal iFLC. However, the data from UPEP (positive/negative) did not reach significance. Further statistical analysis of the results also indicated that the model fit was better with the serum data as well as providing better discrimination for patient outcome. Although the number of events was too low for the data to reach significance for OS (unless the larger, unmatched iFLC data set was used; data not shown) all indications were that the serum iFLC measurements were prognostic of outcome. Interestingly, although the sFLC ratio was found to be more prognostic than uIFE (for PFS and OS), it was also more prognostic than iFLC measurements. This was indicated by the fact that the FLC ratio was significantly predictive of OS even when the smaller patient group (with matched serum and urine results) was analyzed.

It is relevant to note that sFLC measurements have previously been found to be prognostic for progression of monoclonal gammopathy of undetermined significance^27,28  and smoldering MM.^29,30  For LCMM, a study of 122 patients treated in a Medical Research Council myeloma trial in the United Kingdom indicated that normalization of iFLC concentrations and FLC ratios was prognostic of improved PFS and OS.³¹  Our results expand these observations and confirm the prognostic utility of sFLC measurements, both in early responders as well as in those patients whose sFLC parameters normalize later during monitoring. Likewise for IIMM, abnormal sFLC has been reported to be prognostic at presentation and during early monitoring in a number of studies,^32-34  whereas the survival benefit of a CR including normalization of the sFLC ratio has been demonstrated^22,23  and stringent CR is established as a response category in the IMWG guidelines.⁶  Similar prognostic utility has not been proposed for urine assessments.

These results raise the question of why the concentration of FLC in the urine is less prognostic than the concentration in the serum? One explanation might be that the renal “threshold” (ie, the sFLC concentration above which significant amounts of FLC pass into the urine) is very variable, such that some patients, with relatively low FLC (tumor) production, may still have high urine FLC concentrations. Conversely, patients with very efficient renal metabolism could have undetectable concentrations of FLC in the urine despite high levels of FLC production. Certainly, the comparison of sFLC and urine FLC results by Nowrousian et al indicated great variability for the renal threshold.¹⁵

MRD negativity for MM patients is increasingly believed to be a desirable and achievable aim of therapy.³⁵  In the current (LCMM) study, all patients whose sFLC ratio normalized after 1 or 3 treatment cycles went on to achieve MRD negativity. This further underlines the clinical relevance of sFLC responses and suggests that routine sFLC monitoring could be a useful aid in guiding treatment.

In summary, the practical difficulties of obtaining 24-hour urine collections are well known and were also illustrated in the current study, whereas serum samples are much more readily obtained. In keeping with previous reports, sFLC analysis was found to be a more sensitive indicator of disease than urinalysis at all time points evaluated, thus demonstrating that monitoring LCMM patients with serum assays would minimize the need to change techniques. Importantly, and to the best of our knowledge, we demonstrate for the first time that the improved sensitivity of serum measurements translates into valuable prognostic information, adding to the existing evidence for the greater biological relevance of sFLC measurement.

sFLC analysis is already recommended at diagnosis and maximum response; it would appear sensible to use the same methodology at the time points in between. We believe there is now sufficient evidence and experience to propose that sFLC analysis is the method of choice for response evaluation in LCMM patients, whereas urine exploration may remain a rational practice to assess total proteinuria and, together with serum creatinine measurements, monitor renal function in these patients.
