Key Points
Iron availability alters the phenotype of MPN mouse models by affecting the lineage bias of bipotent megakaryocyte-erythroid progenitors.
The ferroportin inhibitor vamifeport and the minihepcidin PR73–normalized hematocrit and hemoglobin levels in mouse models of PV.
Abstract
JAK2-V617F mutation causes myeloproliferative neoplasms (MPNs) that can manifest as polycythemia vera (PV), essential thrombocythemia (ET), or primary myelofibrosis. At diagnosis, patients with PV already exhibited iron deficiency, whereas patients with ET had normal iron stores. We examined the influence of iron availability on MPN phenotype in mice expressing JAK2-V617F and in mice expressing JAK2 with an N542-E543del mutation in exon 12 (E12). At baseline, on a control diet, all JAK2-mutant mouse models with a PV-like phenotype displayed iron deficiency, although E12 mice maintained more iron for augmented erythropoiesis than JAK2-V617F mutant mice. In contrast, JAK2-V617F mutant mice with an ET-like phenotype had normal iron stores comparable with that of wild-type (WT) mice. On a low-iron diet, JAK2-mutant mice and WT controls increased platelet production at the expense of erythrocytes. Mice with a PV phenotype responded to parenteral iron injections by decreasing platelet counts and further increasing hemoglobin and hematocrit, whereas no changes were observed in WT controls. Alterations of iron availability primarily affected the premegakaryocyte-erythrocyte progenitors, which constitute the iron-responsive stage of hematopoiesis in JAK2-mutant mice. The orally administered ferroportin inhibitor vamifeport and the minihepcidin PR73 normalized hematocrit and hemoglobin levels in JAK2-V617F and E12 mutant mouse models of PV, suggesting that ferroportin inhibitors and minihepcidins could be used in the treatment for patients with PV.
Introduction
Myeloproliferative neoplasms (MPNs) are clonal disorders of hematopoietic stem cells (HSCs) driven by gain-of-function mutations in JAK2, MPL, or CALR genes.1-7 Additional mutations that modify the course of the disease have also been described in genes involved in epigenome regulation, DNA damage response, Ras signaling, and inflammation.8 In patients with MPN having JAK2-V617F mutation, the disease can manifest as polycythemia vera (PV) with significant expansion of erythropoiesis, essential thrombocythemia (ET) with increased production of megakaryocytes and platelets, or primary myelofibrosis with extramedullary hematopoiesis.9,10 In contrast, patients with MPN having mutations in JAK2 exon 12 (E12) invariably display a PV phenotype with predominant erythrocytosis.11,12
In healthy individuals, ∼80% of circulating iron is consumed for hemoglobin production, and iron availability strongly affects erythropoiesis.13 To maintain the high hemoglobin levels in PV, the iron regulatory peptide hepcidin that inhibits iron absorption in the gut and recycling from macrophages has to be suppressed.14 This process is partially mediated by erythroferrone,15 which is released from erythroblasts upon stimulation by erythropoietin (Epo). Erythroferrone inhibits hepcidin expression by sequestering the bone morphogenetic proteins (BMPs), which signal to increase hepcidin (HAMP) transcription.16,17 Mobilization of iron does not occur equally in all MPNs. Previous data in MPN animal models showed that hepcidin suppression and iron acquisition are more effective in mice with JAK2 E12 mutation compared with that in mice with JAK2-V617F mutation.18 Limiting iron availability via phlebotomy is a standard therapy to lower hematocrit in low-risk PV.19 Iron deficiency can promote thrombocytosis.20,21 Reducing iron availability by exogenous administration of hepcidin mimetics that inhibit the iron transporter ferroportin is currently being investigated for the treatment of PV.22,23
Materials and methods
Patients with MPN
Blood samples and clinical data of patients with MPN were collected at the Basel University Hospital, Basel, Switzerland. Blood samples from healthy controls were obtained from the local blood donation center (Stiftung Blutspendezentrum SRK beider Basel). The study was approved by the local ethics committees (Ethik Kommission Beider Basel). Written informed consent was obtained from all patients, in accordance with the Declaration of Helsinki. The diagnosis of MPN was established based on the World Health Organization classification of myeloid neoplasms and acute leukemia.10 Information on the diagnosis and gene mutations of patients with MPN included in this study are specified in supplemental Table 1 and supplemental Methods, which are available on the Blood website. Additional methods are also described in supplemental Methods.
Mice
We used conditional JAK2-V617F transgenic "flip-flop" (FF1) mice,26,JAK2 E12 mutant mice (JAK2-N542-E543del),18 and Jak2-V617F knockin mice,27 which were crossed with tamoxifen-inducible SclCreER(estrogen receptor) mice.28 The CreER protein in double-transgenic SclCreER;FF1 mice (FFScl) and SclCreER;Jak2-V617F knockin mice (Ki) was then activated by intraperitoneal injection of 2 mg tamoxifen (Sigma-Aldrich) for 5 consecutive days, resulting in a PV phenotype that developed within ∼3 to 4 weeks.27,29 Alternatively, the FF1 transgene was activated by crossing FFScl with VavCre mice,30 and the resulting VavCre;FF1 mice (FFVav) display an ET-like phenotype.26 Ki and E12 mice were also crossed with the UBC-GFP strain that express the green fluorescent protein reporter gene in all hematopoietic lineages.31 All mice used in this study were from pure C57BL/6N background and were maintained under specific pathogen-free conditions and in accordance with Swiss federal regulations.
Low-iron diet and iron injections
The normal mouse diet used in our facility contains 200 mg/kg iron (Kliba Nafag). To induce iron deficiency, mice were placed on a low-iron diet (iron content <5 mg iron per kg, SAFE, U8958), or on a control diet supplemented with 200 mg/kg carbonyl-iron (SAFE, U8959). Additional phlebotomies (200 μL every 2 weeks) were performed in some mice to accentuate iron deficiency. Iron-dextran (D8517, Sigma-Aldrich) was injected intraperitoneally (250 mg/kg per mouse) for iron supplementation.
Inhibitor studies
Vamifeport (CSL Vifor) in 0.5% methylcellulose (Sigma-Aldrich) was gavaged twice a day at 100 mg/kg.32 PR73 was dissolved in SL220 (NOF Corp) and injected intraperitoneally at 10 mg/kg twice per week.33,34 Control mice were injected twice a week with the solvent SL220 or gavaged twice a day with 0.5% methylcellulose.
Statistics
We used Student unpaired t test and one- or two-way analysis of variance with a posttest using Prism software version 8.4.3 (GraphPad Inc). Significance is denoted with asterisks: ∗P < .05, ∗∗P < .01, ∗∗∗P < .001, and ∗∗∗∗P < .0001.
Results
Iron parameters and cytokine levels in patients with MPN and in MPN mouse models

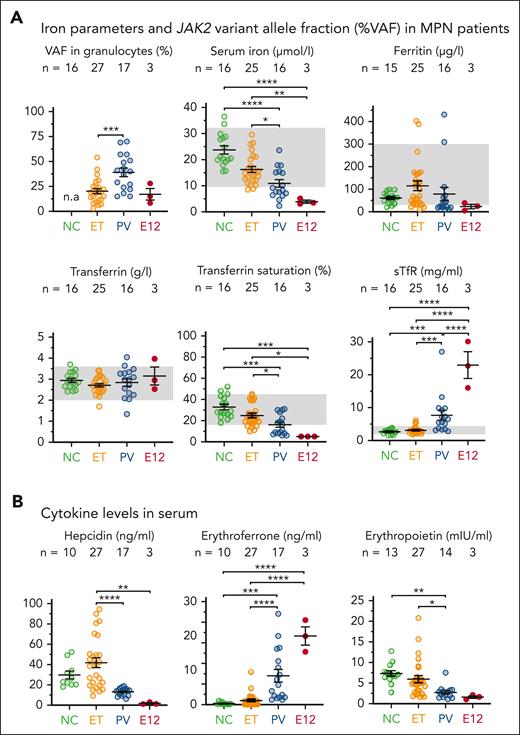

We measured iron parameters in patients with MPN with JAK2-V617F or JAK2 E12 mutations. Samples were taken at diagnosis before any treatment was initiated (supplemental Table 1; supplemental Methods). Patients with PV displayed higher JAK2-V617F variant allele fraction than patients with ET (Figure 1A), consistent with the presence of a subclone homozygous for JAK2-V617F,35-37 because of uniparental disomy.38 Serum iron and transferrin saturation had decreased, and soluble transferrin receptor had increased in patients with PV compared with patients with the levels in ET or normal controls, and these alterations were most pronounced in patients with PV with JAK2 E12 mutations (Figure 1A). Accordingly, hepcidin and Epo levels had decreased, and erythroferrone levels increased in patients with PV (Figure 1B). Thus, patients with PV displayed erythrocytosis and were iron deficient at diagnosis, before any treatment was initiated.39 In contrast, most patients with ET with JAK2-V617F had normal iron parameters at diagnosis, indicating that iron availability was not limiting their potential to augment erythropoiesis.

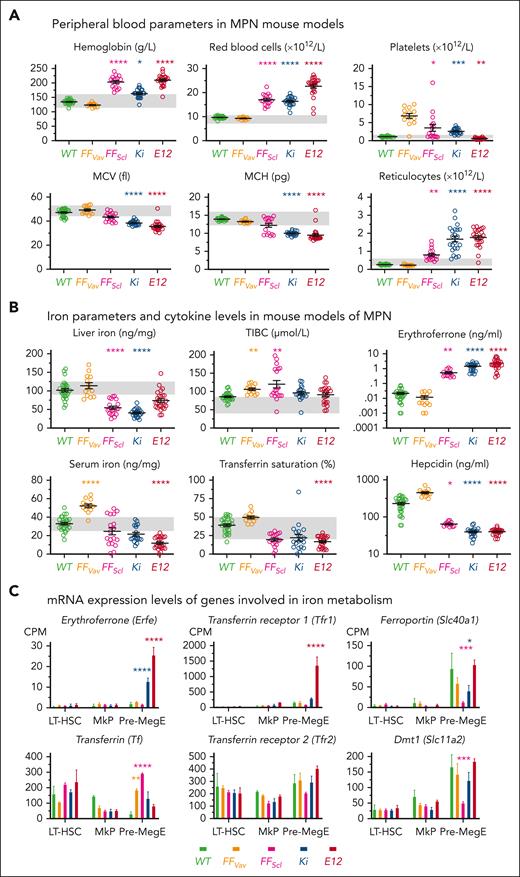

To examine the effects of iron on the MPN phenotype, we first compared blood counts and iron parameters of JAK2-mutant MPN mouse models at baseline on a normal diet. We included 3 models with various degrees of PV-like phenotypes (Ki, FFScl, and E12)18,26,27 and 1 with ET-like phenotype (FFVav).26 All PV models showed erythrocytosis and increased platelet count, except E12 mice, whose platelets were decreased. FFVav mice showed thrombocytosis with normal red blood cell parameters (Figure 2A). Liver iron concentration had greatly decreased in Ki mice and moderately decreased in FFScl mice, whereas E12 mice showed only a nonsignificant trend toward decreased liver iron (Figure 2B). E12 mice also showed lowest levels of serum iron and transferrin saturation, similar to data from patients with PV having JAK2 E12 mutations. Erythroferrone in all PV mice was elevated, and hepcidin levels were suppressed, most strongly in Ki and E12. In contrast, FFVav mice, which displayed thrombocytosis but normal hemoglobin and red blood cell parameters, displayed liver iron, erythroferrone, and hepcidin levels comparable with those in wild-type (WT) controls (Figure 2B). Purified populations of hematopoietic stem and progenitor cells (HSPCs) from Ki and E12 mice showed increased messenger RNA (mRNA) expression of genes favoring augmented iron supply for erythropoiesis (Figure 2C). In this respect, E12 mice showed higher expression levels of Erfe, transferrin receptor (TfR1), and ferroportin in premegakaryocyte-erythrocyte progenitors (pre-MegEs) compared with Ki mice, suggesting that the mutant JAK2-E12 has an intrinsically increased propensity for the erythroid lineage and iron acquisition40 and a better ability to use iron for erythropoiesis.18 Based on these data, we selected Ki mice and E12 mice for further studies of iron metabolism under conditions of iron restriction and iron overload.
Iron deficiency increased thrombopoiesis at the expense of erythropoiesis

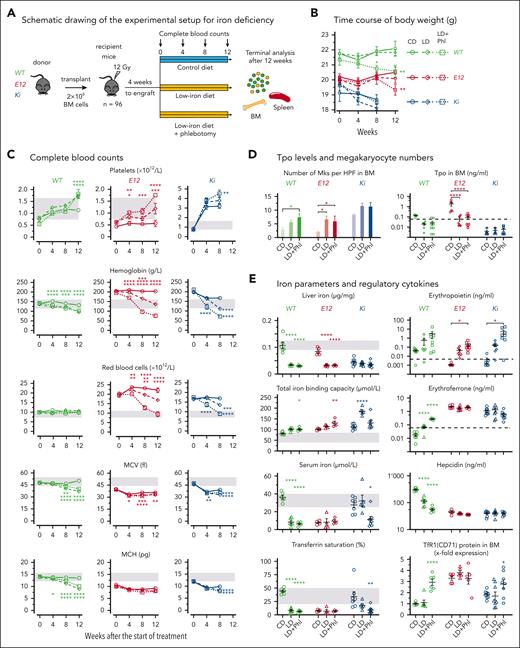

To obtain enough mice for the different treatment groups, we performed transplantation of WT C57BL/6 recipient mice with bone marrow (BM) from Ki, E12, or WT mice (Figure 3A; supplemental Figure 1A). Four weeks after transplantation, recipient mice were randomized and placed on a low-iron diet, with or without phlebotomy, or on a control diet (Figure 3A). Already before start of treatment, Ki and E12 mice displayed lower body weight (Figure 3B) and nonfasting glucose levels than WT controls (supplemental Figure 1B), consistent with the previously described augmented energy demand of hyperactive erythropoiesis.41 Splenomegaly was reduced by a low-iron diet with or without phlebotomy in both E12 and Ki mice (supplemental Figure 2). An inverse correlation with hemoglobin levels was noted in Ki mice (supplemental Figure 2B), suggesting increased removal of erythrocytes via hypersplenism.
Platelet counts and megakaryocyte numbers of WT, E12, and Ki mice increased on the low-iron diet compared with the control diet, and this increase was further accentuated via additional phlebotomy (Figure 3-D). Tpo concentrations in BM and serum were elevated in E12 mice at baseline and inversely correlated with platelet and megakaryocyte counts in all genotypes (Figure 3D; supplemental Figure 1C-D). Grade of BM reticulin fibrosis increased in Ki mice on a low-iron diet with phlebotomy (supplemental Figure 1E), consistent with the role of augmented megakaryopoiesis and increased platelet counts in myelofibrosis.42,43
Mice on a low-iron diet also showed the expected decrease in red blood cell parameters (Figure 3C; supplemental Figure 1F). Anemia developed in all genotypes on a low-iron diet plus phlebotomies, most notably in Ki mice, which had to be euthanized prematurely after 8 weeks because they looked ill. E12 mice on a control diet reached the highest hemoglobin values, were more resistant to iron deficiency, and, after 8 weeks, maintained higher hemoglobin levels compared with Ki. Mean corpuscular volume (MCV) and mean corpuscular hemoglobin (MCH) both decreased when the mice were exposed to a low-iron diet plus phlebotomy, although these were already very low with a normal diet (Figure 3C). No significant changes were found in white blood cell counts (supplemental Figure 1G).
Iron parameters and regulatory cytokines are shown in Figure 3E. Low-iron diet reduced liver iron in E12 and WT mice, whereas stores were already exhausted at baseline in Ki mice. Serum iron in E12 mice, already low with the control diet, did not decrease further with a low-iron diet with or without phlebotomy, whereas serum iron and transferrin saturation in Ki mice decreased only when they were on a low-iron diet plus phlebotomy, accompanied by an increase in total iron binding capacity. As expected for PV, serum Epo levels were low and suppressed in E12 and Ki mice when on a control diet but increased in response to lowering hemoglobin when on a low-iron diet with or without phlebotomy. Epo transcription is primarily regulated by hypoxia-inducible factor 2α (Hif2α), whose activity is controlled at the protein level by oxygen-dependent prolyl hydroxylases that initiate posttranslational degradation of HIFα subunits.44 To estimate the activity of HIF, we assayed the mRNAs for HIF target genes Vegfa, Igf2, and Glut1 (Slc2a1) and found that on a low-iron diet plus phlebotomy, their expression had increased together with Epo mRNA (supplemental Figure 3). Erfe and Hamp expression in WT mice responded to iron deficiency, whereas Ki and E12 mice showed already maximally increased Erfe and suppressed Hamp expression when on a normal diet and did not respond further to iron deficiency (Figure 3E). Because Erfe is produced by erythroid progenitors as a target gene of Epo signaling, these data suggest that despite low Epo levels, hyperactive Epo receptor signaling is maintained in erythroid progenitors by the mutant JAK2. Consistent with the massively increased erythropoiesis, BM and spleen cells from E12 mice showed very high cell-surface expression of TfR1 (TfR1/CD71) even with a normal diet (Figure 3E; supplemental Figure 1H).18 Overall, iron deficiency induced a reciprocal increase in platelet counts and decrease in hemoglobin levels in all genotypes and also resulted in the expected changes in proteins involved in iron homeostasis.
To determine at what stage of hematopoietic development iron deficiency influenced erythropoiesis vs thrombopoiesis, we assessed the frequencies of HSPCs in the BM and spleen (Figure 4). On a control diet, long-term HSC (LT-HSC) numbers in the BM were increased in E12 and Ki mice compared with that those in WT (Figure 4A), and an overall increase in HSPCs was seen in the spleens from Ki mice compared with those from WT, reflecting enhanced involvement of the spleen in MPN hematopoiesis. Low-iron diet with phlebotomy decreased LT-HSCs in the spleens of Ki mice. Furthermore, an increase in megakaryocyte progenitors and pre-MegEs was noted in the spleens of Ki mice, consistent with a shift toward increased megakaryopoiesis in response to iron deficiency. Analysis of late erythroid maturation stages revealed an increase in early precursors (stage II) and a decrease in late precursors (stage IV) in E12 mice, whereas a general decrease in the numbers of erythroid precursors was observed in Ki mice on a low-iron diet plus phlebotomy (Figure 4B). Because pre-MegEs were reported to respond to iron deficiency, we also assessed the lineage output of single-cell–sorted pre-MegEs in liquid cultures in vitro (supplemental Figure 4). Pre-MegEs isolated from the BM of E12 and Ki mice on a low-iron diet showed reduced erythroid commitment compared with mice on a control diet, whereas WT mice did not show this bias. Moreover, a slight increase in megakaryocytic output was found in pre-MegEs from E12 mice on a low-iron diet. Overall, iron deficiency in JAK2-mutant MPN mice decreased terminal erythroid maturation and increased megakaryocyte-committed progenitors mainly in the spleen.
Parenteral iron administration increased erythropoiesis at the expense of megakaryopoiesis in mice with JAK2-mutated MPN
Next, we examined the effects of parenteral iron supplementation on MPN megakaryopoiesis and erythropoiesis. We again performed BM transplantations to obtain enough JAK2-mutant mice for analysis, and injected iron-dextran intraperitoneally into recipient mice at weeks 1 and 4 after transplantation (Figure 5A; supplemental Figure 5A). E12 and Ki mice injected with iron showed weight loss (Figure 5B) were visibly impaired and had to be euthanized prematurely at 12 and 8 weeks after transplantation, respectively. Platelet counts and megakaryocyte numbers in the BM decreased by variable degrees in E12 and Ki, whereas no such changes were noted in WT mice (Figure 5C-D). Conversely, iron-supplemented E12 and Ki mice developed a stronger PV phenotype than vehicle-treated mice. Iron injections in Ki mice increased erythrocyte numbers, whereas in E12 mice, they primarily raised MCV and MCH, without altering red blood cell counts (Figure 5C). No changes in red blood cell parameters were observed in WT mice, and white blood cells did not change after iron injections (supplemental Figure 5B). The number of megakaryocytes in the BM decreased after iron injections in Ki and WT mice (Figure 5D). Consistent with the accentuated PV phenotype, spleen weight increased after iron injections in Ki and E12 mice but not in WT controls (Figure 5E). Thus, the decline in the general condition in E12 and Ki mice correlates with the rapid increase in erythropoiesis in response to injection of iron and the more rapid decline in Ki mice is likely because of the more profound iron deficiency of Ki mice at baseline on a normal diet (Figure 2).
Liver iron concentration strongly increased upon iron injections in WT mice, accompanied by an increase in transferrin saturation (Figure 5F). A less pronounced increase in liver iron was seen in Ki and E12 mice, and serum iron and transferrin saturation decreased in Ki mice, reflecting augmented use due to massively increased erythropoiesis in these mice. E12 and Ki mice, also showed persistently high TfR1 (CD71) protein expression on the surface of BM cells. Despite iron injections, erythroferrone remained very high in E12 and Ki mice, but a trend toward higher hepcidin in response to iron injections was noted, consistent with previous data showing that erythroferrone is unable to fully suppress hepcidin when the BMP pathway is activated by high iron or by deletion of Tmprss6, a negative regulator of the BMP signaling.45 Thus, parenteral iron administration lowered platelets and increased hemoglobin in E12 and Ki mice, which displayed iron deficiency at baseline, whereas iron injections had no effect in WT mice with adequate iron stores before the injections.
Iron injections did not alter the numbers of LT-HSCs or common myeloid progenitors (CMPs) in the BM and spleen in any of the genotypes (Figure 6A). Although LT-HSCs or CMPs were largely unresponsive to iron injections, we observed changes in the erythroid and megakaryocytic progenitors. These alterations were reciprocal to the changes induced by iron deficiency (Figure 3) and were predominantly noted in the spleen. Detailed analysis of erythroid maturation (Figure 6B) showed an increase in terminally differentiated erythroid cells (stage IV) in E12 and Ki mice upon iron injection, whereas no changes were observed in WT mice.
Collectively, these results show that in PV mouse models, iron supplementation increased hemoglobin levels at the expense of platelets production. These changes appear to operate mainly through the pre-MegE stage, which responded to iron restriction with an increase in platelet production at the expense of red blood cells in all models. In contrast, effects of increased iron supply were only observed in PV models, which, when on a normal diet at baseline, already displayed some degree of iron deficiency.
The ferroportin Inhibitor vamifeport and the hepcidin agonist PR73 normalize hemoglobin levels in 2 PV mouse models

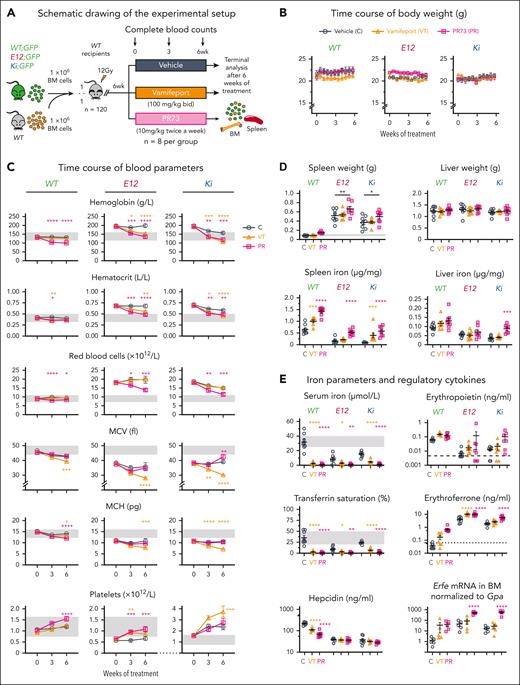

Because iron depletion via phlebotomy is a standard therapy in low-risk PV, we examined whether iron restriction through the inhibition of ferroportin-mediated export of cellular iron by vamifeport or the minihepcidin PR73 could be used to normalize hemoglobin and hematocrit in mouse models of PV.24,25,46,47 We performed competitive BM transplantations to obtain cohorts of mice expressing Jak2-V617F (Ki) or JAK2-E12 (E12) in hematopoietic cells only (Figure 7A). After 6 weeks, recipient mice were randomized into 2 treatment groups and a control group and were then treated for 6 weeks with vamifeport by gavage (100 mg/kg twice a day) or with PR73 by intraperitoneal injections (10 mg/kg twice per week). Treatment was well tolerated and no significant changes in body weight were observed (Figure 7B). Hemoglobin normalized, and hematocrit was decreased in E12 and Ki mice treated with vamifeport and PR73 compared with vehicle controls (Figure 7C). In Ki mice, vamifeport lowered MCV and MCH levels but did not affect erythrocyte numbers, whereas PR73 substantially reduced erythrocyte numbers but did not decrease MCH and even slightly increased MCV after 6 weeks of treatment. Platelet counts increased in Ki mice treated with vamifeport and, to a lesser degree, also in E12 and WT mice treated with PR73.
An increase in spleen weight was noted in E12 and Ki mice treated with PR73 but not in mice treated with vamifeport, whereas liver weight was not affected by any of the treatments (Figure 7D). Vamifeport and PR73 increased iron concentration in the spleen, suggesting increased retention of iron in splenic macrophages, whereas liver iron concentration was significantly increased only in Ki mice treated with PR73. As expected, vamifeport and PR73 lowered serum iron and transferrin saturation in all genotypes (Figure 7E). In line with decreased iron availability, PR73 in E12 and Ki mice led to increased serum erythroferrone accompanied by elevated Erfe mRNA expression in BM erythroid cells, compatible with an increase of expression on a per cell basis. Vamifeport increased serum erythroferrone in E12 mice only, despite unchanged Erfe mRNA in the BM. This increase of Erfe in serum is likely related to the increased numbers of erythroblasts in the spleen of vamifeport-treated E12 mice (supplemental Figure 6). Hepcidin decreased in WT mice only, and remained suppressed in E12 and Ki mice.
Overall, vamifeport and PR73 showed similar efficacy to normalize hemoglobin and hematocrit in our JAK2-mutant mouse models of PV. Vamifeport showed the expected effects of blocking the iron exporter ferroportin with decreased MCV and MCH, whereas PR73 acted primarily by lowering erythrocyte numbers without affecting the MCV and MCH.
Discussion
Patients with PV who are untreated as well as JAK2-mutant mouse models with a PV-like phenotype on a control diet already exhibited iron deficiency, whereas patients with ET as well as JAK2-mutant mice with an ET-like phenotype (FFVav) had normal iron stores (Figures 1 and 2).39 Low-iron diet with or without phlebotomy further increased platelet production and resulted in anemia, even in mice with PV that initially displayed marked erythrocytosis (Figure 3). In PV models with augmented erythropoiesis and preexisting low liver iron (in Ki and, to a lesser extent, in E12 mice), iron injections lowered platelet counts and further increased hemoglobin production (Figure 5). In contrast, iron injections had no effect on WT mice, which had normal liver iron before the injections. These findings are consistent with the notion that iron overload alone, for example, in hereditary hemochromatosis, is not associated with erythrocytosis.48 Thus, the PV phenotype in patients with PV and in PV mouse models develops while being limited by iron deficiency.
The observed iron deficiency in PV mouse models is caused by the rapid expansion of erythropoiesis, resulting in a massive increase in hematocrit and red blood cell numbers. The demand for iron leads to a decrease in serum iron, transferrin saturation, and, ultimately, reduced liver iron stores. Although increased erythroferrone and suppressed hepcidin are expected to augment intestinal iron resorption, the iron stores did not normalize over time and remained subnormal in these mice (Figure 2), despite the fact that the normal diet contains 200 mg/kg iron, which is in excess of normal iron requirements in mice. Therefore, we abstained from testing a diet supplemented with an even higher content of iron, and, instead, we used parenteral iron injections, which bypass the enteral bottleneck, deliver more iron in a shorter time, and allow us to examine how iron is distributed between the different compartments (liver, serum, and erythropoiesis in the BM and spleen).
Despite an increase in liver iron concentration, serum iron and transferrin saturation in PV mouse models was not normalized by iron injections (Figure 5), suggesting that hyperactive erythropoiesis rapidly consumed the injected iron. Considering that healthy BM consumes ∼80% of circulating iron, hyperactive erythropoiesis driven by mutant JAK2 in PV is expected to require substantially more iron.
A number of studies described HSCs with an intrinsic capacity to commit directly to the megakaryocytic lineage, thereby bypassing the pre-MegE stage,49-54 estimated to account for ∼30% of megakaryopoiesis.54 However, the relative contribution of this shortcut can be altered under stress or pathological conditions.55,56 HSCs with megakaryocytic bias can be identified by increased expression of CD41,51,52 or a vWF-GFP reporter gene.50 However, we did not detect changes in the percentages of the CD41hi subsets of HSCs or CMPs upon inducing changes in iron availability (data not shown). In contrast, pre-MegEs and megakaryocyte progenitors increased under iron deficiency (Figure 4) and decreased after iron injections (Figure 6). Our data are consistent with the model in which pre-MegEs in WT mice having acquired iron deficiency, or in Tmprss6−/− mice having genetic iron deficiency represented the iron-responsive stage of hematopoietic differentiation.57 Here, we showed that pre-MegEs were also sensitive to iron deficiency in all JAK2-mutant MPN models.
The phenotype of E12 mice with marked erythrocytosis and subnormal platelet counts appears to reflect the preference of the E12-mutated Jak2 protein for the EpoR over the TPO-receptor (MPL).40 As a result, erythropoiesis through pre-MegEs is already massively augmented in E12 mice at baseline, leading to reduced-iron stores and erythrocytosis at the expense of platelet production. Normalizing iron through injections in E12 mice resulted in thrombocytopenia (Figure 5), suggesting that E12 signaling is unable to stimulate the LT-HSC/CMP shortcut to megakaryopoiesis. Our findings lead to a model that integrates the properties of the different mutant JAK2 and their preference for erythropoiesis vs megakaryopoiesis and the influence of iron availability on the phenotypic expression in the MPN mouse models studied (supplemental Figure 7).
Finally, we show that reducing the availability of iron for hematopoiesis by inhibiting ferroportin with vamifeport or the hepcidin agonist PR73 normalized hematocrit and hemoglobin levels in E12 and Ki mouse models of PV. The differences between vamifeport and PR73 in altering MCV and MCH vs erythrocyte numbers could be because of the differences in the pharmacokinetics and pharmacodynamics between the 2 compounds. The half-life of vamifeport was only ∼2 to 3 hours when in the rat and sustained hypoferremia for ∼4 to 8 hours.24 The minihepcidin M009 (7.5 mg/kg subcutaneously) had a longer half-life and sustained hypoferremia for >48 to 72 hours in the rat.47 The half-life of the closely-related minihepcidin PR73 is expected to be in a similar range as that of M009. It is therefore conceivable that a more profound inhibition of ferroportin by PR73 could transiently generate sufficient iron restriction to inhibit cell division of erythroid progenitors resulting in reduced erythrocyte numbers. The current dosage of vamifeport may not achieve sufficiently profound inhibition of ferroportin to interfere with cell division, therefore not affecting erythrocyte numbers. Indeed, in an earlier experiment, vamifeport 100 mg/kg combined with a reduced-iron diet also decrease erythrocyte numbers (data not shown). Thus, the severity and duration of iron restriction could be the main factor determining whether erythrocyte numbers will be affected.
These results suggest that both agents are suitable candidates as an alternative to phlebotomy in the treatment of patients with PV. Indeed, rusfertide, another hepcidin agonist similar to PR73, showed promise in clinical trials.23
Acknowledgments
The authors thank the members of the laboratory for helpful discussions and critically reading the manuscript.
This work was supported by grants from the Swiss National Science Foundation (31003A_166613 and 310030_185297) and Swiss Cancer Research Foundation (KFS-3655-02-2015 and KFS-4462-02-2018) (R.C.S), and partially by the Ministry of Health of the Czech Republic (NV19-07-00412) (J.S.).
Authorship
Contribution: J. Stetka designed and performed research, analyzed data, and wrote the manuscript; M.U., L.K., S.R., T.N.R., H.H.-S., J. Sutter, and N.A. performed research and analyzed data; S.D., F.G., M.S.B., J.R.P., and T.S. analyzed data; V.M., F.D., T.G., E.N., L.S., A.N., and C.C. designed research and analyzed data; and R.C.S. designed research, analyzed data, and wrote the manuscript.
Conflict-of-interest disclosure: R.C.S. is a scientific adviser/scientific advisory board member, has equity in Ajax Therapeutics, and has consulted for and received honoraria from Novartis and Bristol Myers Squibb/Celgene. V.M. and F.D. are full time employees of CSL Vifor and are inventors in patents related to vamifeport. T.G. and E.N. have been consultants for Vifor, are shareholders in Intrinsic LifeSciences and Solaris Pharma, and have received consulting fees from Disc Medicine, Fibrogen, AstraZeneca, Ionis Pharmaceuticals, and Rallybio. T.G. has also received consulting fees from Alnylam Pharmaceuticals, Akebia Therapeutics, Global Blood Therapeutics, Gossamer Bio, Pharmacosmos, Sierra Oncology, and Silence Therapeutics. E.N. has received consulting fees from GSK, Novo Nordisk, Protagonist, and Shield Therapeutics. The remaining authors declare no competing financial interests.
The current affiliation for T.N.R. is Stem Cells and Cancer Biology Laboratory, Department of Oncology and Hematology, Medical Research Center, Kantonsspital St. Gallen, St. Gallen, Switzerland.
Correspondence: Radek C. Skoda, Experimental Hematology, Department of Biomedicine, University Hospital Basel and University of Basel, Hebelstrasse 20, 4031 Basel, Switzerland; e-mail: radek.skoda@unibas.ch.
References
Author notes
RNA sequencing data reported in this article have been deposited in the Gene Expression Omnibus database (accession number GSE184254).
Data and information about the reagents are available on request from the corresponding author, Radek C. Skoda (radek.skoda@unibas.ch).
The online version of this article contains a data supplement.
There is a Blood Commentary on this article in this issue.
The publication costs of this article were defrayed in part by page charge payment. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 USC section 1734.
