Erythroblastic islands foster granulopoiesis in parallel to terminal erythropoiesis

The superb efficiency of the mammalian bone marrow (BM) to produce red blood cells at a rate of 2.5 million/second for an adult human at homeostasis¹ is provided by the erythropoietic niche, where erythroblasts differentiate in close association with a central macrophage (Mφ), forming the erythroblastic island (EBI), described by Marcel Bessis in 1958 as the first hematopoietic niche.² The EBI macrophages secrete growth factors that promote survival and proliferation of erythroblasts, provide iron for hemoglobin synthesis, and phagocytose the extruded nuclei, preventing toxicity from free DNA.^3-6 Terminal erythroid differentiation, from the late erythroid colony-forming unit (CFU-E) to the reticulocyte stage, occurs within the EBIs.^2,4,7 EBIs anatomically and functionally are known to comprise the erythropoietic niches, where positive and negative regulation of terminal erythroid maturation is organized and coordinated.^3,4

Many disorders affecting red cell production, such as thalassemias, congenital dyserythropoietic anemias, and acquired myelodysplasia, as well as the widespread anemia of inflammation (AoI), arise from defects in the final stages of erythropoiesis, when erythroblasts mature around the Mφ within EBIs.³ AoI occurs in patients with chronic or acute immune activation as a result of infectious, malignant, or autoimmune diseases and affects the quality of life of millions of people worldwide.⁸ Erythropoiesis in AoI is characterized by underutilization of iron despite adequate iron stores and blunted response to erythropoietin (Epo) caused by proinflammatory cytokines, which promote myelopoiesis.^9-11 Treatment for AoI is currently limited to transfusions and resolution of the underlying disease, which is frequently not feasible.

Therefore, functional characterization of the erythropoietic niche and the EBI Mφ and better understanding of the identity and interactions within the EBI are needed. F4/80, VCAM1, CD169, and CD11b have been reported as markers for EBI Mφs based on non–imaging flow cytometry (IFC) studies of events double positive for CD71 and F4/80.^12,13 We used gravity sedimentation to isolate BM clusters enriched for EBIs and performed unbiased analysis by IFC, focused on the morphological identity of a macrophage tightly associated with surrounding erythroblasts. Our previous studies with IFC revealed that F4/80, VCAM1, and CD169 are indeed detected on EBI Mφs, however heterogeneously, pointing to the heterogeneity and plasticity of the Mφ population serving as erythropoietic niches. In contrast, anti-CD11b does not label the EBI Mφs; it labels a third cell population consistently present within the islands.¹⁴

Here, we demonstrate that the CD11b⁺ cells in intimate contact with the central EBI Mφ are granulocytic precursors, providing evidence that terminal erythropoiesis proceeds in parallel with terminal granulopoiesis within EBIs. In mice stimulated by granulocyte colony-stimulating factor (GCSF) and models of AoI, we demonstrate increased numbers of CD11b⁺ cells within the islands along with suppression of erythropoiesis, whereas a reverse balance of increased proportion of erythroblasts to granulocyte precursors within the EBIs is observed in mouse models with inherently decreased granulopoiesis (Gfi1^−/−) or after stimulation by Epo. Further evaluation of the EBI Mφs by cellular indexing of transcriptomes and epitopes by sequencing (CITE-seq) revealed several distinct macrophage populations. Our data display the heterogeneous composition of macrophages within the BM erythropoietic niche, enabling their plasticity in supporting erythropoiesis and granulopoiesis.

All mouse protocols were approved by the institutional animal care and use committee of Cincinnati Children’s Hospital Medical Center and Feinstein Institutes. Wild-type (WT) C57BL/6J mice were used unless otherwise specified. GCSF was administered at 125 or 250 μg/kg body weight once daily for 3 or 4 days, respectively.¹⁵ Epo was administered at 1200 U/kg once daily for 10 days.¹⁶

Hindlimb bones were flushed with EBI buffer (Iscove’s modified Dulbecco’s medium containing 5% fetal bovine serum, 1 mM CaCl₂, and 1 mM MgCl₂). The suspension was gently pipetted, filtered, and layered onto a bovine serum albumin (BSA) density gradient in EBI buffer (5 mL each containing BSA 3%, 1.5%, and 0%) as previously described.¹⁷ After 30 minutes of gravity sedimentation, the top layers were removed and the 3% BSA fraction was collected.

Fixed EBIs were stained with fluorescent antibodies for 30 minutes. Labeled cell clusters were analyzed on ImageStream^X (ISX-100; Amnis/Luminex) and analyzed in IDEAS (Amnis).^14,18,19

Dispersed EBIs from WT BM were divided and subjected to fluorescence-activated cell sorting to sort CD71⁺, CD11b⁺, and F4/80⁺ populations or left unsorted before single-cell RNA sequencing (scRNA-seq). All samples in both sites (Cincinnati Children’s Hospital Medical Center and Feinstein) were diluted to 1,000 cells/mL and loaded in each lane of a Chromium Controller Instrument (10x Genomics) following the 3′ v2 assay protocol. Sequencing was performed on the Illumina NovaSeq (Novogene).

Single cells after dispersion of EBI clusters were subjected to red blood cell lysis and negative selection via magnetic-activated cell sorting to enrich for EBI macrophages and were labeled with Total-Seq A antibody-derived tags (ADTs) according to the manufacturer’s protocol. CITE-seq was carried out at the Gene Expression Core at Cincinnati Children’s Hospital Medical Center following the 3′v3 10x Genomics Chromium Protocol. Detailed methods are provided in supplemental Materials and Methods.

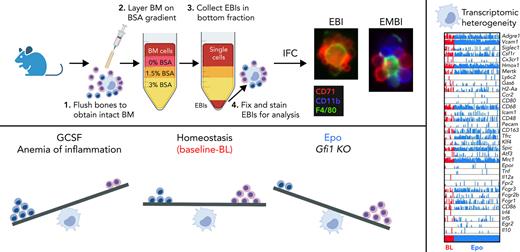

We previously reported that, although EBI macrophages are negative for CD11b, many EBIs contained CD11b⁺ cells in contact with the Mφ.¹⁴ To further investigate the CD11b-expressing cells associated with EBIs in the BM, we first optimized the collection of native EBIs from murine BM using density gradient sedimentation (Figure 1A). Compared with unfractionated total BM, the 3% BSA fraction had a 5-fold higher concentration of large area events (>300 Area_BF) and a 10-fold increase in the number of EBIs relative to total events permitting the analysis of more than 200 EBIs by IFC per mouse/experiment (average of 280 EBIs in n = 10 WT/control experiments; Figure 1B). Surprisingly, only 25% of these clusters were exclusively CD71⁺ cells surrounding an F4/80⁺ macrophage in tight, flower-like clusters. The remaining 75% of EBIs contained CD71⁺ erythroid cells and CD11b⁺ cells intimately attached to the Mφ (Figure 1C; supplemental Figure 1A). To quantify the relative abundance of CD11b⁺ vs CD71⁺ cells within the EBI clusters, we compared the CD11b⁺ vs CD71⁺ area within the EBI population by IFC (Figure 1D), which, interestingly, produced a consistent slope (0.690 ± 0.035) among C57BL/6J mice at homeostasis, suggesting a physiological significance for this relationship. Confocal imaging of BM in situ confirmed CD11b⁺ cells in intimate contact with F4/80⁺ Mφs, demonstrating that these cells are normally associated in vivo (Figure 1E; supplemental Figure 1B). To further exclude the possibility that nonspecific interaction during the preparation of EBIs caused detection of CD11b⁺ cells in close association with the Mφs, mixing experiments of WT BM EBIs with BM cells from green fluorescent protein–expressing mice were performed (supplemental Figure 1C-E). There was no tendency of single CD11b⁺ cells to randomly attach to unfixed WT EBIs during processing, demonstrating that CD11b⁺ cells observed in the EBIs by IFC are indeed native EBI components.

To assess the effectiveness of the density gradient sedimentation method to enrich for EBIs, erythroid precursors in total BM and in dissociated EBIs from the 3% BSA fraction were evaluated by flow cytometry (Figure 2A). The 3% BSA fraction was enriched for erythroblasts and depleted of reticulocytes and mature red blood cells (Figure 2B), as expected for erythroid precursors organized in EBIs. We suspected that the CD11b⁺ cells present within the EBIs might be granulocytes, as mixed hematopoietic clusters containing erythroid and granulocytic precursors have been previously observed by detailed immunohistology²⁰ or electron microscopy.²¹ Therefore, we evaluated the cells collected in the 3% BSA fraction for granulocytic lineage differentiation (Figure 2C) with flow cytometry as previously described.²² Relative to total BM, the 3% BSA fraction enriched for EBIs was also significantly enriched in promyelocytes (population 2, ckit^int,Ly6G^neg) and myelocytes (population 3, ckit^int,Ly6G^low), with the most mature neutrophil population (bands and segmented neutrophils, ckit^int/low,Ly6G^high) depleted (Figure 2D). An increase in the megakaryocyte-erythroid progenitor population was also notable, likely reflecting the presence of erythroid colony-forming unit in the EBIs^3,9,23 (Figure 2C-D). In contrast, B-cell and T-cell populations are depleted in the EBI fraction compared with total BM (supplemental Figure 2A-C). Granulocytic precursors were evident within EBIs stained in cytospins with hematoxylin and eosin and by IFC (Figure 2E-F). The specific enrichment of myeloid precursors within the 3% BSA suggests that EBIs are not only erythroblastic but also erythromyeloblastic islands (EMBIs), serving as niches for terminal erythropoiesis and granulopoiesis.

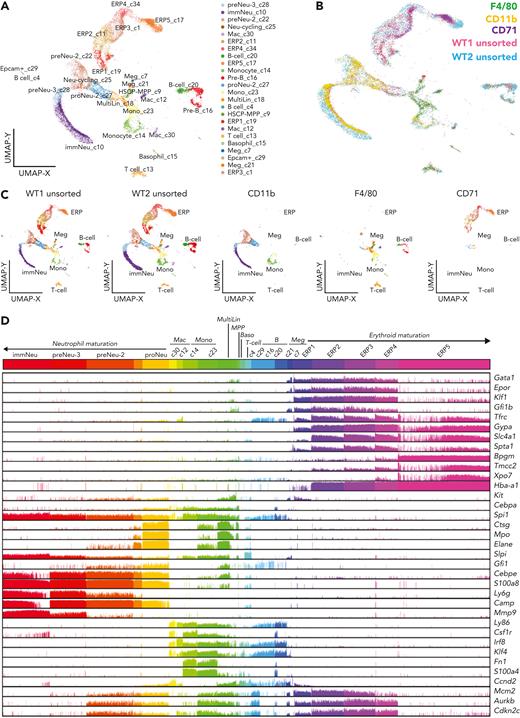

To systematically document the various cell populations participating in the EBIs, we performed scRNA-seq (Chromium; 10x Genomics) on cells collected after dispersing the EBI-enriched BM clusters. These cells were loaded for scRNA-seq unsorted (WT1 unsorted) or after fluorescence-activated cell sorting into 3 populations based on positivity for F4/80, CD71, or CD11b (supplemental Figure 3A-B). A combined unsupervised analysis of the resulting scRNA-seq samples identified a broad range of populations (n = 24) in the unsorted, most enriched in erythroid progenitors (43% of cells), followed by granulocytic progenitors (38% of cells; Figure 3A-B; supplemental Figure 3D). Nearly identical percentages of these major lineages were found in a validation biologic repeat using an unsorted sample from another C57Bl/6J BM specimen (WT2 unsorted) in an independent analysis (41% erythroid, 31% granulocytic). The samples of unsorted EBI-constituent cells represent a superset of the cell populations found in CD71⁺, CD11b⁺, and F4/80⁺ sorted samples (Figure 3B-C). To confirm the population distributions, erythroid and granulocytic lineage-specific genes were selectively queried and visualized on the corresponding Uniform Manifold Approximation and Projection plot (supplemental Figures 4 and 5).

CD71⁺ cells that were fluorescence-activated cell sorted from EBIs generated 5 clusters of erythroid precursors (ERP1-5) confirmed to be erythroblasts by the high expression of well-known erythroid genes in a pattern demonstrating the continuum of terminal erythropoiesis^24-26 (Figure 3D). CD11b⁺ sorted cells segregated into 3 transcriptionally distinct clusters that represent granulocytic precursors.²⁷ The first stage, proNeu, is marked by genes with expression largely restricted in myeloblasts (Ctsg, Mpo, Elane, Gfi1). A gradual increase of Slpi along with persistent expression of S100a8 and Camp mark the later stages of neutrophil maturation.²⁸ The last cluster is marked by the peak of Mmp9 expression, a tertiary granule protein indicating the terminal stages of granulopoiesis²⁹ (Figure 3D). The identification of sequential states of granulocytic maturation by scRNA-seq analysis is consistent with our flow cytometry finding of maturing granulocytic precursors enriched in the EBI clusters (Figure 2C-D).

The F4/80⁺ sorted cells were composed of multiple clusters with extensive heterogeneity and low representation (∼20%) in the unsorted data set. The major lineage (monocytic and macrophage) exhibited expression of expected macrophage genes such as Csf1R, Irf8, and Klf4²⁸ along with tissue-resident macrophage genes such as Fn1 and Fsp1/S100A4.^30-32 The remaining F4/80⁺ cells contained gene signatures of several miscellaneous cell populations, including multilineage progenitors, megakaryocytes, T cells, and B cells, which may be present in other BM clusters cosedimenting along the EBIs/EMBIs in the 3% BSA fraction. This result is consistent with substantial heterogeneity within the F4/80⁺ EBI macrophage population,¹⁴ and also points to the difficulty isolating EBI macrophages from other cells for studies based solely on immunophenotype.^13,33

Based on our observation of granulocytic maturation within EBIs, we hypothesized that this common niche might regulate the balance between these 2 lineages. To test this hypothesis, we used biological models of altered granulopoiesis to evaluate concurrent changes in erythropoiesis within EBIs/EMBIs using IFC. EBIs collected from mice injected with GCSF to induce granulocyte production exhibited a dose-dependent increase in the ratio of CD11b⁺ to CD71⁺ cells within the EBI population specifically (Figure 4A-C). On the contrary, in Gfi1^−/− mice, a model of severe congenital neutropenia,^27,34 we observed the reverse effect, with a decreased ratio of CD11b⁺ to CD71⁺ area within the islands (Figure 4D-F), reflecting impaired granulopoiesis in these mice.

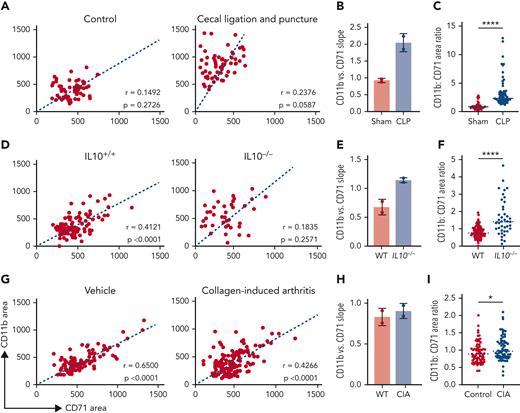

To further test this hypothesis, we examined the balance of these lineages within EBIs in AoI, a common cause of anemia in patients with acute or chronic immune activation. We tested 3 different mouse models of AoI: (1) the cecal ligation and puncture model, broadly used to study sepsis and infection-mediated AoI^35,36 (Figure 5A-C); (2) the IL10^−/− mice, which develop chronic colitis and are used as a mouse model of inflammatory bowel disease³⁷ (Figure 5D-F); and (3) the collagen-induced arthritis model (Figure 5G-I).³⁸ In all 3 models, the ratio of CD11b⁺ to CD71⁺ area in the EBIs increased in the inflamed mice vs their corresponding controls; the expansion of CD11b⁺ cells within the EBIs occurred at the expense of the erythroblasts, resulting in compromised terminal erythropoiesis within the BM and anemia.

We next asked how this balance within EBIs changes during stress erythropoiesis, such as that induced by Epo administration. After Epo or saline solution (control) administration for 10 days, mouse BM EBIs were quantified using IFC. Increased CD71⁺ area and decreased slope of CD11b⁺ vs CD71⁺ indicated an increased number of erythroblasts per EBI following Epo treatment. There was also a significant increase in the number of EBIs, indicating that stress erythropoiesis increases not only the number of erythroblasts but also the number of EBI macrophages (Figure 6A-D).

The macrophage populations captured in our scRNA-seq experiments, out of unsorted EBI constituent cells and F4/80⁺ sorted EBI cells, were rather small in terms of the number of cells to permit further identification studies of the EBI macrophages. To evaluate the EBI macrophages on a comprehensive level, we employed a multimodal single-cell analysis of the transcriptome and diverse cell surface epitopes with CITE-seq.³⁹ CITE-seq circumvents compensation issues seen in traditional flow cytometry, which can become increasingly complex on highly autofluorescent cells such as macrophages. Because EBI macrophages increase after Epo administration, we proceeded to use EBIs from mouse BM after Epo administration for 10 days along with control BM EBIs from a mouse following saline solution administration. Moreover, the cells isolated from the 3% BSA fraction were subjected to red cell lysis and negative selection against erythroid, lymphoid, granulocytic, and eosinophilic lineages, leading to significant enrichment of EBI macrophages and other rare populations (supplemental Figure 6A). Accumax solution was added to further disrupt tightly associated EBIs, which can remain intact after magnetic separation if this dissociation step is not implemented (supplemental Figure 6B-F).

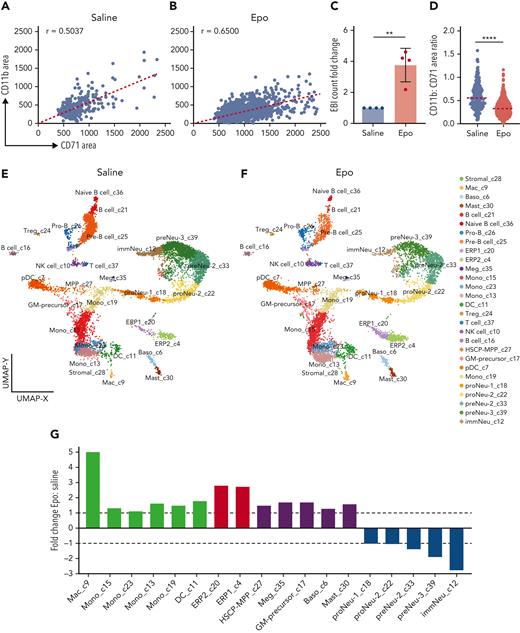

Joint unsupervised analysis of CITE-seq transcriptomes from control and Epo-stimulated EBIs revealed 28 transcriptionally distinct populations, with representation of both captures in all cell populations (Figure 6E-F). Cluster 9 contained classically defined EBI macrophages expressing Hmox1, Mertk, and Siglec1 transcripts and carrying F4/80 and Vcam1 antigens.^12,40 Clusters 13, 15, 19, and 23 were defined by well-known monocytic markers such as Ly6c2 and Ccr2, but also found to express Fn1, S100a4, and F13a1, compatible with monocyte-derived BM macrophages (online viewer: http://www.altanalyze.org/ICGS/Public/Mm_EBMI-r2/User.php). Although we cannot fully exclude contamination from other cell types, a few of the macrophages in cluster 9 also express Ly6c2 and Ccr2, more so in the Epo-treated sample rather than the saline solution–treated sample, suggesting heterogeneity among the EBI macrophages and the possibility that monocyte-derived cells may fill the need for more EBI macrophages in stress erythropoiesis (Figure 7A-C). Identified populations were further characterized by immunophenotypic cell surface–specific ADTs (supplemental Figure 7).

As expected, the CITE-seq of Epo-stimulated BM captured a higher percentage of erythroid cells, whereas the late stages of granulocyte precursors were decreased (Figure 6G). Notably, there was a 5-fold higher number of the cluster 9 macrophages in the Epo- vs the saline solution–stimulated sample, supporting the notion that these are indeed EBI macrophages. Comprehensive differential expression analyses between Epo-stimulated and control using cellHarmony yielded hundreds of differentially expressed genes, which largely localize to distinct stages of erythropoiesis and granulopoiesis (supplemental Figure 7A). Interestingly, there were no differentially expressed genes between treatment groups in cluster 9 macrophages. This may indicate the specialized, optimal nature of the EBI macrophage in supporting terminal erythropoiesis, necessitating an increase in the number of macrophages rather than altering their characteristics during stress-erythropoiesis in the marrow.

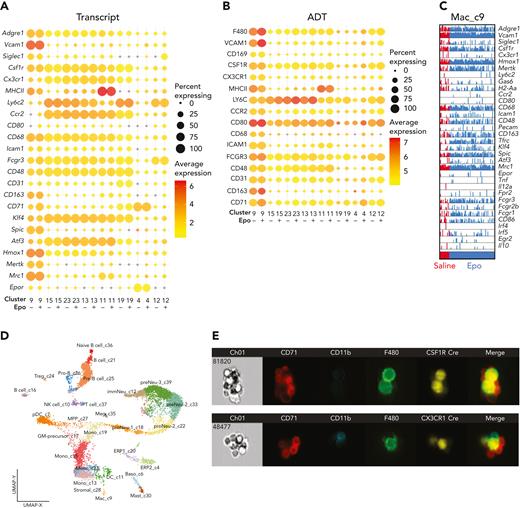

We observed a clear increase in the number of cells with transcriptional and ADT characteristics of EBI macrophages following Epo administration, as demonstrated in bubble plots depicting the average frequency and level of a given transcript or ADT in each treatment within a given cluster (Figure 7A-D) or within a given cluster (supplemental Figure 8A-B). IFC provides evidence of macrophage fragmentation on CD71⁺ and CD11b⁺ cells, perhaps explaining the presence macrophage specific epitopes on erythroblast and granulocyte clusters (supplemental Figure 8C). Additionally, there were notable differences in intrapopulation levels of each transcript and ADT and the number of cells expressing a gene or carrying an antigen, which can be visualized through the variable size and color of bubbles in a column, indicating a marked degree of heterogeneity between clusters and within clusters. This can be visualized in higher resolution using a comb plot of EBI macrophage-related genes in the cluster 9 population (Figure 7C) or all the macrophage and monocyte populations (online viewer). Although some transcripts, such as Adgre1 and Vcam1, are expressed in most cells, others such as Fcgr1, Cd163, and Siglec1 are present at variable levels in a fraction of the cells in cluster 9, suggesting differences in function and/or origin at baseline and in stress-erythropoiesis (Figure 7C). IFC of EBIs from Csf1r-Cre or Cx3cr1-Cre mice with tdTomato reporter of Cre expression demonstrates tdTomato fluorescence in the majority of EBI macrophages, indicating lineage tracing from Csf1r- or Cx3cr1-expressing cells, respectively (Figure 7E). Nevertheless, our CITE-seq data demonstrate that Csfr1 is a sensitive but not specific marker for the cluster 9 population whereas Cx3cr1 is heterogeneous and also nonspecific for this cluster (online viewer). Similarly, Epo receptor (Epor) is sparsely expressed in macrophages of cluster 9 as well as in a few macrophages of the other clusters, in contrast to a recently published study considering Epor as a transcript defining EBI macrophages.²⁴

M1 and M2 markers were also queried within each cluster (supplemental Figure 8B). No distinct pattern of M1 and M2 markers emerged, in agreement with the observations that M1 and M2 macrophage responses typically intermix^41,42 in order for a macrophage population to serve the complicated role of the terminal erythropoiesis and granulopoiesis niche. Of note, we did observe high expression in the cluster 9 macrophages of the canonical M2 markers Mrc1 (Cd206) and Cd163 (Figure 7A-C; supplemental Figure 7B). These receptors are known to be involved in phagocytosis (along with Mertk, even though this is not an M2 marker), consistent with a requirement of the EBI macrophages to phagocytose extruded nuclei and the increased demand for this function under stress.^43,44 However, we also noted increased representation of M1 markers such as Cd86, Cd38, and several Fcγ receptors in the same population (supplemental Figure 7B). Thus, it appears that M1 and M2 characteristics are involved in EBI macrophage function. Overall, EBI macrophages are a heterogeneous population at the transcriptomic and immunophenotyping level, clearly seen in the interactive online viewer.

We previously demonstrated that CD11b is expressed on cells within the EBI, but not by the EBI macrophage itself.¹⁴ In the present study, we identified these CD11b⁺ cells as granulocyte precursors maturing in close association with the EBI Mφ. We used density gradient sedimentation to collect native BM clusters in the densest fraction, enriching for EBIs independent of immunophenotype, while single cells remain in the lightest fraction. Not all EBIs remain intact through the process of BM extraction, sedimentation, staining, and IFC processing, but many do, allowing relative quantification, ie, comparisons between an experimental and a control condition performed in parallel, when the technique is standardized. Erythroblast and granulocyte precursors are increased within the EBI fraction compared with total BM. Consistent with IFC data, confocal microscopy of BM in situ revealed CD11b⁺ cells intimately associated with the Mφ in EBIs. We performed EBI reconstitution experiments to exclude the possibility that the presence of these cells within the EBIs is a mere artifact. Our finding appears in contrast with recent work in which CD11b⁺ cells observed in EBIs analyzed by IFC were described as peripherally associated bystanders.¹⁹ However, the same group later reported that CD11b⁺ cells can have membrane remnants from EBI macrophages (positive for F4/80, VCAM1, and CD169) on their cell surface,³³ as we also see (supplemental Figure 8C), indicating an intimate association in vivo compatible with the conclusions of the present study. Such mixed hematopoietic clusters containing erythroid and granulocytic precursors were previously observed in the 1970s and ‘80s^20,21; however, the recently developed advanced methods and technology we employed here allowed for further investigation of these clusters and their pathophysiological functions.

scRNA-seq of EBI component cells shows maturing erythroblasts and granulocyte precursors along with macrophages as the 3 predominant cell types within the EBI. Further supporting the notion that the EBI acts as the niche for erythroid and granulocytic precursors, we found that CD11b⁺ cells within the EBI increased compared with CD71⁺ cells with administration of GCSF and in mouse models of AoI. GCSF was previously stated to cause a collapse of EBIs in the BM.¹⁹ Our study indicates a decrease in number of EBIs satisfying their conventional definition by IFC, ie, a macrophage with 3 or more surrounding erythroblasts.^14,19 Granulocyte precursors proliferate excessively in response to GCSF administration and outcompete the erythroblasts in their common niche of terminal erythropoiesis and granulopoiesis, leaving few macrophages surrounded by 3 or more erythroblasts. In a mouse model of neutropenia, we found a shift toward CD71⁺ area indicating fewer granulocytic cells and an increased proportion of erythroblasts within the EBI. Induction of stress erythropoiesis by Epo administration resulted in an increase not only of the number of erythroblasts within the EBIs, but also the overall number of EBIs, and thus EBI macrophages, demonstrating the plasticity of the EBI macrophages and their ability to act as a fulcrum in the balance between erythropoiesis and granulopoiesis. We anticipate that our findings will help answer critical questions in the fields of normal and disordered erythropoiesis, and more specifically for AoI. Indeed, although it has been acknowledged that emergency granulopoiesis takes place in humans during inflammation, the origin of the associated anemia remains unclear. Our recent studies^11,36 have begun to explore these phenomena, identifying a block of Epo signaling during inflammation. Future work will entail testing of the different proinflammatory cytokines on cultured EMBI from human BM and measurement of the changes in the island composition.

The mechanisms by which the Mφ supports and regulates erythropoiesis are still not clear enough to be manipulated for therapeutic purposes in vivo or in vitro, at least in part because of inconclusive characterization of the EBI macrophages. Previous studies have used single or combination immunophenotypic cell-surface markers,^12,13,40 fate-mapping reporters,^45,46 or transgenic fluorescent proteins^17,18 to track and manipulate macrophages, providing valuable insights. However, these markers are neither specific nor all-inclusive for the population of EBI macrophages, as can be seen by our CITE-seq data, which demonstrates a significant heterogeneity. By comparing CITE-seq captures on Epo- and saline solution–treated mouse BM EBIs, we identified a macrophage population (cluster 9) with transcriptional and immunophenotypic features consistent with classically described EBI macrophages that increased 5-fold upon Epo administration, consistent with our IFC observations that total EBIs increase approximately 4-fold. The expansion of EBI macrophages in response to Epo appears to be in agreement with a recently published study¹⁸ indicating that EBI macrophages express the Epo receptor (Epor). However, we found that Epor expression was sparse within this population and not a defining feature, suggesting that the EBI macrophage response to Epo could be only for a subset of the cluster 9 cells or be non–cell-autonomous, resulting from signaling within the niche. Alternatively, it may be mediated via membrane swapping between erythroblasts and macrophages, donating Epor functionality to the latter, in a similar manner to that noted by Millard et al³³ between granulocyte precursors and macrophages.

This heterogeneity in EBI macrophage populations may reflect the heterogeneity of EBIs. We observed that, in homeostatic BM, approximately 25% of EBIs are pure EBIs whereas 75% also host granulocytic precursors. In this context, one may suggest that the Mφs serving as niches for terminal hematopoiesis are also heterogeneous to support a variety of combinations of differentiating erythroid and granulocytic precursors and to adapt to different pathophysiologic needs of blood cell production. Our CITE-seq analysis revealed additional populations of monocytes and/or monocyte-derived macrophages expressing fibronectin, which may serve as niches for early erythroblasts binding to them via the α5β1 integrin (VLA-5)^47,48 or may support hematopoietic progenitors, additional granulocytic precursors, or lymphoid cells also found within the BM clusters collected at the 3% BSA fraction by gravity sedimentation. One limitation of our study resides in the technical challenges of the process to enrich EBIs and then isolate EBI macrophages. Contamination from different cell types is unavoidable, and we cannot completely exclude that this may interfere with clustering of the different populations, despite robust bioinformatics analysis. Further work is needed to identify BM clusters coprecipitating in the 3% BSA fraction using IFC and delineate the functions of these various macrophage populations identified by CITE-seq.

It was recently shown that resident macrophages are highly prone to fragmentation, precluding capture in scRNA-seq experiments.³³ Even though there may be significant fragmentation, the prominent reason for lack of recovery is more likely improper dissociation. EBIs are difficult to dissociate and, as a cluster, would be impassable through the 10x chromium controller. Extensive dissociation measures and depletion of more abundant cell types increased recovery in CITE-seq experiments. Evidence of contamination possibly resulting from membrane switching or fragmentation may still be a confounding factor in these studies. Transcripts from recently phagocytosed erythroblasts may also contaminate the gene expression profiles of the macrophages. Nevertheless, coupling CITE-seq with IFC brings forward potential EBI macrophage markers and relevant model systems for studying EBI macrophages. In summary, our studies from CITE-seq analysis of the macrophage and monocyte populations involved in EBIs and other hematopoietic BM clusters lay the foundation for a better understanding of the regulation of blood cell production within these niches in normal and pathological states.
