Targetable genetic features of primary testicular and primary central nervous system lymphomas

Diffuse large B-cell lymphomas (DLBCLs) often involve multiple nodal and extranodal sites. In contrast, large B-cell lymphoma (LBCL) subtypes, including primary central nervous system lymphoma (PCNSL), primary testicular lymphoma (PTL), and primary mediastinal large B-cell lymphoma (PMBL), present as localized masses in extranodal organs.^1-4  PCNSLs and PTLs, which both arise in sites that were previously considered to be immune sanctuaries, have inferior responses to therapies.^1-6  The defining genetic alterations in PCNSL and PTL and the relationships between these LBCLs, PMBL, and systemic DLBCL are incompletely characterized.

DLBCLs exhibit several types of low-frequency genetic alterations including copy number alterations (CNAs), mutations, and chromosomal rearrangements.⁷  Certain alterations are more common in transcriptionally defined tumor subtypes. In the cell-of-origin classification, DLBCLs share transcriptional signatures of normal germinal center B-cells (GCBs) or in vitro activated B-cells (ABCs). ABC-type DLBCLs exhibit increased baseline NF-κB activity, more frequent genetic alterations of NF-κB and Toll-like receptor (TLR) signaling pathway components including mutations of CARD11 and MYD88 and the proximal B-cell receptor (BCR)-signaling pathway component, CD79B. However, these alterations are only detected in a subset of ABC-type DLBCLs (MYD88, 29%; CD79B, 18%; and CARD11, 10%).^8-10  Additional aspects of DLBCL heterogeneity are captured by the consensus clustering classification, which identifies “B-cell receptor,” “Oxidative Phosphorylation,” and “Host Response” subtypes.^11-13

Recent genetic analyses of DLBCL underscore the importance of capturing both somatic mutations and CNAs.¹⁴  Although only 15% to 20% of DLBCLs have inactivating TP53 mutations, the majority of these tumors exhibit complementary CNAs that decrease p53 activity and perturb cell-cycle regulation.¹⁴  DLBCLs with CNA-dependent p53 deficiency and cell-cycle deregulation have increased genomic instability and have a less favorable outcome.¹⁴

PMBL is a distinct LBCL subtype that exhibits constitutive NF-κB activation and shares certain clinical and genetic features with classical Hodgkin lymphoma (cHL).¹⁵  We and others identified 9p24.1/CD274(PD-L1)/PDCD1LG2(PD-L2), copy gain, and increased expression of the PD-1 ligands in 65% of PMBLs.^16,17  Translocations of PD-L1 and PD-L2 were also reported in PMBL.^18,19  Genetic bases of PD-1 ligand overexpression are of particular interest given the role of PD-1 signaling in tumor-immune evasion and the efficacy of PD-1 blockade in other B-cell lymphomas with 9p24.1 copy gain.^20-22

PCNSLs primarily arise in elderly patients and present as infiltrative masses of EBV^– tumor cells in periventricular white matter.^1,4  Additional EBV⁺ PCNSLs occur in younger immunocompromised patients.¹  Reported CNAs include loss of the HLA-loci at 6p21.32 and deletion of CDKN2A in a minority of tumors.^5,23-25  Somatic mutations of MYD88, CD79B, and additional less common targets have been described.^23,24,26-28

PTLs, which are the most common testicular tumors in elderly men,²  present as focal masses with epididymal and scrotal involvement. At relapse, PTLs often involve additional extranodal sites including the central nervous system (CNS), skin, pleura, and contralateral testis. In previous array comparative genomic hybridization studies, PTLs exhibited frequent loss of the HLA-loci and 19q13 gain.²⁵  Somatic mutations of MYD88 and CD79B of variable frequency have also been reported.^29,30

Herein, we comprehensively characterize the genetic features of PCNSL and PTL and compare these tumors with systemic DLBCLs of known transcriptional subtypes and PMBL. The goal was to identify targetable lesions, bases of immune privilege in PCNSL and PTL, and unique combinations of genetic alterations in discrete LBCL subtypes.

In accordance with local institutional review board protocols, newly diagnosed fresh-frozen PMBLs, EBV^– PCNSLs, and PTLs were obtained from Brigham and Women’s Hospital, Massachusetts General Hospital, and University of Freiburg; formalin-fixed, paraffin-embedded (FFPE) PTLs and PCNSLs were obtained from the Netherlands Cancer Institute/VU University Medical Center Amsterdam and Brigham and Women’s Hospital.

The discovery cohort includes the aforementioned primary LBCLs (PMBLs, PTLs, and PCNSLs with fresh-frozen tumor specimens) and an additional comparative cohort of previously analyzed primary DLBCL fresh-frozen biopsy specimens.¹⁴  The number of discovery cohort samples analyzed for CNAs with high-density single nucleotide polymorphism (HD-SNP) arrays, transcript abundance with Affymetrix arrays, single-nucleotide variants (SNVs) with whole-exome sequencing (WES) of tumors and paired normals or RNA-Seq of tumors only and chromosomal rearrangement by DNA-Seq with a custom designed bait set are indicated in supplemental Figure 1A and supplemental Table 1A-B (available on the Blood Web site). An extension cohort of 43 PTLs, and 43 EBV^– and 8 EBV⁺ PCNSLs from FFPE tissue were evaluated by quantitative polymerase chain reaction (qPCR) and fluorescence in situ hybridization (FISH) for CNAs, qPCR and Sanger sequencing for SNVs, and immunohistochemical (IHC) analysis for protein expression as indicated in supplemental Figure 1B-C, supplemental Table 1C-D, and supplemental Methods.

To define recurrent CNAs in specific LBCL subtypes, we performed HD-SNP analyses of 21 EBV^– PCNSLs, 7 PTLs, and 11 PMBLs and evaluated these data with the Genomic Identification of Significant Targets in Cancer (GISTIC) algorithm³¹  (supplemental Figure 1 and supplemental Tables 1 and 2). Thereafter, we compared the recurrent CNAs in these LBCL subtypes with the previously described CNAs in 180 systemic DLBCLs¹⁴  using mirror plots (Figure 1A-B and supplemental Figure 2).

To quantify the relative frequencies of specific CNAs in the LBCL subtypes, we aggregated the HD-SNP array data from all LBCLs and applied the GISTIC algorithm (supplemental Table 3A-D). Subtype-specific differences in the frequency of CNAs were assessed with an enrichment test (Figure 1C and supplemental Table 3E). Copy gains of 3q12.3, 18q21.33, and 19q13.42 and copy losses of 6p21.33, 6q21, and 9p21.3 were significantly more frequent in PCNSL and PTL. Although the frequencies of 18q21.33 and 19q13.42 copy gain were comparable in PCNSL, PTL, and ABC-type DLBCLs, 9p21.3 copy loss was significantly more common and often biallelic in PCNSL and PTL (Figure 1C). Of interest, we found more frequent 9p24.1 copy gain in PTL, as in PMBL (Figure 1C).

To identify the genes perturbed by CNAs, we performed gene expression profiling on all LBCLs with available RNA and a representative subset of DLBCLs.¹⁴  Genes within recurrent CNAs that had the most significant association between transcript abundance and copy gain or loss were defined as candidate drivers (supplemental Table 4).¹⁴

NFKBIZ, the candidate driver of 3q12.3 copy gain (Figure 1C), encodes IκB-ζ. This atypical IκB family member is induced by TLR signaling³²  and coactivates canonical and noncanonical NF-κB pathways.^32-34  3q12.3/NFKBIZ copy gain was also detected in a subset of systemic DLBCLs (11% [19/180]) and a larger percentage of ABC-type tumors (24% [13/55]) (Figure 1C and supplemental Figure 3).¹⁴

BCL2 was most closely associated with 18q21.33 copy gain, and CDKN2A was most tightly linked with 9p21.3 copy loss (Figure 1C); the peak of 6p21.33 copy loss included the HLA-B and HLA-C loci. PCNSL-selective 3p14.2 copy loss was associated with decreased expression of the tumor suppressor, FHIT (Figure 1C). In PTL, as in PMBL, 9p24.1 copy gain was linked with increased expression of the PD-1 ligand, PD-L2 (Figure 1C).

These data indicate that PCNSL and PTL share certain recurrent CNAs and candidate drivers that are also present in a subset of ABC-type DLBCLs. However, the defining CNA, 9p21.3/CDKN2A copy loss, was significantly more frequent in PCNSLs and PTLs than in ABC-type DLBCLs (71% [20/28] PCNSL/PTL vs 34.5% [19/55] ABC-type DLBCL; P = .0023; supplemental Table 3E). Furthermore, 9p21.3/CDKN2A copy loss was more often biallelic in PCNSL/PTL (50% [14/28] biallelic, 21% [6/28] monoallelic) compared with ABC-type DLBCLs (8% [5/62] biallelic, 26% [16/62] monoallelic; P < .0001).¹⁴

Certain DLBCLs have CNAs of multiple modulators of p53 activity and cell-cycle progression, increased genomic instability, and significantly higher total CNAs.¹⁴  To evaluate patterns of CNAs in PCNSL, PTL, and PMBL, we performed unsupervised bihierarchical clustering. The majority of PCNSLs and PTLs were clustered together and characterized by frequent, often biallelic 9p21.3/CDKN2A loss and/or FHIT loss (branch I, Figure 2), These tumors also had increased genomic instability as reflected by significantly higher total CNAs (branch 1 vs branch 2; P < .0001). These findings likely reflect the complementary roles of the CDNK2A gene products, p16^INK4A and p19^ARF, in p53 and cell-cycle regulation and the link between p53 deficiency, perturbed cell-cycle regulation, and genomic instability.^14,35-39 FHIT loss has also been associated with increased genomic instability.⁴⁰

Almost all PMBLs (10/11), a small number of PCNSLs, and one PTL (4/28) were clustered in a branch with relatively few CNAs (branch II, Figure 2). In contrast to PMBLs, which exhibited 9p24.1/PD-L2 copy gains with few other CNAs (branch II), PTLs and PCNSLs had 9p24.1/PD-L2 copy gains in association with 9p21.3/CDKN2A copy loss and increased genomic instability (branch I, Figure 2).

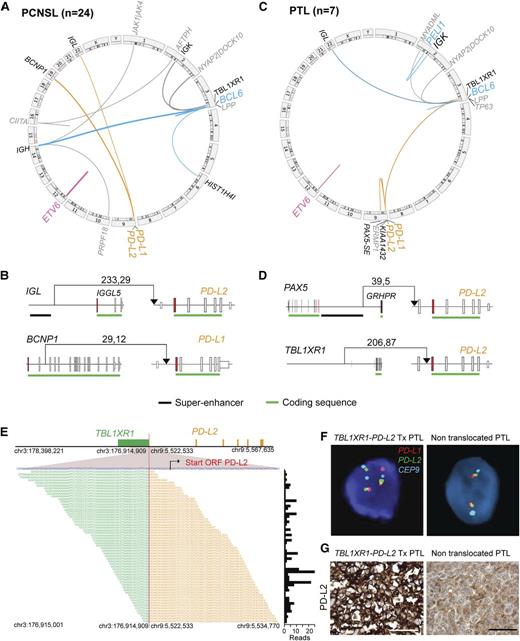

We next assessed chromosomal rearrangements (including translocations, deletions duplications, and inversions) in 24 PCNSLs using a targeted DNA sequencing approach and a custom bait set covering 49 candidate genetic loci. The resulting data were analyzed with 2 complementary detection algorithms, dRanger/Breakpointer⁴¹  and BreaKmer⁴²  (Figure 3A and supplemental Table 5A-C).

The most frequent chromosomal rearrangements deregulated BCL6 by juxtaposing the IgH super-enhancer⁴³  or 5′HIST1H4I regulatory elements to the BCL6 5′-untranslated region (5′UTR) (17% [4/24]) (Figure 3A and supplemental Figure 4). In 2 cases, deletions proximal to the 5′UTR of BCL6 removed the regulatory elements, transcriptional start side, and first 5 exons of the BCL6-adjacent LPP gene (supplemental Figure 4C). This alteration may decrease the abundance of the LPP-intragenic miR-28, a reported tumor suppressor that is frequently downregulated in aggressive lymphomas.⁴⁴

Thirteen percent (3/24) of the PCNSLs had inactivating alterations of ETV6, deletions of exon 2 or exons 2-5 that altered the reading frame (Figure 3A and supplemental Figure 4B). ETV6 encodes a transcriptional repressor perturbed by translocations, whole-gene deletions, or somatic mutations in multiple hematopoietic malignancies.⁴⁵  However, selective exon deletions that alter the ETV6 reading frame were previously undescribed.

Of note, 13% (3/24) of PCNSLs had previously unidentified translocations involving the PD-1 ligand loci (Figure 3A). These included the juxtaposition of the Igλ super-enhancer proximal to the PD-L2 5′UTR or translocation of BCNP1 (FAM129C)⁴⁶  regulatory elements proximal to the PD-L1 start codon (Figure 3B and supplemental Figure 4). An additional PCNSL had an inactivating translocation of CIITA, the master transcription factor regulating MHC class II expression (Figure 3A).

Using the same approach, we analyzed chromosomal rearrangements in 7 PTLs from the discovery cohort.

Two PTLs had translocations that deregulated BCL6-juxtaposition of the Igλ super-enhancer proximal to BCL6 5′UTR and the first reported translocation of the Igκ super-enhancer to the 5′ regulatory elements of PELI1 (Figure 3C and supplemental Figure 4A). PELI1 encodes the E3 ubiquitin ligase, Pellino1, which stabilizes BCL6 via K63 polyubiquitination and promotes B-cell lymphomagenesis in a murine model.⁴⁷  As in PCNSL, one PTL had a deletion proximal to BCL6 that removed the transcriptional start side and first 5 exons of LPP (supplemental Figure 4C).

One PTL had an inactivating alteration of ETV6 that disrupts the coding sequence (Figure 3C and supplemental Figure 4B).

Two PTLs had novel translocations involving PD-L2. In one case, the translocation juxtaposed the recently described PAX5 super-enhancer⁴³  to the PD-L2 5′UTR (Figure 3C-D and supplemental Table 5C). In another, the translocation placed the 5′ regulatory elements of TBL1XL1 proximal to the first coding exon of PD-L2 (Figure 3C-D and supplemental Figure 4E). These findings were confirmed using RNA-Seq and the QueryFuse algorithm⁴⁸  and a split-apart FISH assay (Figure 3E-F). The PTL with the TBL1XR1-PD-L2 translocation also had increased PD-L2 expression (Figure 3G).

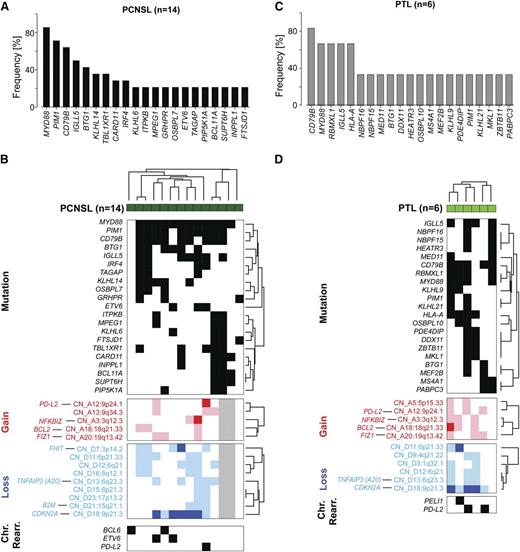

We next evaluated the PCNSLs for recurrent somatic mutations by performing WES on the subset of PCNSLs with available paired normal specimens (5 samples) and prioritizing the alterations with the MutSig2CV algorithm⁴⁹  (supplemental Figures 5 and 6 and supplemental Table 5D-F). To increase sample size, we performed RNA-Seq on an additional 9 PCNSLs and assessed the frequency of WES-detected mutations in the combined cohort (supplemental Table 5G-H). Eighty-six percent (12/14) of the analyzed PCNSLs exhibited oncogenic gain-of-function mutations in MYD88 (MYD88^L265P); 64% (9/14) had missense mutations in the immunoreceptor tyrosine-based activation motif domain of CD79B and 29% (4/14) had missense mutations in the coiled-coil domain of CARD11 (Figure 4A and supplemental Figure 7). These data indicate that canonical MYD88 and CD79B mutations are more frequent in PCNSLs than in previously reported ABC-type DLBCLs (MYD88, 29%⁸ ; CD79B, 18%⁹ ).

PCNSLs also exhibited frequent (71% [10/14]) missense mutations in the kinase domain of PIM1, a known target of aberrant somatic hypermutation (Figure 4A and supplemental Figure 7D). In addition, 29% (4/14) of the evaluated PCNSLs had mutations in IRF4. The encoded IRF4 transcription factor, which regulates germinal center exit, class switch recombination, and plasma cell development is also expressed in ABC-type DLBCLs (Figure 4A and supplemental Figure 7).⁵⁰

Twenty-one percent (3/14) of PCNSLs exhibited mutations of ETV6 (Figure 4A and supplemental Figure 7D), which was also perturbed by inactivating deletions of coding exons (Figure 3A and supplemental Figure 4). PCNSLs also had mutations of BTG1 (43% [6/14]) and TBL1XR1 (36% [5/14]), transcriptional cofactors that regulate ETV6 activity (Figure 4A and supplemental Figure 7D).⁵¹  Of interest, TBL1XR1 also modulates TLR/MYD88 signaling by increasing clearance of NCor/SMRT transcriptional corepressors from certain TLR/MYD88 target genes.⁵²

After defining recurrent mutations, chromosomal rearrangements, and CNAs in PCNSL, we assessed the patterns of alterations in individual tumors. Mutations and CNAs that occurred in ≥20% (3/14) of tumors were included and chromosomal rearrangements were added (Figure 4B). In these PCNSLs, all CD79B mutations occurred in the context of MYD88 mutations. Similarly, the less frequent CARD11 mutations all occurred in MYD88 mutation-positive PCNSLs, three of which had concurrent CD79B mutations. PCNSLs with copy loss of TNFAIP3 also had concurrent CD79B and MYD88 mutations. In the analyzed PCNSLs, MYD88 mutations also occurred in association with additional potential modulators of TLR signaling such as NFKBIZ copy gains (Figure 4B). Furthermore, these PCNSLs often had mutations and/or exon deletions of ETV6, and/or mutations of the transcriptional cofactors BTG1 and TBL1XR1.

The majority of PCNSLs also had evidence of genomic instability as reflected by CDKN2A and/or FHIT loss and multiple additional CNAs (Figure 2 and 4B). However, PCNSLs had infrequent TP53 mutations (7% [1/14]), likely because CDKN2A deregulates the same pathway upstream of TP53.^14,53

Given the shared genetic features of PCNSL and PTL (Figures 1-3), we next evaluated the spectrum of mutations in the series of available PTLs. In the absence of paired germline DNA samples, we performed RNA-Seq on 6 PTLs and identified SNVs after filtering out known SNPs (Figure 4C and supplemental Table 5I). In these PTLs, we focused on genes that were mutated in our WES PCNSL cohort or systemic DLBCLs, or those that were previously deposited in the COSMIC database.^54-58  Like the PCNSLs, the PTLs had frequent CD79B and MYD88 mutations and additional mutations of PIM1 and BTG1 (Figure 4C). Mutations of MEF2B, a transcriptional activator and regulator of BCL6 expression,⁵⁹  were also identified (Figure 4C and supplemental Figure 7D). MEF2B alterations were previously reported in ∼8% of systemic DLBCLs of the ABC and GCB subtypes.⁵⁹

As in the PCNSLs, CD79B and MYD88 mutations were largely concurrent in the PTLs; PIM1, BTG1, and MEF2B alterations were detected within this subset of CD79B/MYD88-mutated tumors (Figure 4D). The aforementioned mutations occurred in the setting of frequent, often biallelic, CDKN2A copy loss, TNFAIP3 copy loss, and NFKBIZ copy gain. In addition, PTLs had multiple bases of deregulating BCL6 including mutations of MEF2B and translocations of Igλ-PEL1 (Figure 4D) and Igλ-BCL6 (Figure 3C).

Given the small size of our discovery PTL cohort, we obtained an additional 43 FFPE PTLs to evaluate specific recurrent CNAs and SNVs (supplemental Figure 8 and supplemental Table 1C-D). We established qPCR assays for the most significant CNAs/driver genes using DNA from informative LBCL cell lines and normal lymphoid cells as controls (supplemental Table 6). CDKN2A integrity was assessed with 3 independent probe sets that covered exons coding for p16^INK4A and p19^ARF (supplemental Figure 8A-B). Mono- or biallelic loss of the full CDKN2A locus was detected in ∼81% (35/43) of tumors (supplemental Figure 8A). Frequent copy gain of 18q21.33/BCL2 (47% [20/43]) and 19q13.42/FIZ1 (70% [30/43]) were also confirmed (supplemental Figure 8C-D).

In the PTL extension cohort, 44% of these tumors also had 3q12.3/NFKBIZ copy gain (Figure 5A, left panel). Similar to the PTL discovery cohort (Figure 4C), 79% (34/43) of the PTL extension series had MYD88^L265P mutations (Figure 5B, left panel, and supplemental Table 6A). Thirty-eight percent (13/34) of PTLs with MYD88 mutations also had NFKBIZ copy gains; in addition, 5 of 9 tumors with wild-type MYD88 had NFKBIZ copy gains (Figure 5B, left panel).

We also assessed the 3q12.3/NFKBIZ locus in an extension cohort of PCNSLs including 41 EBV^– and 8 EBV⁺ tumors; 59% (24/41) of EBV^– PCNSLs and 38% (3/8) of EBV⁺ PCNSLs had 3q12.3/NFKBIZ copy gain (Figure 5A, right panel). In the EBV^– PCNSL extension cohort, 83% of tumors had 3q12.3/NFKBIZ copy gain, MYD88^L265P mutations, or both alterations (Figure 5B, right panel). Interestingly, none of the 8 EBV⁺ PCNSL cases had an oncogenic MYD88^L265P mutation. Taken together, these data suggest that NFKBIZ copy gain or viral infection may serve as additional and/or alternative oncogenic modulators of the MYD88/TLR signaling pathway.

We next assessed the functional consequences of NFKBIZ copy gain using a panel of informative LBCL cell lines with known NFKBIZ CN and MYD88 mutational status (Figure 5C). Cell lines with wild-type MYD88 and no NFKBIZ copy gain (K422, DHL4) had the lowest IκB-ζ transcript and protein levels, whereas cell lines with MYD88 mutation alone (TMD8), MYD88 mutation, and NFKBIZ copy gain (HBL1), or NFKBIZ copy gain alone, (Ly4) had more abundant IκB-ζ transcripts and protein (Figure 5C-D). In the 3 LBCL cell lines with high baseline IκB-ζ expression (TMD8, HBL1, Ly4), IκB-ζ depletion significantly decreased cellular proliferation, induced apoptosis, and reduced expression of the IκB-ζ target genes, IκB-α and BCL-xL (Figure 5E-G).³²  In LBCL cell lines with low baseline IκB-ζ transcript levels (K422, DHL4), enforced expression of IκB-ζ conferred a growth advantage (Figure 5H-I). These genetic and functional analyses define NFKBIZ copy gain as an alternative oncogenic TLR signaling mechanism in LBCL.

Recent data suggest that TLR/MYD88 activation may directly augment BCR-mediated survival signals^60,61  in addition to modulating NF-κB. The frequent co-occurrence of MYD88 and CD79B mutations in the initial PTL and EBV^– PCNSL series (Figure 4B,D) prompted us to evaluate CD79B hotspot mutations in both extension cohorts. Forty-four percent (17/39) of evaluable PTLs had CD79B^Y196 mutations, almost all (16/17) of which occurred in tumors with MYD88^L265P alterations (Figure 5B, left panel). In the extension cohort of EBV^– PCNSLs, 28% (10/36) had CD79B^Y196 mutations, 80% (8/10) in association with MYD88^L265P (Figure 5B, right panel). Both EBV^– PCNSLs and PTLs were significantly more likely to have co-occurring CD79B and MYD88 mutations than systemic DLBCLs or the ABC DLBCL subset (supplemental Table 6C).

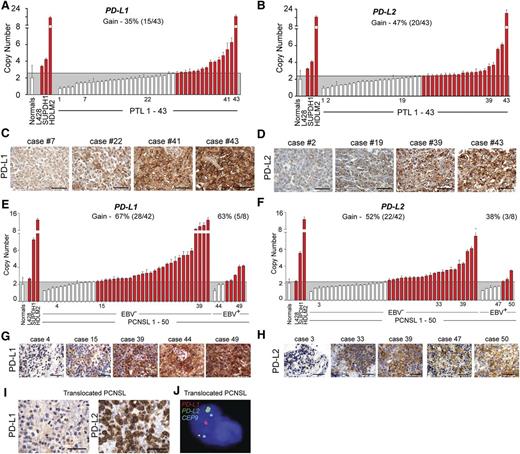

A shared genetic feature of PMBLs and the PTL discovery cohort was frequent 9p24.1 copy gain; several EBV^– PCNSLs also had this alteration (Figure 1). PTLs in the extension cohort also exhibited frequent 9p24.1/PD-L1/PD-L2 copy gain by ligand-specific qPCR (Figure 6A-B) and CN-associated expression of these ligands by IHC (Figure 6C-D). Using tissue microarrays of the same PTLs, we also identified tumor-infiltrating T cells that expressed the PD-1 receptor (supplemental Figure 9A-B).

We similarly evaluated the PD-L1/PD-L2 loci in the extension cohort of 42 EBV^– PCNSLs and 8 EBV⁺ PCNSLs. In the larger EBV^– PCNSL series, the majority of tumors exhibited 9p24.1/PD-L1/PD-L2 copy gain (67% [28/42]) and CN-associated increased expression of these ligands (Figure 6E-H). We also identified a copy-neutral case with discordant low-level PD-L1 and high-level PD-L2 protein expression and used the split-apart PD-L1/PD-L2 FISH assay to detect a chromosomal rearrangement that selectively deregulated PD-L2 (Figure 6I-J).

In the EBV⁺ PCNSLs, we noted largely CN-independent high-level expression of PD-L1 and PD-L2^16,62,63  (Figure 6E-H). Compared with EBV^– PCNSLs, EBV⁺ tumors had lower-level PD-L1/PD-L2 copy gain, consistent with an additional viral mechanism of PD-1 ligand upregulation in these tumors (Figure 6E-F).

These data extend the molecular similarities in PCNSL and PTL to include 2 genetic bases of PD-1 ligand overexpression, copy gain, and chromosomal translocation, and implicate EBV infection as an additional mechanism of PD-1 ligand upregulation in PCNSLs.

We have defined recurrent mutations, chromosomal rearrangements, CNAs, and associated driver genes in PCNSL and PTL and compared these comprehensive genetic signatures with those of systemic DLBCL and PMBL. These analyses revealed new genetic features, unique combinations of alterations, and a distinctive signature of near-uniform oncogenic TLR signaling with frequent concurrent BCR activation and genomic instability in PCNSL and PTL (Figure 7). The studies also identified specific genetic bases of deregulated PD-1 ligand expression and likely immune evasion in PCNSL and PTL (Figure 7). Most importantly, several of these genetic alterations are amenable to targeted therapy.

Comparative analyses of CNAs in the LBCL subtypes revealed distinct differences in incidence and bases of genomic instability in these lymphomas. In contrast to the majority of systemic DLBCLs, PCNSLs, and PTLs, PMBLs have relatively few CNAs (Figure 7). The paucity of CNAs, other than 2p16.1 and 9p24.1 copy gain, distinguish PMBLs from the additional evaluated LBCLs. PMBLs also lack genetic alterations known to either induce or tolerate genomic instability including CNAs of CDKN2A, RB1, or TP53 (Figure 7).^14,35-39

Our analyses further suggest that systemic DLBCLs, PCNSLs, and PTLs use different mechanisms to tolerate or induce genomic instability. Systemic DLBCLs primarily exhibit genomic instability in the setting of multiple low-frequency CNAs of p53/cell-cycle components and additional TP53 somatic mutations (Figure 7).¹⁴  In contrast, PCNSLs and PTLs rarely have TP53 mutations but frequently perturb the p53 pathway via upstream, often biallelic, CDKN2A loss (Figure 7). As a consequence, PCNSLs and PTLs may be candidates for MDM2/4 inhibitors that augment wild-type p53 activity⁶⁴  and CDK-blockade.¹⁴

We found oncogenic MYD88^L265P mutations and/or NFKBIZ copy gain to be near-universal genetic features of EBV^– PCNSL and PTL; both alterations were significantly more common in these lymphomas than in ABC-type DLBCLs (Figure 7).⁸  IκB-ζ transcription is induced by MYD88 mutations³²  or NFKBIZ amplification, and IκB-ζ depletion is lethal in each setting, suggesting that IκB-ζ is an essential intermediary in oncogenic TLR signaling. NFKBIZ copy gain also represents an alternative and/or complementary structural basis for increased TLR activity in PTL and PCNSL (Figure 7).

Recent murine studies suggest that the consequences of enforced MYD88^L265P expression in normal B cells depend on additional complementary genetic alterations.⁶⁵  Although MYD88^L265P increased cellular proliferation and activated NF-κB in antigen-exposed murine B cells, these effects were rapidly countered by TNFAIP3 induction and BIM-dependent apoptosis.⁶⁵  In this model, TNFAIP3 inactivation or enforced BCL2 expression was required to sustain MYD88^L265P-dependent signaling.⁶⁵  These findings are of particular interest because PCNSLs and PTLs frequently exhibit TNFAIP3 copy loss and/or BCL2 copy gain in association with MYD88^L265P and/or NFKBIZ copy gain (Figure 4). The identification of these complementary genetic alterations required concurrent analyses of mutations, CNAs, and associated driver genes.

In our series of PCNSLs and PTLs, CD79B mutations primarily occurred in the context of oncogenic TLR signaling. The high incidence of concurrent CD79B and MYD88 mutations is an additional distinguishing feature of PCNSLs and PTLs compared with the more heterogeneous group of ABC-type DLBCLs (Figure 7). Given the near-universal genetic alterations of TLR and BCR signaling in PCNSL and PTL, these tumors may be particularly vulnerable to targeted inhibition of pathway components such as IRAK1/4, IRF4, and/or BTK.^9,66  However, a subset of PCNSLs exhibits activating CARD11 mutations in association with MYD88^L265P and CD79B mutations, which may limit the efficacy of proximal BCR pathway inhibitors.⁹

Recent studies highlight the complementary roles of BCR- and TLR-signaling in virus-driven B-cell activation, B-cell–intrinsic autoimmunity, and BCR-dependent survival.^60,61  In addition, both MYD88^L265P and CARD11 mutations promote the breakdown of TLR and B-cell tolerance to self-antigens.^65,67  These observations are of note because candidate autoantigens were recently identified in PCNSL.^68,69

Our genetic analyses confirmed previously proposed mechanisms of tumor-immune escape: copy loss of 6p21.33 and the associated HLA loci, deletion of 15q21.1/B2M, and chromosomal rearrangement of CIITA.^18,24,25,70

Strikingly, we also found 9p24.1 copy gain and increased expression of the PD-1 ligands in >50% of PTLs and EBV^– PCNSLs (Figure 7). In addition, we identified 4 EBV^– PCNSLs and 2 PTLs with chromosomal translocations that selectively deregulated PD-L1 or PD-L2. In several tumors, proximal regulatory elements of other genes (TBL1XR1 and BCNP1) replaced the endogenous PD-L1 or PD-L2 promoter. In additional tumors, strong enhancer elements of IgH or PAX5⁴³  were juxtaposed to the intact endogenous PD-L2 promoter. The TBL1XR1-PD-L2 translocation both increased the expression of PD-L2 and inactivated TBL1XR1. Given the additional identified mutations in TBL1XR1 (Figure 3 and supplemental Figure 6),^23,26,27  we postulate that TBL1XR1 is a tumor suppressor in LBCLs.

Our combined genetic and IHC analyses suggest that tumors with discordant PD-L1 or PD-L2 expression and copy-neutral 9p24.1 status may harbor chromosomal rearrangements of PD-L1 or PD-L2. The frequent genetic alterations of PD-L2 also suggest that it may be preferable to target the PD-1 receptor rather than PD-L1.

Genetic alterations of 9p24.1 and associated overexpression of the PD-1 ligands have now been described in 4 lymphoid malignancies—cHL, PMBL, PTL, and PCNSL (Figure 7,^16,19 ). In EBV⁺ PCNSL, as in other EBV⁺ lymphoid malignancies, viral infection is an additional mechanism of PD-1 ligand overexpression.^62,63  The emerging data indicate that lymphoid malignancies with unique molecular signatures use common genetic mechanisms to increase the expression of PD-1 ligands (Figure 7). Given the demonstrated activity of PD-1 blockade in other lymphomas with 9p24.1 alterations,²²  this targeted therapy should also be considered in PTL and PCNSL. With respect to PCNSL, recent and ongoing clinical trials support the use of immunomodulatory antibodies in tumors involving the CNS⁷¹  (www.clinicaltrials.gov, NCT02017717, NCT02311920, NCT02313272, NCT02311582).

Comprehensive analyses of CNAs, chromosomal rearrangements, and mutations revealed multiple mechanisms of target and pathway deregulation in PCNSL and PTL. For example, ETV6 was altered by somatic mutations or exon deletion and TBL1XR1 was perturbed by inactivating chromosomal translocations or somatic mutations. In addition, BCL6 was deregulated by mutations of MEF2B, chromosomal translocations of BCL6 with immunoglobulin or nonimmunoglobulin regulatory elements, and a novel translocation of PELI1, which encodes an E3 ligase that stabilizes the BCL6 protein.⁴⁷

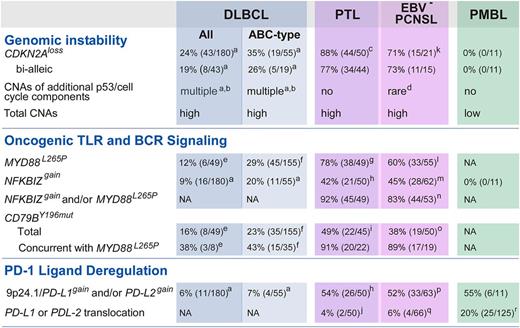

By comparing the comprehensive molecular signatures of PTL and PCNSL with those of systemic DLBCL and PMBLs, we identified unique combinations of genetic features in discrete LBCL subtypes (Figure 7). For example, PCNSLs, PTLs, and PMBLs exhibit frequent genetic alterations and overexpression of the PD-1 ligands, whereas DLBCLs rarely have these features. Only a subset of transcriptionally defined ABC-type DLBCLs exhibit alterations of MYD88 or NFKBIZ, whereas these are near-uniform genetic features of PCNSL and PTL. Although the majority of DLBCLs, PCNSLs, and PTLs exhibit increased genomic instability, as assessed by total CNAs, the genetic bases differ—multiple CNAs of p53/cell-cycle pathway components and TP53 somatic mutations in DLBCL vs frequent, often biallelic, CDKN2A copy loss and rare TP53 alterations in PCNSL and PTL (Figure 7).¹⁴  In contrast, PMBLs have a paucity of CNAs.

Furthermore, the defining genetic features of PCNSL and PTL—near-uniform oncogenic TLR signaling, concurrent BCR activation, CDKN2A deficiency with wild-type p53, and PD-1–mediated immune evasion—suggest multiple targeted therapies that warrant clinical investigation.

This work was supported by National Institutes of Health, National Cancer Institute grant R01 CA161026 and an LLS Translational Research Award (M.A.S.), a Claudia Adams Barr Program in Basic Cancer Research (B.C.), National Institutes of Health, National Institute of Allergy and Infectious Diseases grant PO1 AI056299 (G.J.F.), and the Slim Initiative for Genomic Medicine, a project funded by the Carlos Slim Foundation in Mexico (Broad).

Contribution: B.C. and M.G.M.R. designed research, performed research, analyzed data, and wrote the paper; C.S., Y.T., R.P.A., L.Z., A.J.D., M.D.D., D.G., G.G., and S.M. analyzed data; A.R.T., E.S.J., F.F., G.S.P., A.H.L., K.L.L., J.A.F., G.J.F., P.v.H., T.R.G., S.J.R., and D.d.J. performed research and analyzed data; D.M.M., G.L., G.I., E.A.L., H.H.S., H.H., and M.A. performed research; and M.A.S. designed research, analyzed data, and wrote the paper.

Conflict-of-interest disclosure: G.J.F. has patents and receives royalties on the PD-1 pathway from Amplimmune, Boehringer-Ingelheim, Bristol-Myers-Squibb (BMS), EDM-Serrono, Merck, Roche, and Novartis. M.A.S. has received research funding from BMS and served on advisory boards for BMS and Merck. The remaining authors declare no competing financial interests.

Correspondence: Margaret Shipp, Dana-Farber Cancer Institute, Harvard Medical School, 450 Brookline Ave, Boston, MA 02115; e-mail: margaret_shipp@dfci.harvard.edu.
