CD20⁺ B-cell depletion therapy suppresses murine CD8⁺ T-cell–mediated immune thrombocytopenia

Immune thrombocytopenia (ITP) is an autoimmune bleeding disorder characterized by an isolated thrombocytopenia (<100 × 10⁹/L).¹  The pathogenesis of chronic ITP is incompletely understood and thought to be heterogeneous.¹  For example, approximately two-thirds of patients with ITP have detectable antiplatelet antibodies that destroy platelets primarily by Fc-mediated phagocytosis within the spleen.^2,3  On the other hand, patients with no detectable antibodies can harbor platelet- and megakaryocyte-specific T cells that can mediate ITP.^4,5  These effector responses are closely correlated with dysfunctional CD4⁺ T-regulatory cells suggesting T cells are critical for ITP development.^6-8

B-cell depletion (Bdep) therapy using rituximab has been shown to be a successful second-line treatment of patients with ITP.⁹  Although B cells function to primarily elicit humoral immunity, they also have other roles such as antigen presentation, costimulation, and T-cell activation/cytokine production.^10,11  Moreover, patients with ITP, whether antiplatelet antibody positive or not, can respond to rituximab and in those antibody-positive patients, their autoantibody titers do not necessarily change.¹²  This suggests that anti-CD20 can significantly affect T-cell compartments and this was originally confirmed by Stasi et al showing that rituximab normalizes the observed CD4⁺ T-cell abnormalities in ITP.^6,13  To better understand how anti-CD20 therapy affects CD8⁺ T cells, we investigated its effect on T-cell–mediated thrombocytopenia in an established murine model of ITP.¹⁴  The data suggests that anti-CD20 Bdep significantly inhibits interleukin (IL)-2 dependent CD8⁺ T-cell proliferation, which blocks their ability to mediate ITP.

BALB/c mice (BALB/cAnNCrl, H-2^d, CD61⁺; Charles River Laboratories, Montreal, QC, Canada) were used as platelet donors, and BALB/c CD61 (GPIIIa) knockout (KO) mice were supplied by Dr Heyu Ni and used as a source of immune splenocytes. CB17 severe combined immunodeficiency (SCID) mice (CB17/Icr-Prkdc^scid/IcrIcoCrl, H-2^d, CD61⁺; Charles River Laboratories) were used as splenocyte transfer recipients for induction of ITP. All mice were 8- to 12-weeks of age and all studies were approved by the St. Michael’s Hospital Animal Care Committee.

A murine ITP model was used as previously described.¹⁴  CD61 KO mice were immunized against CD61⁺ BALB/c platelets and their nondepleted (ND) splenocytes were transferred into SCID mice to initiate ITP.¹⁴  Splenocytes from some CD61 KO mice were depleted of CD19⁺ B cells in vitro before transfer to initiate CD8⁺ T-cell–mediated ITP (Bdep in vitro). Other KO mice were B-cell depleted (Bdep) in vivo by 2 IV injections of an anti-mouse CD20 monoclonal immunoglobulin G2a antibody (250 μg/mouse; Biogen, Cambridge, MA) either before or after platelet immunization to mimic Bdep therapy (Bdep pre or post, respectively). Details of the in vitro experimentation and the experimental design are shown in the supplemental Methods on the Blood Web site.

Data are expressed as mean ± standard deviation, and were analyzed using GraphPad Prism 6.02 software for Windows (GraphPad Software, San Diego, CA).

Murine monoclonal anti-CD20 antibodies derived from immunization of CD20 KO mice were first reported by Uchida et al and induce significant Bdep in vivo.^15,16  In our hands, all the anti-CD20 antibody-treated mice were significantly depleted of B cells in the peripheral blood, spleen, and mesenteric lymph nodes (supplemental Figure 2A-B). In CD61 KO mice, Bdep before platelet immunization, a significant reduction in immunoglobulin G antiplatelet antibody production was also observed (supplemental Figure 2C-D). Bdep therapy in immune mice significantly increased the percentages of peripheral blood, splenic and lymph node CD3⁺ CD4⁺, CD3⁺ CD8⁺ T cells, and FOXP3⁺ T-regulatory cell subpopulations proportionally (supplemental Figures 3 and 4), consistent with previous studies showing that Bdep therapy increases the proportion of non–B-cell populations within immune compartments.¹⁷

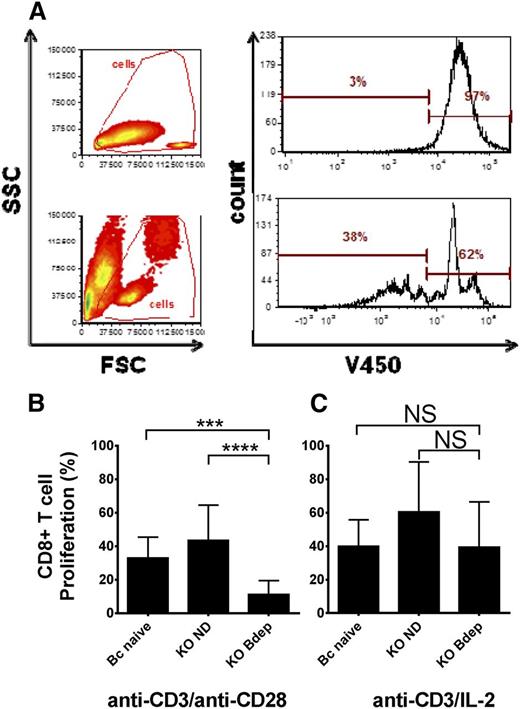

B cells have been previously shown to be involved in CD8⁺ T-cell maintenance and memory cell formation, and patients with ITP treated with rituximab have significant alterations of CD8⁺ T cells, including increased cytotoxicity of splenic CD8⁺ T cells in rituximab nonresponders.^13,18-21  Therefore, we examined the proliferation potential of splenic CD8⁺ T cells from the ND or Bdep immune CD61 KO mice. Purified splenic CD8⁺ T cells were stained with V450 (VPD 450; BD Biosciences, Mississauga, ON) and cultured with anti-CD3 antibody together with either anti-CD28 antibody and/or recombinant IL-2 for 72 hours and the fluorescence intensity per cell was analyzed (Figure 1A). Compared with CD8⁺ T cells from either naïve BALB/c or ND CD61 immune KO mice, CD8⁺ T cells from the Bdep KO mice showed a significantly reduced proliferation upon anti-CD3 and anti-CD28 stimulation (Figure 1B). The deficient CD8⁺ T-cell proliferation could be rescued by the addition of recombinant IL-2 to the cultures (Figure 1C). Further examination of the splenic CD8⁺ T cells revealed increased intracellular Granzyme B expression after Bdep therapy (supplemental Figure 5). This may be related to how CD20^low 4-1BBL⁺ B-regulatory cells regulate Granzyme B expression in CD8⁺ T cells.^22,23  Although Granzyme B expression in CD8⁺ T cells was found to be increased in follicular lymphoma patients at diagnosis, which was associated with better prognosis, it appeared unchanged in patients with ITP.^21,24  Taken together, our results suggest that in vivo Bdep therapy interferes with in vitro IL-2–dependent CD8⁺ T-cell activation but more research is required to characterize how this phenomenon occurs.

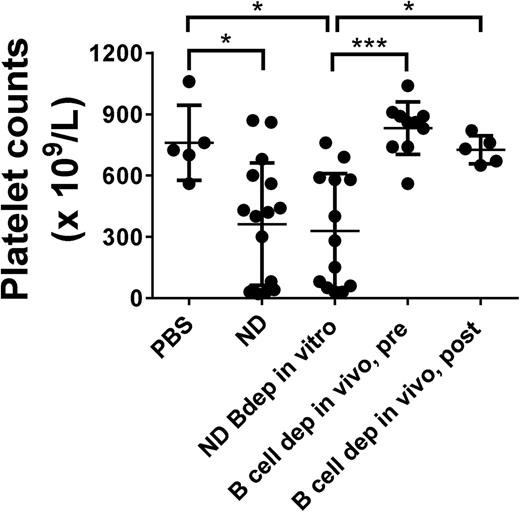

We further examined the effect of Bdep therapy on the development of ITP. SCID mice were transferred with splenocytes from immune CD61 KO mice that were either ND or depleted of CD19⁺ B cells in vitro to initiate antibody- and T-cell–mediated ITP, respectively. As previously described,¹⁴  both splenocyte populations induced significant thrombocytopenia when transferred into SCID mice (Figure 2, columns 1-3). In contrast, however, if the CD61 KO mice were Bdep in vivo either before or after platelet immunization, the ability of their splenocytes to induce ITP was completely prevented (Figure 2, columns 4-5).

Mechanistically, Bdep therapy in vivo may actively suppress or exhaust the proliferative potential of pathogenic CD8⁺ T cells upon activation and thereby limit their ability to induce ITP. Support for this possibility comes from studies showing that T cells, in the absence of B cells, have proliferation and memory development defects.^18-20  In addition, although Bdep in vivo may modulate the balance between pro- and anti-inflammatory T-cell–derived cytokines,¹³  we did not observe any significant differences in interferon-γ production by CD8⁺ T cells (supplemental Figure 5) or intracellular expression of interferon-γ/IL-4 in CD4⁺ T cells (N = 5-8, data not shown) after Bdep therapy. Furthermore, in accordance with previous studies, the activation marker CD44 was not increased on the CD8⁺ T cells after Bdep therapy (supplemental Figure 5).^18,19,25  Of interest, the interruption of B- and T-cell interactions by, for example, CD40L antibody, shows a similar therapeutic effect as rituximab in ITP, suggesting that a direct interaction between B cells and T cells is essential for ITP induction.¹²

In conclusion, our study suggests that the effectiveness of anti-CD20 therapy is due to induction of a significant CD8⁺ T-cell activation/proliferation defect via IL-2 blockade that correlates with their inability to induce thrombocytopenia. This may provide an additional explanation for the therapeutic effects of rituximab in T-cell–mediated ITP.

The authors thank Dr Gerald Prud’homme (St. Michael’s Hospital) for his helpful discussions.

This study was supported by grants from Health Canada and Canadian Blood Services to J.W.S. L.G. is the recipient of an Ontario Trillium Scholarship and a China Scholarship Council Scholarship. R.K. is the recipient of a postdoctoral fellowship from the Canadian Blood Services. A.Z. is the recipient of a postdoctoral fellowship from the Swiss National Science Foundation (P2GEP3_151966).

Contribution: L.G. designed research, performed experiments, collected data, analyzed and interpreted data, performed statistical analysis, and wrote the manuscript first draft; R.K. analyzed and interpreted data, performed statistical analysis, and edited the manuscript; R.A., E.R.S., Y.Z., A.Z., and M.K. performed experiments, collected, and interpreted data; A.H.L. provided CD44 antibodies and interpreted data; H.N. supplied mice; and J.W.S. provided financial resources, designed research, analyzed and interpreted data, and edited the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: John W. Semple, St. Michael’s Hospital, 30 Bond St, Toronto, ON, Canada M5B 1W8; e-mail: semplej@smh.ca.
