Pharmacologic increase in HIF1α enhances hematopoietic stem and progenitor homing and engraftment

Hematopoietic stem cell (HSC) transplantation is a curative treatment of immunologic malignancies, inherited metabolic diseases, and congenital immunodeficiencies, and is an attractive method for gene therapy. Transplantation success is partly dictated by the quality and number of donor cells transplanted, and is dependent on their ability to home to bone marrow (BM) niches, self-renew and differentiate. Some sources of HSCs display reduced engraftment efficiency because of inadequate number, and/or poor homing. Identifying strategies to enhance homing and expansion of HSCs can improve transplant efficiency, particularly when HSC number is limited. It is known that prostaglandin E₂ (PGE₂) can stimulate hematopoietic stem and progenitor cell (HSPC) proliferation.^1,2  Recently, the long-acting PGE₂ analog 16-16 dimethyl PGE₂ (dmPGE₂) was identified in a zebrafish chemical screen as a regulator of hematopoiesis, and ex vivo exposure to dmPGE₂ was shown to increase engraftment in murine and nonhuman primate models.^3,4  This strategy has now progressed to a phase 1 clinical trial.⁵  We previously demonstrated that part of the mechanisms of action for PGE₂ were the result of increases in homing, survival, and proliferation of murine and human HSCs.⁶  PGE₂ enhances HSC homing primarily by increasing CXCR4 expression on HSCs; however, the mechanism(s) whereby PGE₂ modulates CXCR4 and HSC homing has not been defined.

HSCs have been reported to lie in hypoxic BM niches^7-10  that support stabilization of hypoxia-inducible factor 1 α (HIF1α) within HSCs. HSCs that reside in hypoxic niches have greater hematopoietic-repopulating ability,¹¹  although recent evidence suggests that HSCs may inherently maintain hypoxic status independently from their specific BM localization.¹²  HIF1α dose-dependently regulates HSC activity,⁹  and intracellular oxygenation status plays a role in HSC quiescence and expansion.^9,13,14  Given that HIF1α and hypoxia regulate CXCR4 transcription in some cancer cell lines^15-20  and PGE₂ can stabilize HIF1α in prostate cancer cells,^21-23  we hypothesized that PGE₂ may increase CXCR4 and HSC engraftment through effects on HIF1α. Herein, we demonstrate that PGE₂ stabilizes HIF1α protein and transcriptional activity, which is required for enhanced HSPC homing, and identify a pharmacologic target for ex vivo enhancement of HSC function.

Mice were bred in-house or were purchased from Jackson Laboratory (Bar Harbor, ME) and maintained in the Indiana University School of Medicine animal facility. Conditional HIF1α knockout (KO) mice were generated by breeding HIF1α^Flox/Flox and tamoxifen-Cre mice, then crossing hemizygous floxed pups with homozygous HIF1α^Flox/Flox mice. Resulting Cre⁺HIF1α^Flox/Flox mice were used. Experiments were approved by the Institutional Animal Care and Use Committee of the Indiana University School of Medicine. Additional materials and methods are provided in the supplemental Methods (available on the Blood Web site).

We previously demonstrated that short-term exposure to PGE₂ upregulates HSPC CXCR4 and enhances their migration to stromal cell-derived factor 1 (SDF-1) and BM homing in vivo. However, the mechanisms whereby PGE₂ modulates HSPC CXCR4 and homing are unknown. In prostate cancer cells and renal tubular cells,^21,22  PGE₂ stabilizes HIF1α protein without affecting messenger RNA (mRNA), and inhibiting PGE₂ biosynthesis reduces HIF1α and HIF-responsive genes.²³  In HEK cells and in microglial cells, HIF1α upregulates CXCR4 by interacting with hypoxia response elements (HREs) within the CXCR4 promoter.^18,19  We hypothesized that the enhancing effect of PGE₂ on HSPC CXCR4, migration, and homing could result from HIF1α stabilization and enhanced HIF1α transcriptional activity and that pharmacologic manipulation of HIF1α may be an adjunct or alternative strategy to enhance HSC engraftment. We first determined whether PGE₂ stabilizes HIF1α in primary BM cells (BMCs), compared with the prolyl hydroxylase domain inhibitor dimethyloxalyglycine (DMOG), a known HIF1α stabilizer.²⁴  Pulse treatment of lineage^neg BMCs with 1 µM of dmPGE₂ or 5 µM of DMOG significantly increased HIF1α protein expression by ∼35% (Figure 1A), with no effect on HIF1α mRNA (Figure 1B). Concomitantly, mRNA levels of 2 downstream HIF1 responsive genes adrenomedullin and glucose transporter-1 were significantly increased after PGE₂ and DMOG treatment (Figure 1B), confirming that HIF1α stabilization led to increased HIF1α transcriptional activity.

Given the similar effects of dmPGE₂ and DMOG on HIF1α, we investigated if DMOG similarly affects HSPC function. Pulse exposure of lineage^neg BMC dose-dependently increased HIF1α protein expression (Figure 1C) with a concomitant dose-response increase in CXCR4 levels on Sca-1⁺ c-kit⁺ lineage^neg (SKL) cells (Figure 1D). Functionally, DMOG pulse exposure also enhanced SKL migration to SDF-1 comparable to dmPGE₂ (Figure 1E). In a congenic in vivo homing model, treatment of BMCs with DMOG enhanced SKL cell homing equivalent to dmPGE₂ (Figure 1F). As we reported for PGE₂,⁶  enhanced homing of SKL cells by DMOG was completely blocked by the selective CXCR4 antagonist AMD3100 (Figure 1G). In a limiting dilution, head-to-head congenic transplant model, DMOG treatment of BMC before transplantation significantly increased peripheral blood chimerism at 6 months after transplantation compared with vehicle-treated cells (Figure1H), with no differences in lineage reconstitution between recipient, vehicle, and DMOG-treated cells (data not shown). Enhanced chimerism as a result of DMOG treatment stemmed from a twofold increase in HSC frequency (Figure 1I) and competitive repopulating units (Figure 1J). Enhanced chimerism was maintained in secondary transplants (Figure 1K). That the enhancing effects of dmPGE₂ on HSPC homing and engraftment can be duplicated by DMOG suggests that PGE₂ may mediate its effect on HSPC CXCR4 through stabilization of HIF1α.

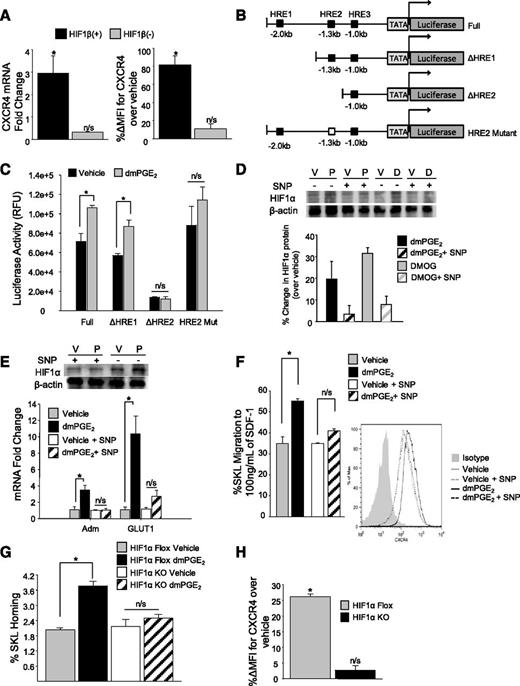

Under normoxic conditions, HIF1α is ubiquitinated and targeted for proteasomal degradation.^25-27  In the absence of oxygen, HIF1α is stabilized and translocated to the nucleus by HIF1β, where the translocated HIF complex interacts with HREs within the promoter of responsive genes.²⁸  To further define a HIF1α requirement for PGE₂-induced CXCR4 upregulation, we used mutant mouse hepatoma cells lacking or reconstituted with the HIF1β nuclear translocator.²⁹  In mutant hepatoma cells stably transfected with HIF1β, dmPGE₂ increased CXCR4 mRNA approximately threefold, and CXCR4 surface expression approximately twofold, whereas dmPGE₂ failed to increase CXCR4 in HIF1β (−) mutant cells (Figure 2A). The CXCR4 promoter contains 3 potential HREs, with the HRE located −1.3 kb from the transcriptional start site being necessary for hypoxia-induced CXCR4 upregulation in HEK cells.¹⁸  Using a series of luciferase CXCR4 promoter vectors containing specific combinations of HREs (Figure 2B), a significant increase in luciferase activity was observed in dmPGE₂-treated cells transfected with the vector containing the −1.3 kb of HRE. However, when the −1.3 kb of HRE was either absent (ΔHRE2) or mutated (HRE2 Mut), no change in luciferase activity (Figure 2C) was observed after dmPGE₂ treatment, indicating that the −1.3 kb of HRE is required for CXCR4 regulation by both hypoxia and PGE₂. Taken together, these data indicate that HIF1α transcriptional activity is required for PGE₂-induced gene transcription of CXCR4 and results from HIF1α nuclear translocation and binding to the −1.3 kb of HRE within the CXCR4 promoter, although we cannot rule out other regulatory elements between HRE1 and HRE2 that may be contributing to CXCR4 regulation in response to hypoxia.

To support the hypothesis that HIF1α is required for transcriptional upregulation of CXCR4 by PGE₂, we used pharmacologic and genetic approaches to determine whether the effects of PGE₂ on increasing CXCR4 expression and migration to SDF-1 in primary HSPCs were mediated by HIF1α stabilization. Using sodium nitroprusside (SNP), a compound that inhibits HIF1α protein accumulation,^30,31  we saw an inhibition in both DMOG and dmPGE₂-mediated HIF1α stabilization (Figure 2D), as well as dmPGE₂-mediated upregulation of HIF-responsive genes (Figure 2E). SNP also blocked the increase in migration to SDF-1 and CXCR4 expression, normally seen with PGE₂ (Figure 2F). Conditional deletion of HIF1α resulted in loss of PGE₂-induced enhanced HSPC homing in HIF1α KO cells (Figure 2G), and no increase in CXCR4 expression after dmPGE₂ treatment was observed (Figure 2H), further supporting the observation that HIF1α is required for PGE₂-induced CXCR4 upregulation and enhanced homing.

In summary, we provide new mechanistic insight into the effects of PGE₂ on HSC homing and engraftment and define a new ex vivo pharmacologic strategy to enhance hematopoietic transplantation. This finding that HIF1α stabilization by DMOG improves HSC homing and engraftment, along with recent evidence that human CD34⁺ cells cultured in hypoxic conditions exhibit elevated levels of CXCR4³²  and that in vivo administration of DMOG enhances HSC recovery after total body irradiation,³³  suggests several potential therapeutic strategies targeting HIF1α to improve HSC engraftment and repopulation.
