Mir-144 selectively regulates embryonic α-hemoglobin synthesis during primitive erythropoiesis

Over the past 50 years, studies on the hemoglobin synthesis during erythropoiesis have led to considerable understanding of not only the general principle controlling eukaryotic gene expression but also the regulatory mechanism underlying the pathogenesis of human genetic diseases, such as thalassemia.^1,2  All vertebrates studied to date possess multiple globin genes that are expressed in different developmental stages to generate different hemoglobins with distinct oxygen affinities during development. In human, α-globin cluster contains 3 functional α-globin genes (ζ, α1, and α2), which are differentially expressed during embryonic or yolk sac (ζ), and adult (α1 and α2) erythropoiesis.³  The β-globin gene cluster consists of 5 genes that are also developmentally regulated: ϵ expressed in yolk sac, ^Gγ and ^Aγ in fetal liver, and δ and β in bone marrow.⁴  Although the erythroid- and developmental stage-specific expression of globin genes has been known for decades, the precise molecular mechanisms directing the exquisite regulation and switching remain largely unknown.²

Several types of regulatory mechanisms have been implicated in the embryonic and adult globin expression. Structural removal of genetic materials containing either α- or β-globin genes, deletion of their respective upstream cis-regulatory elements (eg, HS40 for α-globins and locus control region for β-globins, respectively), and gain-of-function mutation situated between the α-globin genes and their cis-regulatory elements have been shown to contribute to the lack and reduced expression of corresponding hemoglobins and account for a high percentage of patients with α- and β-thalassemia.^1,5

Trans-acting mechanisms involving both erythroid-specific and general transcriptional regulators are also crucial for the developmental control of β-globin expression.¹  Transcription factors selectively regulating stage-specific expression of β-globin genes have been identified. Erythroid Krüppel-like factor (EKLF) specifically interacts with the CACCC boxes of β, but γ or ϵ, genes.⁶  In EKLF-deficient mice, the adult β-globin is markedly decreased, without affecting embryonic ϵy-, βh1-, and α-globin expression.⁷  Fetal krüppel-like factor (FKLF; KLF11) interacts with the CACCC box of γ gene to activate its transcription,⁸  whereas lung krüppel-like factor (LKLF; KLF2) is required for ϵ expression in vivo.⁹  It has been proposed that erythroid-specific transcription factors (EKLF, GATA-1, and FOG-1) bind to the CACCC box of β-globin gene promoters, providing individual globin gene family members with a competitive advantage for the interaction with the cis-locus control region to regulate their expression.¹⁰  Although these examples represent advances in understanding β-globin gene regulation at the transcriptional level, little is known about trans-acting factors regulating α-globin expression.¹

MicroRNAs (miRNAs) are endogenous, approximately 22-nucleotide (nt) RNAs that play important regulatory roles at the posttranscriptional level in animals and plants by targeting mRNAs for cleavage or translational repression.¹¹  Currently, the target genes of miRNAs are mainly identified by a combination of bioinformatic searches for potential miRNA recognition element (MRE) in the 3′-untranslated region (3′-UTR) of the target gene and subsequent experimental validations of predicated miRNA-target interactions conducted usually with luciferase reporter assay in cultured cells in vitro.^11,12  While these progress, in vivo validations of miRNA targets in a physiologic context with more reliable approaches represent a significant challenge in dissecting the miRNA-mediated regulatory pathways in development and diseases.¹²  Three miRNAs (miR-221, miR-222, and miR-24) required for the development of mature erythrocytes through targeting c-kit, activin type I receptor, and ALK4 in vitro, respectively, have been identified, and a recent report shows that miR-451 is a direct target of the critical hematopoietic transcription factor GATA-1.^13-15  However, the miRNA-mediated signaling posttranscriptionally regulating hemoglobin gene expression in vivo remains largely unknown.

Zebrafish is an ideal system for the study of embryonic erythropoiesis.^16,17  Embryonic hematopoiesis in the zebrafish begins in 2 anatomically and functionally distinct regions: the anterior- and posterior-lateral plate mesoderm (P-LPM).¹⁶  Cell fate mapping experiments at the shield stage of development show that the P-LPM arises from the most ventral region opposite the embryonic organizer (or shield). Cells in the P-LPM migrate medially in an anterior-to-posterior wave to form the intermediate cell mass (ICM).^16,18  The ICM is the major site of primitive erythropoiesis (equivalent of mammalian yolk sac), with gata-1 being exclusively expressed in this region during somitogenesis.¹⁶  Five zebrafish embryonic α- and β-globins (α-E1, α-E3, β-E1, β-E2, and β-E3) and several adult α- and β-globin (α-A1, β-A1, and β-A2) genes have been characterized,^19,20  and adult globins do not appear to be expressed at high level during embryogenesis.²⁰

In this study, we show that an erythroid-specific miRNA, miR-144, is expressed at the specific developmental stages between 20 to 32 and 72 to 120 hours postfertilization (hpf), to negatively regulate embryonic α-hemoglobin (α-E1), but not β-hemoglobin gene expression, through targeting the 3′-UTR of Krüppel-like factor D (klfd) gene in a physiologic context. The Klfd interacts with the CACCC sites in the promoters of either α-E1 globin or miR-144 gene, forming an intricate feedback circuitry to selectively regulate embryonic α-globin expression during primitive erythropoiesis.

Zebrafish maintenance, breeding, and staging were performed as described previously.²¹  The zebrafish facility and zebrafish study were approved by the Institutional Review Board of the Institute of Health Sciences, Shanghai Institutes of Biological Sciences, Chinese Academy of Sciences (Shanghai, China).

All primer sequences and plasmid constructions are available in Table S3 (available on the Blood website; see the Supplemental Materials link at the top of the online article). Target sequences for 2× perfectly complementary target sites (PT), 2× MRE, and 3× MRE were synthesized as DNA oligonucleotides (Invitrogen, Carlsbad, CA) and cloned into the 3′-UTR of pCS2⁺–enhanced green fluorescence protein (EGFP) plasmid.

The miR-144 locked nucleic acid (LNA)–modified oligonucleotides labeled with or without digoxigenin (Dig) were purchased from Takara (Kyoto, Japan) and Exiqon (Woburn, MA). The miR-144 duplex and its 2-bp mismatch control were synthesized from Invitrogen. The klfd morpholino antisense oligonucleotides and its 5-mismatch control were purchased from Gene Tools (Philomath, OR). All sequences were available in Table S3. Capped mRNAs were synthesized with the Massage Machine Kit according to the manufacturer's instructions (Ambion, Austin, TX).

Whole-mount in situ hybridization with Dig-labeled LNA and mRNA antisense probes were performed as described previously.^22,23  Dig-labeled miR-144 LNA probe and fluorescein-labeled gata-1 or myo D probe were used for 2-color in situ hybridization²⁴  at 56°C. The purple color was developed first with nitroblue tetrazolium/5-bromo-4-chloro-3-indolyl-phosphate as substrate (Vector Laboratories, Burlingame, CA), followed by the development of red color with Fast Red tablets (Roche Diagnostics, Indianapolis, IN). Whole-mount TdT-mediated dUTP nick-end labeling (TUNEL) assays were performed as described previously.^24,25

A rabbit polyclonal antiserum against zebrafish Klfd was generated using a His-Klfd (N-terminal) fusion protein as an antigen source. A 5′ fragment was amplified by polymerase chain reaction (PCR) from the full-length klfd cDNA. The resulting PCR product of 810 bp encoding the amino-terminal 270 amino acids of the Klfd polypeptide was digested with BamH1/Xho1 and subcloned into the BamH1/Xho1 sites of the plasmid pET-28a(+) vector. A His-Klfd (N-terminal) fusion protein of the expected size (34 kDa) was expressed in Escherichia coli strain DH5α, purified with Ni-NTA agarose (QIAGEN, Valencia, CA), and used to immune a rabbit (AbMART, Shanghai, China).

Whole-mount immunostaining was performed as described previously,²⁶  with a rabbit polyclonal antibody against phosphorylated histone 3 (pH 3). For Western blot, embryos at 16 and 22 hpf were deyolked as described previously.²⁷  Embryos were homogenized in lysis buffer (20 mM Tris HCl, pH 7.4, 150 mM NaCl, 5 mM ethylenediaminetetra-acetic acid, 10% glycerol, and 0.1% Triton X-100) containing protease inhibitor cocktail and phosphatase inhibitor (Roche Diagnostics). Signals were detected with mouse anti-actin antibody (1:10 000) and rabbit anti-zebrafish Klfd (1:2500) for 2 hours at room temperature or overnight at 4°C, followed by incubation with appropriate horseradish peroxidase–conjugated secondary antibody (1:10 000) and enhanced chemiluminescence kit (Cell Signaling Technology, Danvers, MA). Band densities were quantified with Image-Pro Plus software.

Embryos were collected at 18, 24, and 30 hpf during development. For LNA-mediated miR-144 knockdown, 1 cell–stage embryos were injected with 0.3 ng of either miR-144 LNA or 5-bp mismatch control. Total RNA from 160 to 300 embryos was extracted with TRIzol (Invitrogen), which was subsequently enriched with the mirVana miRNA Isolation Kit (Ambion) and separated on 15% of urea–polyacrylamide gel electrophoresis gel. Northern blot were probed with Dig-labeled miR-144 or miR-1 LNA probe as described previously,²⁸  and was visualized using the DIG Luminescent Detection Kit for nucleic acids (Roche Diagnostics).

Transgene plasmids flanked by I-Sce1 sites²⁹  were prepared with endotoxin-free kit (Promega, Madison, WI). Microinjection was performed at1 cell–stage embryos with 2 nL injection solution containing 50 pg/nL DNA, 0.5× I-Sce1 buffer, and 0.5 units/μL I-Sce1 meganuclease (New England Biolabs, Ipswich, MA). Injected embryos were raised to sexual maturity (F0 founders) and crossed to wild-type zebrafish to generate F1 progeny, which were screened for EGFP expression in the P-LPM and ICM at 16 and 24 hpf, respectively. The EGFP⁺ F1 embryos were raised to adults to establish the stable transgenic lines.

Single-embryo reverse-transcribed PCR (RT-PCR) in multiple individual embryos was performed as described.²⁵  PCR conditions were as follows: 50°C, 30 minutes; 95°C, 10 minutes; 30 cycles of 94°C, 30 seconds; 58°C, 30 seconds; 72°C, 1 minute; then 72°C, 10 minutes. PCR products were separated on a 1.5% agarose gel. Real-time quantitative RT-PCR was performed using SYBR Green (Toyobo Engineering, Osaka, Japan). Zebrafish gapdh housekeeping gene was used as an internal control. Primer sequences are available in Table S3.

3′-UTR of 118 ICM-expressing genes (Zebrafish Model Organism Database [ZFIN])³⁰  were retrieved from the RefSeq database.³¹  Bioinformatics analyses of miRNA-binding sites were performed with miRanda version 1.0b³²  and RNA hybrid.³³  The free energy (ΔG) of sequences flanking the miR-144 MRE was determined using mFold.³⁴  Syntenic analysis was performed as described previously.²⁵

Embryonic chromatin immunoprecipitation (E-ChiP) was performed as previously described with minor modifications³⁵  (details in Document S1).

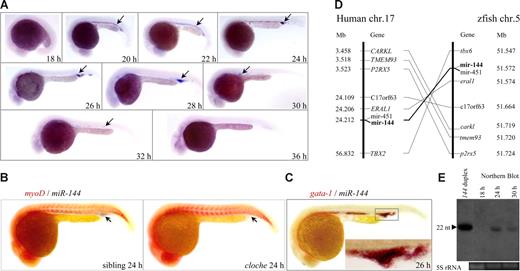

Previous study shows that miR-144 is expressed in the ICM of 24 hpf zebrafish embryos.²⁸  To determine the role of miR-144 during erythropoiesis, we examined the spatiotemporal expression of miR-144 by whole-mount miRNA in situ hybridization (WISH) using a Dig-labeled LNA-modified DNA oligonucleotides as a probe.²²  Although miR-144 was not expressed maternally (Figure S1), the earliest zygotic transcription of miR-144 could only be detected in the ICM of 20 hpf embryos, then became undetectable at 36 and 48 hpf, and redetected in the posterior blood island at 72 and 120 hpf (Figures 1A, S1 arrows). The miR-144 was undetectable in the homozygous cloche (clo^m39) embryo (Figure 1B arrows, compared with its sibling), a mutant that lacks hematopoiesis and vasculogenesis resulting from an as-yet-unidentified mutation upstream of the early hematopoietic transcription factor scl,³⁶  and was colocalized with the erythroid progenitor marker gata-1 in the ICM (Figure 1C inset). The zebrafish miR-144 shares the same nucleotide acid identities with other species, and 6 zebrafish genes, along with miR-144 and miR-451, define an approximately 180-kb genomic region on chromosome 5 (Figure 1D right), which is syntenic to the human MiR-144 genomic locus on chromosome 17 (Figure 1D left). Taken together, the results indicate that zebrafish miR-144 is an evolutionarily conserved ortholog of human MiR-144, expressed in erythroid progenitors under tight developmental regulation.

To determine whether the miR-144 is functional for gene silencing, we first examined whether the mature miR-144 is expressed in vivo. Northern blot analysis showed that the endogenous mature miR-144 (22 nt in length) was not detected in embryos at 18 hpf but readily detected at 24 hpf and decreased at 30 hpf (Figure 1E), which was consistent with the WISH result (Figure 1A). To test whether the mature miR-144 is functional in physiologic context, we established 2 stable “reporter” transgenic lines under the erythroid-specific gata-1 promoter.³⁷  The 2 lines were designated as Tg(zgata-1:EGFP) and Tg(zgata-1:EGFP-2× PT) (Figure 2A,B; Table S1). The Tg(zgata-1:EGFP-2× PT) carried 2 tandem perfectly complementary target sites (2× PT) for miR-144 binding in the 3′-UTR of EGFP reporter gene (Figure 2B red boxes).

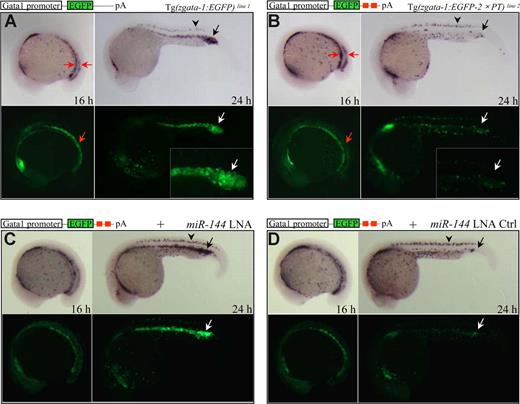

The EGFP transcripts and EGFP protein expression appeared normal in the P-LPM of 16 hpf F2 embryos derived from both Tg(zgata-1:EGFP) and Tg(zgata-1:EGFP-2× PT) lines (Figure 2A,B left panels, red arrows). By 24 hpf, however, a dramatic reduction of EGFP expression was observed only in the ICM region of the Tg(zgata-1:EGFP-2× PT) but not in the Tg(zgata-1:EGFP) embryos (Figure 2A,B right panels). In contrast, the EGFP expression was not affected in the dorsal neurons of both transgenic lines (Figure 2A,B black arrowheads), The observation was consistent with the facts that endogenous miR-144 was only expressed in the ICM after 20 hpf (Figure 1A,E) and that an miRNA will direct mRNA cleavage if the target transcript is perfectly complementary in sequence.¹¹  Together, these results indicate that the mature miR-144 is functionally active in the developing erythroid progenitors in vivo.

To examine the function of miR-144 in erythroid development, we took advantage of LNA technology, which has been demonstrated to efficiently and specifically silence miRNA functions in vitro and in vivo.^38-40  We first established a transient reporter system in which the synthetic miR-144 duplex was coinjected with either EGFP-2× PT or EGFP-2× PT^mut capped mRNA sensors (mut: the first 2-8 nt at the 5′ seed matching region of miR-144 has been changed from 5′-ACAGUAU-3′ to 5′-ACAUGAU-3′) into 1 cell–stage embryos. The EGFP fluorescence was dramatically reduced in the 22 hpf embryos injected with miR-144 duplex plus EGFP-2× PT (Figure S2A,B) but remained unaffected in the embryos injected with miR-144 duplex plus EGFP-2× PT^mut mRNAs (Figure S2C). Consistently, injection of EGFP-2× PT mRNAs into wild-type embryos resulted in a disappearance of EGFP transcripts specifically in the ICM of 22 hpf embryos (Figure S2D arrow), whereas the appropriate EGFP expression was observed in the ICM of the embryos injected with EGFP-2× PT^mut sensor (Figure S2E arrow). We then assessed the specificity and dosage of the antisense LNA-modified oligonucleotides that could effectively block the miR-144 function in vivo. Injection of 0.3 ng of miR-144 LNA, but not its 5-bp mismatch LNA control into 1 cell–stage embryos, was able to completely rescue the EGFP expression suppressed by coinjection of the capped EGFP-2× PT mRNAs and miR-144 duplex (Figure S2F,G). Furthermore, the miR-144 LNA, but not its LNA control, was able to completely rescue the EGFP transcripts and protein fluorescence suppressed by endogenous miR-144 gene in the ICM of F2 embryos derived from the Tg(zgata-1:EGFP-2× PT) transgenic line at 24 hpf (Figure 2C,D arrows), resulting from an efficient and specific knockdown of the endogenous mature miR-144 as evidenced by Northern blot analysis (Figure S2H). Thus, we injected miR-144 LNA at the dosage of 0.3 ng per embryo to investigate the phenotypes resulting from a knockdown of the miR-144 gene.

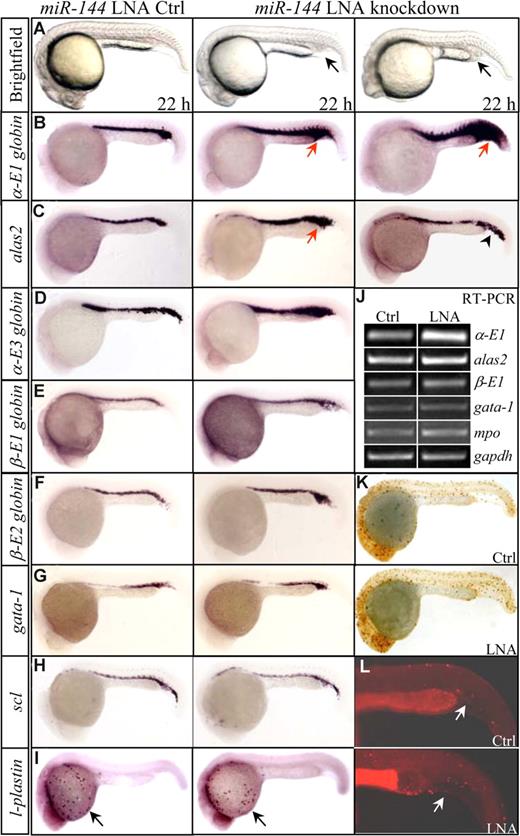

The miR-144 LNA-injected embryos appeared morphologically normal, compared with LNA control-injected embryos. The earliest phenotype can be observed at 22 hpf, when 32% of miR-144–knockdown embryos showed a slight cellular accumulation in the posterior ICM (Figure 3A middle panel, arrow, n = 460 of 1439). In approximately 8% of miR-144 knockdown embryos, a more obvious ICM expansion was also observed (Figure 3A right panel, arrow, n = 115 of 1439). To molecularly characterize the phenotypes, we performed WISH analyses with 12 hematopoietic- and vascular-specific genes²⁴  that are required for different stages of primitive hematopoiesis (scl for stem cells; gata-1, fog-1 and alas2 for erythroid progenitors; α-E1, α-E3, β-E1, and β-E2 hemoglobin for mature red cells; pu.1, mpo, and l-plastin for granulocytes; and flk-1 for vascular endothelial cells) at 22, 28, 33, and 48 hpf. Surprisingly, only significant increase (43%, 119 of 275; Figure 3B middle panel, arrow) and massive induction (8%, 23 of 275; Figure 3B right panel, arrow) of α-E1 globin expression were observed in the miR-144–knockdown embryos at 22 hpf and later stages (Figure S3,S4). The alas2 transcripts increased slightly (29%, 14 of 49) (Figure 3C middle panel, arrow), with approximately 27% (13 of 49) having an ectopic expression observed in the posterior blood island (Figure 3C right panel, arrowhead). A slight increase was also detected for α-E3 globin (Figure 3D arrow). No obvious changes in the levels of β-E1 and β-E2 globins were noted at 22 hpf and later stages (Figures 3E,F, S4). Other genes gata-1, fog-1, and scl (Figures 3G,H, S5), pu.1, mpo, l-plastin, and flk-1 (Figures 3I, S6) all expressed appropriately at 22 hpf and later stages after the onset of circulation. Semiquantitative single-embryo and real-time RT-PCR confirmed the unbalanced expression that the α-E1 transcripts were significantly increased relative to other genes, such as β-E2 and mpo (Figures 3J, S7). The possibilities that abnormal dorsoventral patterning, increased proliferation, or decreased apoptosis of erythroid progenitors appeared unlikely to account for the up-regulation of α-E1globin, because other hematopoietic-specific genes expressed normally, and no obvious changes in the levels of the mitotic marker phosphorylated histone 3 (pH3), and apoptotic TUNEL staining were observed (Figure 3K,L).

Individual miRNAs appear to regulate the expression of numerous targets posttranscriptionally,¹¹  and paired expression profiles of miRNAs and mRNAs can be used to identify functional miRNA-target relationships with high precision.⁴¹  To identify the potential physiologic targets for miR-144, we first screened 3′-UTR of 118 ICM-expressing genes registered at the ZFIN database³⁰  for potential miR-144 recognition elements (MREs), using RNA hybrid³³  and miRanda³²  computational algorithms. We identified 11 genes as putative miR-144 targets (alas2, cebpα, gata-1, lmo2, mcam, pfkfb4, runx1, scl, tfe3a, klf12, and klfd), most of which carried a putative MRE (Table S2). We also used mFold to analyze the local mRNA secondary structure and the free energy (ΔG) of 70 bp 5′ and 3′ sequences flanking the putative MRE as described previously⁴²  and found that most of the putative targets had a relatively high ΔG (Table S2). To test whether these putative MREs could be responsible for silencing their expression by miR-144, we placed multimers of approximately 40 to 70 bp containing the predicted miR-144 MRE (2-3 copies) from the lmo2, alas2, klf12, and klfd 3′-UTRs into the 3′-UTR of an EGFP reporter plasmid. We microinjected the in vitro synthesized capped EGFP, EGFP-2× PT, and EGFP-2 or 3× MREs mRNAs individually with either control or miR-144 duplex into 1 cell–stage zebrafish embryos (DsRed mRNAs were coinjected as an injection control) and measured the level of EGFP fluorescence to determine the effect of miR-144 on EGFP translation at 22 hpf. Although no changes in EGFP fluorescence were observed for the EGFP and EGFP-2 or 3× MREs of lmo2, alas2, and klf12 (Figure S8A,C-E), a dramatic suppression of EGFP expression was obtained in the embryos injected with control EGFP-2× PT and EGFP-2× MRE-klfd mRNAs (Figure S8B,F), suggesting that the MRE of klfd 3′-UTR can be efficiently targeted by miR-144. Interestingly, the miR-144 MRE was located in a 3′-UTR region with highest free energy ΔG (5′ ΔG: −6.90 and 3′ ΔG: −3.80 kcal/mol), compared with other predicated target genes (Table S2), suggesting the local accessibility of the klfd MRE and a strong predictive value of the ΔG index.⁴²

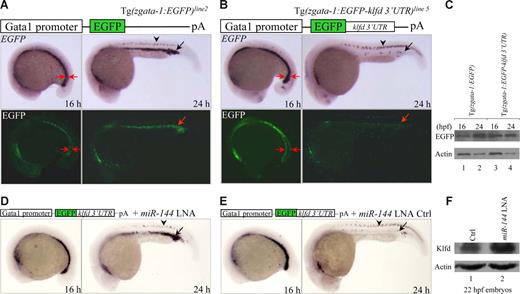

It has been shown that an ectopic expression of 3′-UTR and miRNA may not be reliable and does not guarantee a functional interaction.¹²  To validate that the klfd 3′-UTR is a bona fide endogenous target for miR-144 in physiologic context, we placed the full-length of klfd 3′-UTR into the 3′-UTR of EGFP reporter gene under the erythroid-specific gata-1 promoter. We screened 138 microinjected zebrafish adults and established 10 transgenic F0 founder lines, which were referred to as Tg(zgata-1:EGFP-klfd 3′-UTR)^{lines 1-10} (Table S1). F1 and F2 embryos derived from these transgenic lines all expressed EGFP specifically in the ICM, with some ectopic EGFP expression observed in the dorsal neurons, skin, and hatching gland (Table S1). Although expression of both EGFP mRNA (by WISH) and EGFP protein (by Western blot) was normally detected in the control Tg(zgata-1:EGFP) embryos at 16 and 24 hpf (Figures 4A arrows, C left), we observed a marked decrease in the levels of both EGFP mRNA and EGFP protein in the ICM of 24 hpf, but not in the P-LPM of 16 hpf embryos derived from the line 5 of Tg(zgata-1:EGFP-klfd 3′-UTR)^{line 5} (Figure 4B arrows, C right). The reduction of EGFP expression can be rescued by microinjection of miR-144 LNA (Figure 4D) but not by its 5-bp mismatch LNA control (Figure 4E). The same results were also obtained from F2 embryos derived from additional lines 1, 6, and 8 of Tg(zgata-1:EGFP-klfd 3′-UTR)^lines1,6,8 (Figure S9). No changes were observed for EGFP expression in the dorsal neurons, where the miR-144 is absent (Figure 4A,B arrowheads). Furthermore, Western blot analysis using a rabbit polyclonal antibody specifically against zebrafish Klfd protein showed that the endogenous Klfd protein level was significantly increased in miR-144 knockdown embryos at 22 hpf (Figure 4F lanes 1,2). It was noted that the EGFP mRNAs appeared to be degraded by miR-144, a phenomenon that has been observed in the zebrafish primordial germ cells.⁴³  Taken together, we concluded that the transcription factor klfd is a physiologic target of miR-144.

Consistent with the observation of klfd as a target gene for miR-144, WISH analyses showed that the spatiotemporal expression of klfd is similar to that of miR-144. The earliest expression of klfd was detected at 18 hpf (Figure 5A arrow) but not at 16 hpf (data not shown), and remained the expression throughout 48 hpf (Figure 5A) and later stages as observed previously.⁴⁴  Injection of klfd mRNA (20 pg) into 1 cell–stage embryos significantly increased α-E1 expression (48%, 17 of 35), with a slight increase, if any, in the levels of alas2 transcripts (Figures 5B, S10). The expression of β-E2, gata-1, mpo, and mesodermal myo D and ectodermal krox 20 genes was not altered by klfd overexpression at 22 hpf (Figures 5B, S10), consistent with the phenotypes observed in miR-144–deficient embryos. Western blot analysis using a rabbit polyclonal antibody specifically against zebrafish Klfd showed that injection of a klfd-specific morpholino oligonucleotides (Figure S11A,B) reduced endogenous Klfd protein levels in a dose-dependent manner (Figure 5C lanes 3-5), with 90% loss of Klfd protein being observed after injection of 12 ng per embryo of the same morpholino (Figure 5C lane 5). By contrast, injection of 12 ng of the 5-bp mismatch control morpholino (5-MM) had no effect on the level of Klfd protein (Figure 5C lane 2). As a result, a significant decrease in the levels of α-E1 (25%, 12 of 49), but not β-E2, gata-1, and mpo, transcripts was observed in the 22 and 36 hpf of Klfd-knockdown embryos (Figure 5D; and data not shown). Furthermore, O-dianisidine staining showed that the embryonic hemoglobin syntheses were decreased in the Klfd-deficient embryos at 36 (96%, 24 of 25) and 54 hpf (94%, 33 of 35), compared with 5-MM morpholino-injected embryos (Figure 5E arrows). Consistently, knockdown of Klfd is also able to significantly rescue the overproduction and ectopic expression of α-E1 globin induced by miR-144 deficiency. More than 95% of miR-144 and Klfd double-knockdown embryos demonstrated normal levels of α-E1 globin (Figure 5F right panel, n = 73 of 78), whereas approximately 38% of miR-144–knockdown embryos (n = 27 of 71) demonstrated a significant increase of α-E1 globin in the ICM and posterior blood island (Figure 5F left panel, arrow, n = 27 of 71). These results strongly suggest that α-E1 globin is one of the target genes downstream of Klfd transcription factor.

Previous studies show that CACCC box is essentially elements for binding of KLF family transcription factors.^6,44  Because 6 consecutive CACCC boxes occupied approximately 3.0 kb promoter upstream of the α-E1 globin translational start site (Figure 5G), we therefore test whether Klfd is able to directly bind to these consensus elements by whole E-ChiP assay.³⁵  Chromatin fragments were extracted from 16 and 22 hpf wild-type embryos and were immunoprecipitated with the same rabbit polyclonal anti-Klfd antibody. DNA from the immunoprecipitates was amplified by PCR using primers located to the indicated genomic regions (I-III; Figure 5G horizontal arrows). The results showed that the Klfd was richly associated with the promoter region I at 22 hpf, but not at 16 hpf (Figure 5G), consistent with the observation that the earliest klfd expression was detected at 18 hpf (Figure 5A). No binding activity was measurable for regions II and III at either 16 or 22 hpf (Figure 5G). With the same chromatin preparations, no binding reactivity was observed in the CACCC boxes of β-E1 (Figure 5G regions IV and V), alas2 (Figure 5H regions I and II), and β-E3 globin promoters (Figure 5I regions III and IV) in 16 and 22 hpf embryos analyzed. The results suggest that the Klfd only interacts with the distal CACCC sites on the α-E1 globin promoter to positively regulate its expression in developing erythrocytes.

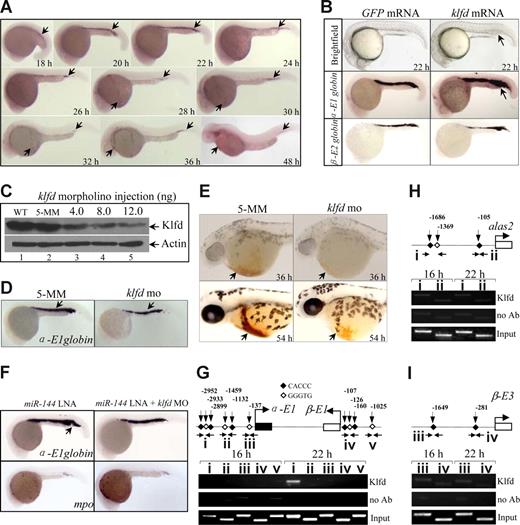

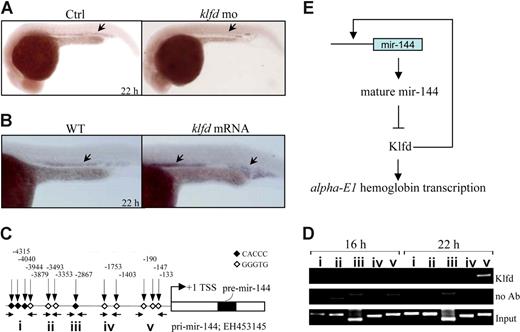

We hypothesized that Klfd may bind and activate the miR-144 promoter based on 3 observations: (1) the earliest expression of klfd was detected at 18 hpf (Figure 5A), 2 hours before the appearance of miR-144 transcripts in the ICM (Figure 1A); (2) the miR-144 expression was abolished in Klfd-deficient embryos (52%, 26 of 50; Figure 6A arrow) but significantly elevated in the embryos overexpressing 20 pg of klfd mRNAs (82%, 34 of 41; Figure 6B arrows); and (3) promoter analysis found that there were 12 consecutive CACCC sites occupying approximately 5.0 kb upstream of the miR-144 transcriptional start site (Figure 6C). To test the hypothesis, we performed E-ChiP again with the same preparations of immunoprecipitated chromatin fragments used in the Figure 5G-I, and amplified by PCR using primers located to the indicated regions (I-V; Figure 6C). The Klfd was found predominantly enriched in the proximal promoter region V but not in the middle and distal regions represented by I to IV at 22 hpf (Figure 6D right). No detectable binding activity was observed in 16 hpf embryos (Figure 6D left), when neither klfd nor miR-144 was expressed (Figures 1A,5A). Taken together, the results strongly suggested that the interaction of Klfd with the proximal miR-144 promoter contributed to the stage-specific expression of miR-144.

In this study, we show that an erythroid-specific miR-144 is expressed at specific developmental stages between 20 to 32 and 72 to 120 hpf during zebrafish embryogenesis. The precise onset of miR-144 expression at 20 hpf appears to be dependent on klfd, a zinc finger transcription factor that is first expressed in erythroid ICM at 18 hpf. The Klfd binds to the proximal CACCC boxes on the miR-144 promoter to activate its transcription. The miR-144 targets Klfd physiologically, hence forming a feedback circuitry that acts selectively to regulate the embryonic α-E1, but not β-globins expression during the late stage of primitive erythropoiesis (Figure 6E). Interestingly, a slight increase of alas2 (a speed-limited enzyme in the heme biosynthesis), α-E3 and β-E2, are also observed on miR-144 deficiency. Because miR-144 does not target the 3′-UTR of alas2 (Figure S8) and α-E3 and β-E2, and no evidence indicates that Klfd binds to the CACCC boxes of alas2 promoter (Figure 5H), the possibility that the miR-144 might target additional gene(s) other than klfd, or a compensatory mechanism secondary to the up-regulation of α-E1 globin, cannot be excluded. Notably, approximately 8% of miR-144 knockdown embryos show drastically expansion of α-E1 expression outside of the expression domain of miR-144. Because no increase was observed for the mitotic marker pH3 in the ICM, it appears doubtful that the expansion is the result of the hyperproliferation of erythropoietic cells. It is possible that the expression of α-E1 might be stimulated in nonblood cells through a cell nonautonomous mechanism, or very weak expression of miR-144 in nonblood cells, which cannot be detected by in situ hybridization. Furthermore, the possibility of a local lysis of red blood cells resulting from the unbalanced synthesis of α-globin and β-globin, and a consequent release of α-E1 transcript from the lytic red blood cells into the intercellular environment cannot be excluded.

Previous study suggests that unidentified CACCC box-interacting factors distinct from Sp1-4, EKLF (KLF1), and BKLF (KLF3)⁴⁵  may contribute to the developmental expression of embryonic ζ-globin, the mammalian homolog of zebrafish α-E1 globin. In zebrafish, Klf4 (also known as Biklf) has been shown to preferentially interact with the CACCC box in the embryonic β-globin but not the embryonic α-globin gene promoter,⁴⁶  and knockdown of Klf4 by morpholino results in decreased expression of embryonic β-E3 globin.^46,47  Thus, the Klfd identified in this study represents the first transcription factor selectively regulating embryonic α-globin expression. The results suggest that members of Krüppel-like factor family appear to be conserved regulators of both α-globin and β-globin expression during vertebrate evolution. Because miR-144 is also detected at 3 and 5 dpf in the posterior blood island, a site for definitive hematopoiesis,⁴⁸  it can be anticipated that the miR-144-Klfd signaling is also involved in the adult α-globin regulation but cannot be addressed in the present study because of the short lifespan of miR-144 LNA and klfd morpholino oligonucleotides in zebrafish embryos. A zebrafish or murine line with stable miR-144 inactivation or erythroid-specific overexpression should help to further clarify this issue.

The zebrafish klfd gene was originally cloned in the 2001,⁴⁴  and its mammalian ortholog was not yet identified.^44,46  Protein sequence alignment and synteny analyses suggest that, although zebrafish Klfd does not have a known ortholog in mammalian genome, it is most closed to mammalian KLF1 and KLF2 by sequence and syntenic analyses (Figure S12)⁴⁴  and may be related to an ancestor of these genes. In addition, like murine KLF1, zebrafish klfd is expressed within both embryonic erythrocytes and definitive erythrocytes (Figure 5A).⁴⁴  Although it is initially reported that KLF1 does not affect embryonic ζ-globin gene expression,⁷  a recent study shows that KLF1^−/− embryos have approximately 3-fold lower ζ-globin gene expression than wild-type.⁴⁹  The similar effects of zebrafish Klfd and mammalian KLF1 on the regulation of zebrafish embryonic α-E1 globin and mammalian embryonic ζ-globin, respectively, suggest that zebrafish klfd might be the functional ortholog of mammalian KLF1, which warrants further study.

The evolutionary conservation and close genomic position between miR-451 and miR-144 (92 bp in between) also suggest that the 2 miRNAs might share the same set of transcriptional regulatory machinery. Interestingly, miR-451 has been found to be dramatically induced with erythroid differentiation.⁵⁰  Given the potential of microRNA as a therapeutic target,⁵¹  and reactivation of the embryonic α- and β-globin chains has been shown to rescue the lethality of mice with α- and β-thalassemia,⁵²  the identification of miR-144 signaling in the embryonic α-globin regulation in zebrafish embryos might provide novel insights into the pathogenesis of human disorders associated with deregulated hemoglobin synthesis.
