The degree of phenotypic correction of murine β-thalassemia intermedia following lentiviral-mediated transfer of a human γ-globin gene is influenced by chromosomal position effects and vector copy number

The hemoglobin disorders are highly prevalent, recessive genetic diseases in which coinheritance of 2 defective globin alleles results in severe hematologic disease. In patients with sickle cell anemia, the beta chain of hemoglobin S contains a substitution of valine for glutamic acid at position 6.1 This substitution results in a change in surface charge that predisposes deoxygenated HbS to polymerize, causing red cells to assume rigid sickled shapes leading to vaso-occlusion, painful crisis, and organ damage. Defective synthesis of β-globin in patients with severe β-thalassemia due to a variety of mutational mechanisms leads to the accumulation of aggregates of unpaired, insoluble α-chains that cause ineffective erythropoiesis, accelerated red cell destruction, and severe anemia.2 Although palliative therapies improve the quality and duration of life for many individuals, overall treatment for these disorders remains unsatisfactory. A few patients with sickle cell disease and a somewhat larger number with β-thalassemia have been cured with bone marrow (BM) transplantation from HLA-matched siblings, but such treatment is available for only a small minority of patients.3 4 These considerations have made the development of gene therapy for hemoglobin disorders a highly desired goal.

Effective gene therapy for hemoglobin disorders will require (1) relatively efficient gene transfer into repopulating, hematopoietic stem cells; (2) a method for achieving a substantial proportion (20% or greater) of genetically modified, autologous stem cells in patients without myeloablation; and (3) a globin vector configuration that predictably results in durable, high-level expression in differentiating erythroid cells after the gene therapy procedure. During the past few years, significant progress has been made in all 3 areas.

Initial success in genetic modification of repopulating stem cells from mice with murine oncoretroviral vectors was achieved in the early 1980s but extension of that success to large animal models and humans in early stage clinical trials has been highly problematic.5-8 More than a decade of focused effort to improve oncoretroviral gene transfer has resulted in levels of genetically modified cells of up to 5% to 20% in some but not all studied nonhuman primates and up to 5% to 10% in a few patients in recent human gene marking trials.9,10 Lentiviral vectors have inherent biologic advantages over murine oncoretroviral vector particles, and it is hoped that this will translate into improved stem cell gene transfer efficiency.11,12 Extensive experience using primitive human hematopoietic cells from cord blood and more limited experience with cytokine-mobilized cells from adult volunteers suggest that this system may provide improved gene transfer efficiency of repopulating stem cells.13-16

Several approaches have been explored for amplifying genetically modified stem cell populations by in vivo selection in order to obtain therapeutically relevant levels of corrected cells.17 A system based on a variant methylguanine, methyltransferase drug resistance gene in which temozolomide and O⁶-benzylguanine have been used for stem cell selection appears promising.18 The ability to dramatically amplify a minority population of genetically modified cells without limiting myelosuppression has allowed this system to be used to ameliorate the β-thalassemia phenotype with genetically modified and selected, normal stem cells in the absence of myeloablation (D.A.P. and B. Sorrentino, manuscript submitted).

In many respects, the most difficult aspect of developing gene therapy for the hemoglobin disorders has been to identify a vector genome configuration that sustains high-level, erythroid-specific gene expression in developing erythroblasts. In early studies, vectors that contained the β-globin gene driven by its own promoter were shown to transduce murine hematopoietic stem cells but globin gene expression was either absent or very low.19,20 Discovery of the locus control region (LCR) upstream of the human β-like globin gene locus initiated new efforts to make useful globin gene retroviral vectors.21,22 The functional elements from the LCR, detected as hypersensitive (HS) sites in nuclear chromatin, conferred high-level, relatively position-independent expression of globin genes in transgenic mice.23 However, incorporation of HS elements rendered oncoretroviral vectors unstable during passage in vitro or attempted transduction of primitive hematopoietic cells. Systematic elimination of cryptic splice and polyadenylation sites or empiric evaluation of the many potential orientations and order of individual HS sites yielded vectors that transferred a β-globin gene into primitive murine hematopoietic cells.24,25 These vectors failed to express therapeutic levels of globin and in some instances exhibited significant silencing over time.26 27

The goal of our studies was to derive a vector capable of high-level expression of the human γ-globin gene. Patients with either β-thalassemia or sickle cell genotypes display significant disease amelioration in the setting of increased fetal hemoglobin (HbF) levels.2 HbF (α₂γ₂) is a potent, natural antisickling hemoglobin in part because of formation of mixed tetramers, α₂γβ^S, that do not participate in polymer formation.28 Furthermore, enhanced, vector-mediated expression of the γ-globin gene could improve β⁰-thalassemia without the risk of an immune response to the β-globin protein that might occur if it is expressed endogenously for the first time in the developing erythroblasts of these individuals. At the onset of this work, 3 potential approaches to direct vector-mediated γ-globin expression were emerging: (1) the use of alternative erythroid-specific promoters such as the β-spectrin or ankyrin promoters that do not depend on LCR elements29,30; (2) the use of the HS40 element from the α-globin locus, rather than LCR elements, to augment expression of alternative erythroid promoters or the β-globin promoter31,32; or (3) the use of optimized β-globin LCR elements to enhance expression of a β promoter–driven γ-globin gene. Recently, HIV-based lentiviral vectors have been shown to be capable of transferring complex genomes containing extended LCR elements linked to a β-globin gene.33 34 Phenotypic correction has been achieved in both β-thalassemia intermedia and sickle cell anemia murine models. Here we report the development of a novel self-inactivating, γ-globin lentiviral vector containing β-globin LCR elements that can direct therapeutic expression in a murine model of β-thalassemia intermedia. Our γ-globin lentiviral vector will provide an alternative therapeutic approach to the hemoglobin disorders based on increasing levels of HbF.

Plasmids containing the various vector genomes were assembled using standard recombinant DNA technology. The details of all plasmid constructions are available upon request. The specific HS fragments used in the HS432β-^Aγ vector have been previously described.35 A plasmid, AC553, containing the β-spectrin promoter was a gift from Dr D. Bodine (National Institutes of Health [NIH], Bethesda, MD).29 The 255-bp α-globin HS40 fragment was a gift from Dr G. Atweh (Mount Sinai Medical Center, New York, NY).31

VSV-G pseudotyped oncoretroviral vector particles were prepared using a 3-plasmid system (gene transfer vector plasmid, Gag/Pol plasmid, and VSV-G envelope plasmid) by transient transfection of 293T cells as previously described.36 Lentiviral vector particles were prepared as described previously, with some modifications.16 In brief, 293T cells were transfected with a mixture of plasmid DNA consisting of 6 μg pCAGkGP1R (Gag/Pol), 2 μg pCAG4-RTR2 (Rev/Tat), 2 μg pCAG-VSVG (VSV-G envelope), and 10 μg of gene transfer vector plasmid per 10-cm dish using the calcium phosphate precipitation technique. At 24 hours after transfection, the residual calcium-phosphate-DNA precipitate was removed by washing with 10 mL of phosphate-buffered saline (PBS). Serum-free X-VIVO 10 medium without phenol red (BioWhittaker, Walkersville, MD) was then added to each plate of cells. Then, 18 hours later, medium conditioned by vector-producing cells was harvested, cleared by low-speed centrifugation, and filtered through a 0.2-μm pore-sized cellulose acetate filter. In some cases, the conditioned medium was concentrated 100- to 200-fold by ultracentrifugation for 90 minutes at 25 000 rpm at 4°C using a Beckman Sw28 rotor (Beckman Instruments, Palo Alto, CA). Aliquots of vector preparations were quick frozen and kept at −80°C.

Titering of unconcentrated vector preparations was performed using NIH 3T3 cells and enumerating, by fluorescence-activated cell-sorter (FACS) analysis, the percentage of green fluorescent protein–positive (GFP⁺) cells derived by transduction with serial dilutions of conditioned media. For vectors not containing the GFP reporter, titers were determined by comparing the signal intensity of vector genome transfer into NIH 3T3 cells, as assessed by Southern blot analysis, relative to the signal obtained using CL10.1 murine stem cell virus (MSCV) GFP of known GFP titer.16

MEL cells were maintained in Dulbecco modified Eagle medium (DMEM) supplemented with 10% fetal bovine serum (FBS), 50 units/mL penicillin G, and 50 μg/mL streptomycin. In all experiments, transduction was performed by exposing 50 000 cells to a mixture of 1 mL viral supernatant (titer range of 1-5 × 10⁵transducing units [TU]/mL) with 1 mL growth medium in the presence of polybrene at a final concentration of 6 μg/mL. Then, 24 hours later, vector-containing medium was replaced with fresh medium and cells were expanded. The GFP⁺ fraction was subsequently purified by flow cytometry and returned to culture. Erythroid induction was accomplished by adding 3 μMN,N^′-hexamethylenebisacetamine and 10 μM hemin. Cells were harvested after 6 days and evaluated for γ-globin and GFP expression using the FACSCalibur (Becton Dickinson Immunocytochemistry Systems, San Jose, CA) as described in “FACS analysis of red cells for expression of human γ-globin” below. The data were analyzed using the Cell Quest System (Becton Dickinson Immunocytochemistry Systems).

Mice heterozygous for the knocked-out β-major and β-minor globin gene locus and previously characterized as having a severe β-thalassemia phenotype that most closely represents human β-thalassemia intermedia were bred onto the HW80 background (histocompatible with C57Bl/6J mice) as previously described.37 38 BM cells from β-thalassemic or normal HW80 mice (B6.C-Tyr^cH1^b Hbb^d/By, Jackson Laboratory; Bar Harbor, MA) were harvested from the femurs and tibias 48 hours after treatment with 150 mg/kg 5-fluorouracil (Pharmacia; Kalamazoo, MI). Cells were placed into DMEM culture medium containing 20% FBS (Hyclone; Logan, UT) and 20 ng/mL murine interleukin-3 (IL-3), 50 ng/mL murine IL-6, 50 ng/mL murine stem cell factor (all obtained from R&D Systems, Minneapolis, MN). After 48 hours, cells were collected, washed with PBS, and 8 × 10⁶ cells were pelleted and resuspended in 1.5 to 2.0 mL of concentrated vector (2-3 × 10⁸ TU/mL) containing the above-stated concentration of serum/cytokines and polybrene at 6 μg/mL. This mixture was placed into a RetroNectin (TAKARA Shuzo, Otsu, Shiga, Japan)–coated (20 μg/cm²) 6-well plate and incubated at 37°C in a humidified incubator with 5% CO₂. After 6 hours, additional growth medium (supplemented with cytokines and serum as above) was added to the culture to a final volume of 4 mL and the cells were further incubated overnight. The following day, cells were collected, washed with PBS, and resuspended in PBS containing 2% FCS. Lethally irradiated (1050 cGy) C57Bl/6J mice received transplants of 1 to 2 × 10⁶ cells by tail-vein injection.

Blood samples were obtained by retro-orbital puncture of anesthetized mice. Complete blood counts were obtained using an automated blood cell analyzer as previously described.38Peripheral blood (PB) films were prepared by standard methods. Hb cellulose acetate gel electrophoresis and quantitation of Hb bands was performed as previously described.38 An AlphaImager 2200 visualization system (Alpha Innotech, San Leandro, CA) was used to estimate the relative proportions of the Hb bands. “HbF” bands could not be accurately quantified below the 4% level and all animals in this category are referred to as less than 4% HbF mice. Reticulocyte counts were estimated as described by using flow cytometric analysis to determine the proportion of red cells staining with the RNA binding dye thiazole orange (Aldrich, Milwaukee, WI).39

We used 5 to 10 μL of blood to fix, permeabilize, and stain red cells with a biotinylated monoclonal antibody against the human γ-globin chain (Perkin-Elmer Wallac, Norton, OH) as previously described.38 In brief, 5 μL of the monoclonal antibody was incubated for 30 minutes on ice with permeabilized cells. After washing, cells were then incubated in a 1:200 streptavidin–phycoerythrin (PE) secondary reagent (Southern Biotechnology, Birmingham, AL) in order to identify cells stained with the primary antibody. Red cells were gated on by light scatter characteristics and analyzed for PE fluorescence using a FACSCalibur.

Preparation of RNA from PB samples was done using Rnazol B (Tel-Test; Friendswood, TX) according to the manufacturer's specifications. Determination of human γ-globin and murine α-globin mRNA levels as assessed by the relative amounts of their respective exon 2 protected fragments was performed using an RPAII RNase protection assay kit as described previously according to the manufacturer's specifications.38 In the current studies, a riboprobe containing both antisense human ^Aγ-globin and murine α-globin sequences was used (gift from Dr D. Bodine).40 This riboprobe is characterized by having equal specific activities of the human ^Aγ-globin and murine α-globin sequences, thereby allowing a direct comparison of^Aγ-globin and α-globin mRNA levels. The relative level of lentiviral vector–encoded human ^Aγ-globin mRNA compared with endogenous murine α-globin mRNA was determined by dividing the signal of the human ^Aγ-globin protected fragment by the value of the signal of the murine α-globin protected fragment. To normalize expression per vector copy relative to an endogenous α-globin gene, this value was further divided by the estimated vector copy number and multiplied by a factor of 4 to correct for the number of α-globin genes. A Molecular Dynamics (Sunnyvale, CA) Storm Phosphoimager and its accompanying software were used to visualize and quantitate the protected fragments.

MEL cell, PB leukocyte (PBL), BM, and spleen colony DNA samples were prepared, digested with the restriction enzymes, and subjected to Southern blot analysis as previously described.38 XmaI was used to liberate full-length oncoretroviral proviral fragments. The enzyme BglII, which cuts at the ends of the provirus and liberates a near unit length provirus, and enzymeKpnI, which cuts once within the provirus, were used to verify the presence of unrearranged lentiviral vector and determine the number of vector integrations, respectively. A radiolabeled GFP or viral rev-responsive element (RRE) DNA probe was hybridized with the blot and the resulting hybridizing bands were visualized and quantitated using the Molecular Dynamics Storm Phosphoimager and its accompanying software.

Semiquantitative PCR was performed on the PBL genomic DNA of β-thalassemic mice that received transplants of BM transduced with the γ-globin vectors. The standard samples were prepared by making dilutions of DNA from a MEL cell line containing a single, integrated copy of the d432β-^Αγ MSCV GFP provirus into mouse spleen DNA. This MEL cell clone also contains only one copy of the mouse β-major gene due to monosomy 7 (data not shown). Standards included a range of copy number from 0.05 to 1.0. The signal from mouse β-major was used as a loading control. Duplex PCR (25 cycles) was performed using an MJ Research PTC-200 peltier thermocycler (Watertown, MA). Primers were as follows: 5′ mouse β-major primer 5′-cctatcctctgcctctgcta-3′ and 3′ primer 5′-cttctggaaggcagcctgtg-3′; 5′ γ-globin primer 5′-agcaacctcaaacagacacc-3′ and 3′ primer 5′-ggccactccagtcaccatctt-3′. DNA template (250 ng) was used and the reaction mixture contained ³²P-labeled deoxycytidine 5′-triphosphate (dCTP) (ICN, Irvine, CA) to label the amplified products. A Molecular Dynamics Storm Phosphorimager was used to quantitate the signals of the amplified products and the vector copy number was calculated by comparing the γ/β ratio of the unknown sample to the γ/β ratio of the standards of known copy number using standard linear regression analysis.

BM cells (0.5-1.0 × 10⁵) from mice receiving primary transplantations were transplanted into normal C57Bl/6J mice pretreated with 900 cGy irradiation. At 13 days following transplantation, mice were killed and well-separated, discrete splenic colonies were carefully dissected and a single cell suspension was prepared. A portion of the cells was used to prepare genomic DNA for determination of vector copy number, as described in “DNA analysis” above, while the rest of the sample was subjected to fixation, permeabilization, and staining with the TER119-PE antibody, which recognizes erythroid cells, and a fluorescein isothiocyanate (FITC)–labeled antibody against human γ-globin. The cells were analyzed using a FACSCalibur.

The probability of a statistically significant difference between the mean values of 2 data sets was determined by a 2-tailed Student t test using InStat 2.03 software from Apple Computers (Cupertino, CA).

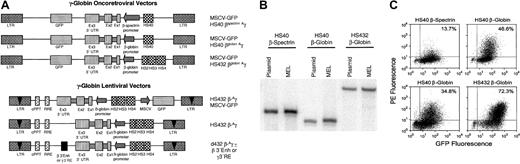

Initially, we sought to develop an oncoretroviral vector utilizing an erythroid promoter coupled with the HS40 enhancer from the α-globin locus.41 The β-spectrin promoter, which directs high-level expression of the β-spectrin cytoskeletal protein in developing erythroblasts,29,42 and a 130-bp β-globin promoter were chosen for testing. γ-Globin expression cassettes utilizing these promoters coupled with the upstream HS40 enhancer were placed in an MSCV-based oncoretroviral vector. These constructs were also designed to express the GFP marker under the transcriptional control of the viral long terminal repeat (LTR) (Figure1A; MSCV-GFP HS40 β^spectrinAγ and MSCV-GFP HS40β^{globin A}γ).43 44 Vector particles were derived for both constructs (4-5 × 10⁵ IU/mL) and used to transduce MEL cells. A pool of GFP⁺ cells for each vector was then isolated for study. Southern blot analysis demonstrated unrearranged transfer of both vector genomes (Figure 1B). γ-Globin expression in each pool was then assessed by FACS analysis following induction to terminal erythroid differentiation. Despite having a 2-fold lower average vector copy number (Figure 1B), the cell pool transduced with the MSCV-GFP HS40 β^{globin A}γ vector consistently demonstrated a much higher proportion of γ-globin–expressing cells than the MSCV-GFP HS40 β^spectrinAγ–transduced cell pool (Figure1C, top panel). However, the majority of transduced cells failed to express the globin cassette, suggesting that expression of both globin vectors suffered, in varying degrees, from significant position effects. This interpretation was verified by the observation that individual GFP⁺ clones from the MSCV-GFP HS40β^globinAγ–transduced cell population also variably expressed γ-globin (data not shown). To ascertain whether a potentially stronger enhancer might alleviate the position effects we observed with these vectors, the HS40 element was replaced with DNA fragments from the β-globin LCR consisting of HS sites 4 (756 bp), 3 (898 bp), and 2 (374 bp) (MSCV-GFP HS432 β^{globin A}γ; Figure 1A). However, as we and others have observed in the past, the LCR-containing vector was produced at extremely low titer (< 10² TU/mL), precluding evaluation of this design.

Over the course of these studies, we developed an HIV-based lentiviral vector system that includes a self-inactivating gene transfer vector backbone and distribution of the packaging functions (Gag/Pol, Rev/Tat, and envelope) among 3 separate plasmids.16 The HS432β^globinAγ assembly contained in the above-described oncoretroviral vector was placed into the lentiviral backbone that also contained an MSCV-driven GFP reporter (HS432β-^Aγ MSCV-GFP; Figure 1A). In contrast to the poor titer observed with the corresponding oncoretroviral vector MSCV-GFP HS432β^globinAγ, VSV-G–pseudotyped preparations of the γ-globin lentiviral vector had titers of about 0.5-1.0 × 10⁵ TU/mL. The vector genome was transferred unrearranged into MEL cells (Figure 1B). We consistently observed a substantially greater fraction of GFP⁺ MEL cells expressing the γ-globin lentiviral vector compared with cells with a similar vector copy number transduced with the HS40 β-promoter γ-globin oncoretroviral vector (Figure 1C, lower panel). Correspondingly, γ-globin mRNA levels were higher in the cells transduced with the lentiviral vector (9% of endogenous murine α-globin vs 5%).

To test the γ-globin lentiviral vector in vivo, a vector lacking the MSCV-GFP cassette was generated (HS432β-^Aγ; Figure1A). The titer of the resulting, single gene γ-globin vector was 5- to 10-fold higher (0.5 to 1.0 × 10⁶ TU/mL) than the vector containing the GFP reporter, as assessed by Southern blot analysis of genome transfer to NIH 3T3 cells (data not shown). However, Northern blot analysis of RNA from 293T cells producing the single gene vector indicated the presence of a significant amount of a truncated viral genomic transcript corresponding to a potential premature polyadenylation occurring within the HS4 element (data not shown). A 3′ rapid analysis of cDNA ends (RACE) analysis confirmed premature polyadenylation occurring within the HS4 element (H.H., unpublished observations, March 2001). This site was deleted from the HS4 element (reducing its size from 756 bp to 445 bp) in the vector plasmid (yielding d432β-^Aγ) and resulted in a further improvement in titer to approximately 3 to 5 × 10⁶TU/mL. Addition of either the 3′ β-enhancer (β 3′ Enh) element45 or a 3′ regulatory element of the^Aγ-globin gene (γ 3′ RE),46 both located downstream from the respective endogenous genes, was made separately to this vector to potentially improve γ-globin expression (Figure 1A). All 3 vectors were of similar titer and were transmitted without rearrangement to NIH 3T3 target cells (Figure2 and data not shown).

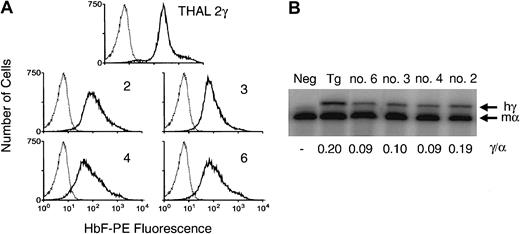

Normal murine BM cells were transduced with the d432β-^Aγ 3′RE vector and transplanted into lethally irradiated normal C57Bl/6J mice. Flow cytometric analysis 17 weeks after transplantation demonstrated pancellular expression of γ-globin in PB red cells (Figure 3A). The pattern and level of γ-globin expression was stable out to 32 weeks after transplantation (data not shown). Human γ-globin mRNA expression was documented by a ribonuclease protection assay (Figure 3B) at levels ranging from 9% to 19% (mean, 11.8% ± 2.4%) of the level of total mouse α-globin mRNA. This translated to a level of 12% to 25% (mean, 15.7% ± 3.2%) per vector copy per copy of α-globin. Southern blot analysis of DNA obtained from PB and spleen cells from 2 representative animals demonstrated the presence of a hybridizing band of the correct molecular size of the unrearranged provirus (Figure 2). Compared with the band intensity of a cell line containing a single copy of an integrated lentivirus, the average vector copy number, when adjusted for the amount of DNA loaded, in the PB and spleen of these mice was approximately 3. These data established the functionality of this vector in vivo and led us to evaluate its potential for correcting the phenotype of animals with β-thalassemia intermedia.

These experiments were initially designed to compare the expression and therapeutic efficacy of the d432β-^Aγ vector and 2 modified versions containing either the regulatory element downstream from the ^Aγ-globin gene (γ 3′ RE) or the enhancer from downstream of the human β-globin gene (β 3′ Enh; Figure 1A). Because β-thalassemic mice are somewhat limited in availability and we wished to obtain a significant number of recipient mice for study of the different vectors, we transplanted β-thalassemic BM cells transduced with the various vectors into lethally irradiated, normal C57Bl/6J mice. We have previously shown that normal recipients of β-thalassemic BM acquire the β-thalassemic phenotype following hematologic reconstitution.38 In addition to these 3 vector cohorts, 2 control cohorts of mice received transplants of either mock-transduced β-thalassemic BM cells or normal BM cells transduced with a lentiviral vector encoding only GFP.

At 15 weeks following transplantation, PB was obtained from the mice that underwent transplantation, and the hematologic parameters and red cell γ-globin expression were evaluated. Complete hematologic reconstitution with the donor graft occurred in all recipient mice as verified by the absence on Hb electrophoresis analysis of the endogenous “single” Hb phenotype (data not shown). In an initial analysis, the average level of γ-globin production, as reflected by the mean fluorescence intensity (MFI) of γ-globin–positive red cells, did not significantly vary among the 3 groups of animals receiving cells transduced with 1 of the 3 γ-globin vectors (data not shown). Accordingly, subsequent data analysis encompassed all of the mice that received transplants of γ-globin–transduced β-thalassemic cells in order to better evaluate the impact of the level of γ-globin gene expression on the degree of correction of the thalassemic phenotype. All 21 mice that received γ-globin vector–transduced cells displayed γ-globin–positive red cells (range, 7%-90%), as judged by FACS analysis. The majority of the animals displayed expression in more than 40% of their red cells with a concomitant improvement in hematologic parameters (Figure4A and Table1). Significant amounts of chimeric mα₂hγ₂ hemoglobin molecules (termed HbF) were observed in the red cell lysates from these animals that underwent transplantation as assessed by cellulose acetate electrophoresis (Figure 4B). Densitometric scanning of the cellulose acetate gels allowed estimation of the percent HbF relative to that of the endogenous mouse hemoglobin molecules. The PB content of HbF constituted more than 10% of the total hemoglobin in 14 of 21 animals.

The degree of correction of the β-thalassemic phenotype correlated closely with the total level of HbF (Figure5). The hematologic characteristics of all of the animals, after grouping according to the observed level of HbF, are shown in Table 1. As we have previously observed, animals that received transplants of mock-transduced β-thalassemic BM cells accurately reproduced the β-thalassemic phenotype (Figures 5B,6, and Table 1). Animals with HbF levels ranging from 10% to 15% (mean, 12.6%) exhibited a 1 g/dL (10 g/L) improvement in Hb concentration, whereas animals having total HbF levels of greater than 15% (mean, 20.8%) displayed nearly complete hematologic correction with a 2.5 g/dL (25 g/L) increase in Hb level. Animals that received transplants of γ-globin vector–transduced BM cells and having less than 4% HbF had minimal improvement in Hb concentration compared with control animals that received transplants of mock-transduced β-thalassemic BM cells. The degree of correction of red cell indices, reticulocyte count, and red cell morphologic abnormalities also correlated with the level of HbF (Table 1 and Figure 6).

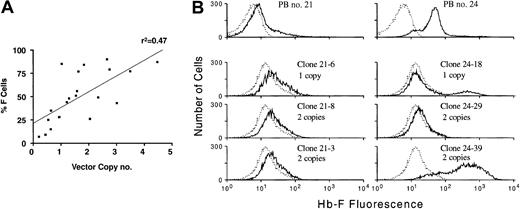

The average vector copy number in the PBL of the individual mice was estimated by semiquantitative DNA PCR and used to obtain the mean vector copy value for each of the designated groups of animals (Table1). For the groups, in general, a higher vector copy number was associated with a higher level of F cells, HbF, and degree of phenotypic improvement. However, there was not a high degree of correlation (r² = 0.47) between the average vector copy number and the proportion of F cells for individual mice (Figures 7A, 4A), suggesting copy number–related rather than copy number–dependent vector expression. In addition, although there was no statistically significant difference in the mean average copy numbers of the 10% to 15% F versus the more than 15% F groups, there was a difference in the number of F cells and the HbF level. These data suggested that vector integration sites significantly influenced the degree of γ-globin vector expression.

In order to confirm that position effects were contributing to poor vector expression in some instances, 2 animals with different levels of γ-globin expression in PB red cells (Figure 7B, top panels), but with a similar average PBL vector copy number (approximately 1.5) at the time of death, were killed and their BM cells were transplanted into secondary normal recipients. Southern blot analysis confirmed the presence of unrearranged provirus in the BM cells of both donors (data not shown). At 13 days after transplantation, clonal splenic colonies derived from primitive CFU-S cells were obtained and TER119-positive erythroblasts were assessed for γ-globin expression by FACS analysis. In addition, the presence and number of vector integrations for each clone was determined by Southern blot analysis (data not shown). Identified from animal no. 21 were 6 vector DNA–positive clones, consisting of 4 unique clones, having either 1 or 2 vector copies. All clones displayed poor vector expression, similar to that observed in the red cells of the donor (Figure 7B, left panel; and data not shown). However, for animal no. 24, one unique 2–vector copy clone (24-39) was identified that demonstrated high-level staining for γ-globin (Figure 7B, right panel). This particular clone was predominant in animal no. 24 and constituted the majority of vector DNA–positive CFU-S clones (15/18 colonies). This is consistent with the apparent substantial contribution of this clone to the PB red cells of donor animal no. 24. These data are also consistent with the amount of chimeric Hb molecules observed in the PB of the donor animals no. 21 (undetectable) and no. 24 (12% F). These results verify that progenitor clones with 1 or 2 unique vector integrations display a range of different expression patterns in their erythroid progeny (compare clones 21-6 and 24-18; clones 21-3 and 24-39), indicating chromosomal position effects on vector expression.

Our results show that lentiviral-mediated gene transfer of a human γ-globin expression cassette containing HS elements from the β-globin LCR can result in both substantial expression of γ-globin and improvement of murine β-thalassemia intermedia. The degree of phenotypic correction relative to the total level of chimeric mα₂hγ₂ molecules (HbF) in the current study compares favorably to that which we previously observed in β-thalassemic animals expressing human γ-globin transgenes.38 Our results are also consistent with those reported by May et al using a β-globin lentiviral vector that yielded a total level of mα₂hβ₂ molecules of 21% and a 3.0 g/dL (30 g/L) increase in Hb concentration 15 weeks following transplantation of transduced cells from a similar strain of β-thalassemic mice.33 Although our vector achieved levels of normalized globin mRNA per vector copy (about 16%) and chimeric Hb molecules (about 21% of total Hb) comparable to that reported by May et al,33 a higher vector copy than reported in their study (2.4 vs 0.8) was needed to achieve these results. This likely reflects an overall stronger transcriptional activity from the larger LCR configuration (total of 3.2 kb) and β-globin promoter (approximately 600 bp) used in their vector compared with the smaller corresponding elements contained in our vector. However, that study examined a relatively small number of mice, and vector performance may be more variable when larger cohorts of animals are studied. Because of several differences in the mouse models used and in the methods used to measure and report the data, it is less clear how our globin vector compares with the 2.7-kb LCR used in the vector reported by Pawliuk et al.34 A direct comparison of all of these vectors might be useful to determine the minimal elements needed to achieve consistent, therapeutic expression.

Both the level and pattern of expression of ectopic globin transgenes can be affected by both the site of integration (stable position effect)47 and the probability of expression at that particular site (variegating position effect).48 In transduced MEL cells, we observed highly variable expression of the oncoretroviral γ-globin vectors that contained the HS40 element. Our data suggested the presence of both variegating and stable position effects, in agreement with the variable expression recently reported by others using a similar HS40-based γ-globin oncoretroviral vector.49 In contrast, replacement of the HS40 element with the HS432 configuration in the context of a lentiviral system, which facilitated efficient vector production, resulted in a much higher probability of γ-globin expression. This likely reflects differences in the relative “enhancer” strengths of these 2 sets of regulatory elements, because strong enhancers may ameliorate position effects to some degree.50,51 Consistent with this idea are transgenic mouse studies suggesting that the HS40 element, unlike elements from the β-globin LCR,23 does not function to confer copy-number dependence of ectopic transgene expression.52 Thus, HS40-based vectors appear to lack sufficient transcriptional strength to direct therapeutic globin expression levels.

Despite the overall superior performance of the LCR-based γ-globin lentiviral vector in the MEL cell assay, susceptibility to position effects in vivo was still observed (Figures 4A, 7). We believe this is due to the absence in our vector of additional sequences present in the intact LCR, such as those flanking the HS sites, which provide synergistic enhancement of expression.53 Additionally, even β-globin transgenes up to 150 kb in size and containing the entire β-globin locus are susceptible to variegating position effects.49 Given that the genomic DNA of erythroid cells undergoes widespread heterochromatinization during terminal differentiation, it is not unexpected that a globin gene vector integrated at an ectopic site and lacking an intact LCR shows significant position effects. Indeed, Pawliuk et al reported a significant position effect on expression of their antisickling β-globin lentiviral vector.34 Similar to our findings, multiple vector copies were required to achieve consistent therapeutic expression in that study. May et al did not report an analysis of the impact of position effects on their vector.33 It will be important to evaluate whether inclusion of genetic insulator elements, such as the chicken HS4 element, in globin lentiviral vectors will diminish detrimental position effects similar to that observed when this element has been used in the setting of oncoretroviral vectors.49 54

The use of a γ-globin vector to increase levels of HbF, rather than vectors encoding β-globin or an artificial, antisickling β-globin, offers an alternative therapeutic approach for gene therapy of β-thalassemia and sickle cell anemia. Although it remains to be determined whether γ-globin oncoretroviral vectors lacking LCR elements will be able to provide therapeutic expression levels in appropriate animal models,30,49 this approach has merit given the extensive track record of this vector system in human clinical trials. Alternatively, several laboratories have now shown that lentiviral vectors, with their unique capacity to efficiently transmit complex, LCR element–containing globin expression cassettes, can achieve therapeutic levels of globin expression in preclinical models. It is likely that advances in the design of vector system components to improve the safety profile of lentiviral vectors along with the development of appropriate assays to verify the absence of replication competent lentivirus will eventually result in the use of this promising vector system in the clinic. In regard to the former, our γ-globin vector, unlike those described thus far,33 34 is novel in that it is of self-inactivating design, greatly diminishing the transcriptional potential of the 5′ LTR after proviral integration. This safety feature diminishes the capacity for potential vector mobilization in the host that underwent transplantation. With continued optimization of vector safety and modifications to yield consistent expression of globin cassettes, therapeutic success in humans seems a likely possibility in the future.

We thank the flow cytometry laboratory of Dr Richard Ashmun for expertise in FACS analysis.
