An autoantibody epitope comprising residues R660, Y661, and Y665 in the ADAMTS13 spacer domain identifies a binding site for the A2 domain of VWF

Von Willebrand factor (VWF) is a key hemostatic glycoprotein involved in the adhesion of platelets to sites of vascular perturbation.¹  During its biosynthesis in endothelial cells, VWF undergoes a number of posttranslational modifications that include the formation of intermolecular disulfide bonds between the carboxyl-terminal cysteine knot domains and the amino-terminal D3 domains.^2,3  Current findings suggest that the resulting VWF polymers condense into tubular structures in the trans Golgi network and are subsequently packaged into Weibel-Palade bodies, rod-shaped subcellular organelles.^4,5  Upon release of Weibel-Palade body contents, the VWF tubules rapidly unfold, and the fluid shear stress in the flowing blood induces the formation of ultra-large VWF (UL-VWF) strings on the surface of endothelial cells.^6,7  Andre et al⁶  have shown that the appearance of platelet-decorated strings is a transient process in vivo. This transient nature is attributed to the rapid proteolysis of UL-VWF multimers by the metalloprotease ADAMTS13.^8,9  In the absence of ADAMTS13, the rate at which platelet strings disappear from the endothelium is markedly reduced.

Thrombotic thrombocytopenic purpura (TTP) is a thrombotic microangiopathy characterized by hemolytic anemia, severe thrombocytopenia, and the presence of schistocytes in blood smears and is accompanied by a deficiency in ADAMTS13. ADAMTS13 is a large multidomain protein that consists of a propeptide, a catalytic metalloprotease domain, a disintegrin-like domain, a thrombospondin type I repeat (TSP), a cysteine-rich domain, a spacer domain, 7 additional TSP repeats, and 2 carboxyl-terminal CUB domains.^10-12  In the majority of patients with TTP, inhibitory antibodies targeting ADAMTS13 have been found.^13-16  In addition to inhibition of ADAMTS13 activity, anti-ADAMTS13 antibodies may also accelerate ADAMTS13 clearance.¹⁷  Epitope mapping studies have shown that the cysteine-rich/spacer domains contain the major binding site for human anti-ADAMTS13 antibodies.^18-21  Additional epitopes for human anti-ADAMTS13 antibodies located outside the spacer domain have also been identified.^18,22,23  In a previous study, we have shown that amino acid residues Y658-Y665 within the spacer domain comprise part of a core binding site for anti-ADAMTS13 antibodies.²⁴

The ADAMTS13 metalloprotease domain cleaves the VWF A2 domain at the Y1605-M1606 scissile bond. The metalloprotease domain by itself cannot efficiently proteolyse VWF; the proximal disintegrin-like, TSP1, cysteine-rich, and spacer (DTCS) domains are all required for ADAMTS13 activity under static conditions.^19,25-27  Comparison of the activities of carboxyl-terminally truncated ADAMTS13 variants toward short substrates of VWF and inhibition studies with the use of VWF A2-derived peptides led to the identification of VWF A2 domain sequence E1660-R1668 as a high-affinity exosite that interacts with the spacer domain.^28,29  Additional orientation or repositioning of the protease over the cleavage site occurs by interaction of the disintegrin-like domain of ADAMTS13 with another exosite located closer to the cleavage site, involving residue D1614 in the VWF A2 domain.³⁰  Apart from the proximal metalloprotease and DTCS domains, the TSP2-8 and CUB1-2 domains have recently been implicated in the binding of the D4-CK domains of globular VWF in the absence of flow.^31,32  Together, these findings suggest a model in which the TSP2-8/CUB1-2 domains mediate initial binding of ADAMTS13 to VWF, and once ADAMTS13 is docked on VWF, multiple interactions between the MDTCS domains and VWF A2 domain residues ensure correct positioning of the active site for cleavage of the Y1605-M1606 scissile bond. For these multiple interactions to occur, VWF must change from its globular to an unfolded conformation, which enables ADAMTS13 to access the cleavage site.

In this study, we specifically explored spacer domain residues within region Y658-Y665 that are targeted by antibodies in acquired TTP. Because anti-ADAMTS13 antibodies often directly inhibit ADAMTS13 proteolysis of VWF, we also sought to characterize the role of these residues in ADAMTS13 function. We provide evidence for an interactive surface comprising R660, Y661, and Y665 in the spacer domain that is not only an important recognition site for anti-ADAMTS13 antibodies in TTP but also plays a role in binding to and cleavage of VWF.

Plasma samples from a panel of patients (designated I-VI) presenting with acute, acquired TTP were included in this study. Patients I and II have been described previously.^22,23  Informed consent for these studies was obtained from the patients, and the protocol was approved by the Medical Ethical Committee of the University Medical Center Utrecht in accordance with the Declaration of Helsinki. ADAMTS13 activity levels in all plasma samples were less than 5%, as measured by use of the fluorogenic FRETS-VWF73 substrate assay kit (Peptides International). Patient samples were selected for high inhibitor titers to obtain a clear signal in immunoprecipitation analysis. Inhibitor titers were measured with the Technozym ADAMTS13 inhibitor enzyme-linked immunosorbent assay (ELISA; Technoclone: I = 54 U/mL, II = 128 U/mL, III = 220 U/mL, IV = 156 U/mL, V = 101 U/mL, and VI = 215 U/mL).

Construction and expression of wild-type ADAMTS13 propeptide/metalloprotease/disintegrin-like/TSP1/cysteine-rich/spacer fragment (PMDTCS13, but termed MDTCS13 here), a hybrid fragment containing the spacer domain of ADAMTS1 (MDTCS1), a TSP2-8 fragment, and a CUB1-2 domain fragment in High Five insect cells has been described previously.²⁰  Single alanine mutants within region Y658-Y665 (Y658A, R659A, R660A, Y661A, G662A, E663A, E664A, Y665A), and mutant combinations R660A/Y661A (RY1), R660A/Y665A (RY2), Y661A/Y665A (YY), and R660A/Y661A/Y665A (RYY) were introduced into the wild-type pMIB-V5/his6 MDTCS13 vector by use of Quik-Change polymerase chain reaction (PCR; Stratagene). Sequences of the sense and antisense oligonucleotide primers, containing the nucleotides to be changed with 15-bp flanking regions, are available upon request. All vectors were verified by sequencing. Epitope-mapping of anti-ADAMTS13 antibodies derived from patients with TTP was performed by immunoprecipitation, essentially as described in Luken et al.²⁰  For each immunoprecipitation reaction 35 μL of patient plasma was used. Human monoclonal anti-spacer domain antibodies I-9 and II-1 have previously been described and were derived from immunoglobulin V gene phage display libraries created from B cells from patients with TTP.^22,23

For expression of full-length ADAMTS13 variants in HEK293T cells, the same mutations described previously were introduced into vectors pcDNA3.1-myc-his ADAMTS13³³  (single-point mutants) and pcDNA3.1-V5-his ADAMTS13³⁴  (combination mutations). Transient transfection of HEK293T cells was performed with linear polyethylenimine (Polysciences). Proteins were expressed in Optimem supplemented with Glutamax (Invitrogen). Medium was harvested after 4 days, concentrated with 100-kDa molecular weight cutoff Amicon spin columns (Millipore), and dialyzed into 20mM Tris-HCl, pH 7.8; 150mM NaCl; and 10mM benzamidine. Expression and secretion of ADAMTS13 was confirmed by Western blotting with an anti-metalloprotease antibody (Abcam), an anti-V5 antibody (Invitrogen), or an anti-myc antibody (Santa Cruz Biotechnology). For binding studies, the ADAMTS13 variants were purified as described previously by the use of Ni²⁺ HiTrap columns coupled to an ÄKTA FPLC (GE Healthcare, Bio-Sciences AB).^30,33  ADAMTS13 concentration was determined with a previously developed ELISA with purified rabbit polyclonal antibodies against ADAMTS13.^33,35  Maxisorp plates (NUNC) were coated with polyclonal antibodies depleted from TSP2-4 antibodies by affinity chromatography, whereas bound ADAMTS13 was detected with the polyclonal TSP2-4 antibodies labeled with biotin.³⁵

The short VWF A2 domain fragment VWF115, spanning residues 1554 to 1668, was expressed in Rosetta Escherichia coli and resolubilized and purified as described.³⁶  A VWF fragment comprising residues 1554 to 1659 that lacks the spacer binding site (VWF106) was amplified by PCR with site-specific primers and cloned into pET100/D-TOPO (Invitrogen), which fuses a his-tag and Xpress-epitope to the N-terminus of the protein, similar to VWF115. VWF106 was purified with the same method as used for VWF115. Purified protein fragments were dialyzed into 20mM Tris-HCl, pH 7.8 and 500mM NaCl and then quantified by BCA assay (Pierce Biotechnology).

For determination of VWF115/VWF106 proteolysis by qualitative sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) analysis, 2nM of each ADAMTS13 variant was preincubated in 20mM Tris-HCl, pH 7.8; 150mM NaCl; and 5mM CaCl₂ at 37°C for 45 minutes before addition of 6μM to 10μM substrate (as indicated for Figures 3–4). At different time points (0-3 hours) samples were taken, and 10mM EDTA (ethylenediaminetetraacetic acid) was added to stop the reaction. Samples were analyzed on 4% to 12% NuPAGE gels (Invitrogen) followed by staining with Imperial Protein Stain (Pierce). For quantitative analysis of VWF115 proteolysis, similar experiments were performed with 2nM ADAMTS13 variant and 2.5μM VWF115. Samples were analyzed by high-performance liquid chromatography (HPLC) analysis and catalytic efficiencies (k_cat/K_m) were calculated as described.³⁶

Recombinant VWF was stably expressed by HEK293 cells and purified by the use of monoclonal antibody CLB-RAg20 as described previously.³⁷  VWF multimers were eluted with 50mM HEPES, pH 7.4; 0.1M NaCl; and 1M KSCN. Fractions containing VWF were dialyzed against 50mM HEPES, pH 7.4; 150mM NaCl; and 50% (vol/vol) glycerol and stored at −20°C.

The binding of purified wild-type ADAMTS13 and ADAMTS13-RYY for VWF was determined by surface plasmon resonance (SPR) analysis on a BiaCORE2000 biosensor system (Biacore). We and others have previously established the validity of using SPR to study protein interactions between ADAMTS13 and VWF.^32,36,38,39  Purified recombinant ADAMTS13 was dialyzed against 10mM HEPES, pH 7.4; 150mM NaCl; 0.0034mM EDTA; and 0.005% Tween20 and passed over a CM5 sensor chip at different concentrations (12.5-300nM) for 4 minutes at a flow of 20 μL/minute at 25°C. Dissociation of ADAMTS13 was then measured for 4 minutes. The chip was coated with either purified VWF115 substrate (∼ 163 fmol/mm²), purified recombinant VWF106 substrate (∼ 177 fmol/mm²), or purified recombinant full-length VWF (∼ 64 fmol/mm²), by use of the amine-coupling kit (Biacore). To enable comparison of results obtained with different sensor chips, the binding response was expressed as moles of ADAMTS13 bound per mole of VWF (fragment) immobilized on the chip, on the basis of the assumption that 1000 RU corresponds to 1 ng of bound protein per square millimeter. Regeneration of the sensorchip was performed with a buffer containing 50% ethylene glycol, 25mM lysine, and 0.5M NaCl, pH 7.4. Binding was corrected for background binding to a noncoated control channel.

Recombinant VWF was incubated with 1.5M guanidine-HCl at 37°C for 30 minutes. The denatured VWF was then diluted 10-fold to a final concentration of 40nM into 20mM Tris-HCl, pH 7.8; 150mM NaCl; 0.5% bovine serum albumin, and 5mM CaCl₂ in which 3.5nM ADAMTS13 and its variants had been preincubated for 60 minutes. Monoclonal anti-spacer domain antibody II-1 or a control antibody was included at a concentration of 1.5μM during preincubation of ADAMTS13, as indicated in the figure legend. Samples were taken at sequential time points and quenched by adding loading buffer (10mM Tris; 2% SDS; 8M urea; and 1mM EDTA, pH 8.0). These were analyzed by 2% agarose gel electrophoresis and Western blotting.^40,41

Endothelial cells were obtained from human umbilical veins and cultured as described previously.⁴²  Secretion and formation of UL-VWF strings on the surface of endothelial cells was performed with a Wide Field Axiovert 200 microscope (Carl Zeiss Vision) and the Axiovision 4.7 software. Human umbilical vein endothelial cells were grown in disposable flow chambers (Flow-Through-Kit-μ-slide I-0.4 luer, 80 076; ibidi) in EGM2 medium (Invitrogen) until 100% confluency was reached. The assembled chamber was connected to a syringe pump to perfuse medium (Optimem; Invitrogen) containing 100μM histamine for 10 minutes, followed by the addition of freshly isolated washed platelets from 3 different donors (180 × 10⁹/L) for 5 minutes in medium, and after that, medium containing ADAMTS13 or ADAMTS13-RYY was perfused for 5 minutes. ADAMTS13 had been preincubated for 30 minutes at 37°C in the presence or absence of monoclonal antibody II-1 (0.33μM). Assays were performed at a flow rate of 2.5 dyn/cm².⁷  Images were collected at 10-second intervals for 5 minutes after the onset of perfusion with ADAMTS13 variants. UL-VWF released from endothelial cells formed strings with bound platelets, which were quantified by counting individual strings in 3 separate image fields.

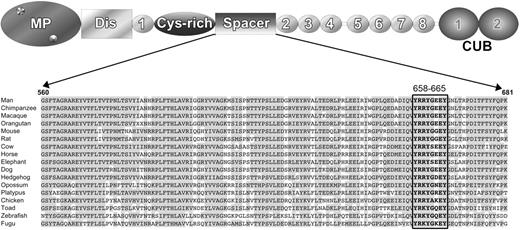

We have previously reported that exchange of region V657-G666 in ADAMTS13 for the corresponding region of ADAMTS1 abrogated binding of autoantibodies derived from 6 different TTP patients to ADAMTS13. Because residues V657 and G666 at either end of this region are conserved in the ADAMTS1 spacer domain, the observed effect is likely caused by the intervening residues Y658-Y665. Although the ADAMTS13 spacer domain is poorly conserved among ADAMTS family members, residues Y658-Y665 are highly conserved among species (Figure 1), with the exception of E663. To identify residues critical for antibody binding, we performed alanine-scanning mutagenesis of region Y658-Y665. We evaluated the binding of 2 previously isolated inhibitory human monoclonal antibodies, I-9 and II-1, both directed toward the spacer domain of ADAMTS13.^22,23  Inspection of the reactivity of antibody I-9 and II-1 with MDCTS variants containing single alanine substitutions within region Y658-Y665 revealed that replacement of either R660, Y661, or Y665 completely abrogates the binding of these monoclonal antibodies to MDCTS (Figure 2A).

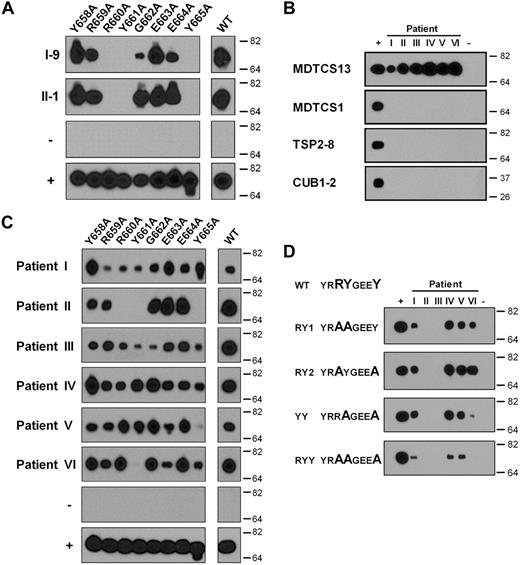

We subsequently explored the involvement of residues Y657-Y665 in the binding of polyclonal antibodies derived from plasma of 6 patients with acquired TTP (labeled I-VI in Figure 2B-D). First, to confirm that antibodies against the spacer domain were present in these patients, we compared the reactivity of these polyclonal antibodies with the wild-type MDTCS fragment and a recombinant protein in which the ADAMTS13 spacer domain was replaced by the spacer domain of ADAMTS1 (MDTCS1). Using this approach, we found that antibodies in the plasma of these patients bound to the MDTCS fragment but exhibited no reactivity with the MDTCS1 variant (Figure 2B). In addition, these polyclonal antibodies failed to react with isolated carboxyl-terminal TSP2-8 and CUB1-2 domain fragments (Figure 2B), thus excluding a major role for other antibody binding sites on ADAMTS13 that could confound the study of anti-spacer domain antibodies. Together, these analyses indicated that binding of polyclonal antibodies from all 6 TTP patients to ADAMTS13 is dependent on the presence of the spacer domain.

We then determined the reactivity of polyclonal antibodies present in plasma of patients with acquired TTP with the single alanine variants within region Y658-Y665 (Figure 2C). The antibodies present in 1 of the 6 patient samples (patient II) displayed an identical pattern of binding to the ADAMTS13 variants as the isolated human monoclonal antibodies, in that changing either residue R660, Y661, or Y665 abrogated antibody binding (compare Figure 2A and 2C, patient II). Replacement of Y661 also ablated the binding of antibodies present in plasma sample VI to MDTCS, whereas changing Y665 almost completely abolished binding of polyclonal antibodies present in plasma sample V. Binding of the polyclonal antibodies present in the other patient samples was more complex and was not completely abolished upon changing a single amino acid residue. Despite this, the other patient samples analyzed all showed reduced binding to certain single alanine variants. Overall, inspection of the patterns obtained for the different patient-derived immunoglobulin G (IgG) preparations suggested that particularly R660, Y661, and Y665 are important determinants for binding of anti-ADAMTS13 antibodies derived from TTP patient plasmas (Figure 2C).

We therefore generated MDTCS variants containing double alanine substitutions at R660, Y661, and Y665 (Figure 2D). Replacement of both R660 and Y661 by alanine (MDTCS13-RY1) abolished the binding of antibodies from 2 of 6 patients. Replacement of both R661 and Y665 (MDTCS13-RY2) yielded similar results. A strong reduction in reactivity of patient sample VI was observed when both Y661 and Y665 were replaced by alanine. Substitution of all 3 residues, R660, Y661, and Y665, to alanine (MDTCS13-RYY) revealed reduced (patients I, IV, and V) or even absent (patients II, III, VI) binding of antibodies of all patient samples analyzed, confirming that these residues are critical for optimal binding of patient derived antibodies to the spacer domain. Our findings thus suggest that R660, Y661, and Y665 are crucial residues providing an antigenic surface that is targeted by anti-ADAMTS13 antibodies that develop in patients with acquired TTP.

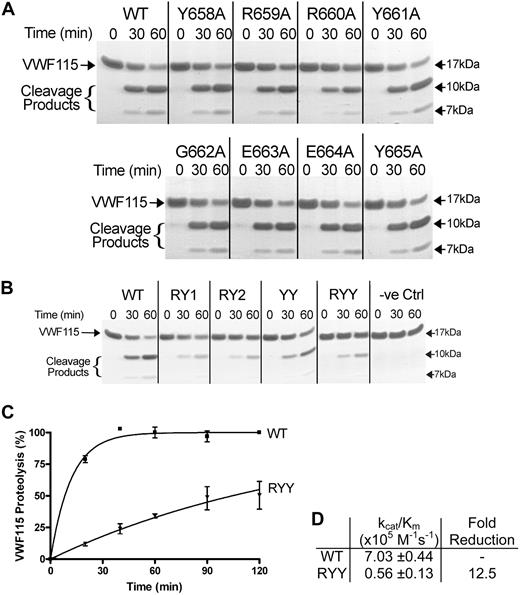

Because anti-ADAMTS13 autoantibodies in TTP patients frequently inhibit VWF proteolysis, we examined whether residues within region Y658-Y665 directly contribute to the function of ADAMTS13. We therefore introduced the single-point mutations in region Y658-Y665 into full-length ADAMTS13 to be able to perform functional analyses. All ADAMTS13 variants were expressed at similar level as full-length wild-type ADAMTS13, with the exception of variant Y658A, which was expressed at a modestly reduced level (data not shown). We evaluated the activity of the single alanine variants toward the previously described VWF115 substrate (VWF residues 1554-1668).³⁶  Single alanine substitutions within region Y658-Y665 of ADAMTS13 (Y658A, R659A, R660A, Y661A, G662A, E663A, E664A, Y665A) were all able to proteolyze VWF115 (Figure 3A). Only ADAMTS13-R660A exhibited a minor reduction in activity, as evidenced by the amount of uncleaved VWF115 substrate after 1 hour compared with wild-type ADAMTS13. However, the double RY1 and RY2 and triple RYY variants all exhibited reduced proteolysis of VWF115, and, although less prominent, also using variant ADAMTS13-YY (Figure 3B). For quantitative assessment of the reduction in proteolytic activity caused by these substitutions, we analyzed the VWF115 cleavage products generated using ADAMTS13-RYY at different time points by HPLC (Figure 3C). From this analysis, the catalytic efficiency (k_cat/K_m) of ADAMTS13-RYY was found to be 0.56 plus or minus 0.13 × 10⁵ M⁻¹ s⁻¹, 12.5-fold reduced compared with wild-type ADAMTS13 (Figure 3D).

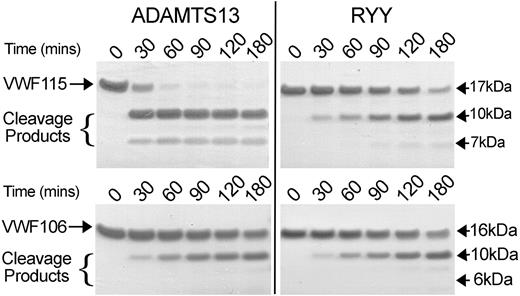

The ADAMTS13 spacer domain mediates a high-affinity interaction with the VWF A2 domain, more precisely through an exosite comprising VWF residues E1660-R1668 that is contained within the VWF115 substrate.²⁸  To study whether residues R660, Y661, and Y665 are involved in mediating the interaction of the ADAMTS13 spacer with VWF residues E1660-R1668, we examined the ability of ADAMTS13-RYY to cleave a shortened VWF A2 substrate that lacks residues E1660-R1668 (VWF106). Compared with the cleavage of VWF115, proteolysis of VWF106 by wild-type ADAMTS13 proceeded slowly (Figure 4). Processing of VWF106 by ADAMTS13-RYY proceeded with similar time course to that observed for wild-type ADAMTS13 (Figure 4). Proteolysis of VWF115 and VWF106 by ADAMTS13-RYY appeared equally efficient, that is, lack of the spacer binding region had no effect on proteolysis by ADAMTS13-RYY. These results indicate that residues R660, Y661, and Y665 contribute to an interactive surface within the spacer domain and that the function of this site is dependent upon residues E1660-R1668 in the VWF A2 domain.

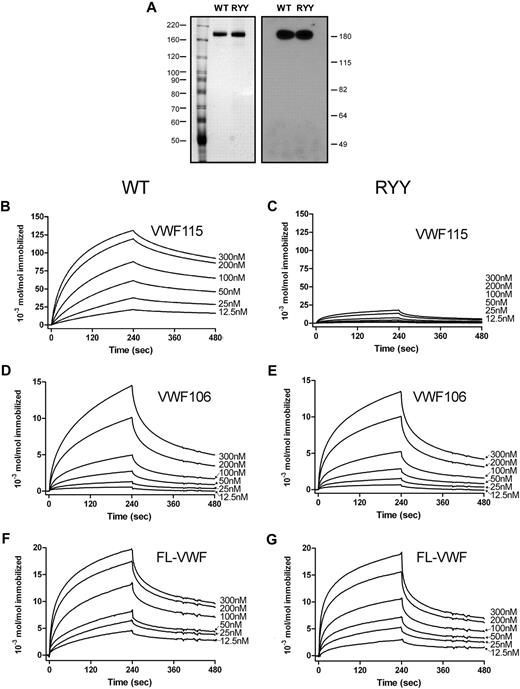

To further confirm and extend the information on the ADAMTS13 R660-Y661-Y665 interaction with VWF residues E1660-R1668, we performed binding experiments using SPR. For this we used highly purified ADAMTS13 and ADAMTS13-RYY (see silver-stained gel and Western blot that confirm the fidelity of the quantitative ELISA in Figure 5A). The interaction of wild-type ADAMTS13 and ADAMTS13-RYY with immobilized VWF115 and VWF106 was studied. A dose-dependent increase in binding of wild-type ADAMTS13 to VWF115 was observed (Figure 5B-C). Conversely, ADAMTS13-RYY displayed strongly reduced binding to immobilized VWF115. Both ADAMTS13 and ADAMTS13-RYY displayed a similarly reduced binding to VWF106 (Figure 5D-E). After correction for the small differences in the amounts of VWF115 and VWF106 coated on the chip, we found that the binding of ADAMTS13-RYY to both VWF115 and VWF106 was similar. The binding between ADAMTS13 and VWF fragments appeared to be dependent upon multiple interactions between both proteins; accordingly, we could not fit the data to simple binding and dissociation models. In an attempt to quantitate the clear differences between wild-type and mutant ADAMTS13 in binding to VWF115, we plotted maximal binding response against ADAMTS13 concentration. From this, a greater than 25-fold difference in affinity was estimated. We then studied the binding of wild-type ADAMTS13 and ADAMTS13-RYY to full-length VWF. Again, we observed a dose-dependent binding of wild-type and mutant ADAMTS13 to full-length VWF (Figure 5F-G). However, when using this approach we detected no major difference between binding affinities of wild-type ADAMTS13 and ADAMTS13 RYY.

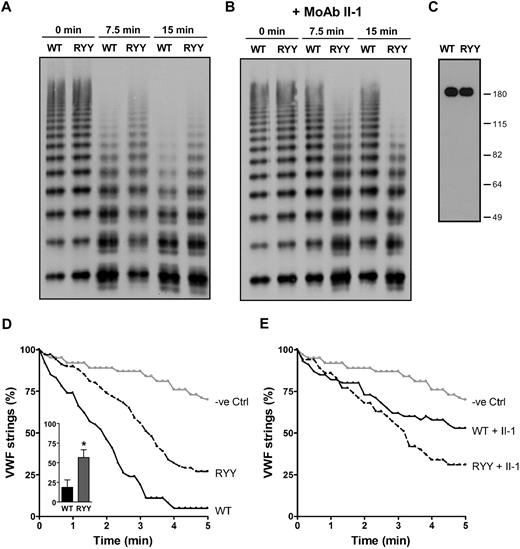

To further study the role of residues R660, Y661, and Y665 in ADAMTS13 function, we determined proteolytic activity of wild-type ADAMTS13 and ADAMTS13-RYY toward full-length recombinant VWF under denaturing conditions. A time-dependent loss of high-molecular-weight multimers was observed upon incubation of denatured VWF with wild-type ADAMTS13 (Figure 6A). Although ADAMTS13-RYY was still able to cleave VWF multimers, the efficiency of processing was reduced compared with ADAMTS13—already evident at 7.5 and 15 minutes. The ability of the patient-derived monoclonal antibody directed to the spacer domain, II-1, to inhibit ADAMTS13 cleavage of VWF is demonstrated in Figure 6B, which also shows an absence of inhibitory effect of this antibody on ADAMTS13-RYY activity, as predicted. Once again, it was confirmed with Western blotting that these differences in ADAMTS13 and ADAMTS13-RYY were not the result of concentration-dependent artifacts (Figure 6C).

In vivo, processing of UL-VWF multimers most likely occurs on the surface of endothelial cells under flow.^6-8  We therefore used a previously established assay to determine the activity of ADAMTS13-RYY on the surface of endothelial cells under a laminar flow of 2.5 dyn/cm².⁷  Release of UL-VWF strings was provoked by stimulation of endothelial cells with 100μM histamine. After the addition of ADAMTS13, UL-VWF strings rapidly disappeared (Figure 6D). UL-VWF strings also disappeared in a control experiment in which control medium without ADAMTS13 was perfused, although at an appreciably slower rate. Comparison of ADAMTS13-RYY with the control revealed that ADAMTS13-RYY was still capable of processing of UL-VWF on the surface of endothelial cells, albeit at a slower rate than wild-type ADAMTS13. The rate of VWF proteolysis was dose dependently related to ADAMTS13 and ADAMTS13-RYY enzyme concentration (data not shown). Repeated determination of the percentage of VWF strings that remain at 2.5 minutes demonstrated a reproducible reduction in cleavage by ADAMTS13-RYY (see inset in Figure 6D). Preincubation of antibody II-1 with ADAMTS13 and ADAMTS13-RYY (in the same experiment) demonstrated inhibition of the activity of the former, but not the latter (Figure 6E).

A major antigenic determinant for antibodies that develop in patients with acquired TTP resides within the spacer domain of ADAMTS13.^18-21  In the current study, we show that ADAMTS13 residues R660, Y661, and Y665 are crucial for the binding of 2 previously isolated human monoclonal anti-ADAMTS13 antibodies designated I-9 and II-1^22,23  (Figure 2A). The reactivity of a panel of patient plasma–derived polyclonal antibodies confirms that R660, Y661, and Y665 also contribute to the binding of polyclonal anti-ADAMTS13 antibodies, with similar binding characteristics observed for patient sample II to those of monoclonal antibodies I-9 and II-1 (Figure 2C). It should be noted that antibody II-1 was isolated from peripheral B cells of patient II. The restricted epitope specificity observed for patient-derived IgG points to a largely oligoclonal response in this patient. For the other patients, a more heterogeneous pattern is observed; whereas mutation of R660, Y661, and Y665 abrogates the binding of antibodies from patients II, III, and VI, some antibodies of patients I, IV, and V are still able to bind, although the binding signal intensity obtained is reduced. This finding can be explained by a reduction in affinity of antibodies for the RYY variant, but it is more likely that a mixture of polyclonal antibodies is present in these patients.

We hypothesized that as well as being an essential part of pathogenic antibody recognition, ADAMTS13 spacer domain residues R660, Y661, and Y665 also would form part of the binding surface recognized specifically by the VWF A2 domain in its high-affinity interaction with ADAMTS13. Experimental investigation of the functional role of these spacer domain residues in ADAMTS13 function is complicated potentially by several important experimental considerations. First, in past studies, the role of the ADAMTS13 spacer domain has mostly been derived from studies on carboxyl-terminally truncated ADAMTS13 variants, such as MDTCS. Such studies are potentially confounded by the finding that MDTCS often displays a greater catalytic efficiency than full-length ADAMTS13.^21,27,43  The activity of truncated mutant MDTC, on the other hand, is approximately 25-fold reduced over MDTCS, but only approximately 10 times less active than full-length VWF.²⁷  In this study, we have therefore introduced mutations into full-length ADAMTS13 rather than truncated fragments. A potential confounder in our mutagenesis approach is that the introduced point mutations may have resulted in structural changes in the ADAMTS13 spacer domain. Of note, however, is the recent crystal structure of the ADAMTS13 DTCS domains⁴⁴  that was published during the preparation of this article. Residues R660, Y661, and Y665 align very well as a surface exposed cluster, available for ligand interactions (Figure 7).^30,44  It therefore seems highly likely that there is an important role of these residues as a surface exposed exosite for VWF.

A second consideration is the need to unfold VWF to reveal binding sites and to expose the scissile bond. It has recently been shown that the isolated VWF A2 domain can unfold almost completely when force is applied at its amino- and carboxyl-terminus.⁴⁵  Mechanical unfolding of this domain facilitates cleavage by ADAMTS13; without unfolding cleavage does not occur.⁴⁵  The 3-dimensional structure of the VWF A2 domain has recently been determined at 1.9 Å resolution.⁴⁶  The Y1605-M1606 bond is present in the middle of a β-sheet (β4), which is buried and inaccessible within the domain.⁴⁶  In addition, tension induced unfolding is necessary to make its carboxyl-terminal sequence containing the E1660-R1668 alpha-helix available for binding.²⁸  Results obtained with ADAMTS13 mutants are therefore highly dependent upon the specific VWF substrate used and whether they need unfolding for cleavage. Full-length substrates need to be unfolded with denaturants or flow,^30,47,48  whereas in shorter substrates the binding and cleavage sites are exposed and available under physiologic conditions.^28,29,36,49

Because of this complexity, we first used short VWF substrates, VWF106 and 115, to define the role that ADAMTS13 spacer domain interactions make to their cleavage. We wished to determine how specific binding of complementary domains influences substrate cleavage, without the need for denaturant- or shear-dependent unfolding. Here, we have shown that single alanine variants of the spacer domain of ADAMTS13 did not by themselves display reduced proteolysis of the VWF115 substrate, but the triple mutant, ADAMTS13-RYY, displays an approximately 12-fold reduced conversion of VWF115, but not of the shorter substrate VWF106. Reduced binding, greater than 25-fold, of ADAMTS13-RYY to VWF115 was demonstrated by SPR (Figure 5B), confirming that the substituted residues contribute to a primary binding site on ADAMTS13 for this fragment. Cleavage of VWF106 has previously been used by Gao et al²⁷  to study the contribution of amino-terminal VWF A2 regions to proteolysis in the absence of the proposed high-affinity spacer interaction binding site. The similar activity toward VWF106 of WT-ADAMTS13 and ADAMTS13-RYY suggests that residues E1660-R1668, which are lacking in VWF106, interact directly with region Y658-Y665 of the ADAMTS13 spacer domain. This finding was again confirmed with direct binding studies, which revealed a strongly reduced, but yet residual, binding of both ADAMTS13 and ADAMTS13-RYY to VWF106 (Figure 5D-E). This similar binding of ADAMTS13 and ADAMTS13-RYY to VWF 106 confirms that R660, Y661, and Y665 do not participate in ADAMTS13 binding to VWF A2 1554 to 1659. In the 3-dimensional structure of the VWF A2 domain residues E1660 to R1668 are part of alpha-helixα6.⁴⁶  It has been proposed that at high shear stress the adjacent vicinal cysteines C1669 and C1670 are dislocated from the hydrophobic core and causes rapid VWF A2 domain unfolding.⁴⁶  VWF A2 domain unfolding leads to exposure of the binding site E1660-R1668, thereby allowing binding to residues Y658-Y665 of the spacer domain of ADAMTS13. Concurrent exposure of the Y1605-M1606 cleavage site, allows processing of by the protease domain once this is correctly positioned.^27,30

To address the role and contribution of the ADAMTS13 spacer domain in interactions with full-length VWF, we used denaturing conditions to study processing of VWF multimers by the triple-mutant ADAMTS13-RYY (Figure 6A). Although there was a clear defect in VWF proteolysis under these conditions, the defect was perhaps less than was anticipated in view of the results with the VWF115 substrate. We therefore studied full-length VWF cleavage under physiologic shear stress on the surface of endothelial cells.^7,8  Decreased activity of ADAMTS13-RYY also was observed under these conditions (Figure 6A). Newly released UL-VWF is highly hemostatically active in that it binds platelets very efficiently. Directly after its release, UL-VWF contains a larger number of VWF A2 domains that are in an “open” unfolded conformation⁵⁰  and that allow for the high-affinity interaction with the spacer domain to take place. It appears that in the absence of the Y658-Y665 spacer/E1660-R1668 VWF A2 interaction, the binding of ADAMTS13 is less efficient but can, however, still take place.

These results with the full-length VWF substrate, studied under different conditions, therefore point to important functional roles of domain interactions other than ADAMTS13 spacer/VWF A2, as the full-length VWF substrate can still be effectively proteolyzed when these specific binding interactions are greatly reduced by mutagenesis. Moreover, direct binding of ADAMTS13-RYY to full-length VWF is similar to that observed for wild-type ADAMTS13 (Figure 5F-G), in contrast to the binding of ADAMTS13-RYY to VWF115. Evidence has been obtained for involvement of the carboxyl-terminal TSP2-8 and CUB domains in binding and processing of VWF.^26,27,39,51  Very recently, 2 independent studies described a role for the carboxyl-terminal ADAMTS13 domains in the interaction with globular, folded VWF, mostly likely between TSP5-8 and the VWF D4-CK domains.^31,32  Interestingly, inhibition of wild-type ADAMTS13 proteolysis by antibody II-1 at 1.5μM under flow is greater than the effect caused by changing residues R660, Y661, and Y665 of ADAMTS13 to alanine (ADAMTS13-RYY, compare Figure 6D-E). We anticipate that the antibody, because of its large size, may also shield other exosites required for binding of ADAMTS13 to VWF.

In summary, we have shown that specific ADAMTS13 spacer domain residues R660, Y661, and Y665 are the target for pathogenic antibodies that cause TTP. These same residues are part of the functional binding exosite that makes contact with the VWF A2 domain. Although we have shown that ADAMTS13 residues R660, Y661, and Y665 are critical determinants of molecular recognition of the VWF A2 domain, we also have shown that alternative binding interactions outside of the spacer/A2 domains also influence cleavage considerably.
