Bleeding and related mortality with NOACs and VKAs in newly diagnosed atrial fibrillation: results from the GARFIELD-AF registry

Oral anticoagulation (OAC) reduces the risk of death and stroke/systemic embolism (SE) in atrial fibrillation (AF), at the cost of an increased risk of bleeding.^1-3  In AF, the rates and prognostic impact of bleeding have been described in controlled randomized trials (RCTs) and retrospective population-based studies.^4-10  They were rarely analyzed in prospective registries.¹¹  Non-vitamin-K oral anticoagulants (NOACs) have a better safety profile than vitamin K antagonists (VKAs) in RCTs and meta-analysis.^12-16  Whether findings from RCTs are confirmed in a large prospective registry reflecting daily routine practice worldwide remains to be shown.

The aim of our study was to (1) describe the incidence, sites, severity, predictors, and outcomes of bleeding and (2) assess the safety profiles of NOACs vs VKAs at 1 year follow-up in 52 080 patients with newly diagnosed AF enrolled in the prospective Global Anticoagulant Registry in the FIELD–Atrial Fibrillation (GARFIELD-AF).^17,18

GARFIELD-AF is the largest fully recruited multinational prospective registry in AF.¹⁷  Patients were prospectively recruited between March 2010 and August 2016 in >1000 investigational sites (identified nationally as representative) in 35 countries. Adults ≥18 years were eligible for inclusion if they were diagnosed with AF within 6 weeks of study entry. Identification of patients was according to standard local practice, and patients were required to have ≥1 unspecified investigator-defined risk factor for stroke. Patients were enrolled prospectively and consecutively at sites that reflected the diversity of care settings in each participating country (office-based practice; hospital departments [neurology, cardiology, geriatrics, internal medicine, and emergency]; anticoagulation clinics; and general or family practice).^17,18

Independent ethics committee and hospital-based institutional review board approvals were obtained. The registry was conducted in accordance with the principles of the Declaration of Helsinki, local regulatory requirements, and the International Conference on Harmonization–Good Pharmacoepidemiologic and Clinical Practice guidelines. Written informed consent was obtained from all study participants.

Patients who were taking anticoagulants prior to study enrolment were excluded from this analysis. Baseline characteristics collected at study entry included medical history, care setting, type of AF, date and method of diagnosis of AF, symptoms, antithrombotic treatment (VKA, NOAC, and antiplatelet [AP] treatment), and cardiovascular drugs. The risk profile for death, stroke/SE, and bleeding was assessed with the congestive heart failure, hypertension, age ≥75 years, diabetes mellitus, prior stroke, TIA, or thromboembolism, vascular disease, age 65-74 years, sex category (CHA₂DS₂-VASc) and hypertension (uncontrolled systolic blood pressure >160 mm Hg), abnormal renal or liver function, previous stroke, bleeding history or predisposition, Labile international normalized ratios, elderly, and concomitant drugs or alcohol excess (HAS-BLED)^17-19  and GARFIELD-AF risk calculator.²⁰  We used standardized definitions for clinical events.^17,18  Bleeding severity was defined as major, clinically relevant nonmajor (CRNM), and minor bleeding according to the International Society on Thrombosis and Haemostasis scale^17,18  (details in supplemental Material). Data for this report were extracted from the study database on 19 November 2018.

Collection of follow-up data using an electronic case report (eCRF) form occurred at 4 monthly intervals up to 24 months or until death or loss to follow-up, whichever occurred first. Submitted data were examined for completeness and accuracy by the coordinating center (Thrombosis Research Institute, London, United Kingdom), and data queries were sent to study sites. In accordance with the study protocol, 20% of all eCRFs were monitored against source documentation.²¹

Continuous variables were expressed as medians and interquartile ranges and categorical variables as frequencies and percentages. As studies with large sample sizes tend to produce statistically significant findings in the presence of clinically irrelevant differences, no formal statistical tests were performed for the baseline tables.

For descriptive purposes, such as baseline tables where patients must be assigned to only 1 group, the worst bleed category that the patient experienced is assigned. Otherwise, the first occurrence of each bleed type is used.

Rates are presented as person-years with 95% confidence intervals for the first occurrence of the clinical outcomes. The timing of events by baseline treatment started at the day of enrolment; survival after bleeding started on the day of bleed.

All-cause mortality rates per 100 person-years for the different types of bleeds, including no bleed, were calculated using a different method. All patients started as “no bleeds” until they had their first worst bleed. At this point, time began for the corresponding bleed group and then followed up for a total of 365 days. A death was assigned to the period in which the event occurred. Thus, patients with bleeds contribute to the rate for both “no bleeds” and their worst bleed category.

Hazard ratios (HRs) of the risk of all-cause mortality for each type of bleed were calculated with Cox proportional hazards model, using bleeding by type as time-dependent covariates. To account for within-patient variance, given the occurrence of multiple bleeds in the same patient, clustering was used. Adjusted HRs (aHRs) used factors previously derived for all-cause mortality in the GARFIELD-AF study.²²  Single imputation was applied for missing data.

For predictors of major bleeding (vs those without a major bleed), a LASSO (least absolute shrinkage and selection operator) model was used for a single imputation data set. The HRs and corresponding standard errors for the final model of major bleeding were derived across 5 multiple imputed data sets that had been generated applying the Markov chain Monte Carlo (MCMC) methodology.

Comparative effectiveness of treatments was calculated using the subset of patients from cohorts 3 to 5 (when NOACs were available), with a CHA₂DS₂-VASc ≥2 in men and ≥3 in women, without OAC treatment prior to enrolment and who were prescribed a VKA or a NOAC at baseline. HRs for NOACs vs VKAs were obtained using a Cox proportional hazards model using a propensity method of overlap weighting to balance covariates in the population.²³  The applied method overlaps weights and optimizes the efficiency of comparisons by defining the population with the most overlap in the covariates between treatment groups. This scheme eliminates the potential for outlier weights by avoiding a weight based on a ratio calculation using values bounded by 0 and 1. Thus, when using overlap weights, many of the concerns regarding the assessment and the trimming of the weights are eliminated. Covariates evaluated in the weighting scheme included demographic characteristics, medical history, and other characteristics (details in supplemental Material). Treatment was defined as the first treatment received at the time of enrolment, approximating “intention to treat.” Patients with missing values were not removed from the study; single imputation was applied for the comparative effectiveness analysis.

Analyses were performed using R version 3.5.3 (libraries include, but are not limited to, survival_2.4 and ggplot2) and SAS Enterprise Guide 7.15.

Following the exclusion of patients with unavailable follow-up, the study population comprised all 52 032 patients prospectively recruited in the GARFIELD-AF registry with at least 1 year of follow-up, of whom 49 702 had no bleed, 1098 suffered only a minor bleed (2.29 [2.16-2.43]), 524 a minor or CRNM bleed (1.10 [1.01-1.20]), and 622 with ≥1 major bleed (1.31 [1.21-1.41]) per 100 patient-years, totaling 2330 patients with ≥1 bleeding episode, including 86 unclassified bleeds.

Patients who bled were older, tended to have higher blood pressure and lower body weight (major bleeding patients), and more frequently had a history of hypertension (major and CRNM bleeding patients) than patients who did not bleed. Those who bled had a more frequent history of bleeding, vascular disease, stenting, stroke, diabetes (major bleeding patients), and moderate to severe chronic kidney disease (CKD). They were more often white and less often Asian. The pattern of AF (permanent, persistent, paroxysmal, or unclassified) at the time of recruitment was similar across the different subgroups. The risk profiles for death, stroke/SE, and bleeding as assessed by the GARFIELD-AF risk calculator²⁰  were higher in all patients who bled than in no-bleeding patients.

Overall, VKAs with or without AP agents (VKA ± AP) (n = 20 151, 39.3%) were more commonly prescribed than NOACs with or without AP agents (NOAC ± AP) (n = 14 103, 27.5%), AP monotherapy (n = 10 478, 21.0%), or no treatment (n = 6219, 12.1%). Bleeding irrespective of its severity was numerically more commonly observed in VKA-treated patients than in NOAC-treated patients, AP-treated patients, and no-treatment patients (Figure 1). The prescription of OAC combined with AP agents tended to be more frequent in patients who bled (Table 1).

VKA-treated patients who suffered a major bleeding tended to have a lower median time in therapeutic range (TTR) value (43.1 [interquartile range, 21.5-71.3]) than with CRNM (49.3 [23.5-73.1]) and minor bleeding (51.3 [26.2-72.3]). In NOAC-treated patients, the rate of recommended dosing tended to be lower in those who suffered major bleeding (66.4%) compared with CRNM bleeding (71.8%), minor bleeding (72.6%), and NOAC-treated patients who did not bleed (73%).

The risk profiles of patients prescribed VKA ± AP or NOAC ± AP were not significantly different as assessed with the common risk assessment tools (CHA₂DS₂-VASc and HAS-BLED). However, the GARFIELD-AF risk calculator showed a gradual increase in the risk of death, stroke/SE, and bleeding across the subgroups, from the no-bleed subgroup to the major bleeding subgroup. NOAC ± AP–treated patients tended to have more frequently a paroxysmal AF pattern (supplemental Table 1).

Gastrointestinal bleeding and intracranial/intraspinal hemorrhage (ICH) were the most frequent bleeding and accounted for 40% and 24.8% of all major bleeds respectively; 249 cases and 154 cases; 0.51 (0.45 to 0.58) and 0.31 (0.27 to 0.37) per 100-patient-year respectively. The most frequent minor and CRNM bleeding sites were eyes, ears, nose, and skin related followed by gastrointestinal and genitourinary bleeds. Transfusion was necessary in 51% of cases of major bleeding (Table 2).

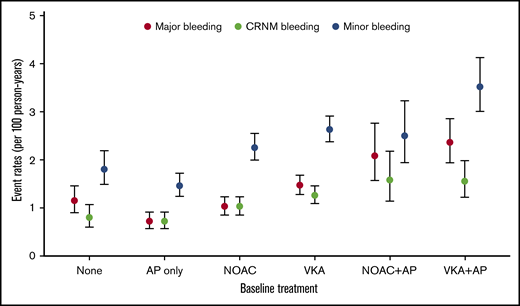

The highest unadjusted rates of major bleeding were observed with the combination therapy of VKAs and AP agents (2.36 (1.94-2.87) and NOACs and AP agents (2.08 [1.57-2.76]) per 100 person-years (Figure 1; supplemental Table 2). The most potent predictors were age (HR, 1.23 [1.18-1.29] per 5-year increment), VKAs vs NOACs (HR, 1.38 [1.09-1.75]), combination therapy with an OAC plus AP agent (NOAC + AP vs NOAC: HR, 1.78 [1.26-2.51]; VKA + AP vs VKA: HR, 1.53 [1.20-1.95]), moderate to severe CKD (HR, 1.72 [1.41-2.10]), history of bleeding (HR, 2.38 [1.72-3.30]), baseline heart rate (HR, 1.02 [1.01-1.04] per 5-beat increment), and diabetes (HR, 1.26 [1.05-1.50]), and all were significant predictors of major bleeding. Asian ethnicity was an independent predictor of reduced risk of bleeding (HR, 0.77 [0.62-0.96]) (Table 3).

In patients in whom bleeding was classified, all-cause death occurred in 253 (11%) patients. Of those with a bleed, 163 out of 622 (26.2%) died after major bleeding, 35 out of 524 (6.7%) died after CRNM bleeding, and 56 out of 1098 (5.1%) died after minor bleeding. Most deaths occurred within the first 30 days. Seventy-eight patients (31%) died within the first day, 114 (45%) within 30 days, and 140 (55%) after 30 days, explaining the initial abrupt decrease in the event-free survival curve after major bleeding. The landmark analysis showed that after 30 days, the survival curve for major bleeding continued to diverge from the survival curves of minor and CRNM bleeding (Figure 2). Most of these early deaths occurred after major bleeding (103/114), most frequently after ICH (46 in 103 deaths within 30 days of major bleeding).

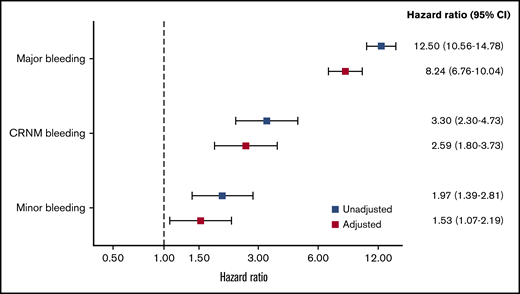

The rates of all-cause mortality per 100 patient-years were 4.00 (3.82-4.17) in no bleeding, 5.3 (4.1-6.9) in minor bleeding, 7.0 (5.0-9.8) in CRNM bleeding, and 34.4 (29.5 to 40.1) in major bleeding. After adjustment on a large variety of variables, the HR of all-cause mortality was higher in all 3 categories of bleeding compared with no-bleeding patients, respectively (aHR, 1.53 [1.07-2.19], 2.59 [1.80-3.73], and 8.24 [6.76-10.04] for minor, CRNM, and major bleeding) (Figure 3).

The death rates after major bleeding occurring under NOACs or VKAs were not significantly different (NOAC ± AP, 29.2 [21.3-40.1] vs VKA ± AP, 34.3 [27.6-42.7]) per 100 person-years (P = .483). The rates of all-cause death and cardiovascular death were 2.4-fold and 5.3-fold higher, respectively, after intracranial compared with extracranial hemorrhage (supplemental Table 3).

In patients who died after a bleed, the cause of death was cardiovascular in 99 patients (39%), mostly from ICH (53; 20.9%) and less often from heart failure (15; 5.9%), sudden death (10; 3.9%), or ischemic stroke (9; 3.5%). The cause was noncardiovascular in 113 patients (44.5%) and included cancer (30; 11.8%), respiratory failure (23; 9.1%), infection/sepsis (14; 5.5%), renal failure (6; 2.4%), or miscellaneous (40; 15.7%). The cause of death was undetermined in 42 patients (16.5%) (Table 4).

This analysis was run on a subset of 19 640 patients from cohorts 3 to 5 (when NOACs were available) without OAC treatment prior to enrolment who received at baseline either NOACs (9870; 50.3%) or VKAs (9770; 49.7%). The rates of any-event, all-cause death and all bleeding types were lower in NOAC-treated patients than in VKA-treated patients (Tables 5 and 6).

The HR for any bleeding was significantly lower with NOAC ± AP than VKA ± AP (aHR, 0.85 [0.73-0.98]) and substantially (although not significantly) lower for major bleeding (aHR, 0.79 [0.60-1.04]). The HR for ICH (aHR, 0.78 [0.42-1.43]) was in the same range as for major bleeding but with a low statistical power due to a low rate of events. The risk of death to was significantly lower with NOAC ± AP than with VKA ± AP (aHR, 0.73 [0.62-0.85]) (Tables 5 and 6).

We found that NOAC use, either alone or combined with AP agents, was associated with a lower risk of any bleeding or major bleeding compared with VKAs, used either alone or combined with AP agents. The risk of ICH was also reduced with NOACs use to than same extent as major bleeding, though the reduction was non-significant. Use of VKAs rather than NOACs was among the strongest independent predictor of major bleeding and any bleeding, along with age, history of bleeding, moderate to severe CKD, as well as combination therapy with OACs and AP agents, which is still widely used in this population (7350 patients [14%]). Asian ethnicity was a predictor of a reduced risk of bleeding. Higher risks of bleeding and ICH in Asians compared with non-Asians were reported mostly in ancillary analyses of RCTs testing NOACs vs VKAs.^24-27  This discrepancy is related to the different nature of RCTs and registry populations. Our earlier reports showed that Asians had a lower baseline risk profile, with younger age and lower rates of comorbidities compared with non-Asians.²⁸  In addition, AP agents and VKAs remain widely prescribed in several Asian countries in whom target international normalized ratio in VKA-treated patients is lower than in non-Asian countries. This results in a lower risk of bleeding compared with non-Asian patients, yet with no excess risk of stroke/SE.^29-31

Previous reports derived from RCTs, retrospective population-based registries, health care databases, or prospective registries deliver a common message, though with some degree of heterogeneity across reports. Meta-analyses of RCTs show that NOAC use is associated with a lower risk of stroke/SE, ICH, and death than VKA use,^16,32,33  with some heterogeneity across NOACs.³³  The message about major bleeding is less consistent. A lower risk of major bleeding was reported in Hicks meta-analysis that included phase 2 trials data in addition to all phase 3 RCTs,³²  but neither in Ruff meta-analysis¹⁶  nor in Tereshchenko network meta-analysis.³³  A lower risk of ICH was reported in Ruff and Hicks meta-analyses.^16,32  In Tereshchenko meta-analysis, ICH was a component of the definition of major bleeding.³³

In retrospective analyses of population-based or health care databases, heterogeneity was also found across NOAC subtypes in regard to risks of major bleeding and ICH. Major bleeding risk was found reduced in 2 analyses^34,35  and ICH in 3.^34-36  All 3 studies tended to show that apixaban and dabigatran had a more favorable efficacy/safety risk profile than other OACs. In the ORBIT-AF 2 registry, the risk of major bleeding and ICH rates was not significantly different between NOACs and VKAs use.³⁷

These differences may be inherent to the varied populations analyzed in these reports. Baseline characteristics differ in RCTs compared with cohort studies and prospective registries. The quality of retrospective analyses depends on the completeness of data collection. In addition, the outcomes are affected by the impact of recall bias and survivorship bias.³⁸  In addition, differences in code schemas used to assess rates and severity of bleeding may result in marked differences, even from analyses of the same database.³⁹  Prospective registries provide a more robust model for collecting data and outcomes. The prospective nature of GARFIELD-AF registry as well as the use of the same bleeding scale (International Society on Thrombosis and Haemostasis) as in RCTs may explain the differences between our study and previous analyses.

The second important finding of this study is the confirmation that NOAC use either alone or combined with AP agents was associated with a significantly lower risk of all-cause mortality. A reduced risk of death was reported with NOACs compared with VKAs in meta-analyses of RCTs,^16,32  although the reduction of mortality was not significant in some phase 3 trials.^15,40  A reduced risk of death associated with NOAC use compared with VKA use was inconsistently reported in population-based analyses.^33,36  In our study, the substantially lower risk of major bleeding with NOAC use was most likely the main driver of the reduction in the risk of all-cause death, as the rate of death after major bleeding was similar, irrespective of the OAC in use, at the time of bleeding. The lower risk of death in NOAC-treated patients cannot be explained by different baseline characteristics and risk profiles for death and bleeding between NOAC-treated and VKA-treated subgroups, as they were similar in both subgroups.

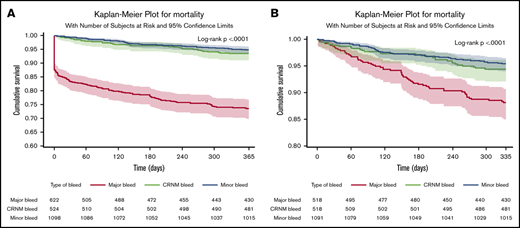

One-third of all deaths in those who had a bleed (78 patients) occurred the same day as the bleeding, and almost half of all deaths occurred within the first 30 days, explaining the early abrupt decrease in the event-free survival curve. Most of these early deaths occurred after ICH, which had a much worse prognosis than extracranial major bleeding. ICH accounted for 20% of all deaths at 1 year. Major bleeding was associated with the highest risk of death, but CRNM and minor bleeding carried a higher risk of death than no bleeding. After CRNM and minor bleeding, death was rarely related to bleeding complications but mostly driven by comorbidities, either cardiovascular (acute coronary syndrome/myocardial infarction, congestive heart failure [CHF], and sudden death) or noncardiovascular (respiratory failure, malignancy, or sepsis). In these patients, bleeding episodes may be considered as markers rather than the root cause of the higher risk of death.

This report is based on prospective data collected worldwide that are representative of real-world practice. Our data are robust, as per protocol, 20% of all eCRFs were monitored against source documentation.

Our study did not assess efficacy/safety profile of the different NOAC subtypes; the steering committee made a decision at the beginning of the registry not to pursue this question when an RCT had not been first performed.

We cannot provide detailed information about postbleeding management. Data on noncardiovascular medications (such as proton pump inhibitors) were not collected. The severity of bleeding and cause of death were not independently adjudicated.

Major bleeding is potentially catastrophic and is associated with an increased risk of death. Our findings should encourage clinicians to favor NOACs over VKAs whenever possible. Careful assessment of the risk of bleeding should be carried out before introduction of OACs, considering the baseline characteristics of patients and the information provided by bleeding risk assessment tools. Combination therapy with OACs plus AP agents should be avoided when possible, because AP agents are associated with higher risks of bleeding and ischemic events.^3,41  Biological features that increase bleeding risk, such as low hemoglobin levels or platelet counts,^42,43  and noncardiovascular concurrent medications that increase bleeding risk should be noted.⁴⁴  As the risk of death is also driven by comorbidities and not only by bleeding, we advocate comprehensive management, targeting modifiable risk factors such as heart failure, vascular disease, diabetes, hypertension, and CKD. Minor and CRNM bleeding should not be considered benign events, as both are associated with a higher risk of death than no bleeding.

In patients with AF, use of NOACs rather than VKAs is associated with lower risks of all-cause death, all bleeding categories, and major bleeding. Half of all deaths after major bleeding occurred within the first month (one-third within the first day), predominantly from intracranial hemorrhage. Major bleeding was associated with the highest risk of death, and CRNM and minor bleeding were associated with a higher risk of death than no-bleeding patients. Underlying comorbidities that also affect the risk of death warrant comprehensive medical management of AF.
