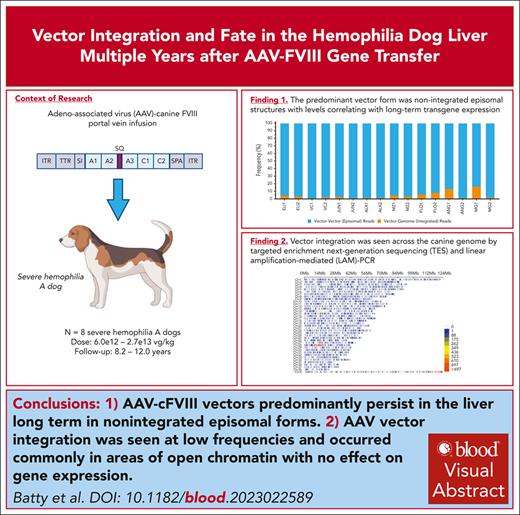

• In hemophilia A dogs, AAV-cFVIII vectors predominantly persist in the liver long-term in nonintegrated episomal forms.

  • AAV vector integration was seen at low frequencies and occurred commonly in areas of open chromatin, with no effect on gene expression.

Abstract

Gene therapy using adeno-associated virus (AAV) vectors is a promising approach for the treatment of monogenic disorders. Long-term multiyear transgene expression has been demonstrated in animal models and clinical studies. Nevertheless, uncertainties remain concerning the nature of AAV vector persistence and whether there is a potential for genotoxicity. Here, we describe the mechanisms of AAV vector persistence in the liver of a severe hemophilia A dog model (male = 4, hemizygous; and female = 4, homozygous), more than a decade after portal vein delivery. The predominant vector form was nonintegrated episomal structures with levels correlating with long-term transgene expression. Random integration was seen in all samples (median frequency, 9.3e−4 sites per cell), with small numbers of nonrandom common integration sites associated with open chromatin. No full-length integrated vectors were found, supporting predominant episomal vector-mediated long-term transgene expression. Despite integration, this was not associated with oncogene upregulation or histopathological evidence of tumorigenesis. These findings support the long-term safety of this therapeutic modality.

1.
Batty
P
,
Lillicrap
D
.
Hemophilia gene therapy: approaching the first licensed product
.
Hemasphere
.
2021
;
5
(
3
):
e540
.
2.
Batty
P
,
Mo
AM
,
Hurlbut
D
, et al
.
Long-term follow-up of liver-directed, adeno-associated vector-mediated gene therapy in the canine model of hemophilia A
.
Blood
.
2022
;
140
(
25
):
2672
-
2683
.
3.
Pasi
KJ
,
Laffan
M
,
Rangarajan
S
, et al
.
Persistence of haemostatic response following gene therapy with valoctocogene roxaparvovec in severe haemophilia A
.
Haemophilia
.
2021
;
27
(
6
):
947
-
956
.
4.
Laffan
M
,
Rangarajan
S
,
Lester
W
, et al
.
Hemostatic results for up to 6 years following treatment with valoctocogene roxaparvovec, an AAV5-hFVIII-SQ gene therapy for severe hemophilia A
.
Res Pract Thromb Haemost
.
2022
;
6
(
S1
):
e12787
.
5.
Nathwani
AC
,
Reiss
UM
,
Tuddenham
EG
, et al
.
Adeno-associated mediated gene transfer for hemophilia B: 8 year follow up and impact of removing “Empty Viral Particles” on safety and efficacy of gene transfer [abstract]
.
Blood
.
2018
;
132
(
suppl 1
):
491
-
5856
.
6.
Donsante
A
,
Miller
DG
,
Li
Y
, et al
.
AAV vector integration sites in mouse hepatocellular carcinoma
.
Science
.
2007
;
317
(
5837
):
477
.
7.
Dalwadi
DA
,
Torrens
L
,
Abril-Fornaguera
J
, et al
.
Liver injury increases the incidence of HCC following AAV gene therapy in mice
.
Mol Ther
.
2021
;
29
(
2
):
680
-
690
.
8.
Nguyen
GN
,
Everett
JK
,
Kafle
S
, et al
.
A long-term study of AAV gene therapy in dogs with hemophilia A identifies clonal expansions of transduced liver cells
.
Nat Biotechnol
.
2021
;
39
(
1
):
47
-
55
.
9.
Schmidt
M
,
Foster
GR
,
Coppens
M
, et al
.
Liver safety case report from the phase 3 HOPE-B Gene Therapy Trial in adults with hemophilia B
.
Res Pract Thromb Haemost
.
2021
;
5
(
suppl 2
):
93
.
10.
Schmidt
M
,
Foster
GR
,
Coppens
M
, et al
.
Molecular evaluation and vector integration analysis of HCC complicating AAV gene therapy for hemophilia B
.
Blood Adv
.
2023
;
7
(
17
):
4966
-
4969
.
11.
Hough
C
,
Kamisue
S
,
Cameron
C
, et al
.
Aberrant splicing and premature termination of transcription of the FVIII gene as a cause of severe canine hemophilia A: similarities with the intron 22 inversion mutation in human hemophilia
.
Thromb Haemost
.
2002
;
87
(
4
):
659
-
665
.
12.
Giles
AR
,
Tinlin
S
,
Greenwood
R
.
A canine model of hemophilic (factor VIII:C deficiency) bleeding
.
Blood
.
1982
;
60
(
3
):
727
-
730
.
13.
Scallan
CD
,
Lillicrap
D
,
Jiang
H
, et al
.
Sustained phenotypic correction of canine hemophilia A using an adeno-associated viral vector
.
Blood
.
2003
;
102
(
6
):
2031
-
2037
.
14.
Fong
S
,
Yates
B
,
Sihn
CR
, et al
.
Interindividual variability in transgene mRNA and protein production following adeno-associated virus gene therapy for hemophilia A
.
Nat Med
.
2022
;
28
(
4
):
789
-
797
.
15.
Oziolor
EM
,
Kumpf
SW
,
Qian
J
, et al
.
Comparing molecular and computational approaches for detecting viral integration of AAV gene therapy constructs
.
Mol Ther Methods Clin Dev
.
2023
;
29
:
395
-
405
.
16.
Afzal
S
,
Wilkening
S
,
von Kalle
C
,
Schmidt
M
,
Fronza
R
.
GENE-IS: time-efficient and accurate analysis of viral integration events in large-scale gene therapy data
.
Mol Ther Nucleic Acids
.
2017
;
6
:
133
-
139
.
17.
University of California Santa Cruz (UCSC) Genome Browser
. Accessed 28 February 2020. https://genome.ucsc.edu/cgi-bin/hgLiftOver.
18.
The Catalogue of Somatic Mutations in Cancer (COSMIC) Cancer Mutation Census
. Accessed 5 September 2019. https://cancer.sanger.ac.uk/cmc/home.
19.
Sihn
CR
,
Handyside
B
,
Liu
S
, et al
.
Molecular analysis of AAV5-hFVIII-SQ vector-genome-processing kinetics in transduced mouse and nonhuman primate livers
.
Mol Ther Methods Clin Dev
.
2022
;
24
:
142
-
153
.
20.
Schnepp
BC
,
Chulay
JD
,
Ye
GJ
,
Flotte
TR
,
Trapnell
BC
,
Johnson
PR
.
Recombinant adeno-associated virus vector genomes take the form of long-lived, transcriptionally competent episomes in human muscle
.
Hum Gene Ther
.
2016
;
27
(
1
):
32
-
42
.
21.
Janovitz
T
,
Sadelain
M
,
Falck-Pedersen
E
.
Adeno-associated virus type 2 preferentially integrates single genome copies with defined breakpoints
.
Virol J
.
2014
;
11
:
15
.
22.
Greig
JA
,
Martins
KM
,
Breton
C
, et al
.
Integrated vector genomes may contribute to long-term expression in primate liver after AAV administration
.
Nat Biotechnol
.
Published online 6 November 2023
.
23.
Ott
MG
,
Schmidt
M
,
Schwarzwaelder
K
, et al
.
Correction of X-linked chronic granulomatous disease by gene therapy, augmented by insertional activation of MDS1-EVI1, PRDM16 or SETBP1
.
Nat Med
.
2006
;
12
(
4
):
401
-
409
.
24.
Hacein-Bey-Abina
S
,
Von Kalle
C
,
Schmidt
M
, et al
.
LMO2-associated clonal T cell proliferation in two patients after gene therapy for SCID-X1
.
Science
.
2003
;
302
(
5644
):
415
-
419
.
25.
Deichmann
A
,
Hacein-Bey-Abina
S
,
Schmidt
M
, et al
.
Vector integration is nonrandom and clustered and influences the fate of lymphopoiesis in SCID-X1 gene therapy
.
J Clin Invest
.
2007
;
117
(
8
):
2225
-
2232
.
26.
Hacein-Bey-Abina
S
,
Garrigue
A
,
Wang
GP
, et al
.
Insertional oncogenesis in 4 patients after retrovirus-mediated gene therapy of SCID-X1
.
J Clin Invest
.
2008
;
118
(
9
):
3132
-
3142
.
27.
Cavazzana-Calvo
M
,
Payen
E
,
Negre
O
, et al
.
Transfusion independence and HMGA2 activation after gene therapy of human beta-thalassaemia
.
Nature
.
2010
;
467
(
7313
):
318
-
322
.
28.
Braun
CJ
,
Boztug
K
,
Paruzynski
A
, et al
.
Gene therapy for Wiskott-Aldrich syndrome--long-term efficacy and genotoxicity
.
Sci Transl Med
.
2014
;
6
(
227
):
227ra33
.
29.
Nault
JC
,
Mami
I
,
La Bella
T
, et al
.
Wild-type AAV insertions in hepatocellular carcinoma do not inform debate over genotoxicity risk of vectorized AAV
.
Mol Ther
.
2016
;
24
(
4
):
660
-
661
.
30.
Chandler
RJ
,
Sands
MS
,
Venditti
CP
.
Recombinant adeno-associated viral integration and genotoxicity: insights from animal models
.
Hum Gene Ther
.
2017
;
28
(
4
):
314
-
322
.
31.
Sondka
Z
,
Dhir
NB
,
Carvalho-Silva
D
, et al
.
COSMIC: a curated database of somatic variants and clinical data for cancer
.
Nucleic Acids Res
.
2024
;
52
(
D1
):
D1210
-
D1217
.
32.
Berry
CC
,
Nobles
C
,
Six
E
, et al
.
INSPIIRED: quantification and visualization tools for analyzing integration site distributions
.
Mol Ther Methods Clin Dev
.
2017
;
4
:
17
-
26
.
33.
Gil-Farina
I
,
Fronza
R
,
Kaeppel
C
, et al
.
Recombinant AAV integration is not associated with hepatic genotoxicity in nonhuman primates and patients
.
Mol Ther
.
2016
;
24
(
6
):
1100
-
1105
.
34.
Milholland
B
,
Dong
X
,
Zhang
L
,
Hao
X
,
Suh
Y
,
Vijg
J
.
Differences between germline and somatic mutation rates in humans and mice
.
Nat Commun
.
2017
;
8
:
15183
.
35.
Chandler
RJ
,
LaFave
MC
,
Varshney
GK
,
Burgess
SM
,
Venditti
CP
.
Genotoxicity in mice following AAV gene delivery: a safety concern for human gene therapy?
.
Mol Ther
.
2016
;
24
(
2
):
198
-
201
.
