Identification of factors promoting ex vivo maintenance of mouse hematopoietic stem cells by long-term single-cell quantification

Hematopoietic stem cells (HSCs) regenerate the blood system by constantly producing differentiating blood cells while self-renewing long-term to maintain the HSC pool. HSC/bone marrow transplantations have been used since 1955^1-4  against blood disorders, injury, or nonhematopoietic conditions. The extremely low HSC frequency limits their improved clinical application. For their improved analysis and therapeutic manipulation, ex vivo cultivation is required.⁵  However, even short-term culture significantly reduces HSC numbers.

Survival and stemness retention are key requirements for quantitative and qualitative HSC maintenance ex vivo. Extensive research has been done to identify culture conditions supporting HSC survival/proliferation while favoring self-renewal vs differentiation. A plethora of different hematopoietic cytokines (stem cell factor [SCF], thrombopoietin [TPO], Flt3 ligand, interleukin-3, -6, and -11^6-10 ), growth factors (pleiotrophin,¹¹  insulin-like growth factor,¹²  fibroblast growth factor,¹³  angiopoietin-like proteins¹⁴ ), and their combinations have been extensively tested over the last decades. However, robust ex vivo maintenance of repopulating cells has not yet been achieved^15,16  or is limited to extremely short culture periods,^10,17,18  mainly due to pleiotropic effects of those factors in cell-fate decisions.¹⁹  Ectopic overexpression of intrinsic factors (eg, polycomb family Ezh2,²⁰ Hoxb4,²¹  nucleoporin98-Hoxa10/nucleoporin98-homeodomain,²² Hoxb6²³ ) or chemical inhibitors^24,25  prevented exhaustion or achieved considerable HSC expansion. Yet, direct genetic manipulation has limited clinical applicability, due to high risk of oncogenic transformation,^26,27  reduced stability of virus-free delivery systems,^5,28  or nonpredictable off-target effects.

Mimicking the interaction between HSCs and niche cells offers a potentially less invasive alternative for ex vivo culture. Only a few cell lines are capable of maintaining cocultured HSCs.^29,30  Among those, the clonal AFT024 line qualitatively and quantitatively maintains murine²⁹  and human HSCs^31-36  for several weeks. However, the exact behavior of cocultured HSCs remains obscure. For example, both increased proliferation, and/or reduced cell death, and/or quiescent cells surviving without division, and/or repeated asymmetric cell division could all result in the reported maintenance of HSC numbers. Population-based snapshot analyses are insufficient to describe single-cell behaviors over time, especially when studying heterogeneous or impure populations such as isolated HSCs.^37-40  Similarly, low-temporal resolution⁴¹  or short-term imaging^42,43  often fail to preserve single-cell identity after initial divisions in long-term cultures. Unraveling the biology behind such events requires continuous long-term observation of living cells with a temporal resolution allowing precise reconstruction of colony genealogy.

Identifying the responsible maintenance-promoting factor(s) could improve HSC culture toward better defined and clinically applicable stroma-free conditions. In-depth messenger RNA expression analysis revealed over 1000 candidate factors preferentially or exclusively expressed by supportive “AFT024” compared with intermediate (“2012”) or nonsupportive cells (“2018”).^44,45  However, this high number of candidates, in combination with lengthy functional readouts required upon their manipulation, made it impossible to comprehensively screen individual molecules improving HSC maintenance.

To better filter the long list of candidate factor(s) responsible for AFT024-mediated HSC maintenance, we aimed at first identifying HSC behaviors specific for their maintenance. These would then be used to filter relevant molecular candidates and functional screening upon molecular manipulation. We therefore performed continuous long-term time-lapse imaging of individual primary murine HSCs and their progeny for up to 2 weeks in stroma cocultures. This allowed identification of HSC behavior under maintenance conditions, and of dermatopontin (DPT) as a key factor for HSC survival and proliferation. DPT improves nonsupportive HSC cultures both in the presence and absence of stromal cells. It therefore plays a critical and previously unanticipated role in maintaining HSCs in culture.

Twelve-week-old male wild-type C57Bl/6J-Ly5.2, C57Bl/6J-Ly5.1, or transgenic B6J;129-Tg(CAG-EYFP)7AC5Nagy/J⁴⁶  (>10 backcrosses) mice were used to isolate hematopoietic cells and C57Bl/6J-Ly5.1 or immunocompromised Kit^W-41J as transplantation recipients. All procedures were approved by the veterinary office of Canton Basel-Stadt, Switzerland (numbers 2655, 2707) and Regierung von Oberbayern (AZ55.1-2-54-2531-59-08).

Stroma lines obtained from K.M. were cultured as previously described.^29,47  For stroma manipulation, third-generation lentiviruses expressing gene-specific short hairpin RNAs (shRNAs) (supplemental Table 1, available on the Blood Web site) or AFT024-derived candidate genes followed by fluorescent reports were used (supplemental Figure 4A). shRNA knockdown efficiency was quantified by flow cytometry (membrane proteins, working antibodies, supplemental Figure 4B) or quantitative real-time polymerase chain reaction (qRT-PCR) (supplemental Figure 4C-D). Transduced stroma was isolated based on fluorescent marker expression and analyzed frequently for expression stability.

Bone marrow cells were suspended in phosphate-buffered saline (1 mM EDTA, 2% fetal calf serum) and stained with biotinylated CD3e (145-2C11), CD19 (eBio1D3), CD41 (eBioMWRag30), Ter119 (TER-119), B220 (RA3-6B2), Ly-6G (RB6-8C5), and CD11b (M1/70) lineage antibodies (eBioscience) followed by addition of streptavidin-labeled magnetic beads (Roth). Lineage cells were depleted by immune-magnetic removal (EasySep magnet) and lineage-depleted cells were stained with CD34-e450 (RAM34), Sca1-peridinin chlorophyll protein complex Cy5.5 (D7), CD48-allophycocyanin (APC; HM48-1), cKit-phycoerythrin (PE) Cy7 (2B8), streptavidin-APC e780 (eBioscience), and CD150-PE (TC15-12F12.2; Biolegend) for 60 minutes on ice and sorted with FACSAriaIII.

Stroma cells grown to confluency in 0.1% gelatin-coated plates (Nunc) were irradiated (20 Gy) 1 day prior to coculture. Media was changed to “Dexter-type”: 10% fetal calf serum (PAA), 10% horse serum (Gibco), 5 × 10⁻⁵ M β-mercaptoethanol, 10⁻⁶ M hydrocortisone, and penicillin/streptomycin in Dulbecco modified Eagle medium (Gibco). Conditioned media were collected, centrifuged, and filtered (0.22 μm) before use. Alternatively, HSCs were cultured in stroma/serum-free media (StemCell Technologies) supplemented with 100 ng/mL SCF and TPO (Peprotech).

Time-lapse imaging was performed using Zeiss Axiovert 200M or AxioObserver.Z1 microscopes equipped with motorized stages and temperature incubators (37°C). Yellow fluorescent protein (YFP) was detected by 46HE filter (Excitation BP500/25, BS FT515HE, Emission 535/30; Zeiss). Sorted cells and their progeny were monitored for up to 2 weeks and tracked up to the third generation. Phase-contrast and fluorescent pictures were acquired every 6 to 12 and 7 to 15 minutes, respectively, by 5× PlanNeoFluar objective (0.3 NA) and AxioCam HRm camera (1388 × 1040 or 692 × 520 pixel resolution; Zeiss) using Zeiss AxioVision 4.8 software. Mercury lamps or light-emitting diode-based systems (Laser 2000; Lumencore) were used for fluorescent illumination. Single-cell tracking was performed as previously described^48,49  and cell behaviors were displayed in tree pedigrees.

RNA isolation was performed using the RNeasy Mini kit (Qiagen). Intron-separated gene-specific primers were used (supplemental Table 2) and all samples performed in triplicates. Dissociation/melting curves always generated as quality controls. Normalization was based on glyceraldehyde-3-phosphate dehydrogenase expression of each line.

In vivo transplantations were performed using a CD45.1/CD45.2 congenic mouse system. For knockdown experiments, 1250 HSCs (CD45.1) were cocultured with wild-type AFT024, 2018, or AFT024-knockdown stroma for 7 days. The contents of each well were transplanted into a sublethally irradiated CD45.2 recipient (4 Gy). For rescue experiments, 125 HSCs were cocultured with AFT024, 2018, or DPT-expressing 2018 stroma for 7 days before injection into sublethally irradiated immunocompromised W41 primary and later secondary recipients (more sensitive for assessing HSC potential). Peripheral blood was collected on defined time points to assess chimerism levels. Erythrocytes were lysed by ammonium-chloride-potassium buffer (Life Technologies). White blood cells (WBCs) were stained with CD45.1–fluorescein isothiocyanate (A20), CD45.2-APC (104), Ter119-APC e780 (TER-119), B220-PE (RA3-6B2), CD11b-PE Cy7 (M1/70), and Ly-6G-PE Cy7 (RB6-8C5). Donor-derived single living cells, positive for CD11b/Ly-6G and negative for B220, were classified as myeloid cells and lineage contribution was calculated over the total WBCs of that lineage.

Results were analyzed with GraphPad Prism using the nonparametric Mann-Whitney test for nonnormally distributed data, unless otherwise stated. Bars represent mean and error bars standard deviation. Statistically significant differences were: *P < .05, **P < .01, ***P < .001.

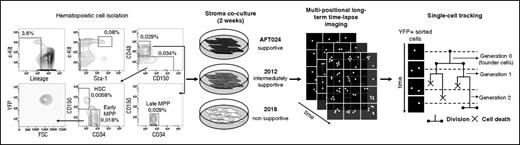

To identify the HSC-specific behavior in different stroma cocultures, we followed single cells and their progeny for up to 2 weeks using time-lapse imaging and single-cell tracking (Figure 1). Highly enriched HSCs (CD150⁺CD34⁻CD48⁻KSL)⁵⁰  and multipotent progenitors (MPPs)⁵⁰  were isolated from mice ubiquitously expressing YFP⁺ to facilitate hematopoietic cell identification in complex cocultures. Sorted cells cultured with stroma lines previously reported to fully (AFT024), intermediately (2012), or unable to support (2018) HSC maintenance.²⁹  Fates of individual cells and their progeny were followed for 3 generations and up to 2 weeks. Quantification included 3 distinct fates: division, death, or survival without division until the end of the imaging period.

We hypothesized that HSC behavior would differ depending on stroma’s capacity to maintain their numbers. To identify HSC-specific behavior under maintenance conditions, we compared genealogy trees from cells cultured on AFT024, 2012, or 2018 stroma. Most of the founder HSCs cocultured with AFT024 stroma survived and displayed high proliferation, whereas the majority died on 2012 and 2018 stroma (Figure 2A). Less than 5% of founder HSCs survived without division for 2 weeks in all conditions. Because at least 50% of the purified founder cells were HSCs at culture initiation,⁵¹  the nondividing cell compartment (<5%) cannot contain all HSCs, illustrating that most HSCs proliferated over the culture period. Importantly, high proliferation levels were maintained for the first 3 generations on AFT024 stroma (Figure 2B). These data suggest that the stroma’s reported capacity to maintain repopulating cells directly correlates with and can be quantified by founder-HSC survival and proliferation rates.

To assess whether the effects of AFT024 stroma were HSC specific, different MPPs were analyzed (early MPPs, CD150⁺CD48⁻CD34⁺KSL; late MPPs, CD150⁻CD48⁺CD34⁺KSL). Indeed, we find decreased levels of founder MPP survival/proliferation on AFT024 stroma (Figure 2C), which was gradually increased in later generations (data not shown). The vast majority of founder MPPs died on nonsupportive stroma (supplemental Figure 1). HSCs divided slower than early and late MPPs when cultured on AFT024 (Figure 2D) or other stroma. These results highlight the presence of an early AFT024-mediated selection mechanism based on the primitiveness of cocultured hematopoietic cells. After initial selection, the progeny of surviving cells is highly supported by AFT024.

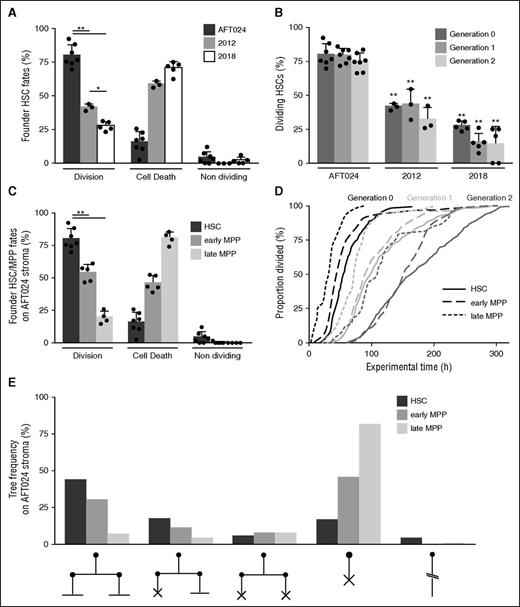

Continuous time-lapse imaging and single-cell tracking allowed retrospective reconstruction of HSC and MPP colony genealogies. To identify cell-type–specific tree patterns, we quantified 290 HSC, 257 early, and 184 late MPP colonies cultured on AFT024 stroma (Figure 2E). For HSC colonies, the most frequent patterns include symmetric (43%, both daughters divide or die) or asymmetric fates of the 2 daughters (17%, 1 dies, 1 divides). Colonies without surviving progeny (22% total) had lower frequencies than those with at least 1 surviving daughter (22% and 60%, respectively). In contrast, the most frequent pattern for MPP trees were dying colonies. From those surviving, 30% of early MPPs show symmetric, whereas 11% asymmetric, fates. Tree analysis up to the third generation can be found in supplemental Figure 2. These results illustrate considerable hematopoietic colony heterogeneity and the need for continuous single-cell analysis.

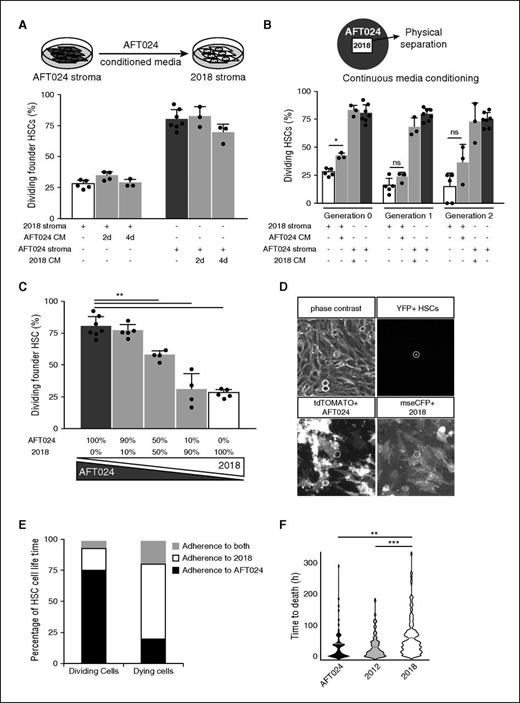

To identify whether adhesion or secreted factors are responsible for HSC behavior under self-renewing conditions, we performed conditioned media experiments. No proliferation differences were observed for HSCs cultured on 2018 stroma supplemented with AFT024-conditioned media or vice versa (Figure 3A). To exclude conditioned-media stability issues, HSCs were cocultured on a physically separated area of 2018 stroma, while being exposed to media conditioned by surrounding AFT024 cells (Figure 3B). Under those conditions, founder HSC proliferation slightly increased, but reduced again in later generations, suggesting that AFT024-secreted factor(s) have only transient effects on HSC proliferation. 2018-conditioned media did not affect HSCs cultured on AFT024 stroma, suggesting that 2018 do not secrete cell-death promoting factors. All HSCs died in stroma-free cultures in Dexter-type media, also with AFT024-conditioned media, but the latter doubled time until death (supplemental Figure 3). These results illustrate that adhesion to stroma components is required for the self-renewing–specific HSC behavior.

To further investigate the relevance of cell contact for HSC behavior, we performed mixed-stroma experiments. HSC proliferation rates were similar to controls when AFT024 was mixed with 10% 2018 stroma (or vice versa, Figure 3C). Equal mixing of both stroma lines led to intermediate proliferation levels, suggesting dose-dependent stroma effects. Differential fluorescent stroma labeling allowed us to quantify the absolute time individual HSCs adhere to each stroma and correlate this with their future fates (Figure 3D). HSCs that mostly adhered to AFT024 (75% of their life time) proliferated, despite their transient adherence to 2018 cells (Figure 3E), again suggesting that 2018 stroma does not actively promote HSC death. No active migration toward AFT024 stroma was observed. Comparing cell-death kinetics revealed that 2018-cultured HSCs exhibit the longest cell lifetime of all groups with almost half of founder cells surviving over 100 hours (Figure 3F). In combination, those data demonstrate that nonsupportive stroma do not actively promote HSC death, but probably lack mitogenic and/or prosurvival factor(s) expressed on AFT024 cells.

Knowing that cell contact is essential for the observed HSC behavior, we selected cell-surface and extracellular matrix–related candidates from AFT024-specific gene lists. We first confirmed differential gene expression between AFT024 and 2018 by qRT-PCR. The expression of 152 genes, which include 115 genes previously described to be preferentially expressed by AFT024,^44,45  was compared. From those, 27 were differentially expressed between AFT024 and 2018 stroma (Figure 4A). To mimic coculture conditions, we also examined irradiated stroma, where fold differences were slightly reduced.

Gene-specific shRNA vectors (4-5 per gene) were then designed to knockdown the following cell-adhesion–related genes expressed by AFT024 stroma: Slc38a4, Slc02a1, Dlk1, Igfbp6, Ptx3, Bgn, Thbs2, Mmp9, Col6a3, Dpt, Arhgdib, Fap, Dcn, Vcam1, Tgfbi, Loxl1, Plaur, Tm4sf1.

Founder HSCs cultured on delta-like 1 homolog (DLK1)-knockdown AFT024 stroma (DLK1^KD) exhibit 1.4-fold reduced proliferation, whereas dermatopontin KD (DPT^KD) or fibroblast activation protein KD (FAP^KD) stroma reduced HSC proliferation by 1.8-fold (Figure 4B). Importantly, coculture with “scrambled” shRNA control lines or less efficient constructs (20% DLK1 knockdown) had no effect on HSC behavior. Double knockdown (DKD) DLK1/DPT^DKD or DLK1/FAP^DKD stroma did not further decrease HSC proliferation, whereas DPT/FAP^DKD or triple knockdown DLK1/DPT/FAP^TKD reduced it to 2018 levels. Thus, DPT and FAP are independently important for HSC survival and proliferation. Analysis of HSC progeny revealed that the reduced proliferation levels were maintained throughout the first 3 generations (data not shown), suggesting that DLK1, DPT, and FAP permanently impair HSC survival/proliferation ex vivo.

No significant proliferation defects were detected upon early MPP coculture with DLK1^KD or FAP^KD stroma (Figure 4C). However, DPT^KD stroma coculture resulted in marked decrease of both early MPP (4.3-fold) and HSC proliferation capacity (1.9-fold), suggesting that DPT affects the fates of both HSCs and early MPPs.

To confirm DLK1, DPT, and FAP effects on HSC maintenance, we transplanted CD45.1 HSCs cultured on wild-type or knockdown stroma into CD45.2 recipients (Figure 4D). Peripheral blood analysis revealed significantly higher chimerism from AFT024-cultured HSCs compared with 2018 cultures (Figure 4E). Chimerism levels of DLK1^KD or FAP^KD cultured HSCs were similar to AFT024 levels for the first 16 weeks (supplemental Table 3, short-/intermediate-term repopulation), but decreased by 32 weeks (supplemental Table 3, long-term repopulation). Importantly, HSCs cultured on DPT^KD stroma had similar kinetics, chimerism levels, and lineage contribution with 2018-cultured cells (Figure 4E; supplemental Figure 5A-B). These results validate that DLK1 and FAP have intermediate effects on long-term HSCs, whereas DPT is essential for maintenance of both short- and long-term repopulating cells.

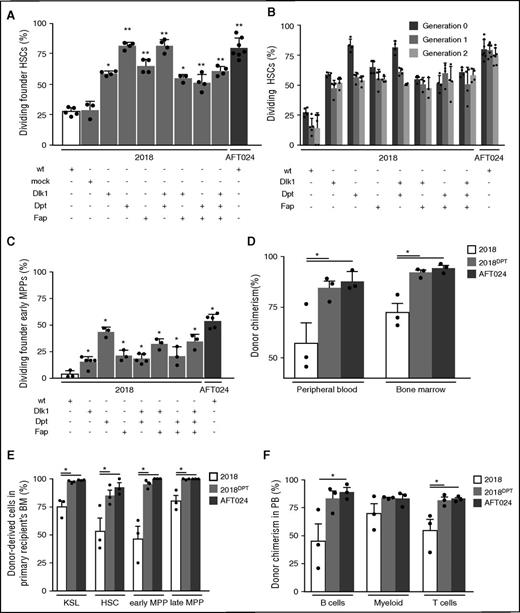

Next, we ectopically expressed DLK1, DPT, FAP or their combination on 2018 stroma. Ectopic DPT expression alone fully restored founder HSC proliferation to AFT024 levels (Figure 5A), whereas coculture with 2018^DLK1 or 2018^FAP stroma resulted in a twofold increase. Although slightly decreased in later generations, proliferation rates were maintained at significantly higher levels than wild-type 2018 stroma (Figure 5B). Notably, all combinations (except 2018^DLK1/DPT) led to intermediate HSC proliferation, suggesting a potential antagonistic interaction between DPT and FAP. DPT overexpression also restored early MPP proliferation to AFT024 levels (Figure 5C). Transplantation experiments confirmed that HSCs cultured on 2018^DPT or AFT024 stroma (supplemental Figure 6A) exhibit equally high chimerism in primary and secondary recipients’ peripheral blood and bone marrow (Figure 5D; supplemental Figure 6B-D), and almost exclusively outcompeted recipients’ HSC/MPP populations (Figure 5E). In contrast, HSCs cultured on nonsupportive stroma showed lower contribution in peripheral blood (Figure 5F; supplemental Figure 6B-D) and bone marrow, where residual HSCs and early MPPs were not outcompeted. Taken together, DPT is sufficient to convert nonsupportive stroma to supportive, being indispensable for maintaining HSC potential under stroma cocultures.

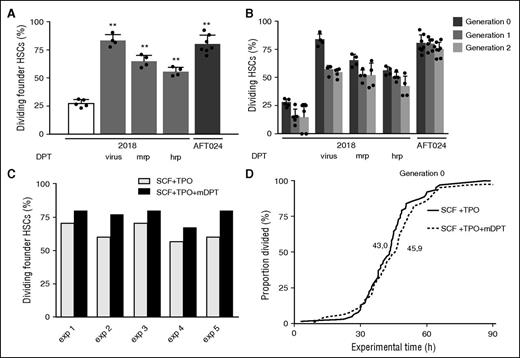

To examine whether recombinant protein could efficiently replace virus-mediated gene-delivery methods, we supplemented 2018 cocultures with murine DPT (mDPT) or human DPT. Indeed, HSC proliferation was increased by 2.3-fold in their presence, an effect that was maintained for the first 3 generations (Figure 6A-B).

Finally, we assessed the effect of recombinant mDPT in defined stroma/serum-free conditions supporting short-term self-renewal.¹⁰  Supplementing SCF, TPO with mDPT consistently increased the number of proliferating HSCs (80%, Figure 6C) without influencing their proliferation kinetics (Figure 6D). Therefore, recombinant DPT can supplement standard serum/stroma-free culture conditions to improve HSC clonogenicity.

Despite characterization of the AFT024 molecular milieu, the large number of candidate factors and effort, duration and high cost required for their functional assessment by conventional methodologies (transplantations) discouraged high-throughput screenings. In the current study, we used long-term imaging coupled with cell-fate quantification^52-55  to establish a sensitive screening platform with single-cell resolution. This technology allowed for continuous following of fates of single HSCs directly after isolation and for the first time up to 3 generations or 2 weeks in vitro, recording both early and late effects. We reconstructed HSC colony history under different stroma cocultures and identified the HSC-specific behavior under self-renewing conditions.

We report for the first time that the balance between HSC survival and death in vitro quantitatively correlates with their reported repopulating potential in vivo. High HSC proliferation rates were characteristic of self-renewing conditions (AFT024 stroma), whereas intermediate and high cell-death rates marked cultures with reduced or no supportive capacity. Similar survival rates were reported when human CD34⁺CD38⁻ HSCs were cultured with AFT024 stroma.⁴¹  Notably, initial proliferation cannot always be coupled with stemness retention, especially under stroma-free conditions.⁵⁶  No differences in HSC cell-cycle progression were observed between different stroma, suggesting that no active regulation of proliferation occurs.

Our data illustrate that differences in HSC behavior between supportive and nonsupportive conditions occur early, before the first cell division. Because the majority of founder HSCs divide only under supportive conditions, early proliferation was used as a fast indicator of stroma’s potential to maintain repopulating cells. This allowed us to minimize the overall length of molecular screening from several months required for typical in vitro (long-term culture-initiating cell, cobblestone area-forming assay) or in vivo experiments (transplantations) to a few days.

Taking advantage of our imaging and single-cell analysis pipeline, we report precise cell-death rates and kinetics per generation for up to 2 weeks. Our data show that death occurring at the initial or later generations is a major reason for loss of stemness under nonsupportive culture conditions. This had been overlooked in previous studies based on snapshot analyses of bulk populations, which analyzed only surviving and not all starting HSCs. Our findings expand previous data linking HSC clonogenicity with repopulation capacity during short-term culture,⁵⁶  by providing data over 2 weeks in vitro (Figure 3F; supplemental Figure 7).

Continuous long-term imaging revealed a small proportion of cells that survive without division under all conditions. It is likely that some of those cells have repopulating capacity, as indicated by low chimerism under nonsupporting conditions and previous studies.⁵⁷  However, due to their low frequency (5%), the possibility that repopulating cells exclusively reside in this deeply quiescent compartment can be excluded.

We also extended our analysis to MPPs and reported for the first time that their survival is also favored under maintenance-promoting conditions. Given that MPPs are responsible for short-term reconstitution of hematopoiesis upon transplantation, such a finding might have important clinical applications. Comparing kinetics of cocultured HSCs and MPPs, we confirm that longer cell-cycle length over the first 3 generations correlates with more primitive/immature hematopoietic cells extending previous reports limited to short-term imaging.^57-59

Little was known about the underlying mechanism governing the interaction between AFT024 stroma and murine HSCs, whereas studies using human cells led to contradictory results suggesting prevalence of either adhesion^31,34,35  or secreted factors.^33,36  We therefore performed conditioned media and stroma-free experiments and found that cell adhesion was essential for HSC fate regulation, despite the transient synergistic effect of secreted factor(s). Notably, mechanisms might vary between different stroma lines, as aorta-gonad-mesonephros–derived lines (UG26-1B6) regulate HSC self-renewal via secreted factors,^60,61  whereas embryonic (EL08-1D2)⁶⁰  and fetal liver-derived (AFT024) require direct contact.

Functional screening of adhesion-related molecules revealed that 2 transmembrane proteins (DLK1 and FAP) are involved in maintenance of HSC self-renewal in vitro. DLK1 is an epidermal growth factor–like transmembrane protein and the best known noncanonical Notch ligand.⁶²  Cleavage of the extracellular domain yields a soluble 50-kDa protein⁶³  with potentially distinct function.⁶⁴  The precise role of Dlk1 in hematopoiesis is not fully understood. It has been reported that Dlk1 is necessary for normal B-cell differentiation,⁶⁵  and is involved in inhibiting the Notch1 receptor⁶⁶  expressed by adult HSCs although it is dispensable for their in vivo maintenance.⁶⁷  In addition, there is growing evidence that Dlk1 might play a role in extracellular signal-regulated kinase/MAPK⁶⁸  and fibroblast growth factor signaling.⁶⁹  Here, we report that DLK1 knockdown decreases the survival and repopulation capacity of HSCs but not short-term repopulating progenitors, whereas ectopic overexpression in nonsupportive stroma partially restores HSC behavior. These results confirm previous studies reporting similar intermediate effects of DLK1 on HSC maintenance,⁷⁰  thus validating our approach while also suggesting that additional factors are necessary for AFT024-mediated HSC maintenance ex vivo. Recent studies used DLK1 as a marker to isolate fetal-liver hepatic progenitors capable of maintaining HSCs in direct-contact cultures,^71,72  but provided no evidence on its role on the observed HSC maintenance. Interestingly, it is reported that Dlk1 can also negatively regulate HSCs when cocultured with stroma cells from the aorta-gonad-mesonephros region,⁷³  suggesting that its role is context-dependent and might reflect functional differences between in vivo niches.

FAP is a transmembrane glycoprotein with peptidase activity.⁷⁴  Similar to DLK1, extracellular domain cleavage yields a soluble form (antiplasmin-cleaving enzyme⁷⁵  or soluble FAP⁷⁶ ). FAP is involved in matrix remodeling,⁷⁷  but its precise function in homeostatic conditions is unknown because Fap knockout mice showed no abnormalities.⁷⁸  Recent data showed that depletion of Fap-expressing bone marrow stroma reduced committed progenitors in vivo,⁷⁹  but its role in the maintenance of cultured HSCs has not been assessed. We report that FAP is important for HSC maintenance ex vivo, similar to DLK1. The fact that both proteins have biologically active soluble forms might explain the transient positive effect of AFT024-conditioned media on HSC proliferation. However, overexpression of single or a combination of both proteins only partially restored HSC behavior ex vivo.

We also identified Dpt as a key factor for maintaining HSC self-renewal ex vivo. DPT, an extracellular matrix-located protein, regulates cell-matrix interactions and matrix assembly.^80,81  No role in hematopoiesis was previously reported in Dpt knockout mice.⁸²  We show that DPT knockdown significantly impairs HSC and early MPP proliferation and repopulation capacity, whereas ectopic overexpression reverts effects of nonsupportive conditions. Also, exogenous DPT addition increases HSC clonogenicity under stroma/serum-free conditions.

The exact mechanism through which DPT interacts with hematopoietic cells is unknown. Its high content of sulfated tyrosine residues enables interaction with secreted factors.⁸³  In the presence of decorin (also expressed by AFT024), DPT enhances the binding and activity of transforming growth factor β1 (TGF-β1) to target cells.^84,85  TGF-β signaling regulates HSC maintenance, proliferation, and dormancy through SMAD2/3 activation both in vivo⁸⁶  and in vitro.⁸⁷  In addition to niche cells (nonmyelinating Schwann cells), HSCs themselves secrete latent TGF-β1, but the niche is required for its biological activation.⁸⁷  However, TGF-β–deficient mice exhibit no defects in HSC maintenance or quiescence,⁸⁸  illustrating that its role in hematopoiesis is not essential or compensated by other factors in vivo. DPT has a characteristic peptide sequence functioning as a potential integrin-binding site.⁸⁵  HSCs express a wide range of integrins, such as integrin α4/β1, α7, α9, and β1, which bind to the extracellular matrix proteins fibronectin,⁸⁹  laminin,⁹⁰  tenasin-c,⁹¹  and osteopontin,⁹²  respectively, ensuring adhesion to the niche thus maintaining stem cell properties. It is therefore possible that DPT facilitates HSC contact with supportive stroma/niche through integrin binding.

In summary, this study provides quantitative continuous data of single HSCs and their progeny under self-renewing conditions. To our knowledge, this is the first study using long-term single mammalian stem cell behavior quantification for screening of molecular candidates. This new approach identified DPT as a niche factor which is both essential for maintaining HSCs in stromal coculture and able to improve stem cell survival in stroma- and serum-free cultures. These results have important implications in improving ex vivo HSC culture and clinical applicability.
