Enhanced in utero allogeneic engraftment in mice after mobilizing fetal HSCs by α4β1/7 inhibition

In utero hematopoietic cell transplantation (IUHCT) is a nonmyeloablative nonimmunosuppressive transplant approach that results in donor cell engraftment across immune barriers and donor-specific tolerance secondary to fetal immunologic immaturity.^1,2  Despite the potential to treat many congenital hematologic diseases, engraftment has been subtherapeutic for most diseases or below levels necessary to reliably induce tolerance.³  A barrier to enhanced engraftment is competition with endogenous hematopoietic stem cells (HSCs) for limited fetal hematopoietic niches (HNs) as supported by increased engraftment following IUHCT when a competitive advantage exists for donor cells.^2-5  The lack of a fetal immune barrier allows for nontoxic novel conditioning regimens to provide a donor cell competitive advantage and increase alloengraftment.

The CXCR4|SDF-1α and α4β1|VCAM-1 pathways are critical to HSC engraftment in postnatal bone marrow (BM) HNs. Studies also implicate these pathways in endogenous fetal HSC engraftment of the fetal liver (FL), the hematopoietic organ at the time of IUHCT.^6-11  Postnatal blockade of these pathways mobilizes HSCs from BM in mice, nonhuman primates, and humans.^12-16  Evidence also suggests that the α4β7|MAdCAM-1 pathway contributes to HSC recruitment into the BM after postnatal transplantation.¹⁷  In the current study, we present data on mobilization of endogenous FL HSCs by inhibiting CXCR4 and α4β1/7 independently, or in combination, with small molecule inhibitors AMD3100 and firategrast. Furthermore, we evaluate FL HSC mobilization before IUHCT as a novel strategy to create “space” in the FL and enhance allo-engraftment.

Balb/c (H2^d) mice were purchased from Jackson Laboratories. C57Bl/6TgN(act-EGFP)OsbY01 (H2^b, green fluorescent protein [GFP]⁺) (called B6GFP) mice were provided by Dr Okabe (Osaka University, Osaka, Japan). The Institutional Animal Care and Use Committee at The Children’s Hospital of Philadelphia approved the experimental protocols.

AMD3100 (Abcam; 5 mg/kg, subcutaneous) or firategrast (synthesized in the DiPersio laboratory [published structure: C₂₇H₂₇F₂NO₆; patent #US2014051655]; 100 mg/kg, intravenous) were dissolved in Ca⁺²/Mg⁺²-free phosphate-buffered saline (AMD3100) plus 1% ethanol (firategrast) and maternally administered to gestational day (E)17 Balb/c dams. Maternal and fetal sera were analyzed for mobilizing agent concentrations by mass spectrometry using the Agilent system (6410 triple quad mass spectrometer and 1260 liquid chromatography).

AMD3100 and/or firategrast were administered to E14 Balb/c dams. FLs were harvested 60 minutes after administration, and low-density mononuclear cells (LDMCs) isolated over a Ficoll gradient were analyzed by flow cytometry (FACSAria; antibodies used are shown in supplemental Table 1, available on the Blood Web site) for absolute number of Lineage⁻Sca-1⁺c-Kit⁺ cells.

BM LDMCs (10 × 10⁶) from 6- to 8-week-old B6GFP mice were injected into E14 Balb/c fetuses (2.9 × 10¹⁰ cells/kg) via vitelline vein as previously described.²  Sixty minutes before IUHCT, dams were administered AMD3100 (subcutaneous), firategrast (intravenous), AMD3100+firategrast, or vehicle.

FL and peripheral blood LDMCs were analyzed by flow cytometry for donor HSC homing, total donor chimerism, and multilineage engraftment. Mice were weighed and evaluated for graft-versus-host-disease (GVHD) monthly.

Data are presented as means ± standard error of the mean. Statistical comparisons were performed with the Student t test for 2 samples assuming unequal variances or analysis of variance with Bonferroni multiple comparisons test using GraphPad Prism 6.0. P ≤ .05 was considered significant.

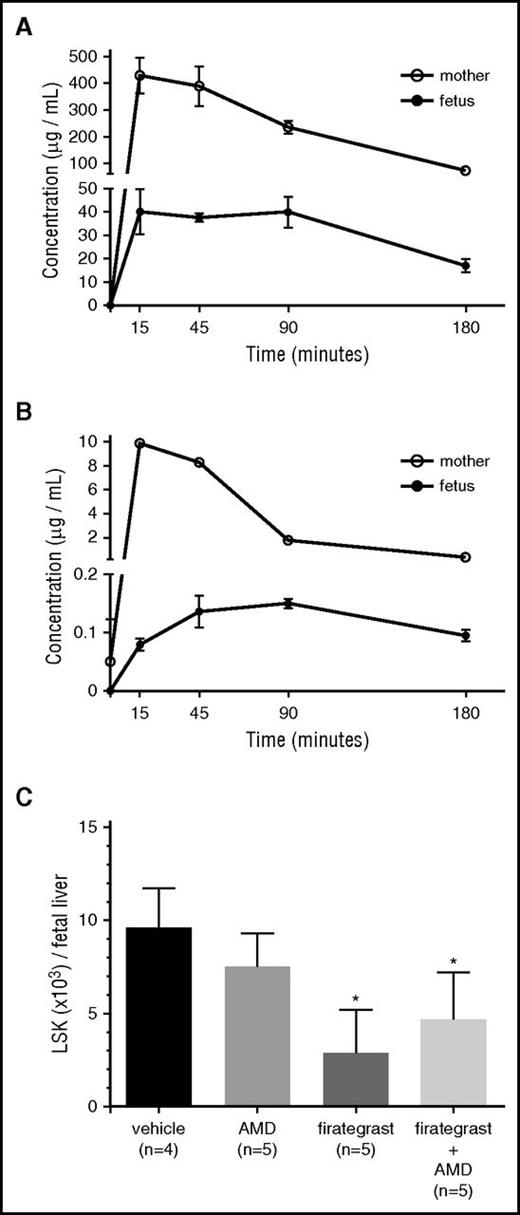

Small-molecule antagonists of CXCR4 and α4β1 efficiently mobilize HSCs from adult BM HNs.^15,16  As an initial step to evaluate whether small molecule inhibitors could mobilize fetal HSCs before IUHCT, we confirmed expression of CXCR4, α4β1/7, and their ligands on FL HSCs and FL (supplemental Figures 1 and 2) and assessed transplacental passage of AMD3100, a CXCR4 antagonist, and firategrast,¹⁸  an α4β1/7 integrin antagonist, after maternal administration. Applying a dosing protocol that mobilizes adult BM HSCs¹⁶  and results in transient mobilization of maternal lymphocytes and myeloid cells (supplemental Figures 3 and 4), we demonstrate that both agents reach peak maternal serum concentrations at 15 minutes and rapidly cross the placenta with peak fetal serum concentrations at 15 to 90 (firategrast) and 45 to 90 (AMD3100) minutes after administration (Figure 1A-B). The higher and more rapid peak fetal concentration of firategrast is likely related to the higher dose, intravenous administration, and more efficient transplancental passage (fold decrease fetal vs adult peak concentration: AMD3100 = 66-fold; firategrast = 11-fold).

We next evaluated whether maternal administration of AMD3100 and/or firategrast mobilized FL HSCs (Figure 1C). FLs from mice treated with firategrast and firategrast+AMD3100 demonstrated a significant reduction in HSCs (3.4-fold and 2.1-fold, respectively, reduction vs controls) supporting efficient HSC mobilization. There was a trend toward increased mobilization following AMD3100 alone. In contrast to postnatal studies, which demonstrate increased mobilization following combined treatment,^13,16  we found no significant additive effect of combined therapy over firategrast alone. These findings may suggest a more important role of α4β1 in HSC retention in fetal HNs as supported by the high percentage of fetal HSCs expressing α4β1 (supplemental Figure 1). Inhibition of α4β1 may maximize HSC mobilization, and no significant increase can be attained by the addition of AMD3100. Alternatively, enhanced mobilization with firategrast may be related to its higher fetal serum concentrations. We elected not to increase the AMD3100 dose due to increased lethality with higher doses.¹⁶

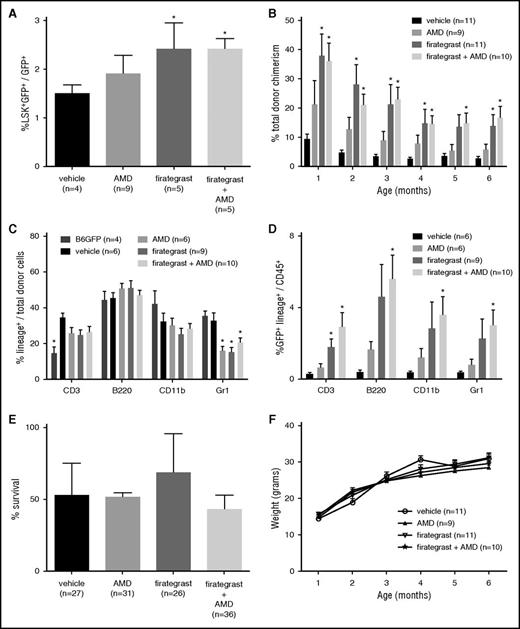

We have shown that augmenting the CXCR4|SDF-1α pathway on donor cells before IUHCT enhances engraftment.²  Alternatively, treating donor cells with anti-α4β1 antibodies before IUHCT inhibited engraftment.¹⁹  These studies suggest that manipulation of these pathways can affect donor cell engraftment following IUHCT. In the current study, we evaluated whether mobilization of endogenous FL HSCs with pathway inhibitors could create space before IUHCT and increase donor cell homing and long-term engraftment. AMD3100, firategrast, and firategrast+AMD3100 treatment increased the percentage of donor HSCs in FL 24 hours after IUHCT (Figure 2A). Similar to mobilization studies, this increase was significant in recipients of firategrast and firategrast+AMD3100, suggesting that mobilization allowed for enhanced short-term HSC engraftment. Enhanced short-term engraftment translated into significantly increased long-term engraftment in recipients of firategrast without an additive effect of firategrast+AMD3100 over firategrast alone (Figure 2B). Donor engraftment was stable and multilineage at 6 months following all treatments supporting engraftment at the HSC level (Figure 2B-D).

Although human FL hematopoiesis transitions to fetal BM more quickly, we believe the current strategy remains an option to enhance engraftment following clinical IUHCT. The FL is the primary hematopoietic organ at the time of clinical IUHCT. Increased FL engraftment would allow for a fractional increase in donor HSCs that can migrate to the BM as supported by enhanced 6-month engraftment in our study. Furthermore, HSC mobilization from postnatal BM with CXCR4 and α4β1 blockade and their expression on fetal HSCs suggests our strategy may mobilize fetal BM HSCs if hematopoiesis has transitioned to BM at the time of IUHCT.^16,20-22

Mobilizing agents did not affect survival and mice demonstrated appropriate weight gain (Figure 2E-F) without GVHD. Although encouraging, potential adverse effects of mobilizing agents on fetal development must be considered. AMD3100 has reported teratogenicity.²³  SDF-1α and CXCR4 expression have been localized to neuronal, cardiac, vascular, hematopoietic, and craniofacial organogenesis.²⁴  Studies in VCAM-1– or α4-deficient mice support their role in placental and cardiac development.^25,26  Thus, large animal studies are required to investigate side effects of CXCR4 and α4β1/7 inhibitors in fetuses.

The current study supports an important function of the CXCR4|SDF-1α and α4β1|VCAM-1 pathways in homing and retention of endogenous fetal HSCs in the FL as indicated by mobilization of FL HSCs by inhibiting these pathways. Furthermore, it provides proof-in-principle that this strategy of creating space through HSC mobilization is feasible and enhances allogeneic engraftment by increasing donor HSC homing to the FL following IUHCT.
