Autophagic vesicles on mature human reticulocytes explain phosphatidylserine-positive red cells in sickle cell disease

The erythrocyte is one of the most abundant, accessible, and best characterized of human cells but until the recent development of in vitro erythroid culture systems^1,2  obtaining large numbers of its precursor cell, the human reticulocyte has been problematic. Reticulocytes are broadly grouped into R1, motile multilobular, and normally confined to bone marrow, and R2, which are nonmotile, much more mechanically stable, and released into peripheral circulation where they comprise ∼2% of red blood cells.^3,4  During maturation to an erythrocyte, the reticulocyte must lose ∼20% of its surface area, reduce its volume, and degrade or eliminate residual cytosolic organelles. Current dogma considers that loss of plasma membrane is through the release of endocytosed plasma membrane as exosomes, whereas purging of cellular organelles is executed by autophagy.⁵

Surface phosphatidylserine (PS) exposure is a well characterized signal for initiating phagocytosis of unwanted cells or cellular material.⁶  PS is normally located on the intracellular surface of plasma membranes. Relocation to the extracellular surface may occur by activation of a scramblase⁷  or a bidirectional trafficking process involving cytosolic vesicles.⁸  PS-exposed red cells are found in the peripheral blood of patients who have undergone splenectomy, or have sickle cell disease (SCD) or thalassemia.^9-13

For details of anonymized patient samples, antibodies used, and full methods, see supplemental Methods, available on the Blood Web site. Briefly, reticulocytes were derived from erythroid cultures and confocal microscopy was performed as described.²  PS was detected using Annexin V fluorescein isothiocyanate (Annexin V-FLUOS Staining Kit [Roche]) as directed by the manufacturer. Mononuclear cells were purified from a waste fraction from a donation of platelets (with informed consent) by apheresis in accordance with the Declaration of Helsinki (and reviewed by the National Health Service National Research Ethics Service).

We previously showed²  that maturation of late in vitro-produced reticulocytes involves the generation of glycophorin A (GPA) decorated endocytic vesicles that fuse with autophagosomes to create large autophagic vesicles corresponding to the vacuoles described by Kent et al.¹⁴  We used two monoclonal antibodies (mAb) to GPA, which recognize different epitopes on the extracellular domain of the glycoprotein; R10 recognizes a trypsin-sensitive epitope,¹⁵  whereas BRIC256 recognizes a trypsin-resistant epitope.¹⁶  After trypsin treatment, R10 bound to uncleaved GPA can be distinguished from extracellular proteolytically cleaved GPA in the plasma membrane (Figure 1A). The results show that the endocytosed plasma membrane, which fuses with the autophagosome²  is subsequently expelled from the reticulocyte. Furthermore, the autophagic vesicle appears to be expelled intact. We observe no clear evidence that the vesicle membrane fuses with the plasma membrane as would be expected if residual organelle material were expelled by exocytosis prior to blebbing as previously proposed.²  Dual staining the R10-positive vesicles with the autophagosome marker LC-3 confirmed that the vesicles are identical to those previously described²  (Figure 1B). GPA R10-positive vesicles were observed in a small subset of red cells from the peripheral blood of a normal blood donor (Figure 1C). To ascertain the orientation of these extruding vesicles, cultured reticulocytes were stained for PS and with mAb to intracellular epitopes BRIC163¹⁷  (GPA) and BRIC155¹⁸  (AE1), and shown to be inside-out (Figure 1D). To control for correct PS staining, we treated red cells with N-ethyl maleimide, followed by Ca²⁺ and ionomycin as Kuypers et al¹³  (supplemental Figure 1). We have tested in vitro-produced reticulocytes from numerous different cultures and always observe that 5% to 10% of reticulocytes have an external PS-positive inside-out vesicle. Co-staining for PS and the Golgi marker Giantin (Figure 1E), and BRIC163 and mitochondria (Figure 1F), confirm that these inside-out, PS-exposed vesicles are the same internal autophagic vesicles previously described.²  The Mitotracker-stained emerging vesicle (blue) can be seen straddling the plasma membrane (Figure 1F). We assume that autophagic vesicles expelled by maturing reticulocytes would be phagocytosed in vivo by splenic macrophages in individuals with a functional spleen. Our data suggests that a bidirectional trafficking process, as proposed by Lee et al,⁸  is used to generate erythrocytes from mature reticulocytes. However, in the maturing human reticulocyte, this apoptotic-like process combines with autophagy to achieve the reduction in surface area and volume, and simultaneously eliminate unwanted residual intracellular organelles in order to form the biconcave erythrocyte.

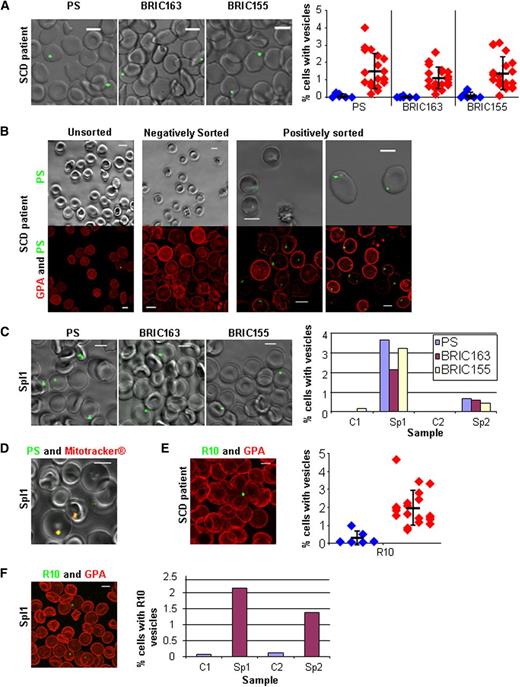

The presence of circulating red cells with exposed PS in patients with hemoglobinopathies is well documented.^10,13  The presence of these cells has been linked to a hypercoagulable state through increased thrombin generation and associated platelet activation.^12,19  Previous studies demonstrating increased PS expression in SCD were done by flow cytometry and it has been assumed that the PS exposure is uniform over the cell surface. We examined the peripheral blood of SCD patients by live cell imaging. PS was only found in discrete areas of the red cell (Figure 2A) and was not uniformly distributed over the surface, as would be expected if caused by the action of a scramblase.⁷  Further imaging confirmed the presence of vesicles positive for intracellular GPA and AE1. Quantitation showed all patients had increased numbers of red cells with vesicles positive for PS, and intracellular GPA and AE1 on their surface when compared to controls (Figure 2A). To confirm the PS-positive cells observed by microscopy correlated with those detected by flow cytometry, we recovered PS-positive SCD cells using a cell sorter and imaged. All cells positively sorted for PS showed fluorescence exclusively in large vesicles. Negatively sorted cells did not show any PS fluorescence (Figure 2B). The flow diagrams of the sort are shown in supplemental Figure 2.

The number of PS-exposed red cells in patients with SCD is higher in those patients who have had a splenectomy.^10,11  Hyposplenism is present in the majority of SCD patients before 12 months of age.²⁰  An increased number of PS-exposed red cells has also been observed by flow cytometry in circulating red cells after splenectomy.²¹  We analyzed red cells from two splenectomized but otherwise healthy individuals. In both cases, splenectomy was performed because of immune-mediated thrombocytopenia and the patients’ hematologic parameters were as expected post-splenectomy. PS at the surface of patient red cells was exclusively on extruding vesicles and not elsewhere on the plasma membrane (Figure 2C). Further imaging confirmed the presence of vesicles positive for intracellular GPA and AE1, and both splenectomized individuals had more PS and intracellular GPA and AE1-positive vesicles on their red cells than controls (Figure 2C). Live dual-staining for PS and mitochondria in SCD red cells showed complete co-localization in these vesicles (Figure 2D). They are analogous to the internal PS-positive vesicles identified in cultured reticulocytes (Figure 1F). Red cells from SCD and splenectomized patients were trypsin-treated and stained with R10, and also found to have elevated levels of internal GPA-decorated vesicles (Figure 2E-F). We provide evidence indicating that PS-exposed red cells described in SCD and splenectomized individuals^9-12  are circulating reticulocytes, which cannot be properly processed because the patients lack a functional spleen.

In mature R2 human reticulocytes, we show that the trafficked vesicles have an inside-out orientation and in vivo these vesicles are likely removed from the maturing reticulocyte by the spleen. Failure to remove these vesicles could explain the observed increase in thrombotic events that are reported to occur in splenectomized individuals. If not removed by the spleen, autophagic PS-exposed vesicles are possibly released directly into plasma where they could be as pathologically active as those attached to red cells. Hyposplenism is a feature of SCD¹⁹  and failure to remove the vesicles from circulating red cells may exacerbate the clinical severity of disease at sites of vaso-occlusion. Transfusion therapy reduces the percentage of PS-positive red cells circulating in SCD patients, although the mechanism is not clear.¹⁰  The development of procedures for removing PS-positive vesicles from circulating red cells ex vivo could provide a useful additional therapy for patients with SCD and other hemoglobinopathies, particularly those patients for whom obtaining sufficient compatible blood for transfusion is problematic.
