Host programmed death ligand 1 is dominant over programmed death ligand 2 expression in regulating graft-versus-host disease lethality

T-cell fate after T-cell receptor ligation is determined in part by the balance between the costimulatory and coinhibitory pathways, which serve to keep the immune system in check. During graft-versus-host disease (GVHD), coinhibitory pathways can be upregulated, reducing injury to the host during acute GVHD.¹  Programmed death 1 (PD-1; CD279), a member of the B7:CD28 superfamily, is an inhibitory receptor that attenuates T-cell receptor signaling by recruitment of phosphatases.^2,3  Interactions between PD-1 and its ligands PD-L1 (B7-H1, CD274) and PD-L2 (B7–dentritic cell [DC], CD273) deliver inhibitory signals that regulate T-cell activation, tolerance, and immune-mediated tissue damage.^4-7  PD-L1 and PD-L2 differ in expression patterns, with PD-L2 being more restricted than PD-L1 expression.⁷  PD-L1 is expressed constitutively on hematopoietic cells and nonhematopoietic cells and upregulates after activation.⁸  PD-L2 expression is restricted primarily to DCs, macrophages, and cultured bone marrow (BM)-derived mast cells.⁹  Broad PD-L1 expression suggests an important role in inhibiting immune responses in lymphoid and nonlymphoid organs.

PD-L1 is a key mediator of T-cell tolerance in tissues, shielding target organs such as islets from diabetogenic T effectors^10,11  or neural tissue in experimental autoimmune encephalomyelitis.¹²  Patients with multiple sclerosis treated with interferon β (IFN-β) have elevated PD-L1 mRNA, suggesting part of the anti-inflammatory effect of IFN-β treatment is a result of PD-L1.¹³  PD-L1 autoantibodies have been found in patients with rheumatoid arthritis and correlate with active disease.¹⁴  Blocking anti-PD-L1 monoclonal antibody (mAb) enhanced alloantigen-specific T-cell expansion and T helper cell 1 (Th1) differentiation and accelerated solid organ graft rejection.¹⁵  PD-L1-immunoglobulin fusion protein given with anti-CD154 Ab or rapamycin prevents solid organ allograft rejection and facilitates tolerance induction.¹⁶  Despite its importance in peripheral tolerance, PD-1/PD-1 ligand interactions in regulating acute GVHD have not been studied in detail. Previously, we reported that blockade or absence of PD-1 on donor cells accelerates GVHD, which is associated with increased IFN-γ production.¹⁷  Here, we investigated the functional significance of PD-1 ligands expressed on host tissues in regulating immune responses in acute GVHD and explored the mechanism of PD-1-ligand-mediated regulation of alloimmune responses.

Information concerning mice, BM transplant (BMT), tissue histology, immunohistochemistry, immunofluorescence, fluorescein isothiocyanate (FITC)-dextran permeability assay, bioluminescence imaging studies, flow cytometry, cytokine enzyme-linked immunosorbent assay, serum lipopolysaccharide detection, metabolism assays, and statistical analyses is detailed in the supplemental Methods on the Blood Web site.

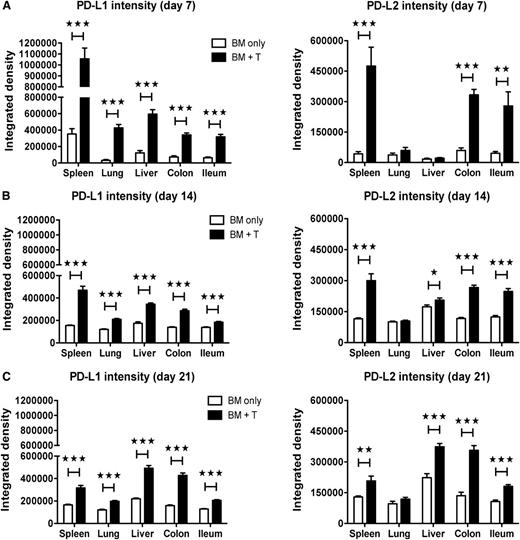

To investigate the expression pattern of PD-1 ligands in acute GVHD, PD-L1 and PD-L2 expression was analyzed by immunohistochemistry. Lethally irradiated C57BL/6 (B6) recipients were transplanted with allogeneic BALB/c BM with or without purified T-cells to induce GVHD, and tissues were analyzed on day 7, day 14, and day 21 after BMT. PD-L1 expression was more abundant in spleen, lung, liver, colon, and ileum in GVHD vs non-GVHD mice, which waned in all but the colon by day 21 after BMT (supplemental Figure 1A-B). PD-L2 expression was more pronounced in spleen, colon, and ileum in GVHD vs non-GVHD mice, and heightened expression in colon and ileum persisted through day 21 after BMT (supplemental Figure 1C-D). PD-L1 and PD-L2 expression was confirmed in a different model (B6→BALB/c; data not shown). Analysis of PD-L1 and PD-L2 intensity by immunofluorescence staining confirmed elevated expression of PD-L1 in spleen, lung, liver, colon, and ileum and PD-L2 in spleen, liver, colon, and ileum during GVHD (Figure 1).

To discern cell types expressing PD-L1 and PD-L2, immunofluorescence costaining was performed. During GVHD, PD-L1 was strongly expressed on CD45⁺ hematopoietic cells and CD31⁺ endothelial cells, whereas PD-L2 expression was limited to hematopoietic cells (supplemental Figure 2). PD-L1 expression was observed on Lyve-1⁺ lymphatic vessels and gp38/podoplanin⁺ stromal cells in ileum. PD-L1 and PD-L2 were expressed on macrophages and DCs, and PD-L1, but not PD-L2, was expressed on T-cells. PD-L1 and PD-L2 expression was confirmed in anti-major histocompatibility complex class I, H-2Kd⁺ host and H-2Kb⁺ donor cells (supplemental Figure 2; data not shown).

To explore differential contributions of PD-L1 vs PD-L2 in GVHD, lethally irradiated BALB/c recipients of supplemental B6 T-cells were given isotype-matched control or anti-PD-L1 and/or anti-PD-L2 blocking mAbs. GVHD-induced lethality was significantly accelerated with anti-PD-L1 vs control Ab (P < .0001; Figure 2A), whereas anti-PD-L2 mAb did not accelerate GVHD lethality at this T-cell dose (P = .055). The magnitude of GVHD acceleration induced by anti-PD-L1 and anti-PD-L2 mAbs was similar to that observed with anti-PD-L1 mAb alone. Increased GVHD severity induced by blocking mAb against PD-L1 was seen using 2 distinct mAbs (MIH-7; 10F.9G2), and no differences were seen between these reagents (supplemental Figure 3A). Lethality was accelerated in a second model in which B10.BR recipients given allogeneic B6 BM, plus splenocytes, were treated with anti-PD-L1 mAb (P < .0001; Figure 2B). GVHD-induced lethality was accelerated further when B10.BR recipients were given a 3-fold higher spleen cell dose (supplemental Figure 3B). Anti-PD-L2 mAb treatment did not accelerate lethality (P = .56). Thus, anti-PD-L1, but not anti-PD-L2, mAb markedly accelerates GVHD lethality.

In support of the idea that blocking function of anti-PD-1 ligand mAbs accounted for accelerated GVHD lethality, studies were performed in PD-L1^−/−PD-L2^−/− BMT recipients. GVHD lethality in B6 PD-L1^−/−PD-L2^−/− recipients of BALB/c BM plus splenocytes was accelerated compared with wild-type (wt) recipients (P < .0001; Figure 2C). Allogeneic PD-L1^−/− recipients had marked augmentation of lethality compared with wt (P = .0001) or PD-L2^−/− (P = .029; Figure 2D) recipients. In contrast to anti-PD-L2 mAb, PD-L2^−/− vs wt recipients had significantly increased GVHD lethality (P = .003; Figure 2D), suggesting anti-PD-L2 mAb did not adequately block PD-1/PD-L2 interactions or anti-PD-L2 mAb blocked an inhibitory effect of a donor T-cell subset in GVHD lethality response.

Because donor CD4⁺25⁺ regulatory T-cell (Treg) depletion accelerates GVHD-induced lethality,¹⁸  we sought to determine whether GVHD acceleration by PD-1/PD-1 ligand blockade was a result of impaired donor Treg function. We compared the survival of wt, PD-L1^−/−, PD-L2^−/−, and PD-L1^−/−PD-L2^−/− mice receiving grafts containing Treg-depleted T-cells. BALB/c donor CD25-depleted T-cells caused accelerated GVHD lethality in PD-1 ligand deficient vs wt recipients (Figure 2E; data not shown). Lethality acceleration rates were similar to that observed with donor Treg-replete T-cells. Differences between anti-PD-L2 mAb administration and PD-L2^−/− recipients cannot be accounted for by adverse effects of anti-PD-L2 mAb on donor Tregs. In another study, BALB/c recipients given a low dose of Treg-replete or Treg-deplete B6 T-cells were treated with isotype-matched control or anti-PD-L1 mAb (Figure 2F). GVHD-induced lethality was significantly accelerated in recipients of Treg-deplete vs Treg-replete T-cells treated with control Ab (P = .0008), and Treg-replete T-cells given anti-PD-L1 vs control mAb (P < .0001). No significant survival differences were seen in recipients of Treg-deplete T-cells given anti-PD-L1 vs control Ab (P = .074), and GVHD lethality was comparable in recipients of Treg-replete vs Treg-deplete T-cells treated with anti-PD-L1 mAb.

Our data indicate that hematopoietic cells and endothelial cells express PD-L1 (supplemental Figure 2). To define which cell type is critical for PD-L1-mediated GVHD suppression, we created BM chimeras (PD-L1^−/−→wt) in which tissue cells were PD-L1^+/+ and BM-derived cells were PD-L1^−/−, wt→PD-L1^−/− chimeras where tissue cells were PD-L1^−/− and BM-derived cells were PD-L1^+/+, and control chimeras (wt→wt). After 3 months, we analyzed peripheral blood lymphocytes and spleen for engraftment; nearly 100% of Ag-presenting cells were of BM donor origin (data not shown). Chimeras were reirradiated and infused with allogeneic BALB/c BM with splenocytes to induce GVHD. As expected, wt→PD-L1^−/− chimeras died significantly faster than wt→wt chimeras (P < .0001; Figure 3). Compared with wt→PD-L1^−/− chimeras, survival was significantly prolonged in PD-L1^−/−→wt chimeras (P = .0009), suggesting that PD-L1 expression by parenchymal cells was more critical in attenuating acute GVHD. Survival was prolonged in wt→wt vs PD-L1^−/−→wt chimeras (P = .06), suggesting a role of PD-L1 expression by host Ag-presenting cells. These data suggest that PD-L1 expression by parenchymal cells contributes to GVHD prevention, consistent with data suggesting that PD-L1 expression by parenchymal cells is required for tolerizing infiltrating T-cells and preventing GVHD persistence¹⁹  and the importance of PD-L1 expression by parenchymal cells in an autoimmune diabetes model.¹¹

To determine the effect of PD-1/PD-1 ligand blockade on GVHD target tissues, BALB/c recipients given supplemental allogeneic B6 T-cells were treated with isotype-matched control Ab or anti-PD-L1 mAb. The composite pathology score and individual target organ score for liver was significantly higher in recipients given anti-PD-L1 vs control Ab, and the GVHD score for ileum was higher in the anti-PD-L1-treated group (supplemental Figure 4A). In addition, B10.BR recipients were given supplemental allogeneic B6 T-cells and treated with isotype-matched control Ab or anti-PD-L1 and anti-PD-L2 mAbs. GVHD-induced lethality was accelerated in recipients given anti-PD-L1 and anti-PD-L2 vs control Ab (P < .0001, data not shown), and GVHD score for colon was significantly higher on day 7 after BMT (supplemental Figure 4B). Histopathologic examination of day 7 tissues showed more severe tissue damage in spleen (supplemental Figure 4C). CD4 T-cell numbers increased significantly in colon on day 7 and day 10, along with increased CD8 T-cells in spleen on day 7 and in ileum on day 10 in recipients treated with anti-PD-L1 and anti-PD-L2 vs control Ab (Figure 4A). Modest to no differences were observed in CD4 or CD8 T-cell numbers in other GVHD organs at either time (Figure 4A; data not shown). By immunohistochemistry, increased T-cell infiltration in colon and ileum was seen in recipients given anti-PD-L1 and anti-PD-L2 vs control Ab (supplemental Figure 4D).

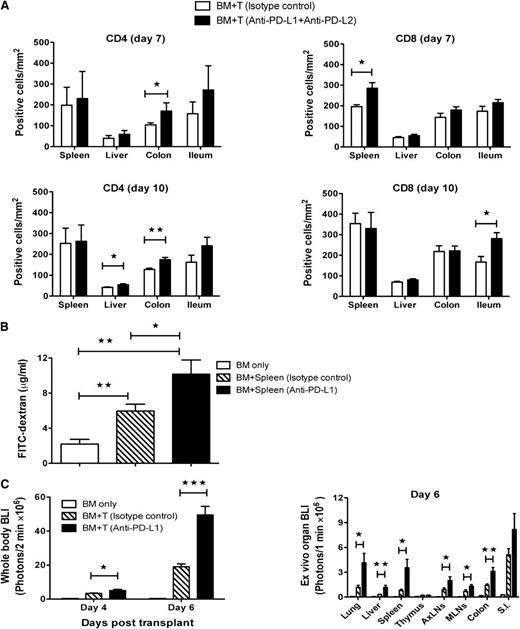

Next we assessed whether increased intestinal injury in recipients treated with anti-PD-1 ligand mAb may have contributed to accelerated lethality. We tested epithelial barrier function by oral administration of FITC-dextran that enters into the bloodstream if the epithelial barrier has been compromised.²⁰  Significantly increased GVHD-related epithelial damage and loss of epithelial integrity was observed in recipients given anti-PD-L1 vs control Ab (Figure 4B).

A hallmark of acute GVHD is alloreactive donor T-cell expansion in a proinflammatory environment, induced by a conditioning regimen and deregulated immune mechanisms. To evaluate the effect of donor T-cell expansion in the absence of host PD-1 ligand expression, BALB/c recipients were given supplemental allogeneic B6 luciferase transgenic (luc⁺) T-cells and treated with isotype-matched control Ab or anti-PD-L1 mAb. Expansion of luc⁺ T-cells was quantified by total photon flux on day 4 and day 6 after BMT, and bioluminescence imaging signal intensity significantly increased on day 6 in anti-PD-L1 vs control Ab-treated recipients (Figure 4C; supplemental Figure 5). Donor luc⁺ T-cells signals in secondary lymphoid organs and GVHD target tissues was significantly higher in recipients given anti-PD-L1 mAb (Figure 4C; supplemental Figure 5), consistent with migration to and proliferation of donor T-cells in acute GVHD.

These results suggest that blocking of host PD-1 ligand expression can cause increased infiltration and expansion of donor T-cells into GVHD target tissues, especially intestine, leading to loss of epithelial cell integrity and increased mortality.

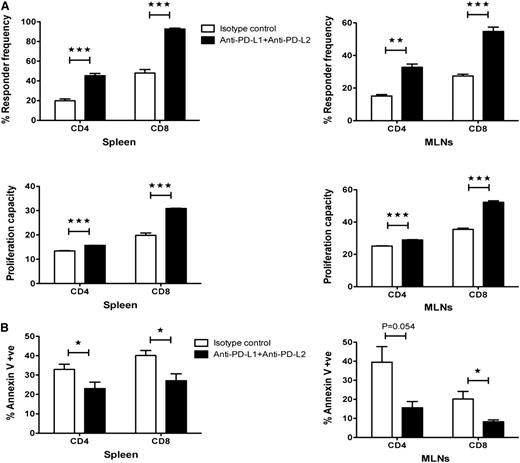

To elucidate potential contributory mechanisms responsible for severe GVHD-induced lethality, donor T-cell proliferation was evaluated post-BMT. Allogeneic splenocytes labeled with carboxyfluorescein diacetate succinimidyl ester (CFSE) dye to track cell division were transferred into lethally irradiated recipients treated with control Ab or anti-PD-L1 and anti-PD-L2 mAbs. Responder frequency and proliferation capacity of donor CD4 and CD8 T-cells were significantly higher in spleen and mesenteric lymph nodes (MLNs) of recipients given anti-PD-L1 and anti-PD-L2 vs control Ab (Figure 5A). Although no significant differences in the average number of divisions of proliferating CD4 T-cells was seen, there was a significantly increased number of CD8 T-cells that had undergone cellular division in recipients given anti-PD-L1 and anti-PD-L2 vs control Ab (data not shown). Frequencies of annexin V⁺ apoptotic donor CD4 and CD8 T-cells on day 5 were significantly lower in spleen of mice given anti-PD-L1 and anti-PD-L2 vs control Ab (Figure 5B). Similar results were obtained for donor CD8 T-cells in MLNs.

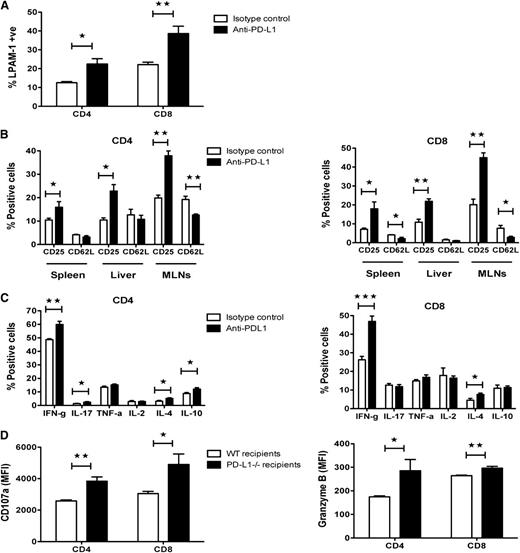

To determine whether loss of host PD-1 ligand influenced donor T-cell effectors, lethally irradiated B10.BR recipients were given B6 BM with spleen cells and blocking anti-PD-L1 mAb or control Ab. On day 7 after BMT, increased infiltration of donor CD4 and CD8 T-cells was observed in spleen, accompanied by a higher frequency of integrin lymphocyte Peyer's patch adhesion molecule-1 (LPAM-1) (α₄β₇) expression on CD4 and CD8 T-cells and a PD-1^hi subset in recipients given anti-PD-L1 vs control Ab (Figure 6A; data not shown). The mucosal homing integrin α₄β₇ is expressed by T- and B-cells that circulate from blood to mucosal sites and is frequently found on T- and B-cells entering the intestinal lamina propria,^21,22  which may indicate direct trafficking of these cells into intestinal tissues. Both donor CD4 and CD8 T-cells in recipients given anti-PD-L1 mAb had an activation phenotype indicated by significantly higher expression of CD25, PD-1 and/or significantly lower expression of CD62L (Figure 6B; data not shown). Fas ligand expression on donor CD4 and CD8 T-cells was significantly lower in recipients given anti-PD-L1 vs control Ab, and donor CD4 and CD8 T-cells from GVHD mice had significantly higher coexpression of PD-1 and a second inhibitory receptor, T-cell immunoglobulin mucin 3 (Tim-3), in PD-L1^−/− vs wt recipients (data not shown). Analysis of lysosomal marker CD107a and cytolytic effector molecule granzyme B indicated increased activation of donor CD4 and CD8 T-cells in PD-L1^−/− vs wt recipients (Figure 6D).

Intracellular staining for cytokine production in spleen, liver, and MLNs revealed 1.5- to 2-fold higher IFN-γ-producing donor CD4 and CD8 T-cells in mice given anti-PD-L1 vs control Ab (Figure 6C; supplemental Figure 6). Frequencies of tumor necrosis factor α (TNF-α)–producing donor CD4 and CD8 T-cells in liver and MLNs, and IFN-γ- or TNF-α-producing T-cells coexpressing PD-1, were significantly higher in recipients given anti-PD-L1 (supplemental Figure 6; data not shown). No significant difference was observed in interleukin 2 (IL-2) production. Increased frequencies of IL-17–, IL-4–, or IL-10–producing donor T-cells were variably seen in spleen, liver, and MLN of mice given anti-PD-L1 vs control Ab, although frequencies of cells expressing either IFN-γ or TNF-α was significantly higher. Frequencies of donor CD4 and CD8 T-cells producing both IFN-γ and TNF-α, or the frequencies of IFN-γ production by CD107a expressing donor CD4 and CD8 T-cells, were significantly higher in PD-L1^−/− vs wt recipients (data not shown). Analysis of serum samples on day 7 after BMT indicated significantly elevated levels of IFN-γ (2.4-fold) and TNF-α (2-fold), and 2-fold higher levels of endotoxin in mice given anti-PD-L1 vs control Ab (supplemental Figure 7).

Taken together, these results suggest loss of PD-L1 expression in host can induce increased donor T-cell infiltration, proliferation, activation, and production of proinflammatory cytokines, which can promote greater GVHD severity in target tissues.

Allogeneic donor T-cells become activated post-BMT and rapidly proliferate in response to histocompatibility antigens expressed on host tissues. T-cell activation induces glucose uptake and glycolysis to produce more adenosine triphosphate (ATP) to maintain the cellular ATP/adenosine 5′-diphosphate ratio under conditions of high energy demand. Studies have shown that compared with syngeneic T-cells, allogeneic T-cells increase aerobic glycolysis and oxidative phosphorylation to maintain cellular ATP.²³  We have verified and extended these findings in wt vs PD-L1^−/− recipients.

Lethally irradiated wt B6, PD-L1^−/−, or Thy1.2⁺ BALB/c recipients were given supplemental Thy1.2⁺ BALB/c BM cells with CFSE-labeled Thy1.1⁺ BALB/c splenocytes. We compared the bioenergetics of proliferating donor T-cells on day 5 after BMT. Naive Thy1.1⁺ BALB/c mice were included as controls. Lactate production, which reflects rate of aerobic glycolysis, increased up to 2-fold in syngeneic BMT vs naive T-cells; lactate production by allogeneic T-cells increased further with significantly higher production in PD-L1^−/− vs wt recipients (Figure 7A). Notably, intracellular amounts of pyruvate in allogeneic vs syngeneic T-cells were significantly less (Figure 7B), as pyruvate is converted into lactate to generate ATP. We measured oligomycin-inhibited O₂ consumption (reflecting the rate of oxidative phosphorylation, OXPHOS) by donor T-cells. The O₂ consumption rate was significantly higher in PD-L1^−/− vs wt allogeneic vs syngeneic recipients (Figure 7C; supplemental Figure 8A). We observed a significant increase in GLUT1 (the major glucose transporter on hematopoietic cells²⁴ ) expression in proliferating (CFSE^lo) donor T-cells in PD-L1^−/− vs wt allogeneic vs syngeneic recipients (Figure 7D), contrasting with the basal expression in resting naive T-cells (supplemental Figure 8B).

We measured mitochondrial membrane potential (ΔΨm), as increased oxygen consumption by alloreactive T-cells could increase trichloracetic acid cycle activity and nicotinamide adenine dinucleotide hydrate production, which could hyperpolarize ΔΨm. Mitochondrial activity in donor T-cells was measured with tetramethylrhodamine (TMRM), a dye accumulating within mitochondria in proportion to ΔΨm. TMRM fluorescence intensity was significantly higher in wt allogeneic vs syngeneic recipients, with the highest intensity in PD-L1^−/− recipients (Figure 7E). TMRM fluorescence intensity was significantly less in CD4 T-cells in resting naive vs syngeneic recipients (supplemental Figure 8C). We measured superoxide production by activated donor T-cells, as higher ΔΨm can induce superoxide production from mitochondrial respiratory chains. Cells were stained with dihydroethidium, a redox-sensitive dye specific for superoxide. Proliferating donor CD4 and CD8 T-cells contained more superoxide in allogeneic PD-L1^−/− vs wt recipients than resting donor cells (Figure 7F; supplemental Figure 8D). Analysis of the proliferation capacity of donor T-cells suggested increased proliferation of both CD4 and CD8 T-cells in PD-L1^−/− vs wt recipients, and alloreactive donor T-cells proliferated significantly faster than donor T-cells in syngeneic recipients (Figure 7G). Frequencies of annexin V⁺ apoptotic donor CD4 and CD8 T-cells were significantly lower in PD-L1^−/− vs wt recipients (Figure 7H).

The PD-1/PD-1 ligand pathway plays an important role in regulating alloimmune responses and in the induction and maintenance of peripheral tolerance. We investigated the role of PD-1 ligands in regulating acute GVHD. Antibody-blocking experiments demonstrated that anti-PD-L1, but not anti-PD-L2, mAb significantly accelerated GVHD lethality, which was also observed in PD-L1^−/− or PD-L2^−/− recipients. The greater GVHD magnitude using genetic vs pharmacologic approaches to block PD-1/PD-L2 interaction might be a result of the ensured loss of PD-L2 expression vs inadequate blocking at the tissue level or a relatively shorter duration of blockade by anti-PD-L2 mAb administration. However, GVHD lethality was comparable in recipients treated with anti-PD-L1 vs anti-PD-L1 plus anti-PD-L2 mAbs and in PD-L1^−/− vs PD-L1^−/−PD-L2^−/− recipients, and GVHD lethality was accelerated in PD-L1^−/− vs PD-L2^−/− recipients, indicating that PD-L1 is the dominant ligand for PD-1 during GVHD. These data are consistent with non-GVHD studies demonstrating that the PD-1/PD-L1 pathway is more relevant than the PD-1/PD-L2 pathway in delivering inhibitory signals to alloreactive T-cells expressing PD-1.^7,25

PD-L1 suppresses T-cell activation.⁷  The importance of PD-L1 as a negative regulator of T-cell activation has been shown in autoimmune disease^10-12  and organ transplantation^15,16  models. PD-L1 expressed by recipient hematopoietic and parenchymal cells induces alloreactive CD8 T-cell exhaustion and reduced graft-versus-leukemia effects in radiation-conditioned recipients.^26-28  In a murine asthma model, PD-L2, but not PD-L1, played a dominant role in controlling tissue damage.²⁹  The predominant role of PD-L2 in regulating short-term alloreactive CD8 T-cell response in irradiated DBA/2 recipients³⁰  suggests the effects of PD-L1 and PD-L2 may be strain- and model-dependent.

PD1 and PD-L1 are highly expressed on Tregs, and PD-L1 and PD-1 play important roles in Tregs development and function.^31-33  Human T-cells overexpressing PD-L1 can induce suppressor activity that can prevent xenogeneic GVHD.³⁴  In contrast, the negative regulatory role of PD-L1 in expansion and function of Tregs has been also reported.³⁵  We considered the possibility that blockade of PD-1/PD-1 ligand interaction may impair the generation of Tregs in vivo, enhancing alloimmune responses and accelerating GVHD. Although infusion of donor T-cells caused accelerated GVHD in PD-L1^−/−, PD-L2^−/−, or PD-L1^−/−PD-L2^−/− vs wt recipients, the rate of acceleration was independent of CD25-depletion of donor T-cells, suggesting that rapid acceleration of GVHD lethality in PD-1 ligand knockout recipients was independent of donor thymus-derived Tregs. In preliminary studies to determine whether decreased peripheral-derived Tregs might be observed in recipients treated with anti-PD-L1 mAb, recipients of CD25-depleted T-cells were noted to have a low frequency of forkhead box P3+ cells (<1.5%), and no significant difference was observed in recipients treated with anti-PD-L1 vs control Ab (data not shown).

A likely contributory mechanism for accelerated GVHD-induced lethality in anti-PD-L1 vs control Ab-treated recipients is increased donor T-cell infiltration in GVHD tissues, especially the gastrointestinal tract and secondary lymphoid organs, along with decreased annexin V⁺ donor T-cells. Chimera studies have shown that PD-L1 expressed on nonhematopoietic cells can serve as a key mediator of T-cell tolerance within tissues, protecting target organs from potentially pathogenic self-reactive T-cells,^11,14  and PD-L1 expression may be required for apoptosis of activated T-cells.^10,36  Lymphatic endothelial cells can induce peripheral tolerance via PD-L1.³⁷  We have shown that in GVHD, PD-L1 is highly expressed on hematopoietic cells and endothelial cells, including Lyve-1⁺ cells, and PD-L1 expression by parenchymal cells is more critical in regulating acute GVHD. We speculate that loss of PD-L1 expression in tissues resulted in increased infiltration of alloreactive donor T-cells, causing more severe tissue damage.

IFN-γ production by Th1 cells plays an important role in Th1-mediated tissue damage during GVHD.³⁸  IFN-γ may upregulate host major histocompatibility complex, costimulatory molecules, or it may stimulate production of other inflammatory cytokines³⁹  that may function as a GVHD effector mechanism. IFN-γ can also downregulate Th1 inflammatory response by inducing donor T-cell apoptosis and upregulating PD-L1 tissue expression that can mediate anergy and apoptosis of activated infiltrating T-cells.⁴⁰  The frequency of IFN-γ producing donor T-cells in spleen, MLN, and liver was significantly higher in recipients treated with anti-PD-L1 mAb. Elevated LPAM-1 (α₄β₇) expression by activated donor T-cells coexpressing PD-1 suggest that increased IFN-γ production by PD-1/PD-L1 blockade may have resulted in upregulation of LPAM-1 expression and increased homing into intestine, causing more tissue damage. Studies have reported that α₄β₇⁺ vs α₄β₇⁻ donor T-cells induced more severe intestinal GVHD,⁴¹  and donor CD4 T-cells localized in intestine and associated lymphoid tissues expressed α₄β₇ and produced IFN-γ early during acute graft-versus-host reaction.⁴²  The higher pathologic GVHD score, increased infiltration of donor T-cells, and loss of epithelial integrity suggest that blockade of PD-1/PD-L1 interaction induced significantly higher frequency of IFN-γ-producing allogeneic T-cells that resulted in severe gastrointestinal injury. These data are consistent with findings by others suggesting that IFN-γ can cause tissue damage in gut and liver during acute GVHD.^38,43  TNF-α production by alloreactive T-cells is also important in the induction of GVHD,⁴⁴  and blockade of TNF-α is used clinically to treat GVHD.⁴⁵  Blocking of PD-1/PD-L1 interaction induced significantly higher levels of TNF-α in the circulation and a higher frequency of TNF-α–producing allogeneic T-cells in liver and MLNs, which may have contributed to tissue damage and exacerbation of the disease. Intestinal damage during acute GVHD from TNF-α can cause increased leakage of inflammatory stimuli, including lipopolysaccharide, into the systemic circulation, which then triggers additional TNF-α production, making the intestine a pivotal target organ in the pathophysiology of GVHD.⁴⁶

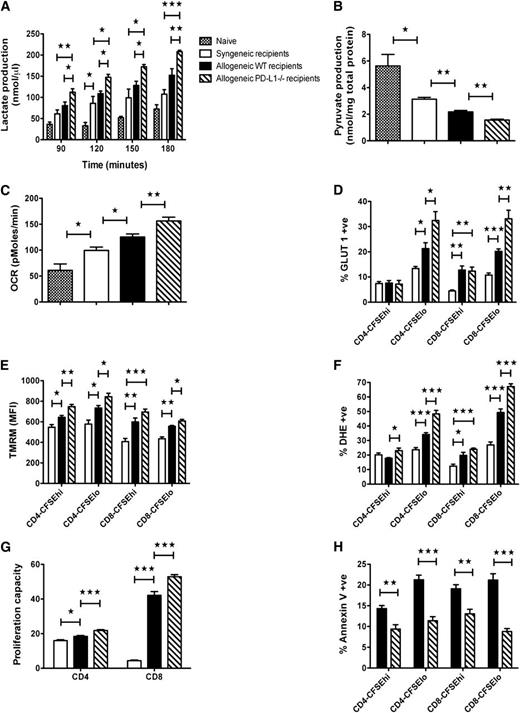

In GVHD, donor T-cells proliferate in response to host alloantigenic disparities and mediate lethal immune response. Proliferating donor T-cells in PD-L1^−/− recipients increased OXPHOS by 2.5-fold and lactate production up to 4.5-fold vs resting T-cells, and GLUT1 expression was increased by 60% to 70%, suggesting that alloreactive T-cells used both aerobic glycolysis and OXPHOS for ATP synthesis. Our results are consistent with the findings that uptake of glucose analog is increased in mice and humans during GVHD.⁴⁷  Signaling through inhibitory receptors on T-cells (CTLA-4 or PD-1) decreases protein kinase B activity and glycolysis,⁴⁸  suggesting that blockade of PD-1/PD-L1 interaction will increase metabolic activity and function of proliferating donor T-cells. Mitochondrial electron transport chain is a major source of reactive oxygen species (ROS) in mammalian cells in the form of superoxide.⁴⁹  Mitochondrial ROS production also increases in proportion with ΔΨm, as hyperpolarization of ΔΨm can prolong the half-life of reactive intermediates, which increases the formation of superoxide.⁵⁰  Therefore, it is not surprising that increased OXPHOS by alloreactive T-cells would exhibit increased ROS production. Our results also suggest that donor T-cells in PD-L1^−/− recipients exhibited both hyperpolarization of ΔΨm and increased superoxide production.

In summary, we demonstrated the important function of PD-L1 in regulating acute GVHD. Key findings were: PD-L1 and PD-L2 upregulation in GVHD target organs, that PD-1/PD-L1 was more critical than PD-1/PD-L2 in downregulating GVHD, and that rapid mortality onset in PD-L1^−/− hosts were associated with increased proliferation, activation, Th1 cytokine-production, and metabolic stress of donor T-cells, along with increased homing in GVHD target tissues including gut, as well as loss of intestinal epithelial integrity. Tissue expression of PD-L1 was important in regulating alloreactive donor T-cell responses after BMT. Taken together, these data point to the critical role of PD-L1, but not PD-L2, in the prevention of GVHD.
