Quantitative analysis of murine terminal erythroid differentiation in vivo: novel method to study normal and disordered erythropoiesis

Erythropoiesis is a process during which multipotent hematopoietic stem cells (HSCs) proliferate, differentiate, and ultimately produce enucleate reticulocytes. Although erythropoiesis is continuous and dynamic, it is broadly distinguished to occur in 2 phases: erythroid progenitor proliferation and terminal erythroid differentiation. Early stage erythropoiesis refers to the process by which HSCs proliferate, differentiate, and generate erythroid progenitors: burst forming unit-erythroid (BFU-E) and colony forming unit-erythroid (CFU-E). BFU-E and CFU-E are traditionally defined by colony assays.^1-4  Abnormal BFU-E or CFU-E colony forming ability reflects either perturbed commitment of HSCs to the erythroid lineage or intrinsic defects in BFU-E or CFU-E.

Terminal erythroid differentiation begins at the morphologically recognizable proerythroblast stage. Murine proerythroblasts undergo 3 mitoses to generate sequentially basophilic, polychromatic, and orthochromatic erythroblasts. Orthochromatic erythroblasts expel their nuclei to produce reticulocytes. Notable cellular changes occur during terminal erythroid differentiation, including decreases in cell size, chromatin condensation, and hemoglobinization. Under physiologic conditions, a single proerythroblast (Pro) will generate 2 basophilic erythroblasts (Baso), and the 2 basophilic erythroblasts produce 4 polychromatic erythroblasts (Poly). Finally, the 4 polychromatic erythroblasts generate 8 orthochromatic erythroblasts (Ortho). Thus, it is expected that during normal murine terminal erythroid differentiation, the ratio of Pro:Baso:Poly:Ortho follows a 1:2:4:8 pattern.

To understand the molecular basis of abnormal erythropoiesis leading to many inherited and acquired anemias, there is a critical need for a method that quantifies the population of cells at each distinct stage during in vivo terminal differentiation. To address this issue, more than a decade ago, Socolovsky et al introduced a flow cytometry-based assay using TER119 and CD71 as surface markers to distinguish murine erythroblasts at different differentiation stages.⁵  The method was subsequently improved by adding forward scatter (which reflects the cell size) as an additional marker.⁶  These methods have been extensively used to study erythropoiesis in a variety of murine models of disordered erythropoiesis. However, these methods fail to recapitulate the physiologic progression of normal murine terminal erythroid differentiation in a ratio of Pro:Baso:Poly:Ortho of 1:2:4:8. Indeed, in various published studies hugely variable results were obtained.^7-12  To better resolve distinct stages of murine erythroblasts, we recently examined the expression of individual membrane proteins during murine erythropoiesis and documented that the adhesion molecule CD44 exhibited a progressive and dramatic decrease from Pro to reticulocytes.¹³  Based on the changes in expression levels of GPA, CD44 and cell size, we developed a cell-sorting strategy to isolate significantly more homogeneous populations of erythroblasts at each stage of terminal differentiation, than had been achieved in earlier work.¹³  However, this technique was not optimized to reproducibly quantify the normal physiologic ratio of Pro:Baso:Poly:Ortho of 1:2:4:8 or identify potential pathology in terminal erythroid differentiation in inherited and acquired red cell disorders.

Here we outline a method that accurately captures the physiologic progression of terminal differentiation in murine bone marrow and spleen. We observe that the ratio of Pro:Baso:Poly:Ortho in mouse bone marrow follows the 1:2:4:8 pattern, demonstrating the expected doubling of cell number with each successive mitosis. To validate this methodology as a tool for study of erythropoiesis in red cell disorders, we analyzed the progression of erythropoiesis in 3 anemic mouse models. We observed a normal progression of erythropoiesis in 2 anemic mouse models: phlebotomy-induced acute anemia and chronic hemolytic anemia because of 4.1R deficiency, indicating no stage-specific defects inhibiting cells from proceeding along the differentiation pathway in normal numbers. In contrast, β-thalassemia intermedia (Hbb^th1/th1) mice demonstrated a disordered progression from Pro to Baso erythroblasts. Interestingly, transferrin therapy, which restores the normal erythropoiesis in Hbb^th1/th1 mice, corrected the disordered progression. The innovative method we outlined that enables the quantification of cells at each stage of differentiation during in vivo erythropoiesis, should facilitate detailed mechanistic studies to define stage-specific defects in erythroid maturation in various inherited and acquired red cell disorders.

The 4.1R knockout mice were previously described¹⁴  and Hbb^th1/th1 mice¹⁵  in a mixed genetic background were purchased from Jackson Laboratories. Both mice lines were backcrossed onto a C57BL/6 background. C57BL/6 (WT) mice were purchased from Jackson Laboratories. All mice were maintained at the New York Blood Center Animal Facility under specific pathogen free conditions according to institutional guidelines. Animal protocols were reviewed and approved by the Institutional Animal Care and Use Committee. Four to 6-month-old, male WT, 4.1R knockout, and Hbb^th1/th1 mice were used in the studies. WT mice were bled to induce anemia according to the method previously described.¹⁶ Hbb^th1/th1 mice were treated with 10 mg (400 mg/kg/d) of transferrin or PBS via intraperitoneal injections daily for a total of 20 days; this treatment course correlated with our previous data obtained after 60 days of injections (data not shown).¹⁷

CD16/CD32 (Fcγ III/II Receptor), FITC-conjugated anti-Ter119, APC-conjugated anti-CD44, APC-Cy 7–conjugated anti-CD45, APC-Cy 7–conjugated anti-CD11b, APC-Cy 7–conjugated anti-GR1, and 7AAD were purchased from BD Bioscience. Anti-transferrin receptor antibody was from Invitrogen.

For bone marrow single-cell suspension preparation, cells from mice tibia and femur were flushed with PBS/0.5% BSA/2mM EDTA and the cell suspension was gently passed through 27½ G needle 3 to 4 times. For spleen single cell suspension preparation, a whole spleen was placed into a cell strainer and smashed through the cell strainer into a petri dish. The cell strainer was rinsed with 5 mL cold PBS/0.5%BSA buffer. The cells were transferred to a 15-mL conical tube and centrifuged at 300g for 5 minutes. After centrifugation, the cell pellet was suspended in PBS/0.5% BSA buffer.

A single-cell suspension of bone marrow or spleen was centrifuged at 300g for 10 minutes, at 4°C. After centrifugation, 10⁷ cells were resuspended in 90 μL of buffer, to which 10 μL of mouse CD45 MicroBeads (Miltenyi Biotec) was added. The mixture was incubated for 15 minutes at 4°C, and after the addition of 1 mL of buffer, centrifuged at 300g for 10 minutes. The cell pellet was resuspended in 500 μL of buffer. The CD45⁻ and CD45⁺ cells were separated by magnetic separation with LS columns according to the instruction from the manufacture (Miltenyi Biotec). The flow through fraction (CD45⁻ cells) was collected for further staining.

Cells were suspended in PBS/0.5% BSA buffer at the concentration of 10⁶/80 μL and incubated with rat anti–mouse CD16/CD32 (2.5 μg/10⁶ cells) for 15 minutes on ice. Samples were subsequently stained with FITC-conjugated rat anti–mouse TER-119 (0.5 μg/10⁶ cells), APC-conjugated rat anti–mouse CD44 (0.2 μg/10⁶ cells), APC-Cy 7–conjugated anti-CD45 (0.1 μg/10⁶ cells), APC-Cy 7–conjugated anti-CD11b (0.1 μg/10⁶ cells), and APC-Cy 7–conjugated anti-GR1(0.1 μg/10⁶ cells) on ice for 20 to 30 minutes in the dark. Cells were washed twice with 700 μL PBS/0.5% BSA. Finally, cells were suspended in 100 μL PBS/0.5% BSA and stained with the viability marker 7-AAD (0.25 μg/10⁶ cells) on ice for 10 minutes in the dark. After the staining, cells were suspended in 0.4 mL of PBS/0.5%BSA and analyzed within 1 hour of staining using BD FACSDiva Version 6.1.2 software on a FACSCanto flow cytometer (Becton Dickinson). The instrument settings were as follows: FSC: 319, SSC: 568; voltage for different fluorescent dyes: FITC:575, PE: 661, APC: 676, APC-Cy 7: 670, 7-AAD: 691. Unstained cells were used as a negative control.

Using 7AAD as a marker, dead cells were gated out. Among live cells, the residual leukocytes, monocytes, and granulocytes remaining after CD45 depletion were gated out using APC-Cy7–conjugated CD45, GR1, and CD11b as markers. CD45⁻GR1⁻CD11b⁻ TER119⁺ cells were analyzed in 2 ways: TER119 versus CD44 and CD44 versus FSC. Population I was gated on the CD44/TER119 plot, which is defined as CD44^hiTER119^low population. All other populations were gated on the CD44/FSC plot. In this plot, there are 2 very clear clusters which we gated as IV and V. A less clear cluster below region V was gated as region VI. Similarly, a less well-defined cluster on the upper-right side of region IV was gated as region III. Finally, the area between region I and region III was gated as region II.

To isolate erythroblasts at different stages of maturation, 200 × 10⁶ cells were suspended in 8 mL PBS/0.5% BSA in a 50-mL tube. Cells were blocked with rat anti–mouse CD16/CD32 (2.5μg /10⁶ cells) for 15 minutes and subsequently stained with FITC rat anti–mouse TER-119 (0.5 μg/10⁶ cells), APC rat anti–mouse CD44 (0.2 μg/10⁶ cells), APC-Cy 7–conjugated anti-CD45(0.1 μg/10⁶ cells), APC-Cy 7–conjugated anti-CD11b (0.1 μg/10⁶ cells), and APC-Cy 7–conjugated anti-GR1(0.1 μg/10⁶ cells) antibodies, and then incubated on ice for 30 minutes in the dark. Cells were washed twice with 40 mL PBS/0.5% BSA buffer and resuspended in 8 mL PBS/0.5% BSA buffer and stained with the viability marker 7-AAD (0.25 μg/10⁶ cells) on ice for 10 minutes in the dark. Sorting was performed on a MOFLO high-speed cell sorter (Beckman-Coulter).

One-hundred milliliters of cell suspension containing 10⁵ sorted cells was used to prepare cytospin preparations on coated slides, using the Thermo Scientific Shandon 4 Cytospin. The slides were stained with May-Grunwald (Sigma-Aldrich MG500) solution for 5 minutes, rinsed in 40mM Tris buffer (pH 7.2) for 90 seconds, and subsequently stained with 1:10 diluted Giemsa solution (Sigma-Aldrich GS500) for 15 minutes.

Serum samples were separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) using 10% polyacrylamide gels, and the proteins were electrophoretically transferred to polyvinylidene difluoride membrane (Immobilon-P; Millipore). Membranes were blocked for 1 hour in TBS-T (10mM Tris-HCl, pH 8.0; 150mM NaCl; 0.05% Tween 20) containing 5% skim milk, followed by 1 hour incubation with anti-transferrin receptor antibody. Blots were washed and incubated for 1 hour at room temperature with the secondary antibody (horseradishperoxidase [HRP]–conjugated). Immunoreactive bands were visualized by the enhanced chemiluminescence (ECL) method (Amersham Bioscience) according to standard procedures.

All data are reported as mean ± SD. We performed analysis for statistically significant differences with the student unpaired t test.

It is well accepted that during murine terminal erythroid differentiation the proerythroblast undergoes 3 cell divisions to differentiate sequentially into basophilic, polychromatic, and orthochromatic erythroblasts. Thus, it is expected that under normal physiologic conditions 1 proerythroblast would produce 8 orthochromatic erythroblasts. To develop a method that would accurately reflect the physiologic progression of in vivo terminal differentiation and enable the quantitation of the number of cells in the various developmental stages, we first depleted CD45⁺ cells from single cell suspensions of normal murine bone marrow by magnetic separation. The CD45⁻ cells were then stained with FITC-conjugated rat anti-mouse TER119, APC-conjugated rat anti–mouse CD44, APC-Cy 7–conjugated anti-CD45, APC-Cy 7–conjugated anti-CD11b, APC-Cy 7–conjugated anti-GR1 and the viability marker 7AAD. The stained cells were analyzed by flow cytometry.

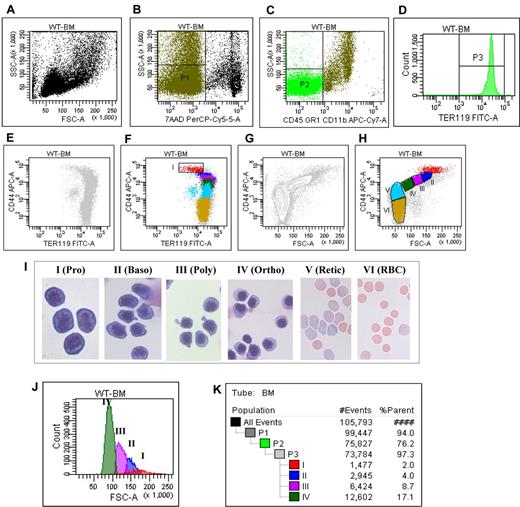

For clarity, the entire procedure for the gating strategy is shown in Figure 1 and summarized in this section: (1) Figure 1A shows the plot of FSC versus SSC of all cells in the cell suspension being analyzed; (2) the live cells (P1) were gated as 7AAD negative cells (Figure 1B); (3) within the P1 population, cells of erythroid lineage (P2) were gated as CD45⁻CD11b⁻GR1⁻ cells (Figure 1C); (4) histogram of TER119 expression of P2 showed that all P2 cells were TER119 positive (Figure 1D); (5) plot of CD44 versus TER119 of the TER119 positive cells revealed a distinct CD44^hiTER^low population (Figure 1E), which was gated as region I (Figure 1F); and (6) plot of CD44 versus FSC of the TER119 positive cells revealed 4 naturally occurring cell clusters (Figure 1G), which were gated as region III, IV, V, and VI, respectively, and the nonclustered region between region I and region III was gated as region II (Figure 1H).

The representative images of the sorted populations are shown in Figure 1I which reveals that region I through region VI are proerythroblasts, basophilic erythroblasts, polychromatic erythroblasts, orthochromatic erythroblasts, reticulocytes, and mature red cells, respectively. The purity of each population is > 90%. As shown in Figure 1J, the FSC (reflecting the cell size) decreased progressively from proerythroblasts to orthochromatic erythroblasts. Importantly, Figure 1K reveals that proerythroblasts, basophilic erythroblasts, polychromatic erythroblasts, and orthochromatic erythroblasts account for 2%, 4%, 8.7%, and 17% of the total TER119 positive cells, respectively, demonstrating the doubling of the cells on each mitosis. The proportion of cells at each distinct stage of maturation after normalization based on total nucleated erythroid cells as 100% is summarized in Table 1. Pro, Baso, Poly, and Ortho account for 6%, 13%, 28%, and 53% of the total nucleated erythroblasts, respectively, validating the doubling of cells from one stage to the next.

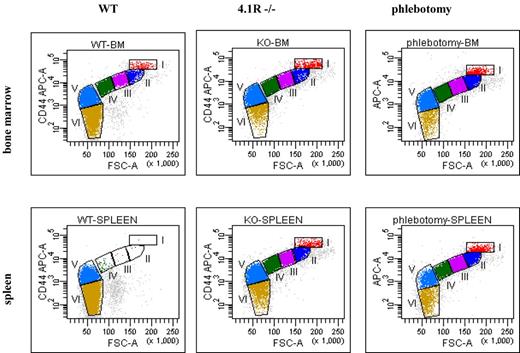

To validate the use of the methodology as a tool for studying erythropoiesis in red cell disorders, we analyzed the progression of erythropoiesis in 3 anemic mouse models; 2 models with expected normal progression of erythropoiesis and 1 model with ineffective erythropoiesis. First, we examined erythropoiesis profiles in mice with chronic hemolytic anemia because of deficiency of the red cell cytoskeletal protein 4.1R¹⁴  and in WT mice with phlebotomy-induced acute anemia. Because the spleen becomes erythropoietic in mice under stress conditions, we examined the erythropoiesis profiles of both bone marrow and spleen. Figure 2 top panel shows the representative erythropoiesis profiles of bone marrow from WT, 4.1R^−/− and phlebotomized WT mice. Relative to WT bone marrow, we demonstrate an increased proportion of nucleated erythroblasts (I+II+III+IV) accompanied by a decreased proportion of enucleated erythrocytes (V+VI) in both 4.1R^−/− and phlebotomized WT bone marrow. Quantitative analysis shown in Table 2 demonstrated that in WT bone marrow (from 2 femurs and 2 tibias), the number of total nucleated erythroblasts is ∼ 6.4 × 10⁶, whereas in 4.1R^−/− and in phlebotomized WT mouse bone the total nucleated erythroblasts increased to ∼ 11.3 × 10⁶ and ∼ 10.7 × 10⁶, respectively. These findings demonstrate the increased erythropoietic activity of bone marrow under stress conditions. Of note, within the nucleated erythroblast population, the Pro, Baso, Poly, and Ortho maintain the 1:2:4:8 ratio (Table 1), confirming a normal progression of erythropoiesis in bone marrow under erythropoietic stress. Figure 2 bottom panel shows the representative erythropoiesis profiles of spleen from WT, 4.1R^−/−, and phlebotomized WT mice. Although few erythroblasts are present in the WT spleens, significantly increased numbers of erythroblasts can be found in the spleens of both 4.1R^−/− and phlebotomy-induced anemic WT mice because of stress erythropoiesis in the spleen. Quantitative analysis showed that in WT spleen, there were only 0.7 × 10⁶ nucleated erythroblasts. In marked contrast, in the 4.1R^−/− and phlebotomy-induced anemic WT mouse spleens, the nucleated erythroblasts increased to 66.5 × 10⁶ and 73.1 × 10⁶, respectively (Table 2). Moreover, similar to bone marrow, within the nucleated erythroblast population, the Pro, Baso, Poly, and Ortho erythroblasts also followed the 1:2:4:8 ratio (Table 1), demonstrating the normal progression of erythropoiesis in the spleen as in the bone marrow in these 2 anemic models with chronic and acute anemia.

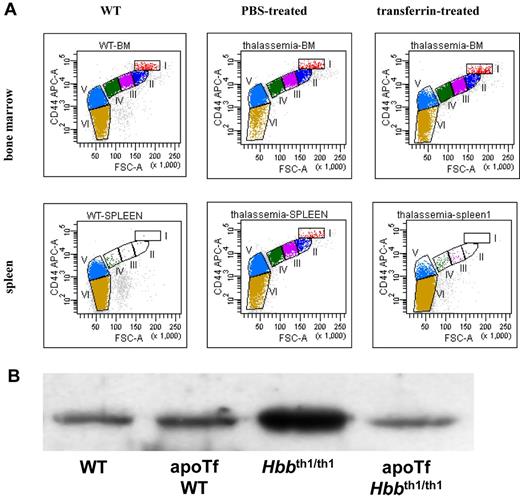

β-thalassemia is characterized by ineffective erythropoiesis in which erythroid expansion does not fully compensate the anemia.^18,19  However, it remains largely unclear at which stage of erythropoiesis these alterations occur in β-thalassemic mice. To address this, we quantified in vivo erythropoiesis of both bone marrow and spleen in Hbb^th1/th1 mice. Figure 3A top and bottom panels show the representative erythropoiesis profiles of bone marrow and spleen from WT, PBS-injected Hbb^th1/th1 mice, and transferrin-injected Hbb^th1/th1 mice. Similar to 4.1R^−/− and phlebotomy-induced anemic mouse models, there is an expansion of erythropoiesis in the bone marrow as well as spleen of Hbb^th1/th1 mice. In PBS-treated Hbb^th1/th1 mouse bone marrow, the nucleated erythroblasts increased to 16.5 × 10⁶ (from 6.4 × 10⁶ in WT bone marrow). Interestingly, in transferrin-treated Hbb^th1/th1 mouse bone marrow, the total number of nucleated erythroblasts is normal. The expansion of erythropoiesis in PBS-treated Hbb^th1/th1 mouse spleen is even more dramatic as there is a > 100-fold increase in nucleated erythroblasts (from 0.7 × 10⁶ in WT to 90 × 10⁶ in PBS-treated Hbb^th1/th1). However, different from 4.1R^−/− and phlebotomized WT bone marrow and spleen (both of which exhibited normal progression of terminal erythroid differentiation) quantitative analysis revealed a decrease in the percentage of Pro and disproportional ratio of Pro to Baso erythroblasts in Hbb^th1/th1. As shown in Table 1, although Pro account for 6% to 7% of total nucleated erythroblasts in WT, as well as in the 2 anemic mouse models, they only account for 4.4% in Hbb^th1/th1 mice. Moreover, whereas the ratio of Pro/Baso erythroblasts is 1:2 in WT and 2 anemic mouse models, it increased to 1:3.5 in Hbb^th1/th1 mice. Importantly, the erythropoiesis profiles are normalized in transferrin-treated Hbb^th1/th1 mouse bone marrow (Table 1). Lastly, the elevated serum soluble transferrin receptor 1 (sTfR1), representing the total increased erythroid population in Hbb^th1/th1 mice, is reversed in transferrin-treated Hbb^th1/th1 mice (Figure 3B). This later finding justifies the use of PBS and transferrin-treated Hbb^th1/th1 mice as a model in which to assess aberrant erythropoiesis and its resolution.

This study establishes a reliable method to quantify differentiating mouse erythroblasts and to monitor terminal in vivo erythropoiesis. Using this method, we are able to define stage-specific changes in terminal erythroid differentiation in the bone marrow and spleen of Hbb^th1/th1 mice and their reversal after transferrin treatment, previously shown to ameliorate disease in Hbb^th1/th1 mice.¹⁷

A flow cytometry-based assay using CD71 (sometimes in conjunction with forward scatter) as a differentiation marker has been extensively used to study murine erythropoiesis in vivo over the past decade. Our analysis of more than 40 previous published studies using CD71 as a marker reveal large variations in the ratio of Pro:Baso:Poly:Ortho in normal WT bone marrow. For example, Halupa et al reported percentages of Pro:Baso:Poly:Ortho as 1.1: 39.5: 4.1: 55.3 for WT mice,⁹  whereas Mukai and colleagues reported percentages of 0.5: 30.1: 25.6: 9.3,¹⁰  and Diwan et al reported as 2: 16: 2: 27.¹¹  Similarly, our analysis of 10 previous studies using CD71 in conjunction with forward scatter also reveals large inconsistencies in the ratio of Pro:Baso:Poly:Ortho in normal murine bone marrow.^6,20-28  None of these studies were able to document physiologic progression of terminal erythroid differentiation in normal bone marrow. As such, the reported stage-specific erythropoietic defects in various genetically engineered mice using CD71 as a marker is highly problematic.

The novel method presented in this paper enables successful in vivo quantitation of mouse terminal erythroid differentiation. This success is largely attributed to clear separation of all terminally differentiating erythroid cells, namely Pro, Baso, Poly, Ortho erythroblasts, reticulocytes, and mature red blood cells, using surface markers TER119 and CD44 in conjunction with forward scatter. The failure of previous studies to quantify this process using Ter119 and CD71 is because of the fact that in contrast to CD44 expression that decreases progressively after each cell division, there is little change in CD71 expression after each cell division.¹³  In the original study using CD71 and TER119 as markers for erythroid cell differentiation, the authors defined 4 regions I, II, III, and IV. They indicated that these regions are enriched in Pro, Baso, Poly, and Ortho erythroblasts, respectively.⁵  Even after the addition of FSC as an additional marker, the defined erythroblast populations (namely Pro-E, Ery-A, Ery-B, and Ery-C) did not improve the discrimination between different stages.

Our findings also provide new insights into the splenic and bone marrow responses to stress erythropoiesis. In mice, although it is well accepted that the spleen becomes erythropoietic under stress conditions, it has been unclear to what extent the bone marrow can increase its erythroid output in response to stress. Furthermore, the extent of the splenic response has not been carefully defined. Our findings demonstrate that the total number of erythroblasts (which reflects the erythropoietic activity) is increased ∼ 2-fold in the bone marrows of all 3 anemic mice: 1 acute (phlebotomy-induced) and 2 chronic anemic mouse models (4.1R^−/− and Hbb^th1/th1), implying that murine bone marrow can double its erythropoietic activity in response to anemic stress. In marked contrast, under both chronic and acute stress conditions the erythropoietic response of the spleen increases much more dramatically (∼ 100-fold), with the spleen transforming from an essentially non-erythropoietic organ in the adult mice to an active erythropoietic tissue.

The major observed effect of erythropoiesis in Hbb^th1/th1 mice is a disturbed proportion of proerythroblasts versus basophilic erythroblasts in bone marrow and spleen samples. During normal erythropoiesis, iron is progressively incorporated into hemoglobin and thus safely sequestered, avoiding potential redox reactive damage. Thus, early stage erythroid precursors are exposed to high iron concentrations, as evidenced by CD71-positive early stage erythroid precursors, with later stages accumulating hemoglobin as it is progressively synthesized and thus reducing total cellular iron. In β-thalassemia, an additional progressive accumulation of unpaired α globin occurs. Furthermore, systemic iron overload, as occurs in β-thalassemia, may result in the formation of labile iron and negatively affect cells with high iron uptake in addition to unpaired α globin membrane precipitation in later stages. Improved erythropoiesis after iron chelation is evident in transfusion-requiring anemias.²⁹  Taken together, the increased systemic iron, disordered hemoglobin synthesis, and high iron uptake support the particular sensitivity of early erythroid precursors to labile iron-induced damage in β-thalassemia. We hypothesize that once erythroid precursors survive a critically sensitive point in maturation, cell division proceeds relatively unimpeded. Our data suggest that ineffective erythropoiesis in β-thalassemia results from dysfunctional differentiation because of excess iron and unpaired α globin chains and is reversed by exogenous transferrin; this finding is also supported by normalized serum sTfR1, a typical marker reflecting degree of defective or iron-deficient erythropoiesis.^30,31

This newly established method is broadly applicable in the study of altered murine erythropoiesis. Moreover, its use will probalby provide important leads for mechanistic studies defining stage-specific defects in erythroid maturation in inherited and acquired red cell disorders.

The authors thank Leni VonBonsdorff (Sanquin Oy, Finland) for providing human transferrin for experiments in Hbb^th1/th1 mice.

This work was supported in part by National Institutes of Health grants DK26263, DK32094, HL105682, and DK095112.

National Institutes of Health

Contribution: J.L., J.Z., H.L., and F.X. performed experiments and analyzed the data; Y.G., L.D.F, J.A.C., and N.M. designed the experiments, analyzed the data, and edited the paper; X.A. designed the experiments, analyzed the data, and wrote the paper.

Conflict-of-interest disclosure: The authors declare no competing financial interests.
