Erk1 and Erk2 are required for maintenance of hematopoietic stem cells and adult hematopoiesis

Extracellular signal-regulated kinase 1 (Erk1) and Erk2 (Erk/12) encode serine/threonine kinases belonging to the mitogen-activating protein kinase family, and play critical roles in transmitting signals from a plethora of cytokines and growth factors.¹  ERK1 and ERK2 are >80% identical, and both phosphorylate a myriad of substrates, many of which are cell line- and agonist-specific.^1-3 Erk1^−/− mice are viable and fertile,^4,5  whereas Erk2^−/− mice are embryonic lethal due to placental defects.^6-9

ERK1/2 activation appears to be required for the survival and differentiation of many types of hematopoietic cells,^2,3,10  but most studies of ERK1/2 function in hematopoiesis have used pharmacologic blockade of mitogen-activated protein kinase kinase 1 (MEK1) and MEK2, the kinases that activate ERK1/2. Genetic experiments argued that Erk1 is required for T-cell development,⁴  although this observation is controversial.^5,9,11  T-cell–specific deletion of Erk2 also leads to defective T-lymphocyte maturation, suggesting that in some cellular contexts, ERK1 cannot compensate for ERK2.⁹  By contrast, either Erk1 or Erk2 is sufficient for normal B-cell development,¹²  although this process is markedly impaired in Erk1/2 doubly-deficient B cells.¹²  Together, these observations suggest that ability of Erk1 and Erk2 to compensate for one another might be cell-type specific. To date, the role of Erk1/2 in hematopoietic stem cell (HSC) function remains to be characterized. Here, we show that Erk1/2 are required in a cell-autonomous manner for the maintenance of HSCs.

Erk1^−/−5  and Erk2^flox/flox9  mice were crossed to Mx1-Cre mice (The Jackson Laboratory, Bar Harbor, ME), as indicated. All mice were maintained in accord with guidelines approved by the animal welfare committee of the University Health Network.

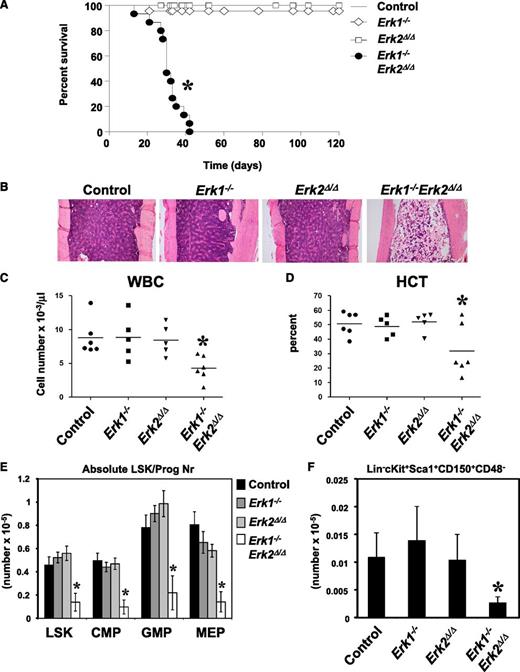

To assess ERK1 and ERK2 function in hematopoiesis, we generated Mx1-Cre;Erk2^flox/flox and Mx1-Cre Erk1^−/−;Erk2^flox/flox mice in a C57BL/6J background and induced Cre recombinase expression by administration of polyinosinic-polycytidylic acid (pIpC). Hematopoiesis in untreated or pIpC-treated Erk2^flox/flox (hereafter, “control”) mice was indistinguishable from that in wild-type C57BL/6J animals (data not shown). Most induced Mx1-Cre Erk1^−/−;Erk2^flox/flox (hereafter, Erk1^−/−Erk2^Δ/Δ) mice became moribund or died 30 to 40 days after pIpC injection (Figure 1A), whereas Erk1^−/− and induced Mx1-Cre;Erk2^flox/flox (hereafter, Erk2^Δ/Δ) mice were indistinguishable from controls. Erk1^−/−Erk2^Δ/Δ mice were leukopenic, severely anemic, and had markedly reduced numbers of bone marrow (BM) cells (Figure 1B-D and supplemental Figure 1A, available on the Blood website). There also was a trend toward decreased numbers of mature myeloid, B cells, and erythroid cells in the BM of Erk1^−/−Erk2^Δ/Δ mice, although this difference did not reach statistical significance (supplemental Figure 1B).

Next, we examined the HSC-enriched Lin⁻Sca1⁺c-Kit⁺ (LSK) compartment and early progenitors in control and Erk-deficient BM. Erk1^−/− and Erk2^Δ/Δ mice showed normal numbers of LSK cells, common myeloid progenitors (CMPs), granulocyte-macrophage progenitors (GMPs), and megakaryocte-erythrocyte progenitors (MEPs), but all of these progenitors were reduced markedly in Erk1^−/−Erk2^Δ/Δ BM (Figure 1E). Analysis of a more highly enriched HSC compartment (LSKCD150⁺CD48⁻, SLAM-HSC) also revealed a marked reduction in the frequency and the absolute cell number of these cells in Erk1^−/−Erk2^Δ/Δ mice (Figure 1F and data not shown), indicating a defect at the earliest stage of adult hematopoiesis. Thus, either Erk1 or Erk2 is sufficient to maintain hematopoiesis, but deletion of both Erk1 and Erk2 results in rapid hematopoietic failure and depletion of HSCs and progenitors.

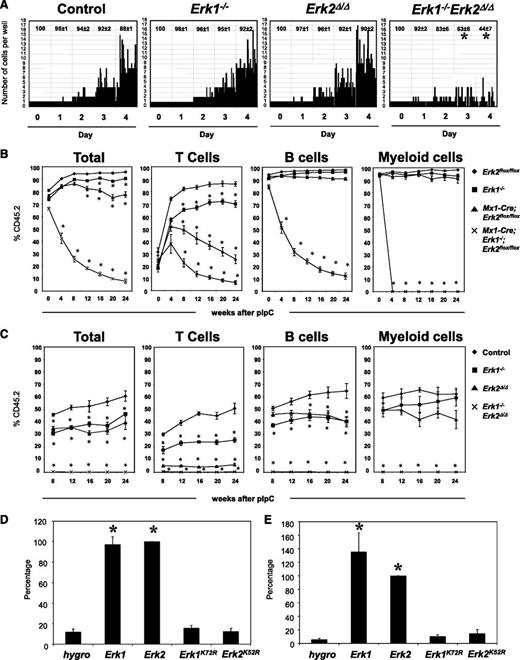

Next, we investigated the ability of Erk-deficient HSCs to respond to cytokines that promote HSC maintenance. SLAM-HSCs were isolated from control and Erk-mutant mice 10 days after pIpC treatment, and placed at 1 cell per well in a medium that preserves multipotency in vitro.^13,14  Mutant cells harvested at this time point all showed complete ablation of the appropriate Erk messenger RNA (supplemental Figure 2A-B). After 4 days of culture, >85% of cells from control, Erk1^−/−, Erk2^Δ/Δ mice were viable and had shown substantial proliferation. By contrast, Erk1^−/−Erk2^Δ/Δ cells underwent at most 1 or 2 cell divisions, and only ∼40% remained at the end of the experiment (Figure 2A). These data indicate that compound loss of Erk1 and Erk2 is incompatible with the proliferation and survival of HSCs in vitro.

To test whether the requirement for Erk1 and Erk2 in hematopoiesis is cell-autonomous, we transferred uninduced Erk2^flox/flox, Erk1^−/−, Mx1-Cre;Erk2^flox/flox, and Mx1-Cre Erk1^−/−;Erk2^flox/flox BM cells, together with wild-type congenic CD45.1-expressing carrier BM, into lethally irradiated CD45.1 animals. Recipients were maintained for 5 weeks to allow establishment of steady-state hematopoiesis. These mice were then injected with pIpC, and the ratio of CD45.1⁺ vs CD45.2⁺ cells in the peripheral blood was monitored. All mice showed comparable levels of CD45.2 engraftment before pIpC treatment (Figure 2B). Moreover, the percentage of donor chimerism of the B-cell and myeloid lineages in recipients of control, Erk1^−/−, and Erk2^Δ/Δ BM cells did not differ significantly. By contrast, there was a significant reduction in the percentage of donor-derived T cells in recipients of Erk1^−/− or Erk2^Δ/Δ BM cells, with Erk2^Δ/Δ BM cells recipients showing a more pronounced defect. Finally, mice that had received Mx1-Cre Erk1^−/−;Erk2^flox/flox BM cells showed profound attrition of donor-derived T, B, and myeloid cells following pIpC treatment, indicating that the defect in HSC maintenance in the absence of ERK1 and ERK2 is cell-autonomous.

To further assess the effects of Erk deficiency on the functional competence of HSCs, we performed competitive reconstitution studies. In these experiments, control or Erk-deficient BM cells were mixed with CD45.1⁺ BM cells at 1:1 ratio before they were injected to lethally irradiated CD45.1⁺ recipients. Beginning 8 weeks after transplantation, CD45.2-derived cells in the peripheral blood of recipient mice were quantified. Recipients of Erk1^−/− and Erk2^Δ/Δ BM cells showed a reduced proportion of donor-derived T and B cells (Figure 2C). However, the frequencies of donor-derived myeloid cells in recipients of control, Erk1^−/−, and Erk2^Δ/Δ BM cells were similar. By contrast, animals that received Erk1^−/−Erk2^Δ/Δ BM cells had almost no contribution of donor-derived cells from any lineage in their peripheral blood. Thus, single Erk knockout HSCs and myeloid progenitors are not disadvantaged under competitive conditions, but deletion of both Erk isoforms leads to gross attrition of all hematopoietic lineages.

Although Erk2 is known to play a crucial role in T-cell development and activation,^9,11  the role of Erk1 in T-lineage cells remains controversial.^4,5,9,11  Importantly, the development and maintenance of Erk1-deficient T cells in an Erk1-sufficient background has never been examined. Our data suggest that both Erk1 and Erk2 are necessary for normal T-cell development/maintenance in vivo. Furthermore, our data indicate that the development and maintenance of Erk1- and Erk2-deficient B cells are diminished in the presence of wild-type B cells, indicating that B lymphocytes lacking a single ERK isoform have a subtle functional impairment not revealed in the noncompetitive setting.

Isoform-specific functions of Erk1 and Erk2 remain controversial.^2,3  Moreover, ERK1 and ERK2 are known to have kinase-independent functions.¹⁵  To ask whether Erk1 and Erk2 have unique functions in hematopoietic cells and whether catalytic activity is required for hematopoietic progenitor function, we constructed retroviral vectors coexpressing a green fluorescent protein (GFP)–Cre fusion protein and either the hygromycin resistance gene (hygro), Erk1, Erk2, Erk1^K72R, or Erk2^K52R. Erk1^K72R and Erk2^K52R encode kinase-defective mutants of ERK1 and ERK2.¹⁶  Lineage-negative (lin⁻) BM cells from Erk1^−/−Erk2^flox/flox mice were infected with these viruses, and GFP⁺ cells were purified by fluorescence-activated cell sorter (FACS) and plated in liquid medium containing IL-3, IL-6, and stem cell factor (SCF) (Figure 2D). In infected cells, GFP-Cre excises the endogenous Erk2 alleles, generating Erk1^−/−Erk2^null cells, while concomitantly, different Erk isoforms are expressed under the control of the same viral promoter. We observed nearly complete loss of cell proliferation in Erk1^−/−Erk2^flox/flox cells coexpressing GFP-Cre and hygro. Coexpression of wild-type Erk1 or Erk2 with GFP-Cre restored cell proliferation to a similar extent. In sharp contrast, cells coexpressing kinase-defective Erk1 or Erk2 showed minimal proliferation. Thus, Erk1 and Erk2 have redundant, kinase-dependent functions in hematopoietic progenitors.

Pharmacologic blockade of MEK attenuates KRas^G12D-evoked myeloproliferative disease in mice.¹⁷  However, the specific role(s) of Erk1 and Erk2 in KRas^G12D-transformed hematopoietic cells remained be to be addressed. Notably, Erk2 has allele-specific effects on Ras-induced epithelial-to-mesenchymal transformation,¹⁸  raising the possibility that a single ERK isoform might be important for KRAS-evoked transformation of hematopoietic cells. To test this possibility, we infected lin⁻ BM cells from Erk1^−/−Erk2^flox/floxLSL-KRas^G12D mice with the retroviral vectors described in the previous paragraph. In infected cells, Cre expression promotes simultaneous deletion of Erk2 and expression of KRas^G12D under the control of its endogenous promoter. GFP⁺ cells were purified by FACS and plated in media containing no cytokines to assess KRas^G12D-evoked cytokine-independent proliferation. Comparable cell proliferation was observed in cells coexpressing either wild-type Erk1 or Erk2 (Figure 2E). By contrast, cells expressing catalytically defective ERK1 or ERK2 showed a complete loss of KRas^G12D-evoked cytokine-independent proliferation. Thus, myeloid cell transformation by oncogenic KRAS requires catalytically active ERK1 or ERK2.

In summary, we found that deletion of both Erk genes results in the rapid loss of HSCs and progenitors, leading to leukopenia, anemia, and early lethality in mice. Similar data were reported recently by Staser et al.¹⁹  Together, these results are consistent with previous findings reported by us and others that hematopoietic-specific loss of Ptpn11 (encoding Src homology 2 domain containing phosphatase 2 [SHP2]), a positive regulator of RAS/ERK signaling, also leads to attrition of HSCs and progenitors.^14,20
