W⁴¹/W⁴¹ blastocyst complementation: a system for genetic modeling of hematopoiesis

To date, the most common approaches to study hematopoieisis and hematopoietic stem cells (HSCs) in genetically engineered systems have been the creation of transgenic mouse strains or the use of viral vectors to deliver genes directly into the hematopoietic cells. For many purposes, the generation of transgenic mice is limited by time and cost aspects, whereas the use of viral vectors often is coupled with constraints, including limited control of expression, transduction difficulties, and insertional mutagenesis.^1-3  We have sought to establish an alternative system that would take advantage of the versatile and site-directed genetic manipulations that are possible in embryonic stem (ES) cells. Genetically modified ES cells can be injected into blastocysts, and hematopoietic cells can be rapidly derived from the fetal liver of chimeric embryos. The fetal liver in day 14 to 15 mouse embryos is the main site of hematopoiesis and contains large numbers of transplantable long-term repopulating stem cells.^4,5  The use of this approach is, however, limited by the highly variable levels of chimerism obtained from standard blastocyst complementation procedures. Blastocyst complementations using tetraploid blastocysts generate offspring of 100% ES-cell origin, but this requires special embryo manipulation techniques that are not available to most laboratories and many ES-cell lines fail to generate offspring by this procedure.^6-8  Here, we reasoned that implanting ES cells into blastocysts from a mouse strain with impaired HSC function could give the ES cells an advantage over the blastocyst inner cell mass cells in founding the hematopoietic system and generate embryos with hematopoiesis of preferential ES-cell origin. A similar approach has previously been demonstrated for the generation of mice with purely ES cell–derived B and T lymphocytes by injecting ES cells into RAG-deficient blastocysts.⁹

ES cells with constitutive green fluorescent protein (GFP) expression were generated by transduction of KH2 ES cells¹⁰  with the pLKO.1-GFP lentivirus and subsequent cloning of GFP⁺ cells. ES cells with inducible GFP expression were generated by ligating a GFP cassette between the MluI and EcoRI sites of the pBS31 vector, which was then used to target KH2 ES cells as described.¹⁰  For blastocyst complementations, ES cells were injected into W⁴¹/W⁴¹ or wild-type (C57/B6 or NFR/N) embryonic day (E) 3.5 blastocysts.

For identification of lineage-negative cells from fetal liver, antibodies against B220, CD5, Gr1, and Ter119 were used; for bone marrow cells, CD4 and Mac-1 were also included. In addition, antibodies against c-Kit, Sca-1, CD45.1, and CD45.2 were used as indicated. All antibodies were from BioLegend.

Fetal liver cells were depleted of Ter119⁺ cells using Dynabeads (Invitrogen) and cultured in serum-free medium (StemSpanSFEM; StemCell Technologies) supplemented with cytokines recombinant murine stem cell factor, recombinant human thrombopoietin, recombinant human interleukin-6, and recombinant human FMS-like tyrosine kinase-3 at 50 ng/mL and recombinant human interleukin-3 at 20 ng/mL (all cytokines from PeproTech). GFP expression was induced with doxycycline (Sigma-Aldrich) at indicated concentrations.

A total of 2 million unfractionated fetal liver cells were transplanted into lethally irradiated (900 Gy) B6/SJL recipient mice. Doxycycline was given in the drinking water supplemented with 10 mg/mL sucrose. Control animals were only given sucrose.

To test whether ES cells injected into blastocysts from a strain with impaired HSC function would have an advantage in founding the hematopoietic system, we used the W⁴¹/W⁴¹ mouse strain. These mice have a point mutation in the gene for the c-kit receptor, which negatively affects both the numbers and function of HSCs.^11-15  Importantly, homozygous mutant mice are viable and fertile and can therefore easily be used as donors for blastocysts without any screening for genotype. Although it has been shown that intact c-kit signaling is not required for the generation and expansion of HSCs during early development,^13,15,16  we hypothesized that, in the competitive setting of a developing chimeric embryo, the W⁴¹/W⁴¹ HSCs would exhibit reduced fitness compared with the normal ES cell–derived HSCs.

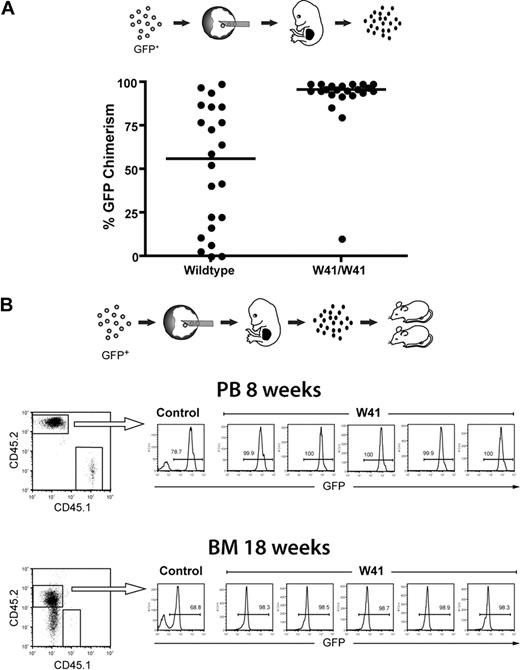

GFP-labeled ES cells were injected into wild-type or W⁴¹/W⁴¹ blastocysts, and fetal livers of E14.5 embryos were isolated and analyzed by fluorescence-activated cell sorter (FACS) to assess the percentage of cells that were of ES-cell origin. As shown in Figure 1A, the lineage-negative fetal liver cells from W⁴¹/W⁴¹ blastocysts had a very high percentage of ES cell–derived cells (> 90% in the majority of cases). By contrast, fetal livers from wild-type blastocysts had a widespread distribution of GFP chimerism. These results clearly demonstrate that the HSC defect in W⁴¹/W⁴¹ blastocysts gives ES cells a selective advantage in founding the hematopoietic system during early development and reveal a previously undefined role for c-kit signaling in regulation of the earliest stages of embryonic hematopoiesis.

We then transplanted lethally irradiated recipients with fetal liver cells from the W⁴¹/W⁴¹ blastocyst complementations. Analysis of peripheral blood after 8 weeks and bone marrow after 18 weeks showed that essentially all donor cells expressed GFP and were of ES-cell origin with no signs of W⁴¹/W⁴¹ blastocyst-derived cells (Figure 1B). This is in agreement with previous work showing that W⁴¹/W⁴¹ FL HSCs have a competitive disadvantage in transplantation assays.¹³  The complete ES-cell origin of donor cells was further confirmed by PCR on bone marrow colonies where 100% (80 of 80) of colonies analyzed were of ES-cell origin (data not shown). Taken together, the combined W⁴¹/W⁴¹ blastocyst complementation and fetal liver transplantation approach described here makes it possible to generate large cohorts of mice with hematopoiesis of practically pure ES-cell origin in just a few weeks. The approach is further very flexible and cost-effective because fetal liver cells can be freezer-stored while maintaining a high repopulation ability, and we have found that a single chimeric fetal liver contains sufficient stem cells for robust engraftment of at least 20 recipients (L.J., unpublished observations, May 2007).

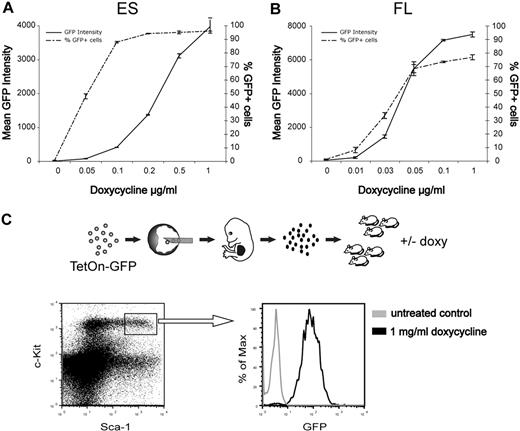

We next tested the potential of these findings for genetic studies in the hematopoietic system. We used a pre-engineered ES cell line (KH2) in which tetracycline-inducible transgenes are inserted by FLT/FRT recombination into the collagen 1A locus to ensure predictable and robust expression levels.^10,17  KH2 cells were targeted to generate ES cells with tetracycline-inducible GFP expression. When cultured under different concentrations of doxycycline, these cells showed a dose-dependent induction of GFP expression (Figure 2A). The ES cells were then injected into W⁴¹/W⁴¹ blastocysts to produce fetal liver stage embryos. Cultured fetal liver cells showed similar doxycycline-inducible and dose-dependent GFP expression as the original ES cells (Figure 2B). Finally, we transplanted lethally irradiated mice with fetal liver cells and after reconstitution administered doxycycline in the drinking water during 1 week to 1 cohort of mice and left the others untreated. GFP expression was efficiently induced in the lineage ⁻c-kit⁺Sca1⁺ compartment of induced mice, whereas no GFP could be detected in noninduced control mice (Figure 2C), demonstrating that the gene induction can be tightly controlled in primitive hematopoietic cells in vivo. Inducible control of gene expression is an important feature, especially when evaluating effects on self-renewal of HSCs or when assessing malignant phenotypes.¹⁸

In conclusion, we have established an inexpensive and efficient strategy for the rapid creation of mice with purely ES cell–derived hematopoiesis. Combined with site-directed modifications for inducible expression in ES cells, this is a versatile and accurate method for genetic studies of the mouse hematopoietic system.
