Haplotype sequence collection of ABO blood group alleles by long-read sequencing reveals putative A1-diagnostic variants

Generating reference sequence collections of blood group gene alleles has gained importance, especially as genomic technologies are being more widely used in molecular diagnostics of blood groups.^1-7 Such comprehensive collections are, for instance, essential for designing and validating blood group genotyping assays to reduce risks of unnoticed allelic dropout,^8,9 for imputing genotype data in microarray analyses,¹⁰ as references for analyzing next-generation sequencing data to increase diagnostic reliability, for resolving complex genotype-phenotype discrepancies in routine diagnostics, and for disentangling the evolutionary history of the respective gene.^11-13

Importantly, reference sequences for blood group gene alleles should (1) span the complete gene region, including introns and appropriate parts of the adjacent flanking regions; (2) have a fully resolved haplotype; (3) offer confirmed serology; and (4) be well accessible in a public sequence database.¹⁴ Generating such sequences, however, is technically difficult. Particularly challenging is resolving the haplotype, that is, determining which variants were inherited together from the mother or father, and thus, lie on the same haplotype.

Classical Sanger sequencing is not useful to resolve haplotypes for technical reasons. It can only be used in combination with laborious allele-specific polymerase chain reactions (PCRs), as shown for short or highly conserved blood group genes with little variation.^15,16 Haplotype reconstruction with short-read next-generation sequencing is restricted by read length. It must, therefore, mainly rely on statistical methods, which are predictive and dependent on well-suited population-based data.¹⁷ Owing to these technical challenges, full-length gene haplotype sequences remain rare for most of the 43 described blood group systems,¹⁸ even for the ones deemed clinically most relevant. This, even though hundreds of thousands of genomes have already been sequenced by now.^19,20

Latest third-generation long-read sequencing finally opened new avenues for the haplotype reconstruction issue. The key advantage over short-read sequencing is the power to sequence very long DNA fragments as haplotype. Pacific Biosciences’ (PacBio) HiFi technology, in which fragments are circularly sequenced several times to directly obtain high-quality consensus sequences, provides reads of 10 to 25 kb.²¹ Nanopore sequencing by Oxford Nanopore Technologies (ONT), using changes in ionic currents when molecules pass through nanopores, can even sequence much longer fragments.²² One of the main advantages of ONT, however, is its scalability, which also allows cost-effectiveness in low-throughput settings. Long-read sequencing has great potential in the quest for comprehensive haplotype sequence collections of blood group gene alleles. Currently, reports of its application are still limited to the very short ACKR1 gene encoding the Duffy blood group.^1,23

Even for ABO, the first discovered,²⁴ and clinically most important blood group system,²⁵ haplotype sequence collections are still lacking. The most comprehensive collection of ABO sequences by short-read sequencing only covers a small exonic part of the gene.¹⁴ A recent approach to tackling the entire gene was hindered by the high degree of repetitive elements in introns, which were finally omitted. This resulted in published sequences with incomplete haplotype information.²⁶ Consequently, only 7 complete human ABO gene sequences have been deposited in the National Center for Biotechnology Information (NCBI) nucleotide database to date (accessed 15 July 2022).

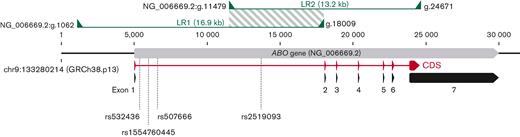

The human ABO gene is ∼19.5 kb long and located on chromosome 9 on the reverse strand (Figure 1). The reference transcript for the ABO blood group (NM_020469.3) contains 7 exons. Individuals with codominant ABO∗A or B alleles, defined by single-nucleotide variants (SNVs) in exons 6 and 7, express glycosyltransferase activities that convert the H antigen present on the red blood cells into the A or B antigen. The recessive O alleles (phenotypic ABO-null alleles) are mainly caused by either a frameshift (c.261delG) in exon 6, leading to a premature stop codon (ABO∗O.01), or a SNV (c.802G>A) in exon 7 that causes inactivation of glycosyltransferase activity (ABO∗O.02).

ABO is highly polymorphic, which is apparent in over 200 different alleles, covering predominantly exonic variation listed by the International Society of Blood Transfusion (ISBT).²⁷ Genetic variation at ABO can be divided into 6 main allele groups: ABO∗A1, ABO∗A2, ABO∗B, ABO∗O.01.01, ABO∗O.01.02, and ABO∗O.02, which make up over 99.9% of the genetic diversity at ABO (Table 1).

Here, we aimed to generate a collection of high-quality reference sequences for the 6 main ABO allele groups, taking advantage of long-read nanopore sequencing for resolving haplotypes. We ensured sequence accuracy by validation with complementing sequencing technologies (ie, Sanger, Illumina, and PacBio sequencing). The simple and reliable protocol established in this study can be adapted to any other blood group system or essentially any gene, and, therefore, holds the promise of generating analogous collections to the one presented here.

Details on the sample set and the selection process are provided in the supplemental Information Section 1. Briefly, we selected 77 samples (supplemental Tables 1 and 2) from a large, well-characterized ABO genotype data set (n = 25 200) of serologically typed blood donors from the Zurich region in Switzerland. These data had been generated previously using MALDI-TOF mass spectrometry.²⁸ We aimed to sequence at least 15 haplotypes for each of the 6 main ABO allele groups, that is, ABO∗A1, A2, B, O.01.01, O.01.02, and O.02 (Table 1). The 2 O.01 subgroups, ABO∗O.01.01 and ABO∗O.01.02 (formally known as O^1v),²⁹ were considered as 2 separate groups in this study because, apart from sharing the c.261delG causative O-phenotype variant, they are not closely related in evolutionary terms.^13,30

Based on pretyped variants (supplemental Table 3), we selected a mix of (1) ABO homozygous samples (ie, same base inherited from the mother and father; n = 43) and (2) ABO group heterozygous samples (ie, 2 different bases inherited; n = 34). The putatively ABO gene homozygous individuals were included to support haplotype resolving after sequencing. Estimates of genotype frequencies for the whole population are given in supplemental Table 4. All donors gave their written informed consent for molecular blood group analyses. According to the cantonal and national Swiss legislation, molecular blood group analyses are not subject to ethical authorization.

We established generic LR-PCRs amplifying the entire ABO gene, including flanking regulatory regions (∼23.6 kb; exact length dependent on haplotype) in 2 overlapping fragments (Figure 1). Fragment LR1 (16.9 kb) covered the enhancer region (∼4.1 kb upstream of exon 1) up to the end of intron 1. Fragment LR2 (13.2 kb) amplified half of intron 1 up to ∼100 bp after the stop codon in exon 7. Both fragments overlapped by ∼6.5 kb. Details on LR-PCRs are provided in the supplemental Information Section 2.1.

Nanopore sequencing libraries were prepared following ONT’s protocol for native (ie, PCR-free) barcoding of amplicons (see supplemental Information Section 2.2). The final library was sequenced for 72 hours on 2 MinION Mk1B (R9.4.1) flow cells.

Our workflow for processing nanopore sequencing data is depicted in supplemental Figure 1 and described in detail in supplemental Information Section 3. In short, raw reads were demultiplexed and base-called using ONT’s Guppy (version 4.4.1) based on a high-accuracy model. The quality-filtered raw reads were then size-selected based on the expected length of the 2 LR-PCR fragments and the observed read length distribution. To reduce computational time for downstream analysis, we set a cutoff at 1000 reads per amplicon by random downsampling with seqtk (version 1.3).

To circumvent potential biases of allelic dropout in classical single-reference–based read mapping,^31,32 we assembled for each sample its own consensus sequence from both PCR amplicons de novo (ie, reference-free). We then used the tool medaka_variant of ONT’s Medaka (version 1.2.2) for variant calling and phasing (ie, resolving haplotypes) of called variants in a multistep procedure. Finally, we used BCFtools (version 1.11)³³ to generate haplotype FASTA sequences for all study samples. To achieve the best accuracy of generated sequences, we validated several sites in repetitive regions by Sanger sequencing.

For downstream analyses, we created an alignment of all 154 haplotype sequences, hereafter referred to as the “analysis sequence alignment.” According to standard procedure, we masked out repetitive sequence motives as they have a different underlying evolutionary model with much higher mutation rates than SNVs, which would lead to an overestimation of genetic diversity. Furthermore, sequence quality in such regions, in particular when containing long homopolymers (ie, repetitive stretches of the same nucleotide), is reduced as they still pose a challenge for long-read sequencing technologies,²¹ in particular for ONT.³⁴ The alignment was trimmed to the CDS start and end of the ABO blood group reference transcript NM_020469.3.

For quality validation of obtained ONT sequences, a subset of 12 samples (n = 2 for each ABO group; supplemental Table 5), which were ABO homozygous at pretyped variants, was additionally sequenced using both long-read PacBio HiFi sequencing (Sequel II system) and short-read Illumina sequencing (MiSeq instrument). Reads from both platforms were mapped against the ABO reference sequence NG_006669.2, followed by a combined variant calling step using the Genome Analysis Toolkit (version 4.1.4.1).³⁵ Further details on sequencing library preparation and bioinformatics are provided in supplemental Information Section 4. Hereafter, we will refer to this approach as “Illumina/PacBio hybrid approach.”

To investigate genetic diversity patterns within and between the 6 ABO groups, we calculated several diversity statistics based on the analysis sequence alignment using DNAsp (version 6).³⁶ Detailed information is provided in supplemental Information Section 5.

We built a median-joining haplotype network based on the analysis sequence alignment of all 154 ABO sequences using PopART (version 1.7).³⁷ The network was redrawn using 999 iterations. We further constructed a maximum-likelihood phylogenetic tree using IQ-TREE (version 2.1.2)³⁸ in 2 consecutive steps. We first determined the most suitable nucleotide substitution model with ModelFinder implemented in IQ-TREE, using the –mtree option and –m set to ModelFinder (MF). Model selection was computed 10 times independently using the –run option. The best-fit substitution model according to the Bayesian information criterion was K2P + R2. We then built a maximum-likelihood tree with 1000 standard nonparametric bootstraps and 10 independent runs using IQ-TREE. Following best practice, the tree was rooted with a sequence of the human’s closest living relative species, that is, with the central chimpanzee NCBI reference sequence (NC_036888.1; gene ID: 450164), which corresponds to an A-like allele.

To detect potential recombination events between ABO allele groups, we ran the recombination detection program RDP4.³⁹ Using 7 different methods implemented in RDP4, we tested for the presence of overall recombination signals in the data set, and investigated where on the gene (ie, breakpoints) and between which haplotypes recombination events might have occurred (details see supplemental Information Section 6). Only events depicted by at least 5 different methods were considered reliable. To investigate the influence of the recombination events on the topology of the phylogenetic tree, we additionally reconstructed a tree excluding the recombination sites found by RDP4 from the sequences. The tree was built using the same approach as outlined above.

To study the diagnostic accuracy of our discovered putatively ABO∗A1-specific variants in a larger and ethnically more diverse cohort, we used whole-genome sequencing data of 4872 individuals participating in the MESA project (Multi-Ethnic Study of Atherosclerosis).^40-42 Because of missing serological information, ABO∗A1 alleles were predicted by the absence of diagnostic variants of complimentary alleles. Hence, we extracted the allele-defining variants for ABO∗A2 (c.1061delC), B (c.803G>C), O.01 (c.261delG), and O.02 (c.802G>A) as well as the 4 ABO∗A1 candidate variants from the whole-genome sequencing data, and deduced estimates for ABO∗A1 sensitivity and specificity. Further details are provided in supplemental Information Section 7.

We successfully resolved both the maternal and paternal full-length (∼23.6 kb) ABO haplotype sequences for all 77 samples. A detailed list of sequenced ABO haplotypes including NCBI GenBank accession numbers (OM283861–OM284014) is provided in supplemental Table 2. Sequence alignments of all 154 haplotypes are available from the Dryad Digital Repository (https://doi.org/10.5061/dryad.q573n5tkj).

The median depth of nanopore sequencing was 1454x per LR-PCR amplicon. Detailed sequencing depth per sample and amplicon is provided in supplemental Table 1. Nanopore sequence data proved highly accurate with 100% agreement to the Illumina/PacBio hybrid approach data based on the analysis sequence alignment.

An overview of genetic variation in ABO exons among haplotypes is given in Table 2. Details for each sequence are provided in supplemental Table 2. According to their exonic variation, most sequences (n = 135) corresponded to main ISBT alleles,²⁷ that is ABO∗A1.01, A2.01, B.01, O.01.01, O.01.02, and O.02.01. Intronic variation is currently largely ignored in ISBT nomenclature.²⁷ We also observed less common alleles within ABO groups, that is, ABO∗O.01.26 (n = 2), ABO∗O.01.67 (n = 4), ABO∗O.01.68 (n = 1), ABO∗O.01.75 (n = 2), ABO∗O.02.02 (n = 4), ABO∗O.02.03 (n = 1), and ABO∗O.02.04 (n = 1). These alleles differed by only 1 or 2 exonic SNVs from their ABO group background allele (Table 2). Because they still belong to one of the 6 ABO groups defined in this study, alleles were kept in the sample set for genetic diversity and phylogenetic analyses.

Four sequenced haplotypes were not yet listed in the official ABO (ISBT 001) blood group allele table (version 1.1 171023).²⁷ Three of them had silent mutations that did not alter the protein. The fourth one represented a novel ABO∗B.01 allele (sample s07_h2) with an additional SNV c.122G>A in exon 3, replacing serine by asparagine. All SNVs were verified by Sanger sequencing.

An alignment of all ABO haplotype sequences revealed yet undescribed distinct sequence patterns of each ABO allele group across the entire gene locus. Figure 2 shows this pattern for a random subset of 6 haplotype sequences per ABO group. Specific sequence patterns were found in both exonic and intronic regions.

In total, we found 230 SNVs and 16 sites with insertions/deletions (indels) among all the sequences (Table 3; supplemental Table 6). The 154 haplotype sequences represented 47 unique haplotypes, with on average 66.4 nucleotide differences between 2 haplotypes. Genetic diversity was much higher between ABO groups than within groups (Tables 3 and 4). Within ABO groups (Table 3; supplemental Table 6), genetic diversity was particularly low for ABO∗A1 and B. The group of ABO∗O.01.01 showed the highest within-group diversity. This appeared to be linked to deep within-group substructure into 2 phylogenetic entities (Figures 3 and 4), which is inflating diversity measurements. This effect is also present when looking at all ABO∗O.01 haplotypes combined without separating the 2 subgroups, ABO∗O.01.01 and ABO∗O.01.02, as we have done in this study (Table 3).

Most of the nucleotide differences found between ABO groups were fixed, that is, SNVs for which 1 group has 1 allele and the other group the other allele (Table 4). The 2 ABO∗O.01 subgroups (ie, ABO∗O.01.01 and ABO∗O.01.02) had on average 84 nucleotide differences between 2 random sequences, of which 73 were fixed between ABO∗O.01 subgroups. This was in the same order as, for example, comparing ABO∗O.01.01 and ABO∗B, highlighting the deep divergence of the 2 ABO∗O.01 subgroups.

We also observed 4 fixed SNVs, one 1-bp and one 12-bp indel in all ABO∗A1.01 haplotypes sequenced in this study compared with the ISBT reference sequence NG_006669.2 (LRG_792) for the ABO blood group, also an ABO∗A1.01 allele. This reference sequence is an artificially assembled ABO∗A1.01 allele on an ABO∗O.01 background. Hence, it may be possible that the observed differences are relicts to be corrected of the old ABO∗O.01 background sequence in the current ISBT reference sequence.

In line with the observed genetic diversity patterns, phylogenetic analyses revealed distinct clades (ie, phylogenetic groups sharing a common ancestor) for all ABO groups. The rooted phylogenetic tree constructed using the full-length ABO sequences showed well-supported monophyletic lineages (defined groups containing all descendants of the respective ancestor) for ABO∗A1, A2, B, O.01.02, and O.02 (Figure 3). The ABO∗O.01.01 haplotypes were paraphyletic (originated from the same ancestor but not all descendants from this ancestor were contained in 1 group) and split into 2 subgroups (g1 and g2), which was also observed in the haplotype network (Figure 4). All SNVs separating the 2 subgroups were located in intronic regions.

The 2 major O-phenotype groups (ie, ABO∗O.01 and ABO∗O.02) were paraphyletic to each other with deep (ie, ancient) splits, showing that these groups are not closely related in evolutionary terms, despite sharing a null phenotype. The ABO∗O.02 lineage split off first from all other human ABO haplotypes. The group ABO∗O.01.01 appeared evolutionary closer to the cluster of ABO∗A1, A2, and B than ABO∗O.01.02.

The haplotype network inferred from all 154 ABO sequences (Figure 4), which is a different way to investigate evolutionary relationships among sequences, was in congruence with the phylogenetic tree.

Our analysis for detecting overall patterns of recombination among ABO haplotypes did find strong evidence for recombination events (P < 10⁻⁵). Five recombination events (supplemental Information Section 6; supplemental Figure 2) were identified by at least 5 different methods and, therefore, wereregarded as credible. One event was detected by only 2 methods and, therefore, was discarded from the analysis. Among the 5 retained events, 1 involved recombination between ancestral sequences of the contemporary ABO∗A2 and ABO∗O.02 alleles. The 4 other recombination events all resulted in null alleles.

The inferred phylogenetic tree excluding the identified recombination regions from the sequences (supplemental Figure 3) showed a very similar topology to the tree constructed using the full-length haplotype sequences (Figure 3). The only difference between both trees was in the relationship between the 2 ABO∗O1 subgroups, ABO∗O.01.01 and ABO∗O.01.02. Although these 2 subgroups were paraphyletic in the tree constructed on the entire alignment, they were monophyletic in the tree constructed excluding recombinant regions.

Strikingly, among all the variants that were fixed between ABO groups, we identified 4 variants in intron 1 that were exclusively present in all ABO∗A1 haplotypes. These 4 variants (Figure 1) were composed of the SNVs rs532436 (NG_006669.2:g.5801T>C), rs507666 (g.6232T>C), and rs2519093 (g.13759A>G), as well as of the dinucleotide variant rs1554760445, which merges the SNV rs115478735 (g.5920T>A) with the adjacent indel rs8176643 (g.5921delG).

As the major limitation of our haplotype collection is its sole representation of European ancestry, we validated the diagnostic potential of the 4 variants in the multiethnic MESA cohort.^40-42 Detailed results are provided in supplemental Information Section 7 and supplemental Table 7. In short, ABO∗A1-specificities for the 3 SNV-based variants were 99.41% (rs532436), 99.44% (rs507666), and 99.60% (rs2519093), whereas sensitivity was estimated between 97.55% (rs507666) and 97.99% (rs2519093). These 3 variants showed very high linkage disequilibrium (pairwise r² > 0.97). Consequently, combining them did not increase specificity and only marginally increased sensitivity (to 98.43%). Specificity for the dinucleotide variant rs1554760445 was high (99.72%), but this variant was much rarer in the cohort (found in 21.7% of individuals) than the 3 SNVs (29.5% to 29.7%). Accordingly, the sensitivity was substantially reduced (71.93%). Limiting the analysis to samples of European ancestry, sensitivity increased to the scale of the other variants (97.10%), implying that rs1554760445 may specifically tag ABO∗A1.01, the predominant ABO∗A1 allele subgroup in Europe. Although the variant was indeed completely absent in ABO∗A1.02 predicted alleles (n = 319), ABO∗A1.01-sensitivity across the whole cohort reached only 90.0% owing to the absence of the variant in ∼100 individuals of African descent with predicted ABO∗A1.01 alleles.

Taking advantage of third-generation sequencing, we have generated a comprehensive collection of full-length haplotype sequences (n = 154) for all 6 main ABO allele groups (ABO∗A1, A2, B, O.01.01, O.01.02, and O.02). Together, these groups cover 99.9% of the genetic diversity of ABO in Switzerland.

Our haplotype collection uncovered hitherto unknown distinct sequence patterns among ABO groups, which had not yet been unveiled because of the very few complete human ABO gene sequences available so far. As for almost all blood group genes, sequencing efforts of ABO have largely been limited to exons. In particular, the large intron 1 (∼13.0 kb) has rarely been successfully sequenced owing to technical difficulties,²⁶ although it is known to harbor major genetic variation of interest.^44,45 Our established generic LR-PCRs of the ABO gene will facilitate haplotype-based sequencing of ABO in molecular diagnostics in transfusion and transplantation medicine. The distinct sequence patterns of each ABO group allow unambiguous assignment of sequences to a particular ABO group. This will, for instance, greatly support identification and exact breakpoint determination of ABO hybrid alleles and other structural variation in routine diagnostics; information that ultimately helps resolving serotype-genotype discrepancies.

In agreement with the distinct sequence patterns, all ABO groups formed separate evolutionary clades, as revealed congruently by the phylogenetic tree and haplotype network. Our data showed that ABO∗O groups are not closely related in evolutionary terms, even though they share the null phenotype. Despite the presence of several recombination events between null alleles, we observed in the phylogenetic tree deep splits separating the ABO∗O clades. The split between ABO∗O.02 and ABO∗O.01 alleles was even more pronounced in the phylogeny excluding the identified recombinant regions (supplemental Figure 3). Contrary to the ancestral ABO∗A and ABO∗B alleles, which originated early in the evolution of animals (ie, after speciation between fish and amphibian lineages), null alleles are most often species-specific.^46,47 For ABO∗O.01 and ABO∗O.02, it has recently been hypothesized that they originated from independent Neanderthal to modern human introgression events.⁴⁸

The early splits of the ABO∗O lineages in the rooted phylogenetic tree, with ABO∗O.02 splitting off first from all other human ABO haplotypes, seems surprising considering that usually loss-of-function rather than gain-of-function changes are observed along evolutionary lineages. Kitano et al¹² raised the hypothesis that the supposedly ancestral A-like allele^13,49 once became extinct in the human lineage, and that the present-day A1 allele was resurrected by a recombination event between B and O.01 alleles around 260 000 years ago. They hypothesized a breakpoint region around the ABO∗O.01-specific deletion, c.261delG. While testing for recombination events, we found evidence of recombination in the same gene region as described by Kitano et al.¹² Our analysis, however, identified ABO∗B as being the resulting allele from the recombination between ancestral alleles of ABO∗A2 and ABO∗O.O2. Disentangling the parental from recombinant sequences is very challenging, particularly as analyses are based on present-day alleles and lost ancestral alleles can only be inferred. Also, outcomes from such analyses are highly dependent on the alleles contained in the data set. Therefore, we advocate that our results are not antagonistic to Kitano et al¹² findings, but rather provide supplementary evidence that recombination has happened in this gene region between ABO∗A, ABO∗B, and ABO∗O ancestral alleles.

The complex evolutionary history of ABO is also highlighted by the high genetic diversity found across ABO groups. The unusually high diversity at ABO is likely maintained by balancing selection,¹¹ a form of adaptation that maintains diversity in a species in the face of random genetic drift.^50,ABO genetic variation has been associated with predispositions to a large number of diseases (reviewed in Liumbruno et al),⁵¹ including infectious diseases,^11,25,52,53 gastric⁵⁴ and pancreatic cancers,⁵⁵ and cardiovascular diseases.⁵⁶ The phenotypes under natural selection, to which the observed genetic diversity contributes, however, remain less clear.⁵⁷ Overall, although there has been considerable research on the complex evolutionary history of ABO,^{11-13,25,46,58-60} many aspects remain obscure and need further in-depth studies, which will hopefully be supported by our novel ABO haplotype collection and workflow.

Our results of high, distinct genetic diversity among ABO groups exemplifies the importance of having comprehensive haplotype sequence collections for designing primers for genotyping assays and sequencing in diagnostics. Ignored genetic variation at primer-binding sites may lead to unnoticed allelic dropout (ie, only 1 of the 2 alleles is detected), and thus, spurious homozygosity.⁶¹ This may, for instance, have severe clinical consequences in transfusion medicine owing to potentially lethal incompatible transfusions and alloimmunization reactions, in particular, in cases where serological confirmation is not possible. Therefore, we deem it important to establish similar collections as the one presented in this study for other highly diverse blood group systems (eg, RhD/RhCE and MNS).

Our collection of ABO haplotypes could be generated thanks to the technical advances of long-read sequencing technologies. ONT produced consensus sequences equivalent in accuracy to the consensus sequences obtained from the combination of Illumina and PacBio HiFi sequencing, except in highly repetitive sequence motifs, which we finally adopted from the Illumina/PacBio hybrid approach data. This is attributed to the major recent developments of ONT’s sequencing technology and machine-learning algorithms.^62-64

Thanks to our full-length ABO haplotype data encompassing all main ABO groups, 4 variants in intron 1 could be uncovered with putative diagnostic specificity for ABO∗A1. Such diagnostic markers are currently lacking, although ABO∗A1 is the official ISBT reference allele for the ABO blood group. In molecular diagnostics, ABO∗A1 can only be inferred indirectly by the method of exclusion, that is, by targeting causative variants defining ABO∗A2, B, O.01, and O.02.⁶⁵ The A₁ antigen can be solely determined serologically using an anti-A₁ lectin, which is rarely done routinely.

ABO∗A1-candidate variants have been reported as lead SNVs in large genetic association studies on cardiovascular diseases^66,67 and inflammatory markers.⁶⁸ Although these phenotypes are well known to be influenced by ABO blood group,⁵¹ rigorous analyses linking the lead SNVs to ABO allele groups have so far not been undertaken.

In a validation approach based on whole-genome data of 4872 individuals of a multiethnic cohort, we observed high diagnostic potential for 3 of the 4 ABO∗A1-candidate variants across ethnicities. Hence, our haplotype analyses provided support for previous hypotheses raised in the context of genetic association and risk score studies of rs507666⁶⁸ and rs2519093⁶⁹ being surrogates for ABO∗A1. Furthermore, we found evidence that the compound ABO∗A1-candidate variant rs1554760445 specifically tags the ABO∗A1.01 allele (instead of generically also ABO∗A1.02), unless in populations of African descent.

Importantly, sensitivity and specificity values computed in this study are overall very conservative as estimated solely at the allele level. Phenotype prediction from genetic data in a diagnostic setting would, however, first focus on identifying the number of ABO∗O alleles (as they impair the allele’s function) and only subsequently incorporate variants linked to non-ABO∗O alleles.^4,70 Such a procedure would significantly increase specificity to over 99.89%, as our candidate variants coincided most frequently with ABO∗O alleles and as few as only 3 times with ABO∗A2 or ABO∗B alleles (in case of rs2519093). Notably, accuracy estimates may generally be an underestimation, given that some of the incongruences may be attributed to unrecognized hybrid alleles, lack of structural variation information, improper statistical phasing, or sequencing errors in the MESA data.

In summary, the dinucleotide candidate variant rs1554760445 showed promising diagnostic potential to specifically tag the ABO∗A1.01 allele outside Africa, whereas the 3 SNV-based ABO∗A1-candidates performed very well in generally tagging ABO∗A1 alleles across ethnicities. We are currently validating diagnostic ABO∗A1 specificity and sensitivity of the 4 variants in more detail by using a large sample set of blood donor populations with available serological data around the world. If the variants are confirmed to be diagnostically accurate, they will finally allow for direct genetic typing of ABO∗A1 in routine molecular diagnostics.

The discovery of intronic markers that accurately represent a main allele (ABO∗A1) in the most relevant blood group exemplifies the importance of including non-exonic regions in the definition of reference sequences. Alternative haplotype-resolving technologies, such as sequencing of complementary DNA or direct RNA sequencing are incomprehensive, and, therefore, inappropriate strategies for collecting reference haplotype sequences.

Overall, our long-read sequencing strategy proved powerful for generating a comprehensive haplotype collection for the clinically most important blood group system, ABO. As a proof of principle, our strategy holds promise for generating similar collections for other blood group systems. Our publicly available haplotype collection revealed new insights into genetic diversity patterns at ABO, including uncovering putatively ABO∗A1-diagnostic variants, and will serve as a valuable reference resource for molecular diagnostic analyses of ABO and future studies of evolutionary history.

The authors thank all laboratory staff at the Stefan Morsch Foundation (Germany) and the Institute of Clinical Molecular Biology of the Christian Albrechts University of Kiel (Germany) involved in providing the Illumina/PacBio sequencing data. The authors are grateful to Valentina Donà for contributing sequencing know-how. Furthermore, the authors are indebted to all individuals involved in the Multi-Ethnic Study of Atherosclerosis, in particular, Jerome Rotter (Lundquist Institute), Stephen S. Rich (University of Virginia), and W. Craig Johnson (University of Washington). Finally, the authors thank the anonymous reviewers for carefully reviewing the manuscript.

This work was financially supported by the Blood Transfusion Service Zurich, Swiss Red Cross (Switzerland), the Stefan Morsch Foundation, and the Institute of Clinical Molecular Biology of the Christian Albrechts University of Kiel.

Contribution: W.P., C.G., B.M.F., and M.P.M.-G. initiated the study and contributed ideas; M.P.M.-G. conceived and coordinated the study; B.M.F., C.G., and W.P. provided their input; M.P.M.-G., M.G., and G.A.T. designed the study and experiments; S.M., N.T., E.G., S.S., Y.M., K.N., J.G., C.G., and M.P.M.-G. contributed samples and MALDI-TOF mass spectrometry genotype data; G.A.T., M.G., and M.P.M.-G. performed experiments and analyzed data; A.-L.G., M.S., and W.P. contributed to long-range polymerase chain reaction design; W.P., M.W., A.-L.G., J.F., Y.B., P.T., M.S., and A.F. provided Illumina/PacBio sequencing data; M.P.M.-G., G.A.T., and M.G. wrote the manuscript; M.W. and W.P. contributed to the supplemental information; and all authors commented on the manuscript and approved the final version.

Conflict-of-interest disclosure: C.G. acts as a consultant for inno-train GmbH, Kronberg im Taunus, Germany. The remaining authors declare no competing financial interests.

Correspondence: Maja P. Mattle-Greminger, Department of Research and Development, Blood Transfusion Service Zurich, Swiss Red Cross, Rütistrasse 19, 8952 Schlieren, Switzerland; e-mail: m.mattle@zhbsd.ch.
