GFAP and NfL increase during neurotoxicity from high baseline levels in pediatric CD19-CAR T-cell patients

Neurotoxicity remains a common but incompletely understood adverse event in cancer immunotherapy.¹ Chimeric antigen receptor (CAR) T-cell therapy for hematologic malignancies poses a particularly high risk of neurologic toxicity, affecting 30% to 60% of patients.² The most common manifestation of immune effector cell–associated neurotoxicity syndrome (ICANS) is a delirium-like encephalopathic state that is often accompanied by language dysfunction. This can progress to an altered level of alertness and, in severe cases, seizures and coma. Rarely, patients develop rapidly-progressive global cerebral edema, which can be fatal.

Biomarker development for ICANS serves 1 or more of the following purposes: (1) predicting toxicity risk for an individual patient, enabling targeted counseling and possible preventive treatment; (2) measuring acute brain injury; and (3) measuring long-term brain injury. In addition, we may gain additional insights into the mechanism of neurotoxicity. Biomarkers for ICANS should ideally be highly specific to the nervous system and should reflect the hypothesized injury mechanisms in ICANS. We selected glial fibrillary acidic protein (GFAP) and neurofilament light chain (NfL), as candidates that meet these criteria well.

GFAP is an intermediate filament of astrocytes, and its elevations in the blood or cerebrospinal fluid (CSF) are specific markers of astrocyte activation and/or injury that occur during traumatic brain injury and other neurologic disorders.^3,4 Astrocytes are critical for the maintenance of the neurovascular unit.⁵ Because blood-brain barrier injury is hypothesized to play an important role in ICANS pathogenesis,⁶ GFAP may be a good marker of both susceptibility to ICANS and severity of ICANS. We have previously found that CSF GFAP (cGFAP) levels increase during ICANS in pediatric patients treated with CD19-directed CAR T cells.⁷ We now prospectively validate GFAP as a biomarker of ICANS in an extended cohort of CD19-CAR T-cell– and CD19/CD22-CAR T-cell–treated pediatric patients.

NfL has emerged as an excellent biomarker of neuronal injury in many neurologic conditions, including multiple sclerosis, dementia, stroke, and amyotrophic lateral sclerosis.^8,9 In adult patients treated with CD19-directed CAR T cells, serum NfL (sNfL) levels were higher at baseline and during peak neurotoxicity in patients who developed grade ≥2 ICANS than those with grade 1 or no ICANS.¹⁰ It remains to be resolved whether the rise in neurofilament levels is specific to ICANS and whether this also occurs in pediatric patients.

The primary objectives of this study were to determine whether (1) NfL and GFAP levels predict the incidence and severity of ICANS before CAR T-cell infusion and (2) NfL and GFAP levels increase during ICANS. Additional exploratory objectives were to determine which clinical factors contribute to the abnormal baseline NfL and GFAP levels.

Patients aged 1 to 26 years with relapsed/refractory leukemia or lymphoma were enrolled in open-label clinical trials to receive lymphodepletion chemotherapy and CAR T cells directed against CD19 (PLAT-02 phase 1/2, #NCT02028455)¹¹ or CD19/CD22 (PLAT-05 phase 1, #NCT03330691).^12,13 Cohort size was determined by the prespecified enrollment targets for each phase of the clinical trials. All studies were approved by the Seattle Children’s Research Institute Institutional Review Board.

Serum and CSF samples from patients treated with CAR T cells were collected according to the clinical trial protocol. The time points included prelymphodepletion (CSF from all patients), day 1 before CAR T-cell infusion (serum from all patients), and days 7 to 10 (serum from all patients and CSF scheduled for PLAT-05). Additional samples were obtained during adverse events as specified by the clinical trial protocols or clinical judgment. All samples were stored at −80 °C.

“Neurotoxicity” and “ICANS” are used interchangeably in this article to refer to the constellation of neurologic signs and symptoms occurring acutely after CAR T-cell treatment. All new or worsening neurologic signs and symptoms, including headache, occurring ≤28 days after CAR T-cell infusion, were prospectively classified according to the National Cancer Institute Common Terminology Criteria for Adverse Events (CTCAE), version 4.0 (ctep.cancer.gov). Daily and overall neurotoxicity grades were determined by the most severe CTCAE grade of any neurologic symptom during that period with the following exceptions: headache as the only symptom above grade 2 was assigned overall neurotoxicity grade 2, and new-onset seizure was assigned neurotoxicity of at least grade 3. We graded neurotoxicity on the basis of CTCAE criteria as specified by the clinical trial protocols, which were developed before the publication of the 2018 American Society for Transplantation and Cellular Therapy (ASTCT) CAR T-cell therapy toxicity criteria.¹⁴ However, there is excellent concordance between CTCAE and ASTCT ICANS grading,¹⁵ making it unlikely that our conclusions would be significantly altered if the current standard ASTCT toxicity grading system had been used. Cytokine release syndrome (CRS) was graded as none, mild, or severe as previously described.¹¹ Severe CRS was defined as a requirement for pressors, inotropes, or respiratory support. Compared with the 2018 ASTCT criteria,¹⁴ this grading scheme assigns severe CRS to patients requiring only low-flow oxygen, which is equivalent to ASTCT grade 2 CRS. Otherwise, our “mild” criteria are equivalent to ASTCT grades 1 to 2, and the “severe” criteria reflects ASTCT grade ≥3 CRS.

All measurements were performed on the Meso Scale Discovery platform (Meso Scale Diagnostics, Rockville, MD). For cGFAP quantification, CSF was diluted 1:2 and the R-PLEX Human GFAP Antibody Set (Meso Scale Diagnostics) was used according to the manufacturer’s instructions. For NfL quantification, serum samples were diluted at 1:2 and CSF samples were diluted at 1:6. The capture antibody (UD1; Uman Diagnostics, Umeå, Sweden) was used at 1.25 μg/mL, and the detection antibody (UD3; Uman Diagnostics) was used at 0.5 μg/mL.¹⁶ All samples from individual patients were run on the same plate. Levels below the limit of quantification were designated at 50% of the limit of quantification. The intra-assay coefficient of variability was <10%.

Descriptive statistics such as mean and/or range for continuous variables and percent for categorical variables were summarized for baseline and demographic information overall and by each study, respectively. For continuous outcomes (eg, log10 of GFAP and NfL levels), linear regression was used to test the association between a covariate of interest and a continuous endpoint (if the endpoint followed a normal distribution). Log10-transformed biomarker levels were used in the univariate linear regression models. For binary endpoints (eg, ICANS grade 0-2 vs grade 3 and above), we performed logistic regression to test the association between a covariate of interest and a binary endpoint. Nonparametric Wilcoxon signed-rank tests were used to test pairwise comparisons of pretreatment and acute biomarker levels and the Kruskal-Wallis test with Dunn’s post-test for groupwise comparisons. Stepwise regression was used for variable selection in multivariate analysis. P values < .05 were considered statistically significant, and adjustments for multiple comparisons were performed when appropriate. Analyses were performed in R studio (version 3.6.2) and GraphPad PRISM (version 9; GraphPad Software Inc, La Jolla, CA).

A total of 141 patients from 3 clinical trial cohorts were included in the study. Cohort 1 (N = 43) received CD19-directed CAR T cells in the PLAT-02 trial, whose results have been previously published.^7,11 Cohort 2 (N = 75) was enrolled in the expansion phase of PLAT-02 and received the same CAR construct as cohort 1, made with a slightly different manufacturing process.¹⁷ Cohort 3 (N = 23) received mixed populations of CD19- and CD22-directed CAR T cells on the PLAT-05 trial. Patient clinical data are presented in Table 1.

The first prespecified aim of this study was to determine whether patients with subsequent neurotoxicity have higher baseline levels of cGFAP, cNfL, and/or sNfL. Both CSF and serum baseline samples were available for 137 of 141 patients. For 3 patients, prelymphodepletion CSF samples were unavailable, and 1 patient lacked a day 1 serum sample. The median prelymphodepletion cGFAP level across all patients was 2978 pg/mL (interquartile range [IQR], 904-5213 pg/mL), the median prelymphodepletion cNfL level was 600 pg/mL (IQR, 246-1329 pg/mL), and the median day 1 sNfL level was 217 pg/mL (IQR, 78-874 pg/mL). The range of values for each analyte was very wide across patients, with or without neurotoxicity (Figure 1A). There was no association between baseline biomarker levels and subsequent ICANS in univariate analysis (Table 2) or groupwise comparisons between patients with and without ICANS in the individual or combined cohorts (Table 3). There was a poor skill for baseline cGFAP, cNfL, or sNfL in discriminating patients with subsequent grade ≥1 ICANS from those without ICANS, with the area under the receiver operating characteristic curve of 0.5044, 0.5162, and 0.5144, respectively. We also tested groupwise comparisons between patients with ICANS 0 to 2 vs ICANS ≥3 or ICANS 0 to 1 vs ICANS ≥2 and again found no statistically significant associations between baseline biomarkers and ICANS severity. The only variable that was associated with the risk of subsequent ICANS was CRS grade, both in univariate and multivariate regression analysis (Table 2).

The second aim of the study was to determine whether ICANS is associated with an increase in cGFAP, cNfL, and/or sNfL levels. Given the heterogeneity of baseline levels of all 3 biomarkers, we used pairwise comparisons of pretreatment and acute samples from the same patients to detect interval changes.

CSF was prospectively collected on day 10 in cohort 3, whereas in cohorts 1 and 2, lumbar punctures in the acute setting after CAR T-cell infusion were performed only in patients with acute ICANS or for other clinical indications. The total number of paired samples analyzed in each group are shown in Table 4. In patients with ICANS, acute CSF samples were obtained at a median of 3 days after ICANS onset (range, 1 day before to 9 days after) and a median of 1 day after peak ICANS (range, 3 days before to 5 days after).

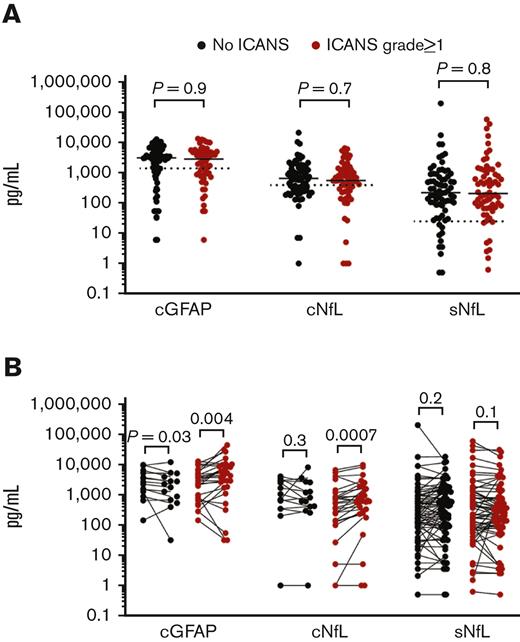

Paired serum samples were available from 139 of 141 patients (Figure 1B; Table 4). The acute serum samples were obtained at a median of 3 days after ICANS onset (range, 6 days before to 10 days after) and at a median of 2 days after ICANS peak (range, 8 days before to 9 days after).

To ensure that the acute samples truly reflected the changes attributable to ICANS, we excluded samples from this analysis if the acute sample was obtained before ICANS onset from a patient who subsequently developed ICANS. Thus, 1 CSF sample from cohort 1, 8 serum samples from cohort 1, and 1 serum sample from cohort 2 were excluded from this study. We also performed the same analyses with all the included samples (supplemental Table 1) and all conclusions remained unchanged.

We have previously shown that cGFAP levels were higher in cohort 1 patients during acute neurotoxicity than at baseline.⁷ This correlation was maintained in pairwise comparison in this cohort (mean increase, 3087 pg/mL; P = .0210; Wilcoxon matched-pairs signed-rank test). Cohort 2 patients with ICANS also showed an increase in cGFAP (mean increase, 623 pg/mL; P = .0313). cNfL levels were increased in cohort 1 patients with ICANS (mean increase, 257 pg/mL; P = .0049), but the change was not statistically significant in cohort 2 (mean increase, 261 pg/mL; P = .0781). In contrast, cohort 3 patients with or without ICANS showed no significant change in cGFAP or cNfL levels from pretreatment to day 10 after CAR T-cell infusion (Table 4). cGFAP levels were decreased in patients without ICANS across all cohorts (Table 4).

The sNfL levels did not increase between day 1 and days 7 to 10 in any of the ICANS subgroups. In fact, in cohorts 1 and 3, patients with ICANS had a statistically significant decrease in sNfL levels, whereas there was an increase in patients without ICANS (Table 4). The increase in cGFAP and cNfL levels correlated with ICANS severity such that patients with more severe ICANS had greater absolute increases in both biomarkers (P = .0254 and P = .0179, respectively; Spearman rank-sum correlation). In contrast, the greater the ICANS severity, the greater the decrease in sNfL levels (P = .0103).

These findings show that cGFAP and cNfL increased during ICANS in patients who were ill enough to warrant a lumbar puncture in an acute setting. More severe ICANS was associated with a greater increase in cGFAP and cNfL levels. Patients with mild or no ICANS showed changes that were too small to detect with our cohort size.

The baseline levels of GFAP and NfL were heterogeneous and extremely elevated in many patients in all 3 cohorts. This prompted us to perform exploratory analyses of the demographic and medical history factors that might contribute to the elevation of baseline biomarkers. We hypothesized that measurable GFAP and NfL levels increase in response to prior insults to the CNS, including radiation, CNS leukemic involvement, or preexisting neurologic comorbidities. We performed univariate regression on the following variables: cohort, age, sex, number of relapses, number of HSCTs, history of TBI with or without CNS boost, CNS disease status, history of any preexisting neurologic comorbidities, and history of peripheral neuropathy. Prelymphodepletion cGFAP levels were positively associated with the number of prior HSCTs and a history of TBI (Table 5). Prelymphodepletion cNfL levels were higher in patients with a history of TBI plus a CNS boost and those with preexisting neurologic comorbidities (Table 5). The sNfL levels on day 1 were positively associated with the number of prior relapses, TBI, and a history of peripheral neuropathy (Table 5). Cohort effects were also observed, with higher levels of cGFAP in cohort 1 than in other cohorts, whereas cNfL levels were similar between the cohorts (Table 5). The variables mentioned above retained their best predictive ability in the multivariate models with stepwise variable selection (Table 5). Taken together, these data support the conclusion that prior treatment toxicity is the cause of elevated baseline biomarker levels.

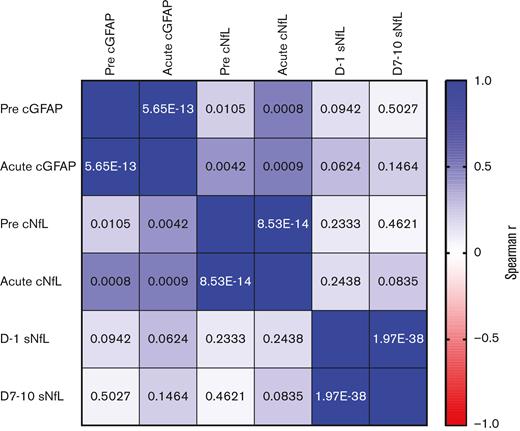

To gain additional insights into the dynamics of GFAP and NfL, we measured the concordance across time within the same biomarker and the concordance of the 3 different biomarkers at each time point within individual patients. Paired samples of the same biomarker (pre- and acute) were strongly correlated in individual patients (Figure 2). There was also a significant correlation between cGFAP and cNfL levels within the same CSF samples. Surprisingly, cNfL and sNfL levels were not highly correlated when measured at the same time point (baseline or acute) in the same patient (Figure 2). Even when only considering CSF and serum samples that were collected within 24 hours of each other, the correlation was not statistically significant (Spearman’s r = 0.335; P = .0480; CSF and serum sample pairs [N = 35]). This suggests that different underlying mechanisms contribute to changes in the CSF and systemic NfL levels.

We showed that NfL and GFAP have the potential to be useful biomarkers of neurologic toxicity during CAR T-cell therapy in pediatric patients with hematologic malignancies. In patients with ICANS who received CD19-directed CAR T cells, there was an increase in the NfL and GFAP levels in the CSF, and these increases were higher in patients with more severe neurotoxicity. This suggests that neurons and astrocytes are injured during ICANS, although the underlying mechanisms are not completely understood.^1,18 Disruption of the blood-brain barrier has been postulated as an important contributor to ICANS⁶ and astrocyte injury during this process if plausible given their intrinsic role in maintaining the neurovascular unit.⁵ In fatal cases of CD19-CAR T-cell−associated neurotoxicity, brain histopathology shows disruption of cerebral microvessels.^6,19 Animal models also support an injury mechanism via the neurovascular unit.^18,20,21 Gliosis of the cerebral cortex has been shown after recovery from ICANS, but it remains uncertain whether this is a reactive process or if it is directly related to the pathogenesis of ICANS.⁷ There is also evidence supporting our finding that neurons themselves are injured during ICANS. Altered mentation and depressed consciousness are hallmarks of ICANS and are accompanied by abnormal electroencephalographic patterns, most commonly slowing patterns.^22-26 Quinolinic acid and glutamate, which have been associated with excitotoxicity, were higher in the CSF of patients with acute neurotoxicity than in those obtained before CAR T-cell treatment.²⁷

However, in the patients receiving CD19/CD22-CAR T cells, a rise in cGFAP and cNfL levels was not detected. There are several possible explanations for this discrepancy. It may be that the CD19/CD22 product was less toxic, even though the CD19 construct was identical to that in the cohorts receiving CD19-CAR T cells alone. CD19-CAR ICANS may occur via a mechanism different from that of CD22-CAR ICANS, however, this seems unlikely because we observed an expansion of both CAR T-cell populations in the patients receiving mixed products. In addition, patients in cohorts 1 and 2 with available paired CSF samples had more severe neurotoxicity than those from cohort 3. Acute CSF samples from cohort 3 were also collected later in the course of ICANS at a median of 4 days after peak ICANS, whereas it was 1 day in cohort 1 and 2 days after peak ICANS in cohort 2. However, it is unlikely that NfL and GFAP levels returned to baseline within days. In a study of oxaliplatin neurotoxicity, sNfL normalized within 4 to 6 months after treatment cessation.²⁸ In patients with traumatic brain injury, NfL levels decreased 5 years after the injury, and GFAP levels showed a decrease for the first 6 months but then increased again.²⁹

It was surprising that increases in cNfL levels were not accompanied by increases in sNfL levels, and we even found decreases in sNfL levels over time in cohort 1 for 3 patients with ICANS. Possible explanations for this decrease in the serum include hemodilution because patients with CRS and ICANS were more likely to receive fluid resuscitation. Therapies such as corticosteroids may have been neuroprotective or decreased leakage across the blood-CSF barrier. In contrast to our findings of disparate CSF and serum NfL changes, a recent meta-analysis found a moderately strong correlation between sNfL and cNfL in a variety of conditions.³⁰ One explanation is that other studies have examined a single neurologic condition or risk factor, whereas our patients were exposed to a variety of mechanisms of injury to the central and peripheral nervous system throughout the treatment of relapsed/refractory leukemia and lymphoma. Thus, in pediatric patients with systemic malignancies, measurements of both cNfL and sNfL may be required to accurately reflect the contributions of central and peripheral nervous system injury, and sNfL may not always be a good proxy of cNfL.

Strikingly, our study found highly-elevated baseline levels of cGFAP, cNfL, and sNfL, which were far above the expected values for the given age in most patients. Reference values for cGFAP are not available for healthy children, but in a control cohort of children without neurologic conditions, the median cGFAP level was 133 pg/mL, with the highest value at 1386 pg/mL.³¹ Only 31% of our patients had cGFAP levels below 1386 pg/mL. For cNfL, reference levels are also not available for healthy children. In healthy adults aged 18 to 30 years, the normal cutoff for cNfL has been defined as <380 pg/mL.³² Only 37% of our patients had cNfL levels below 380 pg/mL. The sNfL reference values have been established in several cohorts of healthy children. These range between 4 pg/mL and 5 pg/mL, with the 99th percentile around 25 pg/mL.^33,34 Only 15% of the patients in our study had baseline sNfL levels of ≤25 pg/mL. This contradicts with an adult cohort of 96 patients who received CAR T cells, whose baseline levels of sNfL were similar to those in age-matched healthy subjects.¹⁰ Patients with a history of CNS involvement were excluded from the adult study, but no other obvious differences between the studies explain why our pediatric cohorts’ baseline sNfL levels were so much more abnormal. Possible reasons include more aggressive treatment regimens in pediatric patients, which include more intrathecal chemotherapy^35,36 and higher sensitivity of the developing nervous system to injury related to cancer treatment, particularly radiotherapy.^37,38 Indeed, we found an association between increased cGFAP levels and a history of HSCT. HSCT has been identified as a risk factor for decreased neurocognitive function in children.³⁹ Higher cNfL levels were robustly associated with a history of radiation with CNS boost. The long-term adverse effects of CNS radiotherapy in children are well established,³⁷ and we now show that cNfL has the potential to be a readily quantifiable biomarker of CNS radiation injury. A history of peripheral neuropathy was associated with an increase in sNfL. This is consistent with the toxic effects of certain chemotherapy drugs, which primarily affect the peripheral nervous system. For example, an association between peripheral neuropathy and transient increase in sNfL levels has been observed in adults receiving oxaliplatin or paclitaxel.^28,40

We did not find an association between baseline cGFAP, cNfL, and sNfL levels with the risk of subsequent neurotoxicity. This finding differs from the reported adult cohort, where higher baseline serum NfL levels were associated with a higher risk of subsequent ICANS.¹⁰ It is possible that the high levels of biomarker heterogeneity in our cohort masked a weak association with ICANS risk. We again confirmed CRS as the 1 robustly predictive risk factor for ICANS, a finding which aligns with most of the previous reports.⁴¹ Prospectively validated risk-prediction algorithms for ICANS also largely rely on CRS-associated risk factors, biomarkers, and clinical signs.²⁴ Although this does not prove that CRS is required for the development of ICANS, there is likely a mechanistic link between the two.

The limitations of this study include the lack of paired CSF samples in cohorts 1 and 2 patients with mild or no ICANS. This likely caused a bias toward a stronger association of cGFAP and cNfL increases during ICANS than we would have seen if paired CSF samples had been available from all patients. Pretreatment CSF samples were obtained before lymphodepletion chemotherapy, whereas baseline serum samples were obtained after lymphodepletion. Thus, it is possible that some of the changes observed in CSF biomarker levels over time were related to lymphodepletion. However, this is unlikely given our observation that cGFAP levels decreased in patients without ICANS.

Another possible limitation was the fact that we used an electrochemiluminescence assay (ECLIA) to detect GFAP and NfL. Single-molecule array (Simoa) assays have become prevalent for NfL quantification in recent years.⁴² A direct comparison of Simoa and ECLIA showed similar performance but higher sensitivity in the very low range of values for Simoa.⁴³ Thus, our study may have missed small changes in NfL levels in patients with very low measurements. In addition, the absolute values of NfL were higher on the Simoa platform the ECLIA measurements,⁴³ indicating that the highly-elevated NfL levels in our patients may have been even higher than those measured using Simoa.

We did not study long-term changes in the biomarkers, and it remains unknown whether and when the increases in GFAP and NfL normalize after ICANS resolution. It also remains unknown whether elevated biomarker levels are associated with any measurable neurocognitive changes in the short term and the long term.

In conclusion, cNfL and cGFAP are promising biomarkers for the measurement of acute CNS injury during ICANS. Further research should measure the longitudinal effects of cumulative cancer treatment toxicity on the NfL and GFAP levels and correlate them with neurocognitive outcomes in patients with childhood hematologic malignancies.
