Iron overload is highly prevalent, but its molecular pathogenesis is poorly understood. Recently, DMT1 was shown to be a major apical iron transporter in absorptive cells of the duodenum. In vivo, it is the only transporter known to be important for the uptake of dietary non-heme iron from the gut lumen. The expression and subcellular localization of DMT1 protein in 3 mouse models of iron overload were examined: hypotransferrinemic (Trfhpx) mice, Hfeknockout mice, and B2m knockout mice. Interestingly, in Trfhpx homozygotes, DMT1 expression was strongly induced in the villus brush border when compared to control animals. This suggests that DMT1 expression is increased in response to iron deficiency in the erythron, even in the setting of systemic iron overload. In contrast, no increase was seen in DMT1 expression in animals with iron overload resembling human hemochromatosis. Therefore, it does not appear that changes in DMT1 levels are primarily responsible for iron loading in hemochromatosis.

Iron acquisition by the absorptive epithelium of the small intestine is a complex and carefully regulated process. DMT1 (formerly called Nramp2, DCT1) has been shown to be an apical transmembrane iron transporter that actively transports reduced dietary iron into intestinal enterocytes.1-3 Several other putative iron transport systems have been described but have not yet been shown to be involved in dietary absorption in animal models.4,5 Iron traverses the epithelial cell and is exported through the basolateral membrane by a process that is incompletely characterized but that probably involves a second transmembrane iron transporter, ferroportin (also known as IREG1, MTP1).6-8 A presumed ferroxidase, hephaestin, is also believed to be involved in basolateral iron export.9Although much progress has been made recently in understanding intestinal iron transport, its regulation remains poorly understood. At least 2 types of signals from the body to the intestine modify absorption. The first, termed the stores regulator (recently reviewed in10), regulates absorption in a manner that is inversely related to total body iron stores. Iron absorption is also modulated by the iron needs of the erythron, the erythroid regulator.10In the occasional patient with inherited atransferrinemia,11-14 the erythroid regulator predominates over the stores regulator. Such patients have profound iron deficiency anemia, which apparently stimulates intestinal iron absorption. Importantly, intestinal iron absorption continues to be increased even after massive tissue iron overload develops. Patients with the common iron loading disease, hereditary hemochromatosis, also have inappropriate absorption of increased amounts of iron despite expanded iron stores. However, they have no abnormalities in erythropoiesis. Although the recent identification of the gene associated with classical hemochromatosis,Hfe,15 has given an important clue, the molecular mechanisms regulating iron absorption have not yet been worked out.

Recent studies in mice have provided strong evidence that all or nearly all iron influx through the intestinal epithelium involves DMT1. Homozygous mk mutant mice, carrying a severe loss of function mutation in DMT1, are poorly viable because of generalized iron deficiency and anemia.2 We have previously shown thatmk mice have increased amounts of DMT1 protein in the duodenum,16 suggesting that DMT1 expression is regulated in response to the abnormal iron metabolism in these mice. However, it is not clear whether the induction of DMT1 is in response to the stores regulator, the erythroid regulator, or both, because mkhomozygotes have severe tissue iron deficiency and anemia. Whenmk/mk mice are bred to mice carrying a null mutation inHfe, the compound mutants are still iron deficient, indicating that iron loading in the mouse model of hemochromatosis requires DMT1.17 However, there are conflicting data as to whether DMT1 expression is increased in mice lacking Hfe. It has been published that DMT1 mRNA expression is increased several-fold,18 but we have been unable to reproduce this result in our own Hfe knockout animals (unpublished observations).

We hypothesized that different regulatory signals might act through different mechanisms to alter intestinal iron absorption. If so, some might involve changes in the level of DMT1 expression, whereas others might affect other iron transport steps, such as basolateral transfer. To begin to study the regulators of iron absorption and to determine their effects on the expression of DMT1, we examined DMT1 protein expression in 3 mouse models of iron overload. One, hypotransferrinemia (Trfhpx), results from a spontaneous mutation disrupting a splice donor site in the murine transferrin gene19 and is directly analogous to human atransferrinemia. The other 2 mutations, generated by targeted disruption of the murine Hfe20 and β-2 microglobulin21 genes, are murine models of hereditary hemochromatosis.

Animals

C57BL/6J (B6) and 129/SvEvfBRtac mice were purchased from Jackson Laboratory (Bar Harbor, ME) and Taconic Farms (NY) and used as wild-type controls for experiments with theB2m−/− and Hfe−/−mice, respectively. MK/ReJ-mk/+, MK/ReJ-mk/mk, and B2m−/− (B6 background) mice were derived from founders purchased from the Jackson Laboratory. Trfhpx/hpx (BALB/cJ background) mice were derived in Boston from founders generously provided by Jerry Kaplan (Salt Lake City, UT).Hfe−/− mice (129/SvEvfBRTac background) were generated in one of our laboratories.20 All strains have been maintained as inbred stocks fed identical diets in the animal facility at Children's Hospital (Boston, MA). HomozygousTrfhpx/hpx mice were kept alive by weekly intraperitoneal injection of 6 mg human transferrin during weeks 1, 2, and 3 of life as previously described.17Heterozygous Trfhpx/+ mice and wild-type Trf+/+ mice have been combined in a single control group referred to in the text asTrf?/+. We have previously shown thatTrfhpx/hpx, Hfe−/−,and B2m−/− mutants all have marked tissue iron overload19 20 (and data not shown).

Cell culture and transfection

The production of Chinese hamster ovary (CHO) cells stably expressing a c-Myc–tagged DMT1 expression plasmid was previously described.3

Crude membrane protein extracts

Proximal duodenum was harvested, snap-frozen in liquid nitrogen, and used to prepared crude membrane fractions as previously described.3 Crude membrane fractions were prepared from cultured CHO cells as previously described.3

Production, purification, and use of anti-DMT1 antibody

The preparation of a specific polyclonal antiserum recognizing the N-terminal sequence (residues 1 to 73) of DMT1 protein was previously described.3 Its specificity was established by demonstrating DMT1-specific detection in transfected CHO cell membranes on Western blot3 and immunofluorescence22analyses. This antiserum, antisera against transferrin receptor (Trfr), and biliary glycoprotein 1 (Bgp1) were used for immunoblotting and immunohistochemistry as previously described.3

We first examined levels of expression of DMT1 by Western blotting of membrane fractions from mutant mice and controls (Figure1). Heterozygous mk/+ mice, with normal iron stores, and non-transfected CHO cells were used as negative controls. Microcytic mk/mk mice, previously shown to overexpress DMT1,16 and DMT1-transfected CHO cells were used as positive controls. The anti-DMT1 antiserum detects a mature 90- to 100-kd DMT1 polypeptide, expressed at high levels in duodenal samples from mk/mk mice and in CHO–DMT1 transfectants. Little or no DMT1 protein expression was detected in duodenum frommk/+ mice, Trf?/+ mice, or wild-type mice (of either 129Sv or B6 strains, designatedHfe+/+ and B2m+/+, respectively), consistent with earlier findings in wild-type mice.3 Thus, all control samples gave expected results.

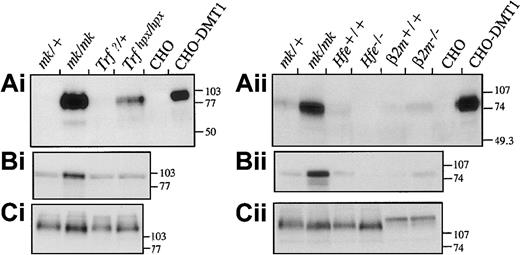

Fig. 1.

Expression of DMT1 protein in the duodenum of

Trfhpx/hpx,Hfe−/−, andB2m−/− mice. Membrane proteins isolated from proximal duodenum of the different mice were fractionated on 10% acrylamide gels and transferred to polyvinylidene difluoride membranes. For comparison, microsomal fractions from mk/+and mk/mk mice were included in the analysis. To demonstrate the specificity of the anti-DMT1 antibody, membrane proteins from CHO cells or CHO cells expressing a c-Myc–tagged DMT1 protein (CHO-DMT1) were also included (Ai and Aii). Immunoblotting was performed with antibodies raised against DMT1 (Ai and ii), transferrin receptor (Bi and Bii), and Bgp1 proteins (Ci and ii). The positions and sizes (in kd) of molecular weight markers are indicated on the right.

Fig. 1.

Expression of DMT1 protein in the duodenum of

Trfhpx/hpx,Hfe−/−, andB2m−/− mice. Membrane proteins isolated from proximal duodenum of the different mice were fractionated on 10% acrylamide gels and transferred to polyvinylidene difluoride membranes. For comparison, microsomal fractions from mk/+and mk/mk mice were included in the analysis. To demonstrate the specificity of the anti-DMT1 antibody, membrane proteins from CHO cells or CHO cells expressing a c-Myc–tagged DMT1 protein (CHO-DMT1) were also included (Ai and Aii). Immunoblotting was performed with antibodies raised against DMT1 (Ai and ii), transferrin receptor (Bi and Bii), and Bgp1 proteins (Ci and ii). The positions and sizes (in kd) of molecular weight markers are indicated on the right.

Close modal

We next examined DMT1 expression in the 3 mouse models of iron overload. Strong induction of DMT1 expression is noted by Western blotting of the duodenal sample fromTrfhpx/hpx mice (Figure 1Ai). There is no change in expression of either Trfr or Bgp1 controls in these mice (Figure 1Bi-Ci). This suggests that DMT1 levels respond to the erythroid regulator as the stores regulator must be inoperative. The induction of DMT1 was confirmed by immunohistochemistry (Figure2). No staining of DMT1 protein is detectable in the control, butTrfhpx/hpx mice have intense staining along the brush border. DMT1 is likely, therefore, to play a role in the iron overload that develops in these animals.

Fig. 2.

Immunohistochemical staining of DMT1 in the intestine of

Trfhpx/hpx andHfe−/− mice. Magnified (400×) tissue sections from the proximal duodenum ofTrf?/+,Trfhpx/hpx,Hfe+/+, and Hfe−/−mice were immunostained with polyclonal rabbit anti-mouse DMT1 N-terminus antibody (dilution 1:40). DMT1 detection produces dark brown staining.

Fig. 2.

Immunohistochemical staining of DMT1 in the intestine of

Trfhpx/hpx andHfe−/− mice. Magnified (400×) tissue sections from the proximal duodenum ofTrf?/+,Trfhpx/hpx,Hfe+/+, and Hfe−/−mice were immunostained with polyclonal rabbit anti-mouse DMT1 N-terminus antibody (dilution 1:40). DMT1 detection produces dark brown staining.

Close modal

In contrast, neither Hfe−/− norB2m−/− mice had a measurable induction of DMT1 protein expression as shown by Western blotting (Figure 1) and by immunohistochemistry (Figure 2, forHfe−/−only; B2m−/− data not shown). Both of these mouse models of hemochromatosis gave results that were not appreciably different from those of controls. In these experiments, slight variations in the low level of basal DMT1 and Trfr expression were observed but were attributed to normal animal-to-animal variation or processing of otherwise identical samples. In contrast to the result seen inTrfhpx/hpx mice, the lack of induction in Hfe−/− andB2m−/− mice strongly suggests that an increase in DMT1 protein levels is not primarily responsible for accelerated iron absorption in hemochromatosis. Other possibilities, including increased activity of post-translationally modified DMT1 and variation in the reducing step23,24 or the basolateral transfer step,25 may also contribute to the increase of iron uptake in hereditary hemochromatosis.

Other groups have reported increases in DMT1 mRNA levels in a different Hfe knockout mouse18 and in human patients with hereditary hemochromatosis.26 There are several possible explanations for the discrepancy between their results and ours. First, we analyzed DMT1 protein expression, whereas the other groups examined DMT1 mRNA expression. It is possible that increased mRNA production does not result in increased protein production. We feel this is unlikely, however, because we also examined DMT1 mRNA expression in our Hfe knockout mice, and we could not detect a difference from wild-type mice (data not shown). We feel other explanations are more likely. The Hfe knockout mice studied by Sly et al27 did not have a homogeneous genetic background. We believe that their results may be attributable to strain-to-strain variations between mice, as have been reported in the literature. We controlled for this variability in the current study. Similarly, patients reported by Zoller et al26 did not have the same genetic background and had been treated with phlebotomy to varying extents. Phlebotomy may activate the erythroid regulator of iron absorption by inducing erythropoiesis. As shown by the analysis ofTrfhpx/hpx mice, the erythroid regulator can increase DMT1 expression even in the setting of tissue iron overload.

This study allows us to begin to distinguish between mechanisms of iron loading in 2 disorders of iron metabolism, atransferrinemia and hereditary hemochromatosis. Future work should give additional insight into the molecular regulators of iron balance.

Supported by National Institutes of Health grant AI35237 (P.G.) and partially supported by NIH grants DK53813 (N.C.A), HL03600 (M.D.F.), and HL03503 (J.E.L.). P.G. is an International Research Scholar of the Howard Hughes Medical Institute and a Senior Scientist of the Medical Research Council of Canada. N.C.A. is an Associate Investigator of the HHMI.

The publication costs of this article were defrayed in part by page charge payment. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 U.S.C. section 1734.

1
Gunshin
H
Mackenzie
B
Berger
UV
et al
Cloning and characterization of a mammalian proton-coupled metal-ion transporter.
Nature.
388
1997
482
488
2
Fleming
MD
Trenor
CCI
Su
MA
et al
Microcytic anemia mice have a mutation in Nramp2, a candidate iron transporter gene.
Nat Genet.
16
1997
383
386
3
Canonne-Hergaux
F
Gruenheid
S
Ponka
P
Gros
P
Cellular and subcellular localization of the Nramp2 iron transporter in the intestinal brush border and regulation by dietary iron.
Blood.
93
1999
4406
4417
4
Umbreit
JN
Conrad
ME
Moore
EG
Latour
LF
Iron absorption and cellular transport: the mobilferrin/paraferritin paradigm.
Semin Hematol.
35
1998
13
26
5
Gutierrez
JA
Yu
J
Rivera
S
Wessling-Resnick
M
Functional expression cloning and characterization of SFT, a stimulator of Fe transport.
J Cell Biol.
139
1997
895
905
6
Abboud
S
Haile
DJ
A novel mammalian iron-regulated protein involved in intracellular iron metabolism.
J Biol Chem.
275
2000
19906
19912
7
Donovan
A
Brownlie
A
Zhou
Y
et al
Positional cloning of zebrafish ferroportin1 identifies a conserved vertebrate iron exporter.
Nature.
403
2000
776
781
8
McKie
AT
Marciani
P
Rolfs
A
et al
A novel duodenal iron-regulated transporter, IREG1, implicated in the basolateral transfer of iron to the circulation.
Mol Cell.
5
2000
299
309
9
Vulpe
CD
Kuo
YM
Murphy
TL
et al
Hephaestin, a ceruloplasmin homologue implicated in intestinal iron transport, is defective in the sla mouse.
Nat Genet.
21
1999
195
199
10
Andrews
NC
Fleming
MD
Gunshin
H
Iron transport across biologic membranes.
Nutr Rev.
57
1999
114
123
11
Goya
N
Miyazaki
S
Kodate
S
Ushio
B
A family of congenital atransferrinemia.
Blood.
40
1972
239
245
12
Hamill
RL
Woods
JC
Cook
BA
Congenital atransferrinemia: a case report and review of the literature.
Am J Clin Pathol.
96
1991
215
218
13
Heilmeyer
L
Atransferrinemias [German].
Acta Haematol.
36
1966
40
14
Heilmeyer
L
Keller
W
Vivell
O
et al
Congenital transferrin deficiency in a seven-year old girl.
Germ Med Monthly.
86
1961
1745
1751
15
Feder
JN
Gnirke
A
Thomas
W
et al
A novel MHC class I-like gene is mutated in patients with hereditary haemochromatosis.
Nat Genet.
13
1996
399
408
16
Canonne-Hergaux F, Fleming MD, Levy JE, et al. The Nramp2/DMT1 iron transporter is induced in the duodenum of microcytic anemiamk mice but is not properly targeted to the intestinal brush border. Blood. In press.
17
Levy
JE
Montross
LK
Andrews
NC
Genes that modify the hemochromatosis phenotype in mice.
J Clin Invest.
105
2000
1209
1216
18
Fleming
RE
Migas
MC
Zhou
X
et al
Mechanism of increased iron absorption in murine model of hereditary hemochromatosis: increased duodenal expression of the iron transporter DMT1.
Proc Natl Acad Sci U S A.
96
1999
3143
3148
19
Trenor CCI, Campagna DR, Sellers VM, Andrews NC, Fleming MD. The molecular defect in hypotransferrinemic mice. Blood. 2000. In press.
20
Levy
JE
Montross
LK
Cohen
DE
Fleming
MD
Andrews
NC
The C282Y mutation causing hereditary hemochromatosis does not produce a null allele.
Blood.
94
1999
9
11
21
Koller
BH
Marrack
P
Kappler
JW
Smithies
O
Normal development of mice deficient in beta 2M, MHC class I proteins, and CD8+ T cells.
Science.
248
1990
1227
1230
22
Gruenheid
S
Canonne-Hergaux
F
Gauthier
S
Hackam
DJ
Grinstein
S
Gros
P
The iron transport protein NRAMP2 is an integral membrane glycoprotein that colocalizes with transferrin in recycling endosomes.
J Exp Med.
189
1999
831
841
23
Santos
M
Clevers
H
de Sousa
M
Marx
JJ
Adaptive response of iron absorption to anemia, increased erythropoiesis, iron deficiency, and iron loading in β2-microglobulin knockout mice.
Blood.
91
1998
3059
3065
24
Raja
KB
Pountney
D
Bomford
A
et al
A duodenal mucosal abnormality in the reduction of Fe(III) in patients with genetic haemochromatosis.
Gut.
38
1996
765
769
25
McLaren
GD
Nathanson
MH
Jacobs
A
Trevett
D
Thomson
W
Regulation of intestinal iron absorption and mucosal iron kinetics in hereditary hemochromatosis.
J Lab Clin Med.
117
1991
390
401
26
Zoller
H
Pietrangelo
A
Vogel
W
Weiss
G
Duodenal metal-transporter (DMT-1, NRAMP-2) expression in patients with hereditary haemochromatosis [see comments].
Lancet.
353
1999
2120
2123
27
LeBoeuf
RC
Tolson
D
Heinecke
JW
Dissociation between tissue iron concentrations and transferrin saturation among inbred mouse strains.
J Lab Clin Med.
126
1995
128
136
