Human antibodies with specificity for the C2 domain of factor VIII are derived from VH1 germline genes

Plasma-derived FVIII light chain was obtained from immunopurified FVIII concentrate.12 Anti-FVIII murine monoclonal antibodies (mAbs) CLB-CAg A, 9, 12 and 117 used in this study have been characterized previously12,13; mAbs ESH4 and ESH8 were purchased from American Diagnostica (Greenwich, CT). Recombinant FVIII fragments were expressed and metabolically labeled in insect cells using the Baculovirus system as described previously.7,14 Taq DNA polymerase and restriction enzymes were purchased from Life Technologies (Breda, The Netherlands).

After abdominal surgery, a previously healthy 44-year-old woman had severe hemorrhages. The level of FVIII appeared to be < 1%, and an inhibitor with a titer of 123 Bethesda units (BU)/mL was detected.15 Ten weeks later, the inhibitor titer reached a maximum value of approximately 1200 BU/mL. Plasma samples and peripheral blood mononuclear cells obtained at this time were used. Domain specificity and isotype of FVIII inhibitors were determined by immunoprecipitation.7,14 FVIII inhibitor neutralization was performed essentially as described previously.7

Peripheral blood lymphocytes obtained by Ficoll density centrifugation were used to isolate RNA, which was then used for cDNA synthesis with random hexamer primers. V_H genes were amplified using each of the family-based back primers9 in combination with an IgG constant region primer 5′-CTTGTCCACCTTGGTGTTGCTGGG-3′. The repertoire was reamplified with an IgG4 subclass-specific oligonucleotide primer 5′-ACGTTGCAGGTGTAGGTCTTC-3′. Purified polymerase chain reaction products were subjected to a final round of amplification using a combination of family-based back primers, together with forward primers matching the different heavy chain joining (J_H) germline genes; both primers were appended with NcoI orSalI restriction sites, respectively.16 The IgG4-specific V_H gene repertoire was cloned in the vector pHEN-1-VLrep, which already contained a V_L gene repertoire of nonimmune origin.17,18 The final repertoire was electroporated into Escherichia coli TG1 as described.9

Recombinant phages obtained by infection of the library with VSCM-13 helper phage (Stratagene, La Jolla, CA) were selected for binding to the FVIII light chain. A noninhibitory antibody specific for the light chain of FVIII, mAb CLB-CAg 12, was immobilized onto microtiter wells (Dynatech, Plockingen, Germany) at a concentration of 5 μg/mL in 50 mmol/L NaHCO₃, pH 9.6. Wells were blocked with 3% human serum albumin (HSA) in Tris-buffered saline (TBS; 150 mmol/L NaCl, 50 mmol/L Tris, pH 7.4) for 2 hours at 37°C. Phages in TBS, 3% (wt/vol) HSA, and 0.5% (vol/vol) Tween-20 were preabsorbed to CLB-CAg 12-coated wells for 2 hours at room temperature. Subsequently, nonbound phages were transferred to microtiter wells containing FVIII light chain (100 ng/well) captured by mAb CLB-CAg 12 in 1 mol/L NaCl, 50 mmol/L Tris, pH 7.4, 2% (wt/vol) HSA. Alternatively, phages were selected against an FVIII light chain coated at a concentration of 2 μg/mL in 50 mmol/L NaHCO₃, pH 9.6, overnight at 4°C in immunotubes (Nunc; Life Technologies, Breda, The Netherlands). After 20 washes with TBS/0.1% (vol/vol) Tween-20 and 20 washes with TBS, bound phages were eluted with 100 mmol/L triethylamine and used to infect E. coli TG1 cells.9 After each round of selection, phages from single-infected colonies were tested for binding to FVIII light chain immobilized by mAb CLB-CAg 12. Binding of phages was monitored by incubation with horseradish peroxidase-conjugated anti-M13 antibody as described.19 DNA sequences encoding the V_H and V_L domains of FVIII light-chain–specific clones were determined on an Applied Biosystems (Foster City, CA) 377XL automated DNA sequencer using primers LMB3, fdSEQ,9 and linkSEQ20 as described.21 Sequences were compared to germline V genes as compiled in the V-BASE sequence database.22

To facilitate purification of scFv, V gene cassettes of FVIII light-chain–specific clones were subcloned in the expression vector pUC119-Sfi/Not-His6 as NcoI/NotI fragments.21 Expression and purification of scFv by immobilized metal chelate-affinity chromatography was performed essentially as described previously.23 Eluted fractions were dialyzed against TBS and analyzed by sodium dodecyl sulphate–polyacrylamide gel electrophoresis (SDS-PAGE). Protein concentration was determined spectrophotometrically at A₂₈₀.

Immunoprecipitation analysis was performed as follows: metabolically labeled FVIII fragments in immunoprecipitation buffer were pre-cleared by 2 successive incubations for 2 hours at room temperature with Ni-NTA agarose (Qiagen, Hilden, Germany) and 1 incubation with gelatin Sepharose 4B (Pharmacia-LKB, Woerden, The Netherlands). Immunoprecipitation buffer consisted of 50 mmol/L Tris, pH 7.6, 150 mmol/L NaCl, 20 mmol/L Imidazole, 1.2% (vol/vol) Triton X-100, 0.1% (vol/vol) Tween-20, 1% (wt/vol) bovine serum albumin, 10 μg/mL soybean trypsin inhibitor, 10 mmol/L benzamidine, and 5 mmol/L N-ethylmaleimide. Specific adsorption was performed by incubating pre-cleared medium with pre-formed scFv/Ni-NTA complexes overnight at 4°C. After extensive washing with immunoprecipitation buffer, SDS sample buffer was added and samples were analyzed under reducing conditions by 20% (wt/vol) SDS-PAGE.

Patient's plasma or inhibitory mAb was diluted to a final concentration of 2 BU/mL in 50 mmol/L Tris, pH 7.3, and 0.2% (wt/vol) HSA. Serial dilutions of purified scFv were made in the same buffer. Diluted plasma or inhibitory mAb was incubated for 2 hours at 37°C with an equal volume of scFv and an equal volume of pooled normal plasma. Residual FVIII activity was measured relative to a control sample that was incubated in the absence of FVIII inhibitor in a one-stage clotting assay.

The domain specificity of anti-FVIII antibodies in the plasma of a patient with acquired hemophilia was evaluated by immunoprecipitation using metabolically labeled FVIII fragments. Patient's antibodies reacted with recombinant FVIII light-chain (A3-C1-C2), A2, and C2 domains (Figure 1A). The extent to which each epitope contributed to FVIII inhibition was determined by neutralization assays. Antibodies directed toward the A2 domain accounted for 50% of the FVIII inhibitory activity. Adding FVIII light chain resulted in 50% inhibitor neutralization, whereas only 20% neutralization was observed after the addition of the C2 domain (data not shown). These results indicated that the patient's antibodies interacted with the A2, C2, and A3-C1 domains of FVIII. Isotyping revealed a predominance of subclasses IgG2 and IgG4 for A2 domain-specific antibodies, whereas anti-FVIII light-chain antibodies consisted exclusively of subclass IgG4 (Figure 1B). The IgG4-specific V_H gene repertoire was used to construct a phage display library consisting of 2.5 × 10⁶ clones.

Recombinant phages expressing the patient's IgG4-specific V_H gene repertoire were selected on immobilized FVIII light chain. After 4 rounds of panning, phages derived from 57 of 60 single-infected colonies displayed specificity for the FVIII light chain as determined by enzyme-linked immunosorbent assay (data not shown). The nucleotide sequences of the V_H and V_L genes of FVIII light-chain–specific clones were determined and aligned to the most homologous germline genes in the V-BASE sequence directory.22 In total, 5 unique V_H domains were identified that were encoded by V_H genes most likely derived from germline genes DP-10, DP-14, and DP-88, all from the V_H1 gene family (Table1). Two V_H domains (EL-16 and EL-25) were found in several clones in combination with different V_L domains. The deduced amino acid sequences of the V_H domains are compiled in Table2. The level of somatic mutation in FVIII light-chain–specific V_H domains ranged from 11 to 16 amino acid substitutions (18 to 27 nucleotide substitutions) when compared with the most homologous germline genes. It should be noted that V_H domains of clones EL-5, EL-16, and EL-25 are all derived from germline DP-14 (Table 2). All have a similar CDR3 sequence, and their patterns of somatic hypermutation suggest that the V_Hgenes of clones EL-5, EL-16, and EL-25 originate from a common B-cell precursor. The length of V_H CDR3 (residues 95-102) of the FVIII light-chain–specific V_H domains ranges from 20 to 23 amino acids (Table 2). In clones EL-5, EL-16, and EL-25, the rearranged J_H segment, encoding the carboxy terminal part of the CDR3, was most homologous to gene segment J_H6b.22Clones EL-9 and EL-14 have been assembled using gene segment J_H3b. The 5 different V_H domains identified paired with a variety of V_L domains (Table 1). In total, we identified 13 unique V_H-V_L pairings, and in 7 of 13 the V_L domain was encoded by V_κ1 family gene. Of the remaining 6, 4 were DPL16 (V_λ3 family gene) derived and the other 2 were V_κ4 and V_λ2 derived. Each unique V_H-V_L gene combination was subcloned and was expressed as scFv using the prokaryotic expression vector pUC119-Sfi/Not-His6.21

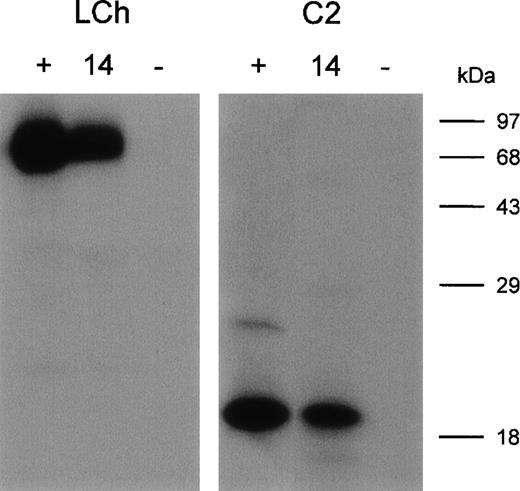

Five clones reacting with the FVIII light chain were selected for further analysis (Table 2). E. coli TG1-expressed scFv were purified as described in Materials and Methods. All 5 scFv showed specific binding to the FVIII light chain, whereas scFv derived from a randomly picked control clone (O4) did not react under our experimental conditions (data not shown). Within the FVIII light chain, 2 dominant B-cell epitopes for inhibitory antibodies are located within the A3 and C2 domains.5-8 To investigate the domain specificity of scFv, immunoprecipitations with metabolically labeled FVIII light chain and C2 domain were performed. ScFv EL-14 reacted with the radiolabeled FVIII light chain and the C2 domain (Figure2). Identical results were obtained for the other 4 scFv (data not shown). Preliminary experiments demonstrated that scFv were fully capable of competing for binding with the murine mAb CLB-CAg 117 to FVIII. This C2 domain-specific antibody has been described as efficiently interfering with FVIII activity.13The ability of scFv to inhibit FVIII procoagulant activity was compared to that of IgG purified from a patient's plasma. Surprisingly, no inhibition of FVIII procoagulant activity was observed for the scFv up to a concentration of 200 nmol/L (Figure3). In contrast, the patient's purified IgG inhibited FVIII activity with a specific activity of 160 BU/mg.

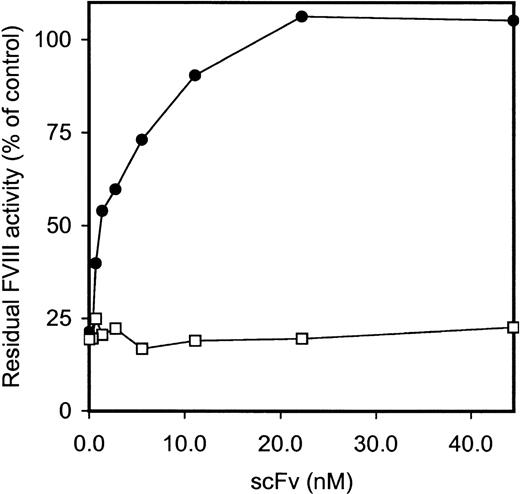

The ability of scFv to interfere with FVIII inhibitory activity of CLB-CAg 117, a C2 domain-specific antibody, was tested. Adding increasing amounts of scFv EL-14 completely eliminated FVIII inhibition by CLB-CAg 117 (Figure 4). In contrast, scFv EL-14 did not affect the inhibitory activity of CLB-CAg A, a monoclonal antibody directed against residues Lys¹⁸⁰⁴-Lys¹⁸¹⁸ in the A3 domain of FVIII.25 In addition, scFv EL-5, EL-9, EL-16, and EL-25 were capable of neutralizing the inhibition of FVIII by CLB-CAg 117. Complete neutralization of CLB-CAg 117 was reached at concentrations of 100 to 400 nmol/L for these scFv.

Similarly, we tested whether scFv could abrogate the inhibition of FVIII by the patient's purified IgG. First, the contribution of anti-C2 antibodies to the total FVIII inhibitory activity of the patient's IgG was assessed. A recombinant C2 domain could neutralize 23% ± 5% of FVIII inhibitory activity of the patient's IgG. The addition of scFv EL-14 resulted in similar levels of neutralization (23% ± 4%). The same results were obtained with the other 4 scFv (data not shown). Simultaneously adding all scFv did not result in higher levels of neutralization. These findings suggested that the isolated scFv were capable of competing with the patient's C2-specific IgG for binding to FVIII.

Development of neutralizing antibodies to FVIII constitutes a major complication in hemophilia care. Despite considerable insights into epitope specificity and mode of action of FVIII inhibitors, limited information is available on the primary structure of human antibodies directed against FVIII. In this study, we used V gene phage display to explore the properties of scFv with specificity for the FVIII light chain. Thirteen scFv were isolated, all directed against the C2 domain of FVIII. It should be noted that FVIII inhibitors with A3-C1 specificity were detected in the patient's plasma. However, we were unable to isolate scFv directed against the A3-C1 domains. During the selection procedure, potential binding sites in the A3-C1 domains may be masked by the methods used for immobilization of the FVIII light chain.

Sequence analysis revealed that heavy chains of these scFv were encoded by V_H genes, most homologous to the germline gene segments DP-10, DP-14, and DP-88, all belonging to the V_H1 gene family. The extensive hypermutation observed suggests that these FVIII-specific V_H genes originate from antigen-stimulated B cells.11 Germline gene sequences DP-10, DP-14, and DP-88 all encode an identical combination of loop conformations or canonical structures.26 Previously, using Epstein-Barr virus immortalization, a monoclonal IgG4_κ antibody (BO2C11) was derived from the B-cell repertoire of a hemophilia A patient with an inhibitor.27 The heavy chain of this C2 domain-specific antibody was encoded by the gene segment DP-5, also belonging to the V_H1 gene family.27 These data suggest that FVIII antibodies with C2 domain specificity preferentially use V_H gene segments derived from the V_H1 family. The scFv described in this study are derived from a single patient with acquired hemophilia. Further analysis of the V_H gene use of additional C2-specific anti-FVIII antibodies is required to substantiate our findings. In healthy individuals, the random rearrangement of V, D, and J segments may generate autoreactive antibodies that will be deleted from the repertoire on encountering antigen.11 Therefore, high-affinity autoreactive antibodies are unlikely to be isolated from the repertoire of healthy persons.28 Consequently, we do not expect to find anti-C2 domain antibodies in the repertoire of a nonimmune donor similar to the ones described in this study.

In this study we used a nonimmune V_L gene repertoire to assemble FVIII-specific scFv. V_κ1 and V_λ3 gene segments primarily encoded the variable light chains identified in this study. Preferential use of the latter light chain genes cannot be explained by the limited diversity of the used V_L gene repertoire because various antibodies with different light chains have been isolated from this V_L gene library.9,17,18

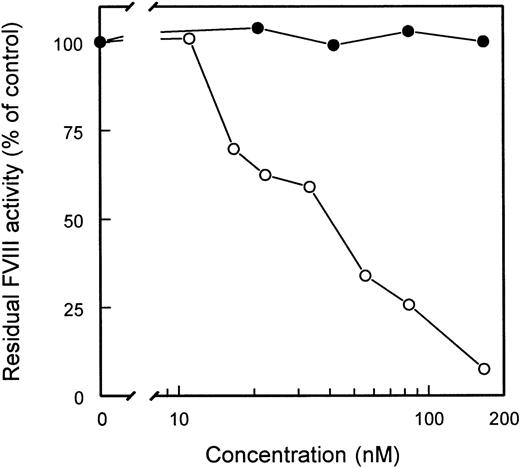

FVIII inhibitors with C2 specificity have been shown to inhibit FVIII binding to von Willebrand factor, phospholipids, or both.27,29-31 Surprisingly, the scFv described in this study did not inhibit FVIII activity (Figure 3). The size of scFv, smaller than that of complete IgG antibodies (30 vs. 150 kd), may explain the lack of FVIII inhibition. Alternatively, the isolated scFv may correspond to noninhibitory antibodies in a patient's plasma. We are currently constructing complete IgG4 molecules using the variable domains of scFv. Functional analysis of these complete IgG4 molecules will reveal whether the variable heavy-chain domains identified in this study are representative of either inhibitory or noninhibitory antibodies. Competition experiments revealed that scFv neutralized the inhibitory activity of mAb and human anti-FVIII antibodies with C2 specificity, suggesting that the binding sites for scFv are in proximity to the inhibitor epitope in the C2 domain.

The authors thank M-J. S. H. Donath for the purified FVIII light chain. They also thank W. G. van Aken, R. C. Aalberse, K. Mertens, P. J. Lenting, and J. A. van Mourik for critical evaluation of the manuscript.
