Reduced NFAT1 Protein Expression in Human Umbilical Cord Blood T Lymphocytes

ALLOGENEIC TRANSPLANTATION cures a significant number of patients with hematologic malignancies via immunologic mechanisms termed graft-versus-leukemia (GVL).1The major obstacle to a successful outcome after transplantation is graft-versus-host disease (GVHD), resulting from donor T-cell alloreactivity against recipient major and minor histocompatibility antigens presented within the context of the major histocompatibility complex (MHC).2 Umbilical cord blood (UCB) from related and unrelated donors has recently emerged as a novel source of stem cells for patients requiring allogeneic transplantation.3-5 The incidence and severity of acute GVHD in UCB recipients compares favorably with that observed in recipients of matched unrelated donor grafts, but remains a major cause of morbidity and mortality. Of 562 patients transplanted with partially HLA mismatched UCB grafts, the majority of whom were less than age 18 years, 23% experienced severe acute GVHD (grade III to IV).5 In comparison, of 88 children transplanted with HLA-matched unrelated donor grafts, 37% experienced severe grade III to IV acute GVHD.6

T cells are known to play a central role in mediating GVHD. Allogeneic grafts depleted of T cells elicit reduced GVHD posttransplant.7,8 Donor T cells activated by recipient alloantigen produce Th1 type cytokines, thereby recruiting and activating other effector cells, which amplify donor T-cell alloreactivity and provoke tissue damage. Cytokines implicated directly in tissue damage during GVHD include tumor necrosis factor-α (TNF-α) and interferon-γ (IFN-γ).9 10

T cells in UCB are predominantly of naive phenotype (CD45RA⁺) with reduced to absent CD45RO⁺expression when compared with adult peripheral blood T cells.11 Upon primary stimulation, UCB T cells demonstrate activation marker expression equivalent to adult controls, as measured by CD45RA⁺ downregulation and upregulation of CD25, CD69, T-cell receptor (TCR), and p56^lck.12-14Moreover, upon primary TCR stimulation, UCB T cells and adult T cells proliferate to the same extent, as measured by thymidine incorporation.12 Importantly, however, certain effector functions of UCB T cells necessary to amplify T-cell responses to foreign antigens, are reduced. For example, T-cell proliferation after secondary stimulation has been shown to be significantly reduced, and alloantigen-specific cytotoxicity is decreased.15,16Moreover, production of the cytokines interleukin-2 (IL-2), IL-4, IFN-γ, and TNF-α by activated UCB T cells is significantly reduced, when compared with adult T cells.11 17

The transcription of many cytokine genes and immunomodulatory molecules is regulated by nuclear factor of activated T cells-1 (NFAT1 or NFATp), a member of the NFAT family.18 NFAT1 is expressed constitutively at relatively high basal levels in unstimulated adult T cells and resides in latent form in the cytoplasm.19,20NFAT1 mRNA expression in published reports is not significantly upregulated with short-term (2 to 3 hours) T-cell stimulation.20,21 However, a recent report describes expression of NFAT1 protein above basal constitutive levels measured in unstimulated T cells, after prolonged (10 to 30 days) T-cell priming.22 After TCR stimulation and consequent calcium influx, constitutively expressed NFAT1 protein is activated through dephosphorylation by the phosphatase calcineurin.23Dephosphorylation of NFAT1 correlates with its translocation to the nucleus and increase in DNA-binding activity.24 25

Cyclosporin A (CsA) and FK506, effective prophylactic and treatment agents against GVHD and powerful inhibitors of cytokine production, have been shown to inhibit calcineurin directly, as well as dephosphorylation and translocation of NFAT1.26-28 In addition, NFAT1 gene-deleted studies further establish the necessity of NFAT1 protein for the transcriptional upregulation of the IL-4, IFN-γ, granulocyte-macrophage colony-stimulating factor (GM-CSF), IL-13, TNF-α, CD69, Fas Ligand (FasL), and CD40L genes.29 These observations together suggest a central role for NFAT1 in regulating cytokine production by activated T cells during GVHD.

Because little is known about the regulation of NFAT1 during GVHD or its activity in UCB T cells, we investigated NFAT1 expression in unstimulated and stimulated UCB T cells compared with adult T cells. We show here that NFAT1 protein expression is significantly reduced in unstimulated UCB T cells and is only partially expressed after prolonged (40 hours) primary TCR stimulation when compared with adult controls. These findings correlate with reduced IFN-γ and TNF-α production by the same cells during prolonged primary TCR stimulation. Furthermore, we show that lack of NFAT1 expression in UCB T cells is not due to naive, CD45RA⁺ phenotype. Reduced NFAT1 protein expression in UCB T cells may prevent amplification of activated donor UCB T-cell responses to recipient alloantigens posttransplant.

Human UCB was collected into collection bags containing citrate dextrose (Allegiance, Deerfield, IL) after vaginal deliveries or Cesarean sections of full-term pregnancies from healthy normal mothers, as approved by the Institutional Review Board at University Hospitals of Cleveland. Adult blood was collected into citrate dextrose, after informed consent of normal healthy adults. Mononuclear cells (MNC) were separated by gradient centrifugation on Histopaque-1077 (Sigma Chemical Co, St Louis, MO). Red blood cell contamination of UCB was reduced by gravity separation on 6% dextran (Sigma) before gradient centrifugation. MNC were used immediately fresh.

T cells were purified by negative depletion using a cocktail of monoclonal antibodies including: CD11b, CD16, CD19, and CD56 (PharMingen, San Diego, CA) followed by anti-IgG magnetic bead depletion, following manufacturer’s instructions, with modifications (Dynal, Lake Success, NY). Briefly, antibodies were added at 5 μg/mL each to 20 × 10⁶ cells/mL of MNC resuspended in RPMI/10% fetal bovine serum (FBS) and incubated for 30 minutes on ice. Cells were washed twice and incubated in RPMI/10% FBS at 20 × 10⁶ cells/mL with recommended amounts of magnetic beads. After purification, T-cell purity was analyzed by flow cytometry and CD3⁺ T-cell purity ranged between 90% to 97% of viable CD45⁺ cells. In studies of CD45RA/RO subsets, CD45RA⁺ T cells were further purified from T cells by depleting with 10 μg/mL of anti-CD45RO monoclonal antibody in the same conditions as above (PharMingen). The resulting depleted population was single positive for CD45RA and purity ranged between 80% to 85% of viable T cells. The positively selected CD45RO⁺ population contained the CD45RO single-positive population, as well as the double CD45RO/CD45RA-positive population.

Purified T cells were lysed in 20 mmol/L Tris pH 7.6, 50 mmol/L KCl, 400 mmol/L NaCl, 1 mmol/L EDTA, 1% Triton-X, 20% glycerol, 1 mmol/L dithiothreitol (DTT), 0.5 mmol/L phenylmethylsulfonyl fluoride (PMSF), 1 μg/mL pepstatin, 2 μg/mL leupeptin, 2 μg/mL aprotinin, and 10 mmol/L Na₂MoO₄. Protein extracts corresponding to 0.3 × 10⁶ cells were loaded per lane and separated on 7% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), transferred to polyvinylidene fluoride (PVDF) membrane (Millipore, Bedford, MA) and immunodetected with a mix of monoclonal antibodies directed against NFAT1 (Transduction Laboratories, Lexington, KY) and β-actin (Sigma). NFAT1 antibody was used at a dilution of 1/2,500, the actin antibody at a dilution of 1/5,000. The bands were visualized using enhanced chemiluminescence (Amersham, Buckinghamshire, UK) and band intensities were quantified by densitometry scanning on Sci Scan 5000 (U.S. Biochemical, Cleveland, OH). Band intensity was normalized for loading with the actin band, and NFAT1 band density was expressed in relative percentage of the strongest NFAT1 band on each gel. Purified single-positive CD45RA⁺ T cells were extracted after selection as outlined above and analyzed by Western blot. Positively selected CD45RO⁺ T cells were extracted directly on magnetic beads and analyzed in the same conditions as outlined above.

Each experiment was performed concomitantly on MNC from 2 UCB units and peripheral blood MNC from 2 adults. MNC were stimulated in bulk culture at concentration 2 × 10⁶ cells/mL with 2 μg/mL concanavalin A (Con A) (Sigma) in RPMI medium (GIBCO-BRL, Gaithersburg, MD) with 10% FBS (GIBCO-BRL), 1 mmol/L sodium-pyruvate (GIBCO-BRL), 0.1 mmol/L nonessential amino acids (GIBCO-BRL), 10 mmol/L HEPES (GIBCO-BRL), and 58 μmol/L 2-mercaptoethanol (Sigma) for 40 hours. T cells for Western blot analyses were isolated before stimulation and after stimulation and were lysed immediately.

Intracellular cytokine staining was performed concomitantly on the same MNC preparations using identical stimulation conditions as the Western blot analyses. Staining was performed using FastImmune (Becton Dickinson, San Jose, CA) according to the manufacturer’s instructions with the following changes. MNC were stimulated at concentration 2 × 10⁶ cells/mL for 18 and 40 hours with 2 μg/mL concanavalin A (Con A) (Sigma) in the presence of 5 μg/mL of Brefeldin A (BFA) (Becton Dickinson) for the final 16 hours of stimulation. Red blood cells were lysed and MNC washed and permeabilized. A total of 0.5 × 10⁶ MNC were stained for 30 minutes at room temperature (RT) with the following antibodies: anti–IFN-γ–fluorescein isothiocyanate (FITC) or anti–TNF-α–FITC in the presence of anti-CD3–allophycocyanin (APC) and anti-CD69–phycoerythrin (PE) (Becton Dickinson). Cells were washed and fluorescence was acquired immediately on Elite ESP flow cytometer (Coulter, Miami, FL). Data were analyzed with WinList (Verity Software House Inc, Topsham, MN) and are plotted as T-cell–specific (CD3⁺) anti–cytokine-reactivity (FITC-fluorescence) versus surface CD69 reactivity.

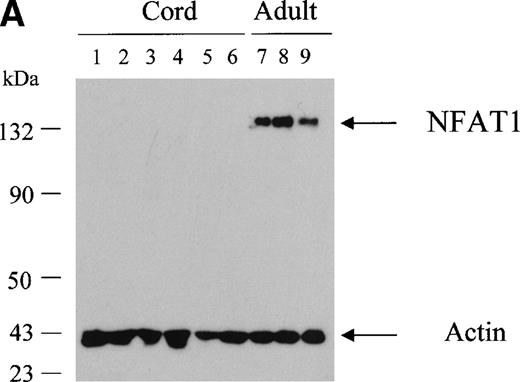

NFAT1 protein is expressed constitutively in human peripheral T cells and can readily be detected by Western blotting.20 30 We investigated NFAT1 expression in UCB T cells and compared this with adult controls. We prepared whole cell extracts from freshly purified unstimulated T cells and analyzed NFAT1 protein expression by Western blotting. While NFAT1 protein was readily detectable in 3 × 10⁵ unstimulated adult T cells (Fig 1A, lanes 7 to 9), we found no detectable NFAT1 expression in an equivalent number of unstimulated UCB T cells (Fig 1A, lanes 1 to 6), indicating reduced constitutive NFAT1 expression in unstimulated UCB T cells.

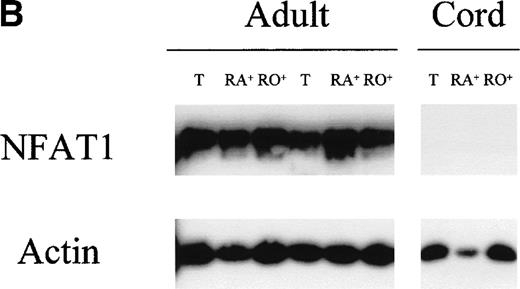

T cells in UCB are predominantly of naive phenotype (CD45RA⁺) with reduced to absent CD45RO⁺expressing T cells, when compared with adult peripheral blood T cells.11 Reduced NFAT1 protein expression might therefore be attributable to the predominance of naive, CD45RA⁺expressing T cells, rather than an intrinsic trait of UCB. NFAT1 protein expression was therefore measured by Western blot in CD45RA⁺ and CD45RO⁺ T-cell subpopulations from adult peripheral blood and UCB. In the adult, equivalent levels of NFAT1 protein were measured both in the CD45RA⁺ and CD45RO⁺ T-cell subsets (Fig 1B). In UCB T cells, no NFAT1 expression was detected in either CD45RA⁺ or CD45RO⁺ T-cell subpopulations.

Because we observed reduced NFAT1 protein expression in unstimulated UCB T cells, we investigated if we could upregulate NFAT1 protein expression by prolonged primary T-cell stimulation. Therefore, we stimulated MNC from freshly isolated UCB and adult peripheral blood for up to 40 hours with Con A, purified the T cells at time points 18 hours and 40 hours and assessed NFAT1 expression by Western blot analysis.

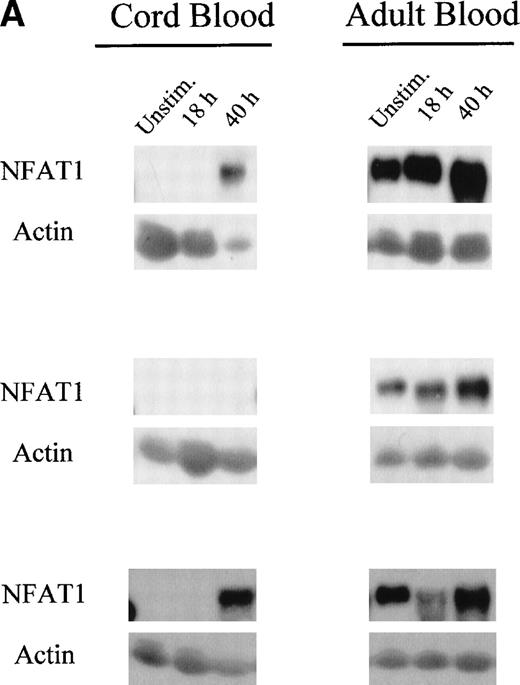

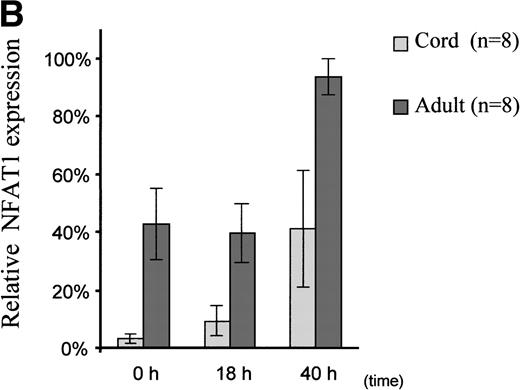

Interestingly, we observed that in adult T cells, NFAT1 protein expression was upregulated 2-fold after 40 hours of primary T-cell stimulation (Fig 2A and B). In UCB T cells, however, NFAT1 expression remained deficient after 18 hours, with only 22% of the expression of NFAT1 observed in adult at that time point, and was only partially upregulated after 40 hours of stimulation, averaging 45% of expression measured in adult T cells.

The transcription of numerous cytokines, including IFN-γ and TNF-α, is regulated by NFAT1.18 In stimulated lymphocytes from NFAT1 gene-deleted mice, IFN-γ and TNF-α expression has been shown to be reduced.29

Because we found deficient constitutive NFAT1 expression in unstimulated UCB T cells and only partial NFAT1 protein upregulation with prolonged TCR stimulation, we measured cytoplasmic expression of IFN-γ and TNF-α in UCB T cells at time points 18 hours and 40 hours of Con A stimulation using the same UCB and adult MNC as for our Western blot analyses. While performing the Con A stimulation experiments for NFAT1 Western blotting described above, MNC from the same UCB and adult peripheral bloods, stimulated concomitantly in identical study conditions, were analyzed for intracellular cytokine expression. Intracellular cytokine expression was analyzed using 3-color flow cytometric analysis with directly conjugated monoclonal antibodies specific for CD3, the early activation marker CD69, and the cytokines IFN-γ and TNF-α. Cytoplasmic IFN-γ and TNF-α expression were then measured in gated activated, CD69 expressing CD3⁺ T cells.

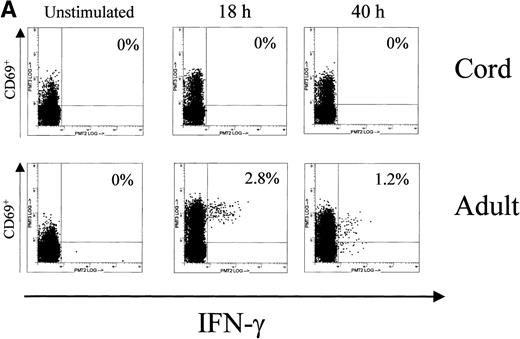

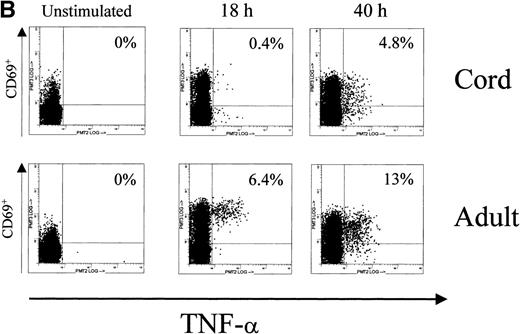

In accordance with the reduced NFAT1 expression measured by Western blot in UCB T cells, we found a reduced number of IFN-γ and TNF-α producing cells in UCB T cells at the time point 18 hours of Con A stimulation (Fig 3, Table 1). While on average 3.5% of adult activated T cells expressed IFN-γ and 5.8% expressed TNF-α after 18 hours of prolonged T-cell stimulation, we found on average only 1.5% of activated UCB T cells expressing IFN-γ and 2.7% CD3⁺/CD69⁺ UCB T cells expressing cytoplasmic TNF-α. After 40 hours of Con A stimulation, at the time point when NFAT1 protein became detectable by Western blotting in UCB T cells and doubled in adult controls, TNF-α expressing T cells in UCB increased to 6.3% and almost doubled in adult controls to 10.8%. Further increases in IFN-γ producing T cells in either UCB or adult controls were not observed between 18 hours and 40 hours of Con A stimulation.

Transcription factors of the NFAT family play a major role in the regulation of cytokine genes and other effector molecules modulated during immune responses. While putative binding sites for NFAT1 have been described on the regulatory elements of many genes, only recent in vivo data from NFAT1 gene-deleted mice confirmed the crucial role of NFAT1 in the transcription of the IL-4, IFN-γ, GM-CSF, IL-13, TNF-α, CD69, FasL, and CD40L genes.29

The surface phenotype and functional deficiencies described for murine NFAT1 gene-deleted lymphocytes resembles that of human UCB lymphocytes. Activated lymphocytes from UCB produce reduced amounts of IL-4, IFN-γ, TNF-α, GM-CSF, and have reduced surface expression of CD40L.4,11,31 32 These properties suggested reduced NFAT1 function in UCB lymphocytes. We therefore analyzed NFAT1 protein expression in UCB T cells and compared it with expression in adult T cells. We show herein, that in freshly isolated unstimulated UCB T cells, constitutive NFAT1 protein expression is undetectable, as measured by Western blotting, in conditions where it is readily detectable in adult T cells.

As T cells in UCB are predominantly of naive phenotype (CD45RA⁺) with reduced to absent CD45RO⁺expression when compared with adult peripheral blood T cells,11 one might hypothesize that reduced NFAT1 protein expression is attributable to the naive, CD45RA⁺ phenotype of T cells in UCB, rather than an intrinsic trait of UCB T cells. However, our analysis of NFAT1 protein expression by Western blot in CD45RA⁺ and CD45RO⁺ T-cell subpopulations from adult and UCB does not support this hypothesis. Rather, we measured similar levels of NFAT1 expression in both adult CD45RA⁺ and CD45RO⁺subpopulations and could not detect NFAT1 in either subpopulation in UCB. These findings strongly suggest that the reduced constitutive expression of NFAT1 we observe in unstimulated UCB T cells is an intrinsic property of cord blood.

Upregulation of NFAT1 protein during primary stimulation of adult T cells has not been described. However, a recent report described upregulation of NFAT1 protein levels after 10 to 30 days of priming of peripheral adult T cells.22 Our data demonstrates that in adult T cells, NFAT1 is upregulated 2-fold after 40 hours of stimulation. Importantly, however, our results show that after 18 hours of primary T-cell stimulation, there is still deficient NFAT1 expression seen in UCB T cells. Furthermore, after 40 hours of stimulation, NFAT1 expression remains significantly reduced in UCB T cells, averaging only 45% of adult expression.

Interestingly, our studies using concomitant measurement of NFAT1 by Western blotting with cytoplasmic expression of IFN-γ and TNF-α show that upregulation of NFAT1 in adult T cells after 40 hours of stimulation correlates with the late upregulation of cytoplasmic TNF-α expression. Furthermore, in agreement with reduced NFAT1 protein levels expressed by UCB T cells, we detected reduced TNF-α producing T cells in UCB at 18 hours time point of primary T-cell stimulation. After 40 hours of T-cell stimulation, when NFAT1 expression in UCB T cells is upregulated to 45% of that measured in adult T cells, TNF-α production is noted to increase to almost one half that of adult controls. IFN-γ expression increased above baseline expression after 18 hours of Con A stimulation, but did not increase further after 40 hours of stimulation in UCB and adult T cells, suggesting dependence on transcription factors other than NFAT1 at this later time point. It is interesting to note here that upregulation of IFN-γ mRNA in NFAT1 gene-deleted lymphocytes has been shown to be less deficient than upregulation of TNF-α mRNA.29

One might argue that reduced IFN-γ and TNF-α production could be attributable to excess Th2 type cytokine production by UCB T cells. However, previous reports point to reduced rather than increased Th2 type cytokine production by UCB T cells.11,17 This phenotype of reduced expression of Th2 cytokines is also observed in murine NFAT1 gene-deleted lymphocytes.29 In this model, NFAT1 protein expression has been clearly correlated with reduced Th1 and Th2 cytokine upregulation.

Low expression of the pivotal transcription factor NFAT1 and reduced IFN-γ and TNF-α production would be expected to blunt amplification of alloreactive donor T-cell responses against recipient antigens, thereby limiting clinical GVHD severity after UCB allogeneic transplantation. IFN-γ and TNF-α are known to play a central role in mediating the pathophysiology of clinical GVHD. Accordingly, levels of these cytokines are significantly increased in allogeneic recipients during GVHD reactions.9,33,34 Moreover, clinical trials show that administration of anti–TNF-α antibodies is effective for prophylaxis and attenuation of GVHD in allogeneic bone marrow transplant recipients.35,36 Likewise, it has been shown that administration of a xanthine derivative pentoxifylline, capable of downregulating TNF-α production, reduced GVHD incidence and severity in bone marrow transplant recipients.37 IFN-γ also synergizes with lipopolysaccaride (LPS), released upon tissue damage in allogeneic recipients receiving ablative chemoradiotherapy conditioning regimens, to augment TNF-α production during the early posttransplant time period.38 39

In addition to affording a possible new strategy for specific immune modulation, our results suggest a potential molecular mechanism underlying the reported reduced incidence and severity of GVHD observed in allogeneic UCB transplant recipients. Whether there is a possible link between NFAT1 protein expression and incidence and severity of GVHD in recipients of allogeneic UCB is currently under active investigation.

The authors thank the Labor and Delivery staff of McDonald’s Women Hospital for their enthusiastic support.
