Sialyl Lewis^x (sLe^x) and an sLe^xMimetic, CGP69669A, Disrupt E-Selectin–Dependent Leukocyte Rolling In Vivo

USING INTRAVITAL MICROSCOPY, leukocytes can be observed to travel from the microcirculation to inflamed tissue according to a regulated chain of events that include rolling, firm adhesion, diapedesis, and migration through the interstitium.1-4 The earliest link in this chain (rolling) is mediated by interaction of the selectin family of adhesion molecules with their carbohydrate-bearing physiologic ligands.4-7 The three members of the selectin family (E-selectin expressed on endothelium, P-selectin on platelets and endothelium, and L-selectin on leukocytes) share a common modular structure characterized by an N-terminal lectin domain linked to an epidermal growth factor–like domain, a variable number of consensus repeats attached to a transmembrane segment, and a short cytoplasmic tail. While there is evidence demonstrating contributions of the epidermal growth factor–like8 and consensus repeat9 domains to optimal selectin function, this has been questioned,10 and it is binding of the lectin domain to physiologic carbohydrate-bearing ligands that is crucial for function.10-15 Thus, although physiologic selectin ligands are emerging as a diverse group of glycosylated proteins that recognize one or more of the selectins,2,5 it has been shown that the minimal carbohydrate epitope recognized by all three selectins is the tetrasaccharide sialyl Lewis^x(sLe^x)11-15 to which E-selectin appears to bind with higher affinity. In line with this, treatment with glycosidases that remove important monosaccharides from sLe^x,16-18 or the use of sLe^x-blocking antibodies,19 limits the adhesion of treated cells to selectin-bearing substrates.

A contribution of carbohydrates to selectin function in vivo has also been demonstrated: large fucose-bearing polysaccharides (eg, fucoidin) can inhibit leukocyte rolling in vivo,20-22 treatment of human neutrophils with sialidase or with monoclonal antibodies specifically recognizing sLe^x prevent them from rolling in rat mesenteric venules,23,24 and, more recently, it was shown that mice genetically lacking the fucosyltransferase VII (Fuc-TVII), required for correct assembly of sLe^x,25 have numerous phenotypic similarities with mice that lack P- and E-selectins,26,27 an observation consistent with a requirement for Fuc-TVII in the correct assembly of physiologic selectin ligands. The importance of correct glycosylation of selectin ligands in humans is evident in leukocyte adhesion deficiency type II (LAD II),28 in which a deficiency of fucose metabolism prevents correct assembly of sLe^x and thus of selectin ligands. Deficient sLe^x expression correlates with the inability of neutrophils from LAD II patients to roll on inflamed endothelium,29 and results in poor resistance to infection in patients.28

Inhibition of selectin/selectin ligand interaction is an attractive approach to antiinflammatory drug design pursued by numerous groups.30-40 Beneficial effects of soluble sLe^xand various derivatives thereof have been demonstrated in models of inflammatory disease, including lipopolysaccharide (LPS)-induced leukocyte adhesion in rat mesenteric venules,41 acute lung injury in rats,42 and cardiac ischemia-reperfusion injury in cats43 and dogs.44

A direct effect of soluble sLe^x against P-selectin–dependent leukocyte rolling in vivo has been described,45,46 indicating that the described antiinflammatory effects of sLe^x are due to reduced leukocyte rolling. Despite the fact that sLe^x binds better to E-selectin than to L- or P-selectins,30 effects of inhibiting sLe^x on E-selectin–dependent rolling in vivo have not been described. One reason for this is that models allowing study of E-selectin–dependent rolling in vivo have, until recently, been unavailable. Because of functional overlap between the selectins, combined block of P-selectin with either E-, or L-selectin is required to completely inhibit thioglycollate-induced neutrophil recruitment to the peritoneal cavity.47 In tumor necrosis factor alpha (TNFα)-stimulated mouse cremaster muscle, blocking E-selectin alone has been shown to increase leukocyte rolling velocity,48 while blocking either L- or E-selectin reduces leukocyte rolling fraction if administered to mice that lack P-selectin.49,50 Equipped with this knowledge, selective antibodies, and/or P-selectin knockout mice, effects of different treatments on E-selectin–dependent rolling can now be studied using intravital microscopy.

Since rolling in the mouse cremaster is so well characterized with respect to its selectin dependence, we have used this system to investigate the inhibitory effects of sLe^x and a novel sLe^x mimetic, CGP69669A, on E-, L-, and P-selectin–dependent rolling in vivo. We demonstrate that sLe^x treatment increases leukocyte rolling velocities in TNFα-stimulated tissue (characteristic of E-selectin blockade). We also show that CGP69669A treatment increases rolling velocity if applied alone, and completely blocks E-selectin–dependent rolling in mouse cremaster if applied in combination with anti–P-selectin antibody. In apparent contrast to conclusions drawn from earlier work,45,46 we find no effect of sLe^x or CGP69669A on either P- or L-selectin–dependent rolling. Our data establish that soluble sLe^x is a weak inhibitor of E-selectin in vivo, while CGP69669A selectively and effectively abolishes E-selectin–dependent rolling in vivo.

Murine recombinant TNFα (rmTNFα), purchased from R&D systems (Abingdon, Oxon, UK), was dissolved at 0.1 mg/mL in phosphate-buffered saline containing 0.1% bovine serum albumin (BSA), sterile-filtered, and stored in 500 ng aliquots at −20°C. The rat-antimouse-P-selectin antibody RB40.34 (rat IgG₁) and the rat-antimouse-L-selectin antibody Mel-14 (Rat IgG_2a), which have been shown previously to block rolling in mouse cremaster dependent on P- and L-selectin, respectively,49were purchased from Pharmingen Deutschland GmbH (Hamburg, Germany). Whole rat IgG (used as a control for RB40.34 and Mel-14) was purchased from Sigma (Buchs, Switzerland). Antibodies were stored at 1 mg/mL in 10-μg aliquots at −20°C. Before injection into mice, cytokine and antibody aliquot volumes were expanded to 150 μL by addition of sterile saline containing 0.1% BSA.

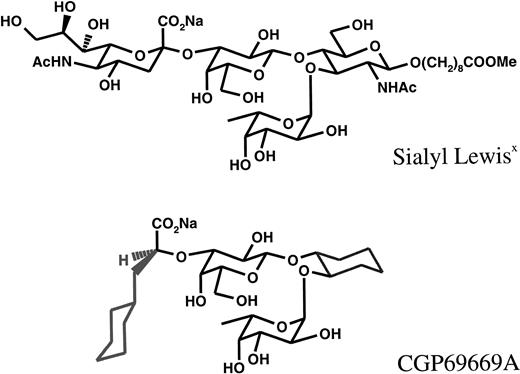

The structures of sLe^x(Siaα(2-3)galβ(1-4)[FUCα1-3]GlcNAcβ-), which was attached to a Lemieux spacer, and CGP69669A ((2S)-3-Cyclohexyl-2O-@1-O-[(1R,2R)2-O-(α-l-fucopyranosyl) -cyclohexyl]-β-d-galactopyrano-3-yl@-2-methyl-propanoate) are compared in Fig 1. In CGP69669A GlcNac, which in sLe^x acts as a spacer upon which Gal and Fuc are fixed, has been replaced by cyclohexandiol, and S-cyclohexylactic acid has been substituted for sialic acid. These two modifications were found to increase in vitro–binding activity to E-selectin by a factor of 10 (data not shown). 3-Sialyl N-acetyllactosamine was used as a negative control for sLe^x and CGP69669A. Compounds, which were stored as lyophilized solids, were dissolved in sterile saline and filtered (0.2 μm) before injection into mice.

Male C57BL/6 mice weighing between 25 and 35 g were used in these experiments. All procedures performed were approved by the Kantonales Veterinäramt, Basel-Stadt, Switzerland. Mice were anesthetized with an intraperitoneal injection of 100 mg/kg ketamine hydrochloride (Ketalar; Parke-Davis, Baar, Switzerland) after premedication with 30 mg/kg sodium pentobarbital (Serva, Heidelberg, Germany) and 0.1 mg/kg atropine sulfate (Fluka, Buchs, Switzerland). Some mice received an intrascrotal injection of 500 ng rmTNFα in 150 μL saline approximately 2 hours before intravital microscopic observation. Where such injections were performed, mice were first briefly anesthetized with inhaled isofluorane. Before preparation of the cremaster muscle for intravital microscopy, the following cannulations were performed: trachea to facilitate breathing; left jugular vein to allow intravenous injection of compounds, antibodies, and supplementary anesthesia (pentobarbital 5 mg/mL, intravenously, 0.2 mL/h); and left carotid artery to allow blood sampling. Body temperature was automatically maintained at 37°C using a feedback temperature regulator (Model TCI-88; Systag AG, Thalwill, Switzerland) linked to a small heating pad.

The cremaster muscle was prepared for intravital microscopy as described.49 Briefly, the testis, the epididymis, and the cremaster muscle that encloses them, were gently extracted through a small incision in the scrotum. The tip of the cremaster muscle was pinned such that the testis and cremaster were positioned across a 10-mm Ø cover glass that comprised part of a specialized microscopy stage. After careful removal of fat and connective tissue, an incision was made through the cremaster beginning at the pinned tip and taking a route toward the point of exit from the scrotum that, where possible, avoided severing blood vessels in the muscle. The cremaster was then spread over the cover glass and pinned in place. During this procedure, which was typically complete within 10 minutes, and during intravital microscopic observation, the cremaster was superfused with thermocontrolled (36°C) bicarbonate-buffered solution (131.9 mmol/L NaCl, 18 mmol/L NaHCO₃, 4.7 mmol/L KCl, 2.0 mmol/L CaCl₂, and 2 mmol/L MgSO₄) through which a gas mixture of 5% CO₂ in N₂ was bubbled.

Microscopic observations were made using a light microscope (Axioskop; Carl Zeiss AG, Zurich, Switzerland) equipped with a saltwater immersion objective (40×/0.75W). Venules with diameters between 15 and 50 μm were selected for observation and recorded via a CCD camera system (Model BC-6; AVT-Horn, Aalen, Switzerland) onto sVHS video cassettes using a sVHS video cassette recorder with a built-in time base corrector (Model AG 4700; Panasonic, Osaka, Japan). A time/date function was added to the recorded images by passing the signal from the camera through a video timer (Model C-VTG-33; FORA, Natik, MA), which was accurate to 1/100th of a second. Venules were typically recorded in 1-minute segments, except where treatments (antibody or oligosaccharides) were applied, in which case recording began 1 minute before treatment, was continued during treatment injection, and terminated 5 minutes after injection. Centerline red blood cell velocity was determined by the “two-slit” photometric technique using a dual photodiode linked via preamplifiers (Model 79D + Model 7P122 Amplifier; Grass Instrument, Quincy, MA) and an analog-digital converting board (Labmaster DMA; Scientific Solutions, Solon, OH) to a Pentium PC (IBM350-P133; Also-Comsyt AG, Basel, Switzerland) running a digital on-line cross correlation program.51 Mean blood flow velocity (V_b) was estimated from centerline red blood cell velocity by dividing by an empirical factor of 1.6 as described.52 Newtonian wall shear rate was calculated as 8V_b/vessel diameter. Blood samples (10 μL) were drawn from the carotid artery at regular (∼45 minutes) intervals throughout the experiment and at time points immediately before and after compound or antibody treatments. Blood samples were analyzed for total leukocyte concentration using an automatic cell counter (Model F-300; Sysmex, Kobe, Japan) calibrated for mouse leukocytes.

The bulk of analyses were performed on data extracted off-line from the video recordings of venules. Rolling flux was determined by counting the number of cells rolling past a plane perpendicular to the vessel axis. Where comparison of fluxes before and after treatment was made, values were obtained from recordings taken 1 minute before injection and 1 to 2 minutes after injection. Vessel diameter was measured using the public domain NIH-Image program (available on the internet at http:/rsb.info.nih.gov/nih-image), ported to the PC platform by Scion Corp (Frederick, MD), on a commercially available setup (P75 PC; Gateway, Des Moines, IA; LG3 Video capture card; Scion). Vessel diameter together with blood flow velocity and whole-blood leukocyte concentration was used to estimate total leukocyte flux (assuming cylindrical vessel geometry and uniform distribution of leukocytes in the microcirculation). Flux data are presented as rolling flux %, which is defined as the rolling leukocyte flux expressed as a percentage of total leukocyte flux.

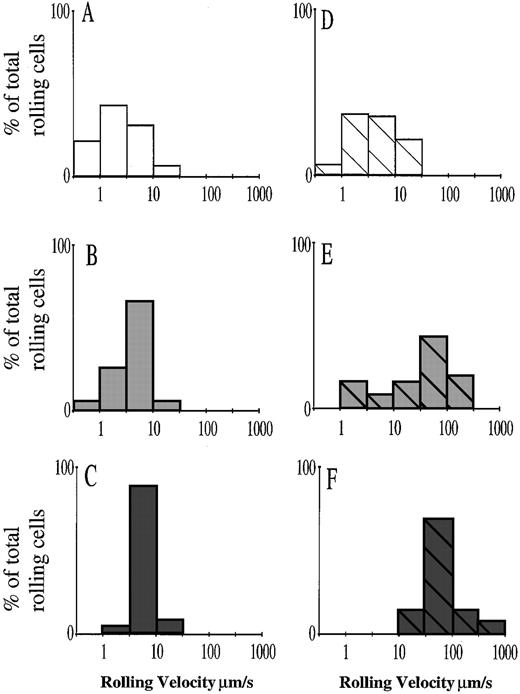

In each vessel studied, leukocyte rolling velocities were determined immediately before and after different treatments for five randomly selected leukocytes by measuring the distance traveled (measured using NIH-image as earlier) in a given time (indicated by the video timer). For cells rolling at low velocities (<30 μm/s), distance traveled over a 2-second period was measured, whereas for faster moving cells (>30 μm/s), distance traveled in 0.1 to 0.5 seconds was typically measured.

For analysis of the effect of intravenously injected sLe^xand CGP69669A on surface expression of L-selectin on leukocytes, 10-μL samples of mouse blood were collected via the carotid artery either before, or 2 minutes subsequent to injection of these compounds into mice at 100 mg/kg. These samples were mixed with 400 μL Dulbecco's modified Eagle's medium (DMEM) plus 10% fetal calf serum (FCS) containing 50 U/mL heparin sulfate and 2 μg fluorescein isothiocyanate (FITC) or phycoerythrin (PE)-conjugated antibodies (Mel-14, mouse granulocyte marker GR-1, antimouse CD3, Pharmingen isotype-matched control rat IgG; Sigma) in 7 mL Styropor FACS tubes (Becton Dickinson, Mountain View, CA). Samples were incubated in the dark for 30 minutes at 4°C. Positive control shedding of L-selectin was induced by incubating a 200-μL blood sample with 1 μm fMLP (Sigma) ex vivo for 1 hour at 37°C. Before our measurement of surface L-selectin expression by FACS (Becton Dickinson; FAC-Star Plus), red blood cells were lysed by addition of a 20-fold volume excess of sterile-filtered, ice-cold, lysis buffer (NH₄Cl 155 mmol/L, KHCO₃ 10 mmol/L, EDTA 140 μm, pH 7.3), washed twice in phosphate-buffered saline and finally resuspended in Hank's balanced salt solution containing 0.1% wt/vol sodium azide (Sigma) and 1% wt/vol FCS (GIBCO, Basel, Switzerland). A total of 10,000 gated events were collected and relative fluorescence intensity versus cell number histograms constructed after gating on either lymphocyte or granulocyte regions determined by forward- and side-scatter profiles. The positions of granulocyte and lymphocyte regions were independently confirmed using samples stained with the pan-granulocyte marker GR-1 (FITC-labeled) or anti-CD3 (PE-labeled) monoclonal antibodies.

Leukocyte rolling flux % values before and after treatment were compared using Student's t test with the Bonferroni correction for multiple comparison where appropriate. Leukocyte rolling velocity distributions were compared using the Kolmagorov-Smirnov test for goodness of fit.

Since hemodynamic factors such as vessel diameter and blood flow velocity (both of which influence wall shear rate), together with systemic leukocyte concentration variation, can potentially alter the flux of rolling leukocytes, these factors were measured and are summarized in Table 1. Any effect of venular diameter variation on rolling was avoided in the present studies by making all comparisons in the same vessels. Blood flow velocity, estimated from centerline red blood cell velocity, was not significantly altered by antibody/compound treatments.

Total systemic leukocyte concentrations in untreated mice were similar to previously reported values49,50 and, in most groups, were unaltered by antibody and carbohydrate treatments given. Interestingly, total leukocyte concentrations in TNFα-stimulated mice were somewhat lower than those in mice stimulated merely by the surgery required for intravital microscopy. This lowering of systemic leukocyte count in response to TNFα, which has been observed in some48 but not all previous experiments,49,50using this system, most likely reflects the fact that large numbers of cells were involved in leukocyte endothelial interaction in the cremaster and other tissues exposed to the effects of TNFα. Treatment of TNFα-stimulated mice with RB40.34 plus CGP69669A caused a slight but significant increase in systemic leukocyte concentration. This effect, which was not seen after combined treatment with RB40.34 and sLe^x, possibly reflects redistribution of rolling leukocytes to the systemic circulation. Blocking P-selectin function has been previously demonstrated to increase systemic leukocyte counts, presumably by interfering with basal rolling in the skin and other tissues.47,53

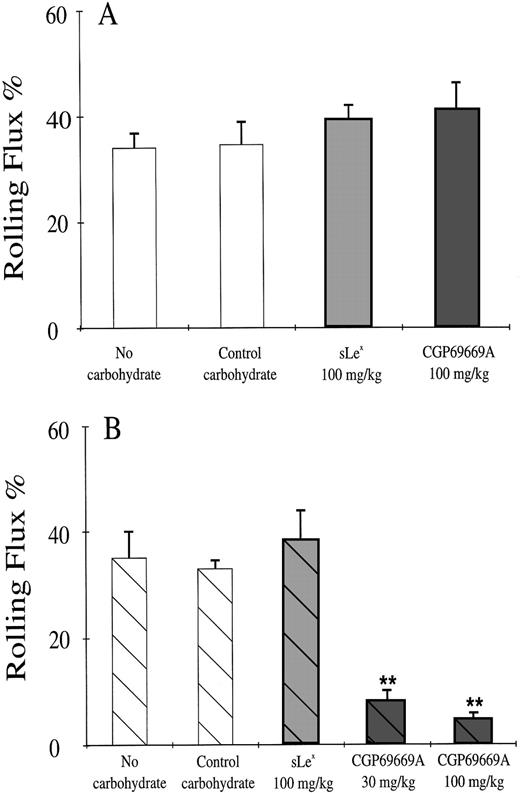

Treatment of the cremaster muscle with TNFα (500 ng intrascrotal) stimulates leukocyte rolling in venules that are dependent on E-, L-, and P-selectins.49,54 Because of some functional redundancy between the selectins, a reduction in the percentage of cells rolling through TNFα-stimulated venules is apparent only when a lack of P-selectin (ie, in knockout or anti–P-selectin antibody-treated mice) is combined with lack of E- or L-selectin.26,27,49,50 We wanted to assess the potential of CGP69669A as an E-selectin antagonist in vivo compared with its naturally occurring counterpart, sLe^x. We therefore gave these agents to TNFα-stimulated mice in combination with either control IgG or the blocking anti–P-selectin antibody RB40.34. In the present study, 2 hours after stimulation with TNFα, approximately 40% of leukocytes passing through observed venules were engaged in rolling interaction with the vessel wall (Fig 2A). This rolling fraction was not altered by sLe^x or by CGP69669A given alone (Fig2A). The anti–P-selectin antibody RB40.34 given alone or in combination with sLe^x was also without effect on rolling flux fraction (Fig 2B). In contrast, combined treatment with RB40.34 and CGP69669A at either 30 or 100 mg/kg intravenously reduced rolling flux fraction to less than 6% (Fig 2B). Although detailed kinetic analyses were not performed as part of this study, reduced rolling appeared to be maintained for approximately 20 minutes after application of RB40.34 plus CGP69669A. The control carbohydrate 3-sialyl N-acetyllactosamine, alone or in combination with RB40.34, did not alter leukocyte rolling flux %.

The effect of CGP69669A combined with RB40.34 described earlier is consistent with the function of this agent as either an E- and/or L-selectin antagonist. We noticed that the cells continuing to roll after combined RB40.34/CGP69669A treatment did so at a higher velocity than before treatment, suggesting that although some cells were able to form adhesive interactions with the vessel wall, these interactions were significantly less efficient. Although combined treatment with RB40.34/sLe^x did not affect the proportion of rolling cells, it was apparent that this treatment also increased rolling velocity and was thus interfering with the adhesion of these cells. We therefore performed further analysis of the experiments presented in Fig 2 by measuring leukocyte rolling velocities before and after treatments. Figure 3 illustrates the distribution of rolling cell velocities for leukocytes in TNFα-stimulated mouse cremaster. In the present study, the distribution of rolling cell velocities after TNFα stimulation (Fig3A) was similar to that described in an earlier study.48Following treatment with the anti–P-selectin antibody RB40.34, slightly fewer cells tended to roll below 3 μm/s (Fig 3D), although the overall distribution of rolling velocities was not significantly different from that measured in control IgG-treated mice. This is also consistent with previous findings.48 Treatment with either sLe^x or CGP69669A (in combination with control IgG) increased rolling cell velocities (Fig 3B and C). When sLe^xor CGP69669A was combined with RB40.34, rolling velocities were increased still further, with combined sLe^x and RB40.34 increasing rolling velocity approximately 30-fold and combined CGP69669A and RB40.34 treatment increasing rolling velocities approximately 100-fold compared with untreated controls or with mice treated with RB40.34 alone. CGP69669A given either separately or in combination with RB40.34 had a greater effect on leukocyte rolling velocity than the respective treatments with sLe^x, suggesting improved anti–E-selectin activity. Treatment with control carbohydrate 3-sialyl N-acetyllactosamine, alone or in combination with RB40.34, did not affect leukocyte rolling velocity (data not shown).

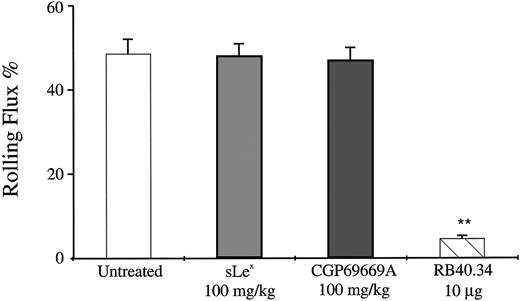

The results described for CGP69669A and sLe^x so far are consistent with function of these compounds as E-selectin antagonists. To investigate antagonism of P-selectin by these agents, CGP69669A and sLe^x were compared with the anti–P-selectin antibody RB40.34 in a system in which rolling is largely P-selectin–dependent. Exteriorization of the cremaster muscle and the subsequent manipulation required for intravital microscopic observation causes leukocyte rolling, which is mostly dependent on P-selectin at time points up to 30 minutes after surgery.49 We have used this system to determine what, if any, effect sLe^x and CGP69669A have on P-selectin–dependent rolling in the mouse cremaster. In the present study, surgical preparation of the cremaster resulted in marked leukocyte rolling, which was stable during the period of observation (Fig 4). Injection of the anti-P–selectin monoclonal antibody, RB40.34, at 30 minutes after tissue exteriorization, resulted in almost total block of rolling, with less than 5% of cells interacting with the vessel wall following treatment (Fig 4). In contrast to the striking inhibition of rolling given by RB40.34, injection of either sLe^x or CGP69669A at 100 mg/kg had no significant effect on P-selectin–dependent rolling (Fig 4). Treatment with either sLe^x or CGP69669A at 100 mg/kg had no significant effect on leukocyte rolling velocities in this system (data not shown).

It has been demonstrated that, following the surgical stimulation necessary to prepare the mouse cremaster muscle for microscopic observation, rolling is initially P-selectin–dependent, while over time, an increasing requirement for L-selectin becomes apparent.49 To test the effects of sLe^x and CGP69669A against L-selectin, these agents were compared with the anti–L-selectin antibody Mel-14 in venules observed 1 hour after surgical exteriorization of the cremaster. Approximately 35% of leukocytes passing through venules were engaged in rolling interaction when observed 1 hour after surgery (Fig 5).Treatment with Mel-14 reduced this value to approximately 12%. Although Mel-14 treatment also resulted in marked leukopenia (mean ± SEM systemic leukocyte concentration immediately before Mel-14, 2,250 ± 1,125; systemic leukocyte concentration immediately after Mel-14, 790 ± 400), this did not account for the reduction in rolling flux %, since systemic leukocyte concentration is accounted for in the calculation of this value (ie, rolling flux % = rolling cells/total cells). The effect of Mel-14 on leukocyte rolling flux % measured 60 minutes after surgical stimulation of tissue therefore demonstrates a significant contribution of L-selectin to leukocyte rolling at this time as described.49 Under identical conditions, treatment with either sLe^x or CGP69669A did not reduce leukocyte rolling.

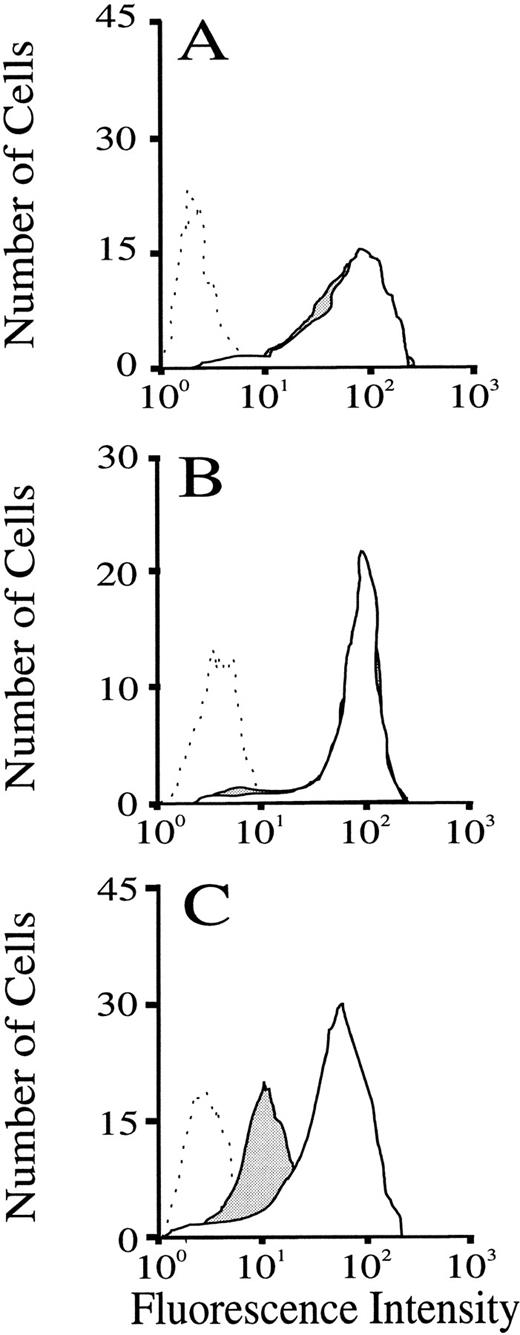

To determine whether the treatments given were activating leukocytes, and particularly polymorphonuclear leukocytes, which form the bulk of the rolling population under the conditions studied,48,55we performed FACS analysis on blood samples drawn from the carotid artery immediately before and 2 minutes after injection of compounds. Samples were stained for leukocyte L-selectin expression as described in the Methods. The results depicted in Fig6 show fluorescence intensity distributions gated for granulocytes (on the basis of forward- and side-scatter properties, together with negative staining for the mouse lymphocyte-selective marker Thy1.2). All cells stained with FITC-conjugated Mel-14. Cells collected and stained with FITC–Mel-14 following either sLe^x (Fig 6A, solid fill) or CGP69669A (Fig 6B, solid fill) had fluorescence intensity distributions that were indistinguishable from cells collected before compound injections. To validate that the method used was sensitive to changes in L-selectin expression, blood samples were treated in vitro with fMLP, which causes granulocytes to shed L-selectin.56 The effects of fMLP on granulocyte expression of L-selectin are shown in Fig 6C. Treatment of whole-mouse blood with fMLP caused a leftward shift of the fluorescence intensity distribution for Mel-14 staining of granulocytes, indicating loss of L-selectin from these cells.

We have shown that soluble sLe^x selectively disrupts E-selectin–dependent rolling in vivo, causing increased rolling velocity when applied alone or in combination with anti–P-selectin antibody. Furthermore, we describe a mimetic of sLe^x, CGP69669A, which has improved activity against E-selectin, causing a striking reduction in the number and a marked increase in the velocity of rolling leukocytes in TNFα-stimulated cremaster muscle when combined with anti–P-selectin antibody. These activities are consistent with function of sLe^x and CGP69669A as E-selectin antagonists.48 Although previous studies46 have detailed that sLe^x treatment can prevent an increase in leukocyte rolling flux and lowering of leukocyte rolling velocity induced by pharmacologic agents,45,46 our data represent the first description of a direct effect of sLe^x or sLe^x mimetics on E-selectin–dependent leukocyte rolling in vivo.

Previously described effects of sLe^x or other oligosaccharides in inflammatory models41-44 or against leukocyte rolling in vivo have been attributed to effects on P-selectin45,46 or “unidentified adhesion molecules”⁴⁶ based on comparative effects of P-selectin antibodies in the models studied. In contrast, under the experimental conditions used in the present study, we find no effect of sLe^x or CGP69669A against P-selectin–dependent rolling in the mouse. The model we have used (intravital microscopy, 30 minutes after surgical stimulation) to test effects of injected agents against P-selectin–dependent leukocyte rolling is certainly sensitive to P-selectin inhibition as previously documented49 and demonstrated by the positive effect of anti–P-selectin antibody described here. Obvious differences between our study and those describing inhibitory effects of sLe^x against P-selectin lie in the nature of the sLe^x used, as well as in the animal species studied and specific methods employed. Thus, the term sLe^x is applied to a family of molecules (rather than to a specific molecular structure) that share the common tetrasaccharide shown in Fig 1, but which can vary in the reducing end modification (eg, galactose or aglycon). The studies describing effects of sLe^x on P-selectin–dependent leukocyte rolling45,46 were performed in rats, which might differ from mice with regard to which selectin pathways are affected by sLe^x and/or analogs thereof. The methods used in the earlier studies also differ from those described here with respect to how rolling was stimulated and to the timing of compound administration. Particularly, in these studies, sLe^xpretreatment was found to prevent an increase in leukocyte rolling flux induced by pharmacologic agents (histamine45 or leukotriene C₄⁴⁶). The approach used in the present study holds certain advantage over these earlier studies in that sLe^x and CGP69669A were directly observed to inhibit existing E-selectin–dependent rolling in an exquisitely characterized system, while, in an equally well-defined system, no effect was seen against P-selectin–dependent rolling. The lack of effect of these agents against P-selectin was also directly compared with a striking effect of the well-characterized anti–P-selectin antibody RB40.34.47,49,50

The reduction of leukocyte rolling flux in TNFα-stimulated mouse cremaster muscle venules by CGP69669A combined with RB40.34 was quantitatively similar to that given by antibodies against either E-⁵⁰ or L-selectin49 in combination with P-selectin blockade. This suggests that CGP69669A, but not sLe^x, is an efficient inhibitor of either E- or L-selectin function at the concentrations used in the present study. The finding that treatment with sLe^x or CGP69669A increased leukocyte rolling velocity in TNFα-stimulated mouse cremaster when given in combination with anti–P-selectin or control antibodies is consistent with antagonism of E- rather than L-selectin, as only antibodies against E-selectin have been observed to increase rolling velocity in this system.48,55 To rule out the additional possibility of L-selectin antagonism by sLe^x and CGP69669A, these compounds were tested against rolling 1 hour after surgical trauma. A clear contribution of L-selectin to rolling induced under these conditions has been demonstrated previously49 and is confirmed here by the effect of Mel-14 antibody. Injection of either CGP69669A or sLe^x exactly 60 minutes after surgical trauma produced no significant reduction in leukocyte rolling flux, while injection of the anti–L-selectin antibody reduced rolling flux by greater than 60%. This provides convincing evidence that CGP69669A and sLe^x are not exerting their effects on TNFα-induced rolling via inhibition of L-selectin.

It has been known for some time that neutrophil activation results in shedding of L-selectin from the cell surface.56 More recent studies have demonstrated that functional expression of a P-selectin ligand can also be altered by chemotactic stimulation.57 To address the possibility that sLe^x and CGP69669A were producing effects against rolling indirectly, by activating cells, we measured the effect of intravenous injections of sLe^x and CGP69669A on mouse leukocyte activation state, using expression of L-selectin as a sensitive marker of activation relevant to the present study. When samples drawn immediately before and 2 minutes after injection of sLe^x and CGP69669A were compared, no difference was detected with respect to granulocyte expression of L-selectin. At 2 minutes sLe^x and CGP69669A had clear effects on leukocyte rolling in venules of TNFα-stimulated cremaster. This strongly suggests that the effects of these agents on leukocyte rolling in vivo resulted from specific inhibition of E-selectin, rather than nonspecific granulocyte activation.

Here, we characterize CGP69669A as a selective and efficient E-selectin antagonist that can reduce the number and increase the velocity of rolling leukocytes in vivo. Classical models of acute inflammation such as thioglycollate-induced peritonitis and delayed type hypersensitivity predict that antiinflammatory approaches aimed at the selectins should address both P- and E-selectins, requiring CGP69669A to be combined with anti–P-selectin treatment. However, with the field of selectin biology unfolding so rapidly, it is possible that an absolute requirement for E-selectin in certain diseases might be found, in which case CGP69669A might provide clinical benefit.

The expert assistance of M. Wesp in performing FACS measurements and analysis is gratefully recognized.
