• NPM1 mutations in AML arise from replication errors primed by illegitimate TdT activity.

  • The involvement of TdT in both NPM1 and FLT3-ITD mutagenesis suggests a significant proportion of AML is a by-product of adaptive immunity.

Nucleophosmin (NPM1) is the most commonly mutated gene in acute myeloid leukemia (AML). AML with mutated NPM1 is recognized as a separate entity in the World Health Organization 2016 classification and carries a relatively favorable prognosis. NPM1 mutations are predominantly 4-bp duplications or insertions in the terminal exon that arise through an unknown mechanism. Here we analyze 2430 NPM1 mutations from 2329 adult and 101 pediatric patients to address their origin. We show that NPM1 mutations display the hallmarks of replication slippage, but lack suitable germline microhomology available for priming. Insertion mutations display G/C-rich N-nucleotide tracts, with a significant bias toward polypurine and polypyrimidine stacking (P < .001). These features suggest terminal deoxynucleotidyl transferase (TdT) primes replication slippage through N-nucleotide addition, with longer syntheses manifesting as N-regions. The recurrent type A, type D, and type B mutations require 1, 2, and 3 N-nucleotide extensions of T, CC, and CAT, respectively, with the last nucleotide used as occult microhomology. This TdT-mutator model successfully predicts the relative incidence of the 256 potential 4-bp insertion/duplication mutations at position c.863_864 over 4 orders of magnitude (ρ = 0.484, P < .0001). Children have a different NPM1 mutation spectrum to adults, including a shift away from type A mutations and toward longer N-regions, consistent with higher TdT activity in pediatric myeloid stem cells. These findings complement our FLT3-ITD data, suggesting illegitimate TdT activity contributes to around one-half of AMLs. AML may therefore reflect the price for adaptive immunity.

Nucleophosmin (NPM1) mutations drive 33% of cases of acute myeloid leukemia (AML), including >50% of cases with a normal karyotype.1,2 NPM1-mutated AML is regarded as a distinct entity in the World Health Organization 2016 classification of myeloid neoplasms3  on the basis of exclusivity with recurrent cytogenetic rearrangements, CD34 negativity, multilineage involvement, and gene expression profile.4-8 NPM1 mutations predict a favorable prognosis unless a FLT3-ITD is also present9,10 ; hence, NPM1 and FLT3-ITD mutation status is routinely determined at presentation to facilitate risk-adapted therapy.

NPM1 is a nucleolar protein that shuttles between nucleus and cytoplasm, contributing to multiple cellular processes.5,6  In AML, mutated NPM1 is relocated from the nucleoli to the cytoplasm2  by creation of a C-terminal leucine-rich nuclear export signal (NES),11  most commonly of the form L-xxx-V-xx-V-x-L.5,6  Disruption of the existing nucleolar localization signal through mutation of tryptophans 288 and 290, or just W290, is also required to create a transforming protein.6,12,13  Loss of W290 alone necessitates creation of a stronger NES, with substitution of the second hydrophobic position valine with leucine, phenylalanine, cysteine, or methionine (eg, L-xxx-L-xx-V-x-L).13  Relocation of the mutated protein to the cytoplasm is essential for transformation.14

At the DNA level, these changes are achieved through frame-shift of the terminal coding exon. The most common NPM1 mutation (type A, incidence ∼80%)6  is a 4-bp duplication, c.860_863dupTCTG,2  which creates an L-xxx-V-xx-V-x-L NES with loss of both W288 and W290.5,6  Type B (c.863_864insCATG) and type D (c.863_864insCCTG) mutations represent ∼10% and ∼5% of cases, respectively. All other mutations are considerably rarer,6  including other 4-bp insertions at c.863_864, and longer insertions (± deletions) at nearby positions, such as c.869_873delins(9) which retains W288 and creates a stronger NES.

It is unknown how NPM1 mutations arise, although a replicative origin is plausible because the most common mutation is a duplication.15  However, there is a significant difference in the incidence of type A mutations between children and adults, potentially suggesting different pathological mechanisms.5,6,16,17  Any model should account for this difference. In our accompanying paper, we propose a replication-based model to explain the genesis of FLT3-ITDs in which terminal deoxynucleotidyl transferase (TdT) synthesizes the microhomology for priming replication slippage when germline microhomology is unavailable, with longer syntheses manifesting as G/C-rich N-regions at the repeat junction.18  The marked cooccurrence of NPM1 and FLT3-ITD mutations suggested to us that TdT could also prime NPM1 mutations (although these mutations are also known to synergize19 ).

Here we analyze 2430 NPM1 mutations to explore their genesis. NPM1 mutations show anatomy consistent with TdT-primed replication slippage, including G/C-rich N-regions with polypurine/polypyrimidine base stacking. Modeling with TdT predicts the frequency of all 256 different 4-bp insertions at c.863_864, and explains the different NPM1 mutational spectra observed in children and adults. These observations strengthen the evidence that TdT causes leukemia.

Mutation identification

NPM1 mutation sequences were identified from papers published up to 2016 via PubMed (supplemental Table 1, available on the Blood Web site). Duplicate publications were excluded. The NPM1 reference sequence was LRG_458t1, numbering from the start of the coding region.

NPM1 mutation dinucleotide analysis

Dinucleotides were identified from NPM1 N-regions ≥2 nt. All insertion positions were considered. Each individual mutation was only included once irrespective of incidence.

Incidence calculations

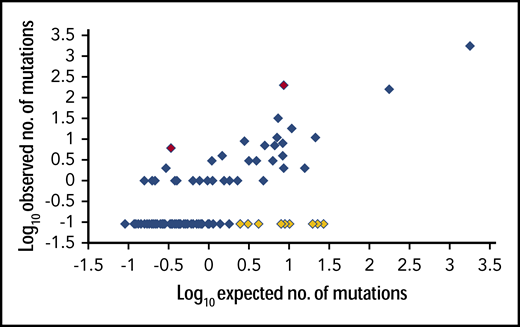

The predicted incidence of each NPM1 4-bp c.863_864 insertion was calculated using the incidences of the 16 TdT-synthesized dinucleotides and the proportion of each TdT extension length, as determined from FLT3-ITD N-regions (supplemental Table 2), and corrected for the percentage of 1-5 nucleotide extensions from c.863 predicted to yield a transforming protein (6.7%). Probabilities were summed for each extension length through which a mutation could occur, excluding nucleotide extensions ≥6 nt.

Bioinformatics and statistics

Human codon usage was obtained from http://www.kazusa.or.jp/codon/. Cumulative binomial probabilities were calculated at http://vassarstats.net/binomialX.html. Fisher’s exact tests were performed at http://www.graphpad.com/quickcalcs/contingency1/. P values are 2-tailed. Spearman’s rank correlations were performed at http://www.wessa.net/rwasp_spearman.wasp/.

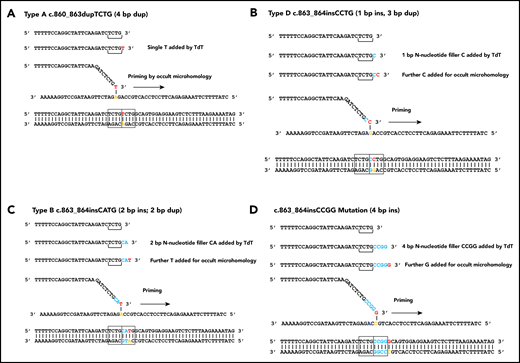

NPM1 mutation anatomy and priming

The position, sequence, and incidence of 2423 NPM1 mutations (2322 adults, 101 children) was compiled (Tables 1 and2). Seven additional unique adult NPM1 mutations of unknown incidence were appended (Table 1). We identified 114 unique mutations, predominantly short frameshift duplications, insertions, or indels that impaired the nucleolar localization signal and created an NES.

Table 1.

Adult NPM1 mutation sequences

TypeNucleotide sequence of NPM1 mutationsTranslationOccurrence
WT gat​ctc​tgg​cag​tgg​agg​aag​tct​ctt​taa DLWQWRKSL NA
 gatct ATGC ctg​gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK
 gatct TTGC ctg​gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK
 gatct TTGTCTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK
 gatctc ACAA tgg​cag​tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLTMAVEEVSLRK
 gatctc ATTAA ggc​agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLIKAVEEVSLRK
 gatctc ATTC tgg​cag​tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLILAVEEVSLRK
 gatctc CGCA tgg​cag​tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLRMAVEEVSLRK
 gatctc GTTTTGGCGA tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLVLAMEEVSLRK
 gatctc TCCATGCTCC tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLSMLLEEVSLRK
 gatctct CCCG ggc​agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLSRAVEEVSLRK
 gatctct CTGCAGCCT tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLSAALEEVSLRK
 gatctctg CAAA gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCKAVEEVSLRK
 gatctctg CAAG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCKAVEEVSLRK
 gatctctg CACA gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCTAVEEVSLRK
 gatctctg CACCACCT tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLCTTLEEVSLRK
 gatctctg CACG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCTAVEEVSLRK
 gatctctg CACGCG agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLCTRVEEVSLRK
 gatctctg CAGA gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg CAGG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg CAGTAAG gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCSKVEEVSLRK
 gatctctg CAGTCG agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLCSRVEEVSLRK
gatctctg CATG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCMAVEEVSLRK 197
 gatctctg CCAC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCHAVEEVSLRK
 gatctctg CCAG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCQAVEEVSLRK 11
 gatctctg CCAGAG agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLCQRVEEVSLRK
 gatctctg CCGA gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg CCGC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg CCGCCT agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLCRLVEEVSLRK
 gatctctg CCGG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK 11
 gatctctg CCGTT cag​tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLCRSVEEVSLRK
gatctctg CCTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK 160
 gatctctg CGCC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCAAVEEVSLRK
 gatctctg CGTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCVAVEEVSLRK
 gatctctg CTCG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCSAVEEVSLRK
 gatctctg CTGG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCWAVEEVSLRK
 gatctctg CTTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK 32
 gatctctg TAAA gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCKAVEEVSLRK
 gatctctg TAAG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCKAVEEVSLRK
 gatctctg TACCTTCC tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLCTFLEEVSLRK
 gatctctg TACG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCTAVEEVSLRK
 gatctctg TAGC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCSAVEEVSLRK
 gatctctg TAGG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg TATG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCMAVEEVSLRK 18
 gatctctg TCAAGACTTTCTTA aag​tct​ctt​taa​gaa​aat​ag DLCQDFLKVSLRK
 gatctctg TCAG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCQAVEEVSLRK
 gatctctg TCAT gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCHAVEEVSLRK
 gatctctg TCGC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg TCGG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
 gatctctg TCGGAGTCTCGGCGGAC tctctttaagaaaatag DLCRSLGGLSLRK
 gatctctg TCGT gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRAVEEVSLRK
gatctctg TCTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK 1750
 gatctctg TGAC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCDAVEEVSLRK
 gatctctg TGCG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCAAVEEVSLRK
 gatctctg TGTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCVAVEEVSLRK
 gatctctg TTCC gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCSAVEEVSLRK
 gatctctg TTCG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCSAVEEVSLRK
 gatctctg TTTG gca​gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCLAVEEVSLRK
 gatctctggca AAGGA tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRMEEVSLRK
 gatctctggca AGATTTCTTAAATC gtctctttaagaaaa tagtttaa DLWQDFLNRLFKK IV
 gatctctggcag AAGT tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQKLEEVSLRK
 gatctctggcag AGAA tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRMEEVSLRK
 gatctctggcag AGAC tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRLEEVSLRK
 gatctctggcag AGAT tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRLEEVSLRK
 gatctctggcag AGGA tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRMEEVSLRK
 gatctctggcag AGGC tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRLEEVSLRK
 gatctctggcag CGCCTT gag​gaa​gtc​tct​tta​aga​aaa​tag DLWQRLEEVSLRK
 gatctctggcag CGCT tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRLEEVSLRK
 gatctctggcag CGGA tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRMEEVSLRK
 gatctctggcag CGGATGGC gga​agt​ctc​ttt​aag​aaa​ata​g DLWQRMAEVSLRK
 gatctctggcag CGGC tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRLEEVSLRK
 gatctctggcag CGTCTTGGCC aag​tct​ctt​taa​gaa​aat​ag DLWQRLGQVSLRK
 gatctctggcag CGTTTCC agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRFQEVSLRK
 gatctctggcag GGGATAGCGATGC tctctttaagaaaatag DLWQGIAMLSLRK
 gatctctggcag GGGGTGGGGAATC tctctttaagaaaatag DLWQGVGNLSLRK
 gatctctggcagt CCAT gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLWQSMEEVSLRK
 gatctctggcagt CCCTAGCCC aag​tct​ctt​taa​gaa​aat​ag DLWQSLAQVSLRK
 gatctctggcagt CCCTCTCCC aag​tct​ctt​taa​gaa​aat​ag DLWQSLSQVSLRK
 gatctctggcagt CCCTGGAGA aag​tct​ctt​taa​gaa​aat​ag DLWQSLEKVSLRK
 gatctctggcagt CCCTTTCCA aag​tct​ctt​taa​gaa​aat​ag DLWQSLSKVSLRK
 gatctctggcagt CCCTTTCTA aag​tct​ctt​taa​gaa​aat​ag DLWQSLSKVSLRK
 gatctctggcagt CTCTTGCCC aag​tct​ctt​taa​gaa​aat​ag DLWQSLAQVSLRK
 gatctctggcagt CTCTTTCTA aag​tct​ctt​taa​gaa​aat​ag DLWQSLSKVSLRK
 gatctctggcagt CTTTCGCTCAC gtctctttaagaaaatag DLWQSFAHVSLRK
 gatctctggcagt TATTTTCCC aag​tct​ctt​taa​gaa​aat​ag DLWQLFSQVSLRK
 gatctctggcagtg CCTCGAGA aag​tct​ctt​taa​gaa​aat​ag DLWQCLEKVSLRK
 gatctctggcagtg CTGCTCCC aag​tct​ctt​taa​gaa​aat​ag DLWQCCSQVSLRK
 gatctctggcagtg TTTCTCCC aag​tct​ctt​taa​gaa​aat​ag DLWQCFSQVSLRK
 gatctctggcagtg TTTTGCTC aag​tct​ctt​taa​gaa​aat​ag DLWQCFAQVSLRK
 gatctctggcagtg TTTTTCCC aag​tct​ctt​taa​gaa​aat​ag DLWQCFSQVSLRK
 gatctctg CAGGCT agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLCRLVEEVSLRK Rare
 gatctctg CCGCGG agt​gga​gga​agt​ctc​ttt​aag​aaa​ata​g DLCRGVEEVSLRK Rare
 gatctctg TAGGAAG gtg​gag​gaa​gtc​tct​tta​aga​aaa​tag DLCRKVEEVSLRK Rare
 gatctctggca AAGAA tgg​agg​aag​tct​ctt​taa​gaa​aat​ag DLWQRMEEVSLRK Rare
 gatctctggca CCGTTTCTCC gaa​gtc​tct​tta​aga​aaa​tag DLWHRFSEVSLRK Rare
 gatctctggcag ACTTTCTATA aag​tct​ctt​taa​gaa​aat​ag DLWQTFYKVSLRK Rare
 gatctctggcagtg CTTCTCCA aag​tct​ctt​taa​gaa​aat​ag DLWQCFSKVSLRK Rare
