CD44 regulates the apoptotic response and promotes disease development in chronic lymphocytic leukemia

Chronic lymphocytic leukemia (CLL) is a paradigmatic disease for the central role of the tumor microenvironment promoting leukemic cell survival and therapy resistance. At specific sites of disease involvement (ie, peripheral blood [PB], secondary lymphoid tissues, or bone marrow), the malignant clone receives input from instructed macrophages or nurse-like cells, T cells, follicular dendritic cells, or extracellular stroma components.¹  Such stimuli are mediated via cytokine, (auto)antigen, or integrin receptors and converge in the AKT, nuclear factor κB, and mitogen-activated protein kinase/extracellular signal-regulated kinase (MAPK/ERK) signaling nodes. One of the best-characterized antiapoptotic downstream effectors in CLL is the multidomain BCL2 family member MCL1.²  In CLL, MCL1 is regulated by diverse stimuli,³  but the details regarding involved receptors and upstream signaling intermediates are less well established. We previously demonstrated the relevance of the chemokine macrophage migration inhibitory factor (MIF) for CLL development.⁴  Consequently, we investigated here whether one particular component of the MIF-receptor complex,⁵  CD44, plays a functional role in CLL.

The cell-surface glycoprotein CD44 is involved in cell motility, cellular trafficking, and stem cell differentiation.^6,-8  It contributes to the phenotypic hallmarks of many cancers, such as invasiveness, self-renewal, and sustained survival.⁹  CD44 transmits both growth and apoptotic signals, a functional duality that is also observed in hematologic malignancies.^10,,,-14  Underlying this are a prominent alternative splicing and posttranslational modifications (ie, glycosylation), making CD44 a structurally diverse and multivalent coreceptor. Signaling by its conserved intracellular domain is highly complex and incompletely understood. Context-specific input that depends, for example, on the cell’s isoform or coreceptor profile, CD44’s glycosylation status, or its ligand-complex composition, initiates corecruitment of various intermediates at defined membrane clusters (eg, receptor tyrosine kinases, ankyrin-cytoskeletal complexes, nonreceptor Src family kinases such as Lyn, or Ras-GTPases), which eventually all evoke a strong MAPK/ERK and PI3K/AKT response.¹⁵

The functional role of CD44 in CLL, where it is predominantly found in its standard form (CD44s) lacking all variable exons, remains poorly established. Natural-ligand–based CD44 engagement on CLL cells seems protective toward spontaneous and fludarabine-induced apoptosis, an effect that could be mimicked by stimulatory monoclonal antibodies (mAbs).¹⁶  Certain inhibitory CD44 mAbs can induce apoptosis in myeloid leukemias via ligand blocking or by alternative functional activation.^17,,,,-22

Given the proposed participation of CD44 in prosurvival signaling in CLL, we wished to elucidate its functional contribution to leukemic development and its potential as a therapeutic target. Our results suggest that CD44 regulates antiapoptotic MCL1 expression via the ERK and AKT pathways. Moreover, specific anti-CD44 antibodies may be therapeutically used to interrupt survival-promoting pathways.

After obtaining written informed consent according to the Declaration of Helsinki and Institutional Review Board–approved protocols (#11-319) at Cologne University, 60 individuals with a diagnosis of CLL based on iwCLL criteria²³  provided PB samples, which were taken ≥1 month after any therapy.

Eµ-TCL1 transgenic mice²⁴  were crossed with C57BL/6 CD44 knockout (ko) animals (CD44^−/−)²⁵  to receive F2 generations of Eµ-TCL1 mice with CD44 in wild-type (wt) “wt/wt” (Eµ-TCL1:CD44wt) or “^−/−” (Eµ-TCL1:CD44ko) configuration. For determination of disease-specific overall survival (OS), Eµ-TCL1:CD44wt and Eµ-TCL1:CD44ko littermates were observed from birth until the end points of death or killing (if required by internationally endorsed principles). Hematologic screening was performed at months 3, 6, 9, and 12. Numbers of normal (CD5⁻) and aberrant (CD5⁺) B cells were analyzed by flow cytometry. Experiments were approved by the state of North Rhine-Westphalia, Germany, under #9.93.2.10.31.07.097.

Primary human CLL B cells and murine splenocytes were purified and cultured as described elsewhere.^4,26  Healthy-donor PB mononuclear cells were isolated by density gradient centrifugation. Their CD19⁺ B-cell fraction was purified by CD19 microbeads (Miltenyi). The minimum purity of CD19⁺ or CD5⁺CD19⁺ B cells from mice and patients was 90%. Interleukin 4 (IL-4; 20 ng/mL) and soluble CD40 ligand (CD40L; 100 ng/mL), both from PeproTech, were added as indicated. Supplemented hyaluronic acid (HA) or chondroitin sulfate (CS) were both used at 50 µg/mL (Sigma). For B-cell receptor (BCR) crosslinking, murine CLL cells were serum starved for 3 hours and stimulated with in-solution 10 µg/mL goat anti–mouse immunoglobulin M (IgM) antigen-binding fragment (SouthernBiotech) for the indicated times. For cocultures, 1 × 10⁶ cells of the human bone marrow stroma cell (BMSC) line NKtert were prepared and 1 × 10⁷ freshly isolated CLL primary cells added as described previously.²⁷

Antibodies comprised anti–mouse/human CD44 (IM7) and anti–mouse CD5 (53-7.3) from Becton Dickinson; anti–mouse CD19 (6D5), anti–human CD19 (HIB19), anti–human CD45 (HI30), and anti–human immunoglobulin G1 (MOPC-21) from Biolegend; and anti–human CD5 (BL1a) and anti–human immunoglobulin G2a (7T4-1F5) from Beckman Coulter. Measurements were performed on FACSCalibur (Becton Dickinson) or Gallios (Beckman Coulter) cytometers. Data storage and processing was done using the Cell QuestPro (Becton Dickinson) or KALUZA (Beckman Coulter) software packages. Analytic gates refer to the CD19⁺ populations. Reported CD44 mean fluorescence intensities (MFIs) are isotype corrected (δ-MFI).

Protein lysates were prepared, separated by sodium dodecyl sulfate polyacrylamide gel electrophoresis, and transferred, and secondary HRP-labeled antibodies were applied as described previously.²⁶  Membrane probing included the following primary antibodies: anti–mouse/human CD44 (IM7), anti–human TCL1 (1-21),²⁶  anti–mouse MCL1 (Poly6136), and anti–BCL2 (Poly6119) from Biolegend; anti–β-actin (AC-15) from Sigma-Aldrich; anti–phospho (p)AKT (Ser473, D9E), anti-AKT (40D4), anti-pERK (Thr202/Tyr204, D13.14.4E), anti-ERK (3A7), anti-pGSK3β (Ser9, D85E12), anti-pSYK (Tyr525/526), anti-PARP (46D11), and anti–caspase-3 (8G10) from Cell Signaling Technology; and anti–human MCL1 and anti–c-MYC (N-262) from Santa Cruz Biotechnology. Densitometry was performed using ImageJ, including normalization to β-actin or GAPDH (or for p-proteins) to respective total protein levels.

Total splenocyte RNA was isolated (Qiagen), followed by reverse transcription and whole-transcriptome amplification, using the Quantitect Whole Transcriptome Kit (Qiagen). Quantitative reverse transcription polymerase chain reaction (qRT-PCR) for MCL1 was run on a 7500 Fast Real-Time PCR System (Applied Biosystems) using Express SYBR GreenER qPCR Supermix (Invitrogen). MCL1 expression levels were normalized to peptidylprolyl isomerase A (cyclophilin A = PPIA). The following primers were used: mouse MCL1: forward 5′-TGTAAGGACGAAACGGGACT-3′, reverse 5′-AAAGCCAGCAGCACATTTCT-3′, mouse PPIA: forward 5′-CGCGTCTCCTTCGACCTGTTTG-3′, reverse 5′-TGTAAAGTCACCACCCTGGCACAT-3′.

The sequences of small interfering RNAs (siRNAs) targeting human CD44 (#1: 5′-GCAAGUCUCAGGAAAUGGUGCAUUU-3′ and #2: 5′-GAGCCUGGCGCAGAUCGAUUUGAAU-3′) were generated using messenger RNA (mRNA) templates from the GenBank (National Center for Biotechnology Information). Sense and antisense oligonucleotides were from Invitrogen. CLL cells were electroporated with siRNAs or expression vectors of constitutively active myristoylated (myr)-AKT or controls, using the Nucleofector kit VPA-1001 (program U-013, AMAXA). For 1 × 10⁶ cells, 3 µM anti-CD44 or scrambled control siRNA and/or 2 µg of pCDNA3.1 myr-AKT construct or empty vector were used per nucleofection. Efficiency was confirmed by an enhanced green fluorescent protein construct.

The pan-isoform anti-CD44 mAb IM7 recognizing a species-conserved h-group epitope generates an apoptotic signal; this is in contrast to f-group “blocking” antibodies, which act through abrogation of HA binding.²⁸  The anti–human CD44 clone A3D8, from immunizing human Sezary T cells, detects an unknown epitope in the CD44H (hematopoietic) cluster, which largely corresponds to CD44s.^29,30  In vitro, isolated splenocytes from leukemic mice were incubated with 50 µM fludarabine, 10 µg/mL IM7, isotype control (RTK4530) antibodies (Biolegend), and respective combinations for 24 hours. Human CLL cells (as single-cell suspensions or on NKtert feeders²⁷ ) were treated with 5 µg/mL or 10 µg/mL A3D8 or same-concentration immunoglobulin G1 isotypes (8c/6-39; Sigma Aldrich). For caspase inhibition, 25 µM or 50 µM of in-solution caspase inhibitor VI Z-VAD-FMK, a general caspase inhibitor, or 50 µM of a specific caspase 3/7 inhibitor, Z-DEVD-FMK (both from Merck Millipore), were used. In vivo, Eµ-TCL1 transgenic (tg) cells from founder #586³¹  were engrafted at day 20 in 8-week-old C57BL6/C3H F1 female hosts with PB CD5⁺19⁺ cells ≥5000/µL and ≥50% of all leukocytes. At this point, endotoxin-free IM7 or isotype control mAbs at 50 µg per animal were injected intravenously once or for 2 consecutive days. Pretherapeutic CLL cell counts were equally distributed across the 4 cohorts (4-5 animals per treatment arm). Postinterventional leukemic burden was determined at 24 hours and 48 hours from PB and at final postmortem exam.

The rate of apoptosis was recorded by flow cytometry for AnnexinV/7AAD (Becton Dickinson). The CaspaseGlo3/7 assay (Promega) detected caspase activity. Cell viability was evaluated by ATP content (metabolic activity) with the CellTiter-Glo assay (Promega). Luminescence was recorded on a MicroLumatPlus (EG&G Berthold) microplate luminometer (integration time: 0.1-1.0 s/well).

Apoptotic cells in paraffin-embedded spleen sections from leukemic mice were detected by an anti–cleaved caspase-3 antibody (Asp175; Cell Signaling Technology) and a polymer-conjugated secondary antibody with color development by FastRed (UltraVision LP Detection Kit, Thermo Fisher Scientific). In situ cell death detection by terminal deoxynucleotidyltransferase-mediated dUTP nick end labeling (TUNEL) used the ApopTagPlus Kit from Merck Millipore. Images were obtained on a Pannoramic 250 Flash scanner and analyzed by Pannoramic Viewer Software (3DHISTECH). Labeled (apoptotic) cells were counted at ×40 magnification by a blinded pathologist (L.H.).

Cytospins from single-cell suspensions of isolated murine and human CLL cells were done according to routine protocols. Images were taken using an AxioScope A1 microscope (Zeiss).

Immunoglobulin heavy chain (IGH) gene sequence analysis of murine splenocytes was done as described previously.⁴

Nonparametric Mann-Whitney procedures or parametric Student’s t test estimations (both paired or nonpaired), where appropriate, were done in GraphPad Prism. Difference estimations in the cumulative survival analysis used log-rank statistics.

CD44 surface expression on B cells from 14 normal donors and 45 CLL patients (for cohort characteristics, see supplemental Table 1) was quantified by flow cytometry with the pan-isoform mAb IM7. Recorded as isotype-controlled MFI (Figure 1A), CD44 was expressed in CD5⁺CD19⁺ CLL cells (median, 223; range, 118-453) at greater variability than in CD19⁺ healthy donor B cells (median, 284; range, 250-334). There were no significant differences in median CD44 MFI between ZAP70-positive vs ZAP70-negative (median/range, 249/118-418 vs 207/128-435; P = .22) or between IGHV-mutated vs IGHV-unmutated CLL (median/range, 190/156-453 vs 242/150-403; P = .57). We confirmed these findings in a comprehensive in silico meta-analysis of publically available array-derived gene expression data sets (supplemental Figure 1A and Table 2) and in comparisons of CD44 mRNA levels of healthy-donor B cells vs CLL cells by qRT-PCR (supplemental Figure 1B).

Next we performed longitudinal studies of CD44 surface expression during the emergence of leukemic B cells in Eµ-TCL1 mice.²⁴  This was assessed in all B cells as well as in their CD19⁺CD5⁻ (“normal”) and CD19⁺CD5⁺ (“aberrant”) subsets from tail vein PB at 3, 6, and 9 months of animal age (Figure 1B). At these time points, pan–B-cell median (range) CD44 MFI increased from 14.2 (11.3-20.6) over 29.0 (14.0-88.8, P = .0073) to 69.0 (40.2-145.1, P = .0003; not shown). The CD5⁺ B-cell fractions at these time points comprised at median 3.0%, 18.5%, and 48.0% of all TCL1-tg B cells. This expansion of aberrant B cells was also paralleled by a significant increase of their CD44 expression, especially within the first 6 months; median MFI (range) was 60.0 (26.4-70.0) at 3 months, 86.9 (60.9-99.1; P = .0044) at 6 months, and 89.9 (57.3-150.3; P = .0036) at 9 months. In contrast, the expression of CD44 in the CD5-negative B-cell fraction remained low at all of these time points (Figure 1B).

We then compared CD44 levels in splenocyte subsets of Eµ-TCL1 animals at the overt leukemic stage (age ≥ 12 months; CD5⁺ B cells > 50%) to age-matched C3H/C57Bl6J controls (TCL1 in wt configuration). We observed a significant CD44 upregulation in B cells of leukemic Eµ-TCL1 animals compared with their nonleukemic (TCL1wt) counterparts (Figure 1C). This was seen in both the CD5-negative (P = .001) and the CD5-positive (P = .0005) fraction of B cells, suggesting that the expression of CD44 was increased during leukemic development before the acquisition of surface CD5. Pan-CD44 immunoblot analysis via IM7 of CD19⁺ purified (>90%) splenocytes confirmed the CD44 upregulation in leukemic Eµ-TCL1mice (Figure 1D).

To explore the regulation of CD44 expression in the CLL microenvironment, we assessed how T-cell–derived cytokines³²  or stromal cells²⁷  influence CD44 expression of human CLL cells in vitro. We added soluble IL-4 and CD40L to CLL suspension cultures and also performed coculture experiments on immortalized human NKtert BMSCs.²⁷  Under these conditions, control-normalized cell survival as per Annexin V/7AAD flow cytometry increased at day 2 by 1.20 ± 0.32-fold with IL-4/CD40L, by 1.44 ± 0.12-fold with NKtert-preconditioned supernatants, and by 1.64 ± 0.24-fold in direct CLL-NKtert BMSC feeder layer cocultures (mean ± standard error of the mean [SEM]; all P < .05, not shown). Without any survival support, surface CD44 expression of human CLL cells diminished gradually. At day 2, CLL cells exposed to IL-4/CD40L showed a higher CD44 expression than those maintained in nonsupplemented culture media (Figure 2A). A stronger and more sustained (including day 7) increase of CD44 was observed in CLL cells exposed to preconditioned supernatants from NKtert BMSC. This was even more pronounced in CLL cells directly cocultured on NKtert feeders (Figure 2B).

To further evaluate the role of CD44 for CLL cell survival, we assessed the viability of CLL cells in the presence of the natural CD44 ligands HA and CS. Although, at variable degrees, HA and CS at 50 µg/mL added to the increased IL-4/CD40L–induced cellular ATP synthesis (Figure 2C), both ligands also reduced the spontaneous in vitro apoptosis of human CLL cells at 36 hours, which was of similar magnitude as mediated by the IL-4/CD40L cytokine cocktail alone (Figure 2D).

In order to substantiate the relevance of CD44 for CLL cell survival, we asked whether a reduction of CD44 expression by a siRNA-mediated knockdown would diminish CLL cell viability. Transfection efficiency based on green fluorescent protein control vectors was ∼35% to 45%. The nucleofected constructs reduced CD44 surface expression by 39% to 49% (supplemental Figure 2A). To additionally mimic a defined prosurvival stimulus without resorting to CD44-upregulating culture supplements (above), we also cotransfected CLL cells with a vector encoding constitutively active myr-AKT. AKT is an established key mediator for CLL survival and is implicated in CD44 signaling.^15,33  Ectopically overexpressed myr-AKT induced elevated levels of AKT S473-phosphorylation (supplemental Figure 2B) and markedly increased ATP activity of CLL cells (Figure 2E). In contrast, CD44 knockdown reduced CLL cell viability both in AKT-untargeted and in myr-AKT–overexpressing CLL cells (Figure 2E). These data further support a functional role of CD44 for CLL cell survival.

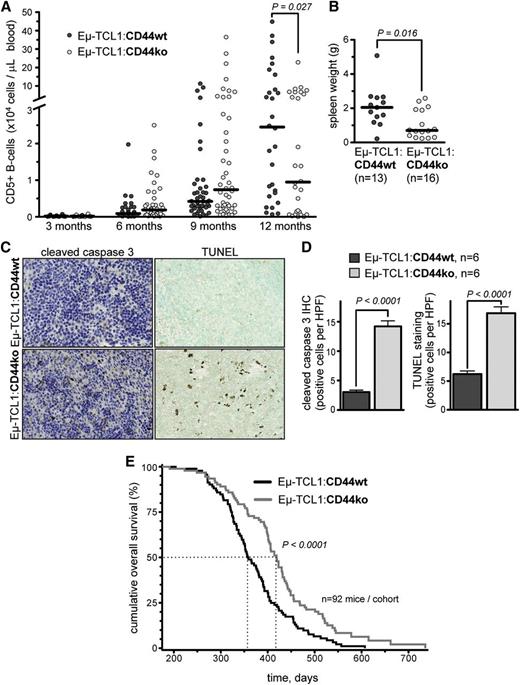

To assess the role of CD44 in CLL development in an intact organism, we employed CD44 gene deletion and studied its impact on murine leukemogenesis. For that, Eµ-TCL1 mice were crossed with CD44^−/− (double-allelic deficient) animals. Eµ-TCL1:CD44wt (n = 92) and Eµ-TCL1:CD44ko (n = 92) mice were followed for signs of leukemia (leukocytosis, CD5⁺ lymphocytosis, organomegaly) and survival. At months 3, 6, 9, and 12, there was no significant difference in absolute leukocyte count between the 2 genotypes. PB CD5⁺ B-lymphocyte counts tended to be higher at 3 to 9 months in Eµ-TCL1:CD44ko mice. At 12 months, however, Eµ-TCL1:CD44ko mice showed significantly lower PB CD5⁺ B-cell counts than did Eµ-TCL1:CD44wt mice (median, 9481; range, 37-228 769 cells/µL vs 24 496; 653-535 108 cells/µL; P = .027; Figure 3A). TCL1wt littermates from CD44wt (n = 12) and CD44ko (n = 12) cohorts did not reveal leukocyte elevations or CD5⁺ B cells over a 12-month period (not shown).

To determine whether the lower leukemic PB involvement in CD44-deficient mice resulted from a reduced tumor load rather than from a compartment shift, animals of both genotypes were sacrificed at 12 months and spleen and liver weights were analyzed. Leukemic mice of both genotypes showed splenomegaly and hepatomegaly.²⁴  However, the absence of CD44 was associated with significantly decreased spleen weights (Eµ-TCL1:CD44wt: median, 2.1 g [range, 0.2-5.1 g]; Eµ-TCL1:CD44ko: median, 0.7 g [range 0.2-2.6 g]; P = .016) (Figure 3B). The degree of hepatomegaly did not significantly differ between both groups (Eµ-TCL1:CD44wt: median, 2.66 g; Eµ-TCL1:CD44ko: median 2.52 g), nor did PB hemoglobin and platelet counts (not shown).

We proposed that these CD44-mediated phenotypic differences in murine CLL were primarily tumor-context specific rather than resulting from predetermining effects by altered B-cell physiology or BCR genetic makeup. In fact, CD44 seems dispensable for normal B-cell development;³⁴  hence, we analyzed IGHV mutation status and gene usage from Eµ-TCL1:CD44wt vs Eµ-TCL1:CD44ko mice. In this limited set of cases, the BCR genetics of both phenotypes did not reveal marked differences (supplemental Table 3).

A defective apoptotic response is a hallmark of CLL. Therefore, we studied the effect of lost CD44 on spontaneous splenocyte apoptosis in leukemic animals. Spleen sections from 12-month-old animals showed a significantly higher number of cleaved caspase-3–positive and TUNEL-stained cells in the Eµ-TCL1:CD44ko genotype compared with Eµ-TCL1:CD44wt controls (both P < .0001; Figure 3C-D). A higher degree of spontaneous apoptosis was confirmed in vitro in TCL1wt:CD44ko vs TCL1wt:CD44wt splenocytes (supplemental Figure 3). Most importantly, in long-term follow-ups, the median disease-specific survival of CD44-deficient mice was significantly increased compared with CD44wt mice (358 days for Eµ-TCL1:CD44wt vs 419 days for Eµ-TCL1:CD44ko; P < .0001; Figure 3E). Postmortem pathology exam uniformly confirmed death due to leukemia.

To study the underlying molecular mechanisms of CD44-mediated survival protection in CLL, we investigated major regulators of CLL cell survival in nonstimulated, freshly isolated splenocytes from leukemic Eµ-TCL1 mice (≥12 months old) of both CD44 genotypes (Figure 4A). In immunoblots of leukemic splenocytes, MCL1 showed the most markedly reduced protein expression in CD44-deficient compared with CD44wt mice (Figure 4A-B left). This was also confirmed at the mRNA level (Figure 4B right). Interestingly, steady-state levels of major upstream inducers or stabilizers of MCL1, namely phosphoactivated kinases ERK1/2 and AKT, were not significantly altered in Eµ-TCL1:CD44ko animals. We then studied the impact of altered CD44 on BCR signaling, a major trigger of MCL1. Upon IgM crosslinking, Eµ-TCL1:CD44ko splenocytes showed a delayed, less intense, and shorter phosphorylation of major BCR downstream kinases such as SRC, SYK, AKT, and ERK1/2 than did Eµ-TCL1:CD44wt splenocytes (Figure 4C-D). This was paralleled by a reduced induction of MCL1. Together, these data imply that CD44 acts in an antiapoptotic manner via modulation of MCL1 levels and functions in conjunction with BCR kinase signaling.

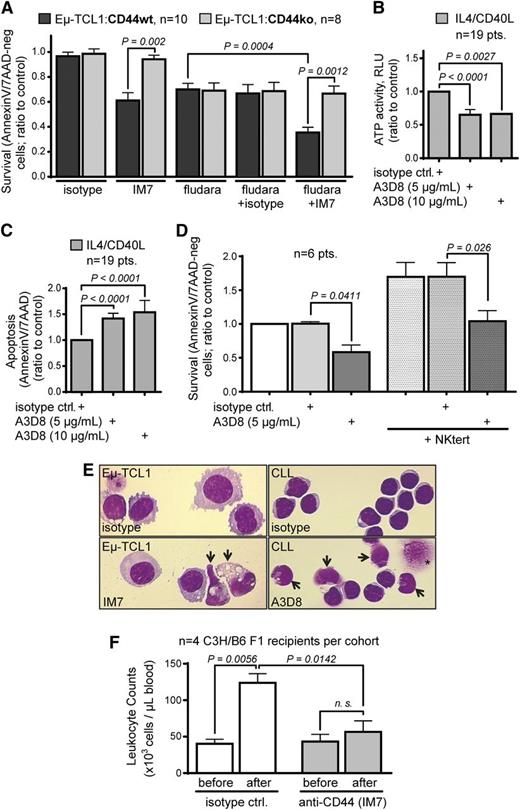

The data from our CD44 knockout and siRNA experiments suggested that CD44 could serve as a therapeutic target. To exploit this by antibody-based targeting, we selected the anti-CD44 mAbs IM7 and A3D8 based on their capacity to inhibit tumor propagation in other hematologic malignancies.^{19,22,29,30,34,35}

Here, incubation with IM7 specifically reduced survival of cultured murine CLL B cells from Eµ-TCL1:CD44wt mice (Figure 5A). As reported earlier,³⁴  the effect of IM7 was not mediated by complement-dependent cytotoxicity, since it demonstrated the same degree of apoptosis induction in serum-free conditions (not shown). The killing efficacy of IM7 in combination with fludarabine in leukemic splenocytes from Eµ-TCL1 mice was additive (Figure 5A). In concordance, exposure of 19 human CLL to concentrations of A3D8 significantly reduced cell viability (ATP activity) and induced a higher rate of apoptosis than did isotype controls (Figure 5B-C), even in the presence of IL-4/CD40L. A3D8-mediated killing appeared to be rather CLL cell specific as it was less pronounced in healthy donor B cells (supplemental Figure 4). There was no significant association of this A3D8 response with established markers of prognostic CLL subsets (eg, ZAP70 status). Treatment with 5 μg/mL A3D8 also substantially antagonized the prosurvival effect of BMSC support (NKtert cells) in 6 additional CLL patient samples (Figure 5D). Both IM7 (in TCL1-tg cells) and A3D8 (in human CLL) induced a characteristic apoptosis morphology (vacuolization, blebbing, or karyorrhexis; Figure 5E). In a pilot series of adoptive transfers of murine CLL into immunocompetent hosts, 50 µg of intravenous IM7 injected as a single dose or on 2 consecutive days significantly reduced PB leukemic growth after 24 hours and at 48 hours over the 50 µg isotype control. This was most pronounced after 2 administrations and at 24 hours postinjection (Figure 5F).

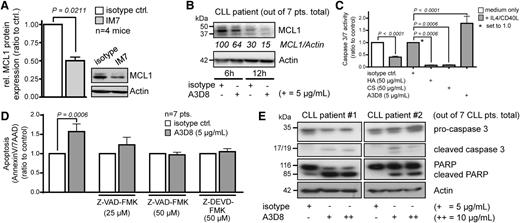

In agreement with the results from the murine CD44-deficient leukemias, both anti-CD44 antibodies rapidly reduced intracellular MCL1 levels in CLL cells (Figure 6A-B). We then examined the participation of effector caspases in anti-CD44 mAb-mediated killing. As an internal control, IL-4/CD40L inhibited the increased caspase-3/7 activity, which was otherwise associated with spontaneous apoptosis of human CLL cells, by 60% (mean ± SEM, 0.40 ± 0.04). In marked contrast, a near-complete downregulation of caspase-3/7 activity was observed when adding the CD44 ligands HA and CS (mean reductions of 93% for HA and 93% for CS 93%; both P = .0006; Figure 6C). Treatment of human CLL samples with A3D8 led to a 1.8-fold increase of caspase-3/7 activity (mean ± SEM, 1.79 ± 0.30; P < .0001). A3D8-induced apoptosis was blocked by the caspase inhibitors Z-VAD-FMK and Z-DEVD-FMK (Figure 6D). Immunoblots for caspase-3 and the distal apoptotic readout poly-(ADP-ribose) polymerase (PARP) showed that both caspase-3 and PARP were cleaved upon treatment with A3D8 (Figure 6E).

The adhesion molecule and glycoprotein receptor CD44 is implicated in tumor cell propagation of various cancers by mediating proliferation and dissemination.¹⁵  It is also recognized as a key marker of cancer-initiating cells in many solid tumors and in hematologic malignancies of myeloid differentiation.^36,-38  Therefore, a CD44-defined niche also seems to play a pivotal role in the early steps of malignant transformation and in processes of tumor self-renewal.³⁶  The relevance of CD44 in CLL development has not been thoroughly addressed. In particular, mechanistic insights into the role of CD44 in in vivo models of CLL were thus far not available. Consequently, we investigated here the specific contribution of CD44 in the pathogenesis of CLL by functional in vitro and in vivo experiments.

Specifically, we found that CD44 is overexpressed during evolution of CLL in the Eµ-TCL1 mouse. CD44 expression in human CLL was regulated by microenvironmental stimuli such as CD40L and IL-4, but also by stroma cell coculture. Stimulation with the known CD44 ligands HA and CS promoted the survival of CLL cells. In a CD44 knockout model of murine CLL, targeted deletion of CD44 caused a decrease in antiapoptotic MCL1 protein in leukemic cells, a higher rate of CLL cell apoptosis, a milder disease presentation with reduced tumor burden, and a longer survival of leukemic animals. In human CLL cells, CD44 reduction by siRNAs also reduced cell viability. Moreover, the BCR-triggered responses of major phosphokinases and of MCL1 levels were reduced in the leukemic CD44ko cells. Finally, the use of specific mAbs against CD44 on CLL cells induced a caspase-dependent cell death, indicating a potential therapeutic role of anti-CD44 antibodies in CLL.

As survival of CLL cells crucially depends on signals from the microenvironment,^1,10  CD44 might be a central element of this tumor-promoting crosstalk. In earlier studies, CD44 was identified in a supramolecular CLL surface complex together with CD38, CD49d, and MMP-9.^39,40  In our study, CD44 expression was regulated by T-cell–derived cytokines or culture on BMSC. Similarly, CLL cocultures with fibroblasts or endothelial cells have been shown to induce a CD44 upregulation along with ZAP70 overexpression.⁴¹  Furthermore, ZAP70-mediated ERK1/2 activation after BCR engagement increased CD44 expression.⁴²  These data indicate that the very intense dialogue of CLL cells with stromal cells is mediated at least in part by CD44.

We observed here a marked variability of surface CD44 across CLL samples as compared with CD19⁺ PB B cells from healthy donors. However, we did not detect significant differences of CD44 levels between established prognostic CLL subgroups defined by ZAP70 or IGHV gene mutations. Published results^16,43  and our in silico meta-analysis (supplemental Figure 1A and Table 2) support both of these findings. Available reports on surface vs soluble and on CD44s vs CD44v isoforms in CLL^{37,43,,,,,,-50}  show in their entirety no clear-cut prognostic associations. However, they implicate a higher CD44 turnover in CLL over normal lymphocytes, especially in more aggressive disease subsets. Taken together, this suggests that the role of CD44 in CLL is not reflected by its mere quantitative expression.

Our in vitro and in vivo experiments of genetic CD44 targeting showed that reduced levels of CD44 led to an increased sensitivity of CLL cell apoptosis. This finding is supported by the earlier observation that CD44 activation by stimulatory antibodies led to decreased apoptosis of CLL cells in vitro.¹⁶  Our in vivo data of a strongly reduced splenic and PB leukemic burden in CD44ko variants of Eµ-TCL1 animals further support the notion that CD44 is of relevance in disease initiation or progression. Most importantly, loss of CD44 did prolong the survival of leukemic mice, indicating that this receptor promotes aggressive features of these leukemias.

Functionally, CD44 is regarded as a facultative coreceptor for several receptor complexes regulating growth, adhesion, or homing.¹⁵  In previous studies, we demonstrated the relevance of the chemokine MIF, a ligand of the CD74/CD44 complex, in CLL development.⁴  MIF deficiency in leukemic Eµ-TCL1 mice was associated with a phenotype of reduced tumor load and prolonged survival similar to the CD44-deficient leukemias of this study. These data suggest that the protumorigenic role of CD44 could be mediated at least in part by the MIF-receptor complex.

In the present work, we provide evidence that signaling via the BCR might be functionally regulated by CD44. Genetic loss of CD44 in murine CLL had a negative impact on the phosphoactivation response of SRC, SYK, ERK1/2, and AKT kinases to BCR stimulation. ERK1/2 and AKT represent major effectors for CD44 signaling and are important regulators of the antiapoptotic MCL1 protein in CLL.^51,,-54  Accordingly, we observed decreased levels of basal and BCR-induced MCL1 in CD44-deficient leukemias, suggesting that CD44 exerts its distal antiapoptotic effects via MCL1. In line with our data are the observation that resistance to MCL1-mediated apoptosis induced by CLL–follicular dendritic cell cocultures or HA directly can be blocked by “neutralizing” anti-CD44 antibodies.⁵³

To test for a potential therapeutic benefit of targeting CD44 in CLL, we used inhibitory anti-CD44 antibodies. The mAbs IM7 and A3D8 have been described previously and elicit a proapoptotic response in other cancer models.^{19,22,34,35,55}  The anti–human CD44 mAb A3D8 causes apoptosis of acute myeloid leukemia cells.^18,19,22,56  In our experiments, both mAbs induced MCL1 reduction and caspase-mediated cell death in murine and human CLL. Clearly, more extensive testing, addressing also the impact of soluble CD44, is needed before proceeding to clinical trials with any of these antibodies in CLL.

Overall, in extension of preliminary data implicating a relevance of CD44 in CLL,^16,53  we interrogated here in detail CD44’s pathogenic role, its regulatory and downstream signals, and its target potential in this disease. We demonstrate that upregulation of CD44 on CLL cells is achieved by characteristic stimuli of the leukemic microenvironment. Furthermore, deletion or inhibition of CD44 by diverse strategies, such as gene knockout, siRNA-based targeting, and mAbs, unanimously demonstrates that CD44 is important for leukemic cell survival and the clinical aggressiveness of CLL. The antiapoptotic effects of CD44 signaling in CLL seem to be mediated by an increase of MCL1 protein expression. It is possible that this effect of CD44 results from its interactions with cytokine receptors for ligands such as MIF⁴  and/or with BCR signaling. Finally, specific CD44 antibodies, which are already pursued in clinical trials for other entities,⁵⁷  may present a valuable addition to our current treatment options for CLL.

Eµ-TCL1-tg breeder mice were obtained from C. Croce (Ohio State University, Columbus, OH).

The myr-AKT encoding vector and the Eµ-TCL1-tg #586 cells were kind gifts from D. Efremov (Rome, Italy). NKtert cells were obtained from J. Burger (MDACC, Houston, TX).

CLL sample acquisition was supported by the Biobank of the Center of Integrated Oncology Cologne Bonn, which is funded by the German Cancer Aid. This work was supported by The German Cancer Aid Max-Eder award (M. Herling), by a grant from The German Jose Carreras Leukemia Foundation (R09/15) (G.F.-R. and M. Herling), by start-up funds from The Köln Fortune Program (M. Herling and A.A.P-Z.), by funds from the Cluster of Excellence in Cellular Stress Responses in Aging-associated Diseases initiative (M. Hallek and M. Herling), and by grants from the German Research Foundation (grant HE-3553/2-1) (M. Herling) (grant A16 in the collaborative research consortium 832) (M. Hallek).

Contribution: O.F., M.S., and A.A.P.-Z. designed and executed the experiments, analyzed data, and wrote the manuscript; P.M., R.B., L.E., A.B., N.R., N.L., T.L., and M.M. designed and/or performed experiments; G.C. performed in silico data analysis; M.M.-R., L.H., and J.D. analyzed data; and M. Herling, M. Hallek, and G.F.-R. designed experiments, analyzed data, and wrote the manuscript.

Conflict-of-interest disclosure: G.F.-R. has been an employee of F. Hoffmann-LaRoche since 2010. The remaining authors declare no competing financial interests.

Correspondence: Marco Herling, Cologne University, Department of Medicine I, LFI Building, Level 4, Room 105, Joseph-Stelzmann-Straße 9, 50924 Cologne, Germany; e-mail: marco.herling@uk-koeln.de.
