Identification of outcome-correlated cytokine clusters in chronic lymphocytic leukemia

Chronic lymphocytic leukemia (CLL) is characterized by a progressive accumulation of monoclonal B lymphocytes whose growth and survival require endogenous and exogenous activation signals.^1,2  Considerable progress has been made in understanding this cross talk,^3,4  with clinical and translational studies supporting roles for various cytokines and chemokines, together with other soluble factors, surface receptors including adhesion molecules, and antigens in the complex stimulation of leukemic cells within the microenviroment.^5,6  However, because many cytokines elevated in different CLL microenvironments are pleiotropic, with overlapping as well as antagonistic actions, determining an integrated profile of coordinately expressed cytokines that may reflect or contribute to CLL disease severity is needed.⁷

Individual, specific cytokines and chemokines have been reported to be elevated in the sera, plasma, or both of CLL patients and to correlate with clinical course and outcome.^8-14  For example, high serum levels of IL-10, a cytokine that regulates inflammation, correlate with shorter survival.¹⁰  In addition, plasma levels of CCL3 and CCL4, 2 inflammatory chemokines that regulate cell recruitment and activation, are elevated in CLL and correlate with time-to-first treatment (TTFT)¹³ ; these chemokines are secreted by nurse-like cells and by CLL cells in response to B-cell receptor (BCR) engagement,¹⁵  and their secretion by leukemic cells can be down-regulated by small-molecule inhibitors of BCR signaling,^15,16  linking chemokines with another environmental influence on CLL–antigen stimulation.¹⁷  Although the list of cytokines and chemokines that correlate with clinical outcomes and prognostic markers in CLL continues to grow, simultaneous analyses of large numbers of cytokines in CLL sera that identify subgroups correlating with pathogenesis, prognosis, or therapeutic responsiveness in CLL are lacking.

Here, we aimed to further elucidate complex direct and indirect CLL cell–microenvironmental interactions by correlating serum levels of immune, inflammatory, and regulatory cytokines and chemokines with clinical outcome variables and existing biologic prognostic factors. We focused on the potential of individual as well as groups of serum cytokines to distinguish CLL patients from healthy subjects and CLL patients with indolent from those with aggressive disease. We found that serum levels of 17 cytokines are significantly higher in CLL patients compared with healthy subjects. In addition, using complementary bioinformatics analyses, we identified 3 distinct clusters (CLs) of highly correlated cytokines that are differentially expressed in CLL patients with indolent and aggressive disease and that serve as independent prognostic indicators.

Studies were approved by the Institutional Review Board of the North Shore–LIJ Health System. Informed consent was obtained from all subjects in accordance with the Declaration of Helsinki. CLL patients with available data for immunoglobulin heavy chain variable region (IGHV) gene sequences and CD38 expression and age-matched healthy subjects were enrolled. Serum samples were obtained at the first patient visit to our clinic and were stored frozen at −80°C until used. Table 1 summarizes the clinical and laboratory characteristics of CLL and healthy cohorts. CLL patients with clones expressing IGHVs differing by 2% or more from the most similar germ line gene were defined as IGHV-mutated CLL (M-CLL), and those with < 2% difference were defined as IGHV-unmutated CLL (U-CLL).¹⁸  Patients with < 30% of the clone expressing CD38 were considered CD38^LOW, and those patients with ≥ 30% of the clone expressing CD38 as CD38^HIGH.¹⁹

Levels of IL-1β, IL-2, IL-4, IL-5, IL-6, IL-8, IL-10, IL-12, IL-15, IL-17, IFNα, IFNγ, TNFα, GM-CSF, CCL2, CCL3, CCL4, and CCL11 were quantified in sera from 81 CLL patients and 45 healthy age-matched subjects using a multiplex sandwich immunoassay-based protein array system (BioSource International).^20,21  Serum levels of CXCL9, CXCL10, CXCL11, CCL17, and CCL19 were quantified in 57 CLL patients and 35 healthy age-matched controls using SearchLight Protein Array, a sandwich immunoassay-based protein array system (Pierce Biotechnology) as per the manufacturer's method. All cytokine determinations were performed in duplicate, and concentrations are reported in picograms per milliliter. For multicytokine analyses (bicluster, mosaic, and discriminant function analysis [DFA]), raw data were logarithmically transformed and standardized across all samples by the z-transform (subtracting mean and dividing by standard deviation). See supplemental Methods (available on the Blood Web site; see the Supplemental Materials link at the top of the online article) for a critical discussion of multiplex bead array versus traditional ELISA techniques.

Statistical analysis of differences in cytokine levels between groups was performed using a nonparametric Kruskal-Wallis test followed by a Dunn multiple comparisons test. Overall survival (OS) and TTFT were estimated using the Kaplan-Meier product-limit method, and pairwise comparisons were carried out with the log-rank test using a Bonferroni-type correction (P < .01). Cox proportional hazard regression analysis with backward elimination was used to determine multivariable independence (IGHV mutation status, CD38 group, CL1/CL2 combination group, and CL1/CL3 combination group) in predicting OS and TTFT. Statistical analyses were performed using Prism Version 5.00 for Windows (GraphPad Software) and SAS 9.2 (SAS Institute). See supplemental Methods for additional details.

Data on all cytokines were used for these analyses. Random Forest analysis (RFA), using R package randomForest (http://cran.r-project.org/web/packages/randomForest/) Version 4.5-34,²²  was used to rank cytokine levels in importance in predicting phenotype. Hierarchical clustering was used to identify sets of cytokines whose expression levels correlated among individuals within a population. A heatmap was produced with Bioconductor package made4²³  Version 1.14 using average linkage on a similarity matrix derived by Pearson moment correlations. Mosaic analysis²⁴  was used to determine the degree to which individual cytokines in sera correlated with one another. See supplemental Methods for more details.

DFA, a multivariate class distinction algorithm,²⁵  was used to identify linear combinations of cytokines (“roots”) that best discriminate CLL patients with aggressive disease (TTFT < 5 years) from those with mild disease (TTFT ≥ 5 years). Software for DFA was supplied by STATISTICA Version 6 (StatSoft). The overall model significance of the discriminant function was tested by the Wilks λ test.

Based on a pilot study analyzing 43 cytokines, a subset of 23 (Table 2) was selected for multiplex serum determinations in CLL and healthy subjects. Using a series of bioinformatic tools, CLL patient cytokine and chemokine levels were analyzed as independent variables for their relation to levels of the same cytokines and chemokines in healthy subjects and for their correlation with disease course (TTFT) and outcome (OS). Comparisons with the latter parameters also were made for groups of cytokines and chemokines developed by clustering and grouping tools.

Serum levels for all cytokines tested were equal to or greater in CLL patients than in age-matched healthy subjects (Table 2; Figure 1A). Serum levels of CCL2, CCL3, CCL4, CCL17, CXCL9, CXCL11, IL-1β, IL-2, IL-5, IL-6, IL-8, IL-10, IL-12, IL-17, TNFα, IFNγ, and IFNα were significantly higher (P < .05) in CLL patients.

RFA indicated that CCL3, IL-5, IL-10, CCL4, CXCL11, IL-8, CCL2, and IL-17 best differentiated between CLL and healthy groups (Figure 1B; supplemental Table 1). RFA was run > 100 times to assess the robustness of cytokine ordering; CCL3, IL-5, IL-10, CCL4, IL-8, and CXCL11 always appeared on top of the list, whereas ordering of cytokines toward the bottom fluctuated, suggesting their contribution was not consistent. Although the full set distinguished CLL from healthy, levels of CCL3 were the dominant discriminator, contributing > 80%, consistent with published data.¹³

Individual serum cytokine levels were stratified based on patient's Rai stage, IGHV mutation status, and CD38 expression. Of the 23 cytokines, only IL-12 was correlated (P < .01) with advanced Rai stages (II-IV; Figure 2A), although CCL4 exhibited a strong trend in this regard. CCL3, IL-12, and IL-17 correlated more strongly with U-CLL and IL-8 with M-CLL (Figure 2B; supplemental Table 2). Levels of CXCL9 and IL-12 were elevated in CD38^HIGH patients (P < .01; Figure 2C; supplemental Table 3), whereas IL-8, IL-1β, and IL-17 were elevated in CD38^LOW patients (P < .001; Figure 2C) compared with healthy subjects. Serum levels of CCL2, CCL4, CCL17, CXCL11, IL-5, and IL-10 were higher in CLL patients (P < .0001), irrespective of IGHV mutation status or CD38 level (supplemental Tables 2-3).

To identify specific cytokines associated with clinical outcome, we divided CLL patients into 2 categories for each serum cytokine: those with levels above or below the median. We then used the Kaplan-Meier method and the log-rank test to compare median survival between patients in these categories (Figure 2D; supplemental Table 4). CXCL10, CXCL11, and CCL19 levels independently associated with shorter survival, and IL-1β independently associated with longer survival (Figure 2D), although these associations did not reach the levels of statistical significance required by Bonferroni-like multiple comparison adjustment (P < .01). We also correlated levels of each cytokine with TTFT (Figure 2E); CCL3, CCL4, IL-10, and IL-12 independently associated with shorter TTFT, although the association reached statistical significance (P < .01) only for IL-12.

When the CLL risk factors IGHV mutation status and CD38 expression were fitted with cytokine levels into a Cox proportional hazards regression model with backward elimination, only CXCL10, IL-1β, and IGHV mutation status were significantly associated with OS. When a similar analysis was carried out for TTFT, only CCL4, IL-12, and IGHV mutation status correlated significantly. Multivariable analysis revealed that CXCL10 (hazard ratio [HR] = 4.78; P = .0052), IL-1β (HR = 0.16; P = .0065), and IGHV mutation status (HR = 16.42; P = .0002) were independent prognostic markers for OS, and CCL4 (HR = 2.79; P < .0092), IL-12 (HR = 2.45; P = .0199), and mutation status (HR = 2.54; P = .0171) were independent prognostic markers for TTFT.

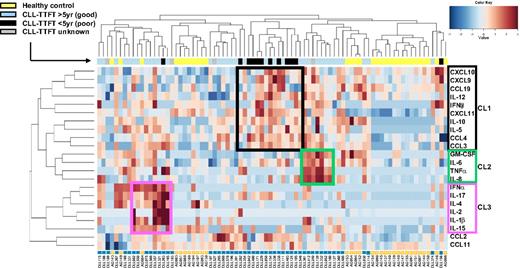

Although analysis of individual cytokines identified 8 associated with clinical outcome parameters, these associations were not robust. Therefore, we performed an unsupervised hierarchical bicluster analysis to identify sets of cytokines that might be coordinately expressed in patients with indolent versus aggressive disease and correlate more strongly with disease outcome. Although CLL patients and healthy subjects clustered separately (Figure 3), CLL patients did not separate into groups based on IGHV mutation status or CD38 expression (supplemental Figure 2). However, patients with shorter TTFT (Figure 3 black bars) generally did group together based on higher levels of a CL of cytokines (CCL3, CCL4, CCL19, CXCL9, CXCL10, CXCL11, IFNγ, IL-5, IL-10, and IL-12) that we termed CL1.

Furthermore, the analysis revealed a group of patients with moderate CL1 levels combined with higher levels of a second CL of correlated cytokines (CL2; GM-CSF, IL-8, TNFα, and IL-6; Figure 3). Notably, the combined group CL1/CL2 had relatively longer TTFT (≥ 5 years; Figure 3 light blue bars) than CL1 alone even though the CL2 group by itself did not exhibit shorter TTFT (see Figure 4A).

Lastly, a third group of patients with higher levels of IL-1β, IL-2, IL-4, IL-15, IL-17, and IFNα was identified (CL3; Figure 3). Patients with higher serum levels of CL3 cytokines also tended to have longer TTFT (≥ 5 years; Figure 3 light blue bars).

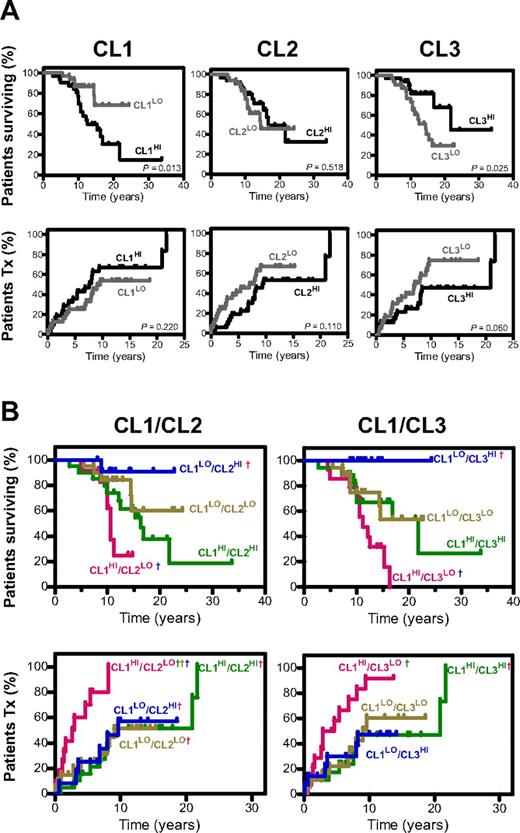

Patients expressing high versus low levels of CL1, CL2, or CL3 cytokines, either individually or in combination, were compared for OS and TTFT (Figure 4; Table 3). Survival analyses using individual CLs revealed that high serum levels of CL1 correlated with shorter OS (CL1^HI 12.5 years vs CL1^LO not reached; P = .013; Figure 4A top left). In contrast, high levels of CL3 correlated with longer OS (CL3^HI 21.8 years vs CL3^LO 14.4 years; P = .025; Figure 4A top right) and tended toward longer TTFT (CL3^HI 20.9 years vs CL3^LO 7.0 years; P = .060; Figure 4A bottom panel). Levels of CL2 did not correlate with OS or TTFT.

The levels of CL2 and CL3 were variable in CL1^HI patients, and in fact, 10 of 12 patients with TTFT < 5 years had low levels of both CL2 and CL3 (Figure 3). Therefore, we next explored whether a categorical score integrating expression of 2 CLs, either CL1/CL2 or CL1/CL3, better correlated with OS or TTFT (Figure 4B; Table 3). Stratification of patients on the basis of various combinations of CL1 and CL2 revealed differences among groups for both OS (P = .0209) and TTFT (P = .0002). Patients who did the worst long-term were CL1^HI and CL2^LO, whereas those who did the best were CL1^LO and CL2^HI. Significant differences also were observed when patients were stratified by combining CL1 and CL3 (OS, P = .0023; TTFT, P = .0107), with patients with shortest TTFT and OS being CL1^HI and CL3^LO and those with the longest being CL1^LO and CL3^HI. Detailed statistical analyses of single and combination comparisons are reported in supplemental Table 5.

Recursive partitioning analysis testing the prognostic power of CL1, CL2, and CL3 combinations revealed that 43 of 45 CLL patients with TTFT of 5 or more years and 11 of 19 CLL patients with TTFT of < 5 years were correctly identified by CL1^LO/CL2^HI/CL3^HI and CL^HI/CL2^LO/CL3^LO, respectively (with classification success rates of 96% and 58%, respectively; see supplemental Figure 3).

CL1/CL2 and CL1/CL3 combination CL groups were fitted into a Cox proportional hazards regression model with backward elimination (Table 4). For multivariate analysis, the 3 CL1/CL2 CL groups with better outcomes (OS and TTFT) were collapsed into a single group that was compared with CL1^HI/CL2^LO (worst outcome) group. A similar process was performed for CL1/CL3 CL groups.

CL1^HI/CL3^LO group and IGHV mutation status (but not CL1^HI/CL2^LO or CD38) retained discriminatory power as independent prognostic factors for OS in multivariate analysis. Subjects in the CL1^HI/CL3^LO group were 5.3 times more likely to die sooner than those in the other 3 groups (HR = 5.3; P = .001); this was similar to the comparison of U-CLL with M-CLL (HR = 6.91; P = .003). For TTFT, in contrast, the CL1^HI/CL2^LO group and IGHV mutation status (but not CL1^HI/CL3^LO or CD38) were independent prognosticators. Subjects in the CL1^HI/CL2^LO group were 6.1 times more likely to be treated earlier than those in the other groups (HR = 6.1; P < .0001). U-CLL patients were 2.9 times more likely for to be treated earlier than M-CLL (HR = 2.9; P = .006).

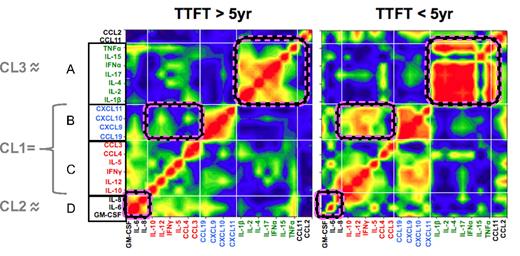

Mosaic analysis was used to evaluate the degree to which serum levels of individual cytokines correlated with one another, and whether these correlations differed between CLL patients with less (TTFT ≥ 5 years) and more (TTFT < 5 years) aggressive disease (Figure 5). Unlike bicluster analysis that uses cytokine levels to develop a color-coded heatmap (Figure 3), the mosaic plot assigns colors based on the strength of correlation between pairs of cytokines, irrespective of serum levels.²⁴  This approach identified 4 broad groups of correlated cytokines (A-D). To a large degree, these groups mirror the CLs identified by bicluster analysis (indicated by gray lines at left of Figure 3); specifically, groups B and C cytokines comprise CL1 and groups A and D are, respectively, CL3 and CL2, except for TNFα, which falls in CL2 and group A. Although correlation profiles were similar in patients with mild and aggressive disease, differences between the 2 sets of patients were apparent (pink-striped boxes in Figure 5); group D cytokines correlated highly in patients with mild disease and groups B and C (which together form CL1) correlated highly in patients with aggressive disease.

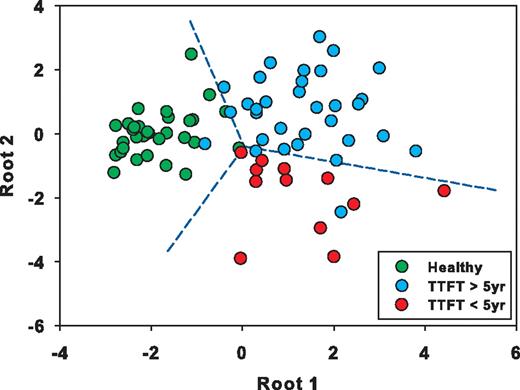

DFA was used to further characterize cytokines that best discriminate CLL patients with less (TTFT ≥ 5 years) versus more (< 5 years) aggressive disease from each other and from healthy subjects. This approach identified CCL3, IL-5, GM-CSF, IL-8, IL-15, CCL2, IL-10, IL-12, IFNα, IFNγ, and IL-2 as the cytokines with the highest discriminatory activity (Figure 6; supplemental Table 5). Using roots comprising this set of cytokines, CLL patients (Figure 6 blue and red dots) are clearly distinguished from healthy subjects (Figure 6 green dots). More importantly, CLL patients with more aggressive disease (red dots) also segregate distinctly from those with milder disease (blue dots).

Growth and survival of CLL cells in situ depend on complex sets of signals received from the microenvironment, including cytokines, engagement of costimulatory molecules, antigen, or a combination.^5,17  CLL cell trafficking to sites where these stimulatory influences can be attained depends on chemokines, acting in concert with adhesion molecules.⁶  Gaining a more complete understanding of the regulation of each of these pathways is essential to better understand CLL. Because the actions of certain cytokines and chemokines can be modulated by the actions of other cytokines and chemokines, identifying groups of molecules that robustly correlate with clinical course and outcome, the focus of the current work, has the potential to improve disease prognostication and may offer crucial insight into networks of signals that could be targeted by therapies.

In this exploratory study, we quantified serum levels of 23 cytokines in CLL patients and healthy subjects and analyzed these findings, based on individual mediators and also on sets of mediators grouped by a variety of analytical tools. For the former approach, we determined that serum levels of 17 cytokines are higher in CLL patients than healthy subjects (Figure 1; Table 2). Of these cytokines, a subset is elevated irrespective of disease severity, whereas others correlate with prognostic markers or clinical outcome measures (Figure 2; supplemental Tables 2-5). This distinction suggests that expression of certain cytokines may be driven by and potentially impact pathways common to CLL disease itself, irrespective of severity (eg, intrinsic and extrinsic signaling cascades critical for homeostatic proliferation and survival of CLL cells), whereas expression of others may be responsible for or reflect pathways specific for more aggressive disease and have greater impact on disease progression (eg, angiogenesis, inflammation, antitumor responses, and CLL and accessory cell recruitment and activation).

This is the first demonstration that CCL17, CXCL11, IL-5, and IL-17 exist at higher levels in CLL sera, suggesting new molecules relevant to CLL biology. CCL17 and CXCL11 are chemokines that modulate immune cell trafficking and adhesion. Although this is the first report of elevated levels of CCL17 protein in CLL sera, CLL cells have been shown to express CCL17 mRNA.²⁶  Because CCL17 recruits activated CD4⁺CD40L⁺ T cells expressing CCR4, CLL or accessory cells may recruit CD4⁺ T cells via CCL17 that, after CD40L/CD40 interactions, could supply survival and growth signals to CLL clones.²⁶  Although this is the first report that CXCL11 is elevated in CLL sera, CXCL9, a closely related chemokine, is elevated in CLL patient sera.²⁷  Because both CXCL9 and CXCL11 are ligands for CXCR3, a receptor highly expressed on CLL cells,²⁸  these chemokines may regulate CLL cell homing to tissues where they receive growth and survival signals. The T-helper (Th) 2 cytokine IL-5 stimulates normal B-cell growth and differentiation and increases immunoglobulin secretion²⁹ ; however, because its effects on CLL cells have not been characterized, there is no framework on which to speculate on the relevance of elevated IL-5 levels in CLL. Finally, IL-17, an inflammatory and angiogenic cytokine produced primarily by CD4⁺ Th17 cells,³⁰  can mediate both pro- and antitumor properties,^31,32  and may influence CLL growth, survival, or both.

Other cytokines found elevated in CLL patient sera in this study (CCL2, CCL3, CCL4, CXCL9, IL-1β, IL-2, IL-6, IL-8, IL-10, IL-12, TNFα, IFNα, and IFNγ) have been reported previously as higher in CLL blood or tissues.^8-14,33  Of these cytokines, CCL3, CCL4, IL-1β, IL-6, IL-8, IL-10, and IL-12 correlate with survival¹⁰  or TTFT.¹³  In our study, CCL3 and CCL4 were among the most effective in distinguishing CLL from healthy subjects (Figure 1B) and also correlated with shorter TTFT (Figure 2E), as did IL-10 and IL-12. In contrast, we found IL-1β and IL-8, previously shown to associate with poor prognosis in CLL,^10-12  to correlate with good prognostic markers, increased survival, or both (Figures 2–3); this discrepancy could reflect variable expression of these cytokines during the disease or their pleiotropism, exerting both pro-and antitumor actions in different contexts.³⁴  In addition, this apparent discrepancy indicates the downside of correlating the complexities of disease severity with levels of individual cytokines.

Thus, although analyses of individual cytokine levels is informative, a central finding in this study is that identification of CLs of coordinately regulated cytokines has an advantage by directing attention to linked actions and better predicting patient outcome than individual cytokines.

CL1, a CL identified by its association with shorter TTFT in unsupervised bicluster analysis (Figure 3) comprises 10 cytokines expressed in a highly coordinated manner in a subset of CLL patients. The coordinate expression of CL1 cytokines in patients with poor prognosis may reflect underlying differences in disease-related pathways active in aggressive versus indolent disease. Alternatively, CL1 cytokines may directly or indirectly influence, alone or in combination, immune and inflammatory mechanisms impacting survival, growth, and migration of CLL cells. CCL3 and CCL4, for example, are secreted by CLL cells in response to BCR engagement and by nurse-like cells,^15,16  and levels may be higher in aggressive disease where microenvironmental stimuli may be more influential. In addition, recruitment and subsequent activation of macrophages by CCL3 and CCL4 are parts of a defined functional loop leading to TNF, VEGF, and CD49 production that could promote survival and growth of CLL cells.³⁵  IL-12, another CL1 member, is proinflammatory and inhibits CLL cell apoptosis,³⁶  and its association with a “poor outcome CL” may reflect this. IL-12 also can induce IFNγ that triggers macrophage production of 3 other CL1 members, CXCL9, CXCL10, and CXCL11, that could contribute migratory and survival signals to CLL cells by signaling via CXCR3.²⁸  Of note, levels of another CL1 member, CCL19, strongly correlate with CXCL9, CXCL10, CXCL11, and IL-12 (supplemental Figure 1). Because CCL19 promotes migration of cells across the vascular endothelium, it could facilitate trafficking of CLL cells to tissue sites where survival and growth signals are encountered.³⁷  Finally, IL-10 and IL-5 are Th2 cytokines that suppress cell-mediated immune responses critical for effective antitumor immunity;^38,39  therefore, elevated levels might favor tumor growth. Based on these functions, CLL clones in CL1^HI patients would exist in a cytokine milieu favoring their survival and growth.

In contrast to CL1 cytokines, higher levels of CL2 and CL3 cytokines associated with longer TTFT in unsupervised bicluster analysis (Figure 3), suggesting that expression of these cytokines might be induced by pathways active in indolent disease, or alternatively, that their expression might be inhibited by pathways active in aggressive disease. High serum levels of CL3 cytokines (IL-1β, IL-2, IL-4, IL-15, IL-17, and IFNα) correlate with significantly longer OS, irrespective of the levels of CL1. This finding was somewhat unexpected in that at least one CL3 cytokine has been reported previously to independently promote CLL cell growth, survival, or both in vitro⁴⁰ ; another apparent discrepancy that highlights the differences encountered when analyzing individual versus coordinate CLs of immune molecules. CLL patients are typically immunocompromised with defective T-cell, NK-cell, and accessory cell functions, and this could contribute to impaired antitumor responses.⁴¹  CL3 includes the common γ-chain cytokines IL-2, IL-4, and IL-15, potent T-cell survival factors⁴²  that could buttress immune function in CLL. In addition, although IL-15 stimulates CLL cell proliferation directly,⁴⁰  it also stimulates dendritic cell (DC) maturation and NK- and CD8 T-cell cytotoxicity⁴³  that could enhance antitumor responses and a less permissive milieu for CLL cells. Because mosaic analysis indicated IL-15 levels are not only low in patients with aggressive disease but also correlate inversely with levels of other CL3 cytokines and TNF (Figure 5), the beneficial effects of CL3 cytokines may be best realized in the presence of IL-15. Another CL3 cytokine, IL-1β, promotes differentiation of naive T cells into Th17 cells,³⁰  a T-cell subset that secretes IL-17. Th17 cells exert antitumor effects in certain human cancers, and we have shown that Th17 levels correlate with longer OS in CLL.⁴⁴  IL-17 is induced by IL-15 in certain settings;⁴⁵  therefore, a milieu high in CL3 might promote IL-17–mediated antitumor pathways. Based on these functional profiles, CLL clones in CL3^HI patients would exist in a cytokine milieu that activates immune cells and favors antitumor responses.

Unlike CL3, CL2 did not independently associate with good prognosis (Figure 4A middle panels) and its 4 cytokines (IL-6, IL-8, GM-CSF, and TNFα) have not previously been associated with good outcome in CLL; in fact, all 4 cytokines have been independently linked to poor outcome.^10-12  Therefore, the positive correlation between CL2 and good outcome that we observe seems paradoxical. However, elevated levels of these 4 proinflammatory cytokines are characteristic features of Th1-skewed immune responses, which promote antitumor immunity.³⁸  Because induction of effective antitumor immunity in CLL may be compromised by deficient DC function,⁴¹  TNFα, GM-CSF, and IL-6, which promote maturation and activation of DCs, might overcome this deficit. Alternatively, CL2 might associate with good outcome if one or more of the cytokines comprising CL2 interferes with CL1-triggered protumor pathways. Finally, it is possible that the association of high levels of CL2 with better outcomes is not the result of a direct antitumor action or interference but rather is a consequence of its down-regulation by one or more CL1 cytokines. If that were the case, then patients with high levels of CL1 (associated with worse outcome) would have low levels of CL2 and those with low levels of CL1 (associated with better outcome) would have higher levels of CL2, as we observed here. This scenario is in line with the fact that the CL1 cytokine IL-10, an anti-inflammatory cytokine, inhibits expression of the proinflammatory cytokines that comprise CL2. This interpretation is also in line with our finding that CL2 cytokines, unlike CL1 and CL3, do not correlate independently with TTFT or OS.

Furthermore, although CL1/CL2 and CL1/CL3 combinations are both effective at distinguishing “poor” and “good” outcome patients, the effects of CL2 and CL3 seem distinct, based on multivariate analysis indicating that CL1/CL2 CL combinations are discriminatory for TTFT, whereas CL1/CL3 CL combinations are discriminatory for OS. Thus, TTFT may be influenced by cytokine signals that impact initiation and early progression of CLL, whereas OS could depend not only on those pathways but also on the effectiveness of host antitumor responses and patient responsiveness to therapy. If this were the case, CL2 cytokines might ablate CL1 negative effects, resulting in benefit in early years, whereas later CL3 cytokines might directly exert positive benefit, consistent with the independent protective effect of CL3 (Figure 4A).

In summary, this initial correlative study suggests that CLL patients can be divided into discrete subsets based on defined serum cytokine patterns that might reflect underlying immune and inflammatory mechanisms impacting survival, growth, and migration of CLL cells. This conclusion is supported by our finding that multivariate algorithms not only identified outcome-related interrelationships among cytokines but also suggested potential roles for other cytokines not overexpressed in CLL, but whose expression in combination with other cytokines may favor either poor (eg, CCL19 in CL1) or good (eg, IL-15 in CL3) outcomes. Therefore, cytokine CL measurements may be valuable in risk stratification and treatment design and also provide insight into inflammatory and immunologic pathways active in CLL patients.

Our findings also suggest additional questions that deserve investigation. For example, in the long term, refining the membership of individual cytokines within each CL might create a minimal, integrated set with greater prognostic value, because it would not be surprising if some of the members of the CLs we defined are not causes of the observed clinical outcomes but themselves represent consequences of these processes. Forward stepwise DFA of our current data, a first step in accomplishing this, identified 11 cytokines that discriminate CLL patients with indolent from aggressive disease and CLL from healthy subjects (Figure 6). This cytokine pattern overlapped significantly (with the exception of CXCL9 and CXCL11) with those cytokines identified by our unsupervised CL (Figure 3) and mosaic analyses (Figure 5). Based on commonality among these 3 correlative analytic methods, CCL3, IL-5, IL-10, IL-12, IFNγ (CL1); GM-CSF, IL-8 (CL2); and IL-15, IFNα, IL-2 (CL3) may be key cytokines in CLL pathobiology, at least among those we have studied.

Furthermore, functional studies are necessary to elucidate the interrelationships among these cytokines and pathophysiologic and protective mechanisms in which these CLs participate. Indeed, insights into the roles of various cytokines and the CLL tumor microenvironment have revealed new therapeutic targets,⁴⁶  and currently clinical trials are addressing the efficacy of immunomodulatory agents in CLL.^46,47  Because our data reveal heterogeneity among patients with regard to “CL” combinations, these differences might underlie differential responsiveness of patients to various therapies. For example, in patients with refractory or relapsing disease, a higher ratio of CL1 to CL2/CL3 might exist; therefore, screening serum levels for CL composition pretreatment might identify responsive patients and posttreatment might help understand drug effectiveness. A therapeutic regimen that suppresses CL1, but spares or enhances CL2, CL3, or both, may provide considerable benefit. Furthermore, immunomodulatory drugs that seem to act to a large extent by down-regulating prosurvival factors such as VEGF, TNF, IL-8, and IL6,^46,48  may act in part by altering cytokine CL composition or relationships. The finding that tumor flare reaction that can occur with lenalidomide treatment predicts clinical response in CLL⁴⁹  suggests that modulation of inflammation contributes to the effectiveness of this drug; this is consistent with our finding that CLs of proinflammatory cytokines correlate with better outcome (CL2 and CL3).

In addition, cytokine profiles within bone marrow and lymphoid tissues, where CLL cells receive important growth and survival signals, should be analyzed because serum levels may not reflect those at such sites. In addition, analyses of cytokine levels among cohorts homogeneous for point of disease, treatment status, and serially along disease course will be informative because in our study serum cytokines were analyzed at a single time point in a broad cohort of patients that included newly diagnosed patients as well as patients whose disease was diagnosed at an earlier point, prior to obtaining serum samples. Furthermore, extending the breath of cytokines analyzed to others not included in our study could be helpful, including CXCL12, CXCL13, CX₃CL1, IL-21, BAFF, and APRIL,^6,50  all of which have been identified by others as playing a role in this disease. Finally, combining functional and expression studies is essential to definitively dissect the physiologic extent that these cytokines play (either directly or indirectly) in CLL and whether their levels are elevated as a cause or consequence of other stimuli within the CLL microenvironment; if the latter, they might be prognostic but not necessarily impact CLL biology.

The authors are grateful to Gloria Telusma for expert technical support and Drs Patricia K. Mongini and Percio Gulko for helpful discussions of the data.

This work was supported in part by the National Center for Research Resources (grant M01RR018535); the Karches Foundation, the Prince Family Foundation; the Marks Foundation; the Jerome Levy Foundation; the Leon Levy Foundation; the Tebil Foundation Inc; and the Joseph Eletto Leukemia Research Fund.

National Institutes of Health

Contribution: X.-J.Y., N.C., and B.S. contributed to the overall design of the research; X.-J.Y., M.C., and B.S. carried out laboratory-based studies; I.D. and W.L. carried out statistical modeling studies; X.-J.Y., I.D., W.L., C.S., S.Y., N.C., and B.S. analyzed the results and prepared the figures; X.-J.Y., P.J., S.L.A., J.E.K., K.R.R., N.C., and B.S. wrote the paper; S.L.A., J.E.K., and K.R.R. were involved in the care of the patients and contributed clinical samples and data; and all authors reviewed and contributed to the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Barbara Sherry, The Feinstein Institute for Medical Research, 350 Community Dr, Manhasset, NY 11030; e-mail: bsherry@nshs.edu.
