Improved outcome of allogeneic bone marrow transplantation due to breastfeeding-induced tolerance to maternal antigens

Allogeneic hematopoietic stem cell transplantation (HSCT) is a potential curative treatment for malignant hematologic diseases; however, HSCT from haploidentical-related donors is complicated by a high incidence of severe graft-versus-host disease (GVHD).

The fetus and mother must tolerate each other's alloantigens during pregnancy. Fetal and maternal antigens transmitted through the bidirectional transplacental passage during pregnancy might induce tolerance to noninherited maternal antigens (NIMAs) in the offspring and inherited paternal antigens (IPAs) in the mother.^1-4  Exposure of the fetus to allogeneic cells may induce a long-lasting tolerance specific to the alloantigens of the donor cells.^5,6  We recently demonstrated using a mouse model that a “child-to-mother” bone marrow transplantation (BMT) from a NIMA-exposed donor reduces the mortality and morbidity of GVHD, but a “mother-to-child” BMT from a mother donor exposed to IPAs from the fetus does not.⁷  We therefore tested the hypothesis that breastfeeding plays an important role in the buildup of the tolerogenic NIMA effect in a mouse model of a “child-to-mother” BMT because breast milk is rich in maternal major histocompatibility complex (MHC) antigens in both soluble and cellular forms.^8-11

Female C57BL/6 (B6, H-2^b/b) and B6D2F1 (H-2^b/d) mice were purchased from Charles River Japan (Yokohama, Japan). B6D1F1 (H-2^b/q) mice were produced by mating a DBA/1 (H-2^q) female (Japan SLC, Shizuoka, Japan) and a B6 male. NIMA-exposed H-2^b mice were produced by mating a B6 (H-2^b) male and a B6D2F1 (H-2^b/d) female as previously described.^7,9,12  Offspring were typed for the H-2 locus by flow cytometry using monoclonal antibodies (mAbs) specific for H-2K^b and H-2K^d (BD Pharmingen, San Diego, CA) as previously described.⁷  The resultant H-2^b/b offspring were nursed by either a B6D2F1 mother (NIMA [in utero + oral]) or a B6 foster mother (NIMA [in utero]). Controls were H-2^b mice not exposed to H-2^d. To produce NIMA-exposed mice via breastfeeding, B6 neonates were nursed by a B6D2F1 foster mother (NIMA [oral]). Mice were weaned at 3 weeks after birth. These mice were used as BMT donors at 6 to 10 weeks of age. BMT was performed as previously described.⁷  All animal experiments were performed under the auspices of the Institutional Animal Research Advisory Committee at Okayama University.

Mice underwent transplantation as previously described.¹³  In brief, after lethal total body irradiation (TBI; x-ray) was delivered in 2 doses at 3-hour intervals to minimize gastrointestinal toxicity, mice were intravenously injected with 5 × 10⁶ T cell–depleted bone marrow (TCD-BM) cells plus 0.5 to 2 × 10⁶ T cells, CD4⁺ T cells, or CD25-depleted CD4⁺ T cells from the donors on day 0. T-cell depletion, CD25 depletion, and splenic CD4⁺ T-cell isolation were performed using Auto-MACS (Miltenyi Biotec, Tokyo, Japan) as previously described.^7,14  Hybridomas secreting anti-CD25 mAbs (clone PC61) were obtained from the ATCC (Manassas, VA). For in vivo depletion of CD25⁺ cells,^14,15  mice were injected subcutaneously with 75 μg/g body weight of anti-CD25 or irrelevant mAbs on days 1 and 8 after birth. They were then housed in sterilized microisolator cages, and given autoclaved hyperchlorinated drinking water for the first 3 weeks after BMT and filtered water thereafter. Survival after BMT was monitored daily and the degree of clinical GVHD was assessed weekly by a scoring system that evaluated changes in 5 clinical parameters: weight loss, posture, activity, fur texture, and skin integrity (maximum index = 10) as previously described.¹⁶

Flow cytometric analysis was performed as previously described.¹³  The mAbs used were biotinylated anti–mouse CD25 (clone 7D4); FITC- or PE-conjugated anti–mouse CD4, CD8, H-2K^b, H-2K^d (BD Pharmingen); and Foxp3 (eBioscience, San Diego, CA). For intracellular interferon γ (IFN-γ) staining, splenocytes were incubated for 4 hours with Leukocyte Activation Cocktail and BD GolgiPlug (BD Pharmingen) at 37°C. Then the cells were permeabilized with BD Cytofix/Cytoperm solution (BD Pharmingen) and stained with FITC-conjugated anti–IFN-γ mAbs. Dead cells were identified as 7-amino-actinomycin D (BD Pharmingen)–positive cells. At least 5000 live samples were acquired for analysis.

Cell culture was performed as previously described.¹⁷  Splenic CD4⁺ T cells were cultured at a concentration of 10⁵ cells/well with 4 × 10⁵ irradiated (30 Gy) splenocytes. After culturing for 72 hours, cells were pulsed with ³H-thymidine (1 μCi [0.037 MBq] per well) for further 18 hours. Proliferation was determined using Topcount NXT (Packard Instruments, Meriden, CT).

Mann-Whitney U tests were used to analyze cell counts and clinical scores. We used the Kaplan-Meier product limit method to obtain the survival probability and the log-rank test was applied to compare the survival curves. We defined a P value less than .05 as statistically significant.

Lethally irradiated B6D2F1 mice received a transplant of 5 × 10⁶ TCD BM from the controls together with 2 × 10⁶ T cells from either NIMA (in utero + oral), NIMA (in utero), NIMA (oral), or control mice. NIMA (in utero + oral) T cells produced less severe GVHD than control T cells, as previously reported⁷  (Figure 1A). Interestingly, in recipients of NIMA (in utero) and NIMA (oral) T cells, the tolerogenic NIMA effect was partial when considering the mortality and morbidity of GVHD (Figure 1A,B). These results demonstrate that in utero exposure to NIMAs alone could mediate the tolerogenic NIMA effect and that further oral exposure to NIMAs is required for induction of the maximum NIMA effect.

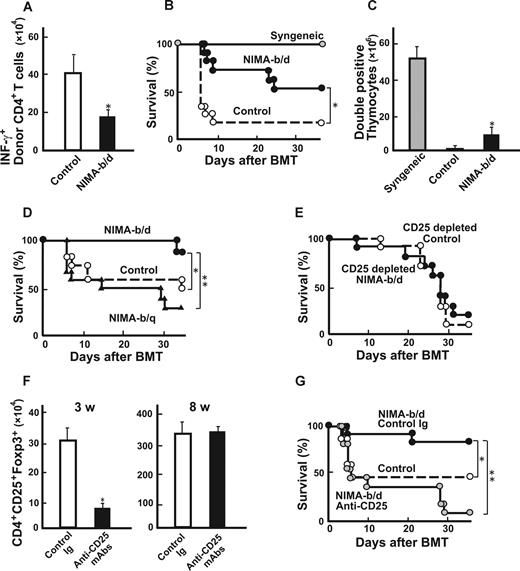

We then examined whether NIMA exposure by breastfeeding could induce T-cell hyporesponsiveness to NIMAs. Compared with control T cells, CD4⁺ T cells isolated from NIMA (oral) mice showed less expansion and IFN-γ production after transfer into irradiated B6D2F1 mice (Figure 2A). Consistent with the reduced donor T-cell responses to NIMAs, NIMA (oral) CD4⁺ T cells (10⁶) mediated the attenuation of GVHD after BMT, compared with control T cells, as assessed by mortality (Figure 2B) and clinical GVHD scores (data not shown).¹⁶  We also observed the tolerogenic NIMA effect in another set of experiments with 2 different T-cell doses (0.25 × 10⁶ and 10⁶; Table 1). The thymus, which is one of the most sensitive organs to GVHD, shows severe atrophy primarily due to a loss of double-positive thymocytes.¹⁸  Numbers of double-positive thymocytes markedly decreased in allogeneic controls compared with syngeneic controls (Figure 2C). This thymic atrophy was significantly improved in NIMA (oral) T-cell recipients. We then sought to determine whether GVHD could be further reduced by exposing TCD-BM donors to NIMAs in addition to NIMA exposure of T-cell donors. Lethally irradiated B6D2F1 mice received transplants of 2 × 10⁶ T cells from NIMA (oral) mice and 5 × 10⁶ TCD-BM from NIMA (oral) mice or controls. However, survival (75% vs 70%) and clinical scores (4.0 ± 0.2 vs 3.8 ± 0.4) were not significantly different between the 2 groups. Analysis of donor cell engraftment on day +40 in spleens showed that the recipients of grafts from NIMA-exposed donors had more than 98% donor-derived cells, thus ruling out rejection or mixed chimerism as a potential cause of GVHD suppression.

We then evaluated the antigen specificity of milk-mediated tolerogenic NIMA effects. B6D2F1 mice received transplants with T cells from B6 mice nursed by either a B6D2F1 or B6D1F1 (H-2^b/q) foster mother. GVHD was less severe in recipients of grafts from H-2^b/d–exposed donors than in those who received grafts from H-2^b/q–exposed donors, suggesting an antigen specificity of the NIMA effect (Figure 2D).

We recently demonstrated that CD4⁺CD25⁺ regulatory T cells (T_R) play an important role in the tolerogenic NIMA effect.⁷  We therefore considered whether these T_R play a role in the induction of tolerogenic milk effects. When B6D2F1 mice received a transplant of CD25-depleted CD4⁺ T cells from NIMA (oral) mice, the tolerogenic NIMA effect disappeared (Figure 2E), suggesting that T_R in the donor inoculum were involved in the tolerogenic milk effect.

We hypothesized that NIMA-reactive T_R are produced during the lactation period. Newborn B6 mice fed by a B6D2F1 foster mother were injected subcutaneously with 75 μg/g body weight of anti-CD25 mAbs on days 1 and 8 after birth to deplete CD25⁺ T_R in vivo.¹⁵  Injection of anti-CD25 mAbs significantly reduced the numbers of Foxp3⁺ T_R at 3 weeks of age but this cell population had recovered to normal levels by 8 weeks of age when these mice were used as BMT donors, as reported in previous studies (Figure 2F).¹⁵  NIMA effects disappeared in mice that received a transplant of grafts from CD25-treated donors (Figure 2G). These results suggest that development of T_R during lactation is critical for the induction of the NIMA effect. We then compared the antigen-specificity of T_R isolated from NIMA (oral) mice and T_R from control mice. CD4⁺ CD25⁺ T cells were isolated from control and NIMA-exposed mice and added to the culture of B6 T cells and B6D2F1 or DBA/1 stimulators in MLR. However, both T_R equally suppressed T-cell proliferation in response to NIMAs and third-party alloantigens (data not shown).

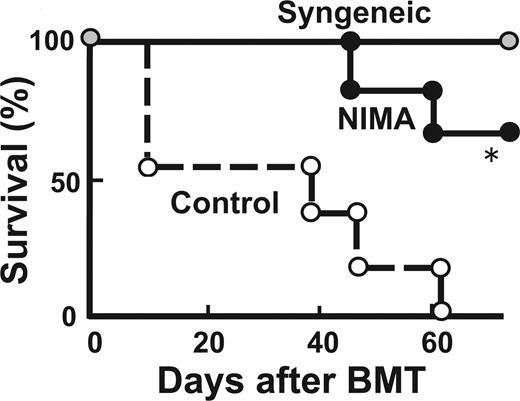

Finally, we evaluated whether the NIMA effect persists when NIMA-exposed donors are older. B6D2F1 mice received a transplant of T cells from 28-week-old NIMA-exposed mice and age-matched control mice. Again, GVHD was reduced in mice that received a transplant from older NIMA mice (Figure 3).

We demonstrated that oral exposure to NIMAs by breastfeeding alone could induce a tolerogenic NIMA effect. Donor T cells from NIMA-exposed mice were hyporesponsive to the corresponding antigens, thereby attenuating GVHD and resulting in an improvement in survival after a “child-to-mother” BMT. We also found that both oral and in utero exposures to NIMAs are required for the maximum reduction of GVHD, as with previous observations in experimental skin allografts.^9,12  Breastfeeding may thus play an additive role in inducing the tolerogenic NIMA effect. These findings are supported by several clinical studies of renal transplantation, which showed that patients who had been breast-fed survived better after maternal and sibling kidney allografts than those who had not been breast-fed.^8,19  These observations may also explain partly why the incidence of GVHD was significantly lower in HSCT from a NIMA-mismatched donor than from an IPA-mismatched donor in mice⁷  and humans,^6,20  and why the survival of sibling kidney allografts expressing noninherited paternal antigens is not as good as the survival of those expressing NIMAs.⁵  Additional oral exposure to NIMAs by breastfeeding may be required for induction of clinical tolerance.

Breast milk contains maternal MHC antigens in soluble and cellular forms as well as in exosomes.^8-11  The components critical in inducing tolerance in our model remain to be identified. Interestingly, BMT from donors continuously fed with proteins extracted from recipient splenocytes reduces experimental GVHD.²¹  Thus, it is possible that oral exposure to host antigens might improve the outcome of allogeneic HSCT. Oral tolerance is characterized by an inhibition of specific immune responsiveness to subsequent parenteral injections of proteins to which the individual has been previously exposed orally.²²  Oral tolerance prevents pathological reactions against environmental and food antigens, and its failure results in an exacerbated inflammation typical of allergies and asthma. Oral tolerance can be mediated by several mechanisms such as deletion, immune deviation, and suppression by T_R.²³  We recently demonstrated that T_R play an important role in the tolerogenic NIMA effect.⁷  Similarly, in the mouse model of the NIMA cardiac allografts, graft acceptance is associated with a higher frequency of IL-10– and TGF-β–producing CD4⁺CD25⁺ cells.²⁴  In this study, we further showed that the tolerogenic NIMA effect mediated by breastfeeding was also dependent upon T_R. The tolerogenic NIMA effect was abrogated by depletion of CD25⁺ T cells of donor innocula, as well as the in vivo depletion of CD25⁺ cells in neonates on days 1 and 8 after birth, during the breastfeeding period. Injection of anti-CD25 mAbs significantly reduced generation of Foxp3⁺ T_R during this period as shown in Figure 2F. However, this cell population had recovered to normal levels by 8 weeks of age when the mice were used as BMT donors, as shown in previous studies¹⁵ ; thus, abrogation of tolerogenic NIMA effects is not due to a decrease in the numbers of Foxp3⁺ T_R. A recent study addressing the kinetics of T_R generation during ontogeny demonstrated that the largest single-day gain in numbers of Foxp3⁺ thymocytes occurred between days 3 and 4, followed by a steady increase in number over the first 3 weeks. Thereafter, T_R were continuously generated in the thymus.²⁵  Thus, both de novo generation of T_R in the thymus and peripheral expansion of T_R appear to be responsible for T_R repopulation within 8 weeks. Interestingly, the mechanisms of oral tolerance differ with different antigen doses. A single administration of high-dose antigens causes clonal deletion, whereas repeated administration of low doses of antigens leads to development of T_R.²⁶  Thus, repeated oral exposure to NIMAs by breastfeeding might help to produce NIMA-specific T_R. However, a single intravenous injection of allogeneic cells can induce T-cell responses against alloantigens in murine neonates.²⁷  This route of antigen exposure may be critical in determining immunity or tolerance.

Our results suggest the antigen specificity of the NIMA effect in vivo. Oral administration of the self-antigen induces antigen-specific T_R.²⁸  Breast milk–mediated transfer of an antigen to the neonate from an antigen-exposed mother produces T_R that suppress asthma.²⁹  Such an antigen specificity may be mediated by “adaptive” T_R that are generated from classical T-cell subsets or “natural” T_R under certain conditions of antigenic stimulation, but not “natural” T_R that develop in the thymus during the early stages of fetal and neonatal T-cell development.³⁰  In fact, we could not demonstrate antigen-specificity of T_R isolated from NIMA-exposed mice in vitro. Antigen-specific expansion of T_R in vivo may require a T cell–deficient environment and stimulation with the corresponding antigens in the presence of IL-2.³¹  Therefore, re-exposure to NIMAs in a lymphopenic environment following pretransplantation conditioning might allow for the generation of “adaptive” T_R, thus contributing to antigen specificity in vivo. Further studies are required to evaluate antigen specificity of the NIMA effect. In addition, it should be noted that oral tolerance can be achieved in the absence of Foxp3⁺CD25⁺ T_R.^23,32  Thus, there could be multiple mechanisms underlying the tolerogenic NIMA effect cause by breastfeeding.

In clinical HSCT with grafts from NIMA-exposed donors, GVHD is mild or absent in some, but not in others.²⁰  A history of breastfeeding^8,19  as well as the presence of microchimerism³³  and anti-HLA antibodies should be considered. MHC allele mismatch combinations between the donor and recipient could matter.²⁴  A recent clinical study identified high- and low-risk HLA allele mismatches for severe GVHD.³⁴  The age of donors may also affect the outcome. In our study, the tolerogenic NIMA effect lasted for at least 28 weeks, suggesting that both child and adult donors can confer the NIMA effect. Lastly, calcineurin inhibitors used for GVHD prevention inhibit activation and expansion of T_R, thereby suppressing the NIMA effects.³⁵  The beneficial NIMA effects were observed only if patients were not administered cyclosporine in kidney transplantation.⁵  Immunosuppressants such as sirolimus and mycophenolate mofetil, which do not interfere with T_R, may therefore be of use in NIMA-associated HSCT.³⁵  In conclusion, we demonstrated that breastfeeding plays an important role in the buildup of the tolerogenic NIMA effect, suggesting that novel strategies can be established to induce host-specific tolerance orally in allogeneic HSCT.

This study was supported by research funds from the Ministry of Education, Culture, Sports, Science and Technology (Tokyo, Japan; no. 20659153; T.T.), Health and Labor Science Research grants (Tokyo, Japan; T.I., T.T.), and Mitsubishi Pharma Research Foundation (Tokyo, Japan; T.T.).

Contribution: K. Aoyama conducted the research and wrote the paper; M.K., K.-i.M., D.H., and T.I. conducted the research; K. Akashi, M.H., and M.T. designed the study; and T.T. designed and organized the study.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Takanori Teshima, Center for Cellular and Molecular Medicine, Kyushu University Hospital, 3-1-1 Maidashi, Higashi-ku, Fukuoka, 812-8582 Japan; e-mail: tteshima@cancer.med.kyushu-u.ac.jp.
