BH3-only protein Bim more critical than Puma in tyrosine kinase inhibitor–induced apoptosis of human leukemic cells and transduced hematopoietic progenitors carrying oncogenic FLT3

FLT3 (FMS-like tyrosine kinase 3) is a type III receptor tyrosine kinase (RTK) closely related to the platelet-derived growth factor (PDGF) receptor and c-Kit with important functions in the regulation of early hematopoietic cells. FLT3 is frequently mutated in patients with acute myeloid leukemia (AML), which correlates with poor prognosis and decreased patient survival.^1-4  The most common mutations are internal tandem duplications (ITD) of the juxtamembrane domain, which cause ligand-independent dimerization and autophosphorylation. FLT3-ITD expression causes malignant transformation and factor-independent growth when expressed in factor-dependent cell lines.^5,6

Development of RTK inhibitors selective for FLT3 has emerged as attractive drugs for treatment of AML patients. Several inhibitors have been described, such as AG1295, CEP701, PKC412, and SU-11 248, with cytotoxic effects to cell lines and primary AML cells in vitro expressing mutant FLT3. PKC412 is one of several FLT3 inhibitors that is currently evaluated in late-stage clinical trials in AML patients carrying FLT3 mutations.⁷  However, as single agents, these inhibitors are able to sustain only limited cytotoxic responses in AML patients, and relapse occurs after the initial response.^8-11  Therefore combination therapy has emerged as a therapeutic strategy. Clarifying the downstream signaling components of FLT3-ITD could identify attractive targets for such intervention and enhance the long-term therapeutic benefits.

FLT3-ITD activates intracellular effector proteins mediating proliferation and survival. The Ras pathway and constitutive phosphorylation of mitogen-activated protein (MAP) kinase has been demonstrated in cells expressing FLT3-ITD.^5,6  In primary AML blasts and in cell lines expressing FLT3-ITD, increased activation of the survival AKT kinase has been observed.^12-14  AKT is transiently activated by normal FLT3 signaling, which leads to inhibition of apoptosis by phosphorylating FOXO3a, a Forkhead family member involved in apoptosis and cell-cycle control.¹⁵  Studies have confirmed that AKT inhibits FOXO3a in FLT3-ITD–expressing cells,^13,14  suggesting that the pathway could be efficient for FLT3 intervention. Phosphorylated AKT is also found in AML samples expressing wild-type FLT3,¹⁶  indicating that overexpression of FLT3 is sufficient to trigger AKT activation.

Increasing evidence suggest that the mechanisms by which chemotherapeutic drugs and novel inhibitors eliminate malignant cells is mainly by apoptotic induction. The BH3-only proteins Bim (Bcl-2–interacting modulator of cell death) and Puma (p53 up-regulated modulator of apoptosis), proapoptotic members of the Bcl-2 family, can be activated in response to cytotoxic stimuli, including chemotherapeutic drugs.¹⁷  They have a prominent role among the BH3-only proteins, because they bind with high affinity to all antiapoptotic Bcl-2 family proteins,¹⁸  thereby promoting mitochondrial release of cytochrome c, which subsequently activates caspase 9 and caspase 3 and death effector molecules. Recent results suggest that Bim and Puma have overlapping effects as well as distinct roles in vivo. This was demonstrated in genetically modified mice in which glucocorticoid-induced apoptosis varied with cell type and was dependent on lack of Bim or Puma.¹⁹  Hence, exploring the regulation of Bim and Puma upon chemotherapeutic treatment may prompt new developments in treatment of AML. Studies indicate that BCR-ABL protein in chronic myelogenous leukemia (CML) and oncogenic FLT3-ITD support cell survival through down-regulation of Bim expression by a FOXO3a-dependent mechanism.^13,14,20-22  Recently, it was demonstrated that FOXO3a increases Puma expression in response to growth factor deprivation in lymphoid cells and mouse embryonic fibroblasts, suggesting that Puma together with Bim may have overlapping functions as FOXO3a downstream targets,²³  and that they may be involved in the effector mechanisms by which RTK inhibitors affect AML cells expressing FLT3-ITD.

Here we show that the FOXO3a pathway is essential in mediating apoptosis of FLT3-ITD–expressing cells upon treatment with AG1295 and PKC412. We found that FLT3-ITD activated AKT and ERK when introduced into the factor-dependent progenitor cell line FDC-P1. Inhibition of the PI3-kinase pathway and downstream FOXO3a was crucial for survival, and a phosphorylation-deficient, constitutively active variant of FOXO3a up-regulated both Bim and Puma during FLT3-ITD signaling and induced cell death. Importantly, Bim and Puma were up-regulated in human leukemic cell lines and in primary AML cells from patients harboring FLT3 mutations when treated with RTK inhibitor. Silencing of either Bim or FOXO3a, but not Puma, prevented apoptotic induction in FDC-P1 cells expressing FLT3-ITD. Consistently, FLT3-ITD–infected bone marrow cells from gene-targeted mice lacking Bim were insensitive to inhibition, whereas lack of Puma had only a transient and minor effect. These results indicate an essential contribution of FOXO3a repression by FLT3-ITD signaling to tumor cell survival by repression of Bim. Restoring or mimicking Bim activity by RTK inhibition and/or the application of BH3 mimetics may be a suitable strategy for pharmaceutic intervention in AML.

LY294002 and PD98059 were obtained from Calbiochem (San Diego, CA). AG1295 was purchased from Sigma-Aldrich (St Louis, MO), and PKC412 was kindly provided by Novartis (Basel, Switzerland). Recombinant murine interleukin-3 (IL-3) and murine and human FLT3 ligand (FL) were from PeproTech (London, United Kingdom). 4-Hydroxytamoxifen (4-OHT) was from Sigma-Aldrich. Antibodies for phospho-Ser473-Akt, phospho-ERK1/2 (Thr202/Tyr204), and cleaved caspase-3 (Asp175) were obtained from Cell Signaling Technology (Danvers, MA), and antibodies for phospho-Thr32-FOXO3a and phospho-Ser253-FOXO3a were from Upstate Biotechnology (Charlottesville, VA). FOXO3a antibody was obtained from Abcam (Cambridge, United Kingdom), Bim antibody was from Affinity BioReagents (Golden, CO), and Puma antibody was from ProSci (Poway, CA). Anti–human FLT3 and anti-pTyr (PY99) antibodies were from Santa Cruz Biotechnology (Santa Cruz, CA), and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) antibody was from Chemicon (Temecula, CA). Secondary antibodies were horseradish peroxidase–conjugated from The Jackson Laboratory (Bar Harbor, ME) or GE Healthcare Life Sciences (Piscataway, NJ).

MV4;11 was cultured in Iscove modified Dulbecco medium (IMDM; PAA Laboratories, Les Mureaux, France) with 10% fetal bovine serum (FBS; Invitrogen, Carlsbad, CA), and 2 mM l-glutamine at 37°C in 5% CO₂. FDC-P1 cells were cultured in the same medium supplemented with IL-3 containing supernatant. All other cell lines were cultured in RPMI 1640 (PAA Laboratories) with 10% FBS and 2 mM l-glutamine.

For establishment of FDC-P1/FLT3-ITD, Phoenix-Eco cells were transfected with retroviral vector containing FLT3-ITD using standard CaPO₄ precipitation, after which supernatants were filtered and used to infect FDC-P1 cells with 4 μg protamine sulfate/mL (Sigma-Aldrich) and IL-3. Transduced cells were isolated by selection with 800 μg G418/mL (PAA) for 1 week. Selected cells were maintained in the absence of cytokine for no longer than 2 months.

Cells (3 × 10⁶-1 × 10⁷) were washed in phosphate-buffered saline (PBS) and lysed in buffer containing 25 mM Tris, pH 7.5, 150 mM NaCl, 5 mM ethylenediaminetetraacetic acid (EDTA), 10% glycerol, 1% Triton X-100, Complete Protease Inhibitor (Roche, Basel, Switzerland), and 1 mM Na₃VO₄. Lysates were precleared with protein A Sepharose (GE Healthcare Life Sciences) for 1 hour at 4°C followed by incubation overnight at 4°C with the indicated antibody. Immunocomplexes were captured with protein A Sepharose. After electrophoresis using NuPage precast 10% Bis-Tris gel (Invitrogen), and transfer to polyvinylidene fluoride (PVDF) membranes (Invitrogen), immunoblotting was performed with primary antibody overnight at 4°C and HRP-coupled secondary antibody for 1 hour. Blots were visualized by enhanced chemiluminescence (ECL; GE Healthcare Life Sciences).

Cells were labeled with annexin V–fluorescein isothiocyanate (FITC; BD Biosciences, San Jose, CA) and 5 μg/mL propidium iodide (PI; Sigma-Aldrich) and analyzed using a FACSCalibur and CellQuest software (BD Biosciences). For cell-cycle analysis, cells were fixed in 70% ethanol at −20°C for 20 minutes, washed in PBS, and resuspended in 3.5 mM Tris, 1 mM NaCl, 0,1% Nonidet P-40 (NP-40), 50 μg/mL PI, and 10 μg/mL RNaseA (Sigma-Aldrich). Cell-cycle status was analyzed by flow cytometry, and the amount of cells in G₀/G₁, S-phase, and G₂/M was calculated.

FDC-P1/FLT3-ITD/FOXO3(A3):ER cells were generated by culturing FDC-P1/FLT3-ITD cells with viral supernatant from amphotropic packaging cells transfected with pBabe-Puro/FOXO3(A3):ER²⁴  and 4 μg protamine sulfate/mL. Cells were selected for 1 week in 2 μg puromycin/mL (Sigma-Aldrich) and used immediately for experiments.

Retroviral vector MSCV-FLT3-ITD-IRES-EYFP²⁵  was used to prepare high-titer viral supernatants by transient transfection of 293T cells using calcium phosphate. Isolation of lineage-depleted (Lin⁻) bone marrow cells from 6- to 12-week-old mice was performed with a lineage cell depletion kit on an AutoMACS device (Miltenyi Biotec, Bergisch Gladbach, Germany). The bim^−/−,²⁶ puma^−/−,²⁷  and bim^−/−puma^−/−28  mice have previously been described. After overnight prestimulation with 25 ng/mL FL, 1 ng/mL IL-3, and 25 ng/mL kit ligand (KL), Lin⁻ cells were incubated for 48 hours on retronectin-coated plates with retroviral supernatant from MSCV-FLT3-ITD-IRES-EYFP–transfected 293T cells. Enhanced yellow fluorescent protein (EYFP)⁺ cells were sorted on a FACSAria device (Becton Dickinson, Franklin Lakes, NJ) into 24-well plates containing 1 mL IMDM with 20% FBS, 0.65% bovine serum albumin (BSA) fraction V (Sigma-Aldrich), 0.05 mM 2-mercaptoethanol, human transferrin (iron-saturated; Pharmacia, Uppsala, Sweden), and 10 μg/mL bovine insulin (Sigma-Aldrich) without addition of cytokines. The same volume of 2% methylcellulose (Methocel; Fluka, Deisenhofen, Germany) was added, mixed by careful pipetting, and incubated in a humidified atmosphere with 5% CO₂ at 37°C. Seven days later, colonies containing 50 or more cells were counted. All experiments with animals received institutional review board (IRB) approval and were performed according to the Austrian Tierversuchgesetz (BGB1. no. 501/1988 i.d.g.F) and the guidelines of the Animal Ethics Committee in Linköping, Sweden (Dnr 3-07).

For silencing of murine Bim, FOXO3a, or Puma, SMARTpool small interfering RNAs (siRNAs) from Dharmacon Research (Lafayette, CO) were transfected into FDC-P1/ITD cells using Amaxa nucleofection (Cologne, Germany). Twenty-four hours before transfection, 5 × 10⁶ cells were seeded in fresh complete medium. Cells were then collected by centrifugation, resuspended in Nucleofector solution T, and mixed with siRNA oligonucleotides to 0.7 or 1.4 μg Bim, 1.3 or 2.7 μg FOXO3a, or 0.5 or 2.0 μg Puma. An siRNA oligonucleotide to 1.5 μg green fluorescent protein (GFP; pmaxGFP) was used as a control (Amaxa). After transfection, cells were transferred into prewarmed (37°C) complete medium and analyzed for gene silencing and apoptosis after different time points.

The study was approved by the research ethical committee at the Faculty of Health Sciences, Linköping, Sweden. Informed consent was obtained from all patients in accordance with the Declaration of Helsinki. Bone marrow or peripheral blood samples from patients with de novo AML were subjected to Ficoll-Hypaque (GE Healthcare Life Sciences) density gradient centrifugation. Multiplex polymerase chain reaction (PCR) including digestion of amplicon with EcoRV for detection of FLT3-ITD was performed as described.²  After capillary electrophoresis separation, PCR fragments were analyzed, and their lengths and peak heights were estimated. Mutation amount as percent total DNA content was calculated from peak heights. All samples were morphologically confirmed to contain greater than 90% leukemic blasts by May-Grünwald-Giemsa staining on cytospins, and cells were cryopreserved in liquid nitrogen. After unthawing the samples, cells were allowed to rest for 4 hours in RPMI 1640 with 10% FBS before adding inhibitors. Effects of inhibitor on viability were studied after 72 hours by flow cytometry of PI-stained cells.

Total RNA was isolated using RNeasy mini kit (Qiagen, Hilden, Germany) and reversed transcribed to cDNA by SuperScript III Reverse Transcriptase (Invitrogen). Quantitative PCR was performed in 10 μL with 2× SYBR Green Mastermix (Applied Biosystems, Warrington, United Kingdom) containing DNA polymerase, dNTPs, buffer, 1 μM each forward and reverse primers, and 4-12 ng template using the 7500 FAST Real-Time System (Applied Biosystems). All samples were performed in triplicates, and human β-glucuronidase (GusB) was used as an endogenous control. Primer sequences designed with Primer express software (Applied Biosystems) were as follows: GusB forward primer: 5′-TGGTTGGAGAGCTCATTTGGA-3′ and reverse primer: 5′-ACTCTCGTCGGTGACTGTTCAG-3′; Bim forward primer: 5′-TGGCAAAGCAACCTTCTGATG-3′ and reverse primer: 5′-GCAGGCTGCAATTGTCTACCT-3′; and Puma forward primer: 5′-GAAGAGCAAATGAGCCAAACG-3′ and reverse primer: 5′-GGAGCAACCGGCAAACG-3′. Relative expression was calculated using the 2^−ΔΔCt method.

Chromatin immunoprecipitation (ChIP) was performed using a ChIP-Assay kit as recommended by the manufacturer (Upstate Biotechnology). Approximately 2 × 10⁶ FDC-P1/FLT3-ITD cells, nontreated or treated with AG1295, were fixed in 1% formaldehyde at 37°C for 10 minutes and washed 2 times in PBS containing complete protease inhibitor. Lysates were sonicated at 4°C for 15 cycles of 30 seconds with a 15-second rest period in between cycles (Bioraptor; Diagenode, Liége, Belgium). Immunoprecipitations were done with normal rabbit immunoglobulin G (IgG) or with anti-FOXO3a antibody. The anti-FoxO3a antibody is a rabbit polyclonal antiserum raised against a C-terminal–specific peptide of human FOXO3a. After reversing cross-linking and incubation with proteinase K, DNA was recovered by phenol-chloroform extraction and ethanol precipitation. Immunoprecipitated DNA fragments were subjected to quantitative PCR in triplicate reactions using SYBR green on the 7500 FAST Real-Time System. Primers for detection of the Forkhead responsive element (FHRE) region in the murine Bim promotor were: 5′-GGGCGGGTACATTCTGAGT-3′; 5′-CAGGCTGCGACAGGTAGTG-3′.²³  The Δ cycle threshold (Ct) value of each sample was calculated by subtracting the Ct value for the input sample from the Ct value obtained for the immunoprecipitated sample. Fold increase of FOXO3a binding was then calculated using the 2^−ΔΔCt method for each sample with nontreated cells as reference. PCRs with the same primers at 55°C for 32 cycles were also performed to visualize products on 1.5% agarose gels.

Statistical analysis was performed using the Student t test, and P values less than .05 were considered statistically significant.

We retrovirally infected the myeloid progenitor cell line FDC-P1 with a FLT3-ITD derived from an AML patient with a 7-amino acid duplication (EYEYDLK)²⁹  spanning tyrosine residues 597 and 599 implied in the transduction of growth-promoting signals. Previously described cells expressing wild-type, nonmutated FLT3 receptor were used as controls.¹⁵  FLT3 expression was confirmed by immunoprecipitation followed by immunoblotting (Figure 1A). Upon cytokine deprivation, cells expressing wild-type FLT3 died rapidly, whereas cells expressing FLT3-ITD did not (Figure 1A). Because AKT and Ras signaling provide survival cues for FLT3-ITD–transformed cells, we investigated their phosphorylation status in FDC-P1/FLT3-ITD cells as well as the AKT downstream target FOXO3a. As expected, phosphorylation of AKT, ERK, and FOXO3a was apparent (Figures 1B,2D).

Next, using specific pathway inhibitors, we demonstrated strong inhibition of survival by FLT3-ITD when applying LY294002, an efficient inhibitor of PI-3 kinase (Figure 1C). In contrast, addition of the MEK1/2 inhibitor PD98058 to block ERK activity did not affect survival induced by FLT3-ITD as much as LY294002. PI-3 kinase was also important for cell-cycle progression, because its inhibition led to G₀/G₁ arrest (Figure 1D). Only 6% of the cells were in S-phase after inhibiting PI-3 kinase for 24 hours compared with 29% without inhibitor and 21% with PD98059. This implies that the MAP kinase pathway is not as important for survival and proliferation as the PI-3 kinase pathway via FLT3-ITD in FDC-P1 cells. Because PI-3 kinase executes important survival functions by inhibiting the transcriptional activation of proapoptotic Bim, we examined the expression of Bim in FDC-P1/FLT3-ITD cells by Western blot analysis. Strong up-regulation of Bim was apparent after LY294002 treatment, whereas PD98059 only led to a small induction (Figure 1D).

To analyze the effects of RTK inhibitors on FLT3-ITD–bearing cells, we decided to use 2 previously described inhibitors with selective effects on FLT3. AG1295 has cytotoxic effects on FLT3-ITD–expressing cells, but is not clinically useful due to problems with solubility.³⁰  PKC412 (N-benzoyl staurosporine), originally identified as an inhibitor of protein kinase C,³¹  is an efficient FLT3 inhibitor currently used in clinical trials. Its feasibility as targeted therapy in AML comes from studies showing low levels of toxicity on normal hematopoiesis^32,33  and an ability to prolong survival in mice with activated FLT3-ITD–induced myeloproliferative disease.^7,34

Treating FDC-P1/FLT3-ITD cells for 24 hours with increasing concentrations of AG1295 and PKC412 led to gradually increasing apoptosis in a dose-dependent manner (Figure 2A,B) and to cell-cycle arrest (Figure 2C). At later time points, viability declined even further, and after 72 hours, with high concentrations of AG1295 (30μM) or PKC412 (10 nM), all cells stained positive for annexin V and became apoptotic (not shown). While phosphorylation of AKT and ERK was attenuated (Figure 2D), the levels of BH3-only proteins Bim and Puma were increased, which correlated with the appearance of the cleaved active form of caspase-3 (Figure 3A). Treating cells with PKC412 led to similar results (Figure 3B). Because Bim and Puma are targets of FOXO3a,^22-24  we examined the expression of phosphorylated FOXO3a in AG1295-treated cells. A time course study with increasing amounts of AG1295 showed that the phosphorylation of FOXO3a declined during treatment, and while phosphorylation of FOXO3a was reduced, levels of Bim, Puma, and cleaved caspase-3 increased (Figure 3C).

To address the importance of FOXO3a inactivation by FLT3-ITD signaling, we retrovirally overexpressed constitutively active, phosphorylation-deficient human FOXO3a fused to the estrogen receptor, FOXO3(A3):ER, in FDC-P1/FLT3-ITD cells. When 4-OHT was added, which leads to transcriptional activity of FOXO3a, fewer cells were maintained in S-phase and more cells accumulated G₀ and in sub-G₁ (Figure 3D), indicating apoptosis induction. Apoptosis was confirmed by annexin V staining (Figure 3E). Thus, suppression of FOXO3a by FLT3-ITD is important to inhibit apoptosis. Bim and Puma were strongly up-regulated during the first 24 hours (Figure 3F), suggesting a transcriptional regulation by FOXO3a.

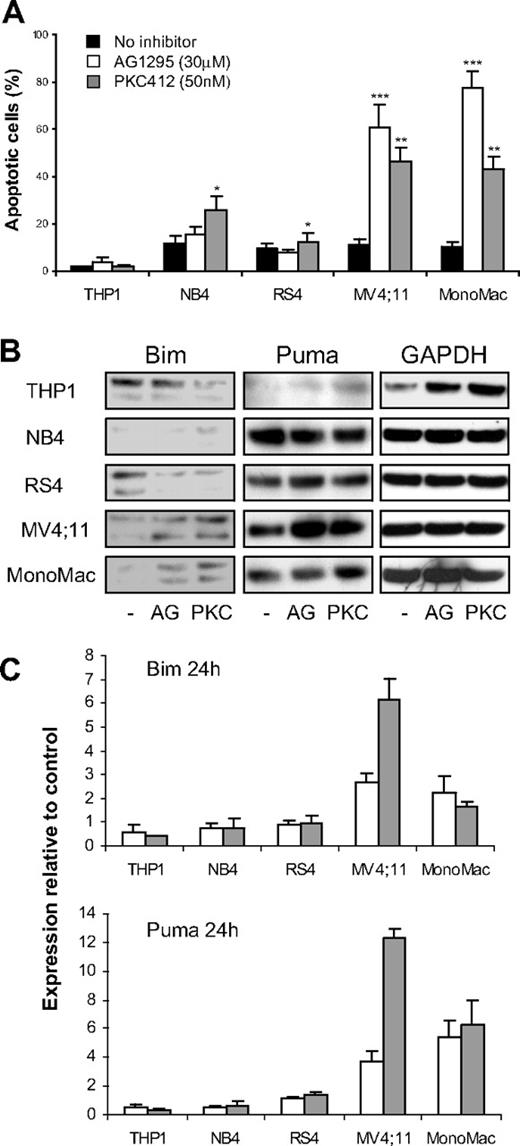

If Bim and Puma are involved in apoptosis upon FLT3-ITD inhibition, they should be up-regulated in AML cells treated with RTK inhibitors. To investigate this, several human leukemic cell lines were treated for 96 hours with AG1295 or PKC412. Only the MV4;11 (expressing exclusively a mutated FLT3-ITD allele)³⁵  and MonoMac-6 (carrying an activated FLT3-V592A mutation)²⁵  cell lines were sensitive to treatment and showed a strong increase in numbers of apoptotic cells (Figure 4A). This was accompanied by up-regulation of Bim protein (Figure 4B). In contrast, leukemic cell lines expressing no FLT3 (THP-1) or wild-type FLT3 (NB4, RS4) showed no sensitivity, although NB4 showed a 2-fold increase of apoptotic cells after treatment with PKC412, despite no effect on Bim expression. Due to the lack of good quality antibodies, differences in the levels of Puma protein were difficult to determine. However, RNA levels of Puma and Bim were up-regulated after 24 hours of treatment with AG1295 or PKC412 (Figure 4C). These results mark a trend by RTK inhibitors to trigger a cytotoxic response mediated by Bim, and possibly Puma, in leukemic cells expressing mutated FLT3.

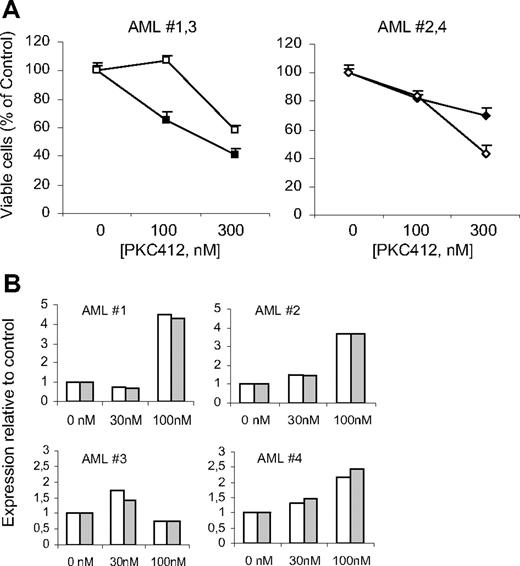

To assess the ability of RTK inhibitors to induce Bim or Puma, we exposed mononuclear cells from several AML patients with FLT3-ITD mutations to 2 concentrations of PKC412 (100 and 300 nM). AML cells from 4 patients were responsive to PKC412 and showed a decrease in numbers of viable cells after 72 hours (Figure 5A). Interestingly, the 2 patients with the highest amount of FLT3-ITD compared with total DNA content in the AML cells (25% and 37% for patients 1 and 4, compared with 19% and 18% for patients 2 and 3, respectively) were most responsive. Real-time PCR analysis demonstrated a significant up-regulation of Bim and Puma after 24 hours of PKC412 treatment, ranging from a 1.3- to 4.7-fold increase compared with no treatment (Figure 5B).

Apparently, suppression of FOXO3a-mediated transcriptional activation of Bim and Puma is an important step in FLT3-ITD transformation. Because inhibition of FLT3-ITD signaling via the receptor or via PI3-kinase induces apoptosis, it seems likely that AG1295 and PKC412 selectively lead to activation and killing via Bim and/or Puma. To assess the involvement of Bim and Puma in executing apoptosis, we performed gene silencing experiments. Amaxa nucleofection was used to transfect siRNA oligonucleotides to all known Bim transcripts (Bim_EL, Bim_L, and Bim_S) in FDC-P1/FLT3-ITD cells, which then were treated with AG1295 at 5 or 10 μM. Western blot analysis demonstrated that Bim expression increased in cells transfected with control siRNA and then treated with AG1295, whereas in cells transfected with Bim siRNA expression remained low (Figure 6A). We then analyzed the number of apoptotic cells after 24-hours of treatment with AG1295. In contrast to control siRNA, Bim siRNA was able to increase the number of viable cells significantly (Figure 6B).

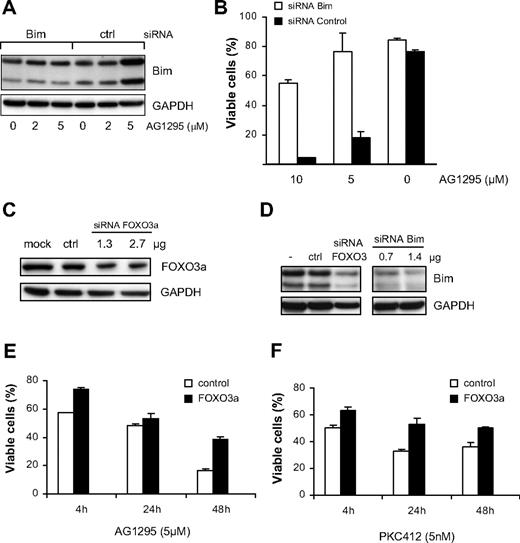

To confirm the role of FOXO3a upstream of Bim in FLT3-ITD inhibition, we transfected FDC-P1/FLT3-ITD cells with siRNAs to FOXO3a. As seen in Figure 6C, the expression of FOXO3a was significantly reduced after 24 hours of treatment. This was accompanied by reduction of Bim protein expression, indicating that silencing of FOXO3a affected Bim (Figure 6D). Next, we added RTK inhibitors at different time points after transfection (4, 24, and 48 hours, respectively), and the number of apoptotic cells was analyzed after 24 hours by annexin V–FITC/PI labeling. Flow cytometry revealed that treatment with AG1295 or PKC412 of cells transfected with control siRNA led to induction of apoptosis. This effect was reduced when transfecting FOXO3a siRNA and varied between 15% and 50% (Figure 6E,F). Together, these results suggest that Bim and FOXO3a significantly contribute to AG1295- and PKC412-induced apoptosis in cells expressing FLT3-ITD.

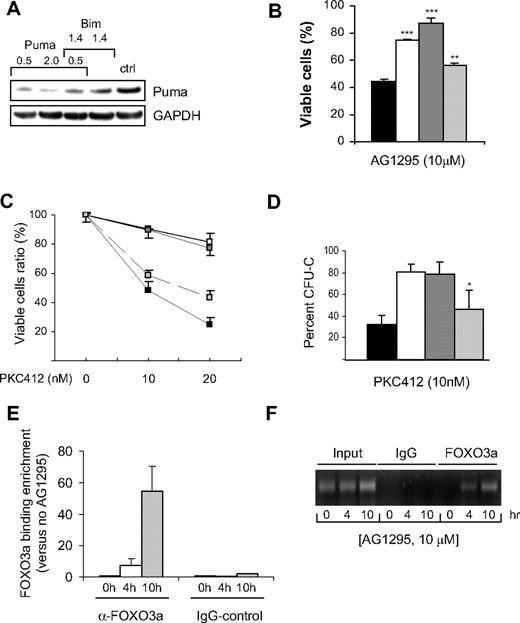

In addition to Bim, Puma can bind to all prosurvival Bcl-2 family members and may be involved in RTK inhibitor–mediated apoptotic induction of FLT3-ITD–bearing cells. To assess this possibility, we repeated the gene silencing experiments including siRNA to Puma. As seen in Figure 7A, silencing of Puma was successful in FDC-P1/FLT3-ITD cells. When comparing cells transfected with siRNA specific for Bim or Puma, and then treating the cells with 10 μM AG1295, Puma silencing increased the number of viable cells only marginally, whereas Bim silencing caused a profound survival benefit (Figure 7B). Interestingly, in cells transfected with siRNA to both Bim and Puma survival was enhanced compared with Bim alone, implying that Bim and Puma may synergize in RTK inhibitor–mediated apoptosis but the Puma knockdown efficiency achieved in our system may not have been sufficient to reveal a stronger biologic effect.

To further define the roles of Bim and Puma in apoptosis induced by FLT3 inhibition in a clean genetic system, we used cells from relevant BH3-only protein gene knockout mice. Lineage-depleted bone marrow cells from mice lacking Bim, Puma, or both, were transformed with a retrovirus containing the same FLT3-ITD that was used for FDC-P1 cells but now carrying EYFP as a marker to enable sorting of infected cells. We first assessed survival after 72 hours in suspension cultures of EYFP⁺ cells treated with 2 concentrations of PKC412 (10 and 20 nM) by staining with PI followed by flow cytometric analysis. This revealed that FLT3-ITD transformed Lin⁻ bone marrow cells from bim^−/− and bim^−/−puma^−/− mice were highly refractory to PKC412 treatment compared with wild-type cells (Figure 7C). Moreover, loss of puma appeared to delay cell death only marginally. To test whether loss of Bim or Puma were able to provide a long-term survival advantage, we next sorted EYFP⁺ cells into methylcellulose cultures lacking cytokines to study the clonal growth and transforming ability of FLT3-ITD in the absence of these BH3-only proteins. As demonstrated in Figure 7D, the majority of bim^−/− and bim^−/−puma^−/− bone marrow cells that were able to form colony-forming units-cytokine (CFU-C) in the absence of cytokines formed also colonies in the presence of PKC412 (80.4% ± 7.7% and 79.1% ± 10.3%, respectively). In contrast, RTK-inhibition reduced the colony-formation potential of both wild-type and puma^−/− mice to a similar extent (32.7% ± 8.5% and 46.6% ± 17.3%; P < .03 compared with Bim, respectively), confirming our results obtained in the short-term survival assays.

Our studies indicate that FOXO3a-mediated up-regulation of Bim is essential for apoptotic induction of cells expressing FLT3-ITD and treated with FLT3-selective inhibitors. To determine whether this is due to direct binding of FOXO3a to the Bim promotor, we performed ChIP on the FHRE present in the murine and human Bim promotors. FOXO3a-DNA complexes were purified from FDCP1/FLT3-ITD cells treated with 10 μM AG1295 for 4 and 10 hours, respectively. Primers flanking the FHRE region were used for PCR assays. By quantitative PCR, the amount of DNA precipitated with anti-FOXO3a after treatment with AG1295 increased almost 60-fold compared with untreated cells, whereas control IgG failed to do so (Figure 7E). Specificity for the PCR was confirmed by visualizing PCR products on agarose gels stained with ethidium bromide (Figure 7F). Taken together, this confirms that FLT3-selective AG1295 induces direct binding of FOXO3a on to the Bim promotor and activates gene transcription.

The mechanism of action of many anticancer drugs involves induction of apoptosis. While several genes are candidates to design strategies aiming at enhancing apoptosis, the BH3-only proteins are of special interest in that they mediate cytotoxic responses elicited by chemotherapeutic agents.³⁶  Studies from gene knockout mice indicate that Bim and Puma have prominent roles in the response to diverse cytotoxic stimuli, probably because they bind with comparable affinity to all prosurvival Bcl-2 family proteins.³⁷  Moreover, defective apoptosis promotes tumorigenesis by overexpression of prosurvival Bcl-2 family members, but also by loss or inactivation of proapoptotic relatives. Emerging evidence supports that elevated levels in particularly of Bim is a critical determinant in chemotherapy sensitivity,³⁸  hence Bim may also confer resistance to cytotoxic drugs in malignant cells.

Deregulated activation of FLT3 is recognized as the most common genetic alteration in AML ranging from 23% to 35% in adult cases and 5% to 16% in pediatric studies.³⁹  Multiple studies indicate that FLT3-ITD mutations confer a poor prognosis in AML patients.^1,4,40,41  The most common aberrations are insertional mutations and/or insertions of amino acids within the juxtamembrane domain leading to duplications of key residues involved in negative feedback of receptor autophosphorylation. This confers permanent signaling via the Ras/MAP-kinase and the PI3-kinase/AKT pathways, which leads to functional inactivation of Bim, in part by repression via transcription factor FOXO3a. In CML, constitutive activation of the BCR-ABL oncoprotein exists in all patients, thereby providing the principle for the efficacy of therapy with the small-molecule inhibitor imatinib. Recent studies have demonstrated that BCR-ABL signaling leads to FOXO3a and Bim inactivation,²⁰  which imatinib efficiently blocks.²²  Imatinib activates several proapoptotic BH3-only proteins, but while combined loss of Bim and Bad abrogated apoptosis, loss of Bmf or Puma had no effect,³⁸  indicating that different inhibitors can neutralize different BH3-only proteins.

We demonstrate that treatment with the well-documented RTK inhibitors AG1295 and PKC412 of autonomously growing progenitor cells expressing FLT3-ITD, or human leukemic cell lines carrying activating mutations of FLT3, leads to apoptosis induction via Bim due to inhibition of phosphorylation of AKT and FOXO3a. Previous studies have established that enforced expression of FLT3-ITD signals in progenitor cells leads to AKT-dependent inactivation of FOXO3a and repression of the Bim promoter.^13,14  In FDC-P1/FLT3-ITD cells, the induction of FOXO3a activity by AG1295 or PKC412 treatment was accompanied by cell-cycle arrest followed by apoptosis. This is similar to reports proposing that imatinib targets FOXO3a to induce cell death in BCR-ABL–transformed cell lines.^22,42  In line with this, AG1295-induced apoptosis was preceded by accumulation of the FOXO3a target Bim and to some extent Puma, and caspase-3 was converted to its active form. Importantly, silencing of either FOXO3a or Bim by siRNA prevented the induction of Bim and delayed apoptosis after AG1295 or PKC412 treatment. Although Puma was up-regulated by an inducible, transcriptionally active FOXO3a in FLT3-ITD–bearing cells upon RTK inhibitor treatment, silencing of Puma was not efficient in inhibiting apoptosis. However, the simultaneous treatment of FDC-P1/FLT3-ITD cells with siRNA to Bim and Puma led to additive effects, implying that they may have nonredundant effects. By using bone marrow cells from gene-targeted mice lacking either Bim or Puma, or both, we could show that bone marrow progenitors expressing FLT3-ITD and lacking both Bim and Puma were as resistant to PKC412 treatment as were cells from bim^−/− mice. In contrast, lack of Puma did not significantly protect cells from FLT3 inhibition. Taken together, our observations suggest that transcriptional induction of Bim by FOXO3a upon blockade of FLT3 signaling triggers apoptosis in AML cells. By ChIP assays on AG1295-treated cells expressing FLT3-ITD, we provide evidence for direct binding of FOXO3a to the Bim promotor as a key mechanism for apoptotic induction via RTK inhibitors. Because Puma is essential for p53-mediated apoptosis in several cell types,^19,43,44  treatment with p53-inducible chemotherapeutic drugs may augment the effects of RTK inhibition.

Whether mutant FLT3 receptors promote transformation and leukemogenesis by increasing quantitative signaling or inducing qualitative differences involving downstream targets is unclear. The tyrosine residue at position 599 within the ITD used in our study is important for binding of Src family kinases to FLT3 and contributes to FL-mediated ERK activation and proliferation.⁴⁵  However, treatment of FDC-P1/FLT3-ITD cells with PD98059 had no immediate effect, and cell-cycle progression and survival were not much abrogated. In contrast, LY294002 blocking PI3-kinase showed strong inhibition and cells arrested in G₀/G₁ and subsequently died by apoptosis. AG1295 and PKC412 treatment led to AKT dephosphorylation, cell-cycle exit, induction of Bim and Puma expression, and the onset of apoptosis, suggesting the PI3-kinase pathway as a primary target for therapeutic intervention in AML.

Data from clinical trials in AML patients suggest that RTK inhibitors may effectively complement conventional chemotherapy.^16,46-48  While clinical findings have identified mutations in the BCR-ABL gene that confer resistance to therapy, the similarity of most small-molecule inhibitors to inhibit ATP binding of mutated kinases predicts that AML will develop cellular resistance to multiple inhibitors. Acquired resistance to inhibitors after treatment of AML patients harboring mutated FLT3 receptors have been demonstrated.^8,9  Thus, the treatment with drugs eliciting apoptotic responses via BH3-only proteins may have initial effects while gradually developing into more inefficient treatment, emphasizing the need for complementary treatment. Novel BH3 mimetics define a new class of anticancer agents that directly target prosurvival Bcl-2 proteins.⁴⁹  Although effective as a single agent in killing tumor cells, ABT-737 should show synergy with other anticancer agents. Recently, it was shown that overexpression of prosurvival Bcl-2 family proteins leads to resistance against RTK inhibitors in a cell line with activating FLT3 mutations,⁵⁰  indicating that BH3-only proteins are involved in apoptotic induction. Interestingly, the susceptibility to RTK inhibition was restored by treatment with ABT-737.

The majority of AML patients are likely to benefit from combined pharmaceutic strategies converging on FLT3 signaling and downstream signaling events, tilting the balance to proapoptotic Bcl-2 family members, in which Bim appears to play a significant role. It will now be of interest to focus on the role of Bim and other BH3-only proteins in the development of resistence to selective FLT3 drugs in AML.
