The novel inhibitory receptor G6B is expressed on the surface of platelets and attenuates platelet function in vitro

The human G6B gene is located in the major histocompatibility complex (MHC) class III region and encodes a member of the immunoglobulin (Ig) superfamily.¹  The gene encodes a number of splice forms that are translated into both cell-surface and secreted isoforms.²  The 2 principle cell-surface isoforms (G6B-A and G6B-B) have the same extracellular N-terminal Ig-like domain but differ in their C-terminal cytoplasmic tails. The G6B-B isoform has previously been shown to have 2 immunoreceptor tyrosine-based inhibitory motifs (ITIMs) within its cytoplasmic tail, suggesting an inhibitory role.^2,3  Furthermore, the extracellular domain of G6B has been shown to bind heparin tightly.⁴  In this study, we demonstrate that G6B is expressed on platelets and functions as a negative regulator of platelet function

The generation and characterization (Figures S1–2, available on the Blood website; see the Supplemental Materials link at the top of the online article) of polyclonal and monoclonal antibodies against G6B is described in full in Document S1.

Quantitative polymerase chain reactions (QPCRs) were performed using the SensiMix DNA kit (Quantace, Finchley, United Kingdom) according to the manufacturer's instructions. Relative expression levels were calculated using the ΔΔCT method.⁵  Significant expression was defined as a value greater than 2 standard deviations above the median expression level across all cell types tested.

Approximately 1 × 10⁵ cells and 1 × 10⁷ platelets were lysed and separated on a 15% SDS-PAGE gel, transferred, and detected using the purified mouse anti-G6B monoclonal antibody visualized with a goat anti–mouse HRP conjugate (Sigma-Aldrich, Poole, United Kingdom) as described previously.²

Washed platelets were prepared as described previously.⁶  Resting or activated platelets were incubated with a G6B monoclonal antibody (mAb) or appropriate isotype control (mouse IgG1κ) for 1 hour followed by an antimouse FITC conjugate (Jackson ImmunoResearch, Bar Harbor, ME). Resting and activated platelets were counterstained with an anti-CD41–PE conjugate (BD Biosciences, San Jose, CA) or an anti-CD62–PE mAb, respectively. G6B expression was then measured on a FACSCalibur flow cytometer (Becton Dickinson, San Jose, CA) and analyzed using the EXPO32 ADC analysis software (Beckman Coulter, High Wycombe, United Kingdom).

Coimmunoprecipitations were performed essentially as described by Senis et al.⁷  Briefly, platelet lysates were coimmunoprecipitated using a rabbit anti–human SHP-1 polyclonal antibody (Upstate Biotechnology, Lake Placid, NY) after incubation with G6B antisera, preimmune sera, or buffer alone. After Western blotting the membrane was incubated with an antiphosphotyrosine mAb (Upstate Biotechnology), stripped, and reprobed with an anti–SHP-1 mAb (Santa Cruz Biotechnology, Santa Cruz, CA) or the anti-G6B mAb.

Platelet aggregation studies were performed as previously described.⁸  Platelets were incubated with 5 μL of G6B polyclonal antiserum or preimmune serum for 30 seconds before addition of either ADP (final concentration 5 μM), cross-linked collagen-related peptide (CRP-XL; final concentration 0.1 μg/mL), or ionomycin (400 nM). The end point aggregation was expressed as a percentage of total aggregation with agonist alone. Statistical significance was determined using an unpaired 2-tailed t test. Ca²⁺ flux was measured under the same conditions using a Cairn Research Spectrophotometer (Faversham, United Kingdom) as described by Melendez et al.⁹

Additional methodology is provided as Document S1.

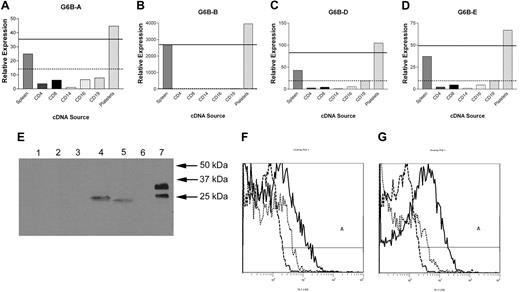

To determine the relative expression profiles of each of the G6B splice forms, QPCR was performed on a panel of RNA samples (Figure 1A-D). Significant expression of the cell-surface isoform G6B-B was detected in platelets and spleen (Figure 1B), though the presence of G6B in spleen is most likely due to platelet contamination of the total spleen mRNA preparation. No significant expression was observed in any of the leukocyte samples analyzed. The other cell-surface isoform G6B-A, as well as the 2 secreted isoforms G6B-D and G6B-E, were also detected in platelets (Figure 1A,C-D).

G6B protein expression was examined in peripheral-blood leukocyte preparations using a G6B-specific mAb (Figure 1E). In agreement with the mRNA data, expression was only observed in platelets. Two bands of 32 kDa and 26 kDa were observed, consistent with the sizes expected for the glycosylated and unglycosylated membrane-bound forms of G6B, respectively.²  There was no detection of G6B in CD4⁺ or CD8⁺ T cells or in CD19⁺ B cells. An approximately 20-kDa band was detected in CD14⁺ monocytes and CD16⁺ neutrophils, which may be immature forms of G6B-D and G6B-E, although this does not correlate with the mRNA data.

G6B expression on the surface of platelets was assessed by flow cytometry and confocal microscopy (Figure 1F-G; Figure S2). G6B expression is detected on resting CD41⁺ platelets (Figure 1F; Figure S2) and is increased approximately 2-fold following activation by ADP (Figure 1G).

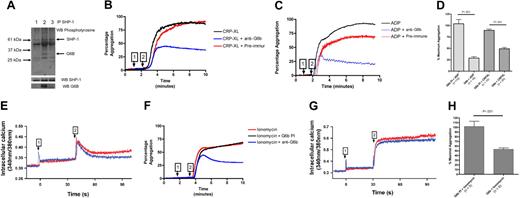

G6B has previously been shown to associate with SHP-1 in a transfected cell-line model.²  This association is important for the inhibitory signaling predicted for an ITIM-containing molecule. To determine whether G6B cross-linking lead to phosphorylation of the ITIMs in platelets, we looked for association of G6B with SHP-1 after G6B cross-linking (Figure 2A). As shown in Figure 2A, washed platelets were incubated with buffer alone (lane 1), G6B antisera (lane 2), or preimmune sera (lane 3) and coimmunoprecipitated with anti–SHP-1. Association of phosphorylated G6B with SHP-1 was only observed after incubation with the G6B polyclonal antisera (Figure 2A lane 2).

To determine whether signaling through G6B had an effect on platelet function, platelet aggregation was studied following treatment with a number of agonists (Figure 2). Cross-linking of G6B prior to activating platelets with the agonist ADP led to a significant, dose-dependent reduction in platelet aggregation (Figure 2C-D; Figure S3), with the end point aggregation being reduced from 100% to 25% (P < .001). Similarly, cross-linking of G6B prior to activation with CRP-XL led to a 2-fold reduction in platelet aggregation (P < .001; Figure 2B,D). Thus, G6B shows an inhibitory effect on platelet aggregation in response to both ADP and CRP-XL.

Calcium-flux experiments were performed to mirror the aggregation experiments. Preincubation with G6B antisera had no effect on Ca²⁺ flux following treatment with agonist (Figure 2E). Observed platelet aggregation in the cuvette after the experiment (data not shown) correlated with the previous aggregation data, suggesting a calcium-independent inhibition of platelet aggregation. To investigate this further, platelets were activated with ionomycin, a calcium ionophore.¹⁰  Normal aggregation is observed when preimmune sera is used. However, in the presence of the G6B polyclonal antibody, a 2-fold (P < .001) inhibition of aggregation is observed (Figure 2F,H). Figure 2G shows the corresponding calcium flux in platelets after ionomycin incubation. Again, there is no significant difference between G6B antisera and preimmune sera, suggesting that G6B has an inhibitory effect downstream from initial platelet activation and mobilization of intracellular calcium stores.

Recent studies have converged upon G6B as a novel platelet receptor.^6,7,11  In this study, we demonstrate that G6B is expressed on the surface of resting platelets and that cross-linking G6B has a significant inhibitory effect on platelet aggregation and activation. The detection of the secreted G6B isoforms in the CD14⁺ and CD16⁺ cell preparations in the absence of any detectable RNA suggests that these cell populations might be good targets for the expression of G6B's protein ligand.

Until recently, the only described ITIM-containing proteins expressed in platelets were platelet/endothelial cellular adhesion molecule 1 (PECAM-1) and Trem-like transcript 1(TLT-1). However, they differ from G6B in that they either have a distribution across other tissue types (eg, PECAM-1)¹²  or exhibit an activatory rather than an inhibitory function (TLT-1).¹³  G6B appears to be restricted to the platelet and megakaryocyte lineage and represents a novel inhibitory platelet surface receptor, making it a potential target for novel, platelet-specific antithrombotics.

We would like to thank Dr Richard Farndale (Department of Biochemistry, Cambridge) for the kind gift of CRP-XL. This work was funded by the Medical Research Council (MRC), United Kingdom. S.A.N. holds an MRC studentship. I.C.M., N.A.W., and W.H.O. are supported by the European Union 6th Framework Programme (LSHM-CT-2004-503485).

Contribution: S.A.N., I.C.M., R.A.F., W.H.O., R.D.C., P.A.L., and N.A.W. participated in designing and performing research; E.C.d.V. contributed to new reagents; S.A.N., I.C.M., and R.A.F. analyzed data; and S.A.N., P.A.L., and R.D.C. wrote the paper.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

P.A.L. and R.D.C. contributed equally to this study.

Correspondence: P. A. Lyons, Cambridge Institute for Medical Research, Department of Medicine, Addenbrookes Hospital, Hills Rd, Cambridge CB2 2XY; e-mail: pal34@cam.ac.uk; or R. D. Campbell, Department of Physiology, Anatomy and Genetics, Le Gros Clark Building, South Parks Rd, Oxford OX1 3QX; e-mail: duncan.campbell@dpag.ox.ac.uk.
