Altered B-cell receptor signaling kinetics distinguish human follicular lymphoma B cells from tumor-infiltrating nonmalignant B cells

B-cell receptor (BCR) signaling regulates several B-cell fate decisions throughout development,^1-5  and continued expression of the signaling subunits of the BCR is required for survival of mature B cells.^6,7  Because BCR signaling is so closely linked with survival and proliferation of B cells, it is thought that alterations in BCR signaling may support lymphomagenesis.^8,9  We have previously developed an approach to identify profiles of aberrant signaling in individual malignant or normal cells.^10,11  The identification of altered BCR signaling in lymphoma cells might provide new opportunities to improve cancer therapy, as targeted inhibition of signaling associated with cancer progression and maintenance has proved successful for other malignancies.¹²

This study of BCR signaling in lymphoma builds on extensive prior work mapping the BCR signaling events¹³  and our own studies of BCR signaling kinetics in primary peripheral blood B cells.¹⁴  Here we measure BCR-mediated Btk, Syk, Erk1/2, and p38 (Figure 1A) signaling kinetics within different types of B cells in follicular lymphoma (FL) tumor specimens. These 4 signaling nodes are highlighted in a model of BCR signaling activation and regulation. Btk and Syk are key proximal signal transducers required for effective BCR-mediated activation of PI3K and PLCγ2.^15-17  As such, changes to BCR signaling in lymphoma might be expected to alter the activity of Btk and Syk. Downstream effectors of BCR signaling include the MAPK family proteins Erk1/2 and p38.

Signaling originating at the BCR can either promote proliferation or initiate programmed cell death, and it is not yet known whether BCR signaling in FL B cells is unaltered, amplified, or suppressed. Supporting the idea that BCR signaling might be altered in FL, evidence exists that the BCR in these malignant cells has somatic mutations that enable N-glycosylation.^18,19  If BCR signaling supports the survival of lymphoma B cells, we would expect to see amplified signaling specific to FL B cells. However, BCR signaling might also induce apoptosis or cell cycle arrest in lymphoma B cells. The effectiveness of monoclonal antibody therapy directed against the idiotype of the lymphoma BCR^20,21  has been directly correlated with the ability of these antibodies to induce BCR signal transduction.²²  Thus, there is a need to determine whether BCR signal transduction is altered in lymphoma, to identify the direction of this alteration (potentiation or attenuation), and to dissect whether signaling changes are specific to lymphoma B cells or common to all B cells at the tumor site. The latter might occur if the lymphoma tumor microenvironment supported altered BCR signaling, in which case both normal and malignant B cells would be expected to show abnormal signaling.

Flow cytometry is particularly well suited to address these needs as it can measure multiple signaling events in individual cells while simultaneously distinguishing among cell subsets.¹⁰  Measuring several phosphoproteins by flow cytometry indicates whether signaling changes modify the per-cell level of signaling or alter the path of signaling (which phosphoproteins are activated following a common upstream signaling input). Here we measured a combination of lymphoma biomarkers and protein phosphorylation events by flow cytometry to determine whether FL cells alter BCR-mediated signaling and to identify which signaling changes were specific to lymphoma B cells. In addition, we asked how profiles of BCR signaling over time distinguished lymphomas from each other. Cell-intrinsic signaling mechanisms that distinguish lymphoma B cells from normal B cells could be explored as therapeutic targets that are specific to a patient's lymphoma cells.

Peripheral blood mononuclear cells (PBMCs) were isolated using density gradient separation (Ficoll-Paque Plus; Amersham Biosciences AB, Uppsala, Sweden). Tumor biopsy specimens from 7 individuals with FL were obtained with informed consent, in accordance with the Decleration of Helsinki. The study was approved by Stanford University's Administrative Panels on Human Subjects in Medical Research. Surgical biopsies of FL tumors were transferred directly from the operating room to the laboratory and used for the preparation of viable, sterile single-cell suspensions. Briefly, lymph node tissue was diced and forced through a metal sieve in a laminar flow hood into RPMI tissue culture medium. PBMCs or disaggregated FL biopsy cells were pelleted by low-speed centrifugation, resuspended in media composed of 90% fetal calf serum (HyClone, South Logan, UT) and 10% DMSO (Sigma, St Louis, MO), frozen slowly in the vapor phase of liquid nitrogen in multiple cryotubes, and stored in liquid nitrogen. For signaling analysis, an individual cryotube was thawed into 5 mL Stem Span H3000 serum-free medium (Stem Cell Technologies, Vancouver, BC), counted, pelleted, and resuspended at 6 × 10⁶ cells/mL. Thawed PBMCs or FL tumor biopsy cells were allowed to rest at 37°C for a total of 2 hours in a 5% CO₂ tissue culture incubator prior to stimulation.

The B-cell lymphoma cell line Ramos was from American Type Culture Collection (www.atcc.org, Manassas, VA) and was cultured in RPMI medium (Invitrogen, Carlsbad, CA), plus 10% fetal calf serum (Hy-Clone), 100 U/mL penicillin, 100 μg/mL streptomycin, 1 mM l-glutamine. Ramos cells were split at least 8 hours prior to observation of signaling such that cells achieved a density of approximately 1.0 × 10⁶ cells/mL at the time of stimulation.

At least 30 minutes before stimulation, 300 μL media containing 2 × 10⁶ PBMCs, FL tumor biopsy, or Ramos cells were aliquoted into flow cytometry tubes (Falcon 2052; BD-Biosciences, San Jose, CA) and allowed to continue resting at 37°C in the 5% CO₂ tissue culture incubator. Cells were then stimulated as previously performed with PBMCs¹⁴  by addition of 6 μL of a 0.5-mg/mL solution of the indicated F(ab′)₂ to tubes, achieving a final concentration of 10 μg/mL of each F(ab′)₂. Cross-linking of B-cell receptors was achieved using goat polyclonal α-IgM and α-IgG F(ab′)₂ fragments (Biosource International, Camarillo, CA). When used, H₂O₂ was at 3.3-mM final concentration and was added as 2 μL of a 500-mM stock solution immediately prior to BCR cross-linking. Time-course studies of signaling kinetics were performed by addition of stimulus to tubes individually in reverse time points with simultaneous fixation of all samples in unison at “time zero.” Immediately after addition of stimulus, cells were returned to the 37°C incubator to allow signal transduction for the indicated time. To stop signaling, cells were fixed by addition of 15 μL of 32% paraformaldehyde (PFA; Electron Microscopy Services, Fort Washington, PA) to each 300-μL tube of cells for a final concentration of approximately 1.6%. To determine basal levels of phosphorylation, unstimulated cells were maintained in parallel with stimulated cells and fixed at time zero (labeled as “0 minute” in figures). Cells were fixed for 5 minutes at room temperature, pelleted, permeabilized by resuspension in 2 mL ice cold methanol for 10 minutes, and stored at 4°C for fewer than 3 days before being stained for flow cytometry. FL tumor B cells were identified as IgM (FL-P08, 09, 10) or IgG (FL-P07, 11) isotype Ig heavy chain based on the heavy chain isotype of the Bcl-2–expressing cells.

PFA-fixed, methanol-permeabilized cells were rehydrated by addition of 2 mL phosphate-buffered saline (PBS), resuspension by vortexing, and then centrifugation. The cell pellet was washed once with 2 mL PBS + 1% BSA (Sigma), resuspended in 50 μL PBS + 1% BSA, and then split evenly into 2 new fluorescence-activated cell sorting (FACS) tubes for staining. An antibody mix (50 μL) containing directly conjugated phosphospecific antibodies was added to each tube of cells and staining proceeded for 20 minutes at room temperature. Antibodies conjugated to Alexa (Ax) dye (Molecular Probes, Eugene, OR) or other fluorophores (all from BD Pharmingen, San Diego, CA) included phospho-Btk(Y551)/Itk(Y511)–Ax488, phospho-p38(T180/Y182)–Ax488, phospho-Erk1/2(T202/Y204)–PE, phospho-Syk(Y352)/Zap70(Y319)–Ax647, and CD20-cytoplasmic-PercPCy5.5. Antibodies were applied in panels (p38/Erk/CD20/Syk and Btk/CD20) for data shown in Figures 2, 3, 4. For Figures 1 and 5, 6, 7, λ-FITC F(ab)₂, κ-FITC or κ-PE F(ab)₂, and Bcl-2-PE were combined with different dye conjugates of the same phosphospecific antibodies in other panels (λ/κ/CD20, Syk/Bcl-2/CD20/Erk1/2, λ/Bcl-2/CD20/Btk, λ/Bcl-2/CD20/Syk, λ/Bcl-2/CD20/Erk1/2, and λ/Bcl-2/CD20/p38). Between 50 000 and 800 000 ungated events were collected for each sample on a benchtop FACSCalibur dual-laser cytometer (Becton Dickinson, Franklin Lakes, NJ).

We first asked whether B-cell receptor isotype and hallmark molecular features of FL tumor cells could be used as flow cytometry biomarkers¹⁰  to distinguish malignant B cells from infiltrating host B and T cells. In normal PBMCs, the κ/λ ratio was 1.3:1 (Figure 1B). However, clonal expansion of FL B cells skews the proportion of BCR isotypes in FL tumor samples to favor the lymphoma B cells (Figure 1B). As an example of absolute clonality, the λ isotype lymphoma B-cell line Ramos is shown (Figure 1B). The nontumor light chain isotype can thus be used as a marker for the host nontumor B cells.

We next sought to add another biomarker that would further distinguish the B-cell populations in FL patient samples. In the vast majority of FL cases,^23,24  the hallmark translocation t(14;18) juxtaposes the BCL2 gene and the immunoglobulin heavy chain promoter. The resulting deregulation of the BCL2 gene enables overexpression of Bcl-2 protein in lymphoma cells.²⁵  To test our ability to discriminate host and lymphoma B-cell populations, we examined an FL sample with an uncommonly large number of tumor-infiltrating nonmalignant cells present in the biopsy. A subpopulation of 28% of the total cells (38% of the B cells) that overexpressed Bcl-2 was detected by flow cytometry in this FL sample (Figure 1C). The κ/λ ratio in the CD20⁺ subset of cells was 3:1, suggesting that the tumor B-cell isotype was κ (Figure 1C). By comparing λ, the nontumor light chain isotype, against Bcl-2, it was seen that Bcl-2 overexpression was restricted to the κ isotype FL tumor cells (Figure 1C). Notably, the nontumor host B cells infiltrating this sample retained a more normal κ/λ ratio of 1.6:1 (39%:24%). FL patient specimens are more typically composed almost entirely of FL B cells, as was the case with FL-P12 (Figure 1B).

These 3 FL biomarkers were used for the remainder of the study. CD20 expression was used to identify the B-cell subset, the overexpression of Bcl-2 served as a marker for FL tumor B cells, and the nontumor light chain isotype was used to positively identify a subset of nontumor B cells.

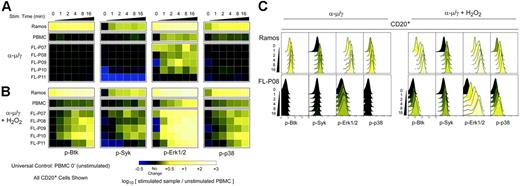

We first assessed the resting phosphorylation level of BCR signaling effectors Btk, Syk, Erk1/2, and p38 in FL B cells from several patient samples, PBMC B cells, and Ramos B cells (Figure 2A, 0 minute column; Figure S1, available on the Blood website; see the Supplemental Figures link at the top of the online article). The median fluorescence intensity (MFI) of samples was compared by coloring heat map squares or histogram peaks according to the log₁₀ fold difference between the sample and B cells from normal PBMCs. In this color scale, black indicates no difference, lighter yellow indicates increased phosphoprotein MFI, and blue indicates decreased phosphoprotein MFI, relative to the control. In order to demonstrate the relationship between the heat map data and the primary flow cytometry data, stimulation of Btk, Syk, Erk1/2, and p38 phosphorylation in 2 samples is shown with both heat maps (Figure 2A-B) and histograms (Figure 2C) for Ramos and FL-P08.

Per-cell levels of basal Btk, Syk, and p38 phosphorylation were virtually identical in resting PBMC and FL samples (Figure 2B). The average level of basal Erk1/2 phosphorylation in FL was also comparable with normal PBMCs. Notably, Erk1/2 phosphorylation varied more among FL samples than it did in samples of normal PBMC B cells (Figure 2B). Ramos cells are shown as an example of high basal (constitutive) phosphorylation (Figure 2). This high basal phosphorylation in Ramos contrasted with primary FL B cells. Because resting levels of BCR signaling effectors were comparable in FL and PMBC B cells, we next asked whether these phosphoproteins were present and able to respond to BCR stimulation.

In order to examine the initiation of BCR-mediated signaling, the same samples were stimulated by cross-linking BCR heavy chains (α-μ/γ), and phosphorylation was analyzed during the initiation of signaling in the first 16 minutes (Figure 2A, 1 minute-16 minutes). The color scale indicates fold difference in phosphorylation of CD20⁺ B cells stimulated by BCR cross-linking over the level in resting PBMCs.

Surprisingly, signaling via Btk, Syk, and p38 phosphorylation was often absent in FL B cells stimulated by BCR cross-linking (Figure 2A). Stimulation of Ramos cells is shown in order to demonstrate the effectiveness of BCR cross-linking (Figure 2). BCR cross-linking did not induce Btk phosphorylation in FL sample B cells and only infrequently stimulated Syk phosphorylation (Figure 2A). Levels of BCR-mediated Erk1/2 phosphorylation were independent of Btk, Syk, and p38 phosphorylation and were observed to vary widely among cases of FL (Figure 2A). The widespread variation in Erk1/2 signaling kinetics among FL biopsy samples from different individuals contrasted with consistent signaling kinetics we observed in PBMC samples from different healthy blood donors.¹⁴  BCR-mediated phosphorylation of p38 was significantly attenuated in all 5 FL samples, compared with normal PBMC B cells (Figure 2A).

Both Erk1/2 and p38 phosphorylation are considered to be downstream signaling events that depend on upstream Syk activity (Figure 1A). However, phosphorylation of Syk was not related to Erk1/2 or p38 phosphorylation in primary FL sample B cells. In a particularly striking example (FL-P09), BCR cross-linking was followed by lower than normal levels of both Syk and Btk phosphorylation in parallel with greater than normal induction of Erk1/2 phosphorylation and no induction of p38 phosphorylation (Figure 2A). Per-cell analysis comparing Erk1/2 and Syk phosphorylation indicated that the MFI of Erk1/2 phosphorylation in FL B cells increased 5- to 10-fold, independent of an increase in Syk phosphorylation (Figure S2).

In normal B cells, BCR signaling is controlled by BCR-mediated protein tyrosine phosphatases (PTPs) that dephosphorylate Btk, Syk, Erk1/2, and p38 by 8 to 16 minutes following stimulation.¹⁴  The lack of BCR-mediated signaling in FL B cells suggested that increased basal phosphatase activity might be present in FL cells. H₂O₂, the primary redox species generated by the BCR,²⁶  regulates the magnitude and duration of BCR signaling and reversibly inhibits BCR-mediated PTP activity.¹⁴  In order to study the role of PTPs in FL, BCR-mediated signaling was initiated immediately after the addition of 3.3 mM H₂O₂ (α-μ/γ+ H₂O₂) in FL, PBMCs, and Ramos cells. Addition of 3.3 mM H₂O₂ alone did not lead to significant signaling in primary B cells but activated BCR signaling pathway phosphoproteins in Ramos cells (Figure S3).

BCR cross-linking in the presence of H₂O₂ led to extremely rapid and robust phosphorylation of Btk, Syk, Erk1/2, and p38 (Figure 2B). Following BCR cross-linking in the presence of H₂O₂, levels of protein phosphorylation usually accumulated rapidly (Figure 2B). We had previously observed that normal B cells from peripheral blood required 30 to 60 minutes to reach maximum Erk1/2 phosphorylation following BCR cross-linking in the presence of H₂O₂.¹⁴  In only 4 minutes, BCR-mediated Erk1/2 phosphorylation in many FL samples reached this maximum observed in normal B cells (Figure 2C: FL-P08, FL-P09, FL-P10, FL-P11). Erk1/2 phosphorylation went on to exceed the normal maximum MFI in fewer than 16 minutes. p38 signaling was initiated more slowly than Erk1/2 signaling and followed a different pattern of activation. Cells with high Erk1/2 phosphorylation did not necessarily have higher p38 phosphorylation (Figure 2A-B).

These results of basal and BCR-mediated phosphorylation in the 5 cases of FL and in PBMC B cells are summarized in Figure 3. Individual variation was observed in basal phosphorylation, but no significant difference in average basal phosphorylation was observed between FL and PBMCs. Typically, BCR-mediated phosphorylation in B cells from normal PBMCs was only slightly increased above basal levels at 4 minutes following BCR cross-linking and H₂O₂. In contrast, phosphorylation of Btk, Syk, Erk1/2, and p38 were, on average, significantly higher in FL B cells than in PBMC B cells at 4 minutes following BCR stimulation (Figure 3).

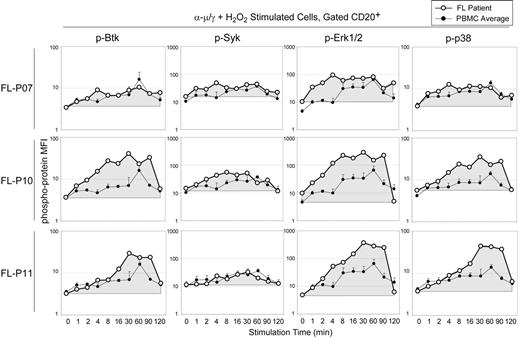

We sought to integrate FL signaling measurements over time and obtain a kinetic profile of BCR stimulation in FL that could be compared with that of normal B cells. We measured the phosphorylation of Btk, Syk, Erk1/2, and p38 at 10 time points over a 2-hour period following BCR cross-linking in the presence of H₂O₂ (Figure 4). The MFI for each phosphoprotein was measured in CD20⁺ B cells from 3 FL patient samples (Figure 4: FL-P07, FL-P10, FL-P11). BCR signaling kinetics measured in comparable experiments using PBMCs¹⁴  are displayed for comparison with FL B cells.

BCR signaling strength could be amplified either by extending the duration of time a phosphoprotein spends at the normal maximum level of activity or by temporarily increasing the activity above the maximum level. In an example of the first (FL-P07), Erk1/2 phosphorylation was observed to plateau at the maximum observed in normal PBMCs within the first 4 minutes following BCR stimulation plus H₂O₂ (Figure 4). This rapid activation of signaling distinguished all FL samples from normal PBMCs. In addition, in some FL samples (eg, FL-P10 and FL-P11) Erk1/2 phosphorylation was sustained at greater than the normal PBMC maximum for approximately 90 minutes. The integral of Erk1/2 phosphorylation over time was significantly greater in each FL sample than in normal PBMCs (Figure 4). Differences in BCR-mediated signaling between FL-P07 and FL-P11 observed in the presence of H₂O₂ are notable because these 2 samples exhibited similar suppression of BCR-mediated signaling phenotypes following BCR cross-linking alone (Figure 2B). The signal from all of the CD20⁺ B cells in each sample is shown here (Figure 4), but it was known that FL tumor samples had significant populations of nontumor B cells. In subsequent experiments, we asked whether these alterations to BCR signaling were specific to the FL tumor B cells.

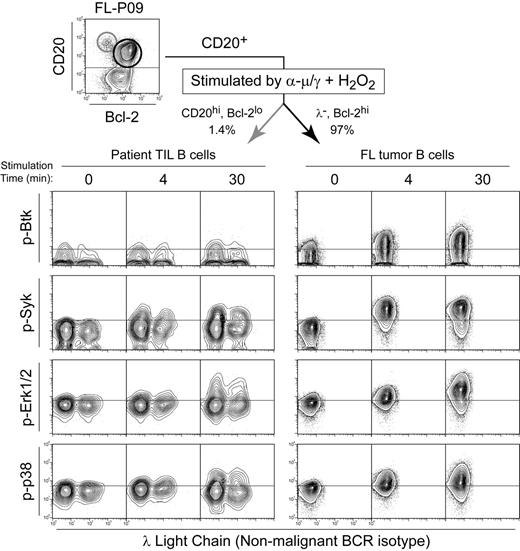

We next examined the tumor-infiltrating nontumor B cells from a typical FL specimen (FL-P09) where host TIL B cells comprised only 1.4% of the cells (Figure 5). Phosphorylation of Btk, Syk, Erk1/2, and p38 in FL tumor B cells (Bcl-2 overexpressing, κ isotype/λ^–, CD20⁺) was compared with that in nontumor B cells (CD20^hi, Bcl-2^lo, mixture of κ and λ). In malignant B cells from FL-P09, significantly greater than normal responses of Btk, Syk, Erk1/2, and p38 were observed following BCR cross-linking in the presence of H₂O₂. In contrast, signaling in the nonmalignant B cells infiltrating this FL sample was lower than normal, indicating that the altered signaling responses were specific to the FL tumor B cells.

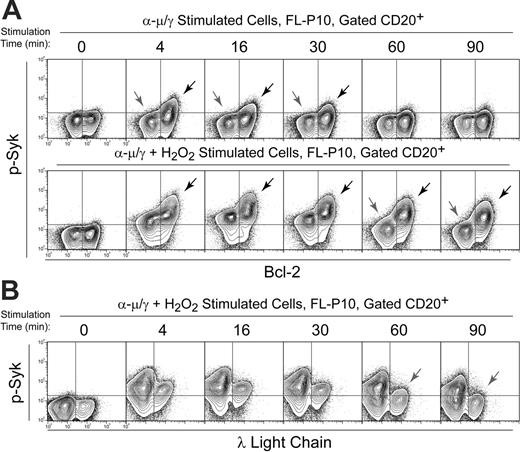

In another sample (FL-P10), 62% of the B cells in the tumor biopsy were nonmalignant host B cells (Figure 1). BCR-mediated Syk signaling kinetics were examined with and without H₂O₂ in tumor and nontumor B-cell subsets (Figure 6). Following BCR cross-linking alone, Syk phosphorylation was observed only in the FL tumor B cells that overexpressed Bcl-2 (Figure 6A, dark arrows). Following BCR cross-linking in the presence of H₂O₂, Syk was rapidly phosphorylated in both FL and nonmalignant B cells. However, FL tumor B cells had a higher per-cell level of Syk phosphorylation than nonmalignant B cells and sustained this level for at least 90 minutes (Figure 6A). In contrast, nonmalignant B cells displayed signaling kinetics equivalent to those of normal PBMC B cells when stimulated by BCR cross-linking in the presence of H₂O₂. With H₂O₂ present, Syk phosphorylation in λ isotype B cells was compared with the level in κ isotype cells from the same stimulated sample or with resting cells (Figure 6B). Syk phosphorylation in λ isotype nontumor B cells followed kinetics comparable with normal PBMC B cells, and declined to basal levels by 60 minutes (Figure 6B), unlike κ isotype B cells from the same sample or FL tumor B cells that overexpressed Bcl-2 (Figure 6B). In summary, altered BCR-mediated Syk signaling was specific to FL tumor B cells.

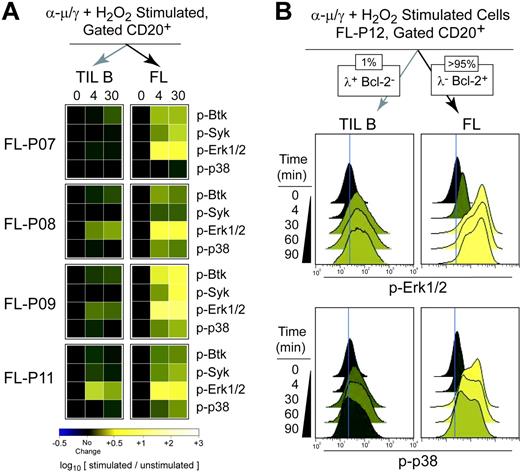

In order to determine how commonly signaling in FL tumor B cells differed from the tumor-infiltrating host B cells, we distinguished between tumor and nontumor B-cell signaling in 4 FL samples following BCR cross-linking in the presence of H₂O₂ (Figure 7). Malignant FL B cells were distinguished by Bcl-2 expression and clonal BCR light chain isotype (FL), whereas nontumor B cells were identified by nontumor BCR light chain isotype and low Bcl-2 expression (TIL B). Consistent with prior results, we observed that FL and TIL B cells had similar resting phosphoprotein levels (0 minute), but following stimulation by BCR cross-linking in the presence of H₂O₂ the FL tumor B cells displayed greater than normal signaling of Btk, Syk, Erk1/2, and p38, while the nonmalignant TIL B cells displayed normal or suppressed signaling responses (Figure 7A). Consistent with previous results, a lack of signaling in response to BCR cross-linking alone was observed for these FL samples (Figure S4). Most commonly, Erk1/2 phosphorylation following BCR cross-linking in the presence of H₂O₂ was significantly greater in FL B cells than in host TIL B cells (Figure 7A).

In order to highlight the flow cytometry data underlying the heat map, histogram data for Erk1/2 and p38 are shown for an additional FL sample (FL-P12) that was representative of the commonly observed difference between FL and TIL B cells within a sample (Figure 7B). In malignant B cells from FL-P12 overexpressing Bcl-2, Erk1/2, and p38, phosphorylation following BCR cross-linking in the presence of H₂O₂ was greater than normal (Figure 7B, FL). In contrast, nonmalignant λ isotype B cells displayed Erk1/2 and p38 phosphorylation that was more typical of normal PBMC B cells (Figure 7B, TIL B).

By following the phosphorylation initiated by BCR signaling over time, it was possible to identify differences in BCR signaling kinetics between lymphoma and nonmalignant B-cell populations from healthy individuals and even within FL tumors. Distinguishing the signaling of tumor and nonmalignant B cells (Figures 5, 6) indicated that the BCR signaling network of lymphoma cells differed from normal B cells in the speed, duration, and per-cell magnitude of the signal sent. In comparison with normal PBMC B cells from healthy blood donors, individual lymphoma B cells activated BCR network signaling more quickly and stayed at the maximum level of signaling for a longer period of time. We identified time points and states under which signaling nodes could be compared between different FL tumors. BCR cross-linking in the presence of H₂O₂ will be particularly useful, since large differences in BCR signaling kinetics among individuals become apparent (Figure 4). The level of signaling achieved at 4 minutes and 30 minutes proved useful in distinguishing among FL samples (Figures 4 and 7).

A key measurement in evaluation of signaling kinetics is the starting level of phosphorylation, also known as the basal state or level of constitutive signaling. Constitutive signaling that results in increased basal phosphorylation is commonly observed in proliferative disorders of immune system cells.^10,11  In FL, the average basal phosphorylation of Btk, Syk, Erk1/2, and p38 proteins did not differ between B cells from FL tumors and from healthy peripheral blood (Figure 3). This lack of constitutive increases in signaling in primary FL tumors contrasted with constitutive signaling observed in the Ramos cell line (Figure 2). However, the variance of basal Erk1/2 phosphorylation was greater than normal in FL patient samples. This variability in Erk1/2 phosphorylation is significant because greater than normal variance in signaling indicates a parameter that might be useful in stratifying FL cases according to signaling.^10,11

Although phosphoprotein levels in FL B cells started at approximately the same point as in normal PBMC B cells, the response to BCR-mediated stimulation best distinguished FL B cells from normal PBMCs and nonmalignant B cells. A surprising result was that phosphorylation of Btk, Syk, and p38 following BCR cross-linking alone was lower in B cells from FL samples than in normal cells (Figure 2C). We used Ramos and several other B-cell lines as controls to optimize conditions to study BCR signaling. Unlike Btk, Syk, and p38, phosphorylation of Erk1/2 following BCR cross-linking was increased in some FL sample B cells and decreased in others. Potentiated Erk1/2 phosphorylation following BCR cross-linking in the FL-P09 sample was independent of Syk and Btk phosphorylation (Figure 2 and Figure S2A), suggesting that a novel signaling route between the BCR and Erk1/2 can be activated in FL B cells. This alternative connection to Erk1/2 may not be regulated by the same factors that control Syk and Btk activity. Such differences in the response of phosphoproteins to stimulation are not apparent in resting cells. These results further highlight the importance of measuring both signaling activity following stimulation and basal differences in protein phosphorylation in signaling profiles.¹⁰

The attenuation of BCR-mediated signaling we observed in FL (Figure 2A) could be explained by a loss or mutation of upstream signaling molecules. Alternatively, this attenuation of BCR-mediated signaling could also be the result of increased negative regulation. Restoration of signaling in FL B cells following inactivation of negative regulation would distinguish between these possibilities by indicating the signaling pathways were intact but suppressed. The ability of BCR cross-linking in the presence of H₂O₂ to activate robust signaling via all 4 phosphoproteins (Figure 2C) indicates that the attenuation of some BCR signaling events in FL (Figure 2B) is due to an increase in negative regulation, rather than a permanent loss or mutation of an upstream activator.

After PTPs were inhibited with H₂O₂, significant differences were observed among patient samples. Signaling kinetics in FL-P11 and FL-P07 were similar following BCR cross-linking (Figure 2B), but phosphatase inhibition by H₂O₂ additionally distinguished greater than the normal maximum Btk and p38 signaling in FL-P11 that was not seen in FL-P07 (Figure 2B). In another sample (FL-P10), Syk phosphorylation following BCR cross-linking was totally suppressed in the nonmalignant B cells, but was active in the FL B cells (Figure 6). When H₂O₂ was present during BCR stimulation, nonmalignant λ isotype B cells from FL-P10 could be stimulated, and Syk signaling was comparable with that in normal PBMC B cells (Figure 6). In the tumor B cells from FL-P10, Syk phosphorylation following BCR cross-linking in the presence of H₂O₂ was sustained much longer than in the nontumor B cells (Figure 6). Taken together, these results suggest that the PTP activity that regulates Syk signaling was heightened in B cells within this FL sample. Tumor-cell–intrinsic changes to BCR-mediated signaling enabled phosphorylation of Syk in B cells from FL tumors following BCR cross-linking alone. Such tumor cell–specific signaling changes may promote lymphomagenesis or sustain FL tumor B cells.

A model consistent with our results would be that BCR signaling can occur more easily in FL cells and is commonly suppressed by a PTP feedback mechanism. If BCR cross-linking did not completely overcome this PTP regulation, then BCR-mediated signaling would appear suppressed, as in Figures 2A and 7. Furthermore, addition of an inhibitor of PTPs, such as H₂O₂, would be expected to inactivate PTP feedback regulation of BCR signaling in lymphoma cells, reverse this phenotype, and enable greater than normal signaling, as we frequently observed. This model is consistent with the detection of common BCR mutations in FL.^18,19  Such mutations might promote close associations of BCR subunits, alter the interaction of BCR subunits with coreceptors on the surface of the tumor B cells, or enable additional tumor-stromal interactions. Differences in the expression of the BCR or coreceptors that positively (CD19) and negatively (CD22) regulate BCR signaling might also account for altered signaling that we observed in FL B cells (Figure 7). Although we observed no difference in per-cell expression of BCR heavy chain among FL samples, the per-cell level of CD19 and CD22 varied widely among FL samples (data not shown).

This is the first study to date that compares signaling kinetics in primary tumor and nonmalignant cells of the same lineage within the same patient biopsy specimen. A key advantage of using tumor-infiltrating host cells for comparison is that any differences in signaling between tumor and nonmalignant cells are completely specific to the cells (cell intrinsic) and are not caused by differences in sample handling or in tissue origin. BCR signaling in nonmalignant B cells within FL samples could be altered by the tumor microenvironment, and in one case we observed that BCR cross-linking that activated FL B cells was insufficient to activate infiltrating host B cells. A significant remaining challenge is to map differences in BCR signaling kinetics between populations of normal B cells (eg, bone marrow developmental subsets, B cells at different stages of maturity,¹⁴  B cells in different organ compartments) for comparison with signaling profiles observed in B-cell proliferative disorders. FL B cells might retain aspects of the normal BCR signaling phenotype of germinal center B cells, or it may be that FL B cells have acquired an independent phenotype. The infiltrating nonmalignant B cells, whose BCR signaling was often like that of normal peripheral blood B cells, suggest that the FL B cells acquired signaling phenotypes unlike that of the host's normal B-cell population. Signaling differences between normal B cells and other B-cell malignancies, such as diffuse large B-cell lymphoma, can also be interrogated, as in FL. Signaling changes specific to tumor B cells could drive the progression of tumor cells or support their continued proliferation and survival, and such B-cell–specific signaling mechanisms might be the targets of new therapies.

We thank R. Ihrie for review of this paper and W. K. Weng for many useful discussions.
