MUTZ-3, a human cell line model for the cytokine-induced differentiation of dendritic cells from CD34⁺precursors

Dendritic cells (DCs) play an important role as antigen presenting cells (APCs), delivering costimulatory signals necessary for T-cell activation, and have a unique ability to induce primary immune responses via antigen presentation to CD4⁺and CD8⁺ T cells.1 DCs develop from bone marrow–derived hematopoietic progenitor cells (HPCs) and are thought to undergo sequential differentiation, represented by intermediate blood precursors and immature DCs (iDCs) in peripheral tissues and organs.2 In vitro, myeloid DCs generated from CD34⁺ precursors can develop into Langerhans cells (LCs) or interstitial DCs.3,4 However, the currently defined culture protocols require long expansion periods, given the relative scarcity of blood DC precursors, and involve the use of extensive cytokine cocktails.5-8 Therefore, a human cell line exhibiting the characteristics of CD34⁺-derived DC precursors would allow for the detailed study of DC differentiation without the associated problems of donor variability and DC precursor cell availability. It has been observed that cell lines derived from tumors of lymphoid or myeloid lineage may also share a potential for differentiation to DC-like APCs, thus providing a ready supply of DC precursors from which DCs can be easily and routinely generated. However, many leukemia cell lines are often refractory to cytokine treatment,9,10 requiring pharmacologic agents to induce a DC-like phenotype in myeloid cells, bypassing important checkpoints in the differentiation of DCs.9,10 In contrast, it has been reported that the human cytokine–dependent myeloid cell line MUTZ-3 down-regulates CD14 in response to interleukin 4 (IL-4) and low-level granulocyte macrophage–colony-stimulating factor (GM-CSF).11,12 Here we demonstrate that this cell line is unique in its capacity to acquire a cytokine-induced interstitial and LC iDC phenotype, thus providing a rapid, logistically reproducible model for studies of the immunomodulatory capacity of DCs and such DC-related processes as antigen processing and presentation.

The cytokine-dependent human cell line MUTZ-3 (Deutsche Sammlung von Mikroorganismen und Zellkulturen [DSMZ], Braunschweig, Germany), and the cytokine-independent human cell lines, HL-60, KG-1, THP-1 U937, and K562 (American Type Culture Collection [ATCC], Manassas, VA) were cultured at 1 × 10⁵/mL (total volume of 2.5 mL) in 12-well tissue culture plates (Costar, Cambridge, MA) in the presence of GM-CSF (100 ng/mL; Novartis/Schering-Plough, Arnhem, The Netherlands), IL-4 (10 ng/mL; Central Laboratory for Blood Transfusion [CLB], Amsterdam, The Netherlands) and low-dose tumor necrosis factor alpha (TNFα lo; 2.5 ng/mL; CLB) for 7 days. Maturation was induced by a 2-day exposure to either high-dose TNFα (TNFα hi; 75 ng/mL; CLB) or lipopolysaccharide (LPS; 200 ng/mL; Sigma, St Louis, MO). Cells were examined for the expression of DC-associated markers using phycoerythrin (PE)–labeled monoclonal antibodies (mAbs) against CD40, CD34 (Coulter Immunotech, Marseilles, France); CD1a, CD54, CD83, and CD86 (Pharmingen, San Diego, CA); CD80 (Becton Dickinson, San Jose, CA); and fluorescein isothiocyanate (FITC)–labeled mAb against HLA-DR, CD14 (Becton Dickinson), and CD116 (Pharmingen). CD1d expression was assessed using the murine mAb against human CD1d using mAb CD1d27. Antigen presentation by CD1d was blocked using antibody CD1d51 (gifts from Dr S. Porcelli, Albert Einstein College of Medicine, New York, NY).13,14 For the generation of LC-like cells, MUTZ-3 cells were cultured in GM-CSF and TNFα lo for 9 days. Cells were washed, reseeded, and subsequently cultured in the presence or absence of 1 ng/mL transforming growth factor beta 1 (TGFβ1) (R&D Systems, Abingdon, Oxon, United Kingdom), GM-CSF, and TNFα lo for a further 7 days; this culture medium was replenished at day 2. iDCs were analyzed for the expression of CD1a and langerin (using mAb DDCM4, a gift from Dr S. Saeland, Schering-Plough, Laboratory for Immunological Research, Dardilly, France).15

For the induction of influenza human leukocyte antigen (HLA) class I– restricted matrix protein-specific responses, CD8⁺ T cells were restimulated in vitro with MUTZ-3 DCs infected with 100 plaque-forming unit (pfu)/cell of recombinant adenovirus containing the M1 matrix protein gene of the Haeminfluenza virus (RAd128; a gift from Dr Rickards and Dr Wilkinson, University of Wales, United Kingdom) or loaded with the HLA-A2.1 binding M1-derived peptide (M1_58-66) at a responder-to-stimulator ratio of 5:1 with 5 ng/mL IL-7.16 After 7 days, T cells were analyzed for specificity in an interferon gamma (IFN-γ) enzyme-linked immunospot (ELISPOT) assay using the irradiated T2 cell line loaded either with the M1-derived peptide (M1_58-66) or as a negative control, the HLA-A2.1 binding HPV 16 E7–derived peptide (E7_11-20). Activation of tetanus toxoid (TT)–specific Th cells was achieved by coculturing CD4⁺ peripheral blood lymphocytes with graded numbers of TT-pulsed MUTZ-3 iDCs (50 mg/mL; SVM, Bilthoven, The Netherlands; pulsed for 12 hours in serum-free medium) in 200 μL of medium for 7 days. Donors were homozygous sharing the HLA-DR11 and HLA-DQ7 alleles with MUTZ-3. T-cell proliferation was determined using [³H]thymidine as previously described.16 Presentation of α-galactosylceramide to Vα24⁺/Vβ11⁺natural killer T cells (NKT) was carried out as previously described13 in the presence or absence of the anti–CD1d blocking antibody CD1d51 at a concentration of 10 μg/mL.14 Allogeneic mixed lymphocyte reaction (MLR) was performed as described by Tillman et al.16

Induction of IL-12 or IL-10 secretion was performed according to previous reports17,18 through CD40-L stimulation in the presence of either IFN-γ or dexamethasone. Cytokine concentrations were determined by enzyme-linked immunosorbant assay (ELISA) detecting IL-10 (IL-10 ELISA kit; CLB) or the IL-12 p70.19

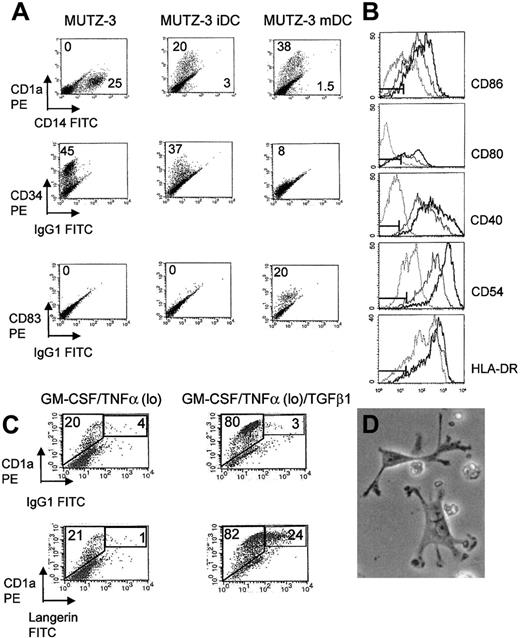

Of the 6 leukemia cell lines, 3 responded to cytokine stimulation expressing the DC differentiation marker CD1a: MUTZ-3 (20%), THP-1 (5%), and KG-1 (5%). In the case of the latter 2 cell lines, however, differentiation was accompanied by distinct expression of the DC maturation marker CD83, confirming earlier reports.5,6KG-1 and THP-1 were not responsive to further cytokine exposure, their CD1a/CD83 phenotype remaining unchanged (results not shown). Culturing MUTZ-3 cells in GM-CSF, IL-4, and TNFα for 7 days resulted in proliferation arrest, cell differentiation, and the neoexpression of CD1a on at least 20% of cells with an associated down-regulation of the monocyte marker CD14 and the hematopoietic precursor marker CD34 (Figure 1A). This is in agreement with previous studies with CD34⁺ stem cells.20-22The MUTZ-3 iDC phenotype was stable for up to 4 days without further cytokine stimulation. These phenotypic changes were accompanied by coordinated changes in cell morphology where MUTZ-3 DCs developed long dendritic processes (Figure 1D). Culture of MUTZ-3 iDCs with TNFα hi induced neoexpression of the DC maturation marker CD83 with further up-regulation of CD1a (Figure 1A). CD83⁺ DCs were refractory to further cytokine stimulation and displayed stable expression of CD83 up to 4 days following removal of cytokines. Under the influence of TGFβ1 the percentage of CD1a⁺ MUTZ-3 cells increased from 20% to 80% and a subpopulation of strongly staining langerin/CD1a⁺ double-positive cells were observed, indicating that these cells displayed distinctive characteristics of LCs (Figure 1C). These results illustrate the plasticity of MUTZ-3 cells, which can differentiate along different developmental pathways, previously described for bone marrow–derived CD34⁺ DC precursors.3,4

Central to the role of DCs as professional APCs is their ability to stimulate antigen-specific CD4⁺ and CD8⁺ T cells, and in the light of more recent studies, NKT cells. Molecular typing revealed that the MUTZ-3 cell line was positive for HLA antigens HLA-A2, HLA-A3, HLA-B44, HLA-DR10, HLA-DR11, HLA-DR52, HLA-DQ5, and HLA-DQ7. We observed that MUTZ-3 DCs were capable of antigen processing and presentation via HLA class I, II, and CD1d, possessing the ability to stimulate specific T and NKT cells (Figure2A-C). In addition to the ability of MUTZ-3 to undergo differentiation to DCs and process and present antigens, we have also observed associated coordinated changes in the expression of the costimulatory and adhesion molecules CD80, CD86, CD40, and CD54, and HLA-DR, which were strongly up-regulated on MUTZ-3 iDCs compared with the unstimulated population (Figure 1B). This was also reflected by a strong increase in the capacity of MUTZ-3 DCs to stimulate proliferation of allogeneic peripheral blood lymphocytes (PBLs) (at a MUTZ-3/PBL ratio of 40:1; MUTZ-3, 3616 counts per minute [cpm]; MUTZ-3 iDC, 10 399 cpm; and MUTZ-3 mDC, 22 764 cpm [cpm of [³H]thymidine incorporation]) and the production of IL-12 (300 pg/mL-350 pg/mL) and IL-10 (35 pg/mL-45 pg/mL) under the influence of IFN-γ or dexamethasone, respectively (compared with 50 pg/mL IL-12 and 8 pg/mL IL-10 in unstimulated MUTZ-3 cells). Therefore, MUTZ-3 represents a suitable in vitro cell line model system for the study of DC biology in so much as it accurately reflects the differentiation and maturation of DCs from primary CD34⁺precursor cells. Given the transient proliferative ability of CD34⁺-derived precursors, the immortalized human MUTZ-3 cell line constitutes an unlimited supply of CD34⁺ DC precursors and is a potentially useful tool for the generation of stable transfectants for the further elucidation of DC differentiation pathways.

The authors would like to thank Dr Hetty Bontkes for providing HLA-typed peripheral blood mononuclear cells and Kirin Brewery, Pharmaceuticals Division, Tokyo, Japan for supplying alpha-GalCer (KRN7000).
