Cubilin is a high molecular weight multiligand receptor that mediates intestinal absorption of intrinsic factor-cobalamin and selective protein reabsorption in renal tubules. The genetic basis of selective intestinal cobalamin malabsorption with proteinuria was investigated in a canine model closely resembling human Imerslund-Gräsbeck syndrome caused by cubilin mutations. CanineCUBN cDNA was cloned and sequenced, showing high identity with human and rat CUBN cDNAs. An intragenic CUBN marker was identified in the canine family and used to test the hypothesis of genetic linkage of the disease and CUBN loci. Linkage was rejected, indicating that the canine disorder resembling Imerslund-Gräsbeck syndrome is caused by defect of a gene product other than cubilin. These results imply that there may be locus heterogeneity among human kindreds with selective intestinal cobalamin malabsorption and proteinuria and that normal brush-border expression of cubilin requires the activity of an accessory protein.

GASTROINTESTINAL cobalamin (vitamin B12) absorption is a complex and highly specific process for assimilation of a dietary nutrient essential for normal hematopoiesis and integrity of the central nervous system. Imerslund-Gräsbeck syndrome (I-GS) is a rare autosomal recessive disorder, originally described in Norway1 and Finland,2 that is characterized by selective cobalamin malabsorption, leading to juvenile-onset severe megaloblastic anemia, and proteinuria. The disorder was mapped to a locus on chromosome 10p12.1 (MGA 1) in Finnish, Norwegian, and Saudi Arabian kindreds.3,4 The intrinsic factor-cobalamin (IF-cbl) receptor is a 460-kD apical brush-border multiligand-binding protein functioning in distal small intestinal and renal proximal tubule epithelia5-10 and was an obvious candidate gene for I-GS. The IF-cbl receptor was recently named cubilin in recognition of its unique domain structure,7 and the human gene locus (CUBN) was mapped within the MGA 1locus.11 Accordingly, 2 disease-specific mutations in the CUBN locus were recently demonstrated in Finnish kindreds.4

A canine model of autosomal recessive I-GS has been described in which immunoelectron microscopy and cell fractionation studies demonstrated failure of cubilin expression in apical brush border membranes of ileum and renal cortex, whereas other brush-border proteins were expressed normally.12,13 Similar to I-GS patients, affected dogs develop hematologic and metabolic signs of selective cobalamin deficiency in the early juvenile period and excrete several cubilin ligands in urine8 (Fyfe et al, unpublished data). Purified normal and affected dog renal cubilin comigrated during sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), but affected dog cubilin had abnormal proteolytic peptide profiles and the asparagine-linked oligosaccharides were endoglycosidase H-sensitive.13 These findings suggested that affected dog cubilin did not fold properly and did not reach the mid-Golgi compartment of the biosynthetic pathway, most likely being retained in the endoplasmic reticulum (ER). Many such so-called ER storage diseases that selectively inhibit cell surface expression of a plasma membrane or secretory protein have been described.14 15 With the exception of abetalipoproteinemia, these disorders have been attributed to mutations in the coding sequence of the exportable protein. Therefore, we cloned canine cubilin cDNA and used genetic linkage analysis to test the hypothesis that a cubilin mutation caused inherited selective cobalamin malabsorption with proteinuria in this family (canine I-GS). The data indicate that canine I-GS and the canine CUBN locus segregate independently, thus eliminating the CUBN locus as the genetic basis of the disorder.

The parents (members of a breeding colony maintained at Michigan State University, East Lansing, MI) and 23 offspring, including 13 affected and 10 clinically normal dogs, of matings between an affected female and an obligate carrier male were studied. The disease phenotype of each was determined by monitoring puppies until 12 to 16 weeks of age without parenteral cobalamin administration for growth and laboratory abnormalities previously described12 and the same parameters for 3 to 4 weeks after parenteral cobalamin administration.

Peptide sequence was obtained from canine renal cubilin purified, separated by SDS-PAGE, and transferred to polyvinylidene difluoride membrane as described.13 In situ protease digestion and peptide sequencing were performed by the Protein Chemistry Facility of the Worcester Foundation for Experimental Biology (Shrewsbury, MA). A canine renal tubule cDNA library16 was screened with a rat and canine partial cDNA probes by standard methods.17Hybridizing clones containing overlapping inserts were sequenced on both strands by automated dideoxy termination cycle sequencing methods (ABI 373A Sequencer; Applied Biosystems, Inc, Foster, CA). Position 1 of the canine cubilin cDNA refers to the first nucleotide of the full-length cDNA; the A residue of the first ATG is nucleotide 74. (Canine CUBN nucleotide sequences reported here have been submitted to GenBank: full-length cDNA, accession no. AF137068; partial genomic DNA, accession no. AF137069.)

To locate a segregating canine CUBN variation for genotyping, the CUBN intron/exon structure was partially determined by polymerase chain reaction (PCR) and sequencing. Genomic DNA was isolated from liver or blood samples by standard methods,17and portions of the CUBN gene were amplified using various combinations of the primers 838F, 5′-AGCCTGCGTGCTGGACATAGAC-3′; 947F, 5′-GGCTGGCAAGGAAATGGATATAGT-3′; 1150R, 5′-TGGGTGGCAGCCTCCATTATTGA-3′; and 1341R, 5′-CAGCCCAACCTGATTCACACTTA-3′ from the cDNA sequence. PCR reactions of 50 μL contained 1× PCR buffer, 0.4 mmol/L of each deoxynucleotide, 0.5 μmol/L of each primer, and 500 ng of genomic DNA template. TaKaRa LA Taq polymerase (2.5 U; PanVera Corp, Madison, WI) was added after 2 minutes at 94°C, and reactions were performed for 35 cycles of 98°C for 20 seconds and 68°C for 20 minutes. Obligate carrier male and affected female DNAs were amplified with primers 947F and 1150R, the products were cloned (pCR II; Invitrogen, San Diego, CA), and 6 individual clones from each dog were sequenced. Southern blots of canine genomic DNA digested with the restriction endonucleases EcoRI, BamHI,HindIII, Pst I, Xba I, and Stu I were prepared and hybridized by standard methods17 to a canine cubilin cDNA probe (bp 947-1150).

CUBN marker genotyping was by PCR amplification of an identified intron variation (CIV), a 17-base insertion/deletion sequence, using primers CIVF, 5′-GATCACAGGCCTACAGCTCCATT-3′, and CIVR, 5′-CCAGGCCAACCAGAGATCTTCTA-3′, and producing allele-specific products of 199 and 182 bp that were separable by electrophoresis on 4% agarose gels. Reactions were 50 μL containing 1× PCR buffer, 0.37 mmol/L each deoxynucleotide, 0.25 μmol/L of each primer, and 100 ng of DNA template. Taq DNA polymerase (2.5 U; GIBCO/BRL, Bethesda, MD) was added after 5 minutes at 95°C, and reactions were performed for 28 cycles of 95°C for 30 seconds, 65°C for 1 minute, and 72°C for 2 minutes.

Canine cubilin cDNA of 11,282 bp was cloned, showing 73 bp of 5′ and 349 bp of 3′ untranslated sequence and a 10,860-bp open reading frame. The 3,620 residue deduced amino acid sequence had 83% identity with human11 and 70% identity with rat cubilin.7 The structural features identified in human and rat cubilin and conserved in the deduced dog protein included a furin cleavage site after Arg32, an N-terminal amphipathic helical pattern recently suggested to mediate membrane interactions,10 and 154 Cys residues participating in 77 domain-stabilizing disulfide bonds. Identity of the cloned sequence was further confirmed by the presence of internal peptides sequenced from purified canine renal cubilin (KIKLNEEDLGEXLHQ, IDFQQPRMATERG, KLVDLERK, PFYPNVYPGER, VTGQSGIIESSGYPT, and VGNADGPLMXR) distributed throughout the deduced protein sequence.

Partial intron/exon structure of canine CUBN and a segregatingCUBN variation in an intron between bp 1079 and 1080 of the cDNA sequence were identified (Fig 1A). Sequence of the PCR products demonstrated consensus splice donor and acceptor sites at the points at which genomic sequences diverged from cDNA sequence. In the 5′ to 3′ direction, 4 introns (2.2, 0.9, 2.0, and 0.2 kb) and 3 exons (cDNA sequences 948-1079, 1080-1175, and 1176-1294) were defined. A 17-bp insertion (5′-CAGAACATTGTTTATGC-3′) was found 187 bp 5′ of the 3′ intron/exon boundary in 3 of 6 clones of the PCR-amplified 0.9-kb intron from a clinically normal, carrier male (F274) and in all 6 clones from an affected female (F284). Single hybridizing bands of 5 to 10 kb, identical in carrier and affected dog DNA, were observed on Southern blots of canine genomic DNA digested with 6 different restriction enzymes and hybridized to a probe of CUBN cDNA sequence between bp 947 and 1150, thus confirming that the identified 17-bp variation was in a unique region of the canine genome (data not shown).

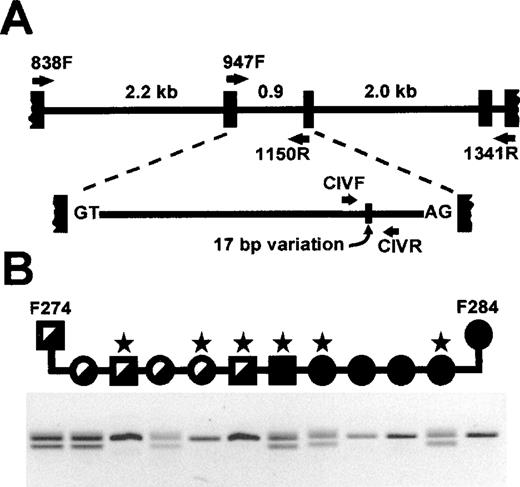

Fig. 1.

Independent segregation of canine I-GS and CUBNloci. (A) Four introns (horizontal lines) and included exons (vertical boxes) were defined by PCR amplification using CUBNcDNA primers and sequencing the products. A 17-bp variation (vertical line) was found in the 0.9-kb intron for which dog F274, an obligate carrier of canine I-GS, was heterozygous and dog F284, an affected dog, was homozygous. (B) Solid symbols indicate I-GS affected dogs, half-solid symbols indicate obligate carriers, squares are males, and circles are females. DNA from offspring of matings between dogs F274 and F284 was amplified by PCR using primers flanking the 17-bp variation, producing allele-specific products of 199 and 182 bp. Results of 10 offspring are shown, with the stars indicating recombinants.

Fig. 1.

Independent segregation of canine I-GS and CUBNloci. (A) Four introns (horizontal lines) and included exons (vertical boxes) were defined by PCR amplification using CUBNcDNA primers and sequencing the products. A 17-bp variation (vertical line) was found in the 0.9-kb intron for which dog F274, an obligate carrier of canine I-GS, was heterozygous and dog F284, an affected dog, was homozygous. (B) Solid symbols indicate I-GS affected dogs, half-solid symbols indicate obligate carriers, squares are males, and circles are females. DNA from offspring of matings between dogs F274 and F284 was amplified by PCR using primers flanking the 17-bp variation, producing allele-specific products of 199 and 182 bp. Results of 10 offspring are shown, with the stars indicating recombinants.

Close modal

Genetic linkage of canine I-GS and CUBN was investigated in 10 clinically normal and 13 affected offspring of matings between dogs F284 and F274. The disease phenotype of each dog was determined by the following criteria: affected dogs failed to gain weight after 9 to 13 weeks of age; they had low serum cobalamin concentrations, mild megaloblastic dyshematopoiesis, methylmalonic aciduria, and proteinuria; and all abnormalities other than proteinuria were reversed by parenteral cobalamin administration. In this family, canine I-GS is a fully penetrant, autosomal recessive trait.12 Therefore, affected offspring from these matings are homozygous and clinically normal littermates are heterozygous at the I-GS disease locus.

CUBN genotyping was performed by PCR amplification of allele-specific products using primers flanking the 17-bp CUBNvariation. PCR confirmed that the affected dam, homozygous at the disease locus, was homozygous for the intronic CUBNinsertion and that the clinically normal sire, heterozygous at the disease locus, was heterozygous at the CUBN locus (Fig 1B). However, 13 recombinants were detected among 23 offspring of these matings, a recombination fraction (0.56) that did not differ from the recombination fraction (0.5) expected under the hypothesis of independent segregation of the CUBN and disease loci (χ2 = .39, df = 1, P = .53). A disease trait locus and a marker locus on a different chromosome, or located far from the disease locus on the same chromosome, recombine randomly (at a frequency of 0.5 in large samples) and segregate independently during meiosis. Thus, in contrast to I-GS reported in some human kindreds,4 the linkage data above indicate that canine I-GS in this kindred is not caused by mutation of CUBN or any gene within 50 recombination units either side of the canine CUBNlocus. (A recombination unit [equal to 1% recombination and called a centiMorgan] in mammals is equivalent, on average, to ∼1 Mb of DNA.)

But still, affected dogs lack apical brush-border expression of cubilin in ileal and renal epithelia,13 causing selective cobalamin malabsorption12 and selective proteinuria,8respectively. Therefore, the absence of genetic linkage of the canineCUBN marker to canine I-GS indicates there must be some other gene, distant from CUBN, the product of which is required for normal cubilin folding, exit from the ER, and/or transport to the brush-border. Because cellular physiology of humans and dogs is highly homologous, these findings suggest that human I-GS may exhibit locus heterogeneity in addition to allelic heterogeneity at the CUBNlocus. Human I-GS remains to be mapped in kindreds of various ethnic backgrounds.

There are at least 2 genes whose products associate with cubilin5,7 that are not linked to the human MGA 1locus and defects of which could explain our findings and/or be implicated in some forms of human I-GS. The endocytic receptor, megalin (gp330), is postulated to anchor cubilin in the apical membrane and to facilitate endocytosis of cubilin-ligand complexes.7Receptor-associated protein (RAP) is a molecular escort of the lipoprotein receptor-related proteins, including megalin, and may also facilitate proper folding of cubilin within the ER.18Alternatively, there may be activities of other gene products, yet to be determined, that are specifically required for ER-export competence and brush-border expression of cubilin.

The authors thank Pierre Verroust, Søren Moestrup, Donald Patterson, Paula Henthorn, and Karen Friderici for fruitful discussions; Meg Weil, Mary Lassaline, and Rebeccah Kurzhals for dog care; and Dr Lloyd Shaw (Woodstock Veterinary Clinic, Woodstock, IL) for initial referral of the propositi.

Supported by funds from National Institutes of Health Grants No. DK45341 (to J.C.F.) and RR02512. R.K. was supported by Association pour la Recherche contre le Cancer Grant No. 9914.

The publication costs of this article were defrayed in part by page charge payment. This article must therefore be hereby marked “advertisement” in accordance with 18 U.S.C. section 1734 solely to indicate this fact.

1
Imerslund
O
Idiopathic chronic megaloblastic anemia in children.
Acta Paedr Scand
49
1960
1
(suppl 119)
2
Gräsbeck
R
Gordin
R
Kantero
I
Kuhlback
B
Selective vitamin B12 malabsorption and proteinuria in young people.
Acta Med Scand
167
1960
289
3
Aminoff
M
Tahvanainen
E
Gräsbeck
R
Weissenbach
J
Broch
H
de la Chapelle
A
Selective intestinal malabsorption of vitamin B12 displays recessive Mendelian inheritance: Assignment of a locus to chromosome 10 by linkage.
Am J Hum Genet
57
1995
824
4
Aminoff
M
Carter
JE
Chadwick
RB
Johnson
C
Gräsbeck
R
Abdelaal
MA
Broch
H
Jenner
LB
Verroust
PJ
Moestrup
SK
de la Chapelle
A
Krahe
R
Mutations in CUBN, encoding the intrinsic factor-vitamin B12 receptor, cubilin, cause hereditary megaloblastic anaemia 1.
Nat Genet
21
1999
309
5
Birn
H
Verroust
PJ
Nexø
E
Hager
H
Jacobsen
C
Christensen
EI
Moestrup
SK
Characterization of an epithelial ∼460-kDa protein that facilitates endocytosis of intrinsic factor-vitamin B12 and binds receptor-associated protein.
J Biol Chem
42
1997
26497
6
Seetharam
B
Christensen
EI
Moestrup
SK
Hammond
TG
Verroust
PJ
Identification of rat yolk sac target protein of teratogenic antibodies, gp280, as intrinsic factor-cobalamin receptor.
J Clin Invest
99
1997
2317
7
Moestrup
SK
Kozyraki
R
Kristiansen
M
Kaysen
JH
Rasmussen
HH
Brault
D
Pontillon
F
Goda
FO
Christensen
EI
Hammond
TG
Verroust
PJ
The intrinsic factor-vitamin B12 receptor and target of teratogenic antibodies is a megalin-binding peripheral membrane protein with homology to developmental proteins.
J Biol Chem
273
1998
5235
8
Kozyraki
R
Fyfe
J
Kristiansen
M
Gerdes
C
Jacobsen
C
Cui
S
Christensen
EI
Aminoff
M
de la Chapelle
A
Krahe
R
Verroust
PJ
Moestrup
SK
The intrinsic factor-vitamin B12 receptor, cubilin, is a novel high affinity apolipoprotein A-I receptor facilitating endocytosis of high-density lipoprotein.
Nat Med
6
1999
656
9
Batuman
V
Verroust
PJ
Navar
GL
Kaysen
JH
Goda
FO
Campbell
WC
Simon
E
Pontillon
F
Lyles
M
Bruno
J
Hammond
TG
Myeloma light chains are ligands for cubilin (gp280).
Am J Physiol
275
Renal Physiol 44
1998
F246
10
Kristiansen
M
Kozyraki
R
Jacobsen
C
Nexø
E
Verroust
PJ
Moestrup
SK
Molecular dissection of the intrinsic factor-vitamin B12 receptor, cubilin, discloses regions important for membrane association and ligand binding.
J Biol Chem
274
1999
20540
11
Kozyraki
R
Kristiansen
M
Silahtaroglu
A
Hansen
C
Jacobsen
C
Tommerup
N
Verroust
PJ
Moestrup
SK
The human intrinsic factor-vitamin B12 receptor, cubilin: Molecular characterization and chromosomal mapping of the gene to 10p within the autosomal recessive megaloblastic anemia (MGA 1) region.
Blood
91
1998
3593
12
Fyfe
JC
Giger
U
Hall
CA
Jezyk
PF
Klumpp
SA
Levine
JS
Patterson
DF
Inherited selective intestinal cobalamin malabsorption and cobalamin deficiency in dogs.
Pediatr Res
29
1991
24
13
Fyfe
JC
Ramanujam
KS
Ramaswamy
K
Patterson
DF
Seetharam
B
Defective brush-border expression of intrinsic factor-cobalamin receptor in canine inherited intestinal cobalamin malabsorption.
J Biol Chem
266
1991
4489
14
Kim
PS
Arvan
P
Endocrinopathies in the family of endoplasmic reticulum (ER) storage diseases: Disorders of protein trafficking and the role of ER molecular chaperones.
Endocr Rev
19
1998
173
15
Aridor
M
Balch
WE
Integration of endoplasmic reticulum signaling in health and disease.
Nat Med
7
1999
745
16
Ray
J
Bouvet
A
DeSanto
C
Fyfe
JC
Xu
D
Wolfe
JH
Aguirre
GD
Patterson
DF
Haskins
ME
Henthorn
PS
Cloning of the canine β-glucuronidase cDNA, mutation identification in canine MPS VII, and retroviral vector-mediated correction of MPS VII cells.
Genomics
48
1998
248
17
Sambrook
J
Fritch
EF
Maniatis
J
Molecular Cloning: A Laboratory Manual
ed 2
1989
Cold Spring Harbor Laboratory
Cold Spring Harbor, NY
18
Obermoeller
LM
Chen
Z
Schwartz
AL
Bu
G
Ca2+ and receptor-associated protein are independently required for proper folding and disulfide bond formation of the low density lipoprotein receptor-related protein.
J Biol Chem
273
1998
22374

Author notes

Address reprint requests to John C. Fyfe, DVM, PhD, Department of Microbiology, 413 Giltner Hall, Michigan State University, East Lansing, MI 48824; e-mail: fyfe@cvm.msu.edu.
