Role of c-mpl in Early Hematopoiesis

Murine fetal liver stem cell populations were isolated from AA4.1⁺ (called AA4⁺) cells derived by immune panning from mid-gestation fetal liver essentially as previously described.8 The AA4⁺ cells were subsequently stained using directly conjugated antibodies against murine c-kit (fluorescein isothiocyanate [FITC]), Sca-1 (R-PE) (Pharmingen, San Diego, CA), and biotinylated hamster anti-murine c-mpl.24 For the biotinylated antibodies, streptavidin Red-670 (GIBCO-BRL, Grand Island, NY) was used for detection.

BM populations were derived using femurs from C57/BL/6 mice. Briefly, the femurs were obtained and flushed with PBS/2% fetal calf serum (FCS) and a single cell suspension was made. Any remaining red blood cells were removed by lysis with 10 mmol/L NH₄Cl. The mononuclear fraction was then incubated with monoclonal antibodies (MoAbs) specific for lineage markers consisting of rat anti-mouse CD4/L3T4, CD8/Ly 2,3, B-220/CD45R (Caltag, South San Francisco, CA), Gr-1, Mac-1, and Ter-119 (Pharmigen, San Diego, CA). Lineage marker positive cells were then removed by magnetic bead depletion with a sheep anti-rat antibody conjugated to magnetic beads (Dynal, Great Neck, NY). The lineage depleted cells were then incubated with MoAbs specific for: c-kit (FITC), Sca-1 (R-PE) (purchased from Pharmigen), goat anti-rat Lin (Cascade Blue; Molecular Probes, Eugene, OR), and biotinylated hamster anti-murine c-mpl.24 A second step using Streptavidin Red-670 (GIBCO-BRL) was included for the biotinylated samples. All fetal liver or BM samples were analyzed or sorted on a Coulter EPICS Elite (Hialeah, FL) dual-laser flow cytometer configured with a Coherent model 302 Krypton laser (407 nm) and argon laser (488 nm). The appropriate isotype controls were included for each experiment. All analysis excluded propidium iodide positive cells and all cells with high forward or right angle light scatter.

Timed pregnant C57/BL/6 mice were killed and the murine day 14 fetal liver cell populations were isolated as described above. The following enriched populations were then sorted: AA4⁺Sca⁺c-mpl⁺ and AA4⁺Sca⁺c-mpl⁻. For the competitive repopulation analysis of c-mpl–deficient mice, the BM population Lin^loSca⁺ was isolated from either homozygote mutant mice (c-mpl^−/−) or their wild-type (c-mpl^+/+) littermate controls. Young adult male C57/BL/6 Ly 5.2 mice were obtained from NCI and used as recipients. A minimum of five animals was used per experimental group. Whole-body irradiation (1,100 rads, 190 cGy/min) was administered as a single dose from a ¹³⁷Cs source. One million nucleated BM cells from the Ly 5.2 mice were used as a source competitor, and mixed with 1,000 or 2,000 fetal liver donor cells or 10,000 BM-derived donor cells. Cells were administered via tail-vein injection and PB samples (50 to 100 μL) were obtained via the retro-orbital sinus 4, 12, and 24 weeks postreconstitution. The percentage of Ly 5.1 (A20.1) donor cells was determined indirectly by staining with biotin-conjugated Ly 5.2 MoAb (A20.1.7). Briefly, PB was collected in 10 U/mL heparin, 1 mmol/L EDTA in phosphate-buffered saline (PBS) and immediately placed on ice. Erythrocytes were removed by the addition of 5 vol of 4% Dextran T500 (Pharmacia) in PBS followed by incubation at room temperature for 20 minutes. The red blood cell–depleted fraction was then centrifuged for 5 minutes at approximately 200g. The remaining red blood cells were then lysed using 10 mmol/L NH₄Cl. The mononuclear fraction was then resuspended in PBS/2% FCS. This procedure removed nearly 100% of the erythrocytes (the remaining red blood cells were excluded by size gating) while leaving the leukocytes 95% viable by propidium iodide exclusion. Fluorescence-activated cell sorter (FACS) analysis of Ly 5.2 PB cells was nearly identical to cells prepared by lysing. Controls for the specificity of Ly 5.2 staining included cells from Ly 5.1 or Ly 5.2 animals and cells from animals repopulated with Ly 5.2 competitor cells only. To confirm repopulation by the donor Ly 5.1 cells in all lineages, PB cells and the BM mononuclear fraction were stained in conjunction with Ly 5.1 for B220, CD4, CD8 (lymphoid lineages), and Gr-1/Mac-1 (myeloid lineages).

The relative repopulating ability of each putative stem cell population was compared by calculating repopulation units (RU) as described by Harrison et al.25 Each RU represents the same repopulating ability as 1 × 10⁵ fresh marrow cells. It has been determined that the long-term repopulating stem cell content of fresh marrow is one stem cell per 10⁵ total marrow cells.25 Therefore, the number of RU from each donor population is defined by the following equation:

Fresh human BM aspirates were obtained from healthy donors (Poietic Technologies, Gaithersburg, MD). The mononuclear cells were then enriched for CD34 by immunomagnetic positive selection (Miltenyi Biotech, Inc, Auburn, CA) according to the manufacturer's instruction. CD34 content was assessed by FACS and purity was routinely greater than 90%. The CD34⁺ fraction was then stained with murine MoAbs against human CD34 (FITC), CD38 (R-PE), (Becton Dickinson, San Jose, CA), and c-mpl (biotin).26 The biotinylated samples were then subsequently stained with Streptavidin Red-670 (GIBCO-BRL).

CB-17 scid/scid mice were implanted with fetal bone as previously described.27 Briefly, human fetal bone fragments from femurs, tibias, and humeri of 17- to 22-week gestational fetuses were implanted subcutaneously in 8-week-old CB-17 scid/scidmice. The BM fragments were allowed to engraft for 8 weeks. Mice were then bled via the retro-orbital sinus and engraftment of the bone fragments was determined by flow cytometric analysis of the blood samples with MoAbs specific for human HLA class 1 epitopes (One Lambda, Canoga Park, CA).

SCID-hu bone mice were administered whole-body irradiation of 200 rads from a ¹³⁷Cs source and sorted human stem cells were then injected directly into a bone graft using a Hamilton syringe. Mice were then killed 8 weeks postinjection, HLA disparate grafts were removed, and marrow mononuclear cells were analyzed by FACS for donor HLA contribution as well as CD19, CD33, and CD34 (Becton Dickinson).

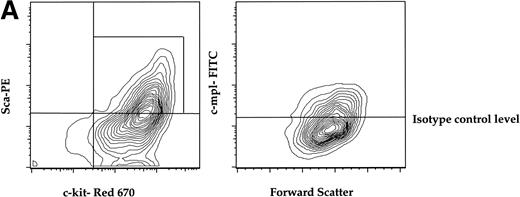

To determine if a murine primitive hematopoietic cell population enriched for stem cell activity expressed c-mpl, we isolated AA4.1⁺ (refered to as AA4⁺ here) cells from midgestational murine fetal liver by immunopanning and quantified the expression of c-mpl on the AA4⁺ fraction that is double-positive for the Sca-1 marker (called Sca here) and c-kit. The AA4⁺Sca⁺c-kit⁺ fraction has been shown to be highly enriched for stem cell activity.28 29Approximately 50% of the AA4⁺ cells that were positive for both Sca and c-kit (AA4⁺Sca⁺c-kit⁺) were c-mpl⁺. This c-mpl positive fraction (AA4⁺Sca⁺c-kit⁺ c-mpl⁺) constituted less than 0.1% of the total fetal liver (Fig 1A).

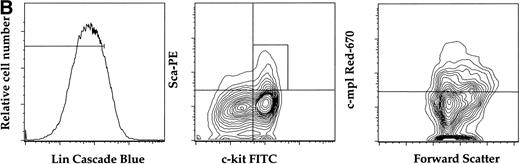

In adult murine marrow, we analyzed the expression of c-mpl on the Lin^loSca⁺c-kit⁺ population which is enriched for stem cell activity.30 In these experiments the mononuclear fraction of BM was depleted of lineage-committed progenitors with immunomagnetic beads (see Materials and Methods) and the Lin^lo mononuclear cells were then further fractionated into the Lin^loSca⁺c-kit⁺population. FACS analysis of the Lin^loSca⁺c-kit⁺ population showed that 70% of this population was c-mpl⁺ (Fig 1B). This population comprised less than 0.1% of total adult BM. As expected, we detected c-mpl on the Lin^hi cells (data not shown) that are presumably the lineage committed megakaryocyte progenitors.

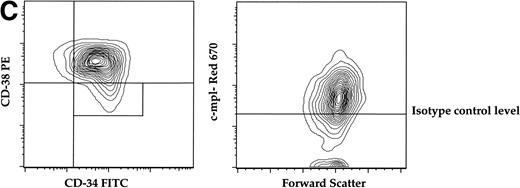

To evaluate the presence of c-mpl on human progenitors we analyzed the expression of c-mpl on the CD34⁺CD38⁻stem cell progenitor population derived from human marrow. The CD34⁺CD38⁻ population comprises 10% of the total CD34⁺ population and is highly enriched for multiprogenitor and stem cell activity.31-33CD34⁺ cells were isolated from adult BM by immunomagnetic positive selection (>90% purity), then stained with MoAbs against human CD34, CD38, and c-mpl for FACS analysis. Similar to the expression pattern on murine progenitors, approximately 70% of the CD34⁺CD38⁻ population expressed c-mpl (Fig 1C).

In this study, we used a competitive repopulation assay to compare the long-term functional abilities of murine hematopoietic stem cell populations with respect to c-mpl expression. Briefly, progenitor-enriched donor populations derived from either mid-gestational fetal liver or adult BM were mixed with 10⁶competitor cells from BM of C57/BL6 Ly 5.2 animals and then injected into lethally irradiated C57/BL6 Ly 5.2 recipients. At the 4-, 12-, and 24-week time points, the relative contribution of donor cells to hematopoietic lineages was determined by FACS analysis of the Ly 5.1 and Ly 5.2 allotypes.

Using this model we directly compared the repopulating activity of AA4⁺Sca⁺c-mpl⁺ and AA4⁺Sca⁺c-mpl⁻ fetal liver cells derived from wild-type mice (Table1). This direct comparison shows that all of the long-term repopulating activity of the AA4⁺Sca⁺ population segregated with c-mpl expression. At the 24-week time point more than 50% of the myeloid and lymphoid cells were derived from the AA4⁺Sca⁺c-mpl⁺ donor cells with equal contribution to each of these hematopoietic compartments. At 24 weeks the AA4⁺Sca⁺c-mpl⁺ population exhibited a reconstituting activity of 220 RU. In contrast, the AA4⁺Sca⁺c-mpl⁻ cells exhibited no repopulating activity at the 24-week time point. The AA4⁺Sca⁺c-mpl⁻ population did exhibit short-term reconstituting activity, indicating that this population consists primarily of committed progenitors. These data indicate that the enriched fetal liver AA4⁺Sca⁺population can be fractionated into functionally and phenotypically different populations based on differential expression of c-mpl, and that c-mpl expression in this subset is associated with pluripotent repopulating activity.

To further expand this analysis, we isolated Lin^loSca⁺ cells from the BM ofc-mpl–deficient mice and their wild-type littermate controls. The Lin^loSca⁺ cells from wild-type animals contained significantly more RU when compared with Lin^loSca⁺ cells from thec-mpl–deficient mice (37 v 5). Preferential engraftment of the lymphoid or myeloid compartments was not observed with the Lin^loSca⁺ donor populations isolated from either wild-type or c-mpl–deficient mice. In addition, for the mice injected with wild-type Lin^loSca⁺ cells, the majority of lymphoid and myeloid cells were derived from this donor population (Table 1).

To evaluate the in vivo functional characteristics of the human CD34⁺CD38⁻c-mpl⁺ population in comparison to the CD34⁺CD38⁻c-mpl⁻fraction, the multilineage engraftment potential of these populations was compared in the SCID-hu bone model.27 Thirty thousand cells of each phenotype were injected directly into the bone fragments of the SCID-hu animals and at 8 weeks postinjection, the mice were killed, and mononuclear cells from the grafts were analyzed by FACS. Cell suspensions were made of each graft and analyzed for overall donor contribution by FACS using HLA haplotype-specific antibodies. In addition, the contribution of donor cells to myeloid (CD33), lymphoid (CD19), and hematopoietic progenitors (CD34) was determined. As shown in Table 2, the CD34⁺CD38⁻c-mpl⁺ population engrafted better (donor HLA) than the other populations. The combined results of two separate experiments show that the CD34⁺CD38⁻c-mpl⁺ population engrafted in 90%(9 of 10) of the mice injected with this cell population. In contrast, of the mice receiving the CD34⁺CD38⁻c-mpl⁻ cell population only 22% (2 of 9) showed donor derived reconstitution. In addition, the contribution of donor derived cells to the progenitor (CD34⁺), myeloid (CD33⁺), or lymphoid (CD19⁺) compartments was higher with the CD34⁺CD38⁻c-mpl⁺ than the CD34⁺CD38⁻c-mpl⁻population 8 weeks postreconstitution. This was especially true for the CD34⁺ progenitor population. In both experiments, with mice injected with the CD34⁺CD38⁻c-mpl⁺ cells, greater than 22% of CD34⁺ cells were donor derived. This compares to 2% to 4% donor-derived CD34⁺ cells for the two mice that engrafted with the CD34⁺CD38⁻c-mpl⁻ cells.

Recent in vitro data clearly indicate that TPO may function not only to expand the megakaryocyte compartment, but also to play a role in the expansion and maintenance of early progenitors. TPO alone is capable of activating quiescent progenitors into cycle13,18 and acts in synergy with either IL-3, KL, or FL to expand the early progenitor pool.9-19 In support of these observations, we have recently shown that hematopoietic progenitors expanded in a stroma-free liquid culture using a cytokine cocktail consisting of FL, KL, and TPO maintain their long-term lymphohematopoietic repopulating activity in vivo.34 The hematopoietic deficiencies that occur inc-mpl and TPO-deficient mice, which exhibit a significant reduction of multipotent progenitors, further indicate a role for TPO/c-mpl in early hematopoiesis.20 21

At the molecular level, expression of c-mpl mRNA has been detected in human CD34⁺cells35 and noncycling progenitors.36 FACS analysis shows that c-mpl is expressed on the stem cell enriched murine fetal liver population AA4⁺Sca⁺.8 To further characterize stem cell populations that express c-mpl, we have identified discrete progenitor populations derived from murine and human sources that express c-mpl. FACS analysis of murine BM (Lin^loSca⁺c-kit⁺) or fetal liver (AA4⁺Sca⁺c-kit⁺) stem cell populations shows that c-mpl is expressed on at least 50% of each of these stem cell–enriched populations.

The differential expression of c-mpl within the AA4⁺Sca⁺ fetal liver progenitor population allowed evaluation of its functional characteristics with respect to c-mpl expression. Using a murine competitive repopulation model,25 we directly compared the in vivo hematopoietic reconstituting activity of AA4⁺Sca⁺c-mpl⁺ and AA4⁺Sca⁺c-mpl⁻ murine fetal liver cell populations. These results show that all of the long-term repopulating activity of the fetal liver progenitor population (AA4⁺Sca⁺) segregates with c-mpl expression. Repopulating activity showed equal contribution to the myeloid and lymphoid compartments by the donor cell population (AA4⁺Sca⁺c-mpl⁺). The AA4⁺Sca⁺c-mpl⁻ population exhibited a low level of short-term reconstituting activity, indicating that this population is devoid of true stem cell activity. Furthermore, marrow progenitors (Lin^loSca⁺) derived fromc-mpl gene-deficient mice showed a significant (sevenfold) reduction in repopulating activity when compared with the Lin^loSca⁺ progenitor population derived from wild-type littermates. The segregation of stem cell activity with c-mpl expression on the fetal liver AA4⁺Sca⁺population indicates that c-mpl is expressed on a pluripotent stem cell and that this subpopulation may further define a long-term self-renewing stem cell.

It is interesting to note that although the level of hematopoietic progenitors is diminished by 50% in adultc-mpl^−/−mice, day 14 fetal liver progenitors are not reduced inc-mpl^−/− mice,21suggesting that TPO does not play a critical role in early fetal hematopoiesis. However, the inability of the AA4⁺Sca⁺c-mpl⁻ fetal liver cells to repopulate in the adult mouse indicates that c-mpl expression may be essential for fetal liver progenitors to exhibit repopulating activity in the adult marrow microenviroment. Because the Lin^loSca⁺ progenitor population from thec-mpl^−/−mice had a low level of stem cell activity and that only platelets, and not other hematopoietic blood cells, are affected in these mice, suggests that for adult hematopoiesis, c-mpl may play a crucial role in the function of primitive stem/progenitors cells only when the homeostasis of the hematopoietic compartment is perturbed. Thus, expression of c-mpl on a subset of stem/progenitor cells may allow them to respond to feedback mechanisms that maintain homeostasis in the hematolymphoid compartment.

As was observed for the murine progenitor populations, c-mpl is also expressed on the stem cell–enriched progenitor population, CD34⁺CD38⁻, derived from human marrow. The expression pattern of c-mpl expression within this population is similar to that observed for the murine progenitors with greater than 50% of CD34⁺CD38⁻ expressing c-mpl. These results are in contrast to those of Debili et al,37who suggest that the c-mpl⁺ cells present in the CD34⁺ fraction are primarily caused by late megakaryocyte progenitors and transitional cells. Expression of c-mpl on CD34⁺CD38⁻ cells and the ability of TPO to activate noncycling progenitors13 confirm that c-mpl is indeed expressed on an early progenitor.

Until recently the study of long-term human hematopoiesis in vivo was difficult because of the lack of an appropriate in vivo model. However, using immunodeficient, nonobese diabetic (NOD)/SCID and scid/scid mice, models have been developed in recent years to assay for human hematopoietic stem cells and allow evaluation of their multilineage repopulating capacity.^{27, 32,38}In this study we used the SCID-hu bone model27 to determine the effect of c-mpl expression on the in vivo reconstituting activity of the human progenitor CD34⁺CD38⁻ cell population. A direct comparison of the CD34⁺CD38⁻c-mpl⁺ and CD34⁺CD38⁻c-mpl⁻ cell populations shows that c-mpl expression correlates with significantly better donor-derived engraftment. This was apparent in both overall engraftment and donor contribution to various hematopoietic lineages. With equal numbers of cells injected, 90% of the mice receiving the CD34⁺CD38⁻c-mpl⁺ cells engrafted compared with 22% engraftment for the mice receiving the c-mpl⁻ fraction. In addition, a higher level of donor contribution to the progenitor, myeloid, and lymphoid compartments was observed with the CD34⁺CD38⁻c-mpl⁺ donor cells. This was especially true for the CD34⁺ fraction in which greater than 20% were donor derived using CD34⁺CD38⁻c-mpl⁺ cells compared with only 4% for the CD34⁺CD38⁻c-mpl⁻ donor cells or 8% for the c-mpl unenriched CD34⁺CD38⁻ fraction. Taken together, these results suggest that the multilineage long-term reconstituting activity of the human CD34⁺CD38⁻ cell population correlates with c-mpl expression.

The expanded role of TPO in hematopoiesis suggest that TPO may be useful clinically for more than just alleviating thrombocytopenia. Recent in vitro studies have shown that TPO in combination with other early growth factors can cause multilineage expansion of CD34⁺ cells in a long-term culture.17,33 Ex vivo expansion would be a great benefit for the banking of umbilical cord progenitors for future engraftment procedures. Additionally, recent clinical trials have reported that TPO treatment results in an increase in marrow hematopoietic progenitors and peripheral CD34⁺ cells.39 These preliminary clinical results again suggest that TPO may be useful not only as a thrombopoietic agent but also in peripheral stem cell harvest procedures.

We thank Jim Chin for excellent technical assistance and Daniel Tumas for critically reviewing the manusript.
