A proteolytically truncated form of free CD18, the common chain of leukocyte integrins, as a novel marker of activated myeloid cells

Activation of myeloid cells by various physiologic and experimental stimuli is accompanied by multiple surface changes connected mainly to degranulation (externalization and thus enhanced surface expression of several membrane proteins stored in cytoplasmic granules), proteolytic shedding, and internalization of distinct sets of molecules. Thus, activated blood myeloid cells typically up-regulate surface expression of complement receptor type 3 (CR3; CD11b/CD18), alkaline phosphatase, or chemotactic receptors1 and down-modulate surface density of lipopolysaccharide (LPS) receptor CD14, adhesion receptors CD44 and CD62L, or antiadhesion sialoglycoprotein CD43.2

Leukocyte integrins are major adhesion molecules of white blood cells. They are noncovalent transmembrane heterodimers composed of the common β₂ chain (CD18; 95 kd) and one of α chains, α_L (CD11a; 180 kd), α_M (CD11b; 170 kd), α_X (CD11c; 150 kd), or α_D (CD11d; 150 kd). Leukocyte (β₂) integrins display a remarkable redundancy of ligand binding. The CD11a/CD18 heterodimer called leukocyte function-associated antigen-1 (LFA-1) is the major leukocyte adhesion receptor recognizing differentially expressed membrane ligands ICAM-1 (CD54), ICAM-2 (CD102), ICAM-3 (CD50), ICAM-4 (carrying Landsteiner-Wiener (LW) blood group antigens), and ICAM-5 (telencephalin). CD11b/CD18 and CD11c/CD18 heterodimers are usually called complement receptor type 3 (CR3) and type 4 (CR4), respectively, because they bind iC3b fragments of complement, but they also recognize ICAMs as well as a number of other ligands, such as extracellular matrix proteins. (Leukocyte integrins and their ligands are reviewed elsewhere.3-6) Leukocyte integrins can exist in still poorly characterized activated states based on increased affinity or avidity.7-13 The adhesiveness of integrin molecules is regulated from the cell interior (inside-out signaling) via interactions through their cytoplasmic tails involving allosteric and mobility changes. Ligand binding is influenced also extracellularly by coordination of distinct divalent cations and can result in triggering of intracellular signals (outside-in signaling).

In this report we describe a novel activation marker abundantly expressed on the surface of activated monocytes and neutrophils—a 65- to 70-kd proteolytic fragment of the common β chain of leukocyte (β₂) integrins, CD18, as detected by a monoclonal antibody (mAb) recognizing a unique CD18 epitope.

If not stated otherwise, all reagents were purchased from Sigma (St Louis, MO). CD18 mAbs MEM-48 (IgG1 [immunoglobulin G1]) and MEM-148 (IgG1) were obtained by standard techniques from mice immunized with peripheral blood mononuclear cells and their CD18 specificity was unambiguously determined in our laboratory.14,15 The CD18 specificity of MEM-148 was confirmed during the 6th Human Leukocyte Differentiation Antigen (HLDA) Workshop.16 The mAbs MEM-83 (IgG1; CD11a), MEM-170 (IgG1; CD11b), MEM-135 (IgG1; HLA class I), and B2M-02 (IgG1; β₂-microglobulin) were also produced and characterized in our laboratory. The mAb LeuM5 (IgG2b; CD11c) was obtained within the 6th HLDA Workshop and 6.7 (IgG1; CD18) was kindly provided by Dr A. Bensussan (INSERM 448, Creteil, France).

Fresh buffy coats (a mixture of peripheral blood leukocytes [PBLs]) in the heparinized plasma and neutrophils isolated from urine of patients after prostatectomy were used. Monocytes and neutrophils were separated by Ficoll (Pharmacia, Uppsala, Sweden) gradient centrifugation and were further purified based on adhesion to polystyrene Petri dishes (monocytes) or osmotic lysis of erythrocytes (neutrophils); their purity was greater than 92% and 95%, respectively. Cells were treated for up to 2 hours at 37°C with various activating and priming agents: phorbol myristate acetate (PMA; 100 ng/mL), opsonized zymosan (OZ; 300 μg/mL; opsonized with 50% human serum for 30 minutes at 37°C), heat-aggregated immunoglobulin (HA-Ig; 100 μg/mL; prepared by heating 100 mg/mL human IgG for 2 hours at 63°C and purified by gel filtration on Superdex 200 HR 10/30 column; Pharmacia), LPS (100 ng/mL; Difco, Detroit, MI), tumor necrosis factor (TNF; 20 ng/mL; R & D Systems, Minneapolis, MN), granulocyte-macrophage colony-stimulating factor (GM-CSF; 100 ng/mL; Sandoz, Basel, Switzerland), or formyl-methionyl-leucyl-phenylalanine (fMLP; 1 μg/mL). Before treatment with 1 μg/mL fMLP the cells were primed with LPS, TNF, or GM-CSF for 30 minutes at 37°C. In some experiments cells were preincubated (10 minutes, 37°C) before the PMA treatment with protease inhibitors: diisopropyl fluorophosphate (DFP; 5 mM), 4-(2-aminoethyl)-benzenesulfonyl fluoride (AEBSF; 1 mM), 1,10-phenanthroline (Phen; 5 mM), iodoacetic acid (IAA; 2 mM), Nα-p-tosyl-l-lysine chloromethyl ketone (TLCK; 0.1 mM), N-tosyl-l-phenylalanine chloromethyl ketone (TPCK; 0.1 mM), aprotinin (10 μg/mL), phenylmethylsulfonylfluoride (PMSF; 0.8 mM), EDTA (5 mM), ethylene glycol-bis(β-aminoethyl ether)-N,N,N′,N′-tetraacetic acid (5 mM; EGTA) or [(2S,3R)-3-amino-2-hydroxy-4-phenylbutanoyl]-l-leucine (bestatin; 25 μg/mL). Low pH–treated cells were prepared by incubation (2 minutes on ice) in isotonic citrate/phosphate buffer (pH 3.5) and immediate neutralization in Hanks balanced salt solution (HBSS).

Cells were stained with mAbs (20 μg/mL) for 30 minutes on ice and washed in HBSS containing 0.2% gelatin and 0.1% NaN₃without Ca⁺⁺ and Mg⁺⁺ followed by fluorescein-labeled goat F(ab′)₂ antimouse Ig (Jackson Immunoresearch, West Grove, PA). Propidium iodide (PI; 0.1 μg/mL) and LDS-751 (0.2 μg/mL; Exciton, Dayton, OH) were added prior to measurement on a FACSort flow cytometer (Becton Dickinson, Mountain View, CA) in a standard 3-color setup. At least 10⁴ viable nucleated cells (PI⁻, LDS-751⁺) were collected for each sample. Leukocyte populations were resolved on the basis of their scatter properties.

Cells were surface biotinylated using biotinamidocaproic acid 3-sulfo-N-hydoxysuccinimide ester and solubilized on ice in isotonic lysis buffer containing 1% Nonidet P40 (NP40) detergent and standard mixture of protease inhibitors; the supernatant was used directly for sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) and Western blotting, immunoprecipitation (solid-phase immunoisolation technique), or immunoaffinity chromatography. Immunoprecipitated biotinylated proteins were detected on the blots by streptavidin-peroxidase conjugate and luminographic visualization. The immunoaffinity columns were washed with 10 volumes of the lysis buffer, the adsorbed proteins were eluted with alkaline buffer (0.1 M glycine-NaOH, pH 11.5, containing 0.1% NP40), and separated by nonreducing SDS-PAGE. Details of biochemical methods were described previously.15 Densitometric evaluation of the zones on Western blots has been performed on LAS-1000 (Fuji Photo Film, Tokyo, Japan).

Native non–SDS-PAGE (blue native electrophoresis, BNE) was performed essentially as described elsewhere.17 Briefly, 5 × 10⁶ cells were solubilized in 200 μL of the native lysis buffer (1% n-dodecyl β-d-maltoside, 5 mM iodoacetamide and 1 mM 4-[2-aminoethyl]benzenesulfonyl fluoride in 750 mM aminocaproic acid, 50 mM Bis-tris, pH 7.0) and centrifuged for 3 minutes at 20 000g; Coomassie brilliant blue G was mixed with the supernatant to yield the final concentration of 0.25%. The 5-μL samples were run on water-cooled gradient gels (6%-15%). A strip of the gel corresponding to single lane was equilibrated in the nonreducing sample buffer for SDS-PAGE and used for second-dimension separation by standard SDS-PAGE (7.5% gel). The separated proteins were then electroblotted onto polyvinylidene difluoride (PVDF) membrane and visualized by immunoperoxidase staining. The molecular weight standards used for the first-dimension separation (BNE) were monomers and oligomers (obtained by chemical cross-linking) of bovine serum albumin or mouse IgG1 mAb.

The Coomassie brilliant blue–stained protein band was cut from the gel and washed several times with 10 mM dithiotreitol (DTT) and 0.1 M 4-ethylmorpholine acetate (pH 8.1) in 50% acetonitrile. After complete destaining, the gel was washed with water, shrunk by dehydration with acetonitrile, and reswollen again in water. Next, the gel was partly dried using a SpeedVac concentrator (Savant Instruments, Holbrook, NY) and then reconstituted with cleavage buffer containing 0.01% 2-mercaptoethanol, 0.1 M 4-ethylmorpholine acetate, 10% acetonitrile, 1 mM CaCl₂, and sequencing grade trypsin (Promega, Madison, WI; 50 ng/μL). Digestion was carried out overnight at 37°C; the resulting peptide mixture was extracted with 50% acetonitrile/1% trifluoroacetic acid and separated on the C18 reverse-phase column (0.3 × 150 mm; LC Packings, Amsterdam, The Netherlands) using gradient elution (5% acetonitrile/0.5% acetic acid to 95% acetonitrile/0.4% acetic acid). The column was linked to the nano-electrospray ionization (ESI) interface of the mass spectrometer. Positive full scan and collision-induced dissociation mass spectra were recorded on a LCQ DECA ion trap mass spectrometer (Thermoquest, San Jose, CA) equipped with nano-ESI ion source and interpreted manually. Spray voltage was held at 2.2 kV, tube lens voltage was −10 V. The heated capillary was kept at 150°C with a voltage of 32 V. Full scan spectra were acquired over m/z range 300 to 2000 d. Collision energy was kept at 42 units and the activation time was 30 ms. Collisions were done from the first intense ion in the each chromatographic peak; every 2 scans were accumulated.

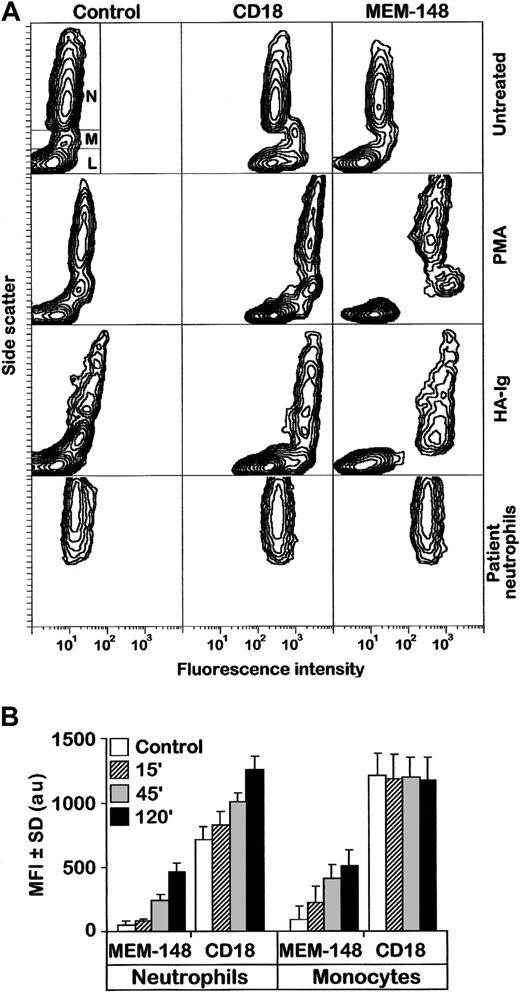

The MEM-148 mAb (either intact IgG or its Fab fragment) bound only very weakly to resting PBLs, but the respective antigen was up-regulated on monocytes and neutrophils activated by PMA, OZ, HA-Ig, and (after priming with either LPS, TNF, or GM-CSF) also by fMLP (Figure 1A and data not shown). The MEM-148 epitope became clearly detectable after 15 minutes of treatment and gradually increased during 2 hours (Figure 1B and data not shown). Its appearance was closely paralleled by microscopically observable firm aggregation of the myeloid cells or their adhesion to serum-coated plastic, which is well known to be elicited by all these treatments (not shown). Neutrophils obtained from urine of prostatectomy patients were strongly positive for MEM-148 without any treatment (Figure 1A); these cells were obviously naturally activated as a consequence of local inflammation. Moreover, all PBLs (including lymphocytes) became strongly positive for MEM-148 after a brief exposure to acidic solutions, MEM-148 stained 78- to 96-kd zones corresponding to various forms of CD18 on Western blots of nonreduced leukocyte detergent lysates, and strongly reacted with CD18-transfected COS-7 cells.15 Thus, MEM-148 obviously reacts with an epitope of CD18, which is inaccessible in CD11/CD18 heterodimers present on resting leukocytes but becomes exposed during dissociation of the heterodimers by low pH or SDS and also as a result of a conformational change caused by cell activation.

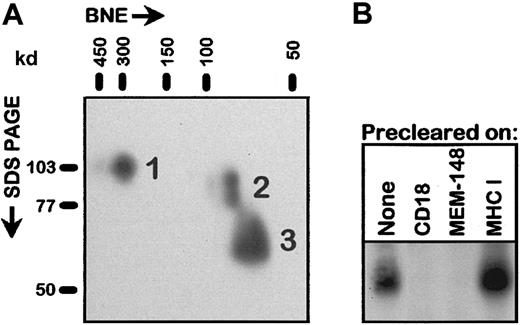

Surprisingly, MEM-148 specifically immunoprecipitated a protein of 65- to 70-kd from detergent lysates of activated, surface biotinylated PBLs. This protein was also immunoprecipitated (in addition to the CD11/CD18 heterodimers) by standard CD18 mAbs but not by mAbs to CD11a, CD11b, or CD11c (Figure 2A). This zone was more prominent in the immunoprecipitates obtained from the cells that were surface labeled after PMA activation rather than before the activation, indicating that most of the 65- to 70-kd protein (or its precursor) appeared on the cell surface only after the activation. The kinetics of appearance of this molecule following activation by PMA closely paralleled the increase of the MEM-148 positivity (Figures 1B and 2B). A protein of apparently identical size and recognized not only by MEM-148 but also by at least some other CD18 mAbs could be clearly detected (in addition to the intact CD18 molecular species) by Western blotting in the lysates of PBLs activated by various stimuli (Figure2C) and in the lysates of in vivo activated neutrophils isolated from urine of prostatectomized patients (not shown). These results indicated that the 65- to 70-kd protein is a truncated form of CD18, apparently unassociated with CD11 chains. Indeed, analysis by 2-dimensional electrophoresis (native BNE versus nonreducing SDS-PAGE) demonstrated that the 65- to 70-kd CD18 form was not associated with either CD11 chains or any other proteins (Figure 3A). To confirm that this protein is actually a form of CD18 and not a different, cross-reactive protein, detergent cell lysate of PMA-activated PBLs was first precleared on a standard anti-CD18 immunosorbent and the unbound fraction was subjected to SDS-PAGE and Western blotting using MEM-148. As shown in Figure 3B, the 65- to 70-kd protein was quantitatively adsorbed to the CD18 immunosorbent. Finally, the protein was immunopurified from the lysate of PMA-activated PBLs and analyzed by mass spectrometric peptide mapping and sequencing; 4 CD18-derived peptides were unambiguously identified by sequencing (Table 1). The results of this peptide mapping suggest that the fragment comprises the major C-terminal part of CD18 involving at least residues 345 to 733. However, it is not clear at this moment where exactly is the N-terminus of the fragment.

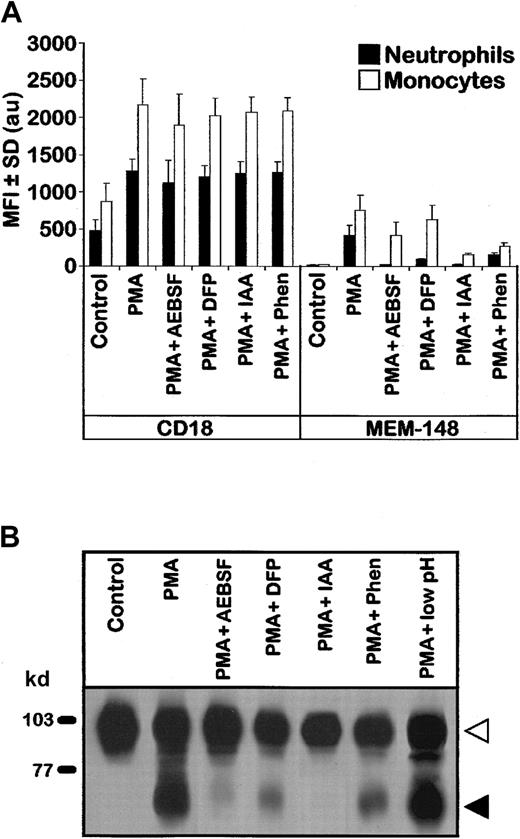

Expression of the MEM-148 epitope on the surface of activated myeloid cells, as well as the appearance of the 65- to 70-kd CD18 form, were markedly suppressed by several types of protease inhibitors (Figure4). It should be noted that under the conditions used, degranulation induced by the activation stimuli was essentially unaffected by the inhibitors as judged by typical increased expression of leukocyte integrins (Figure 4A). Interestingly, inhibitors of serine proteases (DFP, AEBSF), cysteine proteases (IAA), and metalloproteases (Phen) exhibited partial inhibitory effects (see “Discussion”). Notably, serine protease inhibitors DFP and AEBSF were only very slightly inhibitory on monocytes as compared to neutrophils. The 65- to 70-kd fragment of CD18 could not be removed from the cell surface by acid washing (Figure 4B, last lane) indicating that it possesses the transmembrane segment anchoring it firmly to the cell surface. This conclusion is strongly supported also by the fact that it contains a peptide (723-733) originating from the cytoplasmic domain (Table 1).

Taken together, our data show that activation of peripheral blood monocytes and neutrophils is accompanied by formation of large amounts of a 65- to 70-kd proteolytic transmembrane fragment of CD18 unassociated with other proteins.

Adhesion of blood myeloid cells to endothelia of blood vessels in sites of inflammation and their subsequent transmigration into the tissue is accompanied by major reorganization of their surface—rapid up-regulation of numerous receptors and adhesion molecules and parallel down-regulation of other surface molecules. This process is based mainly on (1) externalization of molecules stored in the resting cells in the membranes of several types of cytoplasmic vesicles (granules), (2) endocytosis (internalization) of other cell surface molecules, and (3) proteolytic cleavage of specific surface proteins resulting in their removal (shedding) or structural and functional modifications.1,2 Extensive proteolytic activity of leukocytes is also directed toward endothelia and extracellular matrix in inflamed sites.18,19 The β₂-integrins are crucial players in the later steps of leukocyte firm adhesion and spreading on the endothelia and also in the following transmigration process.3,5,20-22 These adhesion molecules are strongly up-regulated on the surface of activated leukocytes and converted into so far poorly characterized high-affinity molecular conformations23-25 or aggregated into high-avidity clusters.13

In this study, we show that CD18, a common chain of β₂-integrins, is proteolytically cleaved on the surface of activated myeloid cells. The resulting free 65- to 70-kd fragment of CD18 is expressed apparently as a free molecule unassociated with CD11 chains or other molecules and represents a novel abundant activation marker of myeloid cells. This fragment is most likely produced by proteases released from secretory granules of the activated cells or by activated membrane-associated proteases1,2,18,19,26 and comes predominantly from integrin molecules stored intracellularly in resting cells (ie, from intracellular mature heterodimers or perhaps also from unassociated intracellular CD18 chains demonstrated recently by us15). Our somewhat surprising finding that inhibitors of several protease classes (serine-, cysteine-, and metalloproteases) block the production of this fragment can be plausibly explained by possible dependence of this process on a cascade of consecutively activated proteases analogous to similar previously described cases.18,27-31 Another possibility is that several close cleavage sites may exist in the CD18 molecule, which are used by different proteases. This would be in agreement with the observation that the 65- to 70-kd fragment migrates as a relatively broad zone on SDS-PAGE, indicating a size heterogeneity. Actually, members of 2 serine protease systems, namely uPAR (CD87)32 and leukocyte elastase,33 have been shown to interact with β₂-integrins and modulate their adhesive capacity.33,34 In addition to the protease inhibition, the effect of cysteine protease inhibitor might reflect an alteration in extracellular cysteine-rich domain conformation to facilitate the protease access. It should be noted that proteolytic cleavage of CD18 occurs in the presence of serum, which is known to contain high concentrations of endogenous protease inhibitors.18

Transmembrane fragments of CD18 produced by the activation-induced proteolytic cleavage obviously loose their association with CD11 chains and expose the epitope recognized by mAb MEM-148, which is sterically blocked in the intact integrin heterodimers.15 It is not clear what happens to the respective CD11 chains during this process (we did not have suitable antibodies reactive with free CD11 chains or their fragments). One speculative but attractive possibility is that the proteolytic cleavage and concomitant dissociation of the major CD18 fragment may uncover ligand-binding sites in the α chains (CD11). Such free CD11 chains (perhaps still associated with a putative small CD18 N-terminal fragment containing I-like domain35) might represent an unconventional form of a “high-affinity conformation” of the β₂-integrin molecules and thus contribute to the known activation-induced homotypic aggregation. This would be in agreement with the previously described relaxation of conformational constraints in both cytoplasmic36 and extracellular cysteine-rich domains37 of CD18 accompanying the transition into the activated state.

Actually, a proteolytic activation of platelet β₃-integrins has been already described.38On the other hand, the observed cleavage of CD18 may simply be a first step of a degradative process down-regulating the amounts of functional cell surface β₂-integrins in the later phases of the adhesion process as described before.39 However, that process appears to exhibit a different cleavage site specificity, kinetics, and sensitivity to protease inhibitors.39 It can be even speculated that the proteolytic fragments of CD18 might serve some unknown functions possibly quite unrelated to adhesion; for example, proteolytic fragments of other adhesion molecules, CD62E and CD106, act as chemotactic factors for endothelial cells and promote angiogenesis.40 Finally, it would be interesting to examine whether other activation-dependent anti-CD18 mAbs, such as KIM127,41 CBRM1/19,42 and 240Q43also recognize specifically the CD18 fragment described here; unfortunately these mAbs were not available to us in the present study.

We thank Dr A.Bensussan for providing us the 6.7 CD18 mAb.
