The BCR-ABL chimeric gene results from a reciprocal translocation, t(9;22)(q34;q11). The breakpoint on chromosome 9 is in the majority of cases 5′ to ABL exon 2, whereas the breakpoints on chromosome 22 can occur in various regions within theBCR gene, giving rise to different BCR-ABLjunction types. Breakpoints within the so-called major BCR (M-BCR) lead to a BCR-ABL messenger RNA with e13a2 or e14a2 junction in 99% of patients with chronic myeloid leukemia (CML). Two other breakpoint types outside the M-BCR have been described: the m-BCR (e1a2 junction), mainly detected in Ph+ acute lymphoblastic leukemia, and the μ-BCR(e19a2 junction) associated with neutrophilic-CML.1-6

We report a novel BCR-ABL fusion transcript with e15a2 junction detected in 2 patients with a presumptive diagnosis of atypical chronic myeloproliferative disorder.7 Patient 1, a 65-year-old male with an 8-year history of persistent unexplained neutrophilic leukocytosis (15 × 109/L) was referred to us in December 1998 with a 5-month history of recurrent fever, weight loss, fatigue, and anorexia, with no apparent evidence of infectious diseases. Blood film examination showed 74% neutrophils with no shift to the left in the granulocytic lineage, 24% lymphocytes, and 2% monocytes with enlarged platelets. The patient received no treatment and currently remains asymptomatic with persistent moderate leukocytosis. Patient 2, a 59-year-old male with a history of diabetes, hypertension, and alcoholism, was referred to our hospital in September 1998 because of leukocytosis (20 × 109/L) detected in a routine blood testing. Blood film showed megaloblastic anemia and neutrophilic leukocytosis with no shift to the left. Serum tests showed low iron levels and increased ferritin (1000 ng/mL). Bone marrow smear and biopsy disclosed dysplastic features and maturation defects of the erythropoietic lineage and a hypogranular granulocytic series. Neutrophilic leukocytosis persisted with no other relevant associated symptoms until last control (September 1999) after which the patient was lost to follow-up. More detailed clinical and laboratory features of the 2 patients are summarized in Table1.

Table 1.

Patient clinical and laboratory features

Patient 1Patient 2
Age 65 59
Karyotype 46, XY (20/20) 46, XY (20/20)
Hemoglobin (g/dL) ND 10.7
White cell count (/L) 15 × 109 20 × 106
Platelet count (/L) 400 × 109 527 × 109
Bone marrow ND Dysplastic features
NAP score 70 39
Splenomegaly No No
Patient 1Patient 2
Age 65 59
Karyotype 46, XY (20/20) 46, XY (20/20)
Hemoglobin (g/dL) ND 10.7
White cell count (/L) 15 × 109 20 × 106
Platelet count (/L) 400 × 109 527 × 109
Bone marrow ND Dysplastic features
NAP score 70 39
Splenomegaly No No

ND indicates not determined; NAP, neutrophil alkaline phosphatase.

Cytogenetic analyses were performed in bone marrow cells and showed in both cases a normal karyotype (46,XY), with no evidence of the Philadelphia chromosome. Molecular analyses were performed on total cellular RNA from peripheral mononuclear blood. RNA isolation, the reverse transcription–polymerase chain reaction (RT-PCR) assay for detection of BCR-ABL transcripts and semiquantitativeG3PDH expression (to ensure the efficiency of the reverse-transcription step and to confirm successful amplification of intact complementary DNA) were performed according to previously reported protocols.8-10

In both patients, no PCR products were detected after the first PCR round. False-negative results were ruled out, due to successful amplification of the control gene.9 10 But an unpredicted product distinct from the already described BCR-ABL fusion transcripts was detected after nested PCR (with a sensitivity of 10-5 to 10-6 μg of RNA). Direct sequencing of this fragment revealed a previously unreported BCR-ABLhybrid originated from an e15a2 junction. In fact, 86 base pairs of BCR exon 15 were joined in frame with ABL exon 2 at nucleotide 78 (GenBank accession number GI7406986). The difference between total base pairs gained and lost was 9, or 3 amino acids (Figure 1). Thus translation of such an e15a2 transcript would result in a protein that is only 3 amino acids longer than the classical P210 BCR-ABL, though quite different in the composition of amino acid residues (Figure2).

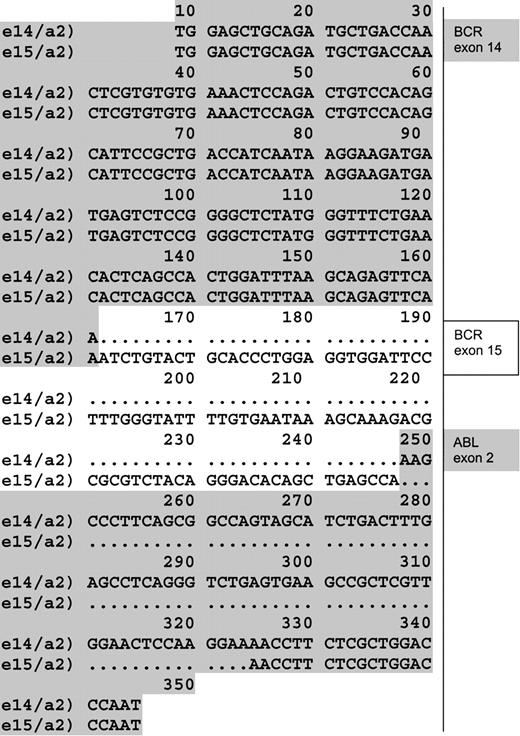

Fig. 1.

e15a2 sequence.

Alignment of a sequence obtained from a junction e14/a2 found in the cell line K562 (first line) and the atypical e15/a2 sequence obtained from patients (second line). (GenBank acession number GI7406986.)

Fig. 1.

e15a2 sequence.

Alignment of a sequence obtained from a junction e14/a2 found in the cell line K562 (first line) and the atypical e15/a2 sequence obtained from patients (second line). (GenBank acession number GI7406986.)

Close modal
Fig. 2.

Protein scheme.

The scheme represents a structural view of the translated products from e14/a2 and e15/a2 junctions. Translation of e15/a2 transcript would result in a protein that is only 3 amino acids longer than the classical P210 BCR/ABL, although quite different in the composition of amino acid residues. The primers used are indicated by arrows.

Fig. 2.

Protein scheme.

The scheme represents a structural view of the translated products from e14/a2 and e15/a2 junctions. Translation of e15/a2 transcript would result in a protein that is only 3 amino acids longer than the classical P210 BCR/ABL, although quite different in the composition of amino acid residues. The primers used are indicated by arrows.

Close modal

Some rare BCR-ABL fusion types have occasionally been reported in the literature.4 The 2 cases hereby described were identified among 225 patients with myeloproliferative syndromes studied in our laboratory. To the best of our knowledge, these are the first reported cases with a variant BCR-ABLfusion transcript involving BCR exon 15. Interestingly, such molecular aberration was only detected in a minor clone after nested PCR and was associated with mild clinical symptoms (moderate leukocytosis that did not increase with time) and an indolent clinical course.

As to the reasons underlying the detection of very low levels of e15a2 transcript in our patients, we believe that the successful amplification of the endogenous G3PDH may rule out the occurrence of technical problems. Two other explanations that may account for this features include (a) the presence of a small subpopulation of BCR-ABL–expressing cells and(b) a low level of BCR-ABL transcript expressed by the entire cell population. In light of the absence of the Philadelphia chromosome after conventional karyotypic analysis, we are more prone to favor the former hypothesis.

Recently, the presence of BCR-ABL transcripts only detectable at the RT-PCR level has been associated with some cases of Ph essential thrombocytemia,11 though these findings were not confirmed by others.12 13

In conclusion, the novel BCR-ABL fusion type hereby described and/or its low levels detected might be associated with a phenotype of mild leukocytosis. But more cases showing these molecular and clinical features should be described before such a hypothesis is confirmed. The identification of new transcripts confirms the heterogeneity of breakpoints in BCR-ABL rearrangements. The roles of different BCR-ABL fusion proteins and their relationships to distinct leukemic or indolent phenotypes still deserve further investigation.

We thank Drs Francesco Lococo and Gustavo Folle for valuable discussions and critical reading of the manuscript. In addition, we are grateful to Dr Cristina Mogdasy, head of Clinical Laboratory, Asociación Española Primera de Socorros Mutuos, for her support.

1
Rowley

JD
A new consistent chromosomal abnormality in CML identified by quinacrine fluorescence and Giemsa staining.
Nature.
243
1973
290
293
2
Hochhaus

A
Reiter

A
Skladny

H
et al
A novel BCR-ABL fusion gene (e6a2) in a patient with philadelphia chromosome-negative chronic myelogenous leukemia.
Blood.
88
1996
2236
2240
3
Pane

F
Frigeri

F
Sindona

M
et al
Neutrophilic-chronic myeloid leukemia: a distinct disease with a specific molecular marker (BCR/ABL with C3/A2 junction).
Blood.
88
1996
2410
2414
4
Melo

JV
The diversity of BCR-ABL fusion protein and their relationship to leukemia phenotype.
Blood.
88
1996
2375
2384
5
Mittre

H
Leymarie

P
Macro

M
Leporrier

M
A new case of chronic myeloid leukemia with c3a2 BCR-ABL junction. Is it really a distinct disease?
Blood.
89
1997
4239
4241
6
How

GF
Tan

LT
Lim

LC
Chronic myeloid leukemia with e19a2 (c3a2) BCR/ABL fusion junction-is it truly a benign disease?
Leukemia.
12
1998
1166
1167
7
Moreno

MP
Cortinas

MN
Bonomi

R
Uriarte

MR
Identification of novel BCR-ABL fusion transcript in two patients with persistent neutrophilia in absence of Philadelphia chromosome.
Blood.
94(suppl 1)
1999
177b
8
Sagayadan

GE
Wiernik

PH
Sun

N
et al
Effect of retinoic acid and interferon α on granulocyte-macrophage colony forming cells in chronic myeloid leukemia: increased inhibition by all-trans- and 13-cis retinoic acids in advanced stage disease.
Leukemia Res.
18
1994
741
748
9
Da Cheng

Z
Hallam

SJ
Lee

SJ
et al
Constitutive expression of cellular retinoic acid binding protein II and lack of correlation with sensitivity to all-trans retinoic acid in acute promyelocytic leukemia cells.
Cancer Res.
58
1998
5770
5776
10
Bonomi

R
Giordano

H
Moreno

MP
et al
Simultaneous PML/RAR expression with t(15;17) in onset, and relapse with only t(8;21) in an acute promyelocitic leukemia patient.
Cancer Genet Cytogenet.
123
2000
41
43
11
Blickstein

D
Aviram

A
Luboshitz

J
et al
BCR-ABL transcripts in bone marrow aspirates of Philadelphia negative essential thrombocytopenia patient: clinical presentation.
Blood.
90
1997
2768
2771
12
Marasca

R
Luppi

M
Zucchini

P
Longo

G
Torelli

G
Emilia

G
Might essential thrombocythemia carry Ph anomaly?
Blood.
91
1998
3084
3085
13
Hackwell

S
Patients with essential thrombocythemia do not express BCR-ABL transcripts.
Blood.
93
1999
2420
2421
