Characterization of Seven Low Incidence Blood Group Antigens Carried by Erythrocyte Band 3 Protein: Presented in part at the 49th Annual Meeting of the American Association of Blood Banks, Orlando, FL, October 6-10, 1996.

BAND 3 (anion exchanger 1 [AE1]) is the most abundant integral protein of the red blood cell (RBC) membrane, being present in more than 1 million copies per RBC. It consists of two structurally and functionally largely independent domains. The N-terminal cytoplasmic domain of band 3 links the membrane to the underlying spectrin-based membrane skeleton and interacts with several glycolytic enzymes, hemoglobin, and hemichromes. The main function of the C-terminal membrane domain is to mediate exchange of chloride and bicarbonate anions across the plasma membrane. Current structural models predict that the membrane domain consists of 12 to 14 transmembrane helices connected by ectoplasmic and endoplasmic loops.1-4 The longest, fourth loop of band 3 is N-glycosylated1,4 and the carbohydrate chain carries more than half of the RBC ABO blood group epitopes.5

Mutations of band 3 protein have been implicated in the pathogenesis of Southeast Asian ovalocytosis,6,7 hereditary spherocytosis,8-11 congenital acanthocytosis,12and, recently, distal renal tubular acidosis.13,14 An amino acid substitution in the cytoplasmic domain of band 3 underlies the abnormal electrophoretic mobility of a polymorphic band 3 variant known as band 3 Memphis.15,16 Yet another variant of band 3, known as band 3 Memphis II, displays, in addition to the abnormal electrophoretic mobility, an increased binding of the anion flux inhibitor dihydrodiisothiocyanatodisulfonate, disodium salt (H₂DIDS).17 Spring et al18 reported that the Memphis II variant of band 3 carries the Di^a blood group antigen.

Di^a is a low incidence blood group antigen in Caucasians that is antithetical to Di^b.19 Prevalence of Di^a is much higher in American Indians, reaching up to 54% in some groups of South American Indians.20 The underlying polymorphism is a single amino acid substitution in position 854, with proline of the wild-type band 3 corresponding to the Di^bantigen and leucine to the Di^a antigen.21,22Di^a and Di^b became the first fully characterized antigens of the Diego blood group system assigned to the band 3 protein.21 Subsequently, Bruce et al23and our group24 have mapped the low incidence blood group antigen Wr^a to the C-terminal end of the fourth ectoplasmic loop. Glutamic acid 658 from the wild-type band 3 sequence underlies the high incidence antigen, Wr^b, whereas the low incidence antigen, Wr^a, has lysine in the same position.

Recently, we and others have shown25,26 that three additional low incidence antigens, Rb^a,27WARR,28 and Wd^a,29 are associated with different single point mutations on band 3 and therefore belong to the Diego system. The amino acid changes associated with these three antigens are, respectively, 548Pro→Leu,30,31552Thr→Ile,32,33 and 557Val→Met.30,31,34,35 Although only one subject has been studied for another low incidence antigen, Tr^a, the experimental evidence strongly suggests that it is also located on the erythroid band 3 protein, with the underlying polymorphism being 551Lys→Asn.31

Discovery of the molecular basis of these antigens yielded the first insight into the Diego blood group system as well as valuable information on the position and size of the external loops of band 3. In addition, in the case of Wr^b, it helped to characterize the site of the band 3-glycophorin A interaction, because the Wr^b antigen requires the presence of both these proteins for its expression.24,36,37 These results also suggested band 3 might carry additional low incidence antigens. We therefore reviewed the list of remaining low incidence antigens that had serological characteristics consistent with the possibility of their being carried by band 3 and that we had in liquid nitrogen storage. We found that antigens Bp^a (Bishop),38 Wu (Wulfsberg),39 Mo^a (Moen),40Vg^a (Van Vugt),41 Hg^a(Hughes),42 BOW,43 and ELO44fulfilled these criteria and proceeded with characterization of their molecular basis.

Samples were obtained through the Serum, Cell and Rare Fluid (SCARF) exchange program or as gifts from numerous colleagues. Initial testing was performed on DNA isolated from blood samples stored in liquid nitrogen; additional testing was performed on freshly drawn blood samples shipped on ice to Boston. The subjects were heterozygotes for the studied blood group antigens.

DNA was isolated from blood samples (∼150 μL) that had been stored in liquid nitrogen or that had been obtained as fresh samples using the QIAamp Blood Kit (QIAGEN Inc, Chatsworth, CA). The manufacturer’s procedure for DNA isolation from whole blood was followed. The eluted DNA was used directly for polymerase chain reaction (PCR) amplification.

SSCP screening was performed according to Orita et al,45 46with minor modifications. Exons encoding the membrane domain of band 3 were PCR-amplified using pairs of intronic primers flanking the exons (Table 1; 35 cycles of 1 minute at 94°C and 1 minute at 60°C). To each 10 μL PCR reaction, 2.5 μCi³²P-dATP (3,000 μCi/mmol; ICN, Costa Mesa, CA) was added. The PCR products were diluted in formamide loading buffer (86% formamide, 10% glycerol, 20 mmol/L EDTA, 0.25% bromophenol blue, 0.25% xylene cyanol), heat-denatured by boiling for 5 minutes, and quickly cooled on ice. Samples were electrophoresed for 16 hours at room temperature in a nondenaturing polyacrylamide mutation detection enhancement (MDE) gel (FMC BioProducts, Rockland, ME). Briefly, 25 mL MDE gel solution was mixed with 69 mL deionized water, 6 mL 10× TBE, 0.4 mL 10% ammonium persulfate, and 40 μL TEMED, and electrophoresis was performed at 8 W in the presence and at 4 W in the absence of 10% glycerol. The gel was exposed to Kodak XAR-5 film (Eastman Kodak, Rochester, NY) overnight at −80°C using intensifying screens. The band 3 gene exons displaying the SSCP were directly sequenced using the Sequenase version 2.0 DNA Sequencing Kit (Amersham, Arlington Heights, IL). We limited our SSCP screening to exons 11 to 20 of the band 3 gene, because these 10 exons encode the whole membrane domain of band 3 and mutations causing altered immunogenicity of band 3 are to be expected only in this portion of band 3.

All 12 currently known amino acid sequences of human,1,4mouse,2 rat,47 chicken,48,49 and trout50 erythroid band 3 proteins (AE1) and of the related anion exchangers AE2 from human,51,52 mouse,53rat,48 and rabbit54 and AE3 from human,55 mouse,56 and rat48 were retrieved from Genbank and aligned using the program CLUSTAL (PCGene; Intelligenetics, Mountain View, CA). Predictions of the number and position of band 3 transmembrane helices were made using programs RAOARGOS, HELIXMEM, and SOAP (PCGene) based on the reported human AE1 cDNA sequence.1 4 Based on these predictions, sequence comparisons, and available data on band 3 modifications by enzymes and chemicals with known cleavage and binding sites, we created a model of band 3 with 14 transmembrane helices.

Total reticulocyte RNA was isolated by ammonium chloride lysis57 and reverse transcribed using random primers. cDNA was PCR-amplified using primers flanking the mutations, and the PCR product was digested with the appropriate restriction endonuclease. The digested PCR product was visualized by electrophoresis in agarose gels stained by ethidium bromide and the amount of DNA of individual bands was quantitated by densitometric scanning using the Eagle Eye II system (Stratagene, La Jolla, CA) and the ONE-Dscan 1.0 program (Scanalytics, Billerica, MA).

Cells were washed three times at 4°C in 140 mmol/L NaCl, 10 mmol/L Na phosphate, pH 7.4 (PBS), and three times in 84 mmol/L trisodium citrate, 1 mmol/L EGTA, pH 6.5, and subjected to assays of unidirectional disodium ³⁵S-sulfate (ICN, Costa Mesa, CA) uptake in the absence or in the presence of increasing concentrations of the anion transport inhibitor DIDS (Molecular Probes, Eugene, OR), as described.10 Each flux study in RBCs carrying the studied antigens was performed in parallel using RBCs from unrelated subjects not carrying the antigens. The dependence of the sulfate influx on the increasing concentrations of DIDS was obtained using the linear least squares fit.

One volume of washed RBCs was treated with 4 vol of α-chymotrypsin (5 mg/mL) for 1 hour at 37°C. Enzyme-treated cells were washed three times with PBS. Both treated and untreated antigen-positive RBCs were tested in parallel with the appropriate antisera.

Freshly drawn blood anticoagulated in acid citrate/dextrose was shipped on ice to Boston. Within 48 hours of phlebotomy, erythrocyte ghosts were prepared using the method of Dodge et al,58 with minor modifications described in Jarolim et al.8 Erythrocyte membrane proteins were analyzed by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) followed by densitometry as described,9 and the relative amounts of RBC membrane proteins were expressed as ratios of integrated densitometric peaks of individuals’ proteins to the peak of band 3. The biochemical findings were correlated with the clinical data and the results were statistically evaluated.

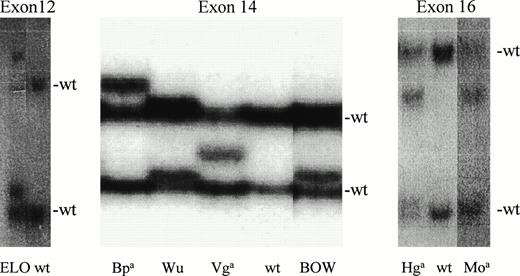

We detected SSCP polymorphisms in exon 12 in the carrier of the ELO antigen; in exon 14 for Vg^a, BOW, Wu, and Bp^a; and in exon 16 for Hg^a and Mo^a(Fig 1).

We PCR-amplified and directly sequenced exons containing the SSCPs. The detected mutations are summarized in Table2. We have verified the presence of these mutations in additional unrelated carriers of these seven blood group antigens with the exception of Vg^a, for which only related individuals were available. All seven mutations either create or abrogate restriction sites (Table 2). In six cases, we used PCR amplification followed by restriction digestion with an appropriate restriction endonuclease to confirm the presence of the mutation in additional carriers of the blood group antigen. Because endonuclease Tth 2 is not commercially available, we directly sequenced genomic DNA from the additional Bp(a+) subject.

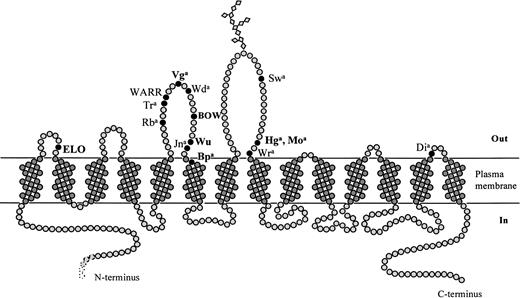

Figure 2 schematically depicts the membrane domain of band 3. The seven newly characterized blood group antigens are shown in bold. Previously characterized blood group antigens residing on band 3 are also shown. According to this scheme, six of seven mutated amino acids are located in the putative first, third, and fourth ectoplasmic loops of band 3, whereas asparagine 569, which is mutated to lysine in Bp(a+) subjects, is located at the external end of the sixth transmembrane segment. Proline 561, mutated to serine in the BOW-positive subject, is also relatively highly conserved; however, the degree of evolutionary conservation in the region of the third external loop shown in Table 2 changes to some extent with variations in the alignment parameters.

We aligned the five known AE1 amino acid sequences of the erythroid band 3 homologues as well as all 12 available sequences from the AE gene family and evaluated the conservation of individual amino acids. The results show (Table 2) that most of the mutated amino acids are not conserved in evolution. The only exception again appears to be the Bp^a antigen (569 Asn→Lys) that is conserved in all 12 aligned amino acid sequences. Consequently, mutation of Asn 569 would be most likely to affect band 3 structure and anion exchange function.

We have digested intact RBCs from the carriers of all seven studied blood group antigens by trypsin, α-chymotrypsin, pronase, and ficin. The results of testing untreated and enzyme-treated antigen-positive RBCs are shown in Table 3. At least two sera containing antibodies to the seven low incidence antigens were tested on two independent experiments. Whereas the results for Vg^a, BOW, Wu, Hg^a, and Mo^a are expected, the results with ELO and Bp^a were not and will be discussed later.

We isolated and reverse-transcribed total reticulocyte RNA and amplified the cDNA as described. The PCR products were digested with the appropriate restriction endonuclease and electrophoresed in an ethidium bromide-stained gel. Densitometric scanning of the gel allowed us to estimate the relative content of mRNA corresponding to the two band 3 alleles of the heterozygous subjects. Using this semiquantitative technique, we have not detected significant differences between the content of the two band 3 cDNA alleles, suggesting that the mutations affect neither the transcription of the band 3 gene alleles nor the subsequent RNA processing (data not shown).

SDS-PAGE electrophoresis showed a normal electrophoretic pattern of band 3 protein in the carriers of the blood group antigens, including similar profiles of band 3 glycosylation (not shown). Subsequent densitometric scanning detected normal content of band 3 and other RBC membrane proteins. Because band 3 is the principal anion exchange protein of the RBC membrane, we compared anion fluxes in erythrocytes from carriers of the studied blood group antigens with those in normal RBCs. We did not detect significant differences between heterozygotes for the seven studied antigens and control subjects. Results of the DIDS titration of sulfate influx in the cells expressing the ELO, Wu, and Hg^a antigens are shown in Fig 3.

As of 1995, 37 low incidence antigens were recognized as being discrete genetic characteristics unassigned to a particular blood group system.59 Many of the antibodies to these low incidence antigens occur together in multispecific sera.60 Often these same sera contain antibodies to glycophorin A determinants or to Wr^a, whose antithetical antigen Wr^b has been shown to result from the interaction between glycophorin A and band 3.23,24 36 Thus, we undertook a concerted effort to identify band 3 polymorphisms recognized by these multispecific sera.

This work has led to the identification of seven new band 3 mutations. All substitutions were studied in more than one subject and the molecular basis of some of them was evaluated by enzyme treatment of intact, antigen-carrying erythrocytes. Based on these results, the International Society for Blood Transfusion (ISBT)/Working Party on Blood Group Terminology assigned the antigens to the Diego blood group as 010008 (ELO), 010009 (Wu), 010010 (Bp^a), 010011 (Mo^a), 010012 (Hg^a), 010013 (Vg^a), and 010015 (BOW).

The clinical significance of the seven characterized antigens and their corresponding antibodies is unclear. The antigens do not represent a major problem in blood transfusion, because the majority of donors will lack the antigen. With the exception of ELO,61 62 they have not been reported in association with a hemolytic disease of the newborn.

Because it is not clear whether amino acids in the immediate vicinity of the mutated amino acid residues are sufficient to form the epitope of the blood group antigen or whether the epitope depends on the conformation of other portions of band 3, we treated RBCs with enzymes known to modify external loops of band 3. α-Chymotrypsin cleaves band 3 at tyrosines 553 and 555 of the third ectoplasmic loop and, quite predictably, α-chymotrypsin treatment abrogated agglutination of the Vg^a-, Wu-, and BOW-positive cells with the corresponding antibodies. The agglutination of Hg^a- and Mo^a-positive cells was not affected, because their epitopes are not located in the third loop. The reactivity of both examples of anti-ELO was unaffected by trypsin or ficin treatment of antigen-positive RBCs. However, whereas one anti-ELO was unaffected by α-chymotrypsin or pronase, the other was nonreactive with RBCs treated with either of these enzymes. Although this has been observed previously,63 the reason has not been determined. Perhaps some anti-ELO antibodies recognize an epitope formed by the interaction of loop 1 of band 3 with another membrane component that is α-chymotrypsin or pronase sensitive (such as the third loop of band 3). Unexpectedly, neither example of anti-Bp^a agglutinated antigen-positive RBCs that had been treated with any of the enzymes. Again, it is possible that the epitope recognized by anti-Bp^a requires an interaction of the third loop of band 3 with another, enzyme-sensitive component.

Comparison of the 12 known AE1, AE2, and AE3 sequences predicts a relatively low degree of conservation for the ectoplasmic loops compared with the transmembrane segments. Accordingly, five mutations occur in poorly conserved amino acids, whereas one, asparagine 569, that is mutated to Lys in the Bp(a+) subjects is conserved in all 12 AE homologues. The high degree of evolutionary conservation of asparagine 569 and its position at the beginning of the sixth transmembrane segment in the band 3 model (Fig 2) suggested that its substitution by positively charged lysine may have major structural and functional consequences. However, we have observed neither morphological abnormalities of the Bp(a+) RBCs nor differences between DIDS titration of sulfate influx in the Bp(a+) and control RBCs. Proline 561, mutated in BOW, is conserved in AE1 and AE2; however, only 3 of 5 AE1 sequences contain proline in the corresponding position. With the exception of BOW, we have studied DIDS-inhibitable sulfate influx in fresh erythrocytes from carriers of the other band 3 mutations and found no effect on sulfate influx. Based on these results, we propose that the first, third, and fourth ectoplasmic loops are not involved in the regulation of band 3-mediated anion exchange.

The main contributions of this work, besides clarifying the molecular basis of seven blood group antigens, are twofold. First, the results strongly support extracellular localization of the mutated amino acids. Because available serological data suggest that additional low incidence blood group antigens may be carried by band 3, ongoing characterization of such antigens may further improve the structural model of band 3.

Second, some of the antigens are located in the regions that have been implicated in the adhesion of modified RBCs to vascular endothelium.64-71 Band 3 was hypothesized to function as a receptor during invasion of human erythrocytes by Plasmodium falciparum.64 Naturally occurring anti-band 3 autoantibodies were found to recognize modified band 3 protein on the surface of Plasmodium falciparum-infected erythrocytes.65 Cytoadherence-related neoantigens onPlasmodium falciparum-infected human erythrocytes, resulting from the exposure of normally cryptic regions of the band 3 protein,66 were placed into the third ectoplasmic loop of band 3.67,68 The antibodies in sera of individuals living in a malaria-endemic region recognize peptide motifs from the extracellular loops of band 3,69 and the immune response to these band 3 neoantigens is associated with low parasite density.70 Monoclonal antibodies that react with human band 3 residues 542-555 from the third external loop recognize different band 3 conformations in uninfected and Plasmodium falciparum-infected erythrocytes.71 The cytoadherence of Plasmodium falciparum could be blocked both with synthetic peptides corresponding to motifs from the third ectoplasmic loop of band 3.67 Erythrocytes from carriers of low incidence blood group antigens in ectoplasmic loops of band 3 may serve as a model for evaluation of the sequence requirements for adhesion of Plasmodium falciparum-infected erythrocytes to the vascular endothelium.

Kay72 assigned the senescent RBC antigen to the third ectoplasmic loop, specifically amino acids 538-554. Erythrocytes carrying polymorphisms in the external loops of band 3 will again be useful for evaluation of the role of band 3 in erythrocyte cell aging. It is interesting to note that multiple antibodies to these low prevalence antigens are often found concomitantly in sera that contain autoreactive erythrocyte antibodies as well as in sera from individuals who have not received any prior RBC stimulus.

Finally, in a recent communication, Thevenin et al73reported that synthetic peptides derived from the second and third ectoplasmic regions of band 3 completely inhibited adherence of sickle cells to an endothelial monolayer in a static assay. These results again suggested that the third external loop of band 3 plays a role in the sequence-specific adhesion of modified RBCs to the vascular endothelium.

The majority of the data on the adhesion of parasitized and sickled erythrocytes have been obtained from in vitro studies using antibodies and synthetic peptides. Both these experimental approaches are prone to artifacts. Large antibody molecules may interfere with numerous interactions upon binding to the RBC surface. Inhibition of interactions by synthetic peptides is also frequently nonspecific, and the peptides may mimic other yet unknown antigens with similar or identical amino acid sequences. Erythrocytes from donors with substitutions in the ectoplasmic loops of band 3 represent therefore a valuable system for testing of the role of this portion of band 3 in erythrocyte aging, in cytoadherence of malarial parasites, or in adhesion of parasitized and sickled RBCs to the endothelium.
