To the Editor:

Hereditary spherocytosis (HS) is a common inherited anemia characterized by the presence of spheroidal red cells and increased osmotic fragility of erythrocytes.1 This disorder is heterogeneous in terms of its clinical presentation, molecular basis, and inheritance.2 HS mutations have been ascribed to several genes,1 including the β-spectrin gene. So far 13 β-spectrin mutations have been described associated with HS.3-6

We have studied a Brazilian family with HS diagnosed in eight subjects from two generations and inherited in an autosomal dominant fashion (Fig 1). The propositus was a 28-year-old black man, who presented compensated hemolytic disease with splenomegaly, hyperbilirubinemia, increased osmotic fragility, and a regular number of spherocytes and acanthocytes in the blood smear (Fig1). His recent hematological profile was: hemoglobin (Hb) 15.0 g/dL, red blood cell 4.49 × 1012/L, mean corpuscular volume 88 fL, mean corpuscular hemoglobin concentration 38.0 g/dL, reticulocyte count 530 × 109/L (11.8%). His mother, uncle, and two cousins were splenectomized. Densitometric scans of Coomassie blue–stained sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) of the propositus membrane proteins showed an 18% reduction in spectrin content (Fig 1). This pointed to the β-spectrin gene as the most likely candidate for bearing the primary defect. Therefore, we started screening for mutations in the β-spectrin gene. This was performed through the amplification of the individual exons of the β-spectrin gene with intronic primers. The amplification products were submitted to nonradioactive single-strand conformation polymorphism (SSCP) technique in a PhastSystem apparatus (Pharmacia, Uppsalla, Sweden) to detect sequence abnormalities. The DNA amplification products of exon 2 of the patient and his mother showed an identical band shift in two independent experiments (Fig2). No such band pattern was observed in 2 independent controls, nor was it observed in 12 other HS patients with spectrin deficiency and acanthocytes in the blood smear, suggesting that this patient bore a unique or at least a rare sequence alteration in this region of the gene. Sequencing revealed an heterozygous A → G nucleotide substitution at the translation initiation codon of the β-spectrin gene (ATG → GTG) (Fig3). This is the first report of an initiation codon mutation in this gene, but such mutations have already been reported for other genes, including the β-globin gene.7 In this case, the mutations led to β0-thalassemia phenotypes, suggesting that alternative triplets for ATG are nonfunctional as initiation codons for this gene. Therefore, we suggest that in our case translation from the mutated allele is also impaired. Based on this supposition, the ATG → GTG mutation could be held responsible for the reduced spectrin content observed in the patient. The propositus would have only one functional allele and, as β-spectrin quantities are considered limiting for membrane assembly, this could account for the picture of spherocytosis observed in this patient.

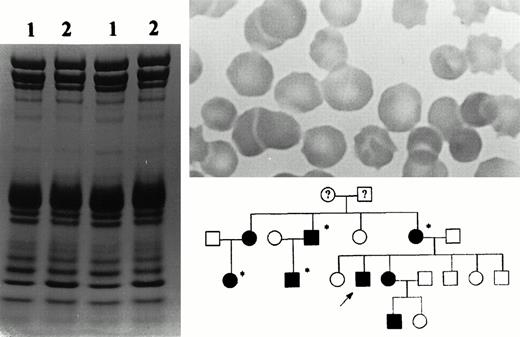

Fig. 1.

(Left) 3.5% to 17% exponential gradient SDS-polyacrylamide gel of total membrane proteins stained with Coomassie blue, showing a reduction of spectrin content in the patient (lane 2) compared with the control (lane 1). (Upper right) Blood smear of the propositus showing regular numbers of spherocytes and acanthocytes. (Lower right) Family pedigree showing all affected members from two generations. Splenectomized individuals are indicated by asterix and the proband is indicated by an arrow.

Fig. 1.

(Left) 3.5% to 17% exponential gradient SDS-polyacrylamide gel of total membrane proteins stained with Coomassie blue, showing a reduction of spectrin content in the patient (lane 2) compared with the control (lane 1). (Upper right) Blood smear of the propositus showing regular numbers of spherocytes and acanthocytes. (Lower right) Family pedigree showing all affected members from two generations. Splenectomized individuals are indicated by asterix and the proband is indicated by an arrow.

Close modal

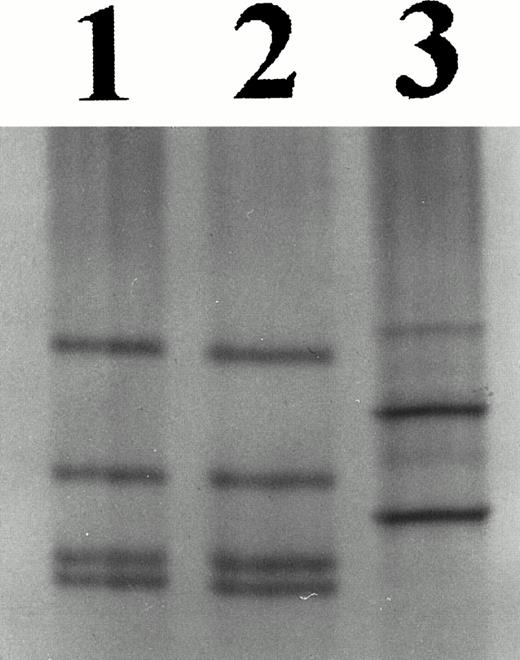

Fig. 2.

Nonradioactive SSCP of exon 2 showing a band shift in the amplification products of the patient (lane 1) and his mother (lane 2), but absent in a control (lane 3).

Fig. 2.

Nonradioactive SSCP of exon 2 showing a band shift in the amplification products of the patient (lane 1) and his mother (lane 2), but absent in a control (lane 3).

Close modal

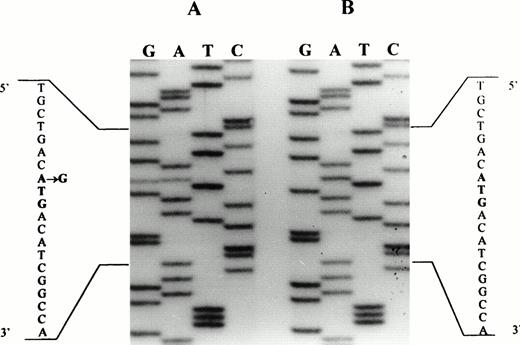

Fig. 3.

Direct sequencing of the amplified DNA from a control (B) and the patient (A), showing an A → G substitution in the latter. The initiation codon is indicated by bold letters.

Fig. 3.

Direct sequencing of the amplified DNA from a control (B) and the patient (A), showing an A → G substitution in the latter. The initiation codon is indicated by bold letters.

Close modal

This work was supported by the Conselho Nacional de Desenvolvimento Cientifico e Tecnológico (CNPq) and Fundação de Amparo à Pesquisa do Estado de São Paulo (Fapesp).

1
Lux S, Palek J: Disorders of the red cell membrane, in RI Handlin, SE Lux, TP Stossel, eds: Blood: Principles and Practice of Hematology. Lippincott, Philadelphia, PA, 1995, p 1701
2
Becker

PS
Lux

SE
Hereditary spherocytosis and related disorders.
Clin Haematol
14
1985
15
3
Becker

PS
Tse

WT
Lux

SE
Forget

BG
β-spectrin Kissimmee: A spectrin variant associated with autossomal dominant hereditary spherocytosis and defective binding to protein 4.1.
J Clin Invest
92
1993
612
4
Hassoun

H
Vassiliadis

JN
Murray

J
Yi

SJ
Hanspal

M
Ware

RE
Winter

SS
Chiou

S-S
Palek

J
Molecular basis of spectrin deficiency in β spectrin Durham.
J Clin Invest
96
1995
2623
5
Hassoun

H
Vassiliadis

JN
Murray

J
Yi

SJ
Hanspal

M
Johnson

CA
Palek

J
Hereditary spherocytosis with spectrin deficiency due to an unstable truncated β spectrin.
Blood
87
1996
2538
6
Hassoun

H
Vassiliadis

JN
Murray

J
Njolstad

PR
Rogus

JJ
Ballas

SK
Schaffer

F
Jarolim

P
Brabec

V
Palek

J
Characterization of the underlying molecular defect in hereditary spherocytosis associated with spectrin deficiency.
Blood
90
1997
398
7
Baysal

E
Carver

MFH
The β- and δ-thalassemia repository.
Hemoglobin
19
1995
213
