Biology and therapeutic targeting of molecular mechanisms in MPNs

Philadelphia chromosome–negative myeloproliferative neoplasms (MPNs) including polycythemia vera (PV), essential thrombocythemia (ET), and myelofibrosis (MF) are chronic blood cancers characterized by an excessive production of mature blood cells of the myeloid lineage. In more than 90% of the cases, MPNs develop because of the acquisition of an MPN phenotypic driver mutation in 1 of 3 genes: JAK2, CALR, or MPL, with the resultant activations of Janus kinase (JAK)–signal transducer and activator of transcription (STAT) signaling.^1,2 Current treatment for PV and ET is largely focused on reducing the risk of thrombosis, with cytoreduction indicated for those patients deemed to be at high risk. Older age (>60 years), prior history of thrombosis, presence of the JAK2V617F mutation, and coexisting cardiovascular risk factors are all considered to be factors associated with increased thrombotic risk. In contrast, mutations in CALR have been demonstrated to confer lower risk of thrombosis,³ and patients with type 1 CALR-mutated MF also have better leukemia-free and overall survival than those with JAK2- or MPL-mutated MF.⁴ Although ruxolitinib was reported to confer an overall survival advantage in a pooled analysis of the COMFORT trials,⁵ current treatments in MF are largely palliative to reduce symptom burden, blood counts, and spleen size, with no therapies known to alter the disease course substantially, except for allogeneic hematopoietic stem cell (HSC) transplantation.

However, greater understanding of the biological mechanisms underlying MPN pathogenesis have led to more rationally designed therapies, including interventions that may result in disease modification.⁶ Clinical trials have primarily been focused on MF, where prognosis and complications are often more grave, but novel treatments are also being evaluated in ET and PV. Here, we review the most recent data elucidating mechanisms of disease in MPNs, with a focus on those with therapeutic potential. This review will not cover MPN-related thrombosis or stem cell transplantation, both of which have been reviewed elsewhere.^7,8

Understanding of the pathophysiology of MPNs was transformed after the discovery in 2005 that mutations in JAK2, specifically the JAK2V617F mutation, were found in nearly all patients with PV and in ∼50% to 60% of patients with ET and MF.^9-12 It was subsequently established that the JAK2V617F mutation arises in the long-term HSC compartment, consistent with the fact that it can be detected in both myeloid and lymphoid lineage cells.^13-15 Similarly, CALR and MPL mutations have also been found to occur in multipotent HSCs.^16,17 Although sequencing studies in humans^1,18 and multiple MPN mouse models^19-21 have shown that an MPN phenotypic driver mutation alone is sufficient to cause a full MPN phenotype, the JAK2V617F mutation can be detected in asymptomatic individuals as clonal hematopoiesis, indicative of a preclinical phase of disease.²² Consistent with this, 2 independent studies have recently shown evidence for a long latency period between JAK2V617F mutation acquisition and MPN presentation.^23,24 Through whole-genome sequencing of HSCs, Williams et al and Van Egeren et al performed phylogenetic reconstruction of clonal lineage histories in patients with JAK2-mutated MPNs.^23,24 Both groups found that the JAK2 mutation arose decades before disease presentation, and in some cases was acquired in utero, with a mean latency between mutation acquisition and disease presentation of ∼30 years. Similar findings were recently reported for CALR-mutant MPN, in which monozygotic twins presented at ages 37 and 38 with MF. Using whole-genome sequencing and lineage tracing, the authors identified a common in utero origin for the CALR-mutant clone, with twin-to-twin transplacental transmission and subsequent MPN development in adulthood.²⁵ A recent study using mathematical modeling to infer disease initiation in patients with CALR and JAK2 mutation found that, in general, CALR mutations are acquired later in life and have a stronger HSC growth advantage than JAK2 mutations.²⁶ This is consistent with a younger age of MPN onset in patients with CALR mutation than in those with JAK2 mutation²⁷ and the finding that the CALR-mutant variant allele fraction (VAF) measured in granulocytes is typically 40% to 50% at the time of ET diagnosis,²⁸ suggesting that heterozygous CALR-mutant HSC quickly become clonally dominant. Following acquisition of an MPN phenotypic driver mutation, the subsequent clonal expansion of the HSC-mutated clone is likely influenced by additional factors, including germ line factors,²⁹ occurrence of other mutations in a particular order,^30,31 inflammation,^32,33 and the bone marrow (BM) microenvironment.^34,35 These recent findings reframe MPNs as a chronic disease with a long precursor state, in which the disease presentation is a late phase and fit clones have reached a detectable level that results in symptoms. Given the lifelong trajectories of MPNs, one wonders if the current treatment paradigm for ET and PV, in which therapies are targeted at reducing vascular risk and low-risk patients are often observed, should shift to earlier interventions.

Targeting the HSC compartment is an appealing approach, given that it would eradicate disease at its source. This, however, has been challenging given that long-term HSCs are generally resistant to therapeutic targeting, likely because of their quiescent state. It is also difficult to identify therapeutic targets unique to the MPN stem cell that spare healthy HSCs and leave them unaffected. Among current MPN therapies, interferons are notable for their capacity to induce durable molecular responses. In addition, interferons have a long history of clinical efficacy in MPNs, particularly in patients with ET and PV.^36,37 Although the mechanism of action of interferons is multifactorial, molecular responses observed in patients with JAK2-mutant MPN treated with pegylated interferons are likely due to the differential effects of interferon on JAK2-mutated HSCs over healthy HSCs.

There has been a resurgence of interest in interferons as treatment for MPNs, given clinical data indicating that interferons can reduce the JAK2V617F mutant allele burden and, in some cases, even induce complete molecular remission.^38,39 In mice, it has been shown that interferon induces HSC exit from quiescence and differentiation into mature progenitors, resulting in preferential depletion of JAK2-mutated HSCs,^40,41 a finding that has also been validated in human MPNs^42,43 (Figure 1A). Using JAK2V617F mouse models and patient samples, Rao et al found that prolonged interferon stimulation preferentially induced expansion of a megakaryocyte-biased CD41^Hi HSC subset at the expense of more primitive CD41^Lo populations.⁴⁴ Because CD41^Hi subsets have less self-renewing capabilities, this biased expansion could result in the eventual exhaustion of MPN-sustaining HSCs. Treatment with interferons has also been shown to result in accumulation of reactive oxygen species and induction of DNA damage preferentially in JAK2-mutant HSCs in mice.⁴⁵ Interestingly, molecular responses are distinct in patients with JAK2- vs CALR-mutated MPNs.⁴⁶ Sequential next-generation sequencing of patients treated with pegylated interferons, in the DALIAH trial, showed that patients with a JAK2 mutation had a significant reduction in VAF at 24 months in response to interferon, whereas patients with a CALR mutation did not,⁴⁶ consistent with retrospective data and a more recent prospective observational study showing that CALR-mutant progenitor cells are less responsive to interferon than JAK2-mutant progenitors.^43,47 Overall, hematologic responses with hydroxyurea and pegylated interferon were similar in both the DALIAH and MPN-RC 112 randomized phase 3 trials, which may be partially because of the high discontinuation rates observed in those who experienced pegylated interferon-related toxicity. However, greater decreases in JAK2V617F VAF were observed with longer treatment duration of pegylated interferon.^46,48 Notably, treatment-emergent DNA-methyltransferase-3α (DNMT3A) mutations were identified in patients treated with interferons in the DALIAH trial, highlighting the importance of assessing molecular response not just in MPN phenotypic driver mutations, but more broadly, using sequential genomic profiling because divergent molecular responses may occur in independent clones or subclones in the same patient.⁴⁶

There have been ongoing efforts to improve existing interferon treatments in MPNs. The development of ropeginterferon, a monopegylated form of interferon with improved tolerability, has demonstrated superior hematologic and molecular responses than the use of hydroxyurea in patients with PV, although superior molecular responses only became apparent at 2 years.⁴⁹ The slow rate of molecular responses is partially because of the fact that titration of ropeginterferon to therapeutic dosing takes more than 6 months. However, sustained JAK2V617F molecular responses to ropeginterferon have been reported at 5 years.⁵⁰ Ropeginterferon is now approved in the United States and Europe for patients with PV in the frontline setting, regardless of risk status.

Identification of the downstream pathways that potentiate or bypass interferon response signaling may also lay the groundwork for combination therapies that improve interferon’s efficacy. For instance, promyelocytic protein (PML) is a tumor suppressor that is important in the induction of senescence and programmed cell death. PML is a target of arsenic trioxide (ATO) and is transcriptionally activated by interferons.⁵¹ In experimental studies, ex vivo treatment with ATO potentiated interferon-induced growth suppression in JAK2V617F progenitor cells and the combination of ATO with interferon enhanced hematologic and molecular responses in MPN mouse models compared with ATO or interferon alone.⁵² Unc-51–like kinase 1 (ULK1) has been identified as a mediator of interferon’s effects against clonal progenitor cells in MPNs. Interferon treatment activates ULK1-interacting Rho-associated kinases (ROCK1/2) resulting in a negative feedback loop suppressing interferon responses,⁵³ suggesting that combining ROCK inhibition with interferon may enhance treatment response in MPNs. Interferon activity has also been studied in combination with ruxolitinib, a JAK1/2 inhibitor. Although ruxolitinib antagonizes interferon-induced JAK1 signaling, the favorable activity of both treatments in MPNs can be retained with combination therapy. It has been shown that JAK/STAT pathway activation is enhanced with chronic interferon stimulation in JAK2V617F mouse models, and ruxolitinib therapy does not inhibit interferon-induced reactive oxygen species and DNA damage to JAK2V617F HSCs.⁴⁵ A phase 2 trial of ruxolitinib and pegylated interferon showed improvements in cell counts in 32 patients with PV and 18 with MF, although it was met with significant toxicity, particularly in patients with MF (32% discontinuation rate).⁵⁴

The JAK2V617F mutation lies within the pseudokinase domain of JAK2, which sits adjacent to its C-terminal tyrosine kinase domain. A crystal structure of the JAK2 pseudokinase domain harboring the JAK2V617F mutation was solved in 2012, and in 2022 the full-length structure of a homologous JAK mutant (JAK1V657F), complexed with a cytokine receptor intracellular domain, was revealed using cryo-electron microscopy.^55,56 This recent study advances the understanding of the basis for JAK dimeric activation, in the context of a V617F homologous mutant. Efforts to develop JAK2V617F-selective inhibitors are ongoing, but none have yet advanced to clinical testing.

Currently approved JAK2 inhibitors are not strongly clonally selective for the JAK2-mutant clone and act as competitive inhibitors on the adenosine triphosphate–binding site. Ruxolitinib, a JAK1/2 inhibitor, was first approved in patients with MF and later in those with PV who were refractory or intolerant to hydroxyurea.^57-59 Since ruxolitinib, there have been 2 additional Food and Drug Administration–approved JAK2 inhibitors for the treatment of MF. Fedratinib is a JAK2 and fms-like tyrosine kinase (FLT3) inhibitor that can be used as an alternative first- or second-line agent for MF.⁶⁰ Both ruxolitinib and fedratinib are limited by treatment-related adverse effects including cytopenias and are not recommended for use in patients with platelet counts <50 × 10⁹/L. Pacritinib, a JAK2, FLT3, and interleukin 1 receptor associated kinase 1 (IRAK1) inhibitor, was the third JAK2 inhibitor approved in MF and its label allows use in patients with baseline platelet counts <50 × 10⁹/L, based on the results of the PAC203 dose-finding and phase 3 PERSIST-1 and 2 trials.^61-64 Finally, since IRAK1 is also involved in inflammatory signaling pathways that may promote fibrotic progression,³⁵ inhibiting IRAK1 in MF may provide additional benefit.

Because one of the on-target toxicities of JAK2 inhibition is anemia, several JAK2 inhibitors worsen anemia, which is a common feature in MF. Anemia in MF is multifactorial and partially due to the inflammatory milieu in MF, and upregulation of hepcidin is associated with worsened anemia of inflammation.⁶⁵ Momelotinib is a selective inhibitor of JAK1, JAK2, and activin receptor type 1 (ACVR1), the latter of which is a transforming growth factor β (TGF-β) family member that controls iron storage and upregulates hepcidin. Inhibition of ACVR1 leads to decreased hepcidin production, allowing mobilization of sequestered iron and improved markers of erythropoiesis.⁶⁶ In patients with upfront intermediate-2/high-risk MF, momelitinib was associated with reduced transfusion requirements compared with ruxolitinib in the phase 3 SIMPLIFY-1 trial and was noninferior to ruxolitinib for spleen response but not for symptom response.⁶⁷ Recently presented data from the phase 3 MOMENTUM study among patients with MF previously treated with ruxolitinib demonstrated the superiority of momelitinib to danazol in symptom improvement and spleen reduction and noninferiority in transfusion independence. Though danazol is a supportive agent recommended by expert consensus guidelines,⁶⁸ it might have been a weak comparator arm because danazol is not expected to induce significant spleen or symptom responses in patients with MF.⁶⁹

Although JAK2 inhibitors represent a major step forward in the treatment of MPNs, they do not significantly decrease the JAK2- or CALR-mutant clonal burden, and with prolonged treatment, clinical resistance inevitably develops.^70,71 Concordant with this, JAK2 inhibitor resistance appears to be mediated by nonmutational mechanisms, suggesting that a strong selective pressure is not exerted on the JAK2-mutant clone in patients treated with JAK2 inhibitors (ie, mutations in JAK2 kinase domain are not observed).⁷² Advancement in the knowledge of JAK2V617F dimeric activation, as outlined here, continues to drive an interest in developing JAK2V617F-mutant–specific inhibitors.⁵⁶ Conditionally inducible JAK2V617F mouse models in which JAK2V617F expression can be switched off and the MPN phenotype is reversed support this approach.^73,74 Type II JAK2 inhibitors that bind JAK2 in an inactive conformation have been developed and reported to show enhanced selectivity for mutant JAK2 in preclinical models.^75,76 Targeting ubiquitination and degradation of mutated JAK2 is another novel approach to JAK2 inhibition currently under investigation, including design of proteolysis-targeting chimeras that degrade oncogenic JAKs and inhibition of deubiquitinases that stabilize the JAK2V617F protein.^77,78

Given the limitations of JAK2 inhibition, particularly in MF, there is an ongoing effort to develop several non-JAK2 inhibitors and regimens in combination with JAK2 inhibitors to increase pathway inhibition or to address MPN clones that are not JAK2 dependent. An in-depth overview of all novel inhibitors being investigated in the treatment of MPNs is outside the scope of this review, however, we highlight some promising therapies here. Table 1 also summarizes drugs with clinical data and known plans for future development.

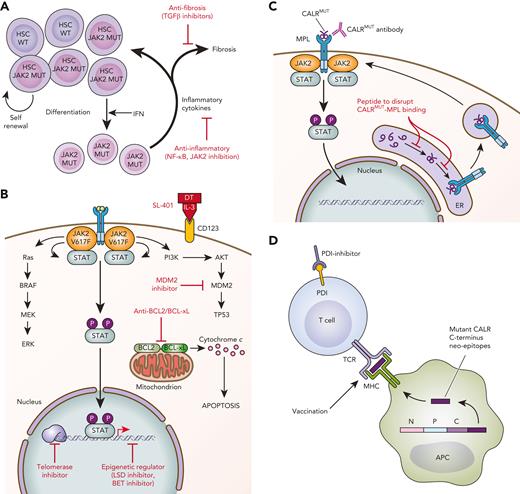

Multiple signaling pathways are activated in MPNs and contribute to disease progression and failure of JAK2 inhibition. These pathways include phosphatidylinositol 3-kinase (PI3K)/Akt/mammalian target of rapamycin⁹³ and extracellular signal-regulated kinases/mitogen-activated protein kinase ^94,95 (Figure 1B), providing rationale for combination therapies with ruxolitinib. Positive phase 2 data for the PI3Kδ inhibitor parsaclisib in combination with ruxolitinib in patients with MF with suboptimal responses to ruxolitinib have been reported in abstract form (Table 1)⁸⁵ and are the basis for ongoing phase 3 studies in the first-line (#NCT04551066) and second-line (#NCT04551053) settings.

JAK/STAT signaling pathway activation and resistance to JAK inhibitors also provide opportunities for targeting antiapoptotic pathways.^96,97 Antiapoptotic proteins including BCL-2, BCL-xL, and MCL-1 sequester proapoptotic BCL-2 homology 3 (BH3)–only proteins by binding to their BH3 motifs, thereby preventing the initiation of apoptosis.⁹⁶ Small molecules targeting these antiapoptotic proteins have been developed to trigger apoptosis by binding these proteins, freeing proapoptotic proteins, and promoting apoptosis.⁹⁶ Functional dissection of the critical survival pathways in human and mouse models bearing JAK2-mutated leukemias revealed upregulation of prosurvival (antiapoptotic) Bcl-2 family genes, dependence on BCL-2/BCL-xL, and the ability to overcome JAK2 inhibitor-acquired resistance with combined targeting of JAK2 and BCL-2/BCL-xL⁹⁸ (Figure 1B). Gain-of-function studies in JAK2V617F-mutated MPNs identified resistance to JAK inhibition upon activation of RAS and its effector pathways, which results in dependence on BCL-xL for survival.⁹⁷ Navitoclax (ABT-263) is an orally bioavailable BH3 mimetic that binds with high affinity to prosurvival BCL-xL, BCL-2, and BCL-W. Preclinical data indicate synergistic activity of combination JAK2 inhibition and navitoclax.⁹⁹ The REFINE phase 2 trial (n = 34) demonstrated safety and clinical activity with the addition of navitoclax to ongoing ruxolitinib in patients with persistent or progressive MF (Table 1).⁸⁴ An exploratory study provided preliminary evidence for BM fibrosis grade reduction in approximately one-third of patients with MF that received combination navitoclax and ruxolitinib, regardless of high-molecular risk mutation status, and reduction of ≥20% in driver VAF, suggesting disease modifying benefits as these treatment-induced biological changes were associated with increased survival.¹⁰⁰ Results from the ongoing phase 3 trials in the upfront (TRANSFORM-1) and relapsed/refractory (TRANSFORM-2) settings are awaited.

Epigenetic dysregulation is a feature of MPNs, and mutations in genes involved in DNA methylation (eg, TET2, DNMT3A, and IDH1/2) and chromatin modification (eg, ASXL1 and EZH2) are frequently found.¹ In the context of MF, IDH1/2, ASXL1, and EZH2 mutations are defined as high-molecular risk mutations and associated with adverse prognosis.¹⁰¹ Although ASXL1 and EZH2 mutations are associated with decreased response to JAK inhibitor therapy,^102,103 there are currently no rationally designed approaches to directly target mutant ASXL1 or EZH2. Except for small molecule inhibitors of mutant IDH1/2, current therapies targeting epigenetic regulators in MPN exert their effects indirectly.

NF-kB signaling is activated in MF and contributes to the proinflammatory state that characterizes MPNs and may drive the development of fibrosis. The bromodomain and extraterminal domain (BET) family of proteins bind to acetylated histones, facilitating transcription of genes regulated by NF-kB.¹⁰⁴ Preclinical work by Kleppe et al has demonstrated that dual JAK/BET inhibition results in the reduction of inflammatory cytokines and BM fibrosis in MPN mouse models.¹⁰⁴ Data from studies on mice suggest that EZH2 and ASXL1 mutations can sensitize MF-initiating cells to BET inhibition.^105,106 Pelabrisib, a first-in-class oral BET inhibitor, is currently being evaluated in the phase 2 MANIFEST study as a single agent and in combination with ruxolitinib, both in the upfront and refractory setting (#NCT04603495) (Table 1 and Figure 1B).⁸⁷

LSD1 is a histone demethylase important for regulating HSC self-renewal and proliferation through the epigenetic regulation of gene transcription. LSD1 activity is essential for enhancer silencing during cell differentiation and in myelopoiesis.¹⁰⁷ LSD1 allows myeloid progenitors to differentiate into mature myeloid lineage cells.¹⁰⁸ In a conditional in vivo knockdown mouse model of LSD1, loss of LSD1 resulted in an extensive expansion of myeloid progenitor cells with a concomitant severe inhibition of terminal granulopoiesis, erythropoiesis, and platelet production, with reversal of the cytopenias upon knockdown termination.¹⁰⁹ Increased LSD1 expression has been reported in MPNs, mainly in megakaryocytes.¹¹⁰ LSD1 inhibition in MPN mouse models resulted in reduced blood counts and spleen volume, improved BM fibrosis, and increased survival.¹¹¹ In human MPNs, results of monotherapy with bomedemstat, an oral LSD1 inhibitor, have been reported in abstract form for both patients with MF and ET in phase 1/2 clinical trials (Table 1), with reduced splenomegaly and symptoms observed in MF and reduction in platelet counts observed in ET (Figure 1B).^81,112 The impact of LSD1 inhibition on myeloid differentiation in human MPN BM has not yet been reported from these clinical trials; this will be an important parameter to follow given that loss of LSD1 in normal murine hematopoiesis results in an expansion of myeloid progenitor cells by blocking myeloid differentiation.¹⁰⁹ Interestingly, LSD1 inhibitors have been reported to induce myeloid differentiation in MLL-translocated acute myeloid leukemia, a mechanism initially thought to result from blocking LSD1 demethylase activity but more recently reported to be a consequence of disrupting the LSD1-GFI1B interaction on chromatin.^113-115

Other non-JAK inhibitor therapies currently in development for MPNs include the mouse double-minute homolog 2 (MDM2) inhibitor, which exerts its mechanism of action by restoring the TP53 pathway (Figure 1B).¹¹⁶ Gastrointestinal toxicities seen with this drug limit its future clinical development for PV and ET, although it is being evaluated in the relapsed or refractory setting in patients with MF with TP53 wild-type disease after JAK inhibitor failure (#NCT03662126) (Table 1). Increased telomerase activity and shortened telomeres are seen in MPNs, and telomerase inhibition results in the selective reduction of clonal megakaryocyte colony-forming units in MF and ET.¹¹⁷ A randomized, phase 2 trial of imetelstat, a telomerase inhibitor (Figure 1B), was completed in patients with intermediate-2/high-risk MF who were relapsed or refractory to ruxolitinib and demonstrated clinical improvements, including spleen and symptom responses at the higher dose and reduction of BM fibrosis in 40.5% and driver VAF in 42.1% of the patients (Table 1).⁸² At the recommended phase 2 dose, a median overall survival of 29.9 months was observed. A phase 3 trial (#NCT04576156) is currently underway. There are also data indicating that cell cycle genes regulated by activated JAK/STAT signaling promote MPN disease.¹¹⁸ Preclinical studies evaluating combination CDK4/6 inhibitors with ruxolitinib in mice show improvements in disease phenotypes.¹¹⁹ The addition of inhibitors of proto-oncogene serine/threonine-protein kinase (PIM1), also a cell cycle regulator, to ruxolitinib and CDK4/6 inhibitors similarly reduces disease features in MPN mouse models.¹²⁰

A novel approach, rationally designed based on preclinical studies, is the development of hepcidin mimetics in PV, with the goal of constraining mutant JAK2-driven erythrocytosis, and thus reducing/eliminating the need for therapeutic phlebotomy. Unlike in MF, in which increased hepcidin levels contribute to an inflammatory anemia, in PV, there is relative suppression of hepcidin without mobilization of hepatic iron stores or increased iron absorption.¹²¹ As a result, patients with PV often show evidence of iron deficiency even before therapeutic phlebotomy is initiated, including lower serum iron, ferritin, and transferrin saturation.¹²¹ Hepcidin mimetics provide a chemical therapeutic phlebotomy, with the goal of restricting iron for accelerated erythropoiesis while reducing systemic iron deficiency. Mini-hepcidin mimetics normalized splenomegaly and hematocrit levels in JAK2V617F–mutated mouse models of PV,¹²² and in phase 2 trials, the hepcidin mimetic rusfertide (PTG-300) similarly reduced hematocrit levels and therapeutic phlebotomy needs in patients with PV.⁹⁰ A phase 3 trial evaluating rusfertide vs placebo in patients with PV requiring frequent phlebotomy is currently underway (#NCT04057040 and #NCT04767802).

Approximately 80% of patients with ET and MF without JAK2 mutations will have mutations in CALR.^16,123,CALR encodes for calreticulin, an endoplasmic reticulum chaperone protein. MPN-associated CALR mutations are insertions and/or deletions in exon 9 that induce a frameshift, resulting in the generation of a novel positively charged C-terminus to the mutant CALR protein. This mutant-specific C-terminus of mutant CALR enables pathogenic binding with MPL, ultimately resulting in ligand-independent MPL/JAK/STAT signaling pathway activation^124-127 (Figure 1C). The specific requirements for the interaction of mutant CALR with MPL have revealed potential opportunities for therapeutic targeting. For instance, mutant CALR forms homomultimers to bind and activate MPL.¹²⁸ Zinc is a cofactor necessary for mutant CALR homomultimerization, and ex vivo treatment with zinc chelators disrupted CALR^del52-MPL signaling complexes in CALR-mutated cells, identifying the reduction in intracellular zinc levels as a potential treatment approach in CALR-mutated MPNs.¹²⁹ N-glycosylation of the extracellular domain of MPL and the lectin-binding sites of mutant CALR are also required for the mutant CALR-MPL interaction.^127,130,131 Whole-genome CRISPR screening recently identified N-glycosylation as a therapeutic vulnerability in mutant CALR-transformed hematopoietic cells, and chemical inhibition of N-glycosylation resulted in an improvement of disease features in CALR-mutant mouse models and reduced growth of CALR-mutant patient-derived BM in vitro.¹³² Other approaches tested in the preclinical setting include (1) delivering a wild-type CALR C-terminal synthetic peptide that is taken up by the cell with the goal of abolishing the intracellular mutant CALR binding interaction with MPL (Figure 1C) and (2) targeting the inositol requiring enzyme 1a (IRE1a)/X-box binding protein 1 (XBP1) axis of the unfolded protein response, since CALR is an endoplasmic reticulum chaperone.^133-135

CALR-mutated MPNs also provide unique opportunities for immunologic treatment strategies given that the novel mutated C-terminus is tumor specific. Because the mutant CALR-MPL complex traffics to the cell surface, interest in therapeutically targeting mutant CALR using a mutant CALR blocking antibody (Figure 1C) has grown. Three recent studies reported the development and testing of therapeutic monoclonal antibodies targeting the C-terminal mutant CALR sequence in preclinical models,^136-138 with 1 of the studies also testing the antibody (4D7) against primary MPN cells in vitro and demonstrating reduced megakaryocyte proliferation, specifically in CALR-mutant (but not JAK2-mutant) cells.¹³⁶ Similar findings in primary MPN cells were recently reported for a fully human immunoglobulin G1–mutant CALR antibody (INCA033989) as a plenary abstract at the 2022 American Society of Hematology meeting.¹³⁹ In addition, using a chimeric mutant CALR BM transplant model, the authors reported that treatment with INCA033989 selectively targeted CALR-mutant platelets, megakaryocytes, and long-term HSCs. In aggregate, these preclinical studies indicate that therapeutic mutant CALR antibodies have specificity and efficacy, and further clinical development is awaited.

Using in silico approaches, it has been shown that the mutant-specific C-terminus of mutant CALR is predicted to generate multiple neoepitopes that bind to major histocompatibility class I (MHC-I) with high affinity.¹⁴⁰ This has led to interest in developing T-cell receptor–mediated immune therapy, including vaccination approaches (Figure 1D). However, peptide-stimulated T-cell responses against mutant CALR epitopes are decreased in patients with MPN compared with those in healthy control subjects, suggesting defects in immune response and/or antigen presentation in MPN.¹⁴¹ Consistent with this, T cells from patients with MPN exhibit an exhausted phenotype with increased expression of immune checkpoint receptors,¹⁴² and programmed cell death protein 1 (PD-1) inhibitor monotherapy failed to show clinical responses in a phase 2 single-arm study.¹⁴³ Although it has not been directly demonstrated that mutant CALR–derived neoepitopes are presented by MHC-I,¹⁴⁴ indirect evidence suggests that they are. MHC-I alleles predicted to bind to CALR-mutated neoepitopes with high affinity are underrepresented in patients with CALR-mutant MPN (as compared with patients with JAK2-mutant MPN and population-matched healthy control subjects). This suggests that immune-mediated clearance by individuals expressing a mutant CALR neo-epitope high-affinity binding MHC-I allele occurs such that CALR-mutant MPN may not manifest clinically in these individuals.¹⁴⁰ In the first vaccine trial with a mutant CALR peptide, none of the 10 patients had any clinical response and only 2 had a CD8⁺ T-cell response, consistent with impaired MHC processing and/or presentation of neoepitope antigens.¹⁴⁵ Alternative approaches to enhance the mutant CALR-directed T-cell immune response include the use of a modified vaccine approach, such as heteroclitic peptides, which optimize MHC-I binding affinity,¹⁴⁰ or combination approaches with an MPN-directed neoantigen vaccine plus an immune checkpoint inhibitor, which is the focus of a recently opened phase 1 clinical trial (#NCT05444530).

The BM microenvironment and, in particular, the development of fibrosis are key aspects of disease pathophysiology in MF. The cell nonautonomous effects of the MPN clone on the BM niche via the release of inflammatory mediators are central to the pathogenesis of myelofibrotic transformation.¹⁴⁶ Notably, the physical properties of a fibrotic BM may also propagate a proinflammatory environment, which further establishes a self-reinforcing fibrotic niche.¹⁴⁷ Nonclonal mesenchymal stromal cells (MSCs) are thought to be a key MF-promoting cellular population within the BM niche, with recent studies implicating Gli1⁺ and Lepr⁺ MSCs as fibrosis-driving cells in the BM.^35,148 Activation of the stroma by clonal MPN cells is likely driven by multiple inflammatory mediators; for example, an increased expression of CXCL4, a chemokine secreted by megakaryocytes, has been linked to progression of BM fibrosis and may be a potential drug target.³³ TGF-β is also critical to MSC differentiation, with the loss of TGF-β signaling abrogating the development of MF in MPL and JAK2 MPN mouse models.¹⁴⁹ Drugs targeting TGF-β, including TGF-β1–trap AVID-200, have therefore come under clinical investigation for the treatment of MF. Recently presented data demonstrated that, in patients with MF previously treated with ruxolitinib, AVID200 reduced TGF-β1 plasma levels and circulating inflammatory cytokines, although no reduction in BM fibrosis grade or cellularity was observed.⁸⁰

Although MPN encompasses a heterogenous and biologically complex set of chronic blood cancers, advances in understanding its molecular pathogenesis provide a framework toward developing improved treatments with the potential to target MPN disease–propagating stem cells. MPNs arise in the HSC compartment and have a long preclinical phase. MPN phenotypic driver mutations alone are sufficient to induce overt MPN. Increasing genomic complexity is observed with increased age and longevity of disease. The development of rationally designed therapies focused on targeting the clonal advantage conferred by MPN phenotypic driver mutations is likely to be clinically impactful, particularly if instituted in earlier stages of overt MPN or even in individuals with JAK2-mutant clonal hematopoiesis. An increased understanding of which individuals with JAK2-mutant clonal hematopoiesis are at the highest risk of developing overt MPN will help in designing clinical trials focused on MPN prevention. Continued efforts to uncover therapeutic vulnerabilities for high-molecular risk mutations associated with adverse prognosis and therapeutic resistance (eg, ASXL1, EZH2, SRSF2, U2AF1, and TP53) remain a high priority. The development of mutational-agnostic immunological therapies (eg, antibodies) offers the potential to overcome the therapeutic resistance of these mutations to currently available MPN therapies. Research advances enabling increasingly sophisticated studies of primary MPN tissues will continue to reveal new insights into MPN biology and uncover novel targets for therapeutic intervention.

The authors thank Naveen Pemmaraju and Pankit Vacchani for sharing their presentations. The authors thank the patients and their families for participating in MPN-related research studies.

This study was supported by funding from the National Institutes of Health, National Heart, Lung, and Blood Institute (R01HL131835) (A.M.); Department of Defense Congressionally Directed Medical Research Programs (W81XWH2110909) (A.M.); and the Starr Cancer Consortium (I15-0026) (A.M.); and by research funding (K08CA245209) (J.S.G.).

Contribution: All authors planned, wrote, and edited the manuscript.

Conflict-of-interest disclosure: A.M. receives research funding from Relay Therapeutics; has consulted for Janssen, PharmaEssentia, Constellation, Aclaris, Cellarity, Morphic, Biomarin, Protagonist, and Incyte; has received research funding from Janssen and Actuate Therapeutics; and received a speaker honorarium from AOP Health. J.S.G. serves on advisory boards for AbbVie, Astellas, and Takeda; and has received institutional research funds from AbbVie, Genentech, Pfizer, Prelude, and AstraZeneca. J.H. declares no competing financial interests.

Correspondence: Ann Mullally, Harvard Institutes of Medicine Building, Harvard Medical School, Harvard University, Room 738, 77 Ave Louis Pasteur, Boston, MA 02115; e-mail: ann_mullally@dfci.harvard.edu.
