Clonal hematopoiesis in acquired aplastic anemia

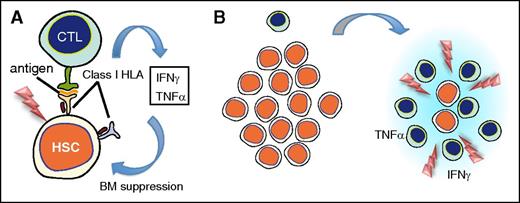

Acquired aplastic anemia (AA) is a prototype of bone marrow (BM) failure caused by immune-mediated destruction of hematopoietic stem and/or progenitor cells, where autoreactive T cells are supposed to play a central role (Figure 1).^1-6  Although almost uniformly terminating in a fatal outcome in a previous era, management of AA has drastically improved since the late 1970s with the introduction of allogeneic stem cell transplantation and IST, as well as optimized supportive care.⁵  However, the entire picture of the disease is more complicated than expected for a simple immune-mediated marrow failure. Among others, the frequent development of late clonal diseases, including paroxysmal nocturnal hemoglobinuria (PNH) and myelodysplastic syndromes (MDS)/acute myeloid leukemia (AML), is known as an enigmatic complication in AA, which may not instantaneously be understood under the category of immune-mediated disorders.^7,8  The enigma is further highlighted by the evidence suggesting the presence of clonal hematopoiesis (CH), even in patients who do not develop apparent clonal diseases.⁹  It should be noted that clonal evolution (ie, evolution of clones) does not necessarily mean the development of cancer or any other diathesis, because it can be compatible with normal homeostasis.^10,11

Indeed, clonality in AA has been one of the long-standing issues in hematology, which was first implicated by Dameshek asking the question, What do AA, PNH, and hypoplastic leukemia have in common?¹²  Since then, many authors have revisited his riddle, which could now be rephrased as, What is the common underlying mechanism for, and the link between, CH and the evolution of clonal disorders in AA?⁸  More recently, the issue has been newly addressed by using revolutionized sequencing technologies, unmasking a unique picture of CH in AA frequently accompanied by somatic mutations commonly seen in myeloid malignancies.^13-18  Combined with seminal findings on CH in aged normal individuals,^19-21  as well as on preleukemic clones²²  in patients with hematologic malignancies,^23-25  the finding on somatic mutations in AA provides new insight into the origin and the mechanism of frequent CH in AA and its impact on the late development of MDS and AML.^13,15,18  This review summarizes recent progress in the current understanding of CH in AA in relation to the pathogenesis of late clonal diseases.

The early evidence suggesting a link between AA and clonality was an unduly high incidence of PNH and MDS/AML among patients with AA.⁸  Although their incidence substantially increases among patients who are successfully treated by IST,^9,12  the complication of clonal diseases seems to be an intrinsic feature of AA irrespective of IST, because it had long been noted even before the widespread use of IST.²⁶

PNH is a unique form of BM failure characterized by acquired hemolytic anemia and thrombosis, which is caused by a clonal expansion of cells derived from a hematopoietic stem cell (HSC) carrying a somatic mutation involving the PIGA gene.²⁷ PIGA-mutated cells show defective cell surface expression of glycosylphosphatidylinositol (GPI)-anchored proteins, such as CD55 and CD59, which is responsible for the vulnerability to complement-mediated hemolysis.²⁷  AA and PNH are closely related conditions: AA may develop during the course of PNH and vice versa (AA/PNH syndrome), both being predisposed to AML and MDS.^28,29  Complication of clinically relevant PNH has been described in 15% to 25% of the patients with AA treated by IST.^30-35  Moreover, regardless of typical manifestations of PNH, GPI anchor–deficient, “PNH-type” cells are detectable at even higher frequencies (up to 67%) when assessed by sensitive flow cytometry using antibodies to CD55 or CD59 and/or fluorescent aerolysin (FLAER).^36,37

Another major category of late clonal diseases includes MDS and AML. The cumulative incidence of MDS/AML increases after IST, ranging from 5% to 15% within the observation period of 5 to 11.3 years.^35,38-40  Because the development of MDS/AML consistently conveys a dismal prognosis in AA patients, it is of particular importance to predict, diagnose, and initiate due interventions to these complications during the course of AA. However, this is often complicated by difficulty in diagnosing MDS among patients with AA, which represents a major challenge to clinicians and hematopathologists.

MDS is defined as refractory cytopenia caused by a neoplastic proliferation of clones committed to the myeloid lineage. The clones are thought to be neoplastic, in that their growth is no longer compatible with normal hematopoiesis, causing ineffective production of mature blood cells, enhanced apoptosis, and even progression to AML, although the clinical presentation is highly variable.^41,42  Thus, at least conceptually, clonality is an essential requisite for the pathophysiology of MDS, but for the sake of clinical/pathological diagnosis, clinicians and pathologists usually diagnose the involvement of a neoplastic process primarily relying on cell morphology, in which the presence of excess blasts (≥5%) (propensity to leukemia) and/or dysplasia (in ≥10% of myeloid cells) with or without increased (≥15%) ring sideroblasts (deregulated myelopoiesis) empirically, but consistently, indicates that the defective hematopoiesis is caused by malignant clones, although morphologic examination may not necessarily be consistent between observers (Figure 2).⁴¹  Alternatively, direct demonstration of a malignant clonal process by cytogenetics can establish the diagnosis of MDS, even in the absence of dysplasia or increased blast counts, but the borderline between malignant and benign lesions is obscured: a set of abnormalities, including −7/del(7q), −5/del(5q), del(13q), del(11q), del(12p)/t(12p), del(17p)/t(17p)/i(17q), idic(X)(q13), and other balanced and unbalanced translocations, is proposed to support the diagnosis of MDS irrespective of morphology, whereas −Y, +8, and del(20q) as a sole abnormality may not, because they can be found in aged, apparently normal individuals.^41,43,44  A substantial proportion of patients with persistent cytopenia lack conclusive morphology and cytogenetics and may presumptively be classified as ICUS.^45,46

The difficulty in diagnosing MDS among AA patients lies in the fact that both conditions often show indistinguishable phenotypes and may even coexist in the same patients, although patients with AA are nevertheless at high risk for MDS development. Many AA patients who ever responded to IST are still cytopenic and, even when a complete response is obtained, recurrence is common. In MDS, BM is typically normo- to hypercellular, but ∼10% of MDS patients show hypocellular marrow, mimicking nonsevere AA. Conversely, AA often displays mild to moderate dysplasia, especially in the erythroid lineage.⁴⁷  Several drugs (eg, antimetabolites) and viral infections can also produce an apparently dysplastic marrow picture. Accurate evaluation of increased blasts and the presence of myeloid dysplasia in the face of severely hypoplastic marrow is another diagnostic challenge.⁴⁸  Lastly, clonality is common among AA patients as seen below, further obscuring the border between AA and MDS.

In early studies, clonality in AA and other conditions was evaluated by detecting nonrandom X-chromosome inactivation (NRXI; ie, skewing from the expected 1:1 ratio for random lyonization).⁴⁹  van Kamp et al reported NRXI in 13 of 18 evaluable cases with AA.⁵⁰  Ohashi⁵¹  and Mortazavi et al⁵²  also reported high frequencies (∼40%) of NRXI, whereas frequencies are lower in other studies (11%-20%). The discrepancy seems to be explained partly by small sample sizes and also by different methods and genes/loci used for the detection of NRXI.^9,49  The interpretation of NRXI is further complicated by the presence of extreme skewing (>3:1) in normal females, which can occur during normal development (NRXI in neonates) but also can be acquired during normal aging. In a large study using a highly reliable human androgen receptor assay (HUMARA), NRXI was seen in 37.9% of normal females aged >60 years vs 16.4% of those aged 28 to 32 years and 8.6% of neonates.^53,54

Clonality is also evidenced by cytogenetic abnormalities, which have been reported in 4% to 11% of AA cases,^8,18,55-58  although difficulty in obtaining sufficient numbers of metaphases from the failed marrow could underestimate the real frequency, particularly at the time of diagnosis. Predominant lesions are numerical abnormalities, which include those commonly seen in myeloid malignancies, such as +8, −7, and del(5q), whereas other lesions, including +6 and +15, are rarely seen in MDS/AML. Among these, MDS-specific abnormalities defined in the World Health Organization (WHO) criteria would support the diagnosis of MDS, even without definitive morphological evidence. Especially, −7 is most frequently seen with a possible association with the use of granulocyte colony-stimulating factor, and consistently predicts a poor clinical outcome in AA.^35,38,40  For other lesions, their diagnostic value for MDS/AML has not been established and their presence by itself does not support the diagnosis of MDS. Del(13q) is a recurrent chromosomal abnormality assigned to MDS-specific cytogenetic lesions in the WHO criteria, although recent studies suggest that del(13q)-positive MDS cases might be better related to AA, on the basis of their excellent response to IST.^59-61

Single nucleotide polymorphism (SNP) array–based karyotyping can complement conventional cytogenetics by enabling metaphase-independent detection of copy number abnormalities (CNAs), and despite a compromised sensitivity for lesions carried by <20% of total cells, it reveals more abnormalities than conventional karyotyping, also unmasking small cryptic lesions and copy-neutral, uniparental disomy (UPD), which otherwise escape conventional karyotyping.^62,63  Among these most frequently observed are 6pUPDs, which are recognized on visual inspection of SNP array karyotyping in ∼9% of AA cases and, with more sensitive evaluation of array signals, detected in an additional 4% of the cases.^16,18,63

Somatic mutations are more reliable and sensitive markers for detecting clonal populations than NRXI or cytogenetics. The revolutionized technologies of next-generation DNA sequencing (NGS), together with the accumulated knowledge about the major driver mutations in MDS/AML,^42,64  have prompted investigations on somatic mutations in AA in relation to clonal evolution to MDS/AML. Thus, since the first report by Lane et al,¹³  there have been several NGS-based mutation studies on AA during the past 2 years reporting varying mutation frequencies ranging from 5.3% to 72%^13-18  (Table 1). Among these studies, mutations were most comprehensively studied by Yoshizato et al, who surveyed mutations in 106 genes commonly mutated in myeloid cancers in 439 patients using targeted-capture deep sequencing.¹⁸  AML/MDS-associated mutations were identified in 157 (35.8%) patients.⁶⁵  Mutations were more frequently found in older patients and were dominated by age-dependent C to G transitions. About one-third of patients had multiple mutations. When SNP array karyotyping results were combined, clonality was demonstrated in 47% of the total cohort. The mean allelic burden of mutations was substantially smaller in AA compared with MDS: 75% of mutations had <10% of allelic burden. The majority of mutations (58/79) detected after IST were shown to be already present at the time of diagnosis, albeit at a much lower allele frequency in most cases examined. Mutations were present in multilineage compartments in 6 of 6 cases, including HSCs, common myeloid progenitors, and erythroid progenitors, as well as in a minor fraction of T cells, suggesting that the mutations occurred at a stem cell level.

Kulasekararaj et al also surveyed somatic mutations in 150 patients, first by targeted-capture sequencing of 835 candidate genes in the discovery cohort (n = 57), followed by NGS-based amplicon sequencing of detected candidates (5 genes) in an additional 93 patients.¹⁵  Excluding PIGA mutations, somatic mutations were detected in 29 of 150 (19.3%) patients. In accordance with Yoshizato et al’s report, mutations were more frequently observed in older patients and in those having longer (>6 months) disease durations. Allelic burdens were generally small, particularly in patients with shorter disease duration.

Yoshizato et al also interrogated non-MDS/AML-related mutations by whole exome sequencing (WES) in 52 patients, including 15 with no detectable mutations in targeted sequencing. Four of the 15 patients were newly found to carry 5 mutations that involved very large genes, likely representing somatic mosaicism in blood reported in ∼10% of the human population.¹⁹  No other genes than MDS/AML-related genes were recurrently mutated, suggesting that the latter genes should be the major driver targets in AA.

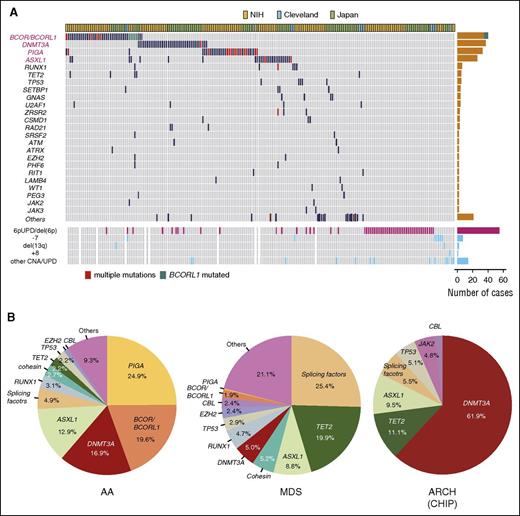

Mutations most frequently affected 5 genes, including PIGA, BCOR/BCORL1, DNMT3A, and ASXL1. Other MDS/AML-related genes were also recurrently mutated but at lower frequencies (Figure 3).^18,20,66  The highly recurrent nature of well-characterized driver mutations indicates that they were selected by a Darwinian mechanism, rather than stochastically achieving a clonal dominance merely by a rapid expansion from a small number of residual stem cells (“bottleneck”).⁹  In several patients, some of these genes, including PIGA, DNMT3A, ASXL1, BOCR, and RUNX1, harbor multiple, independent mutations, suggesting a strong selective pressure favoring evolution of cells having these mutations (Figure 3A).¹⁸

Whereas DNMT3A and ASXL1 are among common mutational targets in both AA and MDS/AML, there was a substantial overrepresentation of PIGA and BCOR/BCORL1 mutations and underrepresentation of mutations in TET2, TP53, RUNX1, cohesion, and splicing factors in AA compared with MDS/AML, most likely reflecting the difference in the mechanism of clonal selection between both diseases and/or between mutations (Figure 3B). In accordance with this, mutations exhibit different temporal behavior, age dependency, impacts on disease progression, overall survival, and response to IST. DNMT3A and ASXL1 mutations tend to increase their clone size over years, whereas BCOR/BCORL1 and PIGA mutations are likely to show a decreasing or stable clone size. Generally, frequency and the mean number of mutations increase with age, which is not the case for the latter set of mutations. As a whole, mutations do not significantly affect response to IST, progression to MDS/AML, or overall survival. However, when analyzed separately, mutations in DNMT3A, ASXL1, TP53, RUNX1, and CSMD1 (“unfavorable” mutations) are significantly associated with faster progression to MDS/AML, shorter overall survival, and poor response to IST compared with PIGA and BCOR/BCORL1 mutations (“favorable” mutations) (∼40% vs 3% of projected progression to MDS/AML and 60% vs ∼20% projected mortality for unfavorable vs favorable mutations, respectively). Kulasekararaj et al also reported a significant association of mutations with faster progression to MDS (38% for mutated vs 6% for unmutated cases, P < .01), particularly for patients with longer disease durations and larger clone size, although the small cohort size seemed to prevent the analysis of the differential effect of mutations.¹⁵

Yoshizato et al illustrated the dynamics of clonal evolution found in AA patients by combining WES and accurate determination of allelic burden of detected mutations in 28 patients at multiple time points (2-14; median, 5) along their clinical course over a median of 5 years (range, 1-12 years).¹⁸  In the majority of cases, clones kept their small clone size over years. However, in other patients who progressed to MDS/AML, the size of dominant clones invariably increased over time. Evolution of new clones was quite common, often accompanied by complete sweeping of preexisting clones. Nevertheless, an increasing clone size did not necessarily herald MDS/AML progression but was compatible with completely normal peripheral blood counts, even when patients’ hematopoiesis was mostly supported by these clones. Even in the patients who eventually developed MDS/AML, the dominance of clones having typical MDS/AML-related mutations persisted for years without the diagnosis of MDS/AML.

Notably, CH is also found in the general population. It was originally suggested by the studies on NRXI^53,54  and has recently been investigated more extensively using advanced genomics. By reanalyzing SNP array data generated for >50 000 individuals who did not carry hematologic cancer, Jacobs et al⁴³  and Laurie et al⁴⁴  demonstrated that CNAs and UPDs were observed at increasing frequencies in peripheral blood from elderly people (∼2% to 3%) compared with those from younger people (∼<0.5%) (ARCH). Some authors describe the same phenomenon under the term “CHIP” (CH with indeterminate potential), although the potential may not be totally indeterminate. The most frequent lesions include del(20q), del(11q), del(13q), and UPDs in 4q, 11q, 13q, and 14q, which are common in myeloid malignancies.^41,67-70  Importantly, ARCH is shown to be associated with a substantially high incidence of developing hematologic cancer (hazard ratio,10-35.4).^19,20,43,44

Busque et al reported TET2 mutations in PNMs (not in lymphoid cells) from 10 of 182 (5.6%) elderly women (>65 years old) with NRXI, but not in 95 younger women (<60 years old) or 105 elderly women without NRXI.⁷¹  More comprehensive surveys of leukemia/MDS-associated mutations in the general population were conducted by repurposing WES data of peripheral blood DNA from large population-based studies. Jaiswal et al focused on 160 candidate mutational targets reported in hematologic cancers and found mutations in 73 genes in 746 of 17 182 participants.²⁰  Genovese et al, by contrast, analyzed somatic mutations in 12 380 participants in an unbiased fashion, by evaluating those variants present only in a subfraction of cells. They found a total of 1918 participants having at least 1 putative somatic mutation, of which 308 individuals carrying known cancer-associated driver mutations and 195 others who had no putative drivers but had ≥3 somatic mutations were considered to have CH.¹⁹  In agreement with studies on CNAs, the frequency of CH in both studies increased with age (∼1% in those <50 years old vs ∼10% in those >65 years old) and, as with CH in AA, it was dominated by age-related C to T transitions. A similar finding was reported using whole exome data of cancer-bearing patients with no evidence of hematologic cancer.²¹  Given the limitation of WES to capture mutations with low allelic burdens, the incidence should be even higher when mutations are detected by deep sequencing.⁶⁸  Strikingly, recurrent mutations were highly biased to common driver genes implicated in myeloid malignancies and most frequently affected DNMT3A, followed by TET2, ASXL1, TP53, SF3B1, JAK2, and SRSF2, which differed substantially from the case with AA (Figure 3B); in AA, PIGA and BCOR/BCORL1 were more frequently mutated than DNMT3A and ASXL1, whereas mutations in TET2, TP53, SF3B1, JAK2, and SRSF2 were infrequent. As is the case with ARCH associated with CNAs, individuals carrying mutations have a higher risk for developing hematologic cancer (hazard ratio, 11.1-12.9) and all-cause mortality, compared to individuals without CH.^19,20

CH is highly prevalent among patients with AA (∼50%), in which 2 types of genetic alterations seem to be involved in the clonal selection, although both are not necessarily mutually exclusive (Table 2): (1) mutations and CNAs commonly seen in MDS/AML (eg, −7, DNMT3A, ASXL1, and other mutations) and (2) those highly specific to or overrepresented in AA (PIGA/BOCR/BCORL1 mutations and 6pUPD). The 2 types of alterations show different chronological behaviors, age distribution, impacts on response to IST, progression to MDS/AML, and overall survival, suggesting discrete mechanisms of clonal selection.

MDS/AML-related mutations in AA show a clear age dependency and are dominated by C to T transitions,¹⁸  as also seen in ARCH,^19,20  suggesting that these mutations could have a common origin, randomly acquired with aging (Figure 4).⁷²  Given their tight association with MDS/AML, it might be postulated that these mutations are clonally selected in AA and in the general population through a similar mechanism that would operate in the development of MDS/AML. In fact, in those AA patients who developed MDS/AML, an initial clone having 1 or more MDS/AML-related mutations gradually expanded and eventually gave rise to MDS/AML,¹⁸  although not all patients carrying those mutations progressed to MDS/AML. However, despite frequent DNMT3A and ASXL1 mutations in AA and MDS/AML, relative frequencies of other MDS/AML-related mutations differ substantially between both conditions; for example, TET2, JAK2, and splicing factors represent common targets of mutations in ARCH but are affected at lower frequencies in AA (Figure 3B). In contrast to the very high rate of progression to MDS/AML among AA patients with unfavorable mutations, the absolute risk of ARCH for MDS/AML progression still remained modest (∼0.5% to 1% per year) (Table 2).⁷³  A possible explanation would be that in AA, BM is repopulated from a small number of residual stem cells after IST, which could provide clones having a proliferative advantage with a higher chance of cell cycling to achieve clonal dominance (bottleneck effects), compared with the case of ARCH in a normally populated BM environment (Figure 4).⁹  Alternatively, the autoimmune environment can preferentially select DNMT3A and ASXL1 mutations over others.

The other set of lesions, including 6pUPD and PIGA mutations, are highly specific to AA, for which autoimmunity has been implicated in the mechanisms of clonal selection (“clonality as escape”) (Figure 4), as first proposed by Young et al.⁵  6pUPD represents the most frequent genetic lesion in AA.^18,63  All 6pUPDs critically involve the class I HLA locus proximally, leading to uniparental expression of the retained HLA class I alleles.⁶³  Significantly, most of the patients (36/40) with 6pUPD carry 1 or more of 4 HLA alleles (A*02:01, A*02:06, A*31:01, and B*40:02), which are significantly enriched in AA (and also in PNH⁷⁴ ) patients compared with the general population, and are the alleles consistently lost in UPD-positive clones.⁶³  These observations would lead to a hypothesis that unknown causative antigens are presented to cytotoxic T cells via these class I HLAs, loss of which in 6pUPD-positive HSCs enables escape from cytotoxic T cell–mediated destruction (Figure 5). A similar mechanism seems to operate in leukemic relapse after haploidentical transplantation, in which relapsed leukemic cells are thought to escape alloimmunity by losing the mismatched haploid alleles via 6pUPD.^75,76

A conspicuous correlation between AA and the PNH-type cells, together with the frequent presence of multiple PIGA-mutated clones in 10% to 30% of AA/PNH patients,^15,18,77,78  indicates a strong selective advantage of PIGA-mutated cells that would be sufficient for clonal expansion of PNH-type cells within BM in AA patients,^79,80  although there is no direct experimental evidence supporting this hypothesis. Nevertheless, this does not necessarily exclude a possible role of secondary mutations in clonal selection of PIGA-mutated cells, which has long been discussed. Variious plausible secondary driver alterations have been reported in occasional cases and implicated in the clonal outgrowth of PIGA-mutated clones, including those affecting HMGA2, NRAS, JAK2, TET2, U2AF1, and even BCR/ABL.^78,81-84  However, thus far, no consistently recurrent mutational targets have been identified, even with WES,⁷⁸  precluding the indispensable role of these secondary mutations in the development of PNH.

Currently, the underlying molecular mechanism for immune escape of PIGA-mutated cells in AA is poorly understood. A possible mechanism would include loss of expression of GPI-anchored proteins critical for immune recognitions.^79,80 PIGA-mutated clones rarely disappear but, more often, persist, even after successful IST, which is in agreement with the theory of natural selection in the population genetics; many functional variants selected against past, but not present, insults are widely observed among the human population.⁸⁵  Frequent genetic drifts displayed by PNH-type clones^18,86,87  also seem to favor the explanation.

In the light of these new findings on CH in AA, as well as in the general population, an important question would be, How could we translate them into better clinical practice and improved outcome of patients? An extremely elevated risk of MDS/AML progression and high mortality rates associated with unfavorable mutations would reasonably raise a possibility of early intervention with allogeneic stem cell transplant for AA patients with unfavorable mutations, which should be best investigated in a setting of prospective trials.⁸⁸  Also, the current WHO criteria for MDS could be extended for those patients having a set of unfavorable mutations on the basis of their impact on clinical/biological outcomes (Figure 6A), which is exactly the same way the current cytogenetic criteria have been included.

Of interest in this regard are 2 recent studies on somatic mutations among ICUS patients, because these patients also had persistent cytopenia with no definitive evidence of MDS. Kwok et al reported that a substantial fraction of ICUS patients harbored similar MDS/AML-related mutations showing comparable allelic burdens to those found in low-risk MDS.⁸⁹  Cargo et al, on the other hand, investigated prediagnostic samples from ICUS patients who eventually progressed to MDS/AML and observed a high frequency of MDS/AML-related mutations comparable to those found in MDS patients in their number and variant allele frequency.⁹⁰  These findings might also suggest a possibility that these ICUS patients with MDS/AML-related mutations (or clonal cytopenias of undetermined significance^73,89 ) could be better considered as having MDS or pre-MDS (Figure 6B). Lastly, it cannot be more underscored that regardless of the definition of MDS, careful examination of patients for hematologic status/morphology, symptoms, and clinical course, as well as detailed history taking, should constitute the indispensable basis for a pertinent utilization of these new findings for better management of AA patients and other individuals presented with unexplained cytopenia.

Recent advances in high-throughput sequencing technologies have revealed an unexpected complexity of CH in AA, which is closely related to, but in several respects distinct from, CH found in the aged normal population, in which immune-mediated BM destruction and subsequent recovery in AA seem to play a critical role. CH is common in AA, in which clones may eventually proceed to malignant transformation in some cases, but in others, may continue to support apparently normal hematopoiesis. Mutation types can predict the behavior of clones and patients’ clinical course to some extent, but is not totally predictable, suggesting a potential value of monitoring CH using NGS now widely available. Understanding of the mechanism underlying clonal selection of different mutations should help in the accurate diagnosis/prediction of malignant evolution and in better management of AA patients.

The author thanks Tetsuichi Yoshizato and Neal S. Young for helpful discussions on CH in AA.

This work was supported by Grants-in-Aid from the Ministry of Health, Labor, and Welfare of Japan (Health and Labor Sciences Research Expenses for Commission and Applied Research for Innovative Treatment of Cancer).

Contribution: S.O. conceived this review article, analyzed the literature, wrote the manuscript, and prepared the illustrations.

Conflict-of-interest disclosure: The author declares no competing financial interests.

Correspondence: Seishi Ogawa, Department of Pathology and Tumor Biology, Graduate School of Medicine, Kyoto University, Yoshida-Konoe-cho, Sakyo-ku, Kyoto 606-8501, Japan; e-mail: sogawa-tky@umin.ac.jp.
