A lineage of diploid platelet-forming cells precedes polyploid megakaryocyte formation in the mouse embryo

Identification of diploid platelet-forming cells (DPFCs) in the E10.5 YS. (A) CD45 and CD41 expression in pooled E10.5 YS. Values indicate the numbers (mean ± standard error of the mean [SEM]) of each population per embryo equivalent (n = 15). (B) Distribution of CFUs with MK potential in 1 embryo equivalent of whole or purified E9.5 and E10.5 YSs. Cells were dissociated in 10% collagenase/dispase for 45 minutes at 37°C and then dissociated mechanically. No CD45⁺CD41⁻ cells were present in E9.5 YS. Error bars represent SEM (n = 3). sp, somite pairs. (C) To distinguish embryonic from contaminating maternal platelets in preparations of embryonic peripheral blood, green fluorescent protein (GFP)–expressing male mice were mated with wild-type females, ensuring that all GFP⁺ cells were of embryonic origin. Flow cytometry plots showing the presence of GFP⁺ platelets in the PB of E9.5 (i) and E10.5 (ii) embryos. (iii) Quantification of embryonic platelets in the PB of E9.5–10.5 embryos. Error bars represent standard deviation (SD) (n = 9–21 embryos per stage). (D) (i) Representative image of E10.5 YS CD45⁺CD41^low HPCs cultured in proplatelet medium (including anti-CD41-APC) for 72 hours (n = 5). Red indicates CD41 expression. Scale bar represents 40 μm. (ii) DNA content analysis of HPC-derived CD41^highCD42D⁺ cells demonstrating a conventional MK 2–16n ploidy profile (n = 3). Following antibody staining, cells were fixed in 80% ethanol, permeabilized in TritonX-100, and stained with 4,6-diamidino-2-phenylindole (DAPI). (E) Multidimensional scaling plot of microarray data comparing transcriptional similarity of E10.5 YS CD45⁻CD41^high cells with E10.5 YS lineages (HPC = CD45⁺CD41^low; myeloid = CD45⁺CD41⁻; endothelial = VECAD⁺CD45⁻CD41⁻) and E13.5 fetal liver (FL) lineages (blast = CD45⁺CD11B⁻; myeloid = CD45⁺CD11B⁺; and MK = CD41^highCD42D⁺CD150⁺). Note that myeloid and HPC populations from the YS cluster with their FL counterparts, whereas YS CD45⁻CD41^high cells cluster most strongly with E13.5 FL MKs. (F) DNA content analysis of E10.5 YS CD45⁻CD41^high cells demonstrating that these cells are predominantly 2n in vivo (n = 3). (G) Cumulative frequency plot of in vitro proplatelet-forming capacity of 145 CD45⁻CD41^high pedigrees. Cells were cultured in serum-free medium with 100 ng/mL recombinant mouse thrombopoietin (THPO) (including anti-CD41-APC) and live-imaged at a 3- to 4-minute time resolution. Data from 3 independent experiments are shown. For each experiment, 6000 cells were plated per chamber. The number of microwells imaged was limited by the number of positions that could be imaged within a 3- to 4-minute time period. n = number of pedigrees per experiment. (H) Representative confocal z-stack of E10.5 YS CD45⁻CD41^high cells after 72 hours in serum-free medium with 100 ng/mL recombinant mouse THPO (n = 30). Cultures were fixed in 2% paraformaldehyde (PFA) for 20 minutes, permeabilized with 0.6% TritonX/10% fetal calf serum (FCS), and stained with anti-CD41 and anti-CD42D antibodies (0.3% TritonX/5% FCS); nuclei were stained with DAPI. Note that cells are generating proplatelets while in a diploid state. Scale bar represents 10 μm. (I) Scatter plot of object volumes and relative DNA content of CD41^highCD42D⁺ cells within E10.5 YSs that are in the process of platelet production in vivo. Surface objects for nuclei were generated by manually defining the area of DAPI staining within individual cells using Imaris software (Bitplane); intensity sum values representing the 4n state were generated from mitotic figures from CD41⁻CD42D⁻ cells within the z-stack. Relative DNA content was derived by dividing the intensity sum of CD41^highCD42D⁺ nuclei by that of a mitotic figure within the same z-stack. This strategy allows determination of ploidy of cells within the z-stack that are, or are not, in the process of platelet production. A value of 0.5 represents 2n, and 1.0 represents 4n. Data are derived from 10 individual z-stacks taken from 5 YSs. (J) Representative confocal z-stack of CD41^highCD42D⁺ cells within the vascular endothelial cadherin (VECAD)–expressing vasculature of the E10.5 YS in vivo. Surface objects of DNA (DAPI) content are overlaid and reflect the range of DNA content of CD41^highCD42D⁺ cells in vivo. The diploid state of a proplatelet-forming cell (blue arrowhead) is highlighted. Freshly dissected YSs were fixed in 2% PFA for 20 minutes, permeabilized with 0.6% TritonX/10% FCS for 30 minutes, and stained with anti-CD41, anti-VECAD, and anti-CD42D antibodies (0.3% TritonX/5% FCS); nuclei were stained with DAPI. Colors reflect the intensity sum of DAPI signal, ranging from the 2n (blue) to 4n (red) states. Scale bar represents 10 μm; n = 20.

Figure 1

Identification of diploid platelet-forming cells (DPFCs) in the E10.5 YS. (A) CD45 and CD41 expression in pooled E10.5 YS. Values indicate the numbers (mean ± standard error of the mean [SEM]) of each population per embryo equivalent (n = 15). (B) Distribution of CFUs with MK potential in 1 embryo equivalent of whole or purified E9.5 and E10.5 YSs. Cells were dissociated in 10% collagenase/dispase for 45 minutes at 37°C and then dissociated mechanically. No CD45⁺CD41⁻ cells were present in E9.5 YS. Error bars represent SEM (n = 3). sp, somite pairs. (C) To distinguish embryonic from contaminating maternal platelets in preparations of embryonic peripheral blood, green fluorescent protein (GFP)–expressing male mice were mated with wild-type females, ensuring that all GFP⁺ cells were of embryonic origin. Flow cytometry plots showing the presence of GFP⁺ platelets in the PB of E9.5 (i) and E10.5 (ii) embryos. (iii) Quantification of embryonic platelets in the PB of E9.5–10.5 embryos. Error bars represent standard deviation (SD) (n = 9–21 embryos per stage). (D) (i) Representative image of E10.5 YS CD45⁺CD41^low HPCs cultured in proplatelet medium (including anti-CD41-APC) for 72 hours (n = 5). Red indicates CD41 expression. Scale bar represents 40 μm. (ii) DNA content analysis of HPC-derived CD41^highCD42D⁺ cells demonstrating a conventional MK 2–16n ploidy profile (n = 3). Following antibody staining, cells were fixed in 80% ethanol, permeabilized in TritonX-100, and stained with 4,6-diamidino-2-phenylindole (DAPI). (E) Multidimensional scaling plot of microarray data comparing transcriptional similarity of E10.5 YS CD45⁻CD41^high cells with E10.5 YS lineages (HPC = CD45⁺CD41^low; myeloid = CD45⁺CD41⁻; endothelial = VECAD⁺CD45⁻CD41⁻) and E13.5 fetal liver (FL) lineages (blast = CD45⁺CD11B⁻; myeloid = CD45⁺CD11B⁺; and MK = CD41^highCD42D⁺CD150⁺). Note that myeloid and HPC populations from the YS cluster with their FL counterparts, whereas YS CD45⁻CD41^high cells cluster most strongly with E13.5 FL MKs. (F) DNA content analysis of E10.5 YS CD45⁻CD41^high cells demonstrating that these cells are predominantly 2n in vivo (n = 3). (G) Cumulative frequency plot of in vitro proplatelet-forming capacity of 145 CD45⁻CD41^high pedigrees. Cells were cultured in serum-free medium with 100 ng/mL recombinant mouse thrombopoietin (THPO) (including anti-CD41-APC) and live-imaged at a 3- to 4-minute time resolution. Data from 3 independent experiments are shown. For each experiment, 6000 cells were plated per chamber. The number of microwells imaged was limited by the number of positions that could be imaged within a 3- to 4-minute time period. n = number of pedigrees per experiment. (H) Representative confocal z-stack of E10.5 YS CD45⁻CD41^high cells after 72 hours in serum-free medium with 100 ng/mL recombinant mouse THPO (n = 30). Cultures were fixed in 2% paraformaldehyde (PFA) for 20 minutes, permeabilized with 0.6% TritonX/10% fetal calf serum (FCS), and stained with anti-CD41 and anti-CD42D antibodies (0.3% TritonX/5% FCS); nuclei were stained with DAPI. Note that cells are generating proplatelets while in a diploid state. Scale bar represents 10 μm. (I) Scatter plot of object volumes and relative DNA content of CD41^highCD42D⁺ cells within E10.5 YSs that are in the process of platelet production in vivo. Surface objects for nuclei were generated by manually defining the area of DAPI staining within individual cells using Imaris software (Bitplane); intensity sum values representing the 4n state were generated from mitotic figures from CD41⁻CD42D⁻ cells within the z-stack. Relative DNA content was derived by dividing the intensity sum of CD41^highCD42D⁺ nuclei by that of a mitotic figure within the same z-stack. This strategy allows determination of ploidy of cells within the z-stack that are, or are not, in the process of platelet production. A value of 0.5 represents 2n, and 1.0 represents 4n. Data are derived from 10 individual z-stacks taken from 5 YSs. (J) Representative confocal z-stack of CD41^highCD42D⁺ cells within the vascular endothelial cadherin (VECAD)–expressing vasculature of the E10.5 YS in vivo. Surface objects of DNA (DAPI) content are overlaid and reflect the range of DNA content of CD41^highCD42D⁺ cells in vivo. The diploid state of a proplatelet-forming cell (blue arrowhead) is highlighted. Freshly dissected YSs were fixed in 2% PFA for 20 minutes, permeabilized with 0.6% TritonX/10% FCS for 30 minutes, and stained with anti-CD41, anti-VECAD, and anti-CD42D antibodies (0.3% TritonX/5% FCS); nuclei were stained with DAPI. Colors reflect the intensity sum of DAPI signal, ranging from the 2n (blue) to 4n (red) states. Scale bar represents 10 μm; n = 20.

We found that platelets first entered the peripheral blood (PB) from E9.5, increasing rapidly in number by E10.5 (Figure 1C). It would therefore be expected that the cells responsible for platelet production are terminally differentiated by E10.5. Hallmarks of mature MKs are their highly polyploid nuclei and the ability to form proplatelets.¹³ Proplatelets can be acutely induced ex vivo from MKs within hours,¹⁴ whereas production of proplatelet-forming MKs from fetal precursors require at least 4 days.¹⁵ We found that after 72 hours in vitro HPCs generated polyploid MKs, but proplatelets were rarely formed (Figure 1D), indicating that HPCs had not differentiated into acute proplatelet-forming cells in vivo and were therefore not the source of the first platelets.

We next queried if an alternative population was responsible for platelet formation. By comparing the transcriptional profiles of E10.5 YS cells with E13.5 liver reference lineages, including MKs, we investigated if elements of an MK signature were present at E10.5. We found that a previously uncharacterized population of CD45⁻CD41^high cells was strikingly similar to E13.5 MKs (Figure 1E, supplemental Figure 2A); this population also coexpressed MK-associated proteins including MPL (Myeloproliferative leukemia virus oncogene), CD42D, and acetylcholinesterase (supplemental Figure 2B-C). Curiously, CD45⁻CD41^high cells did not exhibit the high ploidy range associated with conventional MKs or E10.5 YS HPC-derived MKs; rather, the majority were diploid (Figure 1F).

Approximately half of the low-ploidy CD45⁻CD41^high cells acutely produced proplatelets in vitro (Figure 1G). Similarly to FL MKs,¹⁶ in vitro thrombopoiesis was not THPO dependent (supplemental Figure 2D), but surprisingly, proplatelets were formed while in a diploid state (Figure 1H).

Using a refined MK immunophenotype (CD41^highCD42D⁺), we confirmed that proplatelet formation also occurred in a diploid state in vivo (Figure 1I-J). We therefore defined this lineage as DPFCs.

That HPC-derived MKs were highly polyploid yet in vivo platelet-forming cells were diploid prompted us to ask whether HPCs are the source of YS DPFCs in vivo. To address this, we investigated when DPFC commitment first occurred.

CD41^highCD42D⁺ cells were generated in vitro from E7.5 and E7.75 YSs, but acute proplatelet formation was rarely observed, and only from E7.75 (Figure 2A). By E8.5 CD41^low/−TER119⁺ primitive erythroid (EryP)¹¹ and VECAD⁺CD41^high HPC lineages can be prospectively isolated.^11,17 Accompanying these, we identified a population of VECAD⁻CD41^high cells that encompassed all CD42D⁺ cells (Figure 2B), indicating that they might include acute proplatelet-forming cells.

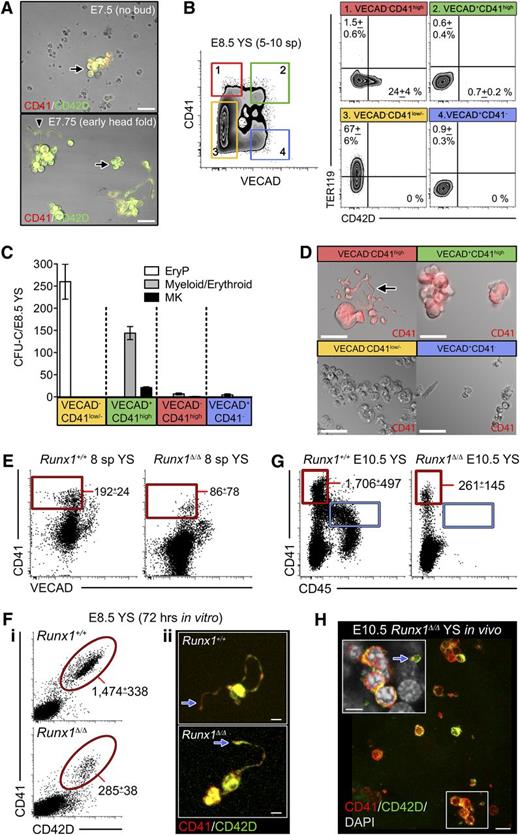

Figure 2

DPFCs emerge in parallel to the progenitor cell lineage. (A) Representative image of E7.5 and E7.75 YS cultures after 72 hours. Scale bar represents 20 μm. After dissection, YSs were incubated in 0.25% trypsin/EDTA at 37°C for 5 minutes, mechanically dissociated, and then cultured in serum-free medium with 100 ng/mL recombinant mouse THPO (anti-CD41-APC and anti-CD42D-PE antibodies were added to the culture medium). Note that CD41⁺CD42D⁺ cells (arrows) were generated from both stages, but proplatelets (arrowhead) were only from E7.75 cultures (n = 3). Scale bar represents 30 μm. (B) Plots of VECAD, CD41, CD42D, and TER119 expression in pooled E8.5 YSs (n = 3). (C) Distribution of E8.5 CFU-EryP (white), CFU-myeloid/erythroid (gray), and CFU-MK (black) in 1 embryo equivalent of sorted YS cells. Error bars indicate SEM (n = 3). EryP colonies were distinguished from erythroid burst-forming unit (BFU-E; which contain both adult-type red cells and 1 leukocyte lineage) according to morphology. (D) Representative images from cultures of purified E8.5 YS populations cultured in proplatelet medium (with anti-CD41-APC and anti-CD42D-PE) for 72 hours (n = 3). Scale bar represents 30 μm. Although VECAD⁻CD41^high cells generated CD41⁺CD42D⁺ MKs, proplatelet-forming CD41⁺CD42⁺ cells (arrow) were only observed from cultures of VECAD⁻CD41^high cells. (E) Representative plots from Runx1^+/+ (n = 5) and Runx1^Δ/Δ (n = 6) E8.5 YS cells at the 8-sp stage demonstrating that the VECAD⁻CD41^high proplatelet-forming lineage is specified in the absence of RUNX1. Values indicate the numbers of cells detected (mean ± SD). (F) E8.5 Runx1^Δ/Δ YSs were capable of forming CD41⁺CD42D⁺ cells after 72 hours in the proplatelet assay (i); these cells are capable of proplatelet formation in vitro (ii). Values represent the mean ± SEM (n = 3). Scale bar represents 30 μm. (G) Representative plot of CD45 and CD41 expression in E10.5 YS from Runx1^+/+ (n = 6) and Runx1-null (n = 8) embryos demonstrating that in the absence of RUNX1 DPFCs can develop (red gate) while HPCs are completely absent (blue gate). Values indicate the numbers of cells detected (mean ± SD). (H) Representative (n = 6) confocal z-stack of Runx1^Δ/Δ E10.5 YS showing CD41^highCD42D⁺ DPFCs and platelets (arrow) can be produced in vivo despite the complete absence of HPCs. Scale bar represents 10 μm. Inset, optical section of boxed region showing a free platelet (arrow) within the Runx1-null YS. Scale bar represents 5 μm.

Figure 2

DPFCs emerge in parallel to the progenitor cell lineage. (A) Representative image of E7.5 and E7.75 YS cultures after 72 hours. Scale bar represents 20 μm. After dissection, YSs were incubated in 0.25% trypsin/EDTA at 37°C for 5 minutes, mechanically dissociated, and then cultured in serum-free medium with 100 ng/mL recombinant mouse THPO (anti-CD41-APC and anti-CD42D-PE antibodies were added to the culture medium). Note that CD41⁺CD42D⁺ cells (arrows) were generated from both stages, but proplatelets (arrowhead) were only from E7.75 cultures (n = 3). Scale bar represents 30 μm. (B) Plots of VECAD, CD41, CD42D, and TER119 expression in pooled E8.5 YSs (n = 3). (C) Distribution of E8.5 CFU-EryP (white), CFU-myeloid/erythroid (gray), and CFU-MK (black) in 1 embryo equivalent of sorted YS cells. Error bars indicate SEM (n = 3). EryP colonies were distinguished from erythroid burst-forming unit (BFU-E; which contain both adult-type red cells and 1 leukocyte lineage) according to morphology. (D) Representative images from cultures of purified E8.5 YS populations cultured in proplatelet medium (with anti-CD41-APC and anti-CD42D-PE) for 72 hours (n = 3). Scale bar represents 30 μm. Although VECAD⁻CD41^high cells generated CD41⁺CD42D⁺ MKs, proplatelet-forming CD41⁺CD42⁺ cells (arrow) were only observed from cultures of VECAD⁻CD41^high cells. (E) Representative plots from Runx1^+/+ (n = 5) and Runx1^Δ/Δ (n = 6) E8.5 YS cells at the 8-sp stage demonstrating that the VECAD⁻CD41^high proplatelet-forming lineage is specified in the absence of RUNX1. Values indicate the numbers of cells detected (mean ± SD). (F) E8.5 Runx1^Δ/Δ YSs were capable of forming CD41⁺CD42D⁺ cells after 72 hours in the proplatelet assay (i); these cells are capable of proplatelet formation in vitro (ii). Values represent the mean ± SEM (n = 3). Scale bar represents 30 μm. (G) Representative plot of CD45 and CD41 expression in E10.5 YS from Runx1^+/+ (n = 6) and Runx1-null (n = 8) embryos demonstrating that in the absence of RUNX1 DPFCs can develop (red gate) while HPCs are completely absent (blue gate). Values indicate the numbers of cells detected (mean ± SD). (H) Representative (n = 6) confocal z-stack of Runx1^Δ/Δ E10.5 YS showing CD41^highCD42D⁺ DPFCs and platelets (arrow) can be produced in vivo despite the complete absence of HPCs. Scale bar represents 10 μm. Inset, optical section of boxed region showing a free platelet (arrow) within the Runx1-null YS. Scale bar represents 5 μm.

CFU and proplatelet assays revealed that VECAD⁺CD41^high cells contained all myeloid/erythroid and MK CFUs, but only VECAD⁻CD41^high cells were capable of acute proplatelet formation (Figure 2C-D, supplemental Figure 3). That E8.5 VECAD⁻CD41^high cells displayed little acetylcholinesterase activity (supplemental Figure 4) suggested that they are an immature DPFC precursor. Thus, as early as E8.5, acute proplatelet-forming cells exist in the YS and are immunophenotypically distinct from the HPC lineage.

Hematopoietic commitment in the YS occurs via VECAD-expressing precursors.^18,19 Consistent with this, all CD41-expressing cells in the E7.75–8.25 blood band coexpressed VECAD, but by E8.5, they had diverged into VECAD⁺ (HPC) and VECAD⁻ (pre-DPFC) counterparts (supplemental Figure 5). This suggested that HPC and DPFC lineages both progressed via VECAD-expressing precursors. We questioned whether YS DPFCs arise in parallel to, but independently of, HPCs.

Determining whether a lineage is HPC derived in the YS has been problematic. The best attempts have used c-Myb^−/− mice.^3,20 However, multiple classes of HPCs are produced in c-Myb^−/− embryos; among these are erythroid, macrophage, and MK CFUs.^3,21 We reasoned that a more stringent approach would be the use of Runx1-null embryos. Without RUNX1, HPC formation is completely blocked^22,23; yet hematopoietic specification from the mesoderm is permitted, as evidenced by EryP formation.²⁴ Thus, studying the Runx1-null YS should allow us to test if HPCs give rise to DPFCs.

Using 2 independent Runx1-null lines^6,7 (both carrying the null allele through the germ line), we found that the E8.5 Runx1-null YSs contained VECAD⁻CD41^high pre-DPFCs and were capable of generating CD41⁺CD42D⁺ cells in vitro (Figure 2E-F). Analysis of E10.5 Runx1-null YS confirmed that despite the absence of HPCs, platelet-producing DPFCs were formed in vivo (Figure 2G-H). Although Runx1-null DPFC numbers were lower both in vitro and in vivo, which is likely a result of RUNX1 being an essential factor for megakaryopoiesis,²⁵ these proof-of-concept experiments demonstrated that developmental specification of the DPFC lineage was not HPC dependent.

In summary, we have shown that polyploid MKs generated from YS cultures,² which resemble MKs of fetal life, are the product of HPC differentiation. These do not represent the first in vivo platelet-forming cells of the embryo. Platelet formation in the YS is initiated by a previously unrecognized cell that we have termed DPFC, which likely develops via the primitive hematopoietic pathway.^2,4 A key challenge will now be to experimentally define when HPC-derived conventional MKs supersede DPFCs to become the source of platelets during fetal life.

The online version of this article contains a data supplement.

There is an Inside Blood Commentary on this article in this issue.

The publication costs of this article were defrayed in part by page charge payment. Therefore, and solely to indicate this fact, this article is hereby marked “advertisement” in accordance with 18 USC section 1734.

Acknowledgments

The authors thank Dr Julie Sheridan for critical discussions.

This work was supported by the Australian Research Council (Special Research Initiative in Stem Cell Sciences, Discovery Early Career Researcher Award Fellowship [S.T.], Strategic Australian Postgraduate Award Studentship [K.S.P.]), Program Grant (1016647), Fellowships (W.S.A., G.K.S., and D.J.H.), and Independent Research Institutes Infrastructure Support Scheme Grant (361646) from the National Health and Medical Research Council, and Victorian State Government Operational Infrastructure Support.

Authorship

Contribution: K.S.P., S.T., W.S.A., and D.J.H. designed the research, analyzed data, and wrote the manuscript; J.F.M., C.B., E.C.J., L.W.W., K.L.R., A.L., B.T.K., and A.M. designed the research; and T.J.S., W.S., and G.K.S. analyzed data.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Samir Taoudi, The Walter and Eliza Hall Institute of Medical Research, 1G Royal Parade, Melbourne, VIC 3052, Australia; e-mail: taoudi@wehi.edu.au.

References

1

Medvinsky

A

,

Rybtsov

S

,

Taoudi

S

.

Embryonic origin of the adult hematopoietic system: advances and questions.

,

Development

,

2011

, vol.

138

6

(pg.

1017

-

1031

)

2

Xu

M

,

Matsuoka

S

,

Yang

FC

, et al.

Evidence for the presence of murine primitive megakaryocytopoiesis in the early yolk sac.

,

Blood

,

2001

, vol.

97

7

(pg.

2016

-

2022

)

3

Tober

J

,

McGrath

KE

,

Palis

J

.

Primitive erythropoiesis and megakaryopoiesis in the yolk sac are independent of c-myb.

,

Blood

,

2008

, vol.

111

5

(pg.

2636

-

2639

)

4

Tober

J

,

Koniski

A

,

McGrath

KE

, et al.

The megakaryocyte lineage originates from hemangioblast precursors and is an integral component both of primitive and of definitive hematopoiesis.

,

Blood

,

2007

, vol.

109

4

(pg.

1433

-

1441

)

5

Schaefer

BC

,

Schaefer

ML

,

Kappler

JW

,

Marrack

P

,

Kedl

RM

.

Observation of antigen-dependent CD8+ T-cell/ dendritic cell interactions in vivo.

,

Cell Immunol

,

2001

, vol.

214

2

(pg.

110

-

122

)

6

Liakhovitskaia

A

,

Gribi

R

,

Stamateris

E

, et al.

Restoration of Runx1 expression in the Tie2 cell compartment rescues definitive hematopoietic stem cells and extends life of Runx1 knockout animals until birth.

,

Stem Cells

,

2009

, vol.

27

7

(pg.

1616

-

1624

)

7

Putz

G

,

Rosner

A

,

Nuesslein

I

,

Schmitz

N

,

Buchholz

F

.

AML1 deletion in adult mice causes splenomegaly and lymphomas.

,

Oncogene

,

2006

, vol.

25

6

(pg.

929

-

939

)

8

Palis

J

,

Koniski

A

.

Analysis of hematopoietic progenitors in the mouse embryo.

,

Methods Mol Med

,

2005

, vol.

105

(pg.

289

-

302

)

9

Norol

F

,

Vitrat

N

,

Cramer

E

, et al.

Effects of cytokines on platelet production from blood and marrow CD34+ cells.

,

Blood

,

1998

, vol.

91

3

(pg.

830

-

843

)

10

Duffy

KR

,

Wellard

CJ

,

Markham

JF

, et al.

Activation-induced B cell fates are selected by intracellular stochastic competition.

,

Science

,

2012

, vol.

335

6066

(pg.

338

-

341

)

11

Ferkowicz

MJ

,

Starr

M

,

Xie

X

, et al.

CD41 expression defines the onset of primitive and definitive hematopoiesis in the murine embryo.

,

Development

,

2003

, vol.

130

18

(pg.

4393

-

4403

)

12

Mikkola

HK

,

Fujiwara

Y

,

Schlaeger

TM

,

Traver

D

,

Orkin

SH

.

Expression of CD41 marks the initiation of definitive hematopoiesis in the mouse embryo.

,

Blood

,

2003

, vol.

101

2

(pg.

508

-

516

)

13

Machlus

KR

,

Italiano

JE

.

The incredible journey: from megakaryocyte development to platelet formation.

,

J Cell Biol

,

2013

, vol.

201

6

(pg.

785

-

796

)

14

Larson

MK

,

Watson

SP

.

Regulation of proplatelet formation and platelet release by integrin alpha IIb beta3.

,

Blood

,

2006

, vol.

108

5

(pg.

1509

-

1514

)

15

Thon

JN

,

Devine

MT

,

Jurak Begonja

A

,

Tibbitts

J

,

Italiano

JE

.

High-content live-cell imaging assay used to establish mechanism of trastuzumab emtansine (T-DM1)—mediated inhibition of platelet production.

,

Blood

,

2012

, vol.

120

10

(pg.

1975

-

1984

)

16

Serrano

N

,

Cortegano

I

,

Ruiz

C

, et al.

Megakaryocytes promote hepatoepithelial liver cell development in E11.5 mouse embryos by cell-to-cell contact and by vascular endothelial growth factor A signaling.

,

Hepatology

,

2012

, vol.

56

5

(pg.

1934

-

1945

)

17

Nishikawa

SI

,

Nishikawa

S

,

Kawamoto

H

, et al.

In vitro generation of lymphohematopoietic cells from endothelial cells purified from murine embryos.

,

Immunity

,

1998

, vol.

8

6

(pg.

761

-

769

)

18

Ema

M

,

Yokomizo

T

,

Wakamatsu

A

,

Terunuma

T

,

Yamamoto

M

,

Takahashi

S

.

Primitive erythropoiesis from mesodermal precursors expressing VE-cadherin, PECAM-1, Tie2, endoglin, and CD34 in the mouse embryo.

,

Blood

,

2006

, vol.

108

13

(pg.

4018

-

4024

)

19

Eilken

HM

,

Nishikawa

S

,

Schroeder

T

.

Continuous single-cell imaging of blood generation from haemogenic endothelium.

,

Nature

,

2009

, vol.

457

7231

(pg.

896

-

900

)

20

Schulz

C

,

Gomez Perdiguero

E

,

Chorro

L

, et al.

A lineage of myeloid cells independent of Myb and hematopoietic stem cells.

,

Science

,

2012

, vol.

336

6077

(pg.

86

-

90

)

21

Sumner

R

,

Crawford

A

,

Mucenski

M

,

Frampton

J

.

Initiation of adult myelopoiesis can occur in the absence of c-Myb whereas subsequent development is strictly dependent on the transcription factor.

,

Oncogene

,

2000

, vol.

19

30

(pg.

3335

-

3342

)

22

North

TE

,

de Bruijn

MF

,

Stacy

T

, et al.

Runx1 expression marks long-term repopulating hematopoietic stem cells in the midgestation mouse embryo.

,

Immunity

,

2002

, vol.

16

5

(pg.

661

-

672

)

23

Wang

Q

,

Stacy

T

,

Binder

M

,

Marin-Padilla

M

,

Sharpe

AH

,

Speck

NA

.

Disruption of the Cbfa2 gene causes necrosis and hemorrhaging in the central nervous system and blocks definitive hematopoiesis.

,

Proc Natl Acad Sci USA

,

1996

, vol.

93

8

(pg.

3444

-

3449

)

24

Yokomizo

T

,

Hasegawa

K

,

Ishitobi

H

, et al.

Runx1 is involved in primitive erythropoiesis in the mouse.

,

Blood

,

2008

, vol.

111

8

(pg.

4075

-

4080

)

25

Ichikawa

M

,

Asai

T

,

Saito

T

, et al.

AML-1 is required for megakaryocytic maturation and lymphocytic differentiation, but not for maintenance of hematopoietic stem cells in adult hematopoiesis.

,

Nat Med

,

2004

, vol.

10

3

(pg.

299

-

304

)
