Development of IL-22–producing NK lineage cells from umbilical cord blood hematopoietic stem cells in the absence of secondary lymphoid tissue

Recent studies have identified human NK lineage cells, including lymphoid tissue inducer–like (LTi-like) cells,^1,2  stage III NK progenitors,³  and/or NK22 cells⁴  that reside in secondary lymphoid tissue (SLT) and produce interleukin-22 (IL-22). Although these cells differ by tissue location (tonsil, lymph node, and Peyer patches) and age of donor (fetal and adult tissues), they have many unifying features, including the expression of Th17/Th22-associated transcription factors (ie, ROR-γτ and aryl hydrocarbon receptor [AHR])^2,4  and surface phenotype characteristic of developing NK cells, including CD117, CD127, NKp44, and CCR6 and the lack of granzyme, perforin, and killer immunoglobulin receptors.^3-5  IL-22–producing NK lineage cells are functionally characterized by low/absent cytotoxicity and the induction of adhesion molecules on mesenchymal stem cells (MSCs).^3-5

The study of human IL-22–producing NK lineage cells is limited by their location in SLT. Accordingly, investigators use small quantities of material obtained from either fetal tissue or surgical specimens, potentially in the setting of pathology. To date, no reports have investigated the development of these cells from hematopoietic stem cells (HSCs). In prior studies, we cultured umbilical cord blood (UCB) CD34⁺ HSCs on murine fetal liver cells to characterize human NK development.^6-10  This approach yields NK intermediates with phenotypic and functional features similar to those in SLT.^5,11  Because this system closely recapitulates ontogeny, we hypothesized that NK22 cells could be obtained from HSCs.

Briefly, the murine embryonic liver cell line EL08.1D2 was cultured as previously described.⁶  Purified UCB CD34⁺ HSCs were cultured on irradiated EL08.1D2 (3000 cGy) in the presence of IL-3 (first week), Fms-like tyrosine kinase 3 ligand, stem cell factor, IL-7, and IL-15 as previously described.⁶

At specified times, cells were stained with antibodies and subjected to fluorescence-activated cell sorter (FACS). Antibodies included: CD54, CD56, CD117, CD94, CCR6, CD161, interferon-γ (IFN-γ, BD Biosciences), and IL-1βR (R&D Systems), NKp30 NKp44, and NKp46 (Beckman Coulter), AHR (Santa Cruz Biotechnology), and ROR-c, CD127, and IL-22 (eBioscience). Intracellular staining was performed using cytofix/cytoperm (BD Biosciences). Data were analyzed using FlowJo software Version 7.6.3.

Total RNA was isolated from specified populations and reverse-transcribed using standard techniques. Polymerase chain reaction (PCR) was performed using primers for IL-22: forward, CCCATCAGCTCCCACTGC; reverse, GGCACCACCTCCTGCATATA; and GAPDH: forward, GTCGGAGTCAACGGATT; reverse, AAGCTTCCCGTTCTCAG. AHR and ROR-γt expression by quantitative reverse-transcribed PCR was with primer/probe mix Hs00169233_m1, targeting NM_001621.4 and with specific primers (forward, 5′-AGG-CGC-TGC-TGA-GAG-G-3′; reverse, 5′-CCT-TGG-CTC-CCT-GTC-CTT-3′; and TaqMan probe, 5′-CCT-CGC-CCC-GCC-TCT-3′), respectively. The latter primers were designed based on NM_001001523.1. Analysis was with the ΔΔC_t method, normalized to 18s RNA.

IL-22 was detected by enzyme-linked immunosorbent assay using DuoSet ELISA kits (R&D Systems). In some experiments, recombinant human IL-1β and IL-23 or IL-12 and IL-18 (R&D Systems) was added.

After University of Minnesota Institutional Review Board–approved informed consent for research use, in accordance with the Declaration of Helsinki, tonsils were obtained from the tissue procurement facility (University of Minnesota). Single-cell suspensions were prepared from fresh tonsils as described.¹²

Supernatant from specified NK populations was cocultured with MSCs for 48 hours, and MSCs were subjected to FACS expression.

Recently, LTi cells have been isolated from human fetal tissues.^1,2  These cells lack CD56, produce IL-22, and acquire CD56 on culture with IL-15.²  Alternatively, CD56⁺NKp44⁺ cells that produce IL-22 have been isolated from human gastrointestinal lymphoid tissue.⁴  Still others have identified IL-22–producing stage III NK progenitors that are CD56^+/−CD117⁺CD94⁻.³  We investigated whether IL-22–producing NK cells could be derived from CD34⁺ UCB HSCs. As shown in Figure 1A, after 21 days of culture, both CD56⁻ and CD56⁺ cells are present. Based on CD56, 2 populations were purified and assayed for IL-22 transcripts. Neither constitutively produced IL-22. After IL-1β/IL-23 stimulation, only CD56⁺ cells produced IL-22 mRNA (Figure 1B) and protein (Figure 1C). Prior studies showed that stage III NK cells (lin⁻CD56^+/−CD117^highCD94⁻) isolated from tonsils produce IL-22, whereas stage IV cells (CD56^+/−CD117^lowCD94⁺) do not.³  Using this in vitro NK-cell developmental system, we previously characterized similar HSC-derived NK populations (Figure 1D).⁶  To test for IL-22 production, these populations were FACS purified. After stimulation, IL-22 mRNA and protein were only detected in the stage III, CD56⁺CD117^highCD94⁻ cells (Figure 1E-F).

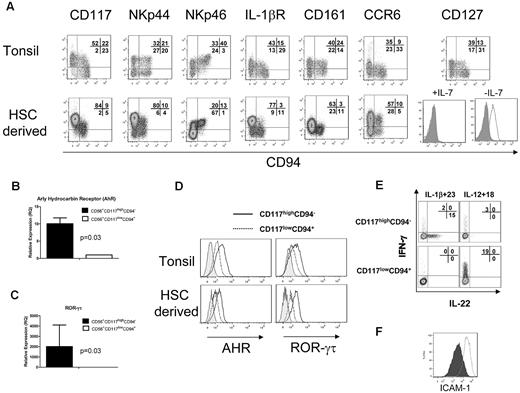

HSC-derived NK cells were compared with the CD3⁻CD19⁻CD14⁻CD56^+/−CD117⁺ lymphoid fraction from tonsillar mononuclear cells (supplemental Figure 1, available on the Blood Web site; see the Supplemental Materials link at the top of the online article). Like tonsillar cells, the HSC-derived cells showed a high proportion of CD56^+/−CD117^highCD94⁻ cells (Figure 2A). This fraction of HSC-derived cells expressed high levels of NKp44, heterogeneous NKp46, and lacked granzyme and perforin (Figure 2A; and data not shown).⁶  Similar to freshly isolated cells, HSC-derived NK cells expressed the IL-1 receptor.^1,13  Interestingly, a minor fraction of HSC-derived stage IV cells (CD56⁺CD117^low/−CD94⁺) also expressed IL-1 receptor but did not produce IL-22 after IL-1β/IL-23 stimulation (Figure 1E-F). Like stage III NK cells in tonsils, HSC-derived NK cells expressed CD161 and the lymph node homing receptor CCR6. The IL-7 receptor (CD127) was detected in tonsils, but not in HSC-differentiated cells. Removal of IL-7 from the culture media for 1 week led to CD127 reexpression on the CD56⁺CD117^highCD94⁻ fraction of HSC-derived cells (Figure 2A), suggesting that IL-7 down-regulates CD127 or occupies the CD127 epitope binding region.

Similar to fresh tonsillar cells, HSC-derived CD56⁺CD117^highCD94⁻ cells showed expression of the transcription factors AHR and ROR-γτ by both quantitative reverse-transcribed PCR and FACS (Figure 2B-D). Intracellular IL-22 was absent from resting HSC-derived CD56⁺CD117^highCD94⁻ cells but was present in freshly isolated tonsils (Figure 1F; and data not shown). On stimulation with IL-1β/IL-23, a fraction of HSC-derived CD117^highCD94⁻ NK cells showed detectable intracellular IL-22. In contrast, IL-12/IL-18 stimulation did not induce IL-22 but did lead to IFN-γ production mainly in the CD117^lowCD94⁺ fraction (Figure 2E). There were essentially no cells that coexpressed IL-22 and INF-γ. To further characterize HSC-derived NK22 cells for LTi-like activity, supernatant from IL-1β/IL-23 activated cells was cocultured with MSCs. An increase in ICAM expression on MSCs was observed (Figure 2F). To establish the potential “yield” of HSC-derived NK22 cells from these cultures, cells with a CD56⁺CD117^highCD94⁻IL-1 receptor⁺ phenotype were defined as NK22 cells. Using this definition, we observed 1036 plus or minus 259-fold expansion from UCB CD34⁺ progenitors over 21 to 28 days of culture (n = 4 donors).

One complexity in understanding human IL-22–producing NK cells is their location within SLT. This leads to difficulty in obtaining sufficient quantities of cells for study. It has been speculated that, through IL-22 elaboration, these cells play an important role in lymph node homeostasis and maintenance of mucosal barriers.^4,14  After allogeneic hematopoietic cell transplantation, damage to SLT architecture occurs¹⁵  and is associated with delayed immune reconstitution.¹⁶  As well, gastrointestinal tract injury has been implicated in graft-versus-host disease induction through a cascade involving lipopolysaccharide translocation from the gastrointestinal tract, resulting in accessory cell activation followed by IL-1 and tumor necrosis factor production.¹⁷  In the SLT, stage III NK cells are in close proximity to dendritic cells that produce IL-1β.¹³  Here we describe a simple method leading to more than 1000 times expansion of IL-22–producing NK lineage cells from HSCs. This is the first time that cells with functional properties previously described for NK22 and IL-22–producing stage III NK cells have been differentiated from HSCs. This suggests that the NK22 cells and NK cells are tightly linked in ontogeny and that their final fate can be determined by cytokines encountered locally. Moreover, SLT is not required for their development. HSC-derived IL-22–producing NK cells will facilitate understanding of the lineage development of these cells and has the potential for translational studies, including posttransplantation adoptive transfer.
