HIV-1 infection and pathogenesis in a novel humanized mouse model

The hallmarks of AIDS are high levels of HIV-1 infection, depletion of CD4⁺ T cells, and loss of immunity. The mechanism of HIV-1 immunopathogenesis is not clear because human patients are the only hosts that support high levels of HIV-1 replication and develop AIDS. Extensive studies have been performed in primate models with either low levels of HIV-1 replication (HIV-1 in chimps) or a different virus (simian immunodeficiency virus [SIV] or simian/human immunodeficiency virus [SHIV] in monkeys).^1-3  HIV-1 fails to infect murine cells due to blocks at multiple steps of the HIV life cycle. The mouse with a reconstituted human immune system would be an ideal small animal model for studying HIV-1 infection and pathogenesis. A number of human-mouse chimeric models have been developed, but with only limited success. The severe combined immunodeficient (SCID)–hu Thy/Liv mouse has an intact human thymus organ, thus allowing investigation of HIV-1 pathogenesis in a human lymphoid organ.^4-6  However, very low levels of human T cells are detected in the peripheral lymphoid organs or blood. The hu–peripheral blood lymphocyte (PBL)–SCID mouse supports transient and selective engraftment of xeno-reactive human T cells.^7,8  Human CD34⁺ cells transplanted into SCID or nonobese diabetic (NOD)/SCID mice lead to generation of mainly human myeloid and B cells in the mouse bone marrow, but inefficient generation of human T cells.^9,10  When CD34⁺ human hematopoietic stem cells (HSCs)/hematopoietic stem progenitor cells (HSPCs) are injected directly into the liver of newborn Rag2-γC double-knockout (DKO) mice, which lack T, B, and natural killer (NK) cells, the newborn liver environment of DKO mice supports efficient engraftment and development of a functional human immune system in central and peripheral lymphoid organs.^11,12

To demonstrate that the DKO-hu HSC mouse can support efficient HIV-1 infection with relevant immunopathogenesis, we show that CCR5 and CXCR4, the HIV-1 coreceptors, are both expressed on human T cells in central and peripheral lymphoid organs. DKO-hu HSC mice allow high plasma viremia with high levels of HIV-1 infection in lymphoid organs. Both CD4⁺CD45RO⁺ and CD4⁺CD45RO⁻ T cells are productively infected in lymphoid organs. Human CD4⁺ T cells are gradually depleted by HIV-1 in a dose-dependent manner. In addition, HIV-1 infection persists in infected DKO-hu HSC mice for at least 19 weeks, with recoverable infectious HIV-1 in lymphoid tissues.

Human CD34⁺ cells were isolated from cord blood (CB) or fetal liver (FL) tissues. FL CD34⁺ (1 × 10⁶) or CB CD34⁺ (1 × 10⁵) cells were injected intrahepatically into each newborn DKO mouse previously irradiated at 400 rad.¹¹  Human leukocytes (CD45⁺) were analyzed for CD3, CD4, CD8, CD45RO, CD19, CCR5(2D7), and CXCR4(12G5) by fluorescence-activated cell sorting (FACS).¹³

At least 15 weeks after CD34 HSPC transfer, DKO-hu HSC mice with stable human leukocyte reconstitution were intravenously infected with X4/R5 dual tropic, R5-tropic, or X4-tropic HIV-1 (NL4-R3A, JRCSF, or NL4-3, respectively). Mock supernatant or heat-inactivated HIV-1 stocks were used as negative controls. Plasma viral load was monitored with the Roche Amplicor Monitor v.1.5 assay (Roche Diagnostics, Indianapolis, IN). Blood CD4⁺ T cells were measured by GUAVA Easycytes (GUAVA, Hayward, CA) and by FACS. Central and peripheral lymphoid organs were harvested to investigate HIV replication and pathogenesis in the thymus, spleen, and lymph nodes.^13-16  To detect infectious HIV-1 in lymphoid organs, splenocytes or thymocytes were cocultured with PHA-activated peripheral blood mononuclear cells (PBMCs) for 14 days.^13,17

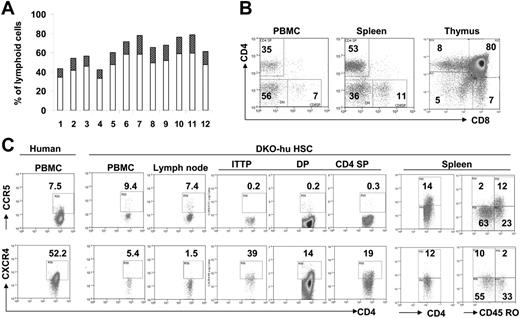

We transplanted CD34⁺ HSPCs derived from human cord blood or fetal liver into newborn DKO mice intrahepatically.¹¹  Between 8 and 33 weeks after transplantation, we analyzed human leukocytes in the peripheral blood and lymphoid organs of these DKO-hu HSC mice and found that more than 90% of the DKO mice that underwent transplantation had stable engraftment with human CD45⁺ cells (Figure 1A). CD3⁺CD4⁺ cells (10%-20% of total PBLs) were detected in mice that underwent transplantation, at 14 weeks after transplantation (Figure 1A). Long-term development of normal T-cell subsets (33 weeks after transplantation) is also observed in mice that underwent transplantation (Figure 1B), suggesting maintenance of human HSPCs in DKO-hu HSC mice as previously reported.^18,19  The HIV-1 entry coreceptors CCR5 and CXCR4 are both expressed on human CD4⁺ T cells (Figure 1C). While the levels of CCR5 expressed on human CD4 T cells derived from DKO-hu HSC mice are comparable to those from primary human tissues or cells, a reduced expression of CXCR4 is detected on human CD4 T cells from DKO-hu HSC mice.^20,21  As in human primary T cells, CD45RO⁺ T cells predominantly express CCR5, whereas CD45RO⁻ T cells efficiently express CXCR4 (Figure 1C).

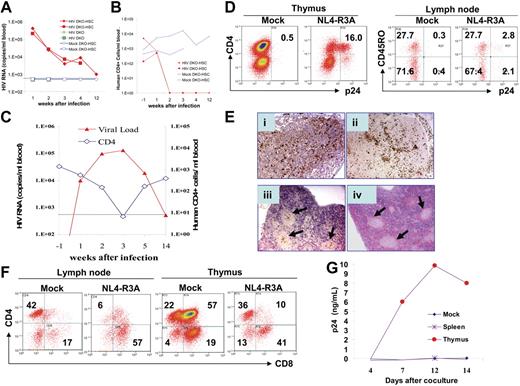

To test HIV-1 infection of DKO-hu HSC mice in vivo, we first used the NL4-R3A recombinant virus with the R5/X4 dual tropic R3A Env. R3A was transmitted in the patient (an intravenous drug user) with rapid disease progression, and infected both macrophages and T cells.²²  When inoculated with a high dose (20 000 IU/mouse) of the NL4-R3A virus, DKO-hu HSC mice showed very high plasma viral loads (200 000-400 000 copies/mL) at 1 week after infection and 10 000 copies/mL at 2 to 4 weeks after infection. Interestingly, HIV-1 plasma viremia was still detectable (947 copies/mL) with infectious HIV-1 at 12 weeks after infection (Figure 2A and data not shown). The mock-infected DKO-hu HSC mice or HIV-infected control DKO mice with no human cells showed no detectable HIV-1 genome (Figure 2A and Table 1). In the infected DKO-hu HSC mice, CD4⁺ T-cell numbers in the blood were significantly depleted at 2, 3, 4, and 12 weeks after infection (Figure 2B).

When infected with a lower dose of NL4-R3A (4000 IU or 1 ng/mouse), HIV-1 replication peaked at 2 to 3 weeks after infection, correlated with depletion of CD4⁺ T cells (Figure 2C). Viremia decreased to low or undetectable levels in the infected DKO-hu HSC mouse, correlated with an increase of CD4⁺ T cells (Figure 2C). At 19 weeks after infection with no detectable HIV-1 viremia (< 500 copies/mL), infectious HIV-1 was recovered from thymocytes, but not from splenocytes or PBMCs in the mouse (Figure 2G). In the lymphoid organs at 1 week after infection, high levels of productive infection were detected in the thymus, spleen, and LN (Figure 2D–E). Interestingly, both CD45RO+ and CD45RO⁻ T cells are infected (Figure 2D) as in HIV-infected lymphoid organs.²³  The CD4⁺ T cells are also preferentially depleted in the thymus and LN (Figure 2F and Table 1). Efficient HIV-1 infection is also detected with R5-tropic JRCSF and X4-tropic NL4-3 in DKO-hu HSC mice (Table 1).

The DKO-hu HSC mouse will serve as a relevant HIV-1 infection and pathogenesis model. First, the mouse supports efficient and stable development of human T, B, and myeloid cells in central and peripheral lymphoid organs.^11,12  Second, HIV-1 infection leads to high and persistent HIV-1 viremia in PB and in lymphoid organs (this report and a recent report²⁴ ). Third, human CD4⁺ T cells are depleted by HIV-1 in a dose- and virus-dependent fashion. However, the human antibody or T-cell response is weak in the DKO-hu HSC mouse (L.Z. and L.S., unpublished results and Baenziger et al²⁴ ). In a recent report, NOD/SCID/IL2Rγ-null mice humanized by cord blood–derived CD34⁺ cells have been shown to support HIV-1 infection with both CCR5- and CXCR4-tropic HIV-1 isolates for more than 40 days.²⁵  Anti–HIV-1 antibodies are detected only in animals with high levels of viral infection. The DKO-hu HSC mouse, and its improved derivatives, will facilitate development of novel therapeutic strategies for controlling HIV-1 diseases.
